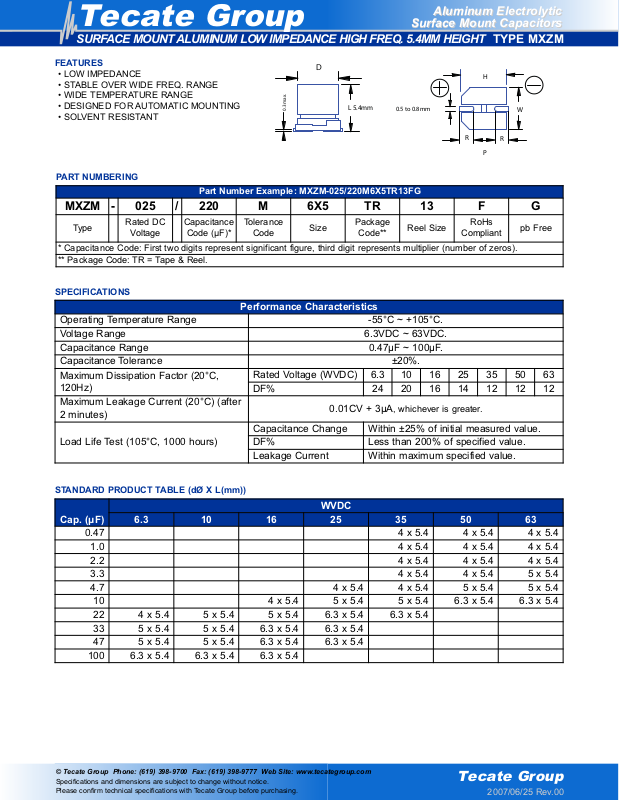

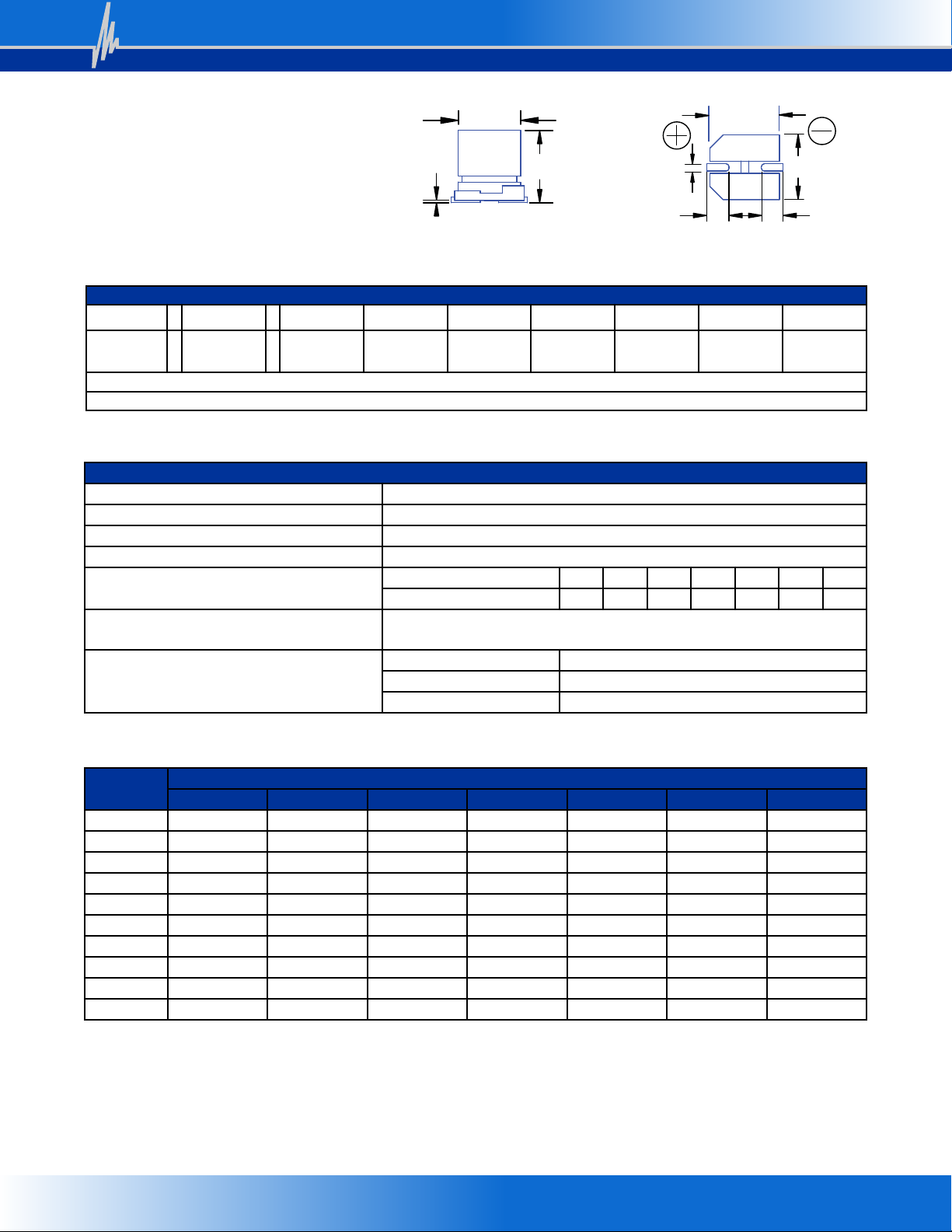

Page 1
Tecate Group
2007/06/25 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
SURFACE MOUNT ALUMINUM LOW IMPEDANCE HIGH FREQ. 5.4MM HEIGHT TYPE MXZM
Part Number Example: MXZM-025/220M6X5TR13FG
MXZM - 025 / 220 M 6X5 TR 13 F G
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
pb Free
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
FEATURES
• LOW IMPEDANCE
• STABLE OVER WIDE FREQ. RANGE
• WIDE TEMPERATURE RANGE
• DESIGNED FOR AUTOMATIC MOUNTING
• SOLVENT RESISTANT
SPECIFICATIONS
Performance Characteristics
Operating Temperature Range -55°C ~ +105°C.
Voltage Range 6.3VDC ~ 63VDC.
Capacitance Range 0.47μF ~ 100μF.
Capacitance Tolerance ±20%.
Maximum Dissipation Factor (20°C,
120Hz)
Rated Voltage (WVDC) 6.3 10 16 25 35 50 63
DF% 24 20 16 14 12 12 12
Maximum Leakage Current (20°C) (after
2 minutes)
0.01CV + 3μA, whichever is greater.
Load Life Test (105°C, 1000 hours)
Capacitance Change Within ±25% of initial measured value.
DF% Less than 200% of specified value.
Leakage Current Within maximum specified value.
STANDARD PRODUCT TABLE (dØ X L(mm))
Cap. (μF)
WVDC
6.3 10 16 25 35 50 63
0.47 4 x 5.4 4 x 5.4 4 x 5.4
1.0 4 x 5.4 4 x 5.4 4 x 5.4
2.2 4 x 5.4 4 x 5.4 4 x 5.4
3.3 4 x 5.4 4 x 5.4 5 x 5.4
4.7 4 x 5.4 4 x 5.4 5 x 5.4 5 x 5.4
10 4 x 5.4 5 x 5.4 5 x 5.4 6.3 x 5.4 6.3 x 5.4
22 4 x 5.4 5 x 5.4 5 x 5.4 6.3 x 5.4 6.3 x 5.4
33 5 x 5.4 5 x 5.4 6.3 x 5.4 6.3 x 5.4
47 5 x 5.4 5 x 5.4 6.3 x 5.4 6.3 x 5.4
100 6.3 x 5.4 6.3 x 5.4 6.3 x 5.4
0.3max.
D
L 5.4mm
0.5 to 0.8mm
H
R
R
P
W

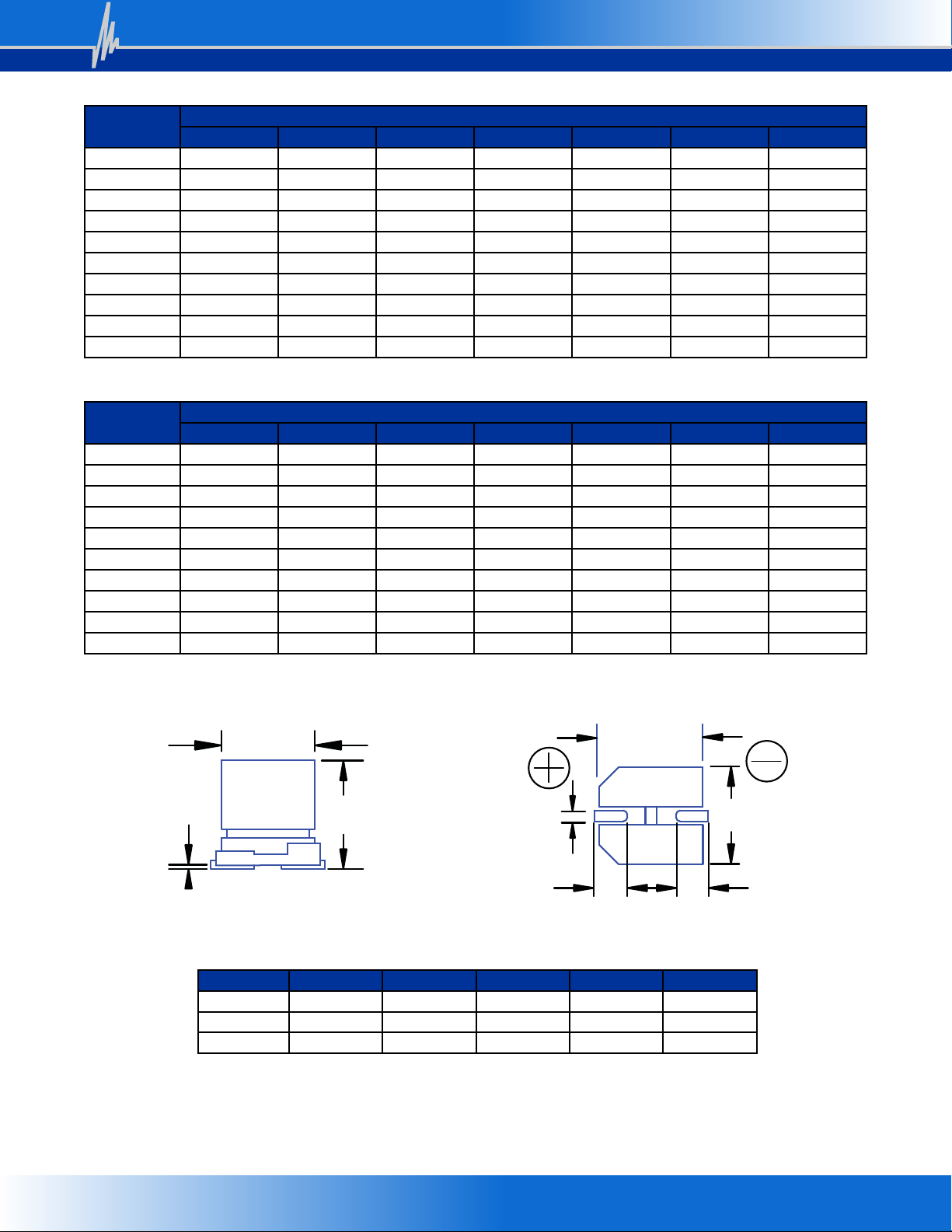

Page 2
Tecate Group
2007/06/25 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
SURFACE MOUNT ALUMINUM LOW IMPEDANCE HIGH FREQ. 5.4MM HEIGHT TYPE MXZM
MAXIMUM RIPPLE (mA rms @ 100kHz & 105°C)
Cap. (μF)
WVDC
6.3 10 16 25 35 50 63
0.47 51 30 15
1.0 68 37 20
2.2 68 45 24
3.3 68 52 40
4.7 68 68 75 40
10 68 105 105 120 65
22 68 105 105 155 155
33 105 105 155 155
47 105 155 155 155
100 155 155 155
MAXIMUM IMPEDANCE (Ω @ 100kHz & 20°C)
Cap. (μF)
WVDC
6.3 10 16 25 35 50 63
0.47 6.0 8.0 10.0
1.0 3.1 7.4 8.0
2.2 2.9 6.6 8.0
3.3 2.7 5.4 3.5
4.7 2.3 2.3 2.9 3.5
10 2.3 1.1 1.1 1.3 1.6
22 2.3 1.1 1.1 0.6 0.6
33 1.1 1.1 0.6 0.6
47 1.1 0.6 0.6 0.6
100 0.6 0.6 0.6
D +0.5 L ± 0.3 W ± 0.2 H ± 0.2 R P ± 0.2
4.0 5.4 4.3 4.3 1.45 ~ 1.85 1.0
5.0 5.4 5.3 5.3 1.75 ~ 2.15 1.4
6.3 5.4 6.6 6.6 2.35 ~ 2.75 2.2
DIMENSIONS (mm)
D
H
0.3max.
L 5.4mm
0.5 to 0.8mm
R
P
W
R
