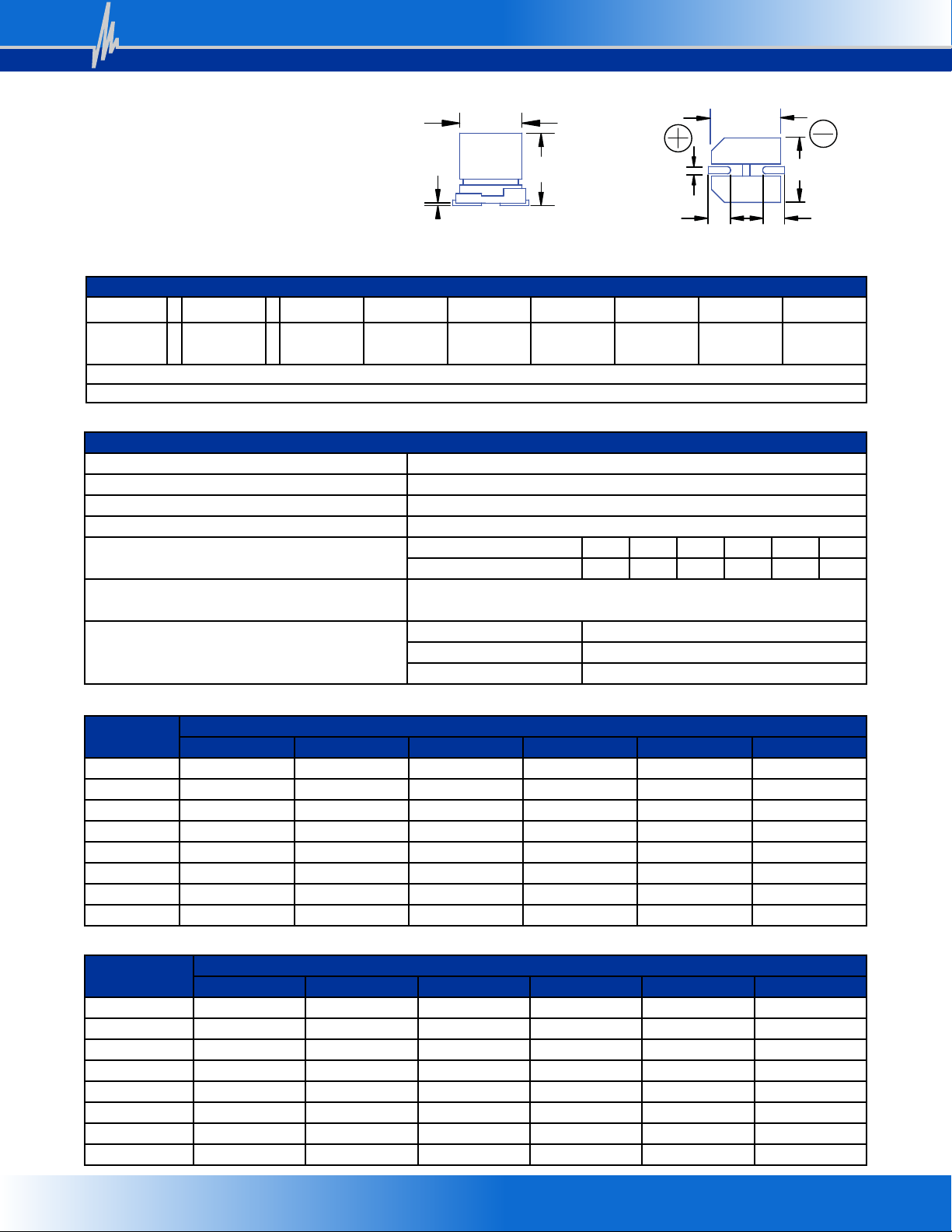

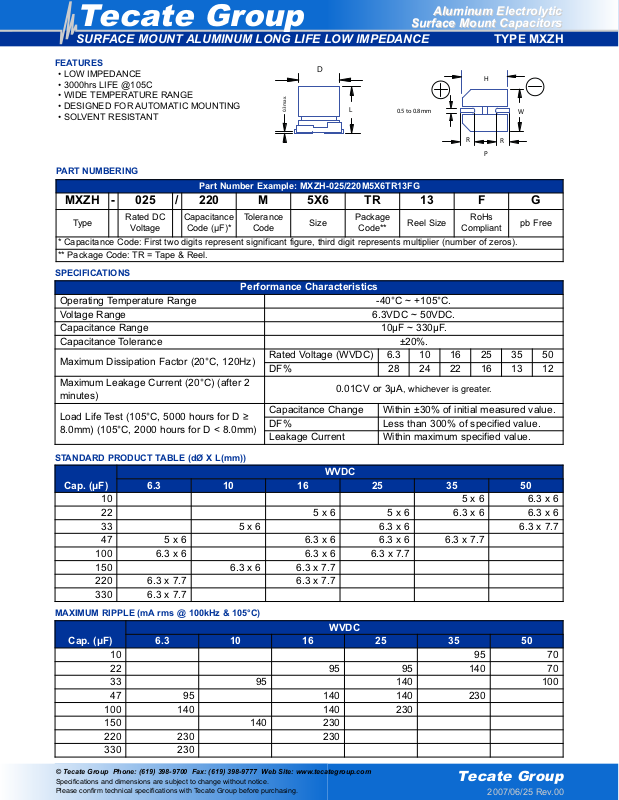

Page 1
Tecate Group
2007/06/25 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
SURFACE MOUNT ALUMINUM LONG LIFE LOW IMPEDANCE TYPE MXZH
Part Number Example: MXZH-025/220M5X6TR13FG
MXZH - 025 / 220 M 5X6 TR 13 F G
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
pb Free
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
FEATURES
• LOW IMPEDANCE
• 3000hrs LIFE @105C
• WIDE TEMPERATURE RANGE
• DESIGNED FOR AUTOMATIC MOUNTING
• SOLVENT RESISTANT
Performance Characteristics
Operating Temperature Range -40°C ~ +105°C.
Voltage Range 6.3VDC ~ 50VDC.
Capacitance Range 10μF ~ 330μF.
Capacitance Tolerance ±20%.
Maximum Dissipation Factor (20°C, 120Hz)
Rated Voltage (WVDC) 6.3 10 16 25 35 50
DF% 28 24 22 16 13 12
Maximum Leakage Current (20°C) (after 2
minutes)
0.01CV or 3μA, whichever is greater.
Load Life Test (105°C, 5000 hours for D ≥
8.0mm) (105°C, 2000 hours for D < 8.0mm)
Capacitance Change Within ±30% of initial measured value.
DF% Less than 300% of specified value.
Leakage Current Within maximum specified value.
SPECIFICATIONS
STANDARD PRODUCT TABLE (dØ X L(mm))
Cap. (μF)
WVDC
6.3 10 16 25 35 50
10 5 x 6 6.3 x 6
22 5 x 6 5 x 6 6.3 x 6 6.3 x 6
33 5 x 6 6.3 x 6 6.3 x 7.7
47 5 x 6 6.3 x 6 6.3 x 6 6.3 x 7.7
100 6.3 x 6 6.3 x 6 6.3 x 7.7
150 6.3 x 6 6.3 x 7.7
220 6.3 x 7.7 6.3 x 7.7
330 6.3 x 7.7
MAXIMUM RIPPLE (mA rms @ 100kHz & 105°C)
Cap. (μF)
WVDC
6.3 10 16 25 35 50
10 95 70
22 95 95 140 70
33 95 140 100
47 95 140 140 230
100 140 140 230
150 140 230
220 230 230
330 230
0.3max.
D
H
L
0.5 to 0.8mm
R
R
P
W
Page 2
Tecate Group
2007/06/25 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
SURFACE MOUNT ALUMINUM LONG LIFE LOW IMPEDANCE TYPE MXZH

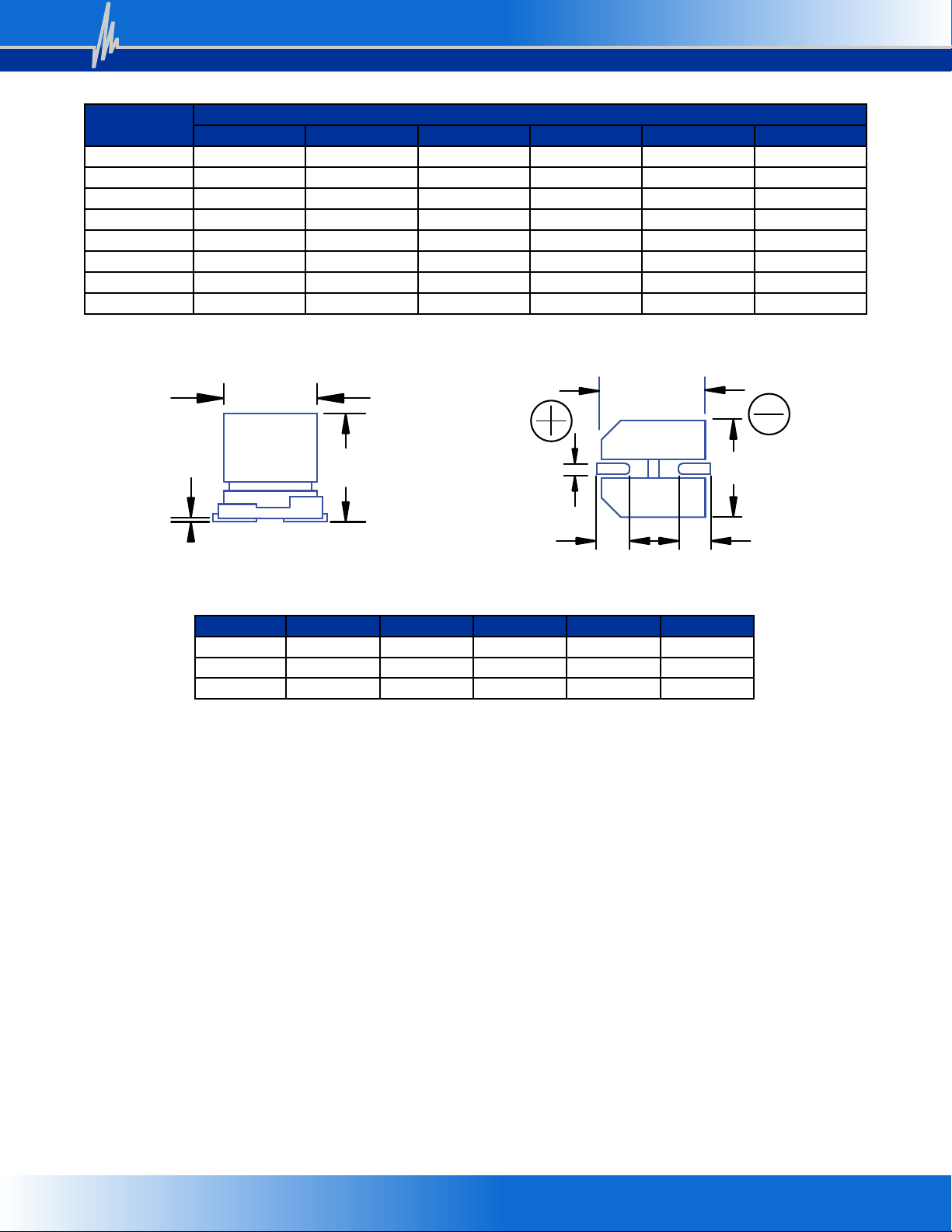

MAXIMUM IMPEDANCE (Ω @ 100kHz & 20°C)
Cap. (μF)
WVDC
6.3 10 16 25 35 50
10 1.30 2.00
22 1.30 1.30 0.70 2.00
33 1.30 0.70 1.35
47 1.30 0.70 0.70 0.60
100 0.70 0.70 0.60
150 0.70 0.60
220 0.70 0.60
330 0.60
D +0.5 L ± 0.3 W ± 0.2 H ± 0.2 R P ± 0.2
5.0 6.0 5.3 5.3 2.1 ~ 2.5 1.4
6.3 6.0 6.6 6.6 2.35 ~ 2.75 2.2
6.3 7.7 6.6 6.6 2.35 ~ 2.75 2.2
0.3max.
D
L
R
0.5 to 0.8mm
P
R
W
H
DIMENSIONS (mm)
