Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors

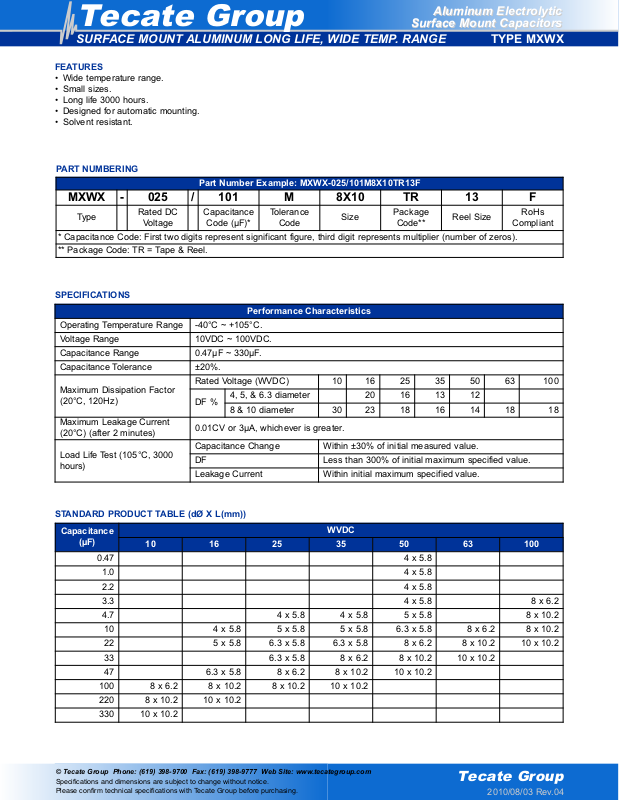

TYPE MXWXSURFACE MOUNT ALUMINUM LONG LIFE, WIDE TEMP. RANGE
FEATURES
• Wide temperature range.
• Small sizes.
• Long life 3000 hours.
• Designed for automatic mounting.
• Solvent resistant.
SPECIFICATIONS
STANDARD PRODUCT TABLE (dØ X L(mm))
Performance Characteristics
Operating Temperature Range -40°C ~ +105°C.
Voltage Range 10VDC ~ 100VDC.
Capacitance Range 0.47µF ~ 330µF.
Capacitance Tolerance ±20%.
Maximum Dissipation Factor
(20°C, 120Hz)
Rated Voltage (WVDC) 10 16 25 35 50 63 100
DF %
4, 5, & 6.3 diameter 20 16 13 12
8 & 10 diameter 30 23 18 16 14 18 18
Maximum Leakage Current
(20°C) (after 2 minutes)
0.01CV or 3µA, whichever is greater.
Load Life Test (105°C, 3000
hours)
Capacitance Change Within ±30% of initial measured value.
DF Less than 300% of initial maximum specified value.
Leakage Current Within initial maximum specified value.
Capacitance
(µF)
WVDC
10 16 25 35 50 63 100
0.47 4 x 5.8
1.0 4 x 5.8
2.2 4 x 5.8
3.3 4 x 5.8 8 x 6.2
4.7 4 x 5.8 4 x 5.8 5 x 5.8 8 x 10.2
10 4 x 5.8 5 x 5.8 5 x 5.8 6.3 x 5.8 8 x 6.2 8 x 10.2
22 5 x 5.8 6.3 x 5.8 6.3 x 5.8 8 x 6.2 8 x 10.2 10 x 10.2
33 6.3 x 5.8 8 x 6.2 8 x 10.2 10 x 10.2
47 6.3 x 5.8 8 x 6.2 8 x 10.2 10 x 10.2
100 8 x 6.2 8 x 10.2 8 x 10.2 10 x 10.2
220 8 x 10.2 10 x 10.2
330 10 x 10.2
Part Number Example: MXWX-025/101M8X10TR13F
MXWX - 025 / 101 M 8X10 TR 13 F
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
Page 2
Tecate Group
2010/08/03 Rev.04
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
TYPE MXWXSURFACE MOUNT ALUMINUM LONG LIFE, WIDE TEMP. RANGE
IMPEDANCE @100KHz / RIPPLE CURRENT, AMPS

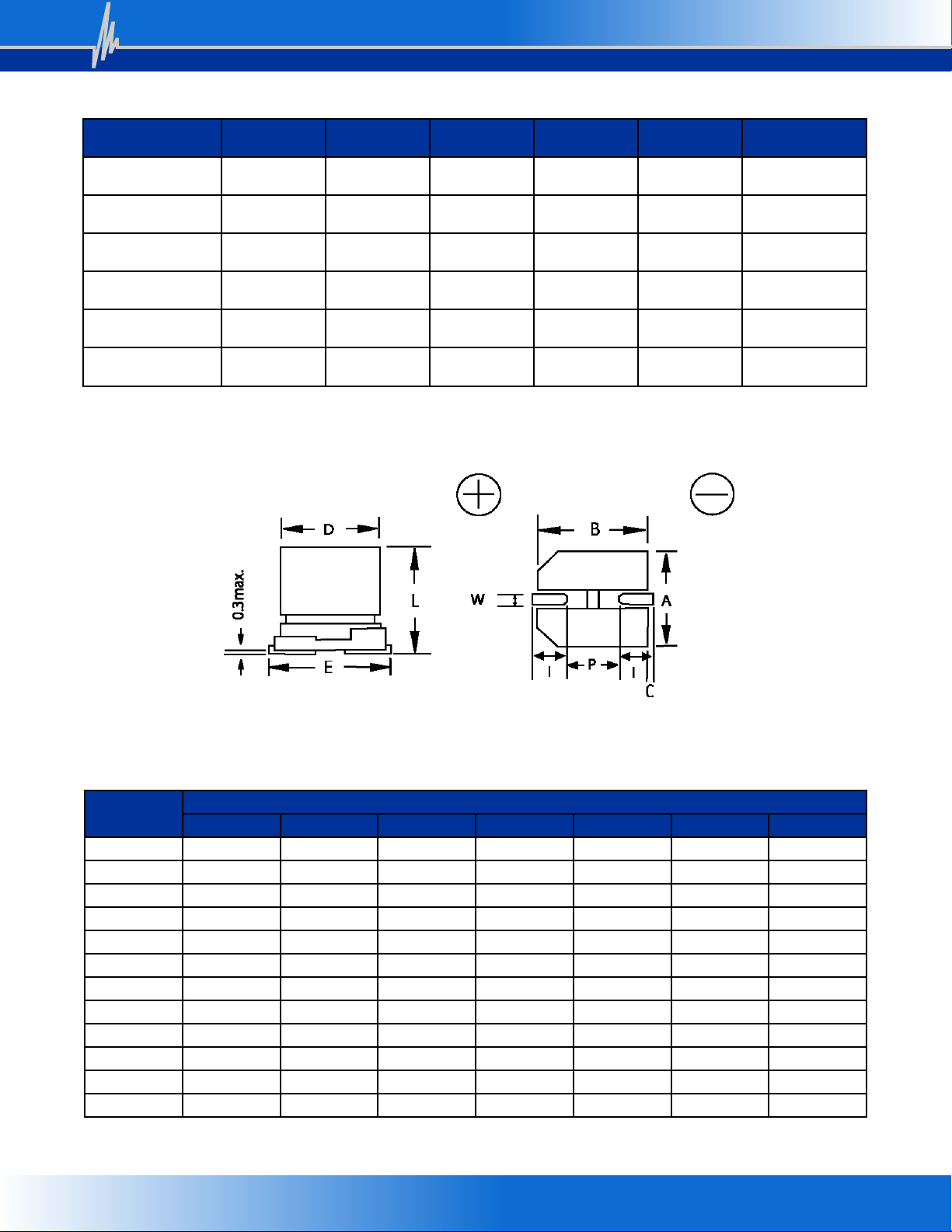

DIMMENSIONS
Capacitance
(µF)
WVDC
10 16 25 35 50 63 100
0.47 12.0 / 0.005
1.0 12.0 / 0.007
2.2 12.0 / 0.012
3.3 12.0 / 0.016 2.0 / 0.03
4.7 12 / 0.015 12.0 / 0.017 7.2 / 0.021 1.5 / 0.05
10 7.2 / 0.026 7.2 / 0.028 4.0 / 0.033 2.0 / 0.045 1.5 / 0.055
22 7.2 / 0.033 4.0 / 0.042 4.0 / 0.047 2.0 / 0.05 1.5 / 0.065 0.8 / 0.07
33 7.2 / 0.033 4.0 / 0.052 2.0 / 0.053 1.5 / 0.079 0.8 / 0.08
47 4 / 0.055 2.0 / 0.053 1.5 / 0.078 0.8 / 0.094
100 2.0 / 0.062 1.5 / 0.089 1.5 / 0.084 0.8 / 0.101
220 1.5 / 0.093 0.8 / 0.113
330 0.8 / 0.118
Size
D ±0.5 x L max
A&B ± 0.2 E Max.
I
± 0.1
P
± 0.2
W C
4 x 5.8 4.3 5.5 1.8 1.0 0.65 ± 0.1 0.35
+0.15
-0.20
5 x 5.8 5.3 6.5 2.2 1.5 0.65 ± 0.1 0.35
+0.15
-0.20
6.3 x 5.8 6.6 7.8 2.6 1.8 0.65 ± 0.1 0.35
+0.15
-0.20
8 x 6.2 8.3 9.5 3.4 2.2 0.65 ± 0.1 0.35
+0.15
-0.2 0
8 x 10.2 8.3 10 3.4 3.2 0.9 ± 0.3 0.70 ± 0.3
10 x 10.2 10.3 12 3.5 5.0 0.9 ± 0.3 0.07 ± 0.3
