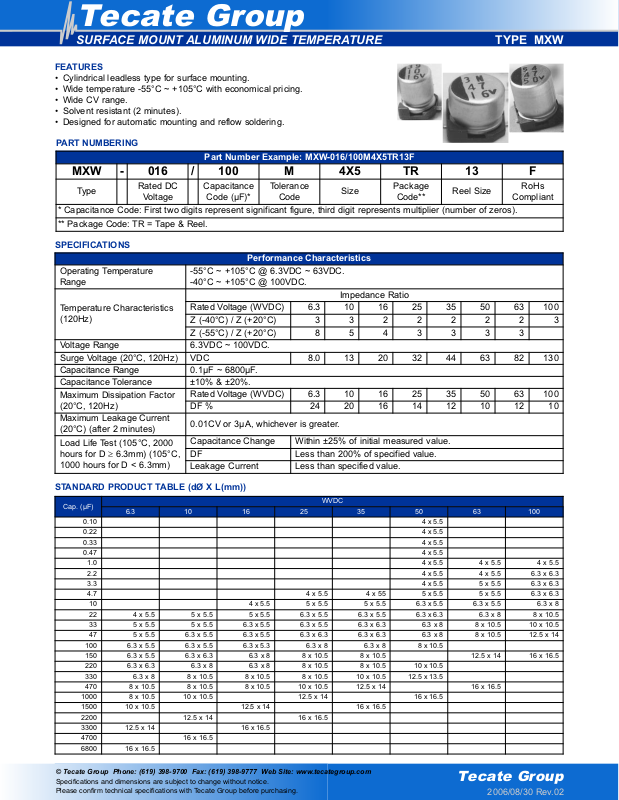

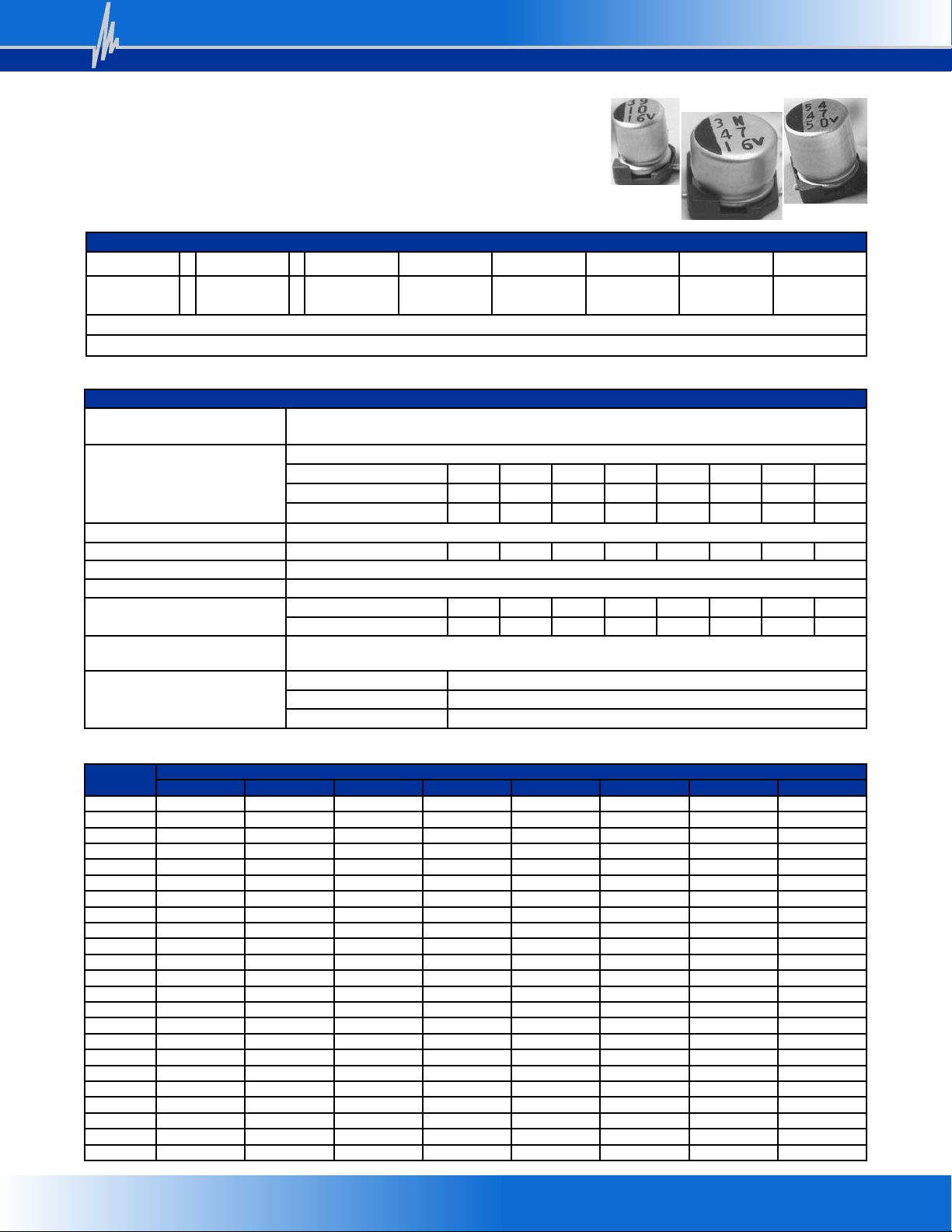

Page 1
Tecate Group
2006/08/30 Rev.02
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
STANDARD PRODUCT TABLE (dØ X L(mm))
Cap. (µF)
WVDC
6.3 10 16 25 35 50 63 100
0.10 4 x 5.5
0.22 4 x 5.5
0.33 4 x 5.5
0.47 4 x 5.5
1.0 4 x 5.5 4 x 5.5 4 x 5.5
2.2 4 x 5.5 4 x 5.5 6.3 x 6.3
3.3 4 x 5.5 5 x 5.5 6.3 x 6.3
4.7 4 x 5.5 4 x 55 5 x 5.5 5 x 5.5 6.3 x 6.3
10 4 x 5.5 5 x 5.5 5 x 5.5 6.3 x 5.5 6.3 x 5.5 6.3 x 8
22 4 x 5.5 5 x 5.5 5 x 5.5 6.3 x 5.5 6.3 x 5.5 6.3 x 6.3 6.3 x 8 8 x 10.5
33 5 x 5.5 5 x 5.5 6.3 x 5.5 6.3 x 5.5 6.3 x 6.3 6.3 x 8 8 x 10.5 10 x 10.5
47 5 x 5.5 6.3 x 5.5 6.3 x 5.5 6.3 x 6.3 6.3 x 6.3 6.3 x 8 8 x 10.5 12.5 x 14
100 6.3 x 5.5 6.3 x 5.5 6.3 x 5.3 6.3 x 8 6.3 x 8 8 x 10.5
150 6.3 x 5.5 6.3 x 6.3 6.3 x 8 8 x 10.5 8 x 10.5 12.5 x 14 16 x 16.5
220 6.3 x 6.3 6.3 x 8 6.3 x 8 8 x 10.5 8 x 10.5 10 x 10.5
330 6.3 x 8 8 x 10.5 8 x 10.5 8 x 10.5 10 x 10.5 12.5 x 13.5
470 8 x 10.5 8 x 10.5 8 x 10.5 10 x 10.5 12.5 x 14 16 x 16.5
1000 8 x 10.5 10 x 10.5 12.5 x 14 16 x 16.5
1500 10 x 10.5 12.5 x 14 16 x 16.5
2200 12.5 x 14 16 x 16.5
3300 12.5 x 14 16 x 16.5
4700 16 x 16.5
6800 16 x 16.5
SURFACE MOUNT ALUMINUM WIDE TEMPERATURE
FEATURES
• Cylindrical leadless type for surface mounting.
• Wide temperature -55°C ~ +105°C with economical pricing.
• Wide CV range.
• Solvent resistant (2 minutes).
• Designed for automatic mounting and reflow soldering.
TYPE MXW
Performance Characteristics
Operating Temperature
Range
-55°C ~ +105°C @ 6.3VDC ~ 63VDC.
-40°C ~ +105°C @ 100VDC.
Temperature Characteristics
(120Hz)
Impedance Ratio
Rated Voltage (WVDC) 6.3 10 16 25 35 50 63 100
Z (-40°C) / Z (+20°C) 3 3 2 2 2 2 2 3
Z (-55°C) / Z (+20°C) 8 5 4 3 3 3 3
Voltage Range 6.3VDC ~ 100VDC.
Surge Voltage (20°C, 120Hz) VDC 8.0 13 20 32 44 63 82 130
Capacitance Range 0.1µF ~ 6800µF.
Capacitance Tolerance ±10% & ±20%.
Maximum Dissipation Factor
(20°C, 120Hz)
Rated Voltage (WVDC) 6.3 10 16 25 35 50 63 100
DF % 24 20 16 14 12 10 12 10
Maximum Leakage Current
(20°C) (after 2 minutes)
0.01CV or 3µA, whichever is greater.
Load Life Test (105°C, 2000
hours for D ≥ 6.3mm) (105°C,
1000 hours for D < 6.3mm)
Capacitance Change Within ±25% of initial measured value.
DF Less than 200% of specified value.
Leakage Current Less than specified value.
SPECIFICATIONS
Part Number Example: MXW-016/100M4X5TR13F
MXW - 016 / 100 M 4X5 TR 13 F
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
Page 2
Tecate Group
2006/08/28 Rev.01
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
TYPE MXW

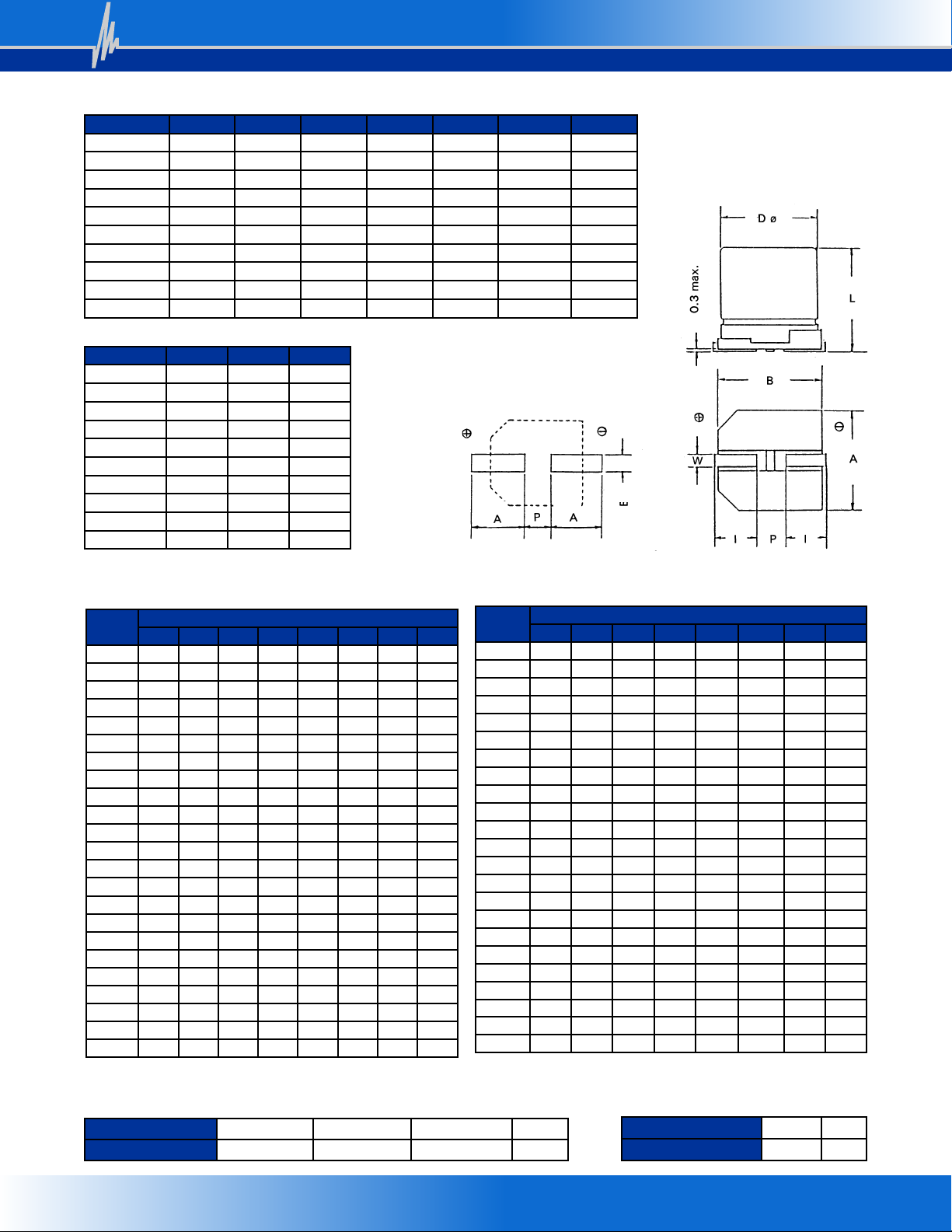

DIMENSIONS (mm)
RECOMMENDED LAND PATTERN (mm)
A
B
A
SURFACE MOUNT ALUMINUM WIDE TEMPERATURE
Case Size dØ ± 0.5 L Max. A ± 0.2 B ± 0.2 I ± 0.2 W P ± 0.2
4 x 5.5 4.0 5.5 4.3 4.3 1.8 0.5 ~ 0.8 1.0
5 x 5.5 5.0 5.5 5.3 5.3 2.1 0.5 ~ 0.8 1.4
6.3 x 5.5 6.3 5.5 6.6 6.6 2.5 0.5 ~ 0.8 2.2
6.3 x 6.3 6.3 6.3 6.6 6.6 2.5 0.5 ~ 0.8 2.2
6.3 x 8 6.3 8.0 6.6 6.6 2.5 0.5 ~ 0.8 2.2
8 x 6.3 8.0 6.3 8.3 8.3 2.9 0.7 ~ 1.0 3.2
8 x 10.5 8.0 10.8 8.3 8.3 2.9 0.7 ~ 1.0 3.2
10 x 10.5 10.0 10.8 10.3 10.3 3.2 0.7 ~ 1.0 4.6
12.5 x 14 12.5 14 12.9 12.8 4.5 0.7 ~ 1.0 4.8
16 x 16.5 16 17 16.3 16.3 5 1.8 ~ 21 7
Case Size A B P
4 x 5.5 2.5 1.6 1.0
5 x 5.5 2.7 1.6 1.4
6.3 x 5.5 3.1 1.6 2.2
6.3 x 6.3 3.1 1.6 2.2
6.3 x 8 3.1 1.6 2.2
8 x 6.2 4.15 1.9 2.8
8 x 10.8 4.15 1.9 2.8
10 x 10.8 4.3 1.9 4.3
12.5 x 14 5.6 2.1 4.3
16 x 16.5 6.6 6.5 5
MAXIMUM RIPPLE (mA rms @ 120Hz & 105°C) MAXIMUM ESR (Ω @ 120Hz & 20°C)
RIPPLE CURRENT CORRECTION FACTOR
Cap.
(µF)
WVDC
6.3 10 16 25 35 50 63 100
0.1 0.7
0.22 1.6
0.33 2.5
0.47 3.5
1.0 7.0 7 7
2.2 11 10 14
3.3 13 14 20
4.7 13 14 16 16 25
10 18 20 21 24 24 35
22 22 25 27 36 38 38 49 84
33 27 30 40 44 42 59 11 2 133
47 33 41 48 47 49 63 11 9 246
100 50 53 60 91 84 140 245
150 55 62 95 140 155 500
220 66 105 105 175 190 220
330 105 195 195 220 410
470 210 210 230 300 410 410 630
1000 280 460 655
1500 310 500 740
2200 510 805
3300 520 840
4700 880
6800 930
Cap.
(µF)
WVDC
6.3 10 16 25 35 50 63 100
0.1 1660
0.22 754
0.33 503
0.47 353
1.0 166 108 94.0
2.2 75.4 41.0 87.0
3.3 50.3 36.1 72.3
4.7 49.4 42.3 35.3 27.9 50.8
10 26.5 23.2 19.9 16.6 12.5 23.9
22 18.1 15.1 12.1 10.6 9.05 7.64 6.24 10.9
33 12.6 10.1 8.04 7.04 6.04 5.03 4.4 7.2
47 8.47 7.06 5.65 4.95 4.24 3.53 2.7 4.3
100 3.98 3.32 2.66 2.32 2.32 1.99 1.8
150 2.66 2.21 1.77 1.77 1.55 1.33 0.90
220 1.81 1.51 1.21 1.21 1.06 0.9
330 1.21 1.21 1.00 0.80 0.70 0.60
470 0.99 0.85 0.71 0.56 0.49 0.51
1000 0.46 0.40 0.26 0.24
1500 0.31 0.22 0.18
2200 0.18 0.16
3300 0.14 0.15
4700 0.14
6800 0.10
Frequency (Hz) 50µF < 100 100µF < 1K 1KµF < 10K 10KµF
Correction Factor 0.08 1.0 1.3 1.5
Temperature 40 - 85 105
Correction Factor 1.42 1.00
