Datasheet Tecate [smd] MXWRU Series Datasheet

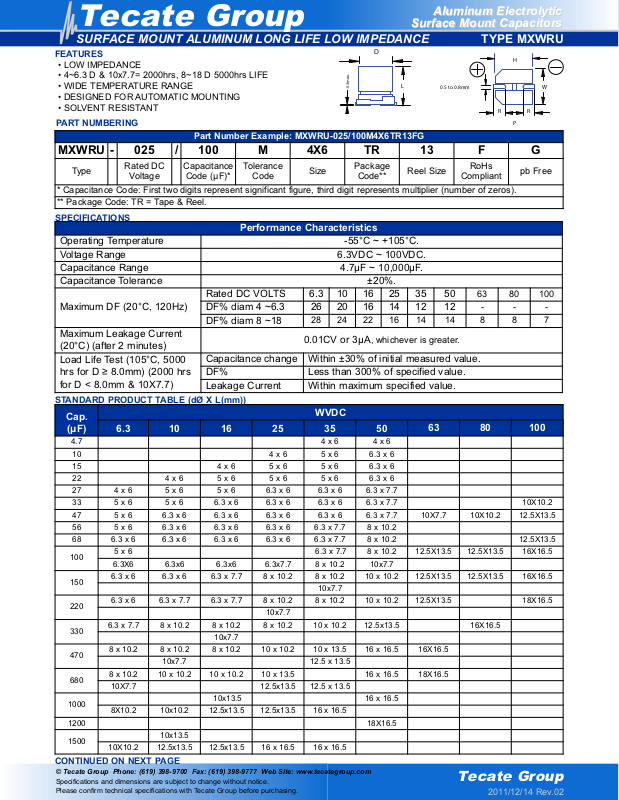

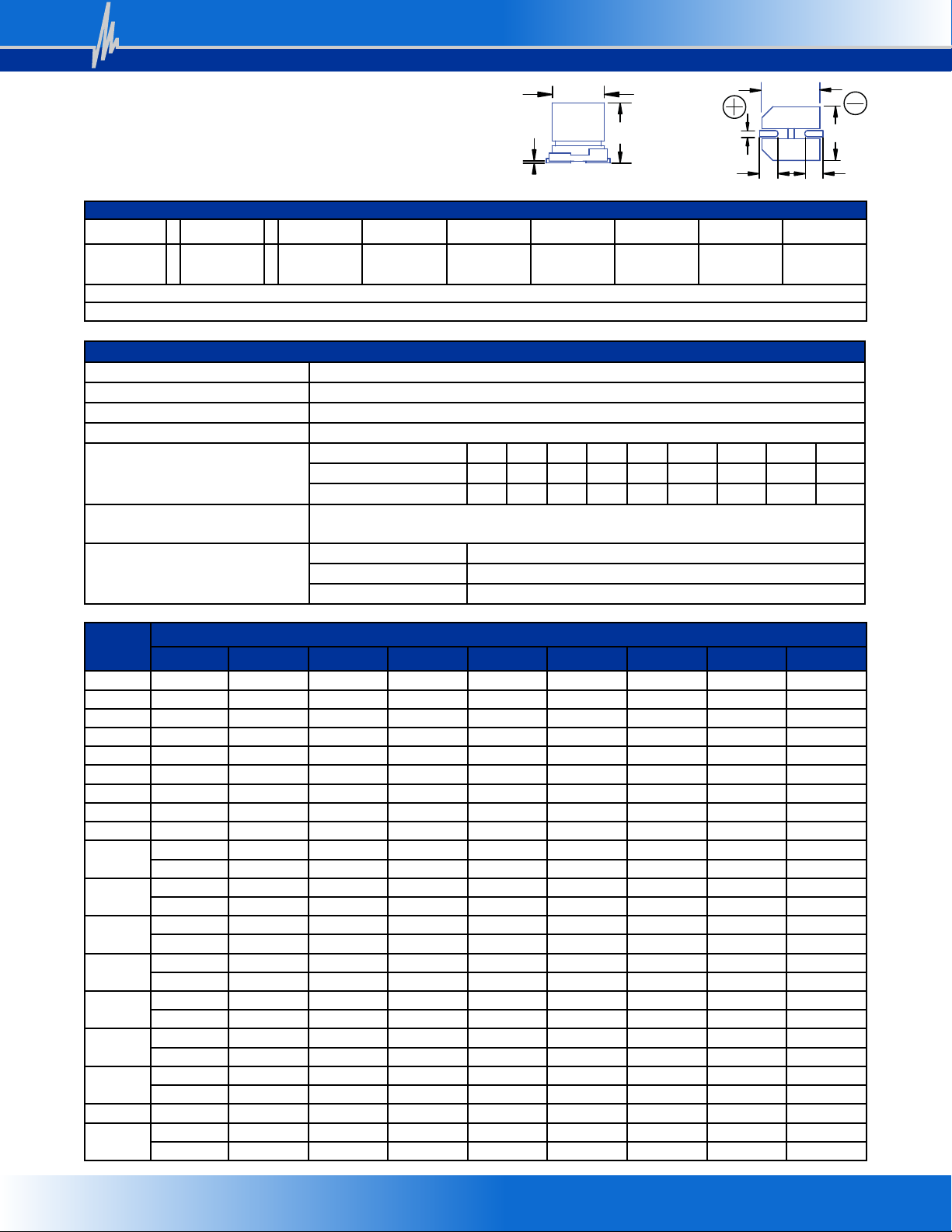

Page 1

Tecate Group

2011/12/14 Rev.02

Specifications and dimensions are subject to change without notice. Please confirm technical specifications with Tecate Group before purchasing.

Tecate Group

Aluminum Electrolytic

Surface Mount Capacitors

SURFACE MOUNT ALUMINUM LONG LIFE LOW IMPEDANCE TYPE MXWRU

Part Number Example: MXWRU-025/100M4X6TR13FG

MXWRU - 025 / 100 M 4X6 TR 13 F G

Type

Rated DC

Voltage

Capacitance

Code (µF)*

Tolerance

Code

Size

Package

Code**

Reel Size

RoHs

Compliant

pb Free

* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros). ** Package Code: TR = Tape & Reel.

PART NUMBERING

FEATURES

• LOW IMPEDANCE

• 4~6.3 D & 10x7.7= 2000hrs, 8~18 D 5000hrs LIFE

• WIDE TEMPERATURE RANGE

• DESIGNED FOR AUTOMATIC MOUNTING

• SOLVENT RESISTANT

Performance Characteristics

Operating Temperature -55°C ~ +105°C. Voltage Range 6.3VDC ~ 100VDC. Capacitance Range 4.7μF ~ 10,000μF. Capacitance Tolerance ±20%.

Maximum DF (20°C, 120Hz)

Rated DC VOLTS 6.3 10 16 25 35 50

63 80 100

DF% diam 4 ~6.3 26 20 16 14 12 12

- - -

DF% diam 8 ~18

28 24 22 16 14 14 8 8 7

Maximum Leakage Current (20°C) (after 2 minutes)

0.01CV or 3μA, whichever is greater.

Load Life Test (105°C, 5000 hrs for D ≥ 8.0mm) (2000 hrs for D < 8.0mm & 10X7.7)

Capacitance change Within ±30% of initial measured value. DF% Less than 300% of specified value. Leakage Current Within maximum specified value.

Cap.

(μF)

WVDC

6.3 10 16 25 35 50

63 80 100

4.7 4 x 6 4 x 6

10 4 x 6 5 x 6 6.3 x 6

15 4 x 6 5 x 6 5 x 6 6.3 x 6

22 4 x 6 5 x 6 5 x 6 5 x 6 6.3 x 6

27 4 x 6 5 x 6 5 x 6 6.3 x 6 6.3 x 6 6.3 x 7.7

33 5 x 6 5 x 6 6.3 x 6 6.3 x 6 6.3 x 6 6.3 x 7.7 10X10.2

47 5 x 6 6.3 x 6 6.3 x 6 6.3 x 6 6.3 x 6 6.3 x 7.7 10X7.7 10X10.2 12.5X13.5

56 5 x 6 6.3 x 6 6.3 x 6 6.3 x 6 6.3 x 7.7 8 x 10.2

68 6.3 x 6 6.3 x 6 6.3 x 6 6.3 x 6 6.3 x 7.7 8 x 10.2 12.5X13.5

100

5 x 6 6.3 x 7.7 8 x 10.2 12.5X13.5 12.5X13.5 16X16.5

6.3X6 6.3x6 6.3x6 6.3x7.7 8 x 10.2 10x7.7

150

6.3 x 6 6.3 x 6 6.3 x 7.7 8 x 10.2 8 x 10.2 10 x 10.2 12.5X13.5 12.5X13.5 16X16.5

10x7.7

220

6.3 x 6 6.3 x 7.7 6.3 x 7.7 8 x 10.2 8 x 10.2 10 x 10.2 12.5X13.5 18X16.5

10x7.7

330

6.3 x 7.7 8 x 10.2 8 x 10.2 8 x 10.2 10 x 10.2 12.5x13.5 16X16.5

10x7.7

470

8 x 10.2 8 x 10.2 8 x 10.2 10 x 10.2 10 x 13.5 16 x 16.5 16X16.5

10x7.7 12.5 x 13.5

680

8 x 10.2 10 x 10.2 10 x 10.2 10 x 13.5 16 x 16.5 18X16.5

10X7.7 12.5x13.5 12.5 x 13.5

1000

10x13.5 16 x 16.5

8X10.2 10x10.2 12.5x13.5 12.5x13.5 16 x 16.5

1200 18X16.5

1500

10x13.5

10X10.2 12.5x13.5 12.5x13.5 16 x 16.5 16 x 16.5

SPECIFICATIONS

STANDARD PRODUCT TABLE (dØ X L(mm))

CONTINUED ON NEXT PAGE

0.3max.

0.5 to 0.8mm

Page 2

Tecate Group

2011/12/14 Rev.02

Specifications and dimensions are subject to change without notice. Please confirm technical specifications with Tecate Group before purchasing.

Tecate Group

Aluminum Electrolytic

Surface Mount Capacitors

SURFACE MOUNT ALUMINUM LONG LIFE LOW IMPEDANCE TYPE MXWRU

Cap.

(μF)

WVDC

6.3 10 16 25 35 50

63 80 100

4.7 90 / 1.45 60 / 2.9

10 90 / 1.45 170 / .7 165 / .88

15 90 / 1.45 170 / .7 170 / .7

22 90 / 1.45 170 / .7 170 / .7 170 / .7 165 / .88

27 90 / 1.45 170 / .7 170 / .7 250 / .39 250 / .39 195 / .68

33 170 / .7 170 / .7 250 / .39 250 / .39 250 / .39 195 / .68 200 / .65

47 170 / .7 250 / .39 250 / .39 250 / .39 250 / .39 195 / .68 200 / .70 200 / .65 500 / .32

56 170 / .7 250 / .39 250 / .39 250 / .39 300 / .3 300 / .34

68 250 / .39 250 / .39 250 / .39 250 / .39 300 / .3 300 / .34 500 / .32

100

170 / .7 300 / .3 300 / .34 580 / .16 500 / .32 793 / .17

250 / .39 250 / .39 250 / .39 300 / .3 450 / .17 300 / .34

150

250 / .39 250 / .39 300 / .3 450 / .17 450 / .17 490 / .18 580 / .16 500 / .32 793 / .17

450 / .17

220

250 / .39 300 / .3 300 / .3 450 / .17 450 / .17 490 / .18 580 / .16 917 / .153

450 / .17

330

300 / .3 450 / .17 450 / .17 450 / .17 670 / .09 620 / .12 793 / .17

450 / .17

470

450 / .17 450 / .17 450 / .17 670 / .09 850 / .07 1610 / .073 1410 / .082

450 / .17 900 / .06

680

450 / .17 670 / .09 670 / .09 850 / .07 1610 / .073 1690 / .08

450 / .17 900 / .06 900 / .06

1000

850 / .07 1610 / .073

450 / .17 670 / .09 1000 / .06 900 / .06 1800 / .035

1200 1610 / .073

1500

850 / .07

670 / .09 900 / .06 900 / .06 1800 / .035 1800 / .035

2200

850 / .07

900 / .06 900 / .06 1800 / .035 2060 / .033

3300 1800 / .035 2060 / .033

4700 1800 / .035 2060 / .033

6800 1800 / .035 2060 / .033

8200 2060 / .033

10,000 2060 / .033

MAXIMUM RIPPLE (mA rms @ 100kHz & 105°C) / MAX IMPED (Ω @ 100KHZ & 20° C)

Cap.

(μF)

WVDC

6.3 10 16 25 35 50 63 80 100

2200

10X13.5

12.5X13.5 12.5X13.5 16X16.5 18X16.5

3300 16X16.5 18X16.5

4700 16X16.5 18X16.5

6800 16X16.5 18X16.5

8200 18X16.5

10,000 18X16.5

STANDARD PRODUCT TABLE (dØ X L(mm))

Page 3

Tecate Group

2011/12/14 Rev.02

Specifications and dimensions are subject to change without notice. Please confirm technical specifications with Tecate Group before purchasing.

Tecate Group

Aluminum Electrolytic

Surface Mount Capacitors

SURFACE MOUNT ALUMINUM LONG LIFE LOW IMPEDANCE TYPE MXWRU

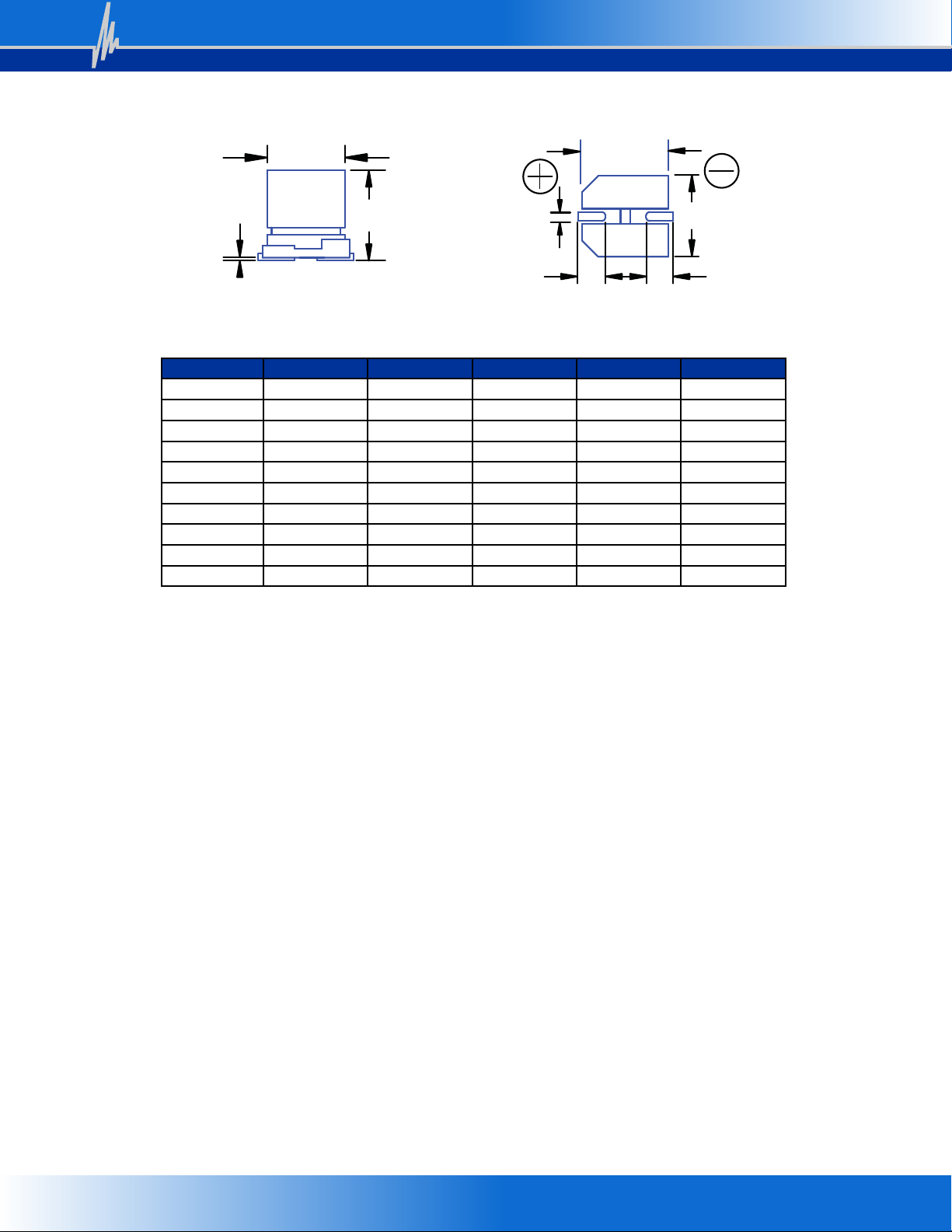

D +0.5 Max. L W ± 0.2 H ± 0.2 R P ± 0.2

4.0 6.0 ± 0.3 4.3 4.3 1.8 ~ 2.2 1.0

5.0 6.0 ± 0.3 5.3 5.3 2.1 ~ 2.5 1.4

6.3 6.0 ± 0.3 6.6 6.6 2.35 ~ 2.75 2.2

6.3 7.7 ± 0.3 6.6 6.6 2.35 ~ 2.75 2.2

8.0 10.2 ± 0.5 8.3 8.3 2.7 ~ 3.1 3.2

10.0 7.7 ± 0.3 10.3 10.3 3.0 ~ 3.4 4.6

10.0 10.2 ± 0.5 10.3 10.3 3.0 ~ 3.4 4.6

12.5 13.5 ± 0.5 12.8 12.8 4.25 ~ 4.65 4.6

16.0 16.5 +0.5 16.3 16.3 4.95 ~ 5.35 7.0

18.0 16.5 + 1.0 19 19

5.8 ~ 6.2 7.0

DIMENSIONS (mm)

0.3max.

0.5 to 0.8mm
