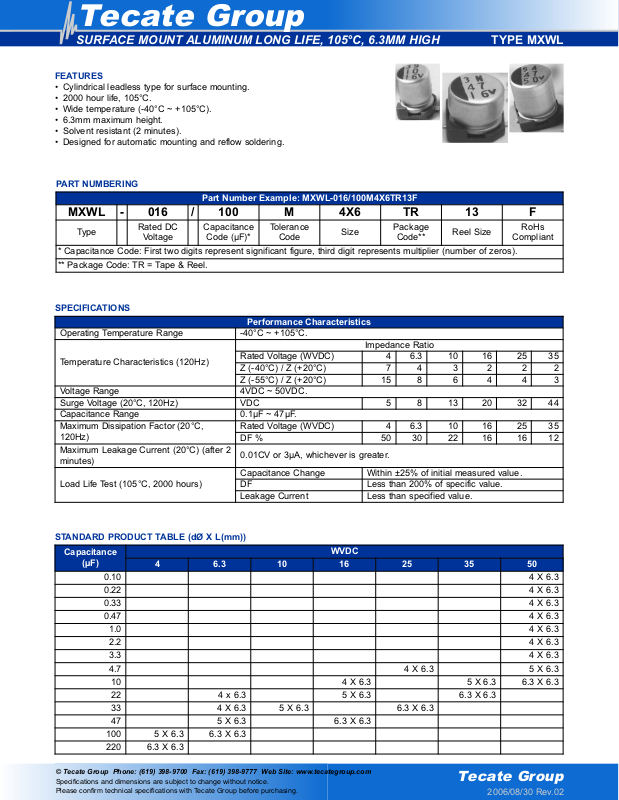

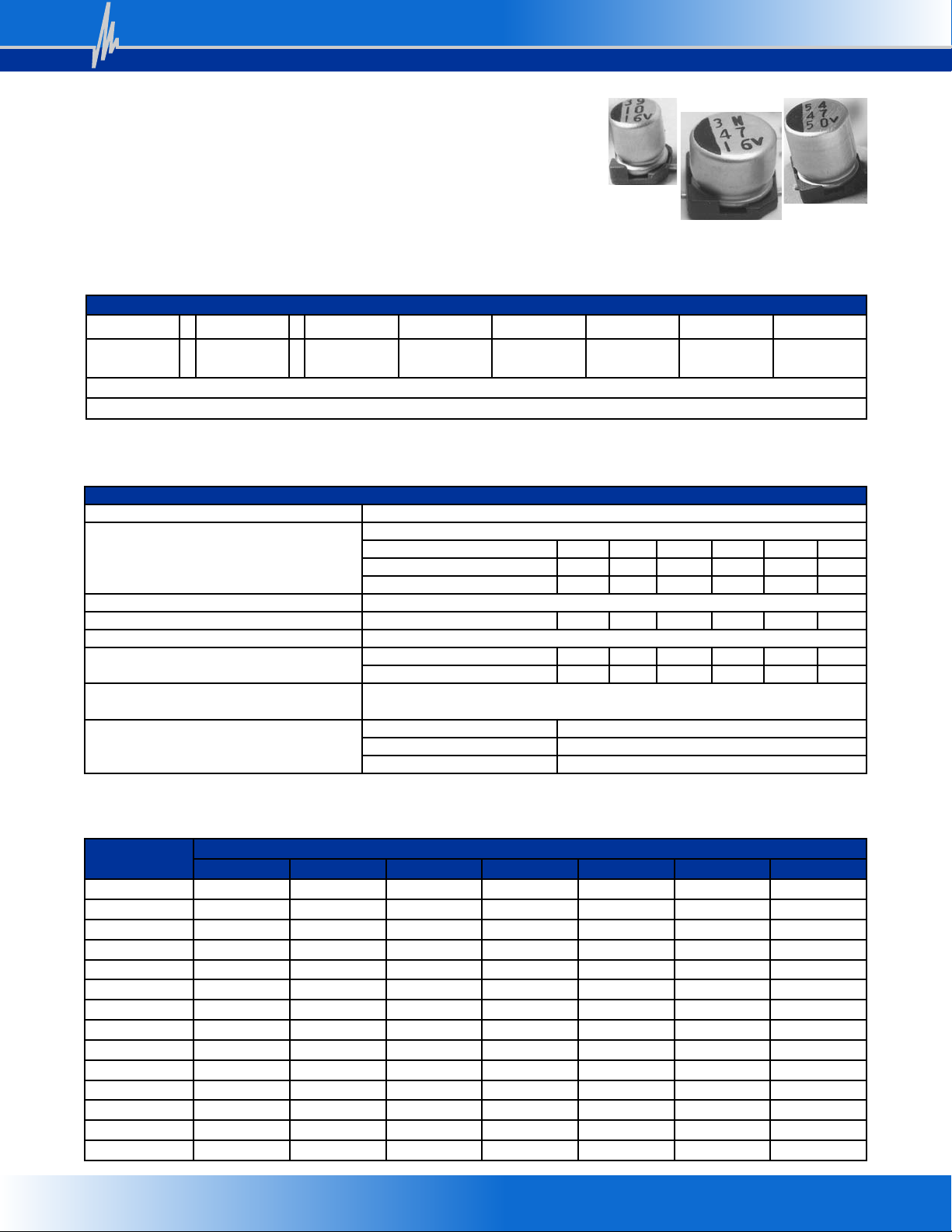

Page 1
Tecate Group
2006/08/30 Rev.02
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
SURFACE MOUNT ALUMINUM LONG LIFE, 105°C, 6.3MM HIGH
FEATURES
• Cylindrical leadless type for surface mounting.
• 2000 hour life, 105°C.
• Wide temperature (-40°C ~ +105°C).
• 6.3mm maximum height.
• Solvent resistant (2 minutes).
• Designed for automatic mounting and reflow soldering.
SPECIFICATIONS
STANDARD PRODUCT TABLE (dØ X L(mm))
TYPE MXWL
Capacitance
(µF)
WVDC
4 6.3 10 16 25 35 50
0.10 4 X 6.3
0.22 4 X 6.3
0.33 4 X 6.3
0.47 4 X 6.3
1.0 4 X 6.3
2.2 4 X 6.3
3.3 4 X 6.3
4.7 4 X 6.3 5 X 6.3
10 4 X 6.3 5 X 6.3 6.3 X 6.3
22 4 x 6.3 5 X 6.3 6.3 X 6.3
33 4 X 6.3 5 X 6.3 6.3 X 6.3
47 5 X 6.3 6.3 X 6.3
100 5 X 6.3 6.3 X 6.3
220 6.3 X 6.3
Performance Characteristics
Operating Temperature Range -40°C ~ +105°C.
Temperature Characteristics (120Hz)
Impedance Ratio
Rated Voltage (WVDC) 4 6.3 10 16 25 35
Z (-40°C) / Z (+20°C) 7 4 3 2 2 2
Z (-55°C) / Z (+20°C) 15 8 6 4 4 3
Voltage Range 4VDC ~ 50VDC.
Surge Voltage (20°C, 120Hz) VDC
5 8 13 20 32 44
Capacitance Range 0.1µF ~ 47µF.
Maximum Dissipation Factor (20°C,
120Hz)
Rated Voltage (WVDC) 4 6.3 10 16 25 35
DF % 50 30 22 16 16 12
Maximum Leakage Current (20°C) (after 2
minutes)
0.01CV or 3µA, whichever is greater.
Load Life Test (105°C, 2000 hours)
Capacitance Change Within ±25% of initial measured value.
DF Less than 200% of specific value.
Leakage Current Less than specified value.
Part Number Example: MXWL-016/100M4X6TR13F
MXWL - 016 / 100 M 4X6 TR 13 F
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING

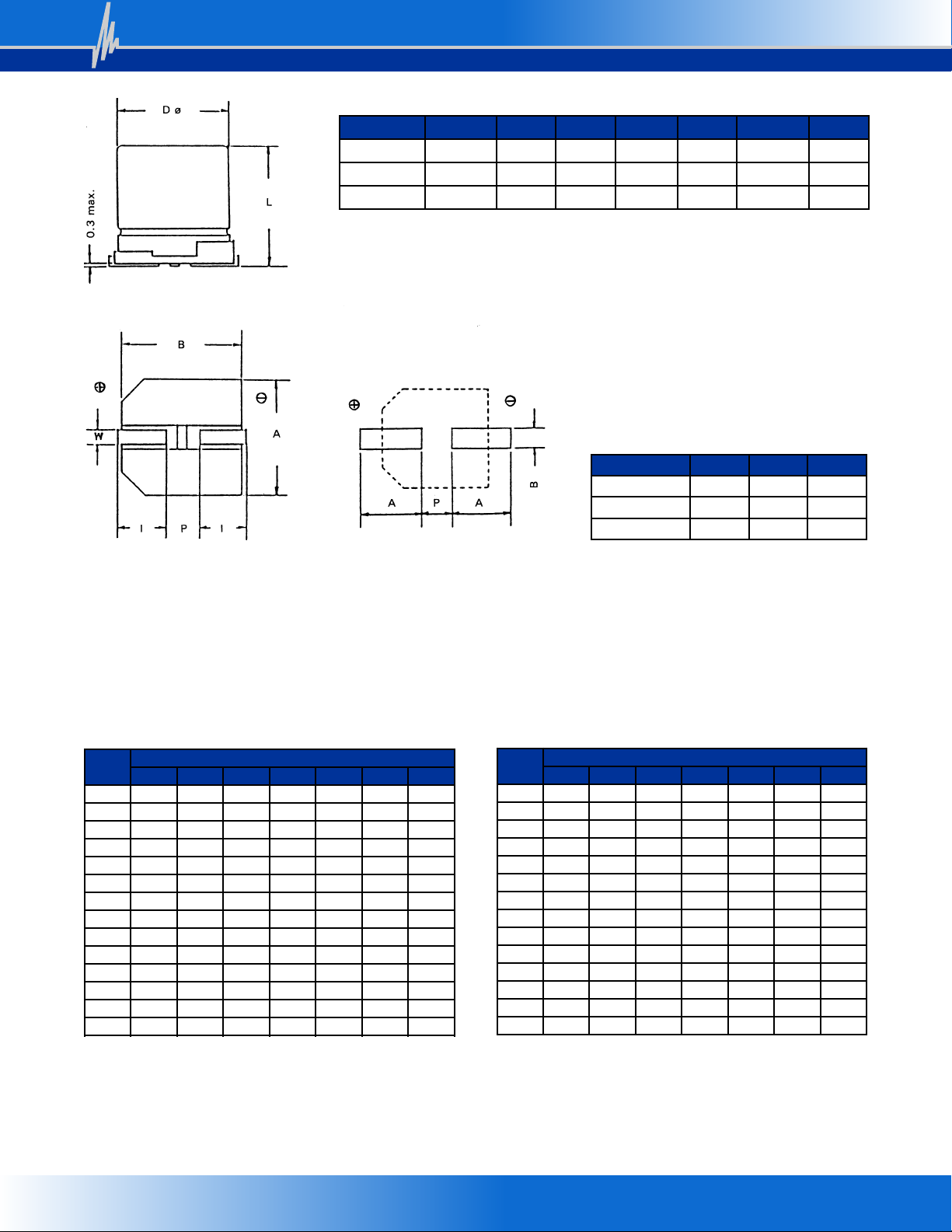

Page 2
Tecate Group
2006/04/17 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
TYPE MXWL
Case Size dØ ± 0.5 L Max. A ± 0.2 B ± 0.2 1 ± 0.2 W P ± 0.2
4 x 6.3 4.0 6.3 4.3 4.3 1.8 0.5 ~ 0.8 1.0
5 x 6.3 5.0 6.3 5.3 5.3 2.2 0.5 ~ 0.8 1.5
6.3 x 6.3 6.3 6.3 6.6 6.6 2.4 0.5 ~ 0.8 2.2
DIMENSIONS (mm)
Case Size A B P
4 x 6.3 2.5 1.6 1.0
5 x 6.3 2.7 1.6 1.4
6.3 x 6.3 3.1 1.6 2.2
RECOMMENDED LAND PATTERN (mm)
MAXIMUM RIPPLE (mA rms @ 120Hz & 105°C) MAXIMUM ESR (Ω @ 120Hz & 20°C)
SURFACE MOUNT ALUMINUM LONG LIFE, 105°C, 6.3MM HIGH
Cap.
(µF)
WVDC
4 6.3 10 16 25 35 50
0.10 1
0.22 2
0.33 3
0.47 5
1.0 10
2.2 16
3.3 16
4.7 22 23
10 28 28 35
22 20 39 55
33 29 43 58
47 34 46 70
100 61 71
220 82
Cap.
(µF)
WVDC
4 6.3 10 16 25 35 50
0.10 993
0.22 906
0.33 604
0.47 424
1.0 199
2.2 90.8
3.3 60.4
4.7 49.5 42.4
10 26.6 19.9 19.9
22 22.6 12.1 9.05
33 15.1 11.1 7.05
47 17.7 10.6 5.66
100 8.31 4.96
220 3.77
