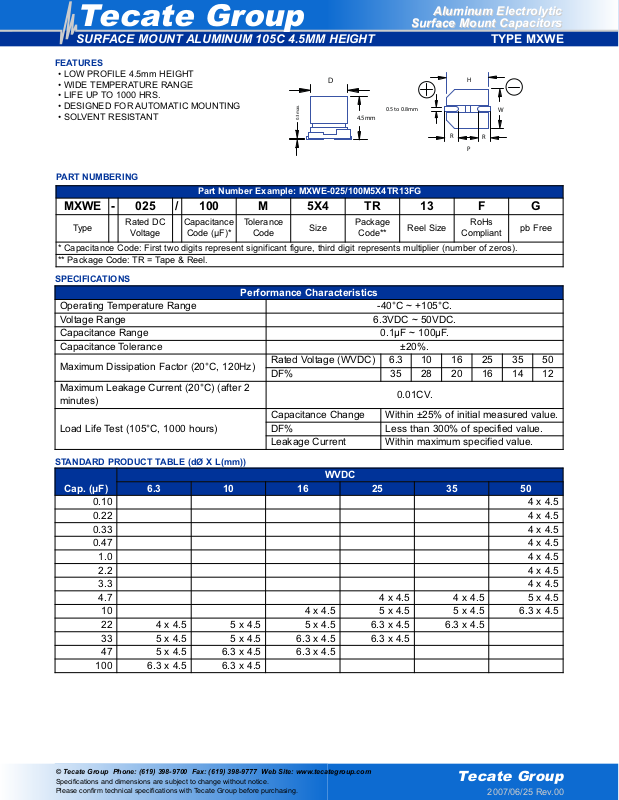

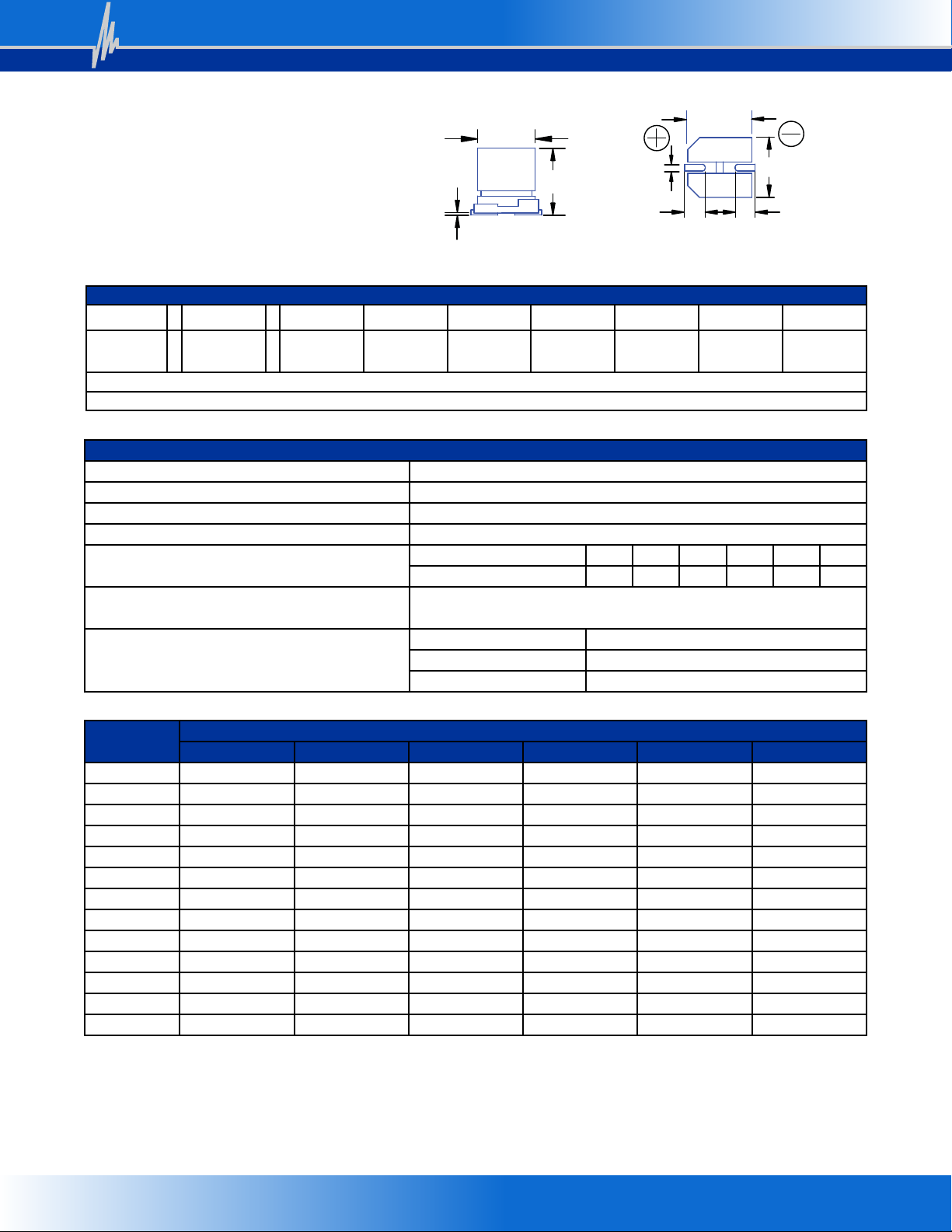

Page 1
Tecate Group
2007/06/25 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
SURFACE MOUNT ALUMINUM 105C 4.5MM HEIGHT TYPE MXWE
Part Number Example: MXWE-025/100M5X4TR13FG
MXWE - 025 / 100 M 5X4 TR 13 F G
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
pb Free
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
FEATURES
• LOW PROFILE 4.5mm HEIGHT
• WIDE TEMPERATURE RANGE
• LIFE UP TO 1000 HRS.
• DESIGNED FOR AUTOMATIC MOUNTING
• SOLVENT RESISTANT
SPECIFICATIONS
Performance Characteristics
Operating Temperature Range -40°C ~ +105°C.
Voltage Range 6.3VDC ~ 50VDC.
Capacitance Range 0.1μF ~ 100μF.
Capacitance Tolerance ±20%.
Maximum Dissipation Factor (20°C, 120Hz)
Rated Voltage (WVDC) 6.3 10 16 25 35 50
DF% 35 28 20 16 14 12
Maximum Leakage Current (20°C) (after 2
minutes)
0.01CV.
Load Life Test (105°C, 1000 hours)
Capacitance Change Within ±25% of initial measured value.
DF% Less than 300% of specified value.
Leakage Current Within maximum specified value.
STANDARD PRODUCT TABLE (dØ X L(mm))
Cap. (μF)
WVDC
6.3 10 16 25 35 50
0.10 4 x 4.5
0.22 4 x 4.5
0.33 4 x 4.5
0.47 4 x 4.5
1.0 4 x 4.5
2.2 4 x 4.5
3.3 4 x 4.5
4.7 4 x 4.5 4 x 4.5 5 x 4.5
10 4 x 4.5 5 x 4.5 5 x 4.5 6.3 x 4.5
22 4 x 4.5 5 x 4.5 5 x 4.5 6.3 x 4.5 6.3 x 4.5
33 5 x 4.5 5 x 4.5 6.3 x 4.5 6.3 x 4.5
47 5 x 4.5 6.3 x 4.5 6.3 x 4.5
100 6.3 x 4.5 6.3 x 4.5
0.3max.
D
0.5 to 0.8mm
4.5mm
H
W
R
R
P

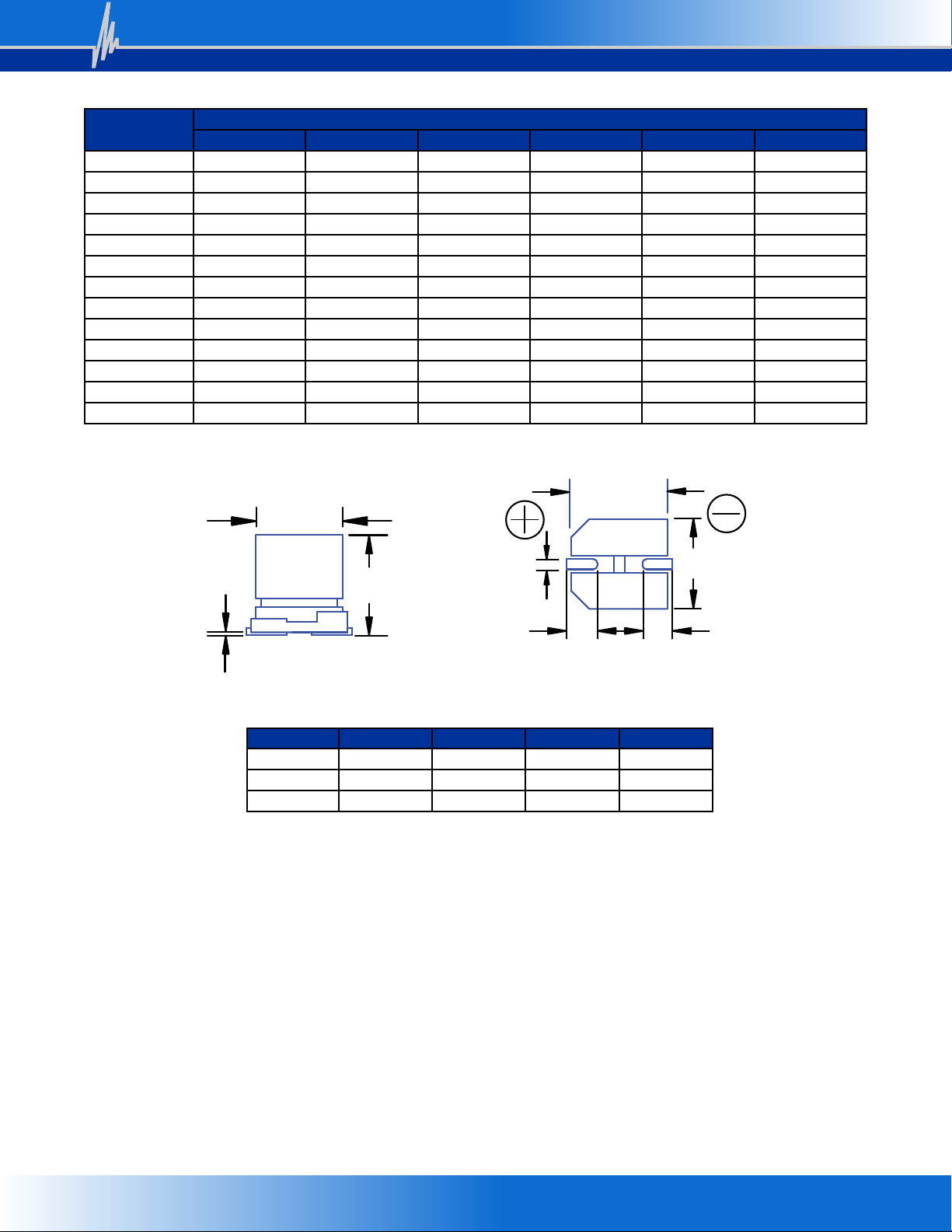

Page 2
Tecate Group
2007/06/25 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
SURFACE MOUNT ALUMINUM 105C 4.5MM HEIGHT TYPE MXWE
MAXIMUM RIPPLE (mA rms @ 120Hz & 105°C)
Cap. (μF)
WVDC
6.3 10 16 25 35 50
0.10 0.7
0.22 1.4
0.33 2.0
0.47 2.8
1.0 5.9
2.2 9.8
3.3 12
4.7 12 13 15
10 17 19 21 24
22 20 24 26 33 35
33 26 29 36 40
47 32 38 43
100 49 52
D +0.5 W ± 0.2 H ± 0.2 R P ± 0.2
4.0 4.3 4.3 1.8 ~ 2.2 1.1
5.0 5.3 5.3 2.1 ~ 2.5 1.4
6.3 6.6 6.6 2.35 ~ 2.75 2.2
DIMENSIONS
D
0.5 to 0.8mm
0.3max.
4.5mm
R
H
W
R
P
