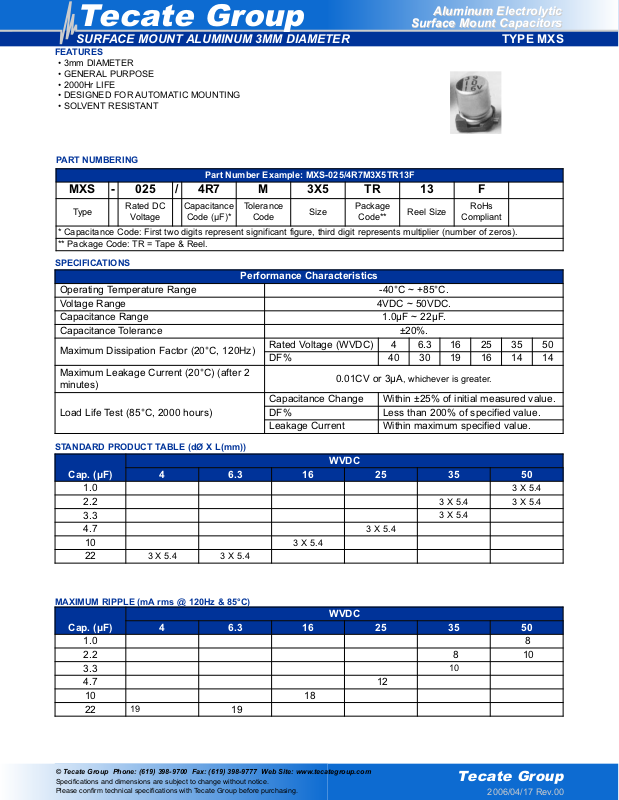

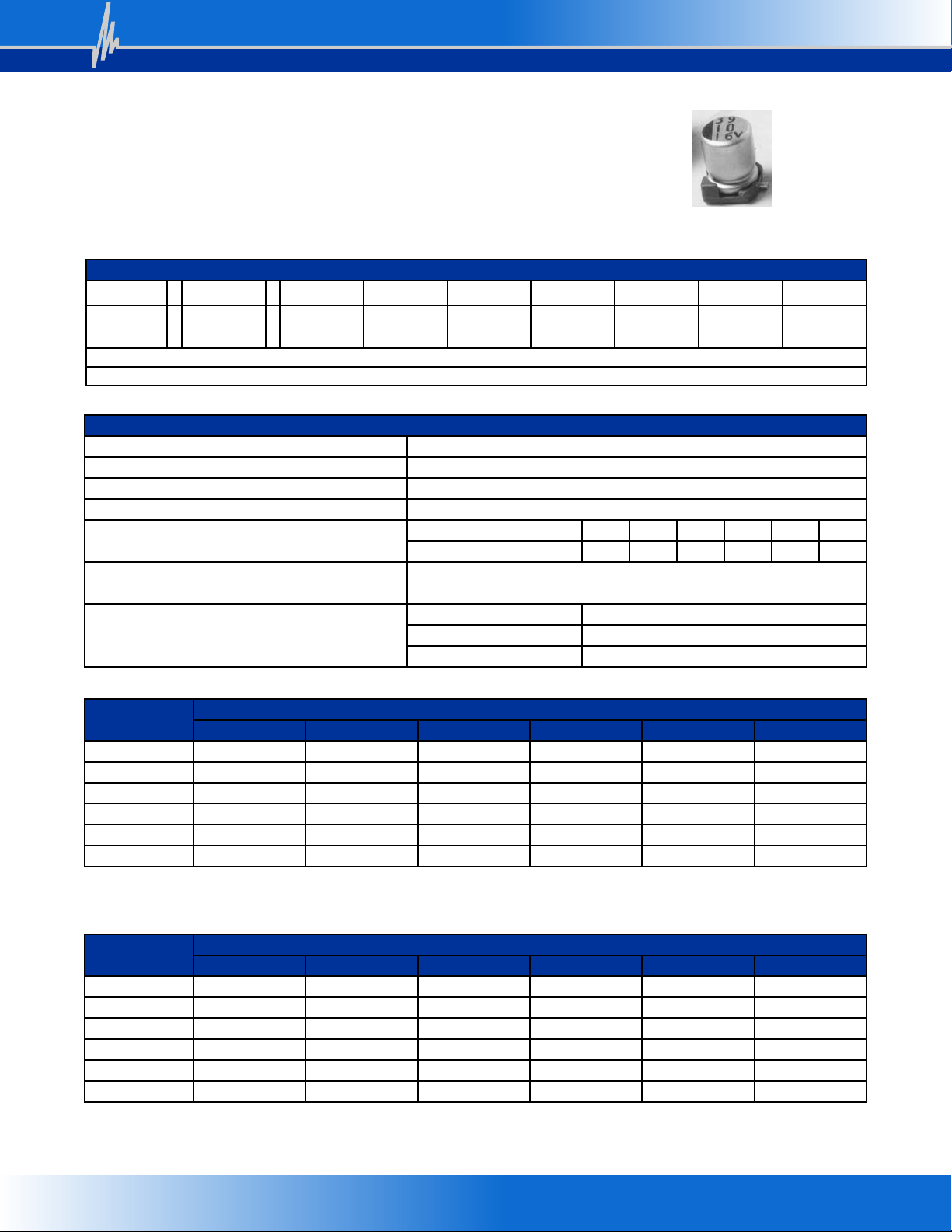

Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
Part Number Example: MXS-025/4R7M3X5TR13F
MXS - 025 / 4R7 M 3X5 TR 13 F
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
FEATURES
• 3mm DIAMETER
• GENERAL PURPOSE
• 2000Hr LIFE
• DESIGNED FOR AUTOMATIC MOUNTING
• SOLVENT RESISTANT
Performance Characteristics
Operating Temperature Range -40°C ~ +85°C.
Voltage Range 4VDC ~ 50VDC.
Capacitance Range 1.0μF ~ 22μF.
Capacitance Tolerance ±20%.
Maximum Dissipation Factor (20°C, 120Hz)
Rated Voltage (WVDC) 4 6.3 16 25 35 50
DF% 40 30 19 16 14 14
Maximum Leakage Current (20°C) (after 2
minutes)
0.01CV or 3μA, whichever is greater.
Load Life Test (85°C, 2000 hours)
Capacitance Change Within ±25% of initial measured value.
DF% Less than 200% of specified value.
Leakage Current Within maximum specified value.
SPECIFICATIONS
STANDARD PRODUCT TABLE (dØ X L(mm))
MAXIMUM RIPPLE (mA rms @ 120Hz & 85°C)
SURFACE MOUNT ALUMINUM 3MM DIAMETER TYPE MXS
Cap. (μF)
WVDC
4 6.3 16 25 35 50
1.0 3 X 5.4
2.2 3 X 5.4 3 X 5.4
3.3
3 X 5.4
4.7 3 X 5.4
10 3 X 5.4
22
3 X 5.4
3 X 5.4
Cap. (μF)
WVDC
4 6.3 16 25 35 50
1.0 8
2.2 8 10
3.3
10
4.7 12
10 18
22
19
19
Page 2
Tecate Group
2006/04/17 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
MAXIMUM IMPEDANCE (Ω @ 100kHz & 20°C)
D +0.5 L ± 0.3 W ± 0.2 H ± 0.2 R P ± 0.2
3.0 5.4 3.3 3.3 1.64 ~1.66 0.6
0.3max.
D
L
R
0.5 to 0.8mm
P
R
W
H

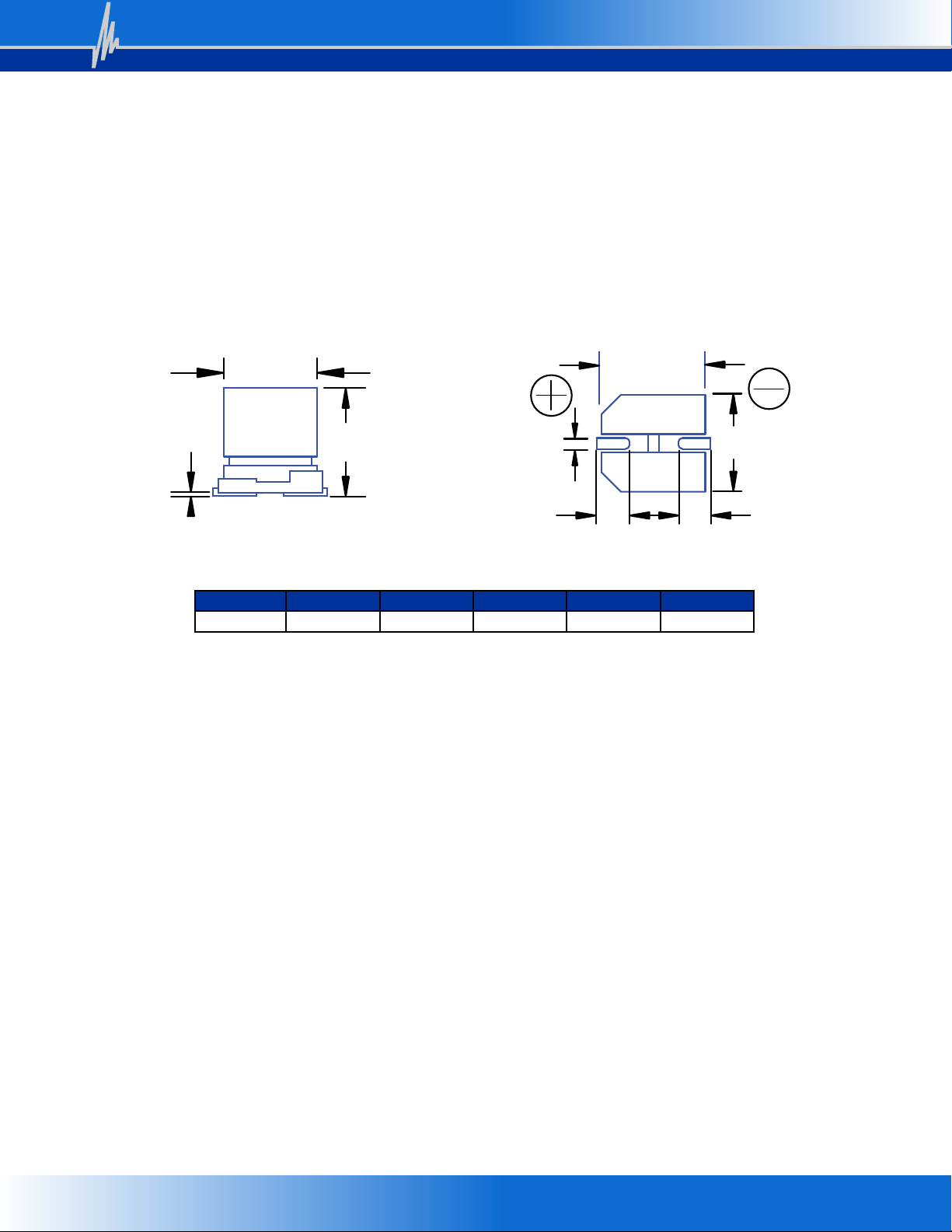

DIMENSIONS (mm)
SURFACE MOUNT ALUMINUM 3MM DIAMETER TYPE MXS
