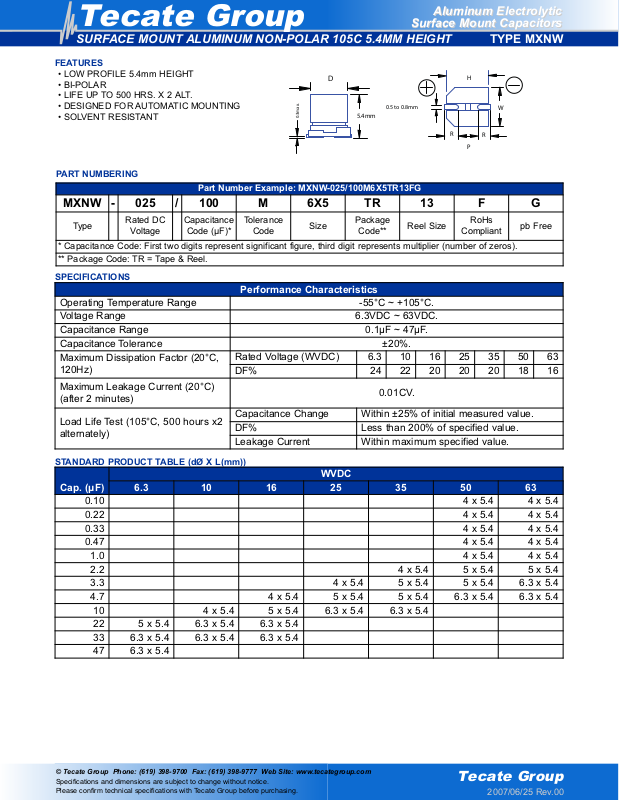

Page 1
Tecate Group
2007/06/25 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
SURFACE MOUNT ALUMINUM NON-POLAR 105C 5.4MM HEIGHT TYPE MXNW
Part Number Example: MXNW-025/100M6X5TR13FG
MXNW - 025 / 100 M 6X5 TR 13 F G
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
pb Free
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
FEATURES
• LOW PROFILE 5.4mm HEIGHT
• BI-POLAR
• LIFE UP TO 500 HRS. X 2 ALT.
• DESIGNED FOR AUTOMATIC MOUNTING
• SOLVENT RESISTANT
Performance Characteristics
Operating Temperature Range -55°C ~ +105°C.
Voltage Range 6.3VDC ~ 63VDC.
Capacitance Range 0.1μF ~ 47μF.
Capacitance Tolerance ±20%.
Maximum Dissipation Factor (20°C,
120Hz)
Rated Voltage (WVDC) 6.3 10 16 25 35 50 63
DF% 24 22 20 20 20 18 16
Maximum Leakage Current (20°C)
(after 2 minutes)
0.01CV.
Load Life Test (105°C, 500 hours x2
alternately)
Capacitance Change Within ±25% of initial measured value.
DF% Less than 200% of specified value.
Leakage Current Within maximum specified value.
SPECIFICATIONS
STANDARD PRODUCT TABLE (dØ X L(mm))
Cap. (μF)
WVDC
6.3 10 16 25 35 50 63
0.10 4 x 5.4 4 x 5.4
0.22 4 x 5.4 4 x 5.4
0.33 4 x 5.4 4 x 5.4
0.47 4 x 5.4 4 x 5.4
1.0 4 x 5.4 4 x 5.4
2.2 4 x 5.4 5 x 5.4 5 x 5.4
3.3 4 x 5.4 5 x 5.4 5 x 5.4 6.3 x 5.4
4.7 4 x 5.4 5 x 5.4 5 x 5.4 6.3 x 5.4 6.3 x 5.4
10 4 x 5.4 5 x 5.4 6.3 x 5.4 6.3 x 5.4
22 5 x 5.4 6.3 x 5.4 6.3 x 5.4
33 6.3 x 5.4 6.3 x 5.4 6.3 x 5.4
47 6.3 x 5.4

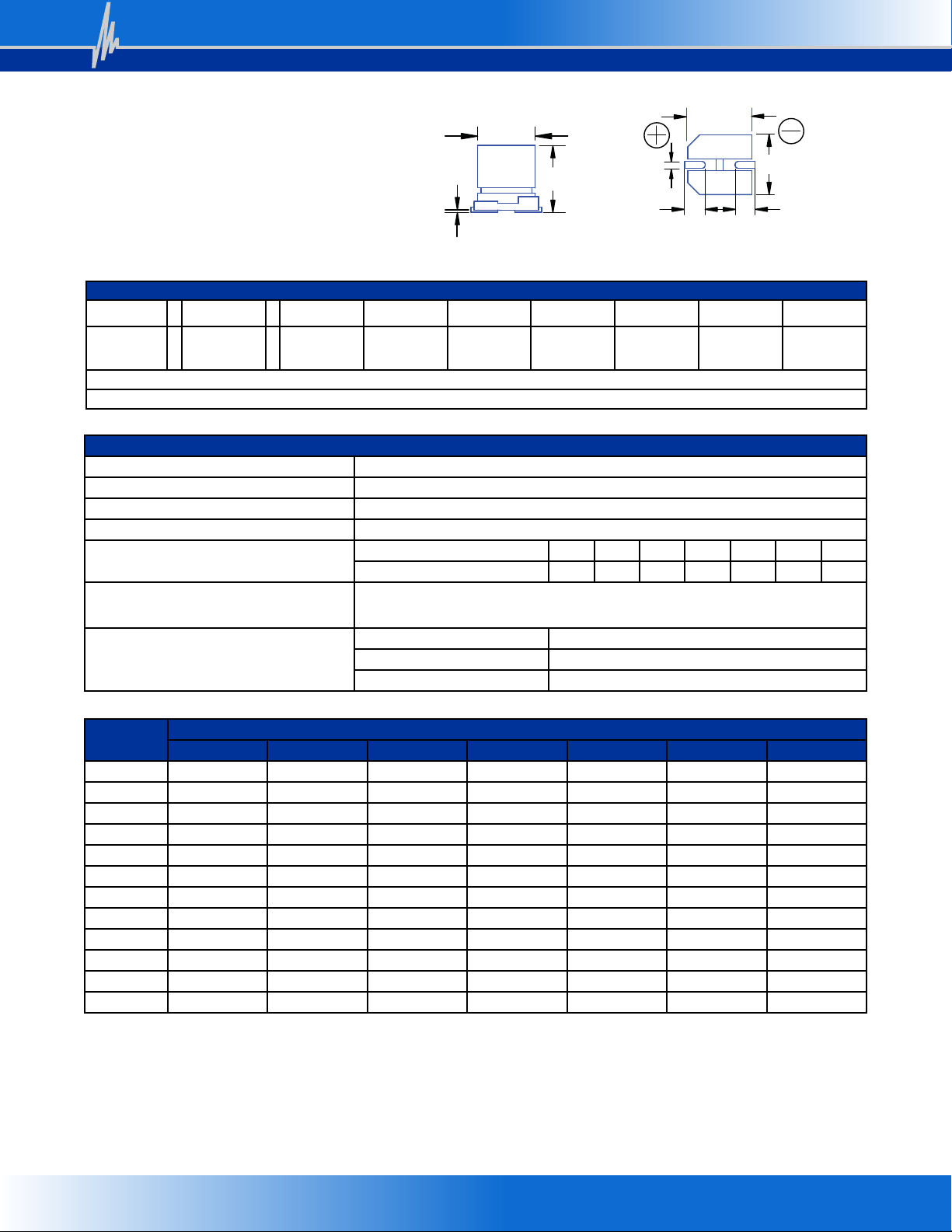

0.3max.
D
0.5 to 0.8mm
5.4mm
H
W
R
R
P
Page 2
Tecate Group
2007/06/25 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
MAXIMUM RIPPLE (mA rms @ 120HZ & 105°C)
SURFACE MOUNT ALUMINUM NON-POLAR 105C 5.4MM HEIGHT TYPE MXNW
Cap. (μF)
WVDC
6.3 10 16 25 35 50 63
0.10 0.7 0.7
0.22 1.6 1.6
0.33 2.4 2.4
0.47 3.5 3.5
1.0 7 7
2.2 5.9 10 10
3.3 7 12 13 13
4.7 8 13 14 16 16
10 12 17 20 21
22 22 25 27
33 27 30 10
47 33
D +0.5 W ± 0.2 H ± 0.2 R P ± 0.2
4.0 4.3 4.3 1.8 ~ 2.2 1.1
5.0 5.3 5.3 2.1 ~ 2.5 1.4
6.3 6.6 6.6 2.35 ~ 2.75 2.2

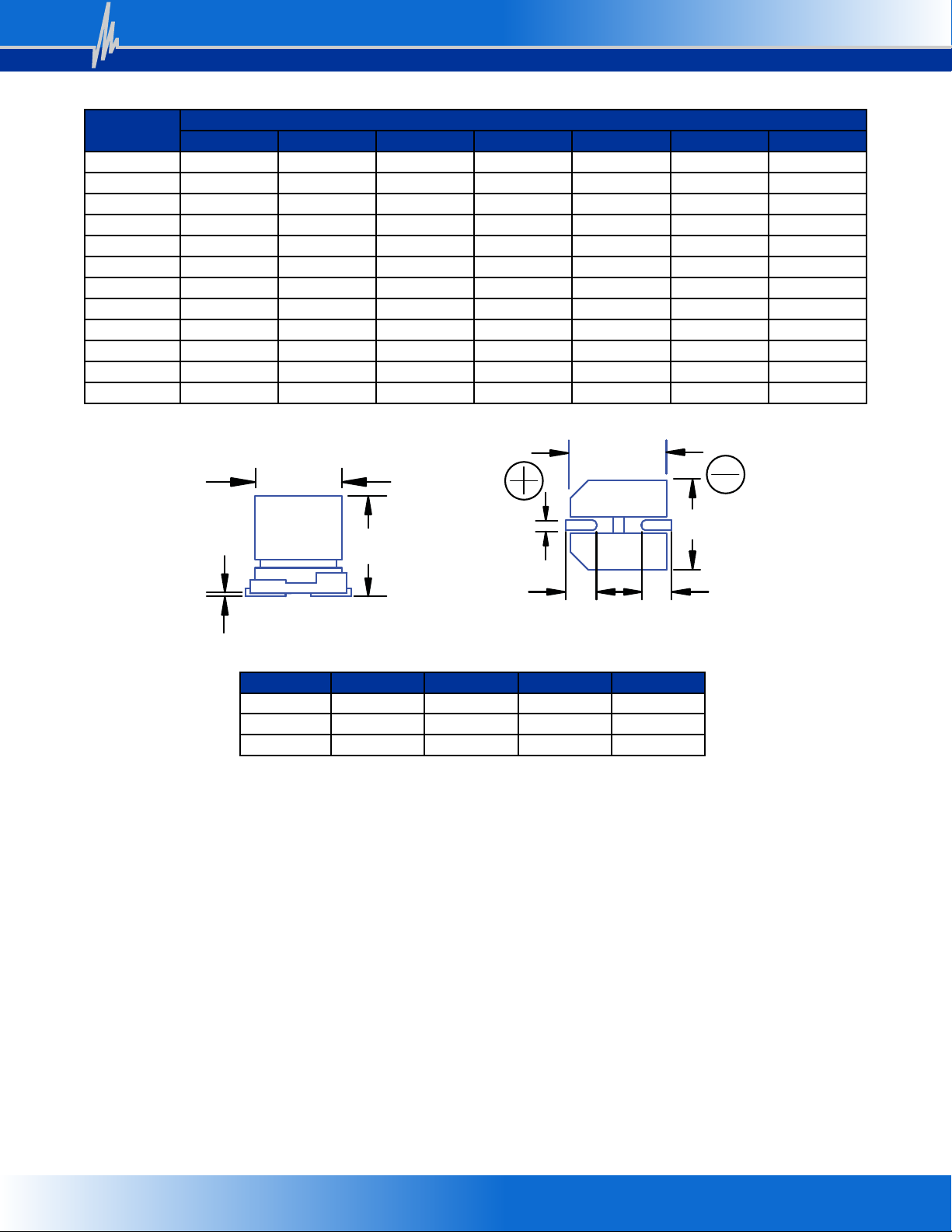

DIMENSIONS (mm)
D
0.5 to 0.8mm
0.3max.
5.4mm
R
H
W
R
P
