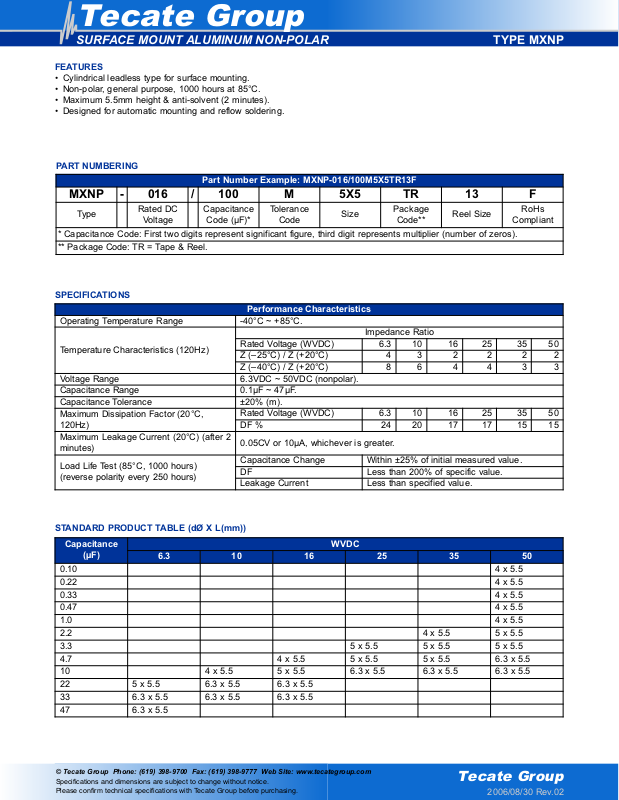

Page 1
Tecate Group
2006/08/30 Rev.02
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
SURFACE MOUNT ALUMINUM NON-POLAR
FEATURES
• Cylindrical leadless type for surface mounting.
• Non-polar, general purpose, 1000 hours at 85°C.
• Maximum 5.5mm height & anti-solvent (2 minutes).
• Designed for automatic mounting and reflow soldering.
TYPE MXNP
SPECIFICATIONS
STANDARD PRODUCT TABLE (dØ X L(mm))
Capacitance
(µF)
WVDC
6.3 10 16 25 35 50
0.10 4 x 5.5
0.22 4 x 5.5
0.33 4 x 5.5
0.47 4 x 5.5
1.0 4 x 5.5
2.2 4 x 5.5 5 x 5.5
3.3 5 x 5.5 5 x 5.5 5 x 5.5
4.7 4 x 5.5 5 x 5.5 5 x 5.5 6.3 x 5.5
10 4 x 5.5 5 x 5.5 6.3 x 5.5 6.3 x 5.5 6.3 x 5.5
22 5 x 5.5 6.3 x 5.5 6.3 x 5.5
33 6.3 x 5.5 6.3 x 5.5 6.3 x 5.5
47 6.3 x 5.5
Performance Characteristics
Operating Temperature Range -40°C ~ +85°C.
Temperature Characteristics (120Hz)
Impedance Ratio
Rated Voltage (WVDC) 6.3 10 16 25 35 50
Z (–25°C) / Z (+20°C) 4 3 2 2 2 2
Z (–40°C) / Z (+20°C) 8 6 4 4 3 3
Voltage Range 6.3VDC ~ 50VDC (nonpolar).
Capacitance Range 0.1µF ~ 47µF.
Capacitance Tolerance ±20% (m).
Maximum Dissipation Factor (20°C,
120Hz)
Rated Voltage (WVDC) 6.3 10 16 25 35 50
DF % 24 20 17 17 15 15
Maximum Leakage Current (20°C) (after 2
minutes)
0.05CV or 10µA, whichever is greater.
Load Life Test (85°C, 1000 hours)
(reverse polarity every 250 hours)
Capacitance Change Within ±25% of initial measured value.
DF Less than 200% of specific value.
Leakage Current Less than specified value.
Part Number Example: MXNP-016/100M5X5TR13F
MXNP - 016 / 100 M 5X5 TR 13 F
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
Page 2
Tecate Group
2006/04/17 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
TYPE MXNP
MAXIMUM RIPPLE (mA rms @ 120Hz & 105°C)
Case Size dØ ± 0.5 L Max. A ± 0.2 B ± 0.2 I ± 0.2 W P ± 0.2
4 x 5.5 4 5.5 4.3 4.3 1.8 0.5 ~ 0.8 1
5 x 5.5 5 5.5 5.3 5.3 2.1 0.5 ~ 0.8 1.4
6.3 x 5.5 6.3 5.5 6.6 6.6 2.5 0.5 ~ 0.8 2.2

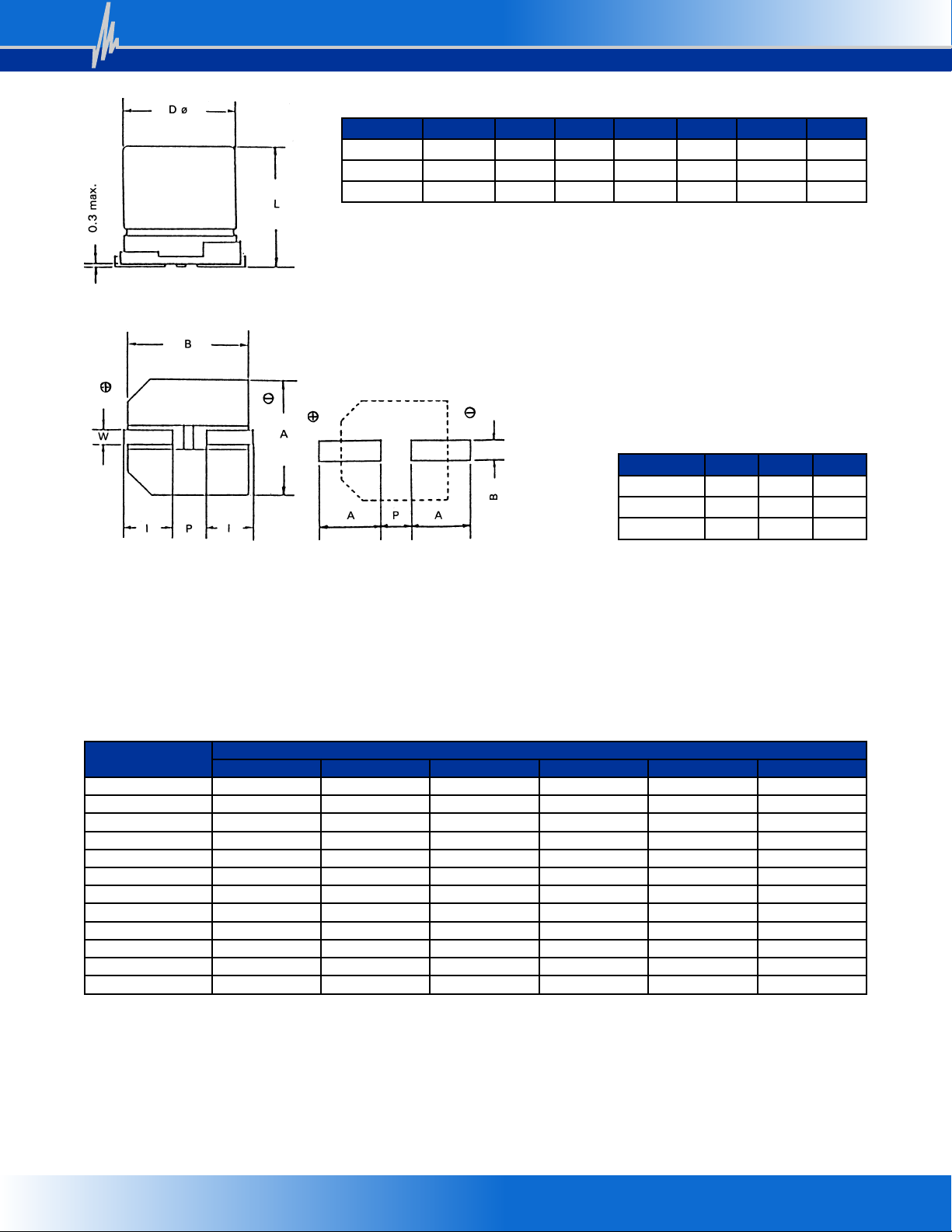

DIMENSIONS (mm)
Case Size A B P
4 x 5.5 2.5 1.6 1.0
5 x 5.5 2.7 1.6 1.4
6.3 x 5.5 3.1 1.6 2.2
RECOMMENDED LAND PATTERN
Capacitance
(µF)
WVDC
6.3 10 16 25 35 50
0.10 1.0
0.22 2.0
0.33 2.8
0.47 4.0
1.0 8.4
2.2 8.4 13
3.3 12 16 17
4.7 12 16 18 20
10 17 23 27 29 23
22 28 33 37
33 37 41 49
47 45
SURFACE MOUNT ALUMINUM NON-POLAR
