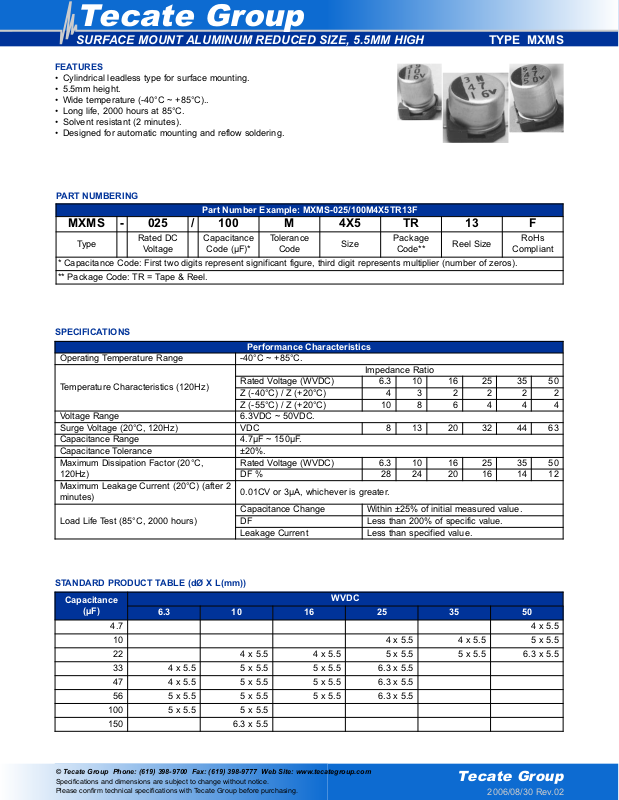

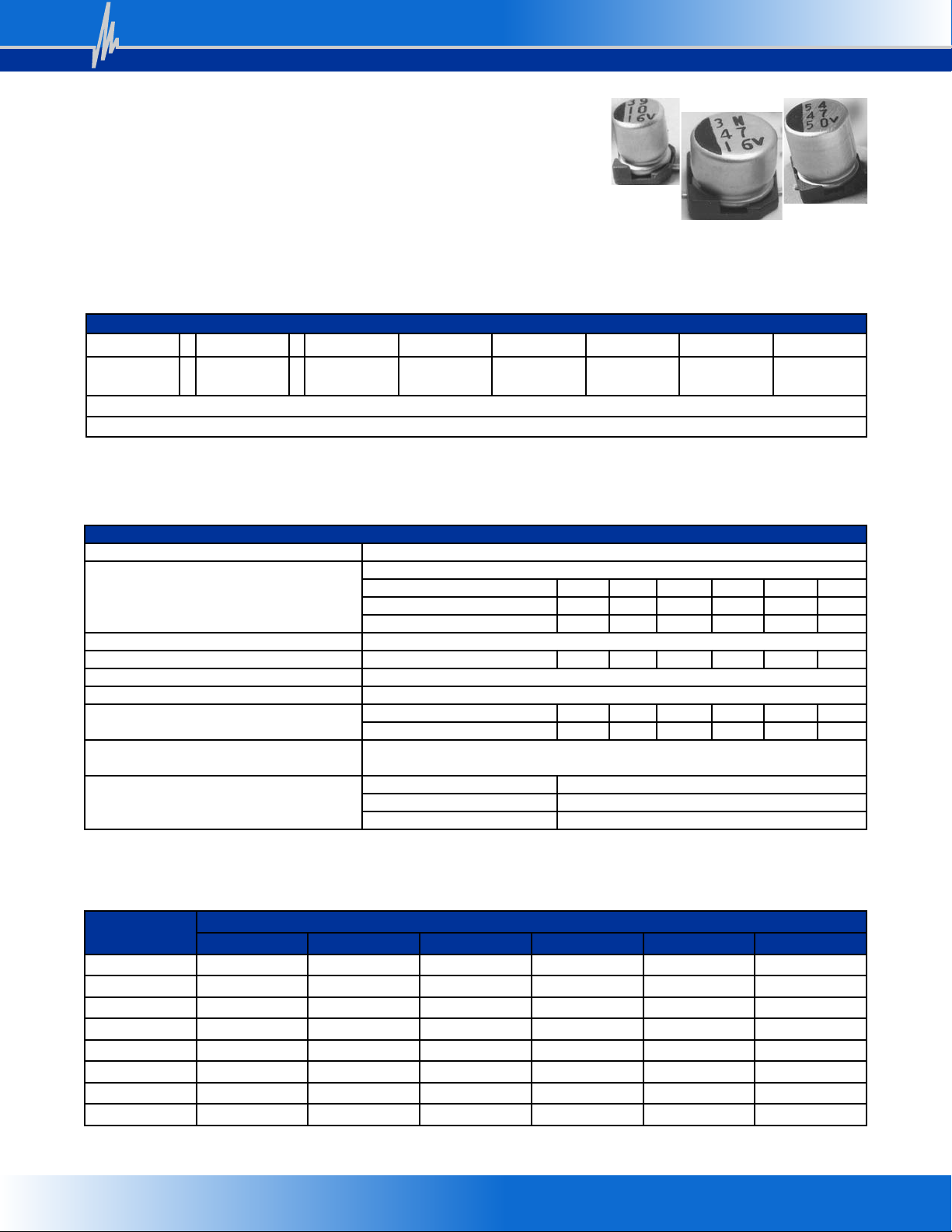

SURFACE MOUNT ALUMINUM REDUCED SIZE, 5.5MM HIGH
FEATURES
• Cylindrical leadless type for surface mounting.
• 5.5mm height.
• Wide temperature (-40°C ~ +85°C)..
• Long life, 2000 hours at 85°C.
• Solvent resistant (2 minutes).
• Designed for automatic mounting and reflow soldering.
SPECIFICATIONS
STANDARD PRODUCT TABLE (dØ X L(mm))
TYPE MXMS
Capacitance
(µF)
WVDC
6.3 10 16 25 35 50
4.7 4 x 5.5
10 4 x 5.5 4 x 5.5 5 x 5.5
22 4 x 5.5 4 x 5.5 5 x 5.5 5 x 5.5 6.3 x 5.5
33 4 x 5.5 5 x 5.5 5 x 5.5 6.3 x 5.5
47 4 x 5.5 5 x 5.5 5 x 5.5 6.3 x 5.5
56 5 x 5.5 5 x 5.5 5 x 5.5 6.3 x 5.5
100 5 x 5.5 5 x 5.5
150 6.3 x 5.5
Performance Characteristics
Operating Temperature Range -40°C ~ +85°C.
Temperature Characteristics (120Hz)
Impedance Ratio
Rated Voltage (WVDC) 6.3 10 16 25 35 50
Z (-40°C) / Z (+20°C) 4 3 2 2 2 2
Z (-55°C) / Z (+20°C) 10 8 6 4 4 4
Voltage Range 6.3VDC ~ 50VDC.
Surge Voltage (20°C, 120Hz) VDC 8 13 20 32 44 63
Capacitance Range 4.7µF ~ 150µF.
Capacitance Tolerance ±20%.
Maximum Dissipation Factor (20°C,
120Hz)
Rated Voltage (WVDC) 6.3 10 16 25 35 50
DF % 28 24 20 16 14 12
Maximum Leakage Current (20°C) (after 2
minutes)
0.01CV or 3µA, whichever is greater.
Load Life Test (85°C, 2000 hours)
Capacitance Change Within ±25% of initial measured value.
DF Less than 200% of specific value.
Leakage Current Less than specified value.
Part Number Example: MXMS-025/100M4X5TR13F
MXMS - 025 / 100 M 4X5 TR 13 F
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
Page 2
Tecate Group
2006/04/17 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
MAXIMUM RIPPLE (mA rms @ 120Hz & 105°C)
MAXIMUM ESR (Ω @ 120Hz & 20°C)
Cap.
(µF)
WVDC
6.3 10 16 25 35 50
4.7 18
10 20 20 27
22 28 28 35 38 40
33 31 32 40 42 58
47 36 43 44 65
56 48 48 48 68
100 47 50
150 76

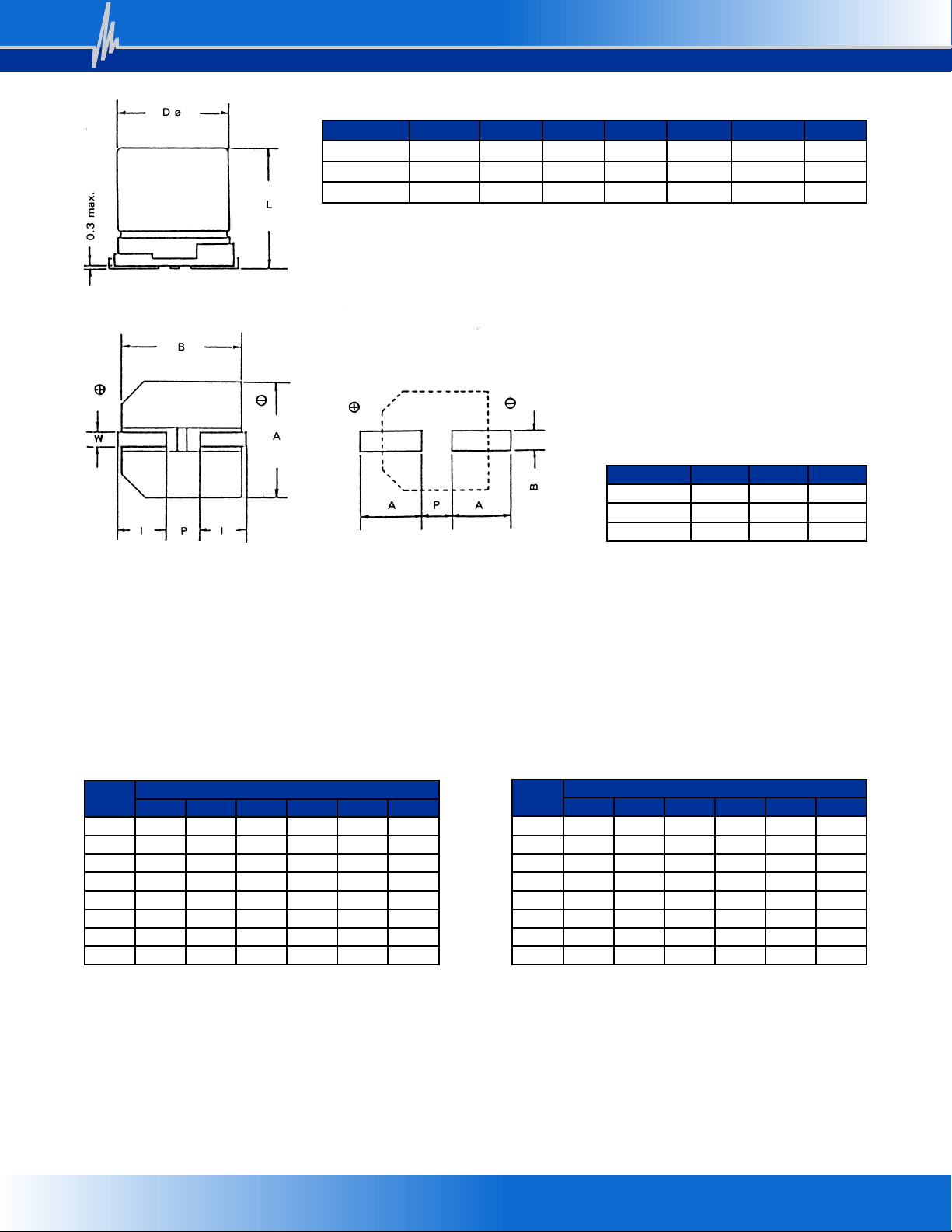

Case Size dØ ± 0.5 L Max. A ± 0.2 B ± 0.2 1 ± 0.2 W P ± 0.2
4 x 5.5 4.0 5.5 4.3 4.3 1.8 0.5 ~ 0.8 1.0
5 x 5.5 5.0 5.5 5.3 5.3 2.1 0.5 ~ 0.8 1.4
6.3 x 5.5 6.3 5.5 6.6 6.6 2.5 0.5 ~ 0.8 2.2
DIMENSIONS (mm)
Case Size A B P
4 x 5.5 2.5 1.6 1.0
5 x 5.5 2.7 1.6 1.4
6.3 x 5.5 3.1 1.6 2.2
RECOMMENDED LAND PATTERN
TYPE MXMSSURFACE MOUNT ALUMINUM REDUCED SIZE, 5.5MM HIGH
Cap.
(µF)
WVDC
6.3 10 16 25 35 50
4.7 42.3
10 26.5 23.2 19.9
22 18.1 15.1 12.1 10.8 9.05
33 14.1 12.6 10.1 8.04 7.04
47 9.88 8.47 7.06 5.65
56 8.29 7.11 5.22 4.74
100 4.64 3.96
150 2.56
