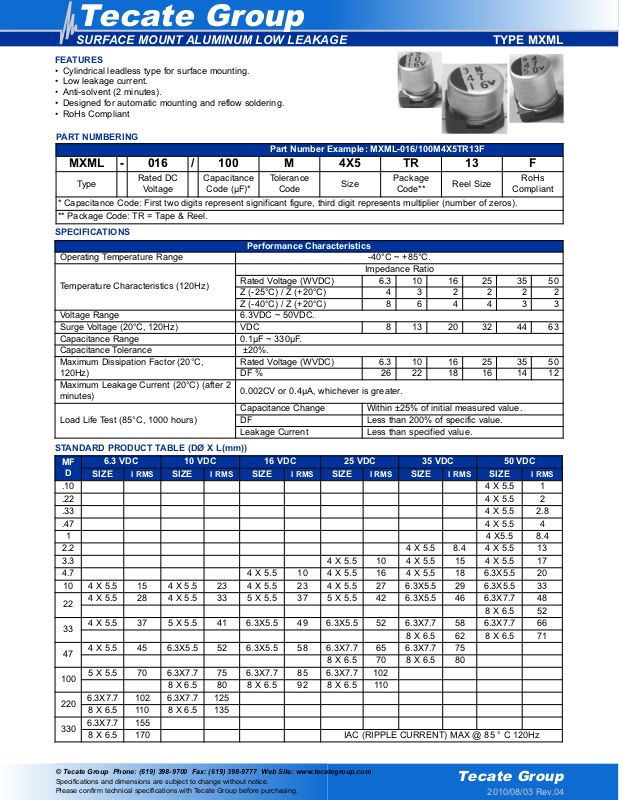

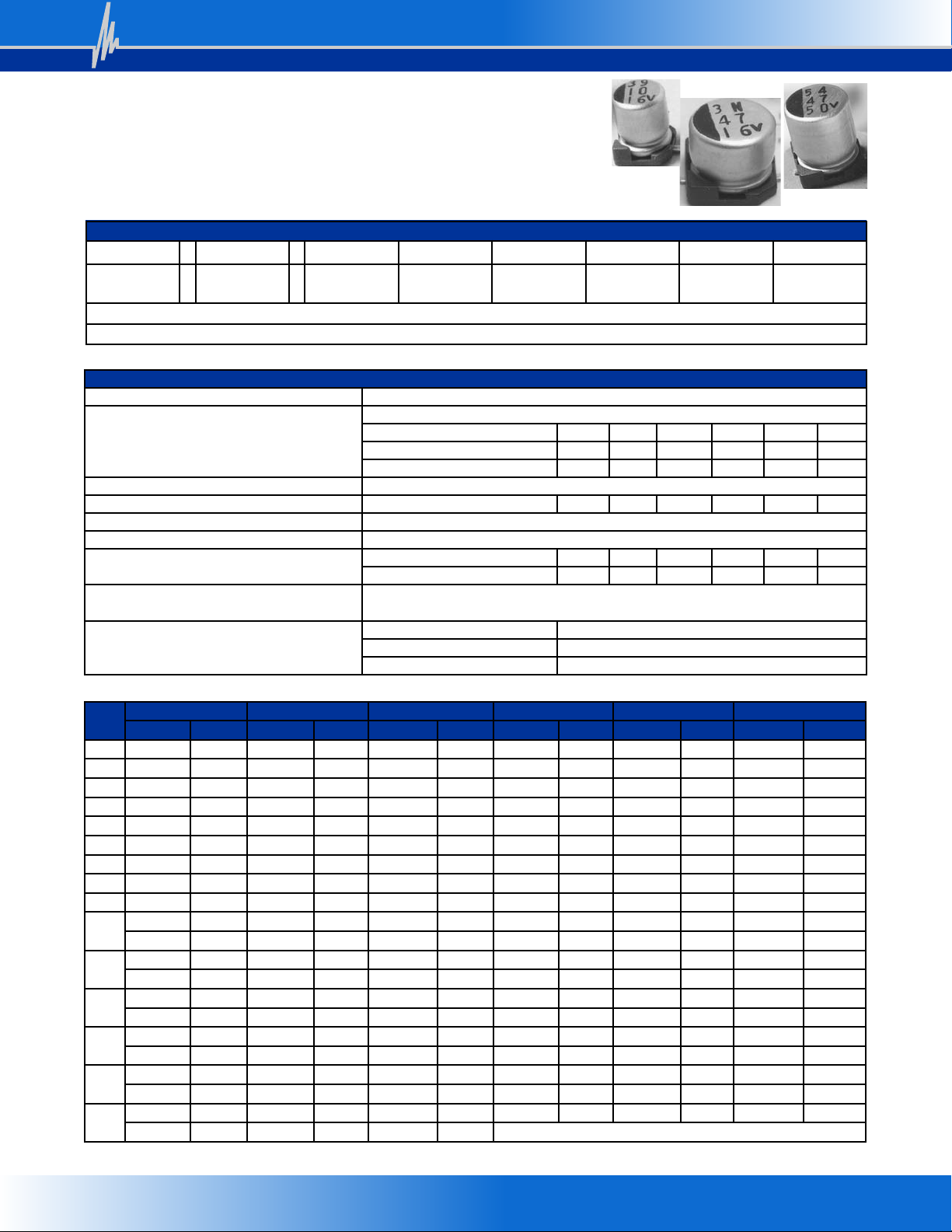

Page 1
Tecate Group
2010/08/03 Rev.04
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
SURFACE MOUNT ALUMINUM LOW LEAKAGE
FEATURES
• Cylindrical leadless type for surface mounting.
• Low leakage current.
• Anti-solvent (2 minutes).
• Designed for automatic mounting and reflow soldering.
• RoHs Compliant
SPECIFICATIONS
STANDARD PRODUCT TABLE (DØ X L(mm))
TYPE MXML
Performance Characteristics
Operating Temperature Range -40°C ~ +85°C.
Temperature Characteristics (120Hz)
Impedance Ratio
Rated Voltage (WVDC) 6.3 10 16 25 35 50
Z (-25°C) / Z (+20°C) 4 3 2 2 2 2
Z (-40°C) / Z (+20°C) 8 6 4 4 3 3
Voltage Range 6.3VDC ~ 50VDC.
Surge Voltage (20°C, 120Hz) VDC 8 13 20 32 44 63
Capacitance Range 0.1µF ~ 330µF.
Capacitance Tolerance ±20%.
Maximum Dissipation Factor (20°C,
120Hz)
Rated Voltage (WVDC) 6.3 10 16 25 35 50
DF % 26 22 18 16 14 12
Maximum Leakage Current (20°C) (after 2
minutes)
0.002CV or 0.4µA, whichever is greater.
Load Life Test (85°C, 1000 hours)
Capacitance Change Within ±25% of initial measured value.
DF Less than 200% of specific value.
Leakage Current Less than specified value.
Part Number Example: MXML-016/100M4X5TR13F
MXML - 016 / 100 M 4X5 TR 13 F
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
MF
D
6.3 VDC 10 VDC 16 VDC 25 VDC 35 VDC 50 VDC
SIZE
I RMS
SIZE
I RMS
SIZE
I RMS
SIZE
I RMS
SIZE
I RMS
SIZE
I RMS
.10 4 X 5.5 1
.22 4 X 5.5 2
.33 4 X 5.5 2.8
.47 4 X 5.5 4
1 4 X5.5 8.4
2.2 4 X 5.5 8.4 4 X 5.5 13
3.3 4 X 5.5 10 4 X 5.5 15 4 X 5.5 17
4.7 4 X 5.5 10 4 X 5.5 16 4 X 5.5 18 6.3X5.5 20
10 4 X 5.5 15 4 X 5.5 23 4 X 5.5 23 4 X 5.5 27 6.3X5.5 29 6.3X5.5 33
22
4 X 5.5 28 4 X 5.5 33 5 X 5.5 37 5 X 5.5 42 6.3X5.5 46 6.3X7.7 48
8 X 6.5 52
33
4 X 5.5 37 5 X 5.5 41 6.3X5.5 49 6.3X5.5 52 6.3X7.7 58 6.3X7.7 66
8 X 6.5 62 8 X 6.5 71
47
4 X 5.5 45 6.3X5.5 52 6.3X5.5 58 6.3X7.7 65 6.3X7.7 75
8 X 6.5 70 8 X 6.5 80
100
5 X 5.5 70 6.3X7.7 75 6.3X7.7 85 6.3X7.7 102
8 X 6.5 80 8 X 6.5 92 8 X 6.5 110
220
6.3X7.7 102 6.3X7.7 125
8 X 6.5 110 8 X 6.5 135
330
6.3X7.7 155
8 X 6.5 170 IAC (RIPPLE CURRENT) MAX @ 85 ° C 120Hz
Page 2
Tecate Group
2010/08/03 Rev.04
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group

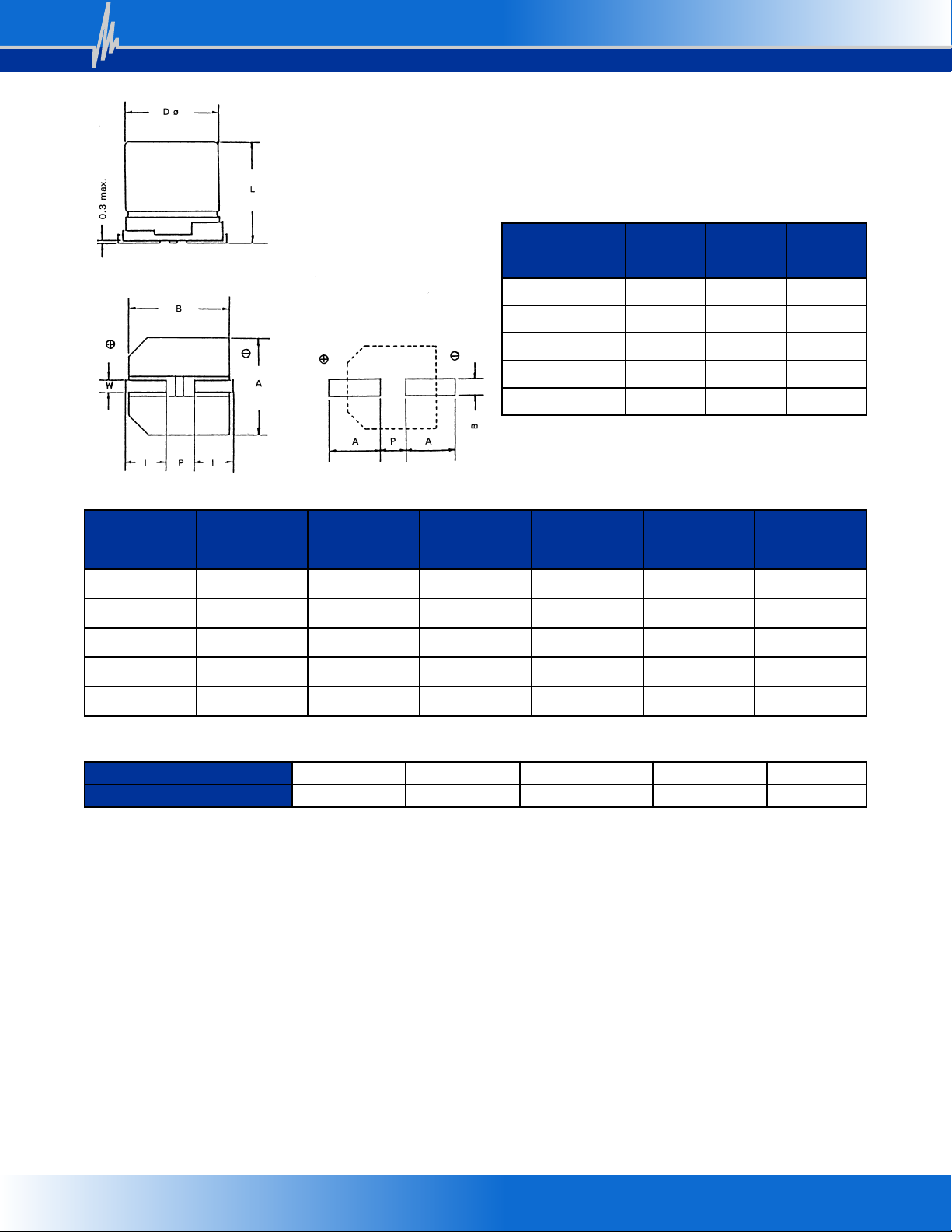

DIMENSIONS (mm)
Case Size
D ±0.5 x L max
A B P
4 x 5.5 2.6 1.8 1.0
5 x 5.5 3.0 1.8 1.4
6.3 x 5.5 3.5 1.8 2.1
6.3 x 7.7 3.5 1.8 2.1
8 x 6.5 4.1 2.1 2.8
RECOMMENDED LAND PATTERN
RIPPLE CURRENT CORRECTION FACTOR
SURFACE MOUNT ALUMINUM LOW LEAKAGE
Frequency (Hz) 60 (50) 120 500 1K ≥10KHz
Correction Factor 0.8 1.0 1.1 1.15 1.2
TYPE MXML
DIAMETER
±0.5
L
MAX
A
±0.2
B
±0.2
I
±0.1
W P
4 5.5 4.3 4.3 1.95 0.5~0.8 1.0
5 5.5 5.3 5.3 2.25 0.5~0.8 1.4
6.3 5.5 6.6 6.6 2.5 0.5~0.8 2.2
6.3 7.5 6.6 6.6 2.5 0.5~0.8 2.2
8 6.5 8.3 8.3 3.35 0.5~0.8 2.3
