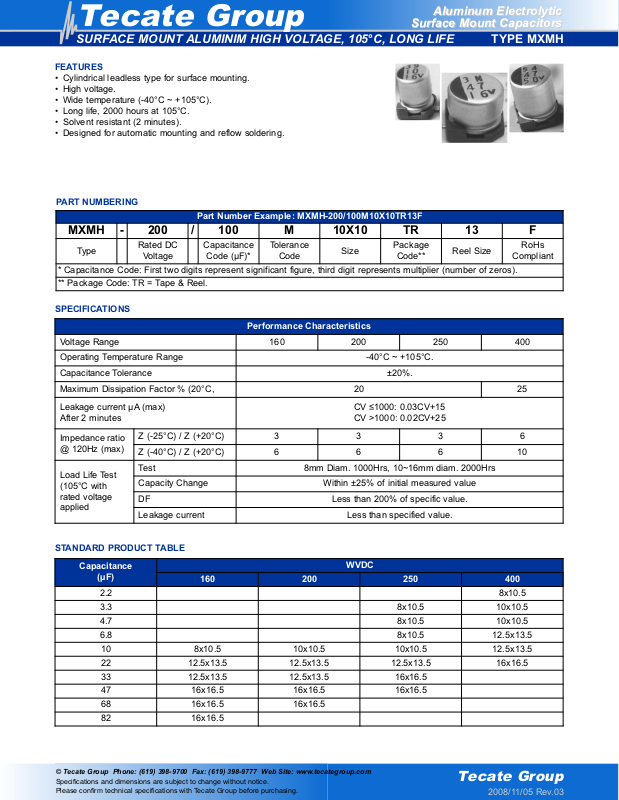

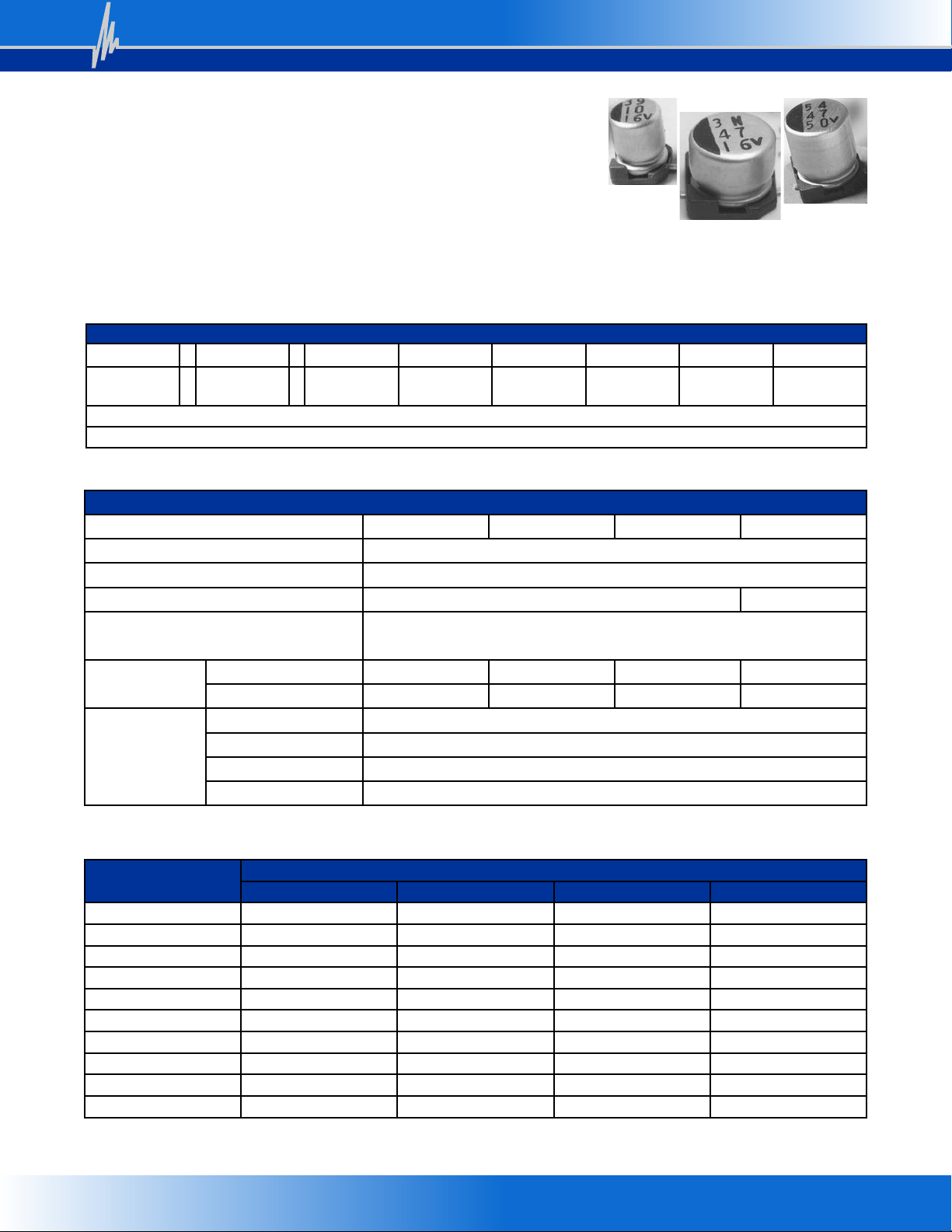

SURFACE MOUNT ALUMINIM HIGH VOLTAGE, 105°C, LONG LIFE
FEATURES
• Cylindrical leadless type for surface mounting.
• High voltage.
• Wide temperature (-40°C ~ +105°C).
• Long life, 2000 hours at 105°C.
• Solvent resistant (2 minutes).
• Designed for automatic mounting and reflow soldering.
SPECIFICATIONS
STANDARD PRODUCT TABLE
TYPE MXMH
Part Number Example: MXMH-200/100M10X10TR13F
MXMH - 200 / 100 M 10X10 TR 13 F
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
Performance Characteristics
Voltage Range 160 200 250 400
Operating Temperature Range -40°C ~ +105°C.
Capacitance Tolerance ±20%.
Maximum Dissipation Factor % (20°C, 20 25
Leakage current µA (max)
After 2 minutes
CV ≤1000: 0.03CV+15
CV >1000: 0.02CV+25
Impedance ratio
@ 120Hz (max)
Z (-25°C) / Z (+20°C) 3 3 3 6
Z (-40°C) / Z (+20°C) 6 6 6 10
Load Life Test
(105°C with
rated voltage
applied
Test 8mm Diam. 1000Hrs, 10~16mm diam. 2000Hrs
Capacity Change Within ±25% of initial measured value
DF Less than 200% of specific value.
Leakage current Less than specified value.
Capacitance
(µF)
WVDC
160 200 250 400
2.2 8x10.5
3.3 8x10.5 10x10.5
4.7 8x10.5 10x10.5
6.8 8x10.5 12.5x13.5
10 8x10.5 10x10.5 10x10.5 12.5x13.5
22 12.5x13.5 12.5x13.5 12.5x13.5 16x16.5
33 12.5x13.5 12.5x13.5 16x16.5
47 16x16.5 16x16.5 16x16.5
68 16x16.5 16x16.5
82 16x16.5
Page 2
Tecate Group
2008/11/05 Rev.01
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
TYPE MXMHSURFACE MOUNT ALUMINUM HIGH VOLTAGE, 105°C, LONG LIFE
MAXIMUM RIPPLE (mA rms @ 120Hz & 105°C)
Case Size A B P
8x10.5 4.1 2.1 2.8
10 x 10.8 4.4 1.9 4.3
12.5 x 14 5.7 1.9 4.5
16 x 17 6.7 2.5 6.4
ap.
(µF)
WVDC
160 200 250 400
2.2 25
3.3 31 36
4.7 37 38
6.8 44 47
10 7 64 64 57
22 112 112 112 115
33 137 137 150
47 180 180 180
68 215 215
8.2 235

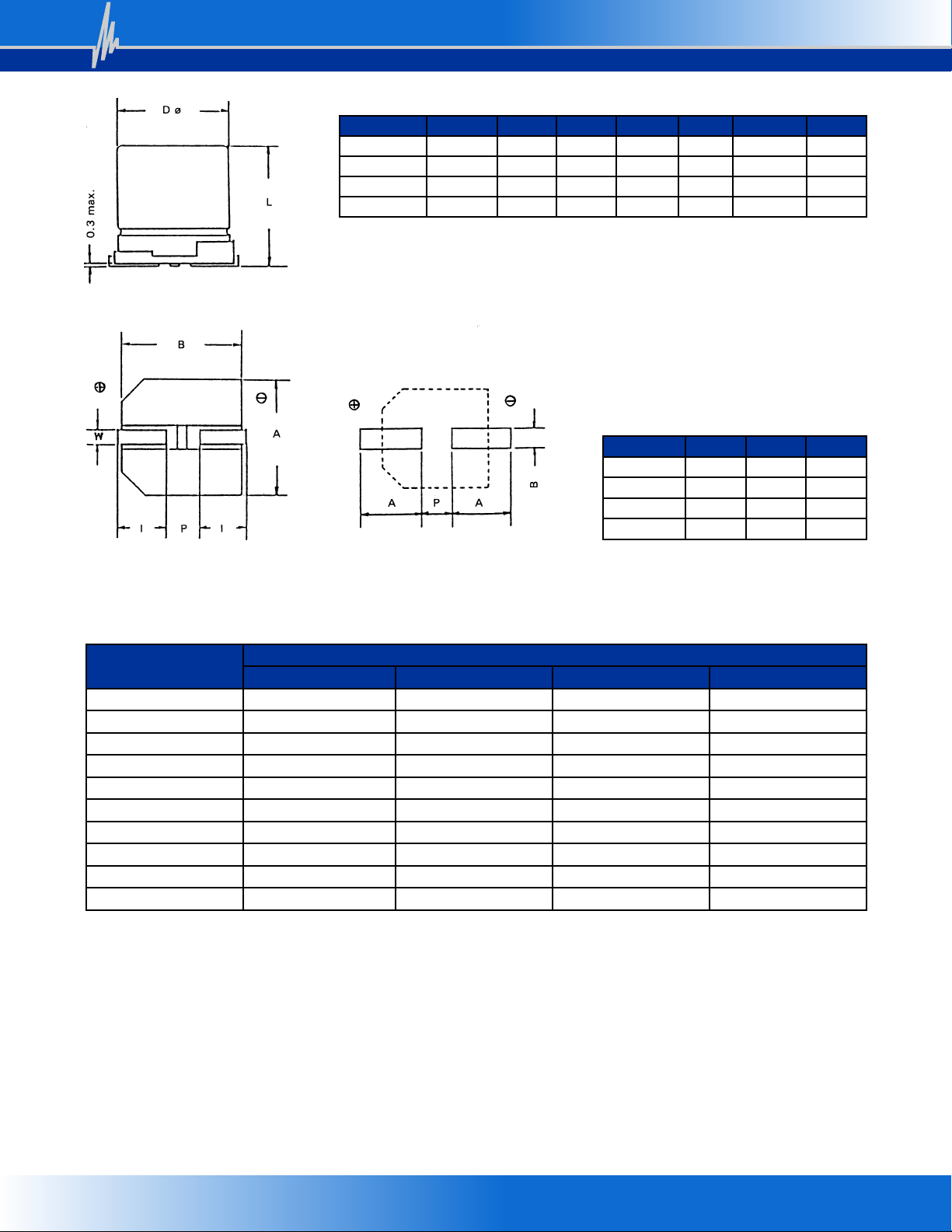

RECOMMENDED LAND PATTERN (mm)
DIMENSIONS (mm)
Case Size dØ ± 0.5 L Max. A ± 0.2 B ± 0.2 I ± 0.2 W P ± 0.2
8x10.5 8 10.8 8.3 8.3 2.9 0.7 ~ 1.0 3.2
10 x 10.5 10 10.8 10.3 10.3 3.2 1.1 ~ 1.4 4.6
12.5 x 13.5 12.5 14 12.8 12.8 4.5 1.1 ~ 1.4 4.6
16 x 16.5 16 17 16.3 16.2 5.5 1.8 ~ 2.1 7.0
