Page 1
Tecate Group
2007/06/25 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors

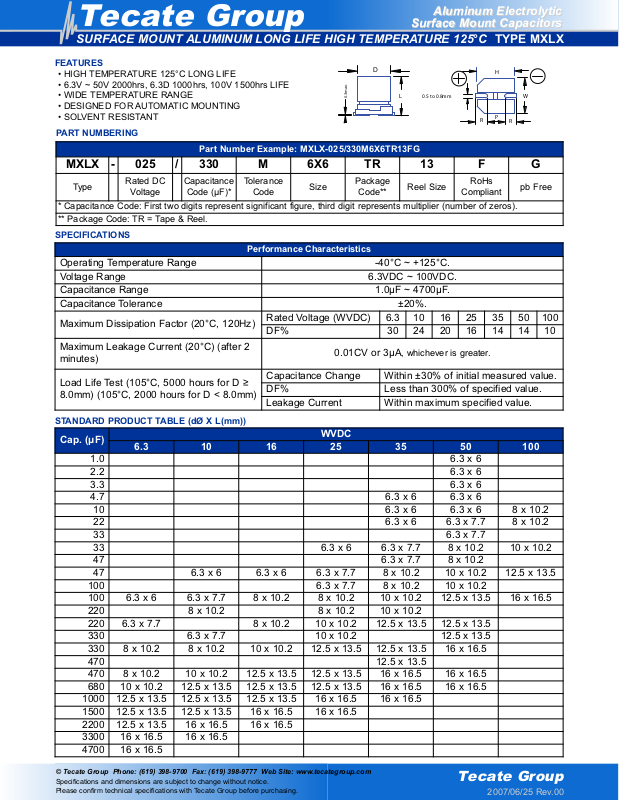

SURFACE MOUNT ALUMINUM LONG LIFE HIGH TEMPERATURE 125°C TYPE MXLX
Part Number Example: MXLX-025/330M6X6TR13FG
MXLX - 025 / 330 M 6X6 TR 13 F G
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
pb Free
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
FEATURES
• HIGH TEMPERATURE 125°C LONG LIFE
• 6.3V ~ 50V 2000hrs, 6.3D 1000hrs, 100V 1500hrs LIFE
• WIDE TEMPERATURE RANGE
• DESIGNED FOR AUTOMATIC MOUNTING
• SOLVENT RESISTANT
SPECIFICATIONS
STANDARD PRODUCT TABLE (dØ X L(mm))
Performance Characteristics
Operating Temperature Range -40°C ~ +125°C.
Voltage Range 6.3VDC ~ 100VDC.
Capacitance Range 1.0μF ~ 4700μF.
Capacitance Tolerance ±20%.
Maximum Dissipation Factor (20°C, 120Hz)
Rated Voltage (WVDC) 6.3 10 16 25 35 50 100
DF% 30 24 20 16 14 14 10
Maximum Leakage Current (20°C) (after 2
minutes)
0.01CV or 3μA, whichever is greater.
Load Life Test (105°C, 5000 hours for D ≥
8.0mm) (105°C, 2000 hours for D < 8.0mm)
Capacitance Change Within ±30% of initial measured value.
DF% Less than 300% of specified value.
Leakage Current Within maximum specified value.
Cap. (μF)
WVDC
6.3 10 16 25 35 50 100
1.0 6.3 x 6
2.2 6.3 x 6
3.3 6.3 x 6
4.7 6.3 x 6 6.3 x 6
10 6.3 x 6 6.3 x 6 8 x 10.2
22 6.3 x 6 6.3 x 7.7 8 x 10.2
33 6.3 x 7.7
33 6.3 x 6 6.3 x 7.7 8 x 10.2 10 x 10.2
47 6.3 x 7.7 8 x 10.2
47 6.3 x 6 6.3 x 6 6.3 x 7.7 8 x 10.2 10 x 10.2 12.5 x 13.5
100 6.3 x 7.7 8 x 10.2 10 x 10.2
100 6.3 x 6 6.3 x 7.7 8 x 10.2 8 x 10.2 10 x 10.2 12.5 x 13.5 16 x 16.5
220 8 x 10.2 8 x 10.2 10 x 10.2
220 6.3 x 7.7 8 x 10.2 10 x 10.2 12.5 x 13.5 12.5 x 13.5
330 6.3 x 7.7 10 x 10.2 12.5 x 13.5
330 8 x 10.2 8 x 10.2 10 x 10.2 12.5 x 13.5 12.5 x 13.5 16 x 16.5
470 12.5 x 13.5
470 8 x 10.2 10 x 10.2 12.5 x 13.5 12.5 x 13.5 16 x 16.5 16 x 16.5
680 10 x 10.2 12.5 x 13.5 12.5 x 13.5 12.5 x 13.5 16 x 16.5 16 x 16.5
1000 12.5 x 13.5 12.5 x 13.5 12.5 x 13.5 16 x 16.5 16 x 16.5
1500 12.5 x 13.5 12.5 x 13.5 16 x 16.5 16 x 16.5
2200 12.5 x 13.5 16 x 16.5 16 x 16.5
3300 16 x 16.5 16 x 16.5
4700 16 x 16.5

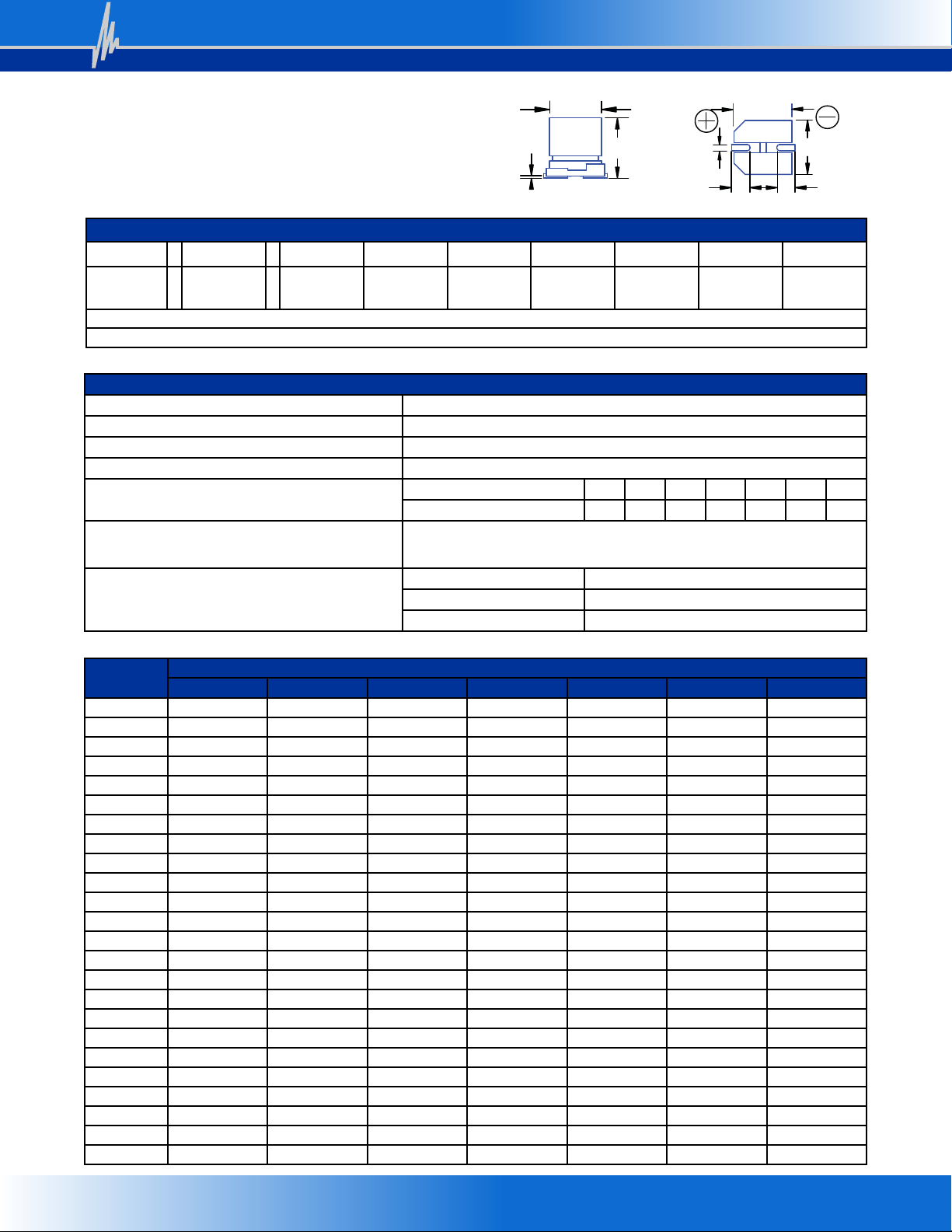

0.3max.
D
L
0.5 to 0.8mm
H
P
R
R
W
Page 2
Tecate Group
2007/06/25 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
SURFACE MOUNT ALUMINUM LONG LIFE HIGH TEMPERATURE 125°C TYPE MXLX
MAXIMUM RIPPLE (mA rms @ 100HZ & 125°C)
Cap. (μF)
WVDC
6.3 10 16 25 35 50 100
1.0 45
2.2 45
3.3 45
4.7 60 45
10 70 50 70
22 70 80 70
33 80
33 70 110 140 115
47 110 140
47 70 70 110 160 240 350
100 110 160 240
100 70 110 160 160 220 490 500
220 110 160 220
220 110 160 220 550 490
330 160 220 490
330 160 160 220 550 550 800
470 550
470 160 220 550 550 900 800
680 220 550 550 550 900 800
1000 550 550 550 900 900
1500 550 550 900 900
2200 550 900 900
3300 900 900
4700 900
Cap. (μF)
WVDC
6.3 10 16 25 35 50 100
1.0 3.50
2.2 3.50
3.3 3.50
4.7 2.00 3.50
10 1.60 2.80 1.00
22 1.60 2.00 1.00
33 2.00
33 1.60 0.90 0.70 0.80
47 0.90 0.70
47 1.60 1.60 0.90 0.40 0.50 0.33
100 0.90 0.40 0.50
100 1.60 0.90 0.40 0.40 0.30 0.23 0.24
220 0.90 0.40 0.30
220 0.90 0.40 0.30 0.12 0.23
330 0.40 0.30 0.23
330 0.40 0.40 0.30 0.12 0.12 0.15
470 0.12
470 0.40 0.30 0.12 0.12 0.08 0.15
680 0.30 0.12 0.12 0.12 0.08 0.15
1000 0.12 0.12 0.12 0.08 0.08
1500 0.12 0.12 0.08 0.08
2200 0.12 0.08 0.08
3300 0.08 0.08
4700 0.08
MAXIMUM ESR (Ω @ 100KHz & 20°C)
Page 3
Tecate Group
2007/06/25 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors

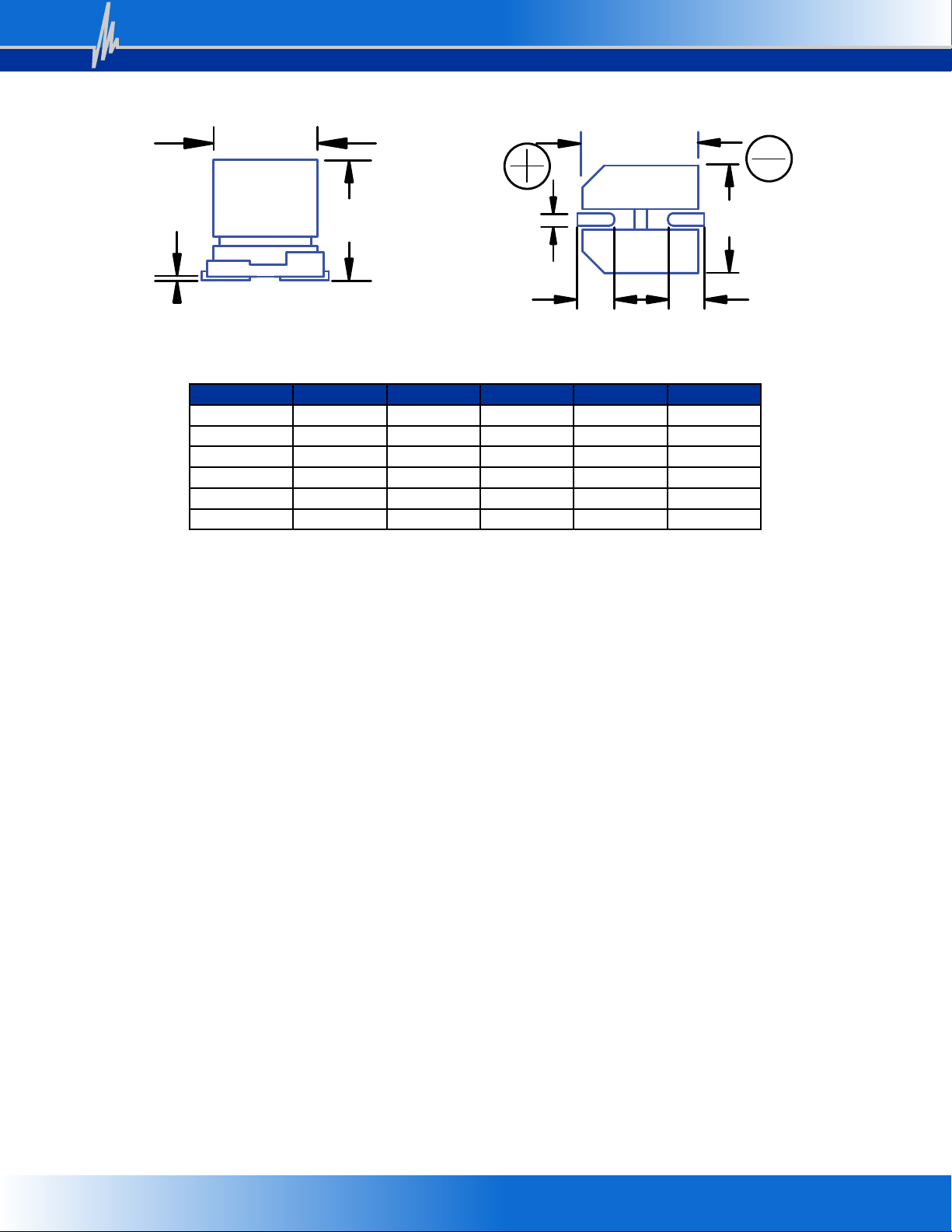

D +0.5 Max. L W ± 0.2 H ± 0.2 R P ± 0.2
6.3 6.0 ± 0.3 6.6 6.6 2.35 ~ 2.75 2.2
6.3 7.7 ± 0.3 6.6 6.6 2.35 ~ 2.75 2.2
8.0 10.2 ± 0.3 8.3 8.3 2.7 ~ 3.1 3.2
10.0 10.2 ± 0.3 10.3 10.3 3.0 ~ 3.4 4.6
12.5 13.5 ± 0.5 12.8 12.8 4.25 ~ 4.65 4.6
16.0 16.5 +0.5 16.3 16.3 4.95 ~ 5.35 7.0
SURFACE MOUNT ALUMINUM LONG LIFE HIGH TEMPERATURE 125°C TYPE MXLX
D
0.3max.
L
0.5 to 0.8mm
H
P
R
R
W
