Page 1
Tecate Group
2006/08/30 Rev.02
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group

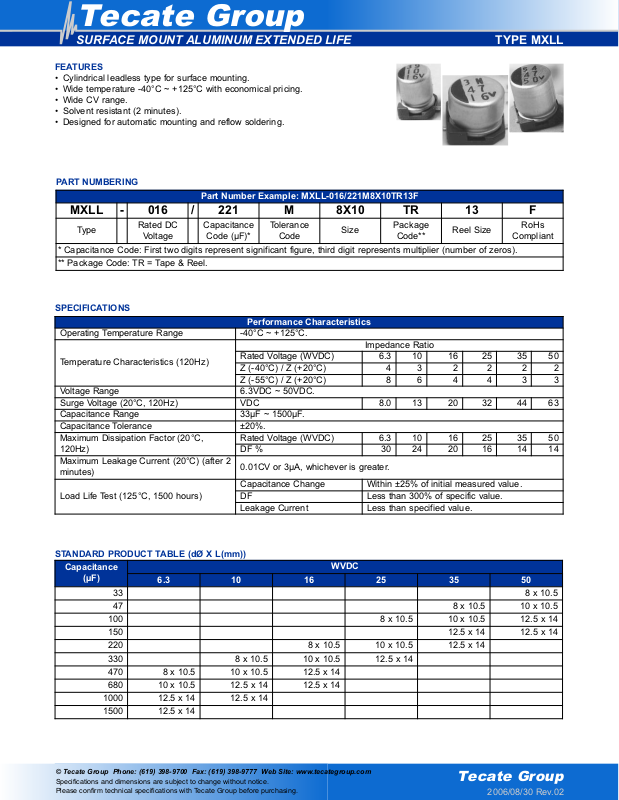

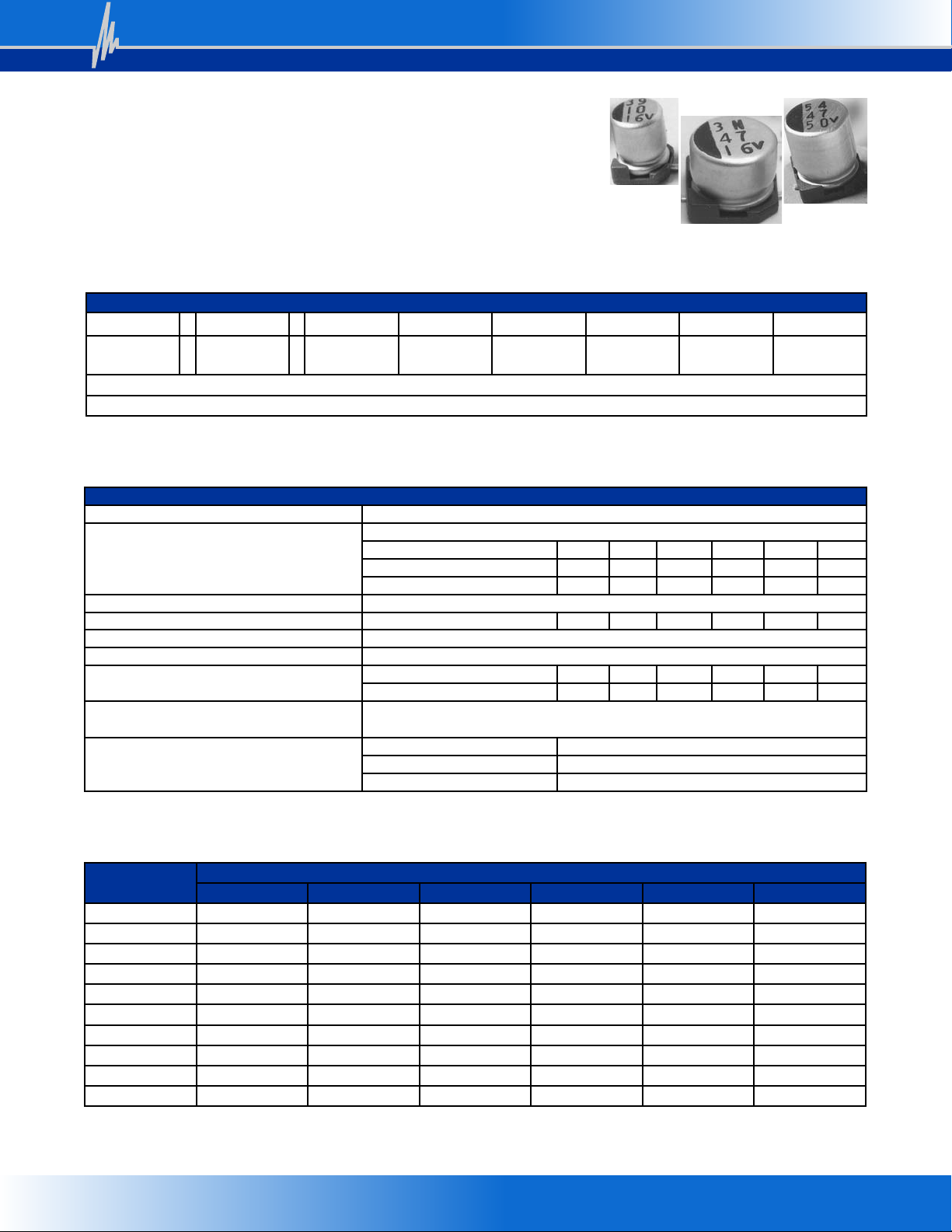

SURFACE MOUNT ALUMINUM EXTENDED LIFE
FEATURES
• Cylindrical leadless type for surface mounting.
• Wide temperature -40°C ~ +125°C with economical pricing.
• Wide CV range.
• Solvent resistant (2 minutes).
• Designed for automatic mounting and reflow soldering.
SPECIFICATIONS
STANDARD PRODUCT TABLE (dØ X L(mm))
Capacitance
(µF)
WVDC
6.3 10 16 25 35 50
33 8 x 10.5
47 8 x 10.5 10 x 10.5
100 8 x 10.5 10 x 10.5 12.5 x 14
150 12.5 x 14 12.5 x 14
220 8 x 10.5 10 x 10.5 12.5 x 14
330 8 x 10.5 10 x 10.5 12.5 x 14
470 8 x 10.5 10 x 10.5 12.5 x 14
680 10 x 10.5 12.5 x 14 12.5 x 14
1000 12.5 x 14 12.5 x 14
1500 12.5 x 14
TYPE MXLL
Performance Characteristics
Operating Temperature Range -40°C ~ +125°C.
Temperature Characteristics (120Hz)
Impedance Ratio
Rated Voltage (WVDC) 6.3 10 16 25 35 50
Z (-40°C) / Z (+20°C) 4 3 2 2 2 2
Z (-55°C) / Z (+20°C) 8 6 4 4 3 3
Voltage Range 6.3VDC ~ 50VDC.
Surge Voltage (20°C, 120Hz) VDC 8.0 13 20 32 44 63
Capacitance Range 33µF ~ 1500µF.
Capacitance Tolerance ±20%.
Maximum Dissipation Factor (20°C,
120Hz)
Rated Voltage (WVDC) 6.3 10 16 25 35 50
DF % 30 24 20 16 14 14
Maximum Leakage Current (20°C) (after 2
minutes)
0.01CV or 3µA, whichever is greater.
Load Life Test (125°C, 1500 hours)
Capacitance Change Within ±25% of initial measured value.
DF Less than 300% of specific value.
Leakage Current Less than specified value.
Part Number Example: MXLL-016/221M8X10TR13F
MXLL - 016 / 221 M 8X10 TR 13 F
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
Page 2
Tecate Group
2006/04/17 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group

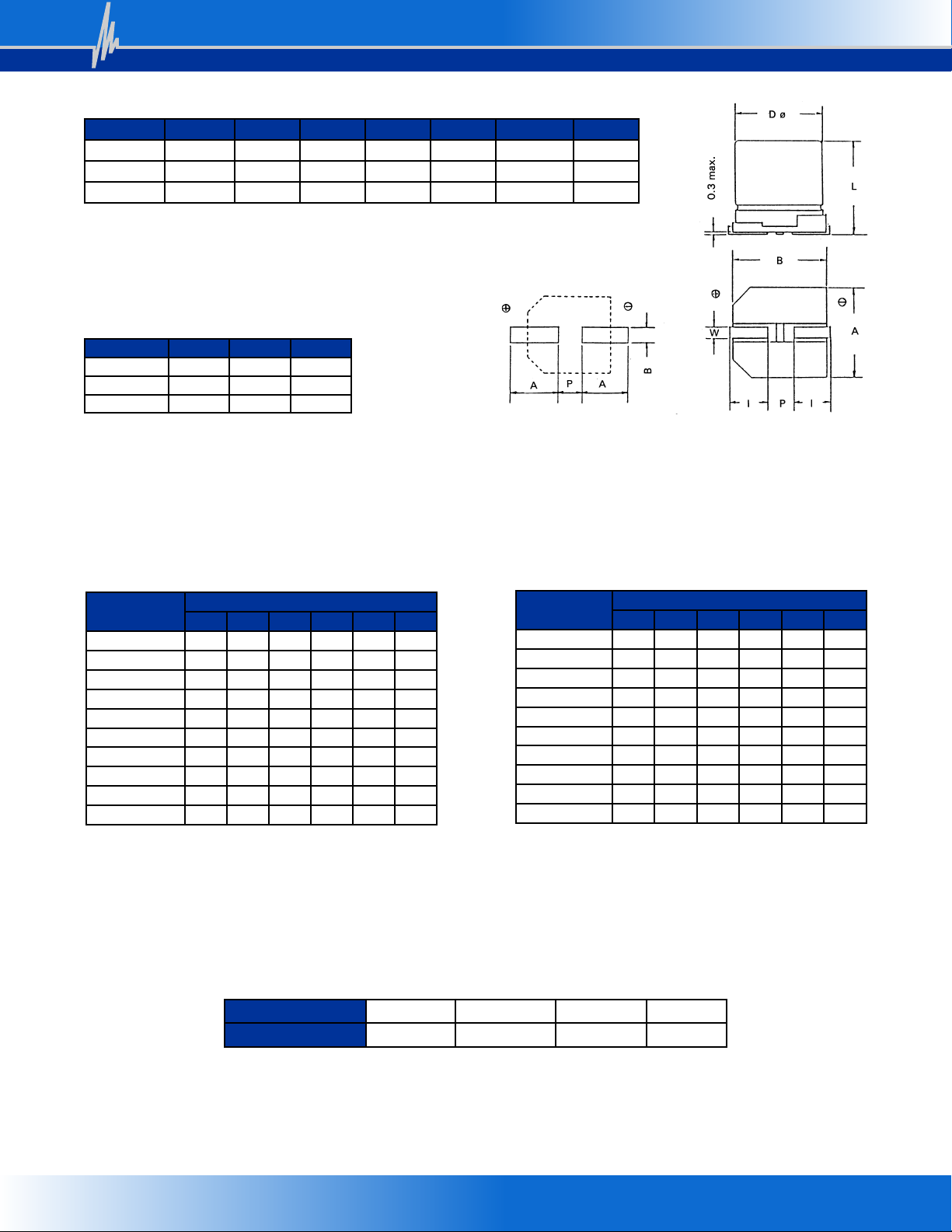

Case Size dØ ± 0.5 L Max. A ± 0.2 B ± 0.2 I ± 0.2 W P ± 0.2
8 x 10.5 8.0 10.8 8.3 8.3 2.9 0.7 ~ 1.0 3.2
10 x 10.5 10.0 10.8 10.3 10.3 3.2 0.7 ~ 1.0 4.6
12.5 x 14 12.5 14 12.8 12.8 4.4 0.7 ~ 1.0 4.6
TYPE MXLL
DIMENSIONS (mm)
Case Size A B P
8 x 10.5 4.15 1.9 2.8
10 x 10.5 4.4 1.9 4.3
12.5 x 14 5.6 2.1 4.3
RECOMMENDED LAND PATTERN (mm)
MAXIMUM RIPPLE (mA rms @ 120Hz & 105°C) MAXIMUM ESR (Ω @ 120Hz & 20°C)
RIPPLE CURRENT CORRECTION FACTOR
Capacitance
(µF)
WVDC
6.3 10 16 25 35 50
33 100
47 110 160
100 110 190 210
150 250 220
220 120 200 280
330 120 210 270
470 140 210 290
680 210 300 300
1000 330 320
1500 350
Capacitance
(µF)
WVDC
6.3 10 16 25 35 50
33 7.05
47 4.95 4.95
100 2.65 2.32 2.32
150 1.55 1.55
220 1.51 1.21 1.06
330 1.21 1.01 0.81
470 1.06 0.85 0.71
680 0.73 0.59 0.49
1000 0.50 0.40
1500 0.33
SURFACE MOUNT ALUMINUM EXTENDED LIFE
Frequency (Hz) 50 - f < 100 100 - f < 1K 1K - f < 10K 10K - f
Correction Factor 1.0 1.0 1.2 1.45
