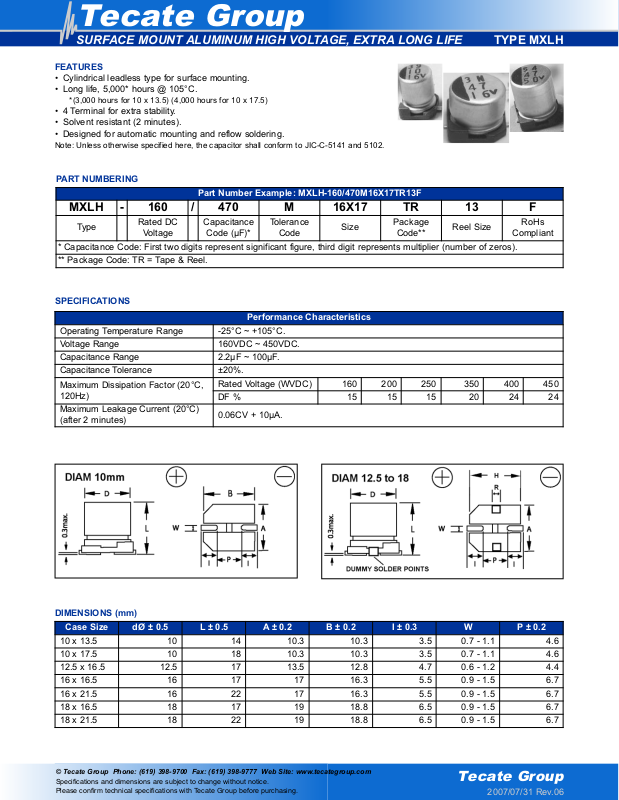

SURFACE MOUNT ALUMINUM HIGH VOLTAGE, EXTRA LONG LIFE
FEATURES
• Cylindrical leadless type for surface mounting.
• Long life, 5,000* hours @ 105°C.
*(3,000 hours for 10 x 13.5) (4,000 hours for 10 x 17.5)
• 4 Terminal for extra stability.
• Solvent resistant (2 minutes).
• Designed for automatic mounting and reflow soldering.
Note: Unless otherwise specified here, the capacitor shall conform to JIC-C-5141 and 5102.
SPECIFICATIONS
TYPE MXLH

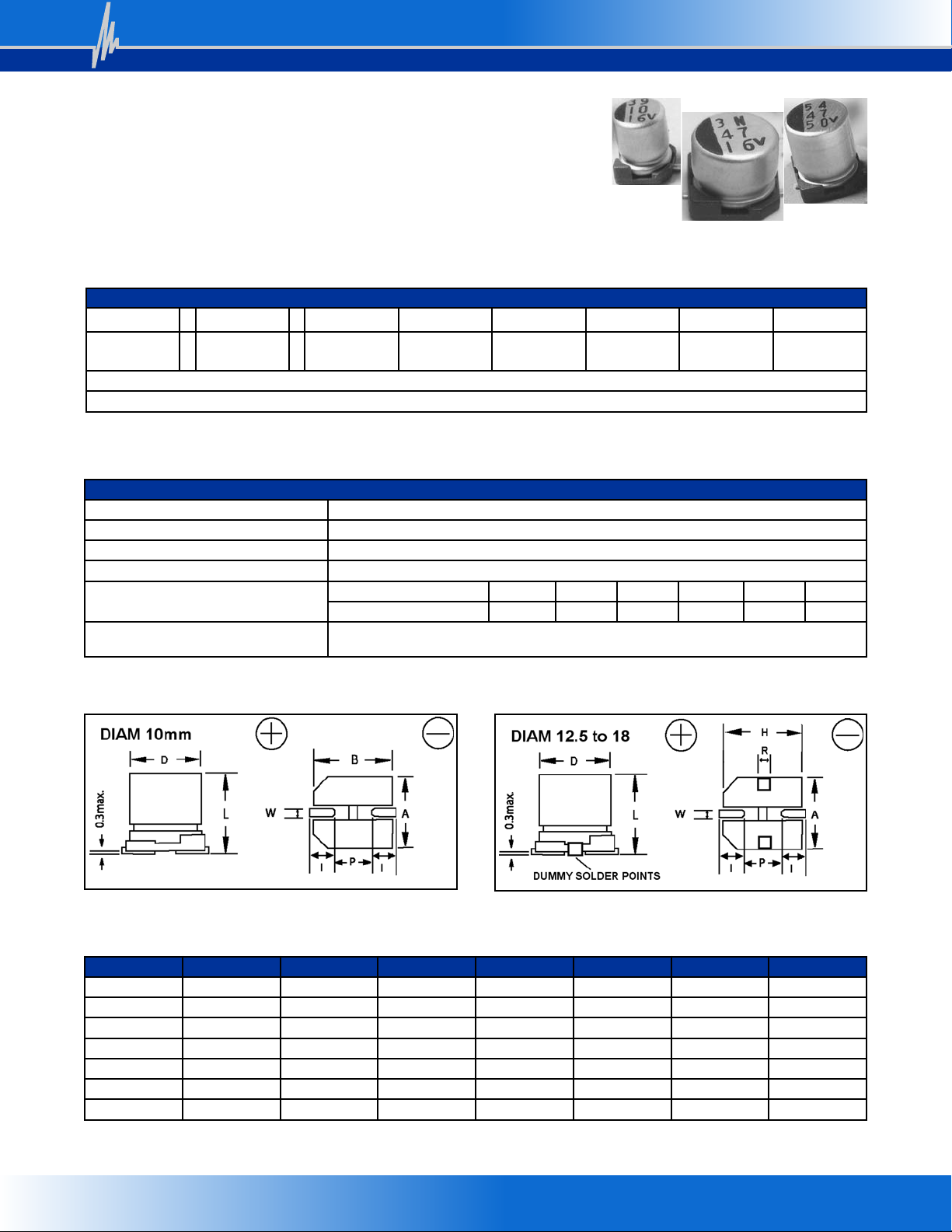

DIMENSIONS (mm)
Performance Characteristics
Operating Temperature Range -25°C ~ +105°C.
Voltage Range 160VDC ~ 450VDC.
Capacitance Range 2.2µF ~ 100µF.
Capacitance Tolerance ±20%.
Maximum Dissipation Factor (20°C,
120Hz)
Rated Voltage (WVDC) 160 200 250 350 400 450
DF % 15 15 15 20 24 24
Maximum Leakage Current (20°C)
(after 2 minutes)
0.06CV + 10µA.
Case Size dØ ± 0.5 L ± 0.5 A ± 0.2 B ± 0.2 I ± 0.3 W P ± 0.2
10 x 13.5 10 14 10.3 10.3 3.5 0.7 - 1.1 4.6
10 x 17.5 10 18 10.3 10.3 3.5 0.7 - 1.1 4.6
12.5 x 16.5 12.5 17 13.5 12.8 4.7 0.6 - 1.2 4.4
16 x 16.5 16 17 17 16.3 5.5 0.9 - 1.5 6.7
16 x 21.5 16 22 17 16.3 5.5 0.9 - 1.5 6.7
18 x 16.5 18 17 19 18.8 6.5 0.9 - 1.5 6.7
18 x 21.5 18 22 19 18.8 6.5 0.9 - 1.5 6.7
Part Number Example: MXLH-160/470M16X17TR13F
MXLH - 160 / 470 M 16X17 TR 13 F
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
Page 2
Tecate Group
2007/07/31 Rev.06
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
SURFACE MOUNT ALUMINUM HIGH VOLTAGE, EXTRA LONG LIFE TYPE MXLH
STANDARD PRODUCT TABLE
MAXIMUM RIPPLE (mA rms @ 120Hz & 105°C) MAXIMUM ESR (Ω @ 120Hz & 20°C)
Cap. (µF) Code
WVDC
160 200 250 350 400 450
2.2 2R2 10 x 13.5
3.3 3R3 10 x 13.5 10 x 17.5
4.7 4R7 10 x 17.5
12.5 x 16.5
10 100 10 x 13.5 10 x 17.5
16 x 16.5
16 x 16.5 18 x 16.5
22 220 16 x 21.5 18 x 21.5
12.5 x 16.5 16 x 16.5 18 x 16.5
33 330 16 x 21.5 18 x 21.5
12.5 x 16.5 16 x 16.5 18 x 16.5
47 470 16 x 21.5 18 x 21.5
16 x 16.5 18 x 16.5
68 680
16 x 21.5
16 x 21.5 18 x 21.5
18 x 16.5
100 101 18 x 21.5 18 x 21.5
Cap.
(µF)
WVDC
160 200 250 350 400 450
2.2 29
3.3 40 41
4.7 50 49
10 70 88 270 250 310
22 470 560 350 410 560
33 470 600 560 480 600
47 600 600 710 670
68 750 750 990
100 1060 1060
Cap.
(µF)
WVDC
160 200 250 350 400 450
2.2 181
3.3 121 121
4.7 84.8 84.8
10 24.9 24.9 33.2 39.9 39.9
22 11.3 11.3 15.1 18.1 18.1
33 7.55 7.55 7.55 10.1 12.1
47 5.3 5.3 5.3 7.07
68 3.66 3.66 3.66
100 2.49 2.49
