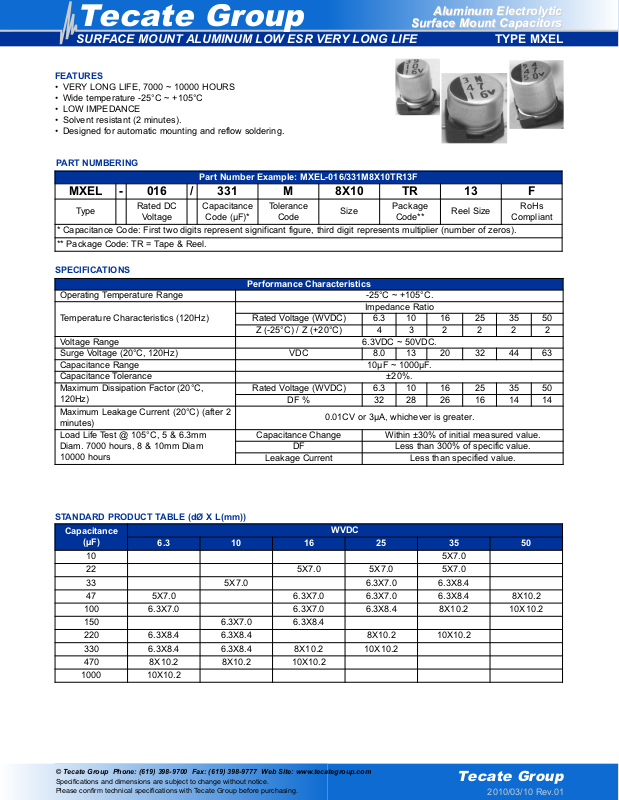

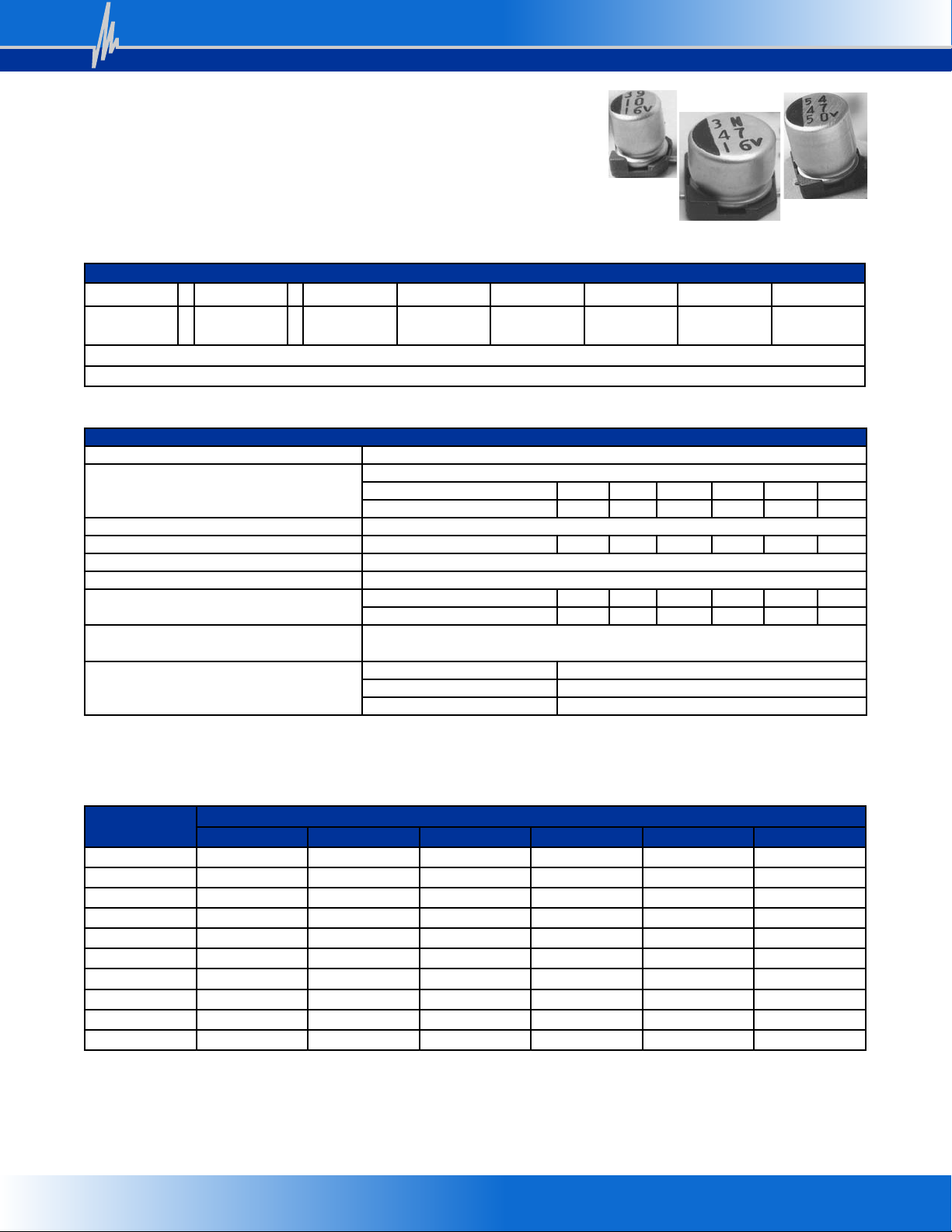

Page 1
Tecate Group
2010/03/10 Rev.01
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
FEATURES
• VERY LONG LIFE, 7000 ~ 10000 HOURS
• Wide temperature -25°C ~ +105°C
• LOW IMPEDANCE
• Solvent resistant (2 minutes).
• Designed for automatic mounting and reflow soldering.
SPECIFICATIONS
STANDARD PRODUCT TABLE (dØ X L(mm))
Capacitance
(µF)
WVDC
6.3 10 16 25 35 50
10 5X7.0
22 5X7.0 5X7.0 5X7.0
33 5X7.0 6.3X7.0 6.3X8.4
47 5X7.0 6.3X7.0 6.3X7.0 6.3X8.4 8X10.2
100 6.3X7.0 6.3X7.0 6.3X8.4 8X10.2 10X10.2
150 6.3X7.0 6.3X8.4
220 6.3X8.4 6.3X8.4 8X10.2 10X10.2
330 6.3X8.4 6.3X8.4 8X10.2 10X10.2
470 8X10.2 8X10.2 10X10.2
1000 10X10.2
Performance Characteristics
Operating Temperature Range -25°C ~ +105°C.
Temperature Characteristics (120Hz)
Impedance Ratio
Rated Voltage (WVDC) 6.3 10 16 25 35 50
Z (-25°C) / Z (+20°C) 4 3 2 2 2 2
Voltage Range 6.3VDC ~ 50VDC.
Surge Voltage (20°C, 120Hz) VDC 8.0 13 20 32 44 63
Capacitance Range 10µF ~ 1000µF.
Capacitance Tolerance ±20%.
Maximum Dissipation Factor (20°C,
120Hz)
Rated Voltage (WVDC) 6.3 10 16 25 35 50
DF % 32 28 26 16 14 14
Maximum Leakage Current (20°C) (after 2
minutes)
0.01CV or 3µA, whichever is greater.
Load Life Test @ 105°C, 5 & 6.3mm
Diam. 7000 hours, 8 & 10mm Diam
10000 hours
Capacitance Change Within ±30% of initial measured value.
DF Less than 300% of specific value.
Leakage Current Less than specified value.
Part Number Example: MXEL-016/331M8X10TR13F
MXEL - 016 / 331 M 8X10 TR 13 F
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
SURFACE MOUNT ALUMINUM LOW ESR VERY LONG LIFE TYPE MXEL
Page 2
Tecate Group
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors

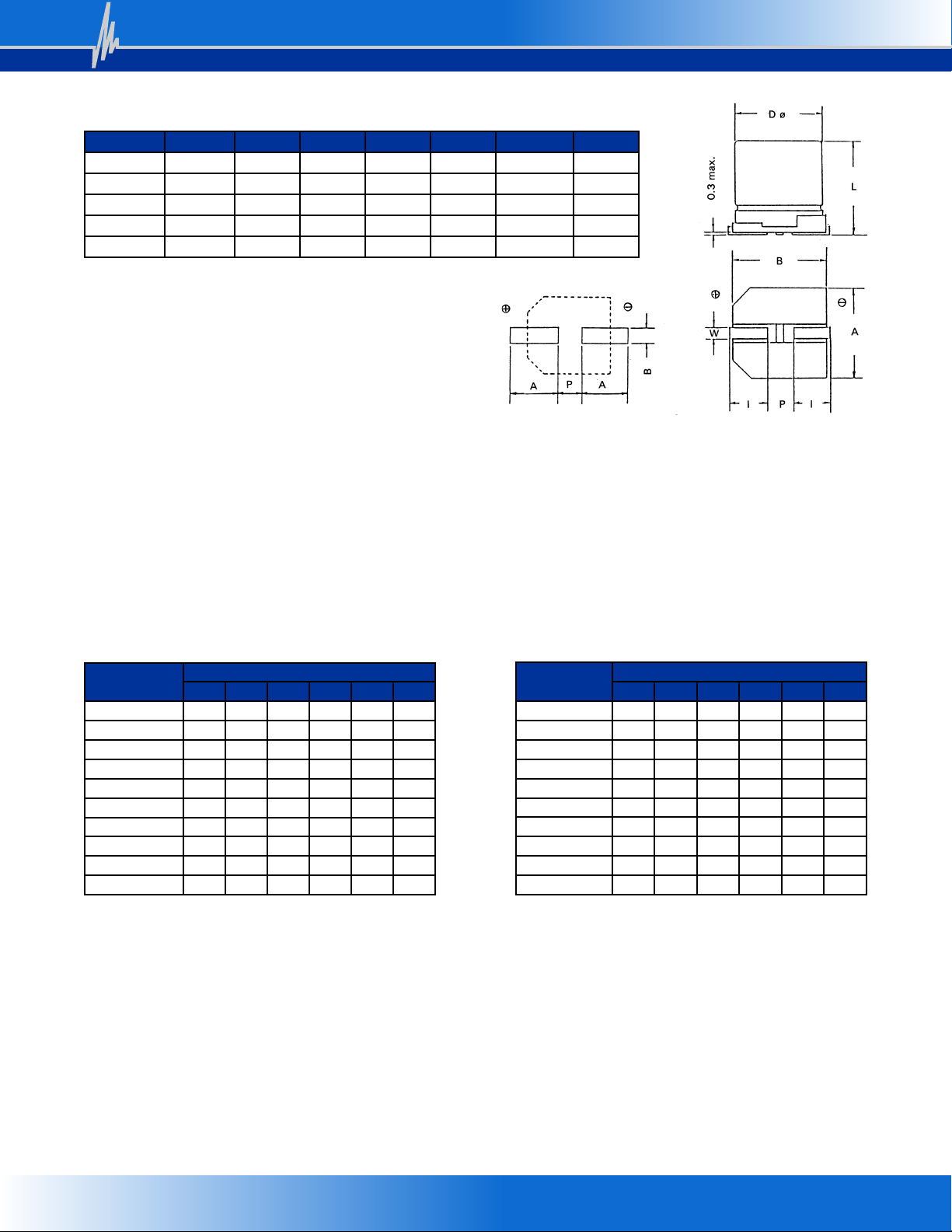

Case Size dØ ± 0.5 L Max. A ± 0.2 B ± 0.2 I ± 0.2 W P ± 0.2
5X7.0 5 7.3 5.3 5.3 2.3 0.5 ~ 0.8 1.4
6.3X7.0 6.3 7.3 6.6 6.6 2.55 0.5 ~ 0.8 2.2
6.3X8.4 6.3 8.7 6.6 6.6 2.55 0.5 ~ 0.8 2.2
8X10.2 8 10.5 8.3 8.3 2.9 0.7 ~1.0 3.2
10X10.2 10 10.5 10.3 10.3 3.2 1.0 ~1.4 4.6
DIMENSIONS (mm)
MAXIMUM RIPPLE (mA rms @ 100KHz & 105°C)
MAXIMUM IMPEDANCE (Ω @ 100KHz & 20°C)
Capacitance
(µF)
WVDC
6.3 10 16 25 35 50
10 95
22 95 95 95
33 95 140 230
47 95 140 140 230 350
100 140 140 230 600 670
150 140 230
220 230 230 600 850
330 230 600 850
470 600 850
1000 850
Capacitance
(µF)
WVDC
6.3 10 16 25 35 50
10 2.2
22 2.2 2.2 2.2
33 2.2 1.1 1.0
47 2.2 1.1 1.1 1.0 0.53
100 1.1 1.1 1.0 0.22 0.35
150 1.1 1.0
220 1.0 1.0 0.22 0.16
330 1.0 0.22 0.16
470 0.22 0.16
1000 0.16
SURFACE MOUNT ALUMINUM LOW IMPEDANCE VERY LONG LIFE TYPE MXEL
2010/03/10 Rev.01
