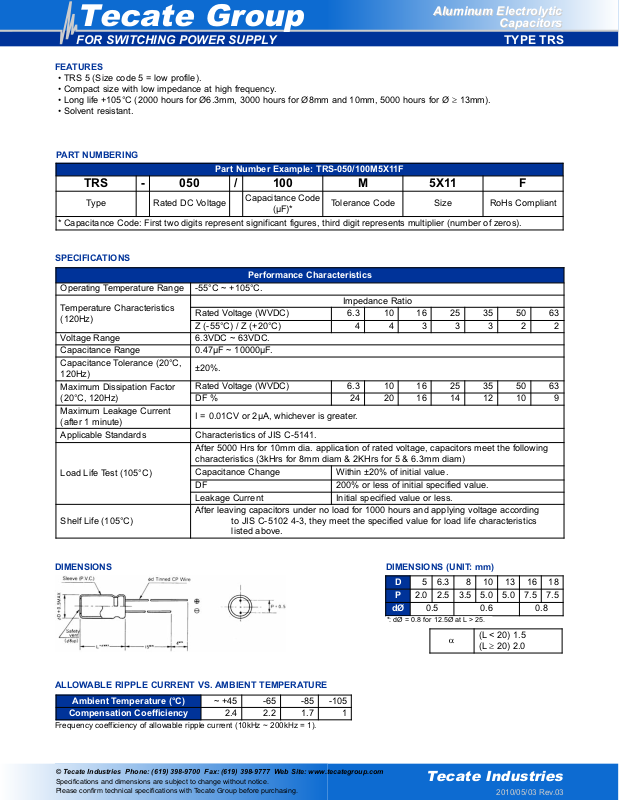

Aluminum Electrolytic
Aluminum Electrolytic
Capacitors
Capacitors
FOR SWITCHING POWER SUPPLY TYPE TRS
FEATURES
• TRS 5 (Size code 5 = low profile).
• Compact size with low impedance at high frequency.
• Long life +105°C (2000 hours for Ø6.3mm, 3000 hours for Ø8mm and 10mm, 5000 hours for Ø ≥ 13mm).
• Solvent resistant.
SPECIFICATIONS
D 5 6.3 8 10 13 16 18
P 2.0 2.5 3.5 5.0 5.0 7.5 7.5
dØ 0.5 0.6 0.8
*: dØ = 0.8 for 12.5Ø at L > 25.
α
(L < 20) 1.5
(L ≥ 20) 2.0
Performance Characteristics
Operating Temperature Range -55°C ~ +105°C.
Temperature Characteristics
(120Hz)
Impedance Ratio
Rated Voltage (WVDC) 6.3 10 16 25 35 50 63
Z (-55°C) / Z (+20°C) 4 4 3 3 3 2 2
Voltage Range 6.3VDC ~ 63VDC.
Capacitance Range 0.47µF ~ 10000µF.
Capacitance Tolerance (20°C,
120Hz)
±20%.
Maximum Dissipation Factor
(20°C, 120Hz)
Rated Voltage (WVDC) 6.3 10 16 25 35 50 63
DF % 24 20 16 14 12 10 9
Maximum Leakage Current
(after 1 minute)
I = 0.01CV or 2µA, whichever is greater.
Applicable Standards Characteristics of JIS C-5141.
Load Life Test (105°C)
After 5000 Hrs for 10mm dia. application of rated voltage, capacitors meet the following
characteristics (3kHrs for 8mm diam & 2KHrs for 5 & 6.3mm diam)
Capacitance Change Within ±20% of initial value.
DF 200% or less of initial specified value.
Leakage Current Initial specified value or less.
Shelf Life (105°C)
After leaving capacitors under no load for 1000 hours and applying voltage according
to JIS C-5102 4-3, they meet the specified value for load life characteristics
listed above.

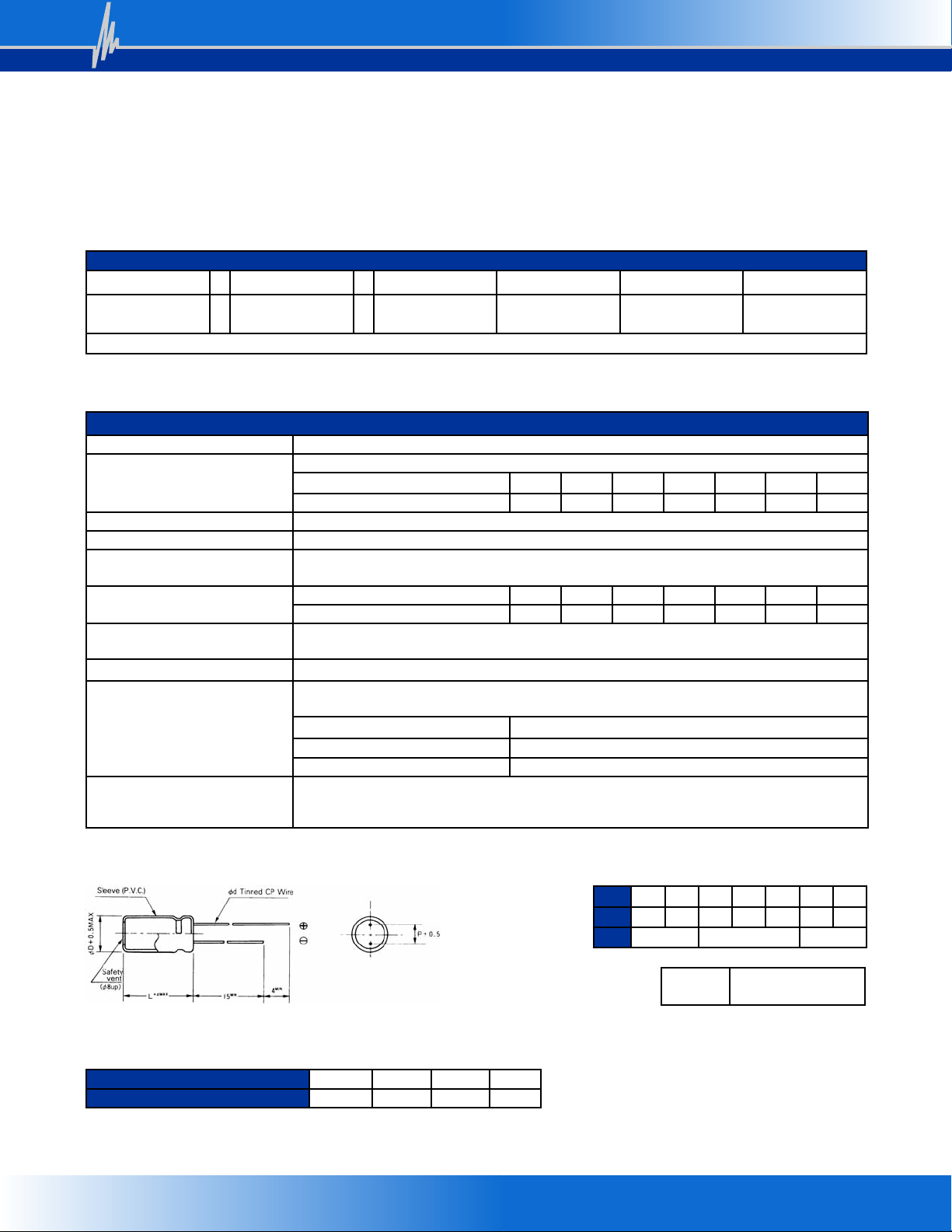

DIMENSIONS (UNIT: mm)DIMENSIONS
Part Number Example: TRS-050/100M5X11F
TRS - 050 / 100 M 5X11 F
Type Rated DC Voltage
Capacitance Code
(µF)*
Tolerance Code Size RoHs Compliant
* Capacitance Code: First two digits represent significant figures, third digit represents multiplier (number of zeros).
PART NUMBERING
ALLOWABLE RIPPLE CURRENT VS. AMBIENT TEMPERATURE
Frequency coefficiency of allowable ripple current (10kHz ~ 200kHz = 1).
Ambient Temperature (°C) ~ +45 -65 -85 -105
Compensation Coefficiency 2.4 2.2 1.7 1
Page 2
© Tecate Industries Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Industries
Tecate Group
2108/05/03 Rev.03
Aluminum Electrolytic
Aluminum Electrolytic
Capacitors
Capacitors
FOR SWITCHING POWER SUPPLY TYPE TRS
For capacitance values or sizes not listed above, consult Factory or Area Representative.
CASE SIZE OF STANDARD PRODUCTS (DØXL (mm))
Capacity
6.3vdc
(surge 8vdc)
10vdc
(surge 13vdc)
16vdc
(surge 20vdc)
(µf) Code Size Ripple
Impedance
Size Ripple
Impedance
Size Ripple
Impedance
10 100 5x11 37 4.00
15 150 5x11 60 3.52
22 220 5x11 56 2.60 5x11 70 2.00
27 270 5x11 57 2.40 5x11 110 1.60
33 330 5x11 58 2.20 5x11 130 1.26
39 390 5x11 95 1.85 5x11 150 0.87
47 470 5x11 120 1.20 5x11 190 0.52
56 560 5x11 130 1.05 5x11 205 0.49
68 680 5x11 145 0.89 5x11 210 0.45
82 820 5x11 170 0.75 6.3x11 250 0.37
100 101 5x11 185 0.95 5x11 205 0.48 6.3x11 260 0.31
120 121 5x11 190 0.90 5x11 230 0.44 6.3x11 290 0.29
150 151 6.3x11 210 0.75 6.3x11 270 0.37 6.3x11 300 0.26
180 181
6.3x11 240 0.70 6.3x11 290 0.35 6.3x15 370 0.23
8x11.5 368 0.24
220 221
6.3x11 300 0.55 6.3x11 330 0.28 6.3x15 470 0.20
8x11.5 455 0.21
270 271
6.3x11 310 0.49 6.3x15 370 0.25 8x11.5 490 0.17
8x11.5 390 0.21
330 331
6.3x15 320 0.34 6.3x15 445 0.15 8x11.5 550 0.12
8x11.5 390 0.30 8x11.5 430 0.16
470 471
6.3x15 435 0.25 8x11.5 555 0.115 8x16 745 0.092
8x11.5 430 0.22 10x12.5 722 0.095
560 561 8x11.5 480 0.20 8x11.5 620 0.095 10x12.5 780 0.082
680 681 8x11.5 510 0.18 8x16 630 0.090 10x16 920 0.074
820 821 8x16 620 0.14 8x20 870 0.084 10x16 1020 0.067
1000 102
8x16 710 0.10 8x20 1040 0.070 10x20 1180 0.050
10x12.5 625 0.12 10x16 1010 0.072
1200 122 10x16 810 0.095 10x16 1130 0.062 10x25 1370 0.047
1500 152 10x16 1050 0.074 10x20 1270 0.056 10x25 1470 0.041
1800 182
10x20 1200 0.065 10x25 1430 0.045 13x20 1630 0.038
13x20 1450 0.048
2200 222
10x20 1400 0.060 13x20 1690 0.040 13x20 1800 0.035
10x25 1300 0.057 13x25 1950 0.033
2700 272
10x25 1400 0.055 13x20 1800 0.033 13x25 2050 0.031
13x20 1410 0.052
3300 332
13x20 1500 0.048 13x25 1980 0.029 13x30 2410 0.025
16x25 2340 0.028
4700 472
13x25 1950 0.032 13x30 2300 0.025 16x31.5 2650 0.022
13x30 1800 0.025 16x25 2100 0.029 18x25 2570 0.024
6800 682
13x30 2020 0.024 16x31.5 2240 0.023 18x31.5 2700 0.020
16x25 2230 0.021
8200 822 16x31.5 2530 0.020 16x35.5 2580 0.019 18x35.5 2830 0.018
10000 103 16x35.5 2740 0.019 18x31.5 2770 0.017 18x41 3300 0.015
Page 3
© Tecate Industries Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Industries
Tecate Group
2010/05/03 Rev.03
Aluminum Electrolytic
Aluminum Electrolytic
Capacitors
Capacitors
FOR SWITCHING POWER SUPPLY TYPE TRS
Capacity
25vdc
(surge 32vdc)
35vdc
(surge 44vdc)
50vdc
(surge 63vdc)
63vdc
(surge 79vdc)
(µf) Code Size Ripple
Imp
Size Ripple
Imp
Size Ripple
Imp
Size Ripple
Imp
0.47 R47 5X11 15 5.00 5X11 16 5.00
1 1R0 5X11 25 3.95 5X11 27 3.95
2.2 2R2 5X11 33 2.60 5X11 38 2.60
3.3 3R3 5X11 45 2.00 5X11 48 2.00
4.7 4R7 5X11 58 1.89 5X11 62 1.89
5.6 5R6 5X11 80 1.85 5X11 85 1.82
6.8 6R8 5X11 85 1.77 5X11 90 1.75
8.2 8R2 5X11 90 1.72 5X11 100 1.69
10 100 5X11 56 2.10 5X11 70 1.90 5X11 100 1.70 5X11 105 1.65
15 150 5X11 97 1.95 5X11 115 1.72 5X11 110 1.53 5X11 110 1.47
22 220 5X11 120 1.80 5X11 130 1.36 6.3X11 135 1.00 6.3X11 170 0.80
27 270 5X11 130 1.56 5X11 140 1.20 6.3X11 160 0.93 6.3X11 190 0.75
33 330 5X11 150 1.20 5X11 175 0.95 6.3X11 230 0.74 8X11.5 245 0.61
39 390 5X11 170 0.82 6.3X11 200 0.74 6.3X11 240 0.65 8X11.5 270 0.58
47 470 5X11 220 0.50 6.3X11 250 0.44 8X11.5 285 0.50 8X11.5 290 0.56
56 560 5X11 245 0.44 6.3X11 270 0.40 8X11.5 300 0.39 8X11.5 320 0.38
68 680 6.3X11 270 0.39 6.3X11 300 0.35 8X11.5 340 0.30 8X16 480 0.21
82 820 6.3X11 285 0.33 6.3X15 350 0.29 8X11.5 400 0.25 8X16 510 0.24
100 101
6.3X11 300 0.28 6.3X15 390 0.18 8X16 475 0.18 10X16 590 0.24
8X11.5 380 0.19
120 121 6.3X11 350 0.22 8X11.5 460 0.17 8X16 520 0.17 10X16 660 0.16
150 151 6.3X15 420 0.20 8X16 580 0.15 10X16 675 0.13 10X20 790 0.11
180 181
6.3X15 440 0.18 8X16 630 0.13 10X16 760 0.095 10X20 850 0.095
8X11.5 435 0.19
220 221
8X11.5 550 0.125 8X16 740 0.095 10X20 900 0.085 10X25 1020 0.082
10X12.5 720 0.098 13X20 1054 0.080
270 271
8X11.5 620 0.095 8X20 830 0.086 10X20 950 0.075 13X20 1100 0.072
10X16 840 0.088
330 331
8X16 740 0.085 10X16 995 0.065 10X25 1050 0.068 10X30 1200 0.064
10X12.5 720 0.082 13X25 1160 0.067
470 471 10X16 1040 0.065 10X20 1150 0.050 13X20 1490 0.048 16X25 1750 0.048
560 561 10X16 1070 0.061 10X25 1310 0.048 13X20 1550 0.045 16X25 1830 0.044
680 681 10X20 1280 0.052 13X20 1440 0.044 13X25 1840 0.041 16X31.5 2070 0.040
820 821 10X25 1460 0.043 13X20 1600 0.038 13X30 2060 0.036 16X31.5 2100 0.035
1000 102
10X25 1580 0.038 13X30 1950 0.036 13X40 2200 0.033 16X35.5 2450 0.031
13X25 1530 0.039 16X31.5 2130 0.030
1200 122 13X25 1800 0.036 16X25 2200 0.029 16X31.5 2520 0.027 18X31.5 2500 0.026
1500 152 13X25 2020 0.032 16X31.5 2520 0.027 16X35.5 2700 0.026 18X35.5 2700 0.025
1800 182 13X30 2300 0.027 16X31.5 2560 0.026 18X31.5 2800 0.025 18X41 2900 0.024
2200 222
13X30 2480 0.025 16X31.5 2650 0.025 18X35.5 2900 0.024 18X41 2990 0.023
16X25 2405 0.027 18X25 2570 0.026
2700 272 16X31.5 2670 0.024 18X31.5 2660 0.023 18X41 2970 0.021
3300 332
16X31.5 3050 0.020 18X35.5 3000 0.020
18X25 2960 0.022
4700 472
16X40 3490 0.022 18X41 3300 0.019
18X35.5 3600 0.021
6800 682 18X41 3520 0.017
CASE SIZE OF STANDARD PRODUCTS (DØXL (mm))
For capacitance values or sizes not listed above, consult Factory or Area Representative.
