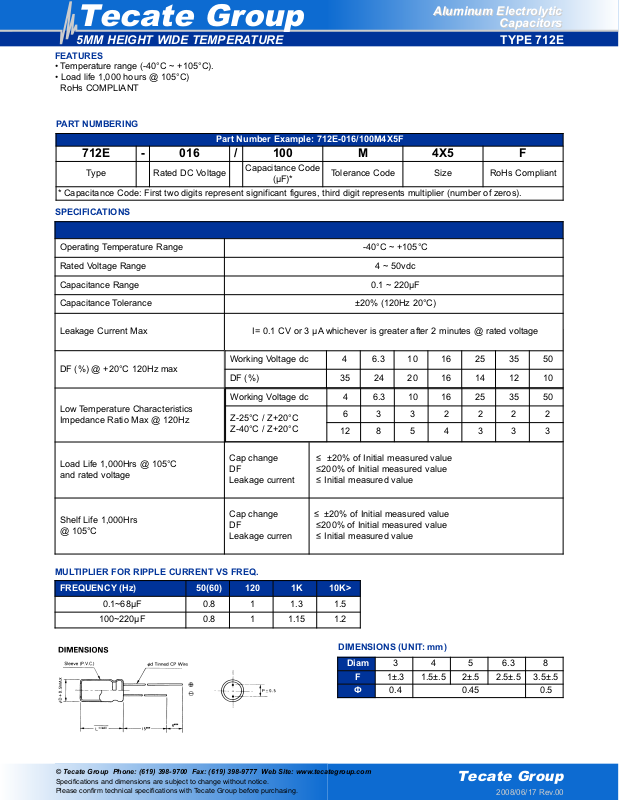

Page 1
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Tecate Group
2008/06/17 Rev.00
Aluminum Electrolytic
Aluminum Electrolytic
Capacitors
Capacitors
FEATURES
• Temperature range (-40°C ~ +105°C).
• Load life 1,000 hours @ 105°C)
RoHs COMPLIANT
DIMENSIONS (UNIT: mm)
Part Number Example: 712E-016/100M4X5F
712E - 016 / 100 M 4X5 F
Type Rated DC Voltage
Capacitance Code
(µF)*
Tolerance Code Size RoHs Compliant
* Capacitance Code: First two digits represent significant figures, third digit represents multiplier (number of zeros).
SPECIFICATIONS
PART NUMBERING
Diam 3 4 5 6.3 8
F 1±.3 1.5±.5 2±.5 2.5±.5 3.5±.5
Ф 0.4 0.45 0.5
Operating Temperature Range -40°C ~ +105°C
Rated Voltage Range 4 ~ 50vdc
Capacitance Range 0.1 ~ 220μF
Capacitance Tolerance ±20% (120Hz 20°C)
Leakage Current Max I= 0.1 CV or 3 μA whichever is greater after 2 minutes @ rated voltage
DF (%) @ +20°C 120Hz max
Low Temperature Characteristics
Impedance Ratio Max @ 120Hz
Load Life 1,000Hrs @ 105°C
and rated voltage
Cap change
DF
Leakage current
≤ ±20% of Initial measured value
≤200% of Initial measured value
≤ Initial measured value
Shelf Life 1,000Hrs
@ 105°C
Cap change
DF
Leakage curren
≤ ±20% of Initial measured value
≤200% of Initial measured value
≤ Initial measured value
Working Voltage dc 4 6.3 10 16 25 35 50
DF (%) 35 24 20 16 14 12 10
Working Voltage dc 4 6.3 10 16 25 35 50
Z-25°C / Z+20°C
Z-40°C / Z+20°C
6 3 3 2 2 2 2
12 8 5 4 3 3 3
5MM HEIGHT WIDE TEMPERATURE TYPE 712E
FREQUENCY (Hz) 50(60) 120 1K 10K>
0.1~68μF 0.8 1 1.3 1.5
100~220μF 0.8 1 1.15 1.2
MULTIPLIER FOR RIPPLE CURRENT VS FREQ.
Page 2
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Tecate Group
2008/06/17 Rev.00
Aluminum Electrolytic
Aluminum Electrolytic
Capacitors
Capacitors
5MM HEIGHT WIDE TEMPERATURE TYPE 712E
CAP.
( μF)
4 vdc
Surge 5v
6.3 vdc
Surge 8v
10 vdc
Surge 13v
16 vdc
Surge 20v
25 vdc
Surge 32v
35 vdc
Surge 44v
50 vdc
Surge 63v
SIZE I/AC SIZE I/AC SIZE I/AC SIZE I/AC SIZE I/AC SIZE I/AC SIZE I/AC
0.1
3X5 1
4X5 1.5
0.15
3X5 1.8
4X5 2
0.22
3X5 2.3
4X5 2.6
0.33
3X5 3
4X5 3.2
0.47
3X5 3.5
4X5 3.8
0.68
3X5 4.6
4X5 5
1
3X5 5.6
4X5 6.2
1.5
3X5 6.5
4X5 7
2.2
3X5 7.5 3X5 8
4X5 7.5 4X5 11
3.3
3X5 8.5 3X5 9 4X5 14
4X5 8.5 4X5 11
4.7
3X5 9 3X5 10 4X5 15 5X5 19
4X5 9 4X5 13
6.8
3X5 11 4X5 13 4X5 15 5X5 19 5X5 22
4X5 11 6.3X5 25
10
3X5 10 3X5 12 4X5 15 4X5 18 5X5 23 5X5 25 6.3X5 30
4X5 10 4X5 12
15 4X5 13 4X5 15 4X5 18 5X5 23 6.3X5 32 6.3X5 32 8X5 35
22 4X5 22 4X5 22 5X5 27 5X5 30 6.3X5 39 6.3X5 48 8X5 50
33 5X5 30 5X5 30 5X5 35 6.3X5 45 6.3X5 48 8X5 50
47
5X5 36 5X5 36 6.3X5 48 6.3X5 50 6.3X5 50
8X5 55
68 6.3X5 52 6.3X5 52 6.3X5 53 8X5 55
100 6.3X5 60 6.3X5 60 8X5 65 8X5 68
220 6.3X5 80 6.3X5 80 8X5 83
I/AC (RIPPLE CURRENT) mA @ 120Hz 105°C
