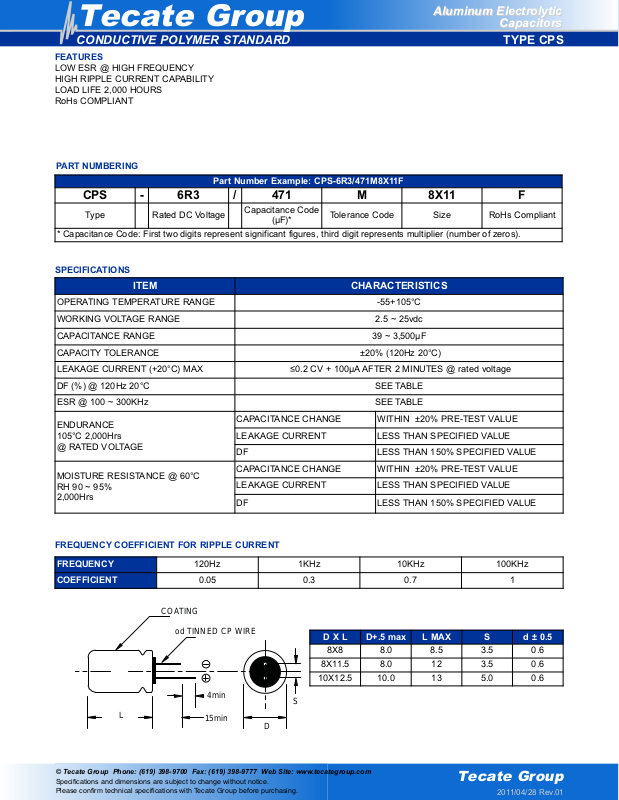

Aluminum Electrolytic
Aluminum Electrolytic
Capacitors
Capacitors
D X L D+.5 max L MAX S d ± 0.5
8X8 8.0 8.5 3.5 0.6
8X11.5 8.0 12 3.5 0.6
10X12.5 10.0 13 5.0 0.6

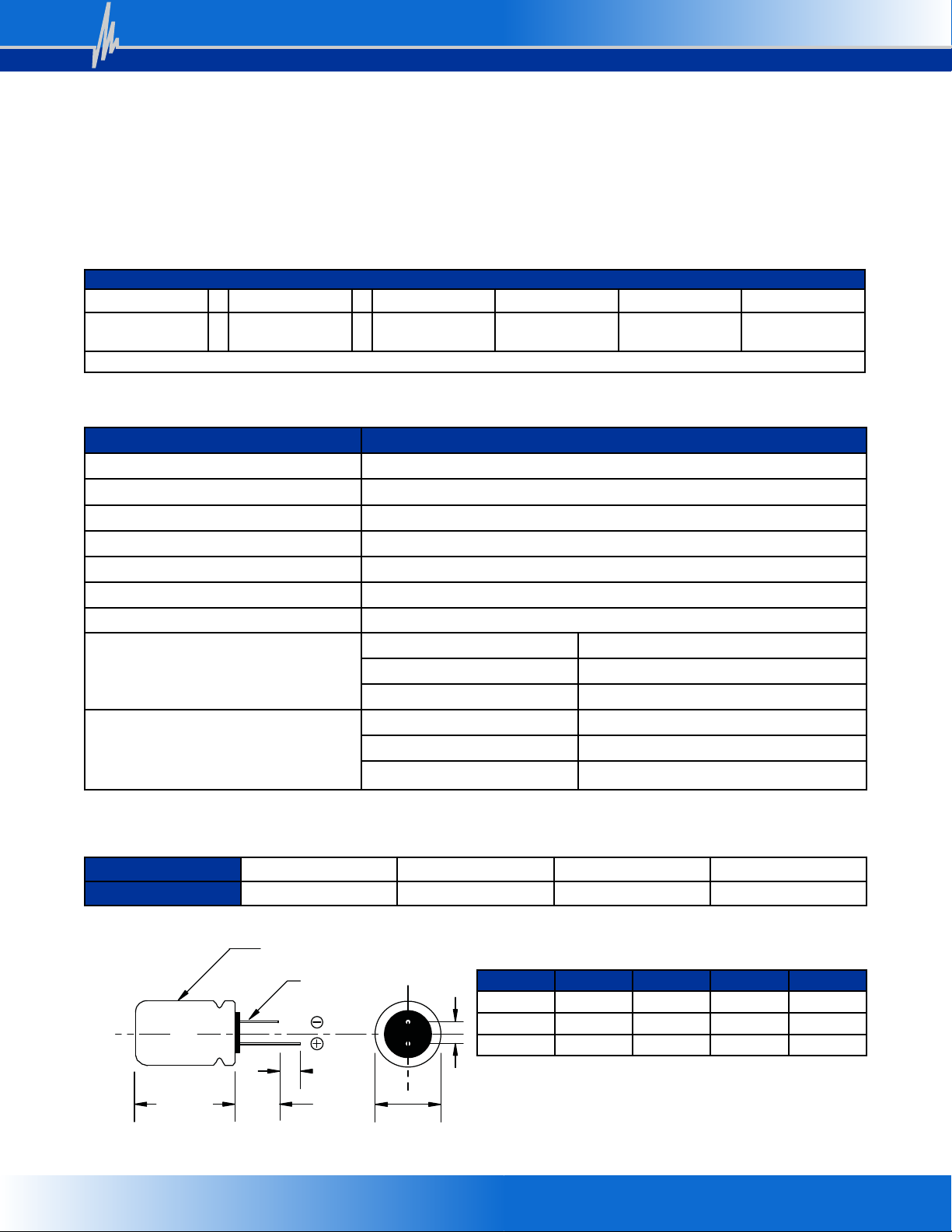

ITEM CHARACTERISTICS
OPERATING TEMPERATURE RANGE -55+105°C
WORKING VOLTAGE RANGE 2.5 ~ 25vdc
CAPACITANCE RANGE 39 ~ 3,500μF
CAPACITY TOLERANCE ±20% (120Hz 20°C)
LEAKAGE CURRENT (+20°C) MAX ≤0.2 CV + 100µA AFTER 2 MINUTES @ rated voltage
DF (%) @ 120Hz 20°C SEE TABLE
ESR @ 100 ~ 300KHz SEE TABLE
ENDURANCE
105°C 2,000Hrs
@ RATED VOLTAGE
CAPACITANCE CHANGE WITHIN ±20% PRE-TEST VALUE
LEAKAGE CURRENT LESS THAN SPECIFIED VALUE
DF LESS THAN 150% SPECIFIED VALUE
MOISTURE RESISTANCE @ 60°C
RH 90 ~ 95%
2,000Hrs
CAPACITANCE CHANGE WITHIN ±20% PRE-TEST VALUE
LEAKAGE CURRENT LESS THAN SPECIFIED VALUE
DF LESS THAN 150% SPECIFIED VALUE
Part Number Example: CPS-6R3/471M8X11F
CPS - 6R3 / 471 M 8X11 F
Type Rated DC Voltage
Capacitance Code
(µF)*
Tolerance Code Size RoHs Compliant
* Capacitance Code: First two digits represent significant figures, third digit represents multiplier (number of zeros).
FEATURES
LOW ESR @ HIGH FREQUENCY
HIGH RIPPLE CURRENT CAPABILITY
LOAD LIFE 2,000 HOURS
RoHs COMPLIANT
PART NUMBERING
CONDUCTIVE POLYMER STANDARD TYPE CPS
SPECIFICATIONS
FREQUENCY 120Hz 1KHz 10KHz 100KHz
COEFFICIENT 0.05 0.3 0.7 1
FREQUENCY COEFFICIENT FOR RIPPLE CURRENT
COATING
od TINNED CP WIRE
4min
L
15min
S
D
Page 2
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Tecate Group
2011/04/28 Rev.01
Aluminum Electrolytic
Aluminum Electrolytic
Capacitors
Capacitors
CONDUCTIVE POLYMER STANDARD TYPE CPS
VOLTS
(DC)
CAP.
(μF)
LEAKAGE
(μA)
DF
(%)
ESR
(mΩ)
RIPPLE
(A.r.m.s.)
SIZE
DXL(mm)
2.5
560 280 8 12 5.1
8X8
8X11.5
680 340 8 12 5.2
8X8
8X11.5
820 410 8 12 5.2
8X8
8X11.5
1000 500 8 12 5.5 8X11.5
1200 600 8 12 5.5 8X11.5
1,500 750 8 12 5.5 8X11.5
2000 1000 8 12 5.9 10x12.5
2,500 1.250 8 12 5.9 10x12.5
2700 1350 8 12 5.9 10x12.5
3000 1500 8 12 5.9 10x12.5
3300 1650 8 12 5.9 10x12.5
3,500 1750 10 12 5.9 10x12.5
4.0
560 224 8 12
5.1 8x8
5.2 8X11.5
680 272 8 12
5.1 8x8
5.2 8X11.5
820 328 8 12
5.1 8x8
5.2 8X11.5
5.9 10x12.5
1,200 960 10 12
5.5 8X11.5
5.9 10x12.5
1,500 1,200 10 12 5.9 10x12.5
2000 1600 10 12 5.9 10x12.5
2,500 2000 10 12 5.9 10x12.5
6.3
180 226.8 7 21
5.1 8X8
5.1 8X11.5
220 277 7 21
5.1 8x8
5.1 8X11.5
270 340.2 7 21
5.1 8x8
5.1 8X11.5
330 416 7 15
5.1 8x8
5.5 8X11.5
390 491 8 15
5.1 8x8
5.5 8X11.5
470 592 8 12
5.1 8x8
5.5 8X11.5
560 705.6 8 12
5.1 8x8
5.5 8X11.5
680 428 8
10 5.1 8x8
12
5.5 8X11.5
5.9 10x12.5
820 516.6 10 12
5.1 8x8
5.5 8X11.5
5.9 10x12.5
1,000 630 10 12 5.9 10x12.5
1200 756 10 12
5.5 8X11.5
5.9 10x12.5
1500 945 10 12 5.9 10x12.5
2,000 1,260 10 12 5.9 10x12.5
RIPPLE CURRENT @ 105°C 100KHZ
Page 3
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Tecate Group
2011/04/28 Rev.01
Aluminum Electrolytic
Aluminum Electrolytic
Capacitors
Capacitors
CONDUCTIVE POLYMER STANDARD TYPE CPS
VOLTS
(DC)
CAP.
(μF)
LEAKAGE
(μA)
DF
(%)
ESR
(mΩ)
RIPPLE
(A.r.m.s.)
SIZE
DXL(mm)
10
180 180 8 15 5.1 8x11.5
220 220 8 15 5.1 8x11.5
270 270 8 15 5.5 8x11.5
330 330 8 12 5.5 8x11.5
390 390 8 12 5.5 8x11.5
470 470 8 12 5.5 8x11.5
560 560 8 12 5.5 8x11.5
680 680 10 12 5.9 10x12.5
820 820 10 12 5.9 10x12.5
1000 1000 10 12 5.9 10x12.5
1200 1200 10 12 5.9 10x12.5
16
100 160 8 15 4.8 8x11.5
180 288 8 15
4.5 8x8
4.8 8x11.5
220 352 8 15 5.0 8x11.5
270 432 8
12 5.0 8x8
15 5.0 8x11.5
12 5.5 10x12.5
330 528 8 12
5.0
8x8
8x11.5
5.5 10x12.5
390 624 8 12 5.5 10x12.5
470 752 10 12
5.0 8x11.5
5.5 10x12.5
560 896 10 12 5.5 10x12.5
680 1000 10 12 5.5 10x12.5
820 1000 10 12 5.5 10x12.5
20
39 50 8 30 4.1 8x11.5
47 8 30 4.1 8x11.5
68 8 25 4.1 8x11.5
82 75 8 20 4.1 8x11.5
100 110 8 18 4.9 10x12.5
180 165 8 18 4.9 10x12.5
220 235 8 18 4.9 10x12.5
25
39 8 25 4.1 8x11.5
47 8 20 4.1 8x11.5
68 8 20 4.1 8x11.5
82 8 20 4.1 8x11.5
100 8
15 4.5 8x8
20 4.9 10x12.5
180 8 20 4.9 10x12.5
220 8 20 4.9 10x12.5
RIPPLE CURRENT @ 105°C 100KHZ
