Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors

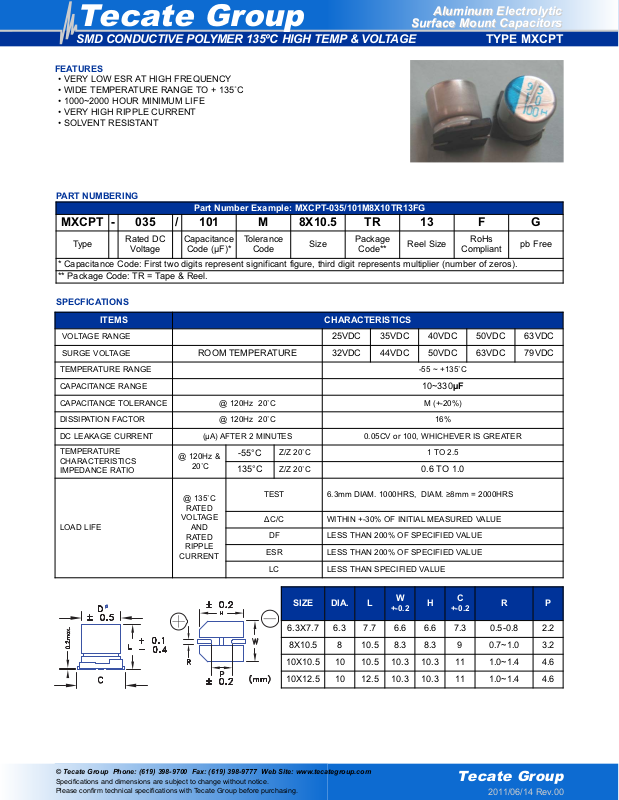

SMD CONDUCTIVE POLYMER 135ºC HIGH TEMP & VOLTAGE TYPE MXCPT
FEATURES
• VERY LOW ESR AT HIGH FREQUENCY
• WIDE TEMPERATURE RANGE TO + 135˚C
• 1000~2000 HOUR MINIMUM LIFE
• VERY HIGH RIPPLE CURRENT
• SOLVENT RESISTANT
PART NUMBERING
Part Number Example: MXCPT-035/101M8X10TR13FG
MXCPT - 035 / 101 M 8X10.5 TR 13 F G
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
pb Free
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
SPECFICATIONS

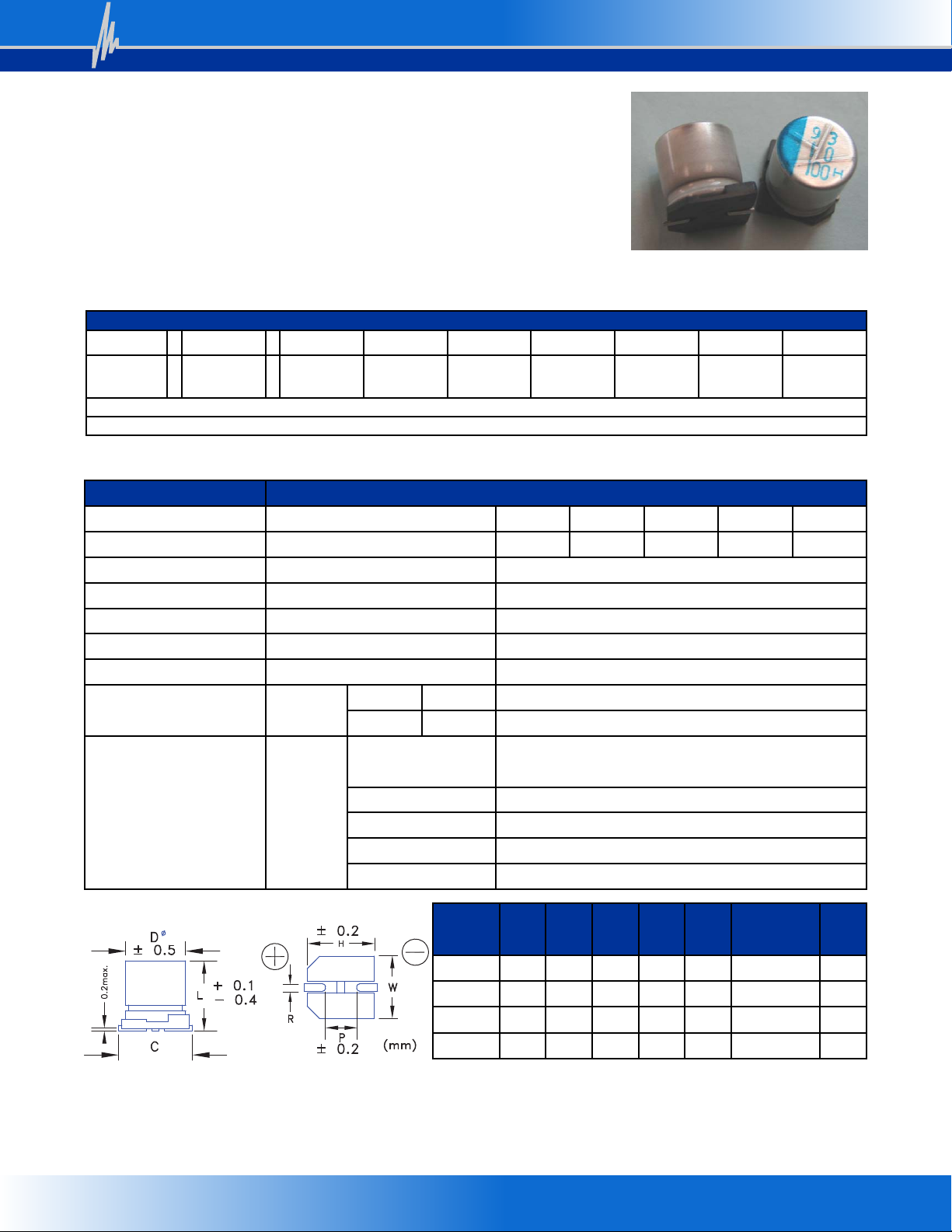

SIZE DIA. L
W
+-0.2
H
C
+-0.2
R P
6.3X7.7 6.3 7.7 6.6 6.6 7.3 0.5-0.8 2.2
8X10.5 8 10.5 8.3 8.3 9 0.7~1.0 3.2
10X10.5 10 10.5 10.3 10.3 11 1.0~1.4 4.6
10X12.5 10 12.5 10.3 10.3 11 1.0~1.4 4.6
ITEMS CHARACTERISTICS
VOLTAGE RANGE
25VDC 35VDC 40VDC 50VDC 63VDC
SURGE VOLTAGE
ROOM TEMPERATURE 32VDC 44VDC 50VDC 63VDC 79VDC
TEMPERATURE RANGE -55 ~ +135˚C
CAPACITANCE RANGE
10~330µF
CAPACITANCE TOLERANCE @ 120Hz 20˚C M (+-20%)
DISSIPATION FACTOR @ 120Hz 20˚C 16%
DC LEAKAGE CURRENT (µA) AFTER 2 MINUTES 0.05CV or 100, WHICHEVER IS GREATER
TEMPERATURE
CHARACTERISTICS
IMPEDANCE RATIO
@ 120Hz &
20˚C
-55°C
Z/Z 20˚C 1 TO 2.5
135°C
Z/Z 20˚C
0.6 TO 1.0
LOAD LIFE
@ 135˚C
RATED
VOLTAGE
AND
RATED
RIPPLE
CURRENT
TEST 6.3mm DIAM. 1000HRS, DIAM. ≥8mm = 2000HRS
ΔC/C WITHIN +-30% OF INITIAL MEASURED VALUE
DF LESS THAN 200% OF SPECIFIED VALUE
ESR LESS THAN 200% OF SPECIFIED VALUE
LC LESS THAN SPECIFIED VALUE
Page 2
Tecate Group
2011/06/14 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
TYPE MXCPTSMD CONDUCTIVE POLYMER 135ºC HIGH TEMP & VOLTAGE
STANDARD PRODUCT TABLE (dØ X L(mm)), ESR & RIPPLE CURRENT
(µF) 25VDC 35VDC 40VDC
15
27 6.3X7.7 70 700
33
47 6.3X7.7 60 730
56 8X10.5 32 980
68 6.3X7.7 45 780
82
100 8X10.5 30 1010 10X10.5 24 1150
120 10X12.5 18 1320
150 8X10.5 27 1000 10X10.5 23 1180
220 10X12.5 17 1360
270 10X10.5 22 1220
330 10X12.5 16 1390
ESR m Ω @ 100KHz 20˚C
RIPPLE CURRENT mA @ 100KHz 135˚C
ESR m Ω @ 100KHz 20˚C
RIPPLE CURRENT mA @ 100KHz 135˚C
(µF) 50VDC 63VDC
10 6.3X7.7 100 590
15 6.3x7.7 80 670
22 8X10.5 40 870
33
8X10.5 40 870
8x10.5 35 940 10X10.5 30 1010
47 10X10.5 30 1010
56 10x10.5 25 1110 10X12.5 22 1150
82 10x12.5 19 1270
STANDARD PRODUCT TABLE (dØ X L(mm)), ESR & RIPPLE CURRENT
