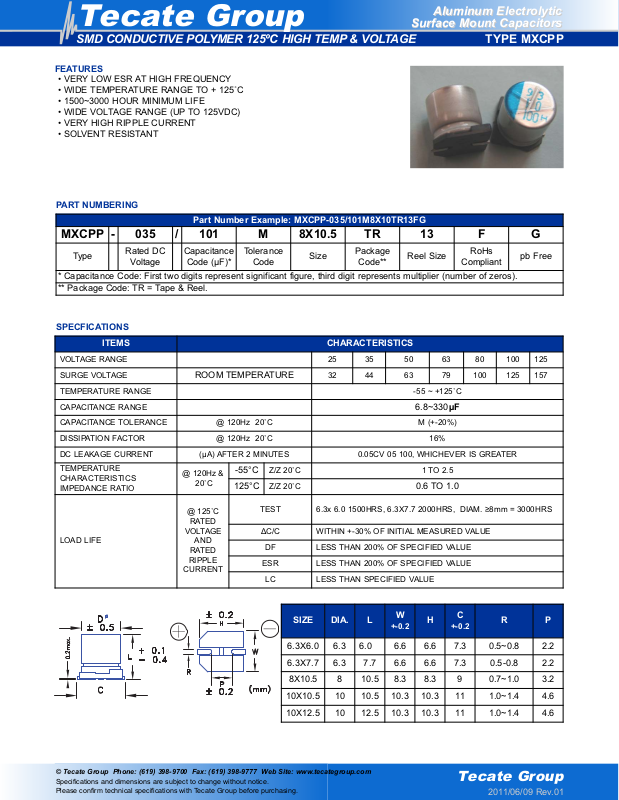

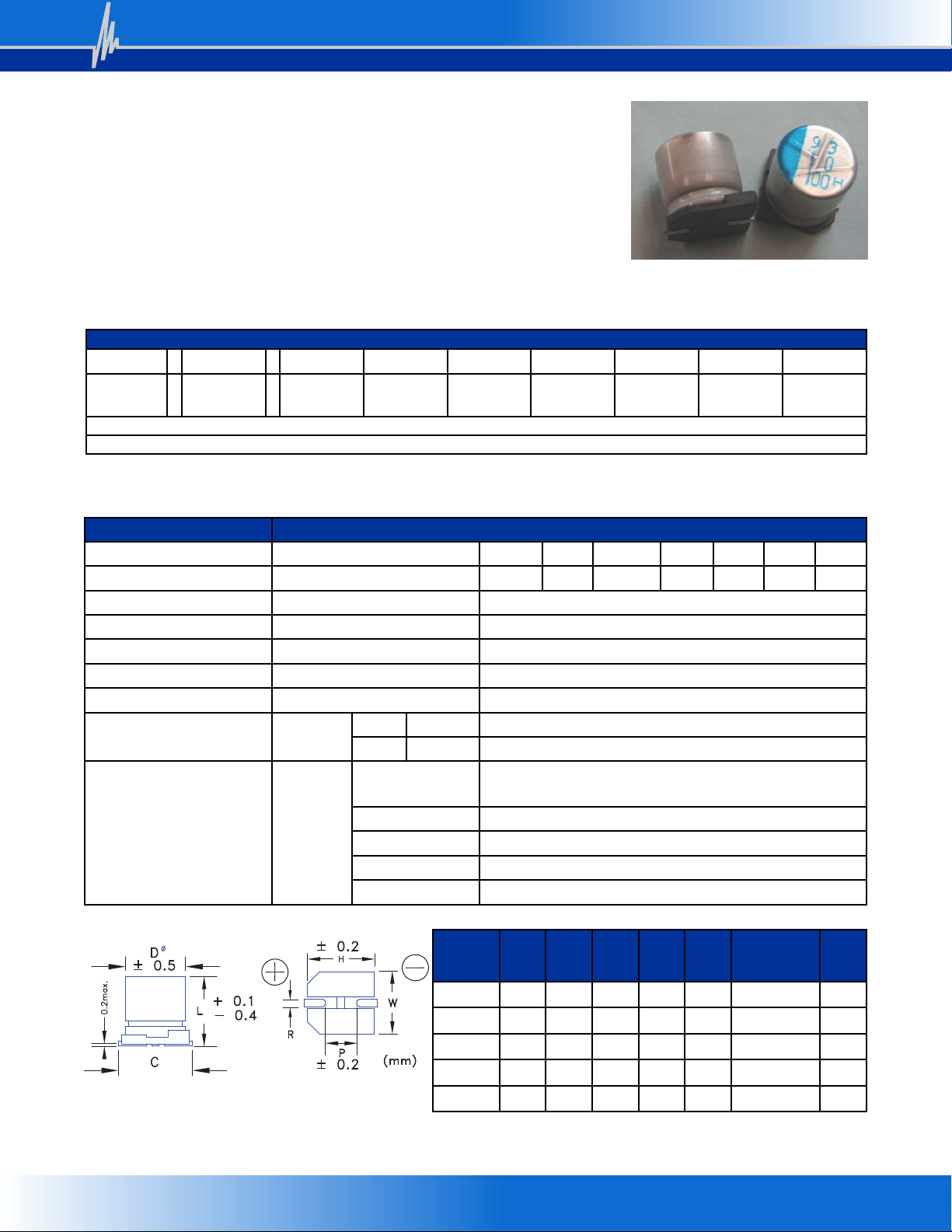

Page 1
Tecate Group
2011/06/09 Rev.01
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
TYPE MXCPPSMD CONDUCTIVE POLYMER 125ºC HIGH TEMP & VOLTAGE
FEATURES
• VERY LOW ESR AT HIGH FREQUENCY
• WIDE TEMPERATURE RANGE TO + 125˚C
• 1500~3000 HOUR MINIMUM LIFE
• WIDE VOLTAGE RANGE (UP TO 125VDC)
• VERY HIGH RIPPLE CURRENT
• SOLVENT RESISTANT
PART NUMBERING
Part Number Example: MXCPP-035/101M8X10TR13FG
MXCPP - 035 / 101 M 8X10.5 TR 13 F G
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
pb Free
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
SPECFICATIONS
ITEMS CHARACTERISTICS
VOLTAGE RANGE 25 35 50 63 80 100 125
SURGE VOLTAGE
ROOM TEMPERATURE
32 44 63 79 100 125 157
TEMPERATURE RANGE -55 ~ +125˚C
CAPACITANCE RANGE
6.8~330µF
CAPACITANCE TOLERANCE @ 120Hz 20˚C M (+-20%)
DISSIPATION FACTOR @ 120Hz 20˚C 16%
DC LEAKAGE CURRENT (µA) AFTER 2 MINUTES 0.05CV 05 100, WHICHEVER IS GREATER
TEMPERATURE
CHARACTERISTICS
IMPEDANCE RATIO
@ 120Hz &
20˚C
-55°C
Z/Z 20˚C 1 TO 2.5
125°C
Z/Z 20˚C
0.6 TO 1.0
LOAD LIFE
@ 125˚C
RATED
VOLTAGE
AND
RATED
RIPPLE
CURRENT
TEST 6.3x 6.0 1500HRS, 6.3X7.7 2000HRS, DIAM. ≥8mm = 3000HRS
ΔC/C WITHIN +-30% OF INITIAL MEASURED VALUE
DF LESS THAN 200% OF SPECIFIED VALUE
ESR LESS THAN 200% OF SPECIFIED VALUE
LC LESS THAN SPECIFIED VALUE
SIZE DIA. L
W
+-0.2
H
C
+-0.2
R P
6.3X6.0 6.3 6.0 6.6 6.6 7.3 0.5~0.8 2.2
6.3X7.7 6.3 7.7 6.6 6.6 7.3 0.5-0.8 2.2
8X10.5 8 10.5 8.3 8.3 9 0.7~1.0 3.2
10X10.5 10 10.5 10.3 10.3 11 1.0~1.4 4.6
10X12.5 10 12.5 10.3 10.3 11 1.0~1.4 4.6
Page 2
Tecate Group
2011/06/09 Rev.01
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
SMD CONDUCTIVE POLYMER 125ºC HIGH TEMP & VOLTAGE TYPE MXCPP
STANDARD PRODUCT TABLE (dØ X L(mm)), ESR & RIPPLE CURRENT
STANDARD PRODUCT TABLE (dØ X L(mm)), ESR & RIPPLE CURRENT
(µF) 25VDC 35VDC 40VDC 50VDC
10 6.3X6.0 120 690
15
6.3X7.7 80 840
18
6.3X6.0 110 720
27
6.3X6.0 100 760 6.3X6.7 70 870
33 8X10.5 35 1170
47 6.3X6.0 60 890 6.3X7.7 60 910
56 8X10.5 32 1220 10X10.5 25 1390
68 6.3X7.7 45 980
82
10X12.5 19 1590
100 8X10.5 30 1260 10X10.5 24 1440
120 10X12.5 18 1650
150 8X10.5 27 1330 10X10.5 23 1480
220 10X12.5 17 1700
270 10X10.5 22 1520
330 10X12.5 16 1740
(µF) 63VDC 80VDC 100VDC 125VDC
6.8 6.3X6.0 150 670
10 6.3X7.7 100 740 10X10.5 80 870 10X10.5 90 750
12 10X10.5 70 900 10X10.5 60 1000
15 10X10.5 70 900 10X12.5 60 1000
18 10X12.5 50 1100
22 8X10.5 40 1090
33
8X10.5 40 1090
10X10.5 30 1260
47 10X10.5 30 1260
56 10X12.5 22 1440
ESR m Ω @ 100KHz 20˚C
RIPPLE CURRENT mA @ 100KHz 105˚C
ESR m Ω @ 100KHz 20˚C
RIPPLE CURRENT mA @ 100KHz 105˚C
