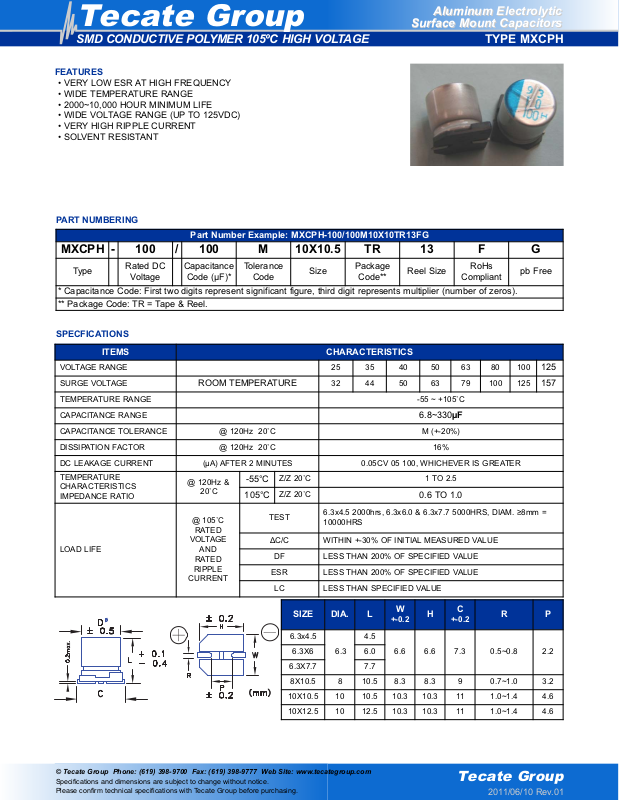

SMD CONDUCTIVE POLYMER 105ºC HIGH VOLTAGE TYPE MXCPH
Part Number Example: MXCPH-100/100M10X10TR13FG
MXCPH - 100 / 100 M 10X10.5 TR 13 F G
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
pb Free
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
FEATURES
• VERY LOW ESR AT HIGH FREQUENCY
• WIDE TEMPERATURE RANGE
• 2000~10,000 HOUR MINIMUM LIFE
• WIDE VOLTAGE RANGE (UP TO 125VDC)
• VERY HIGH RIPPLE CURRENT
• SOLVENT RESISTANT
PART NUMBERING
SPECFICATIONS
ITEMS CHARACTERISTICS
VOLTAGE RANGE 25 35 40 50 63 80 100
125
SURGE VOLTAGE
ROOM TEMPERATURE
32 44 50 63 79 100 125
157
TEMPERATURE RANGE -55 ~ +105˚C
CAPACITANCE RANGE
6.8~330µF
CAPACITANCE TOLERANCE @ 120Hz 20˚C M (+-20%)
DISSIPATION FACTOR @ 120Hz 20˚C 16%
DC LEAKAGE CURRENT (µA) AFTER 2 MINUTES 0.05CV 05 100, WHICHEVER IS GREATER
TEMPERATURE
CHARACTERISTICS
IMPEDANCE RATIO
@ 120Hz &
20˚C
-55°C
Z/Z 20˚C 1 TO 2.5
105°C
Z/Z 20˚C
0.6 TO 1.0
LOAD LIFE
@ 105˚C
RATED
VOLTAGE
AND
RATED
RIPPLE
CURRENT
TEST
6.3x4.5 2000hrs, 6.3x6.0 & 6.3x7.7 5000HRS, DIAM. ≥8mm =
10000HRS
ΔC/C WITHIN +-30% OF INITIAL MEASURED VALUE
DF LESS THAN 200% OF SPECIFIED VALUE
ESR LESS THAN 200% OF SPECIFIED VALUE
LC LESS THAN SPECIFIED VALUE
SIZE DIA. L
W
+-0.2
H
C
+-0.2
R P
6.3x4.5
6.3
4.5
6.6 6.6 7.3 0.5~0.8 2.26.3X6 6.0
6.3X7.7 7.7
8X10.5 8 10.5 8.3 8.3 9 0.7~1.0 3.2
10X10.5 10 10.5 10.3 10.3 11 1.0~1.4 4.6
10X12.5 10 12.5 10.3 10.3 11 1.0~1.4 4.6
Page 2
Tecate Group
2011/06/10 Rev.01
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
SMD CONDUCTIVE POLYMER 105ºC HIGH VOLTAGE TYPE MXCPH
STANDARD PRODUCT TABLE (dØ X L(mm)), ESR & RIPPLE CURRENT
(µF) 63VDC 80VDC 100VDC 125VDC
6.8 6.3X6 150 960
10 6.3X7.7 100 1060 10X10.5 80 1450 10X10.5 90 1250
12 10X10.5 70 1600 10X10.5 80 1450
15 10X10.5 70 1600 10X12.5 60 1660
18 10X12.5 50 1830
22 8X10.5 40 1560
33
8X10.5 40 1560
10X10.5 30 2100
47 10X10.5 30 2100
56 10X12.5 22 2400
ESR m Ω @ 100KHz 20˚C
RIPPLE CURRENT mA @ 100KHz 105˚C
STANDARD PRODUCT TABLE (dØ X L(mm)), ESR & RIPPLE CURRENT
(µF) 25VDC 35VDC 40VDC 50VDC
10 6.3X6.0 120 980
12 6.3X4.5 150 640
15 6.3X7.7 80 1200
18 6.3X6 110 1030
27 6.3X4.5 95 800 6.3X6 100 1080 6.3X7.7 70 1250
33 8X10.5 35 1670
47 6.3X6 60 1270 6.3X7.7 60 1300
56 8X10.5 32 1750 10X10.5 25 2320
68 6.3X7.7 45 1400
82 10X12.5 19 2650
100 8X10.5 30 1800 10X10.5 24 2400
120 10X12.5 18 2750
150 8X10.5 27 1900 10X10.5 23 2470
220 10X12.5 17 2830
270 10X10.5 22 2530
330 10X12.5 16 2900
ESR m Ω @ 100KHz 20˚C
RIPPLE CURRENT mA @ 100KHz 105˚C
