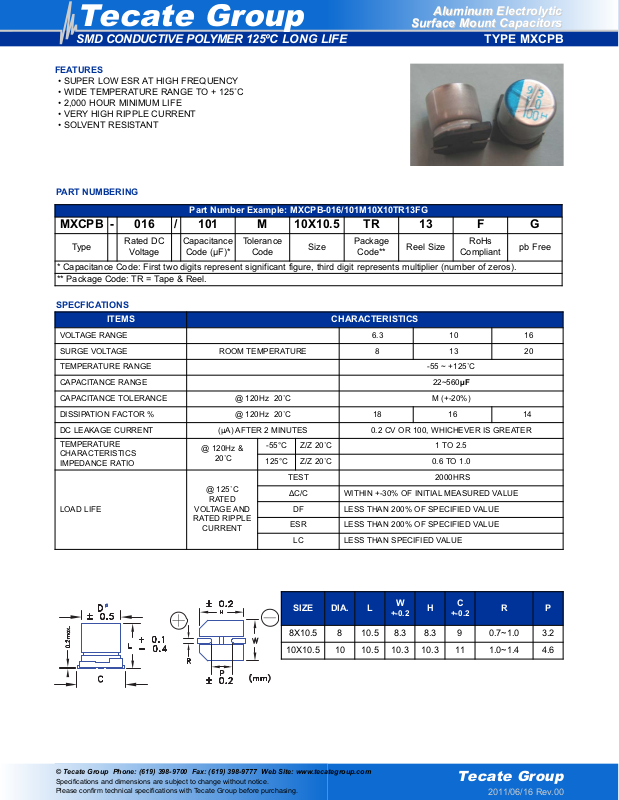

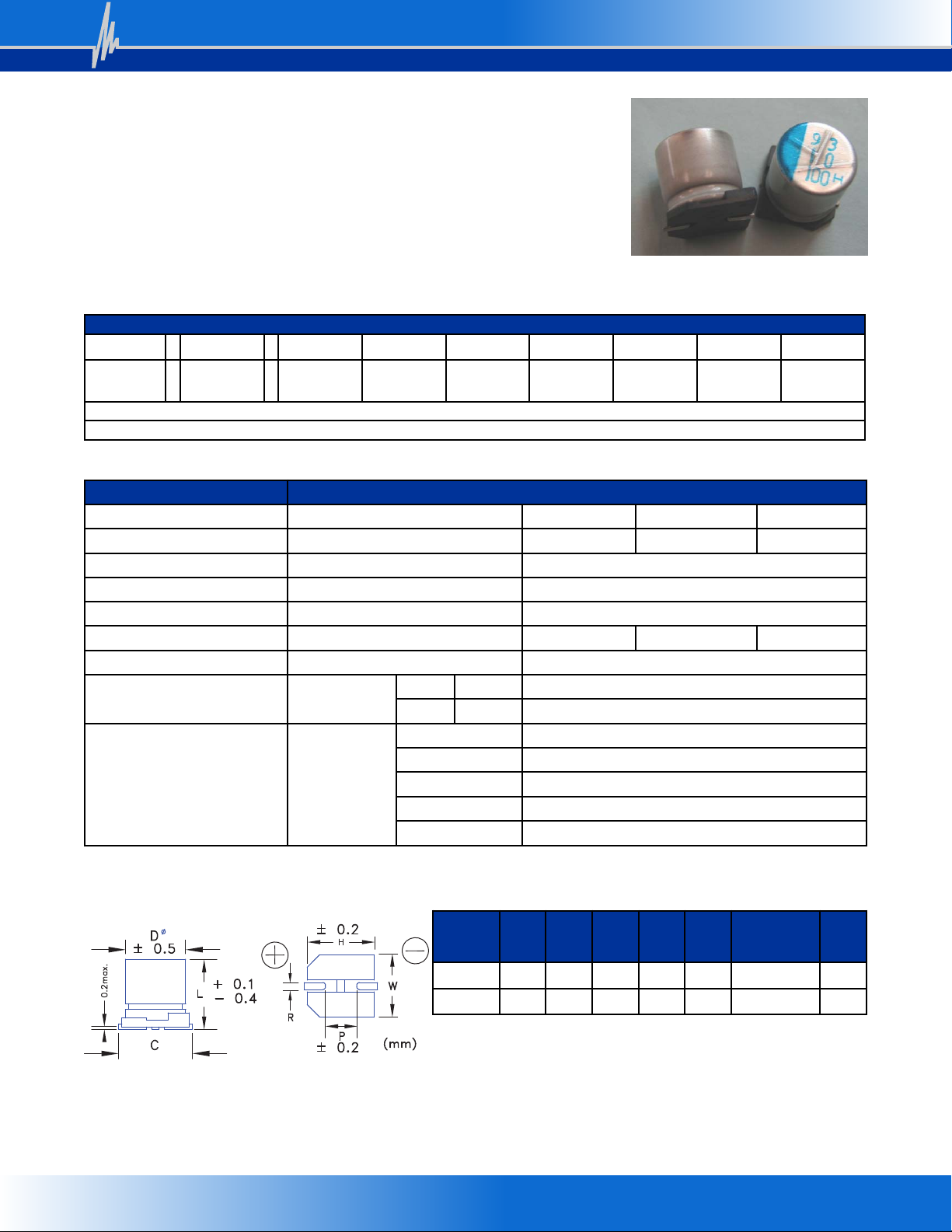

Page 1
Tecate Group
2011/06/16 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
FEATURES
• SUPER LOW ESR AT HIGH FREQUENCY
• WIDE TEMPERATURE RANGE TO + 125˚C
• 2,000 HOUR MINIMUM LIFE
• VERY HIGH RIPPLE CURRENT
• SOLVENT RESISTANT
PART NUMBERING
Part Number Example: MXCPB-016/101M10X10TR13FG
MXCPB - 016 / 101 M 10X10.5 TR 13 F G
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
pb Free
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
SPECFICATIONS
ITEMS CHARACTERISTICS
VOLTAGE RANGE 6.3 10 16
SURGE VOLTAGE ROOM TEMPERATURE 8 13 20
TEMPERATURE RANGE -55 ~ +125˚C
CAPACITANCE RANGE 22~560µF
CAPACITANCE TOLERANCE @ 120Hz 20˚C M (+-20%)
DISSIPATION FACTOR % @ 120Hz 20˚C 18 16 14
DC LEAKAGE CURRENT (µA) AFTER 2 MINUTES 0.2 CV OR 100, WHICHEVER IS GREATER
TEMPERATURE
CHARACTERISTICS
IMPEDANCE RATIO
@ 120Hz &
20˚C
-55°C Z/Z 20˚C 1 TO 2.5
125°C Z/Z 20˚C 0.6 TO 1.0
LOAD LIFE
@ 125˚C
RATED
VOLTAGE AND
RATED RIPPLE
CURRENT
TEST 2000HRS
ΔC/C WITHIN +-30% OF INITIAL MEASURED VALUE
DF LESS THAN 200% OF SPECIFIED VALUE
ESR LESS THAN 200% OF SPECIFIED VALUE
LC LESS THAN SPECIFIED VALUE
SIZE DIA. L
W
+-0.2
H
C
+-0.2
R P
8X10.5 8 10.5 8.3 8.3 9 0.7~1.0 3.2
10X10.5 10 10.5 10.3 10.3 11 1.0~1.4 4.6
SMD CONDUCTIVE POLYMER 125ºC LONG LIFE TYPE MXCPB
Page 2
Tecate Group
2011/06/16 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Aluminum Electrolytic
Aluminum Electrolytic
Surface Mount Capacitors
Surface Mount Capacitors
(µF) 6.3VDC 10VDC 16VDC
22 8X10.5 28 1380
33 8X10.5 26 1380
47 8X10.5 24 1380
68 8X10.5 22 1380
100 8X10.5 20 1680 10X10.5 19 1850
220 8X10.5 18 1680
390 8X10.5 17 1780 10X10.5 17 2060
470 10X10.5 16 2190
560 10X10.5 16 2190
ESR m Ω @ 100KHz 20˚C
RIPPLE CURRENT mA @ 100KHz 125˚C
STANDARD PRODUCT TABLE (dØ X L(mm)), ESR & RIPPLE CURRENT
SMD CONDUCTIVE POLYMER 125ºC LONG LIFE TYPE MXCPB
