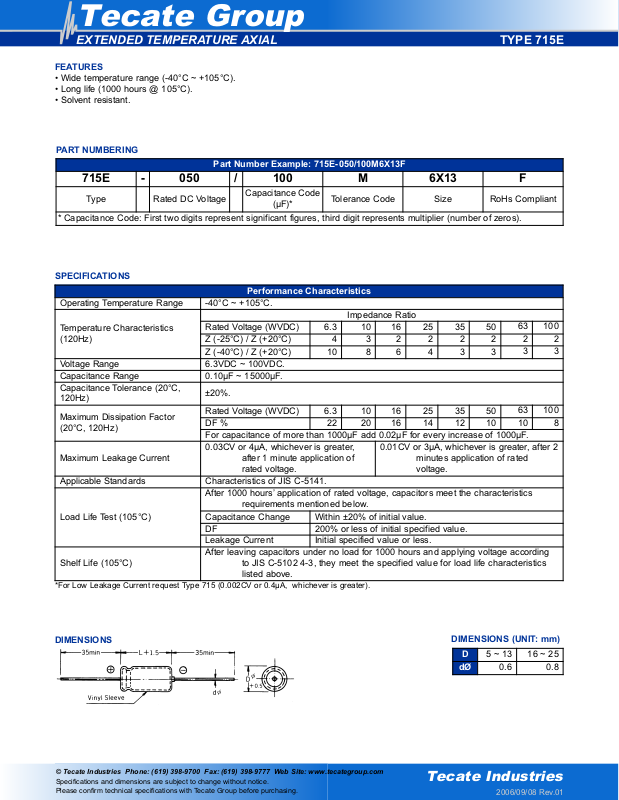

EXTENDED TEMPERATURE AXIAL
FEATURES
• Wide temperature range (-40°C ~ +105°C).
• Long life (1000 hours @ 105°C).
• Solvent resistant.
SPECIFICATIONS
*For Low Leakage Current request Type 715 (0.002CV or 0.4µA, whichever is greater).
TYPE 715E

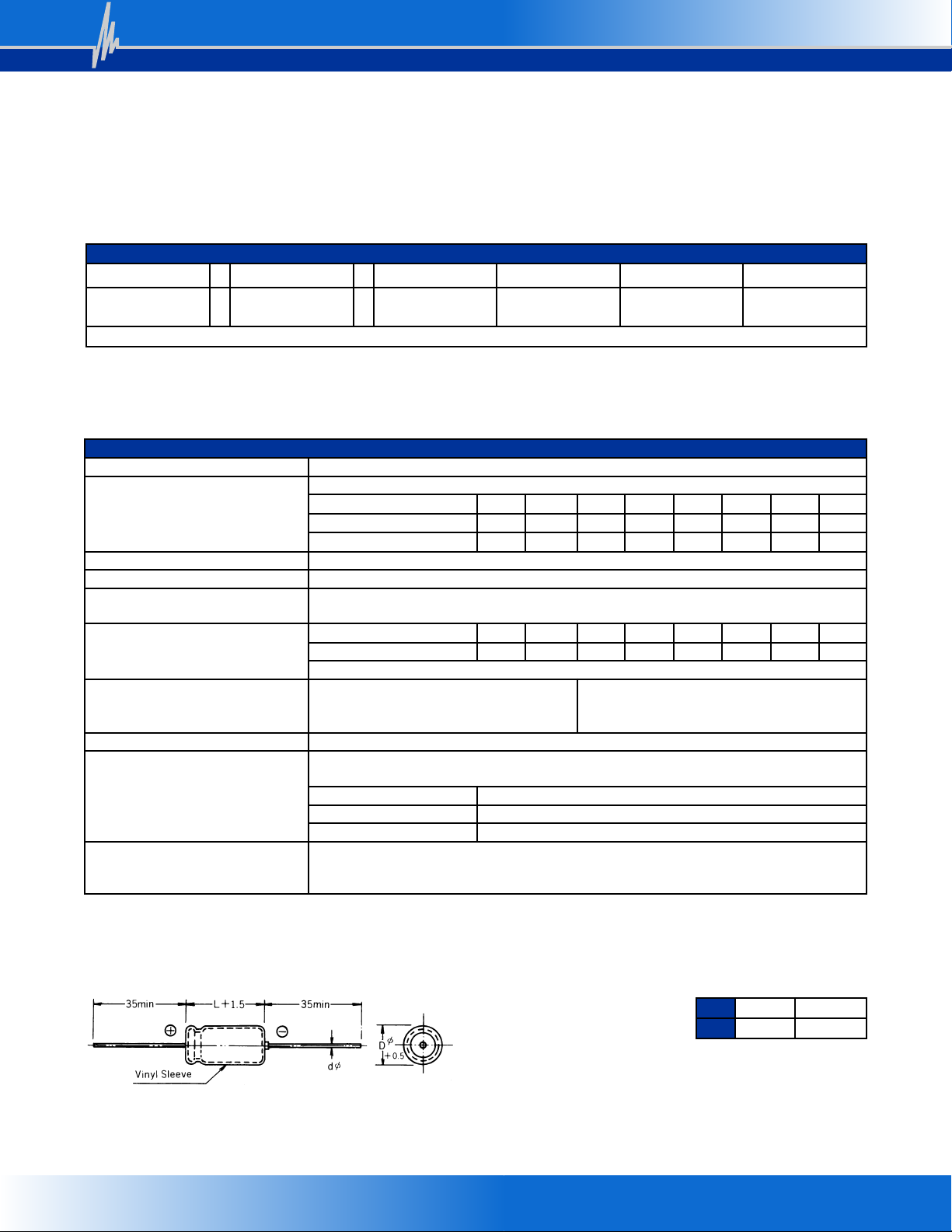

DIMENSIONS
D 5 ~ 13 16 ~ 25
dØ 0.6 0.8
Performance Characteristics
Operating Temperature Range -40°C ~ +105°C.
Temperature Characteristics
(120Hz)
Impedance Ratio
Rated Voltage (WVDC) 6.3 10 16 25 35 50
63 100
Z (-25°C) / Z (+20°C) 4 3 2 2 2 2
2 2
Z (-40°C) / Z (+20°C) 10 8 6 4 3 3
3 3
Voltage Range 6.3VDC ~ 100VDC.
Capacitance Range 0.10µF ~ 15000µF.
Capacitance Tolerance (20°C,
120Hz)
±20%.
Maximum Dissipation Factor
(20°C, 120Hz)
Rated Voltage (WVDC) 6.3 10 16 25 35 50
63 100
DF % 22 20 16 14 12 10
10 8
For capacitance of more than 1000µF add 0.02µF for every increase of 1000µF.
Maximum Leakage Current
0.03CV or 4µA, whichever is greater,
after 1 minute application of
rated voltage.
0.01CV or 3µA, whichever is greater, after 2
minutes application of rated
voltage.
Applicable Standards Characteristics of JIS C-5141.
Load Life Test (105°C)
After 1000 hours’ application of rated voltage, capacitors meet the characteristics
requirements mentioned below.
Capacitance Change Within ±20% of initial value.
DF 200% or less of initial specified value.
Leakage Current Initial specified value or less.
Shelf Life (105°C)
After leaving capacitors under no load for 1000 hours and applying voltage according
to JIS C-5102 4-3, they meet the specified value for load life characteristics
listed above.
Part Number Example: 715E-050/100M6X13F
715E - 050 / 100 M 6X13 F
Type Rated DC Voltage
Capacitance Code
(µF)*
Tolerance Code Size RoHs Compliant
* Capacitance Code: First two digits represent significant figures, third digit represents multiplier (number of zeros).
PART NUMBERING
DIMENSIONS (UNIT: mm)
Page 2
© Tecate Industries Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Industries
Tecate Group
2006/04/17 Rev.002006/09/08 Rev.01
EXTENDED TEMPERATURE AXIAL TYPE 715E
For capacitance values or sizes not listed above, consult Factory or Area Representative.
Cap. (µF)
WVDC
6.3 10 16 25 35 50 63 100
0.1 ~ 0.47 R47 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13
1.0 010 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13
2.2 2R2 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13 6 x 13
3.3 3R3 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13 6 x 13
4.7 4R7 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13 6 x 13 6 x 13
10 100 5 x 13 5 x 13 5 x 13 5 x 13 5 x 13 6 x 13 6 x 13 6 x 16
22 220 5 x 13 5 x 13 5 x 13 6 x 13 6 x 13 6 x 16 6 x 16 8 x 16
33 330 5 x 13 5 x 13 6 x 13 6 x 13 6 x 16 6 x 16 8 x 16 8 x 20
47 470 5 x 13 5 x 13 6 x 13 6 x 13 6 x 16 8 x 16 8 x 16 10 x 20
100 101 6 x 13 6 x 16 6 x 16 8 x 16 8 x 16 8 x 20 10 x 16 10 x 25
220 221 6.3 x 16 8 x 16 8 x 16 8 x 20 10 x 16 10 x 20 10 x 25 13 x 30
330 331 8 x 16 8 x 16 8 x 20 10 x 16 10 x 20 10 x 25 13 x 25 16 x 30
470 471 8 x 16 8 x 20 10 x 16 10 x 20 10 x 25 13 x 25 13 x 30 16 x 40
1000 102 10 x 20 10 x 20 10 x 25 13 x 25 13 x 30 16 x 30 16 x 40 18 x 40
2200 222 13 x 25 13 x 25 13 x 30 16 x 30 16 x 40 18 x 40 22 x 40
3300 332 13 x 30 13 x 30 16 x 30 16 x 40 18 x 40 22 x 40
4700 472 16 x 30 16 x 30 16 x 40 18 x 40 18 x 45 22 x 40
6800 682 16 x 40 16 x 40 18 x 40 18 x 45 22 x 40
10000 103 16 x 45 18 x 45 22 x 40 22 x 50
15000 153 18 x 37 22 x 42 25 x 43
CASE SIZE OF STANDARD PRODUCTS (DXL (mm))
MAXIMUM RIPPLE ((mA) 105°C, 120Hz)
Cap. (µF)
WVDC
6.3 10 16 25 35 50 63 100
0.1 ~ 0.47 R47 5 5 5 6 6 6 7 7
1.0 010 7 7 8 9 9 9 10 10
2.2 2R2 13 14 14 15 15 16 16 17
3.3 3R3 17 17 18 19 20 20 21 21
4.7 4R7 21 22 23 23 24 24 25 25
10 100 26 27 28 30 30 33 36 45
22 220 35 37 40 44 49 61 61 81
33 330 45 50 51 54 69 75 89 99
47 470 51 56 61 73 82 106 117 134
100 101 82 93 101 127 158 174 196 255
220 221 150 177 177 207 266 321 346 439
330 331 200 223 242 292 359 424 463 620
470 471 239 267 329 384 467 554 597 792
1000 102 395 488 572 672 816 1011 1163 1350
2200 222 733 783 912 1092 1140 1270 1320
3300 332 953 1077 1215 1465 1350 1430
4700 472 1215 1483 1585 1500 1550 3230
6800 682 300 1510 1605 1610 2020
10000 103 1360 1550 1650 1760
15000 153 2480 2560 2830
For capacitance values or sizes not listed above, consult Factory or Area Representative.
