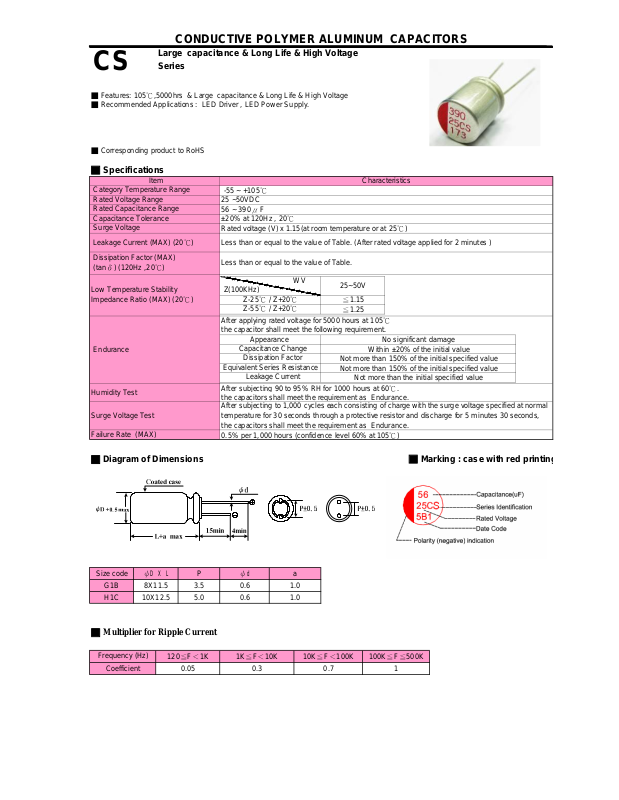

Page 1
Corresponding product to RoHS
Rated voltage (V) x 1.15(at room temperature or at 25
℃
)
After subjecting 90 to 95% RH for 1000 hours at 60
℃
.
the capacitors shall meet the requirement as Endurance.
0.5% per 1,000 hours (confidence level 60% at 105
℃
)
Diagram of Dimensions
Z-25℃ / Z+20
Large capacitance & Long Life & High Voltage
CONDUCTIVE POLYMER ALUMINUM CAPACITORS
CS
Features: 105
,5000hrs & Large capacitance & Long Life & High Voltage
Specifications
Recommended Applications : LED Driver , LED Power Supply.
Z-55℃ / Z+20
Marking : case with red printing
Series
■
■
■
℃
■
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Surge Voltage
Leakage Current (MAX) (20℃)
Dissipation Factor (MAX)
(tanδ ) (120Hz ,20℃)
Low Temperature Stability
Impedance Ratio (MAX) (20℃)
Endurance
Humidity Test
Surge Voltage Test
Failure Rate (MAX)
ItemCharacteristics
-55 ~ +105℃
25 ~50VDC
56 ~ 390μF
±20% at 120Hz , 20℃
Less than or equal to the value of Table. (After rated voltage applied for 2 minutes )
Less than or equal to the value of Table.
WV
Z(100KHz)
℃
℃
After applying rated voltage for 5000 hours at 105℃
the capacitor shall meet the following requirement.
Appearance
Capacitance Change
Dissipation Factor
Equivalent Series Resistance
Leakage Current
After subjecting to 1,000 cycles each consisting of charge with the surge voltage specified at normal
temperature for 30 seconds through a protective resistor and discharge for 5 minutes 30 seconds,
the capacitors shall meet the requirement as Endurance.
25~50V
≦1.15
≦1.25
No significant damage
Within ±20% of the initial value
Not more than 150% of the initial specified value
Not more than 150% of the initial specified value
Not more than the initial specified value
■
Size codeP
G1B3.5
H1C5.0
ψD X L
8X11.5
10X12.5
ψd
0.61.0
0.6
■ Multiplier for Ripple Current
Frequency (Hz)
Coefficient
120≦F＜1K
0.0510.30.7
1K≦F＜10K10K≦F＜100K
■
a
1.0
100K≦F≦500K
Page 2
Large capacitance & Long Life & High Voltage
503525
SIZE：ψDxL(mm)
tanδ:20℃,120Hz.
Ripple Current:(mA/rms),105
.100KHz
ESR(m
).20℃.100KHz
CONDUCTIVE POLYMER ALUMINUM CAPACITORS
CS
Series
■STANDARD RATINGS
Size code
G1B
H1C
WV (Vdc)
50
35
50
Cap
(μF) (120Hz ,20℃)(mΩmax/20℃,100KHz)
560.1225
1500.1225
1000.1225
82
2700.1225
390
tanδ
0.12
0.12
ESR
25
25
Ripple currentLeakage current
(μA max)105℃,100KHz,(mA/rms)
1760
1760
2050
2050
2050
560
1050
2350
8202050
1890
1950
☆
☆
☆
℃
☆
Ω
