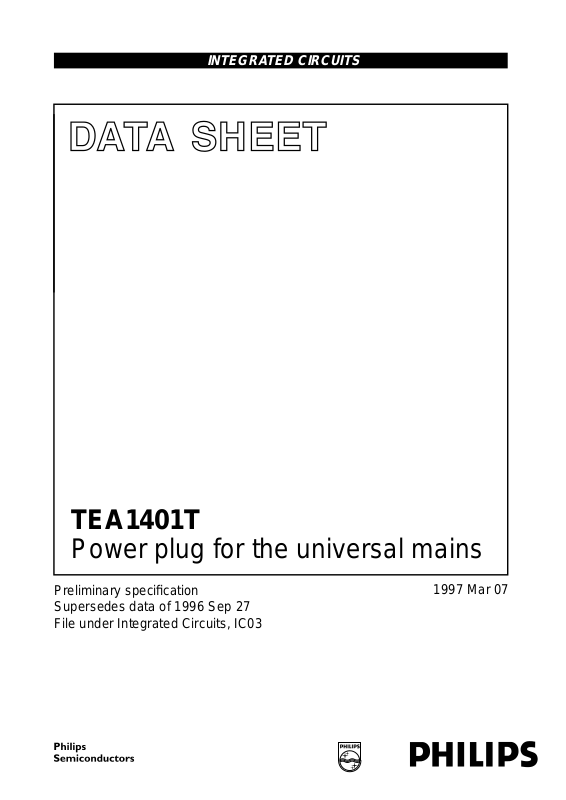

Datasheet TEA1401T-N1 Datasheet (Philips)

DATA SH EET

Preliminary specification
Supersedes data of 1996 Sep 27
File under Integrated Circuits, IC03

1997 Mar 07

INTEGRATED CIRCUITS

TEA1401T

Power plug for the universal mains

1997 Mar 07 2

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

FEATURES

• Designed for compact power plugs supplying up to 20 W

• Integrated high-voltage power DMOS FET 625 V/1 A

• Operates from all mains supplies (90 to 280 V AC)

• Major design: current regulation at the primary side

(no opto-coupler, no secondary electronics)

• Low external/peripheral component count

• Combines accurate constant-voltage source (for supply)

and accurate constant-current source (for charging) in
one IC

• Foldback feature

• Requires simple input filter as a result of good EMC

design

• Overshoot protection (output voltage)

• Protects against under-voltage input, over-current and

over-temperature

• 20-pin SO medium-power package.

GENERAL DESCRIPTION

The TEA1401T is a Self Oscillating Power Supply (SOPS)
controller IC that operates directly from the rectified
universal mains. It is implemented in the BCD power logic
750 V process and includes the high voltage power switch
making an integrated single-switch flyback converter.

Dedicated circuitry for high power efficiency is built-in,
which makes a slim-line electronic power plug concept
possible.

The basic function is a galvanically isolated, combined
current and voltage source. No electronics are required at
the secondary side of the transformer. Implementation of
the TEA1401T renders a simple, small and accurate
battery charger system. The TEA1401T is capable of self
starting directly from the high voltage mains line.

QUICK REFERENCE DATA

ORDERING INFORMATION

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

20

output voltage at pin 20 (DRAIN) 20 times −−625 V

I

20

current in MOS switch peak value −−1A

f

sw

operating switching frequency range C

CPFM

= 470 pF 5 − 150 kHz

I

1

input current at pin 1 (Vin), from the
high input voltage. VAT can supply
from the low voltage auxiliary
winding

VAT< 10 V (peak) −−3mA
V

AT

> 10 V (peak);

fsw= 90 kHz

− 430 530 µA

V

AT

> 10 V (peak);

f

sw

= 150 kHz

− 560 660 µA

I

17

average input current at pin 17 (VAT)VAT< 10 V (peak) −−300 µA

V

AT

> 10 V (peak) −−3mA

T

amb

operating ambient temperature −20 − +85 °C

TYPE

NUMBER

PACKAGE

NAME DESCRIPTION VERSION

TEA1401T SO20 plastic small outline package; 20 leads; body width 7.5 mm SOT163-1

1997 Mar 07 3

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

BLOCK DIAGRAM

handbook, full pagewidth

MBH570

11

BAND-GAP

TEA1401T

VOLTAGE SETTING

R

OUT

COMPENSATION

low voltage

over voltage

I

ref

G

OUT

COMPENSATION

1/6

G

OUT

7

R

I

12

R

V

T1

auxiliary

winding

V

I

J

ref

J

ref

J

ref/3

1

1

D

RESET

maximum

on time

TEMPERATURE

PROTECTION

POR

SUPPLY

TIMING

FET turn-off

V

in

from mains rectifier and filter

117V

in

14313

V

IC

C

PFM

FOLDBACK

10

C

V

9

mains

hard wired

R

ref

V

gap

V

AT

secondary

stroke

T1

primary

winding

T1

secondary

winding

C

y

SINGLE-SHOT

D-TYPE

FLIP-FLOP

foldback

clock

TR

I

TOP

REGULATOR

LEADING EDGE

BLANKING

20

TP

25 µA

I

U

8 2, 18, 19 5, 6, 15, 16

n.c. GND

C

I

S

R

Q

Q

DRAIN

output

4 SOURCE

on

Q

&

temp

max

over

temperature

MINIMUM

TRACK-

AND-

HOLD

PEAK

DETECTOR

I

PEAK

CORRECTION

CURRENT

SETTING

LIMITER

out

130 µA

2.5 µA

in

out

1.2 V

90 mV

in

R

I

I

g

m

=

Fig.1 Block diagram.

1997 Mar 07 4

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

PINNING

SYMBOL PIN DESCRIPTION

V

in

1 input for rectified and filtered mains

voltage for initial powering
n.c. 2 not connected
C

PFM

3 frequency range setting for the

pulse frequency modulation
SOURCE 4 source of internal MOS switch
GND1 5 ground 1
GND2 6 ground 2
R

I

7 setting of nominal output current

C

I

8 frequency compensation of

current control loop
R

ref

9 setting of reference current

C

V

10 frequency compensation of voltage

control loop
G

OUT

11 nulling of the output conductance

of the current source function
R

V

12 setting of the nominal output

voltage
FOLDBACK 13 enabling of the foldback feature in

the output characteristic
V

IC

14 buffering of internal supply voltage
GND3 15 ground 3
GND4 16 ground 4
V

AT

17 input for voltage and power from

auxiliary winding for timing and

powering
n.c. 18 not connected
n.c. 19 not connected
DRAIN 20 drain of internal MOS switch

Fig.2 Pin configuration.

handbook, halfpage

TEA1401T

MBH571

1
2
3
4
5
6
7
8
9

10

20
19
18
17
16
15
14
13
12
11

V

in

C

PFM

R

I

C

I

R

ref

C

V

SOURCE

GND1
GND2

n.c.

DRAIN

GND4

n.c.
n.c.
V

AT

GND3

FOLDBACK

V

IC

R

V

G

OUT

1997 Mar 07 5

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

FUNCTIONAL DESCRIPTION

The TEA1401T is the heart of a compact flyback DC-to-DC
converter, with the IC placed at the primary side.
An auxiliary primary winding of the transformer is used for
indirect feedback to control the isolated output. This extra
winding also powers the device.

Control of the converted power is carried out by current
mode control and Pulse Frequency Modulation (PFM), as
illustrated in Fig.1. The primary current is sensed by a
comparator. The frequency is determined by the maximum
of the transformer demagnetizing time and the time of the
voltage controlled monostable multivibrator (single-shot).

The TEA1401T senses signals at the primary side of the
transformer to reconstruct the current and voltage which
are present at the secondary side. Comparison of these
reconstructions with the internal reference leads to
adaptation of the turn-off current level for the primary
switch and also to adaptation of the single-shot time.

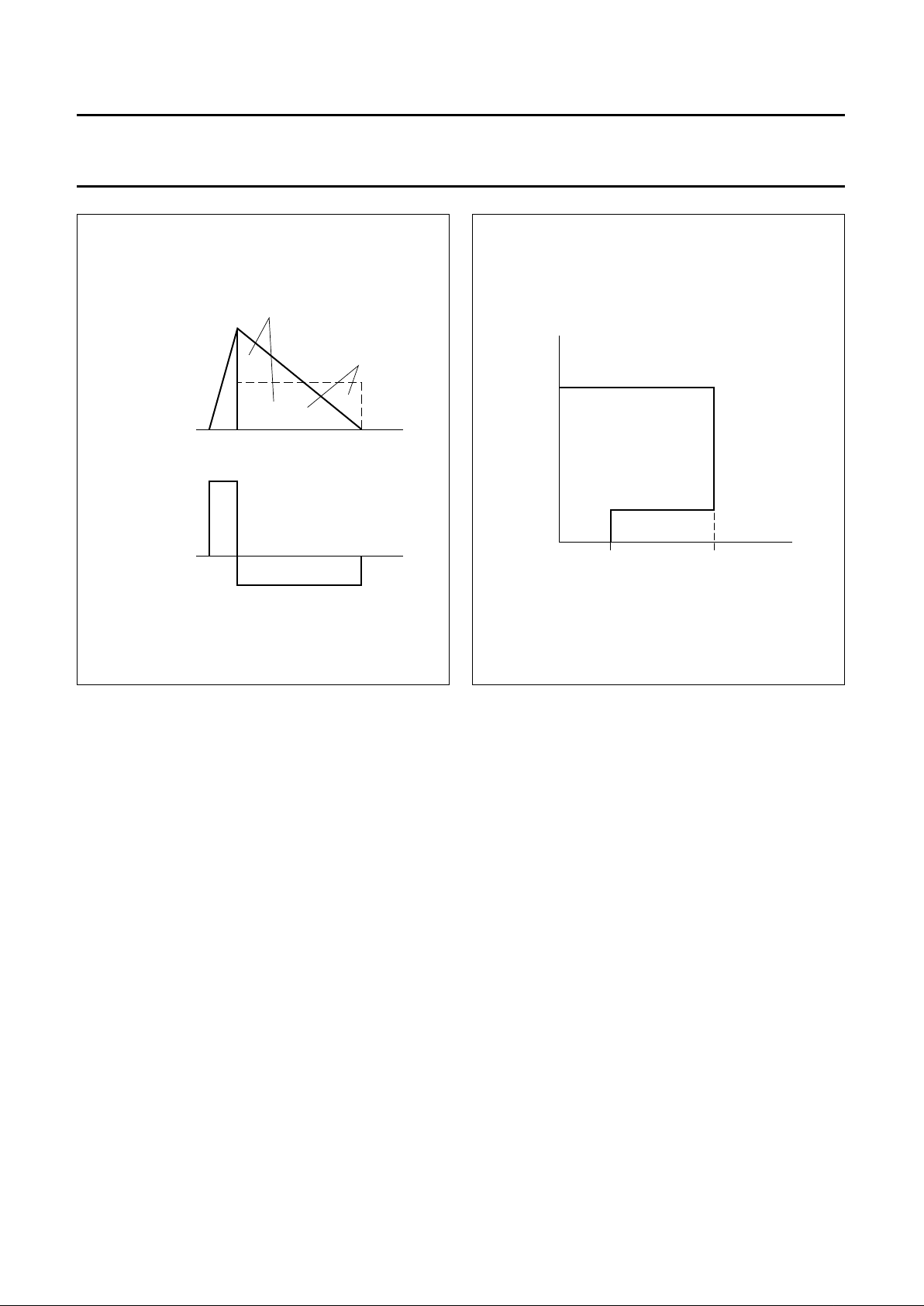

Current control (see Fig.3)
The current through the main switch is measured by the

peak detector shown in Fig.1. The timing block generates
a signal ‘secondary stroke’ which is logic 1 when the
voltage of the auxiliary winding is negative.
The measured peak current, multiplied by the ratio of the
resistors connected to pins 4 (SOURCE) and 7 (R

I

), is

integrated by a capacitor during the secondary stroke.
In this way a reconstruction is made of the secondary

charge transfer. The charge estimation Q-pulse’
(see Fig.3) is drawn from the capacitor at pin 8 (CI) for
each pulse. Also this capacitor, the charge error memory,
is continuously charged with the reference current. In this
way the real (reconstructed) current is compared with the
reference yielding the voltage VCI at pin 8. The VCI level
provides the turn-off current level for the main switch and
the single-shot time.

Input from the voltage part of the loop is used to improve
the current reconstruction, resulting in a lower output
conductance of the complete converter. In the block
diagram this is denoted as ‘G

OUT

compensation’.

The block ‘I

PEAK

correction’ is able to increase the output

from the peak detector to improve line regulation.

Voltage control

The voltage from the auxiliary winding is sensed as a
measure of the secondary voltage. During the secondary
stroke the auxiliary winding delivers a negative voltage.
This voltage is converted into a current by an external
resistor at the R

V

pin between the transformer winding and
virtual ground. This current is compared with a reference
current.

The difference between the reconstructed voltage and the
reference is integrated during the secondary stroke by a
capacitor on the C

V

pin. The voltage on the CV pin is
transferred, via a ‘track-and-hold’ circuit, to the connection
point of the current and the voltage loop.
The ‘track-and-hold’ output provides the turn-off current
level for the main switch and the single-shot time.

The ‘track-and-hold’ circuit itself is present for loop
stability.

Input from the current part of the loop is used to improve
the voltage reconstruction, resulting in lower output
impedance of the complete converter (analog to the
current control). In the block diagram this is denoted as
‘R

OUT

compensation’.

Combined control

The two loops, I loop and V loop, each request their own
turn-off current level for the main switch and single-shot
time. The block ‘minimum’ in the block diagram outputs the
lowest value of the two, preventing the output voltage or
current from exceeding its nominal value. The output
characteristics of the power plug are displayed in Fig.4
(with enabled foldback option).

Optional foldback (see Fig.4)
The optional foldback feature of the TEA1401T is

performed by sensing the voltage of the auxiliary winding
at the end of the flyback stroke. It is actually not a voltage,
but the current through pin 12 (RV) that is measured. When
this voltage is low, the reference current in the current
control loop is set to the low level J

ref

/3.

The steep foldback enables a turn-down of the converter
by short-circuiting the output on the secondary side, for
example by a switch-transistor.

1997 Mar 07 6

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

Overshoot protection

Sensing the voltage during the previously mentioned
flyback stroke is also used to signal a voltage overshoot.
A voltage overshoot will delay and minimize the next active
stroke. This is achieved by discharging the capacitor in the
‘track-and-hold’ circuit (see Fig.1). In this way the power
level of the converter is turned down to its minimum
immediately in case of a voltage overshoot.

Minimum output power

Under no-load condition an additional external pre-load
resistor (or Zener diode) is necessary to keep the output
voltage at its nominal value (or at the Zener diode voltage).

This is due to the fact that under no-load condition and also
at voltage overshoot the converter will keep operating
instead of being switched off. Although the converter then
will operate with a short active stroke and a low frequency,
energy is still being converted to the output. To prevent
excessive output voltage this energy has to be dissipated.

The advantage of a pre-load resistor over a Zener diode is
that the converter will stay in regulation, maintaining its fast
response to load variations.

Duty cycle control

The momentary power level required by the I/V control
loop is achieved by controlling the duty cycle of the
converter by two actions. First the peak value of the
primary current is controlled using a cycle-by-cycle current
control. Secondly the pulse frequency is modulated. There
is a broad region in which both regulation principles are
active simultaneously. Both controls have a minimum and
a maximum value which are set by the resistor on the
SOURCE pin and the capacitor on the C

PFM

pin.

SOPS and PFM

The switching frequency f

sw

is set by the transformer
demagnetizing time or the frequency control block within
the IC (block ‘single-shot’ in Fig.1).

At a high power level the transformer determines the
frequency. This mode of operation is called Self Oscillating
Power Supply (SOPS), and provides maximum efficiency
(for a non-continuous conducting flyback converter).
In SOPS the next primary stroke is started right after the
previous secondary stroke has ended. Timing information
is collected from the auxiliary winding.

The SOPS frequency will increase when the power level
decreases. The frequency however is limited by the PFM
controller (single-shot). When the PFM controller takes
over, the frequency will be proportional to the required
power level. Thus the frequency is reduced when the
power level decreases. In PFM there is a variable dead
time after the secondary stroke. The next primary stroke is
started after the single-shot time has ended.

Supply

Initially the IC is powered by a high DC input voltage at
pin 1 (V

in

). In operation the auxiliary winding takes over.
In the event that the auxiliary winding delivers insufficient
power for the internal circuitry of the IC, this deficit is
supplemented again via pin 1 (Vin).

The supply voltage for the internal circuitry is buffered with
an external capacitor at pin 14 (VIC). When the auxiliary
winding powers the IC, energy is stored during the active
stroke. The rest of the time energy is supplied by the buffer
capacitor.

Protections

The IC has a cycle-by-cycle current regulation, with a
built-in setting for the absolute maximum voltage across
the current sense resistor. Also a maximum time is set for
the duration of the active stroke. A provision for
temperature shut down has been implemented.

1997 Mar 07 7

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

Fig.3 Reconstruction of secondary charge transfer.

handbook, halfpage

MBH580

V

auxiliary

(−V

secondary

)

t

t

I

primary x n

Q

pulse'

Q

pulse

I

secondary

Fig.4 V/I ideal characteristics.

handbook, halfpage

V

OUT

(V)

V

nominal

0

MBH575

I

FOLDBACK

I

nominal

I

OUT

(A)

1997 Mar 07 8

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134). All voltages are measured with respect to ground;
positive currents flow into the chip; pins 7, 9, 11 and 12 are not allowed to be voltage driven. The voltage ratings are
valid provided other ratings are not being violated; current ratings are valid provided the maximum power rating is not
violated.

QUALITY SPECIFICATION

According to

“SNW-FQ-611E”

. This specification can be found in the

“Quality reference Handbook”

. The handbook can

be ordered using the code 9397 750 00192.

HANDLING

Every pin withstands the ESD test in accordance with the ‘Human Body Model’ except for pins V

in

and DRAIN of which

the performance is:

• Pin Vin: 1000 V in accordance with the ‘Human Body Model’

• Pin DRAIN: 1500 V in accordance with the ‘Human Body Model’.

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

Voltages

V

1

pin 1 (Vin) continuous −0.4 +400 V

V

3

pin 3 (C

PFM

) −0.4 − V

V

4

pin 4 (SOURCE) −0.4 +2 V

V

8

pin 8 (CI) −0.4 − V

V

10

pin 10 (CV) −0.4 − V

V

13

pin 13 (FOLDBACK) −0.4 VIC+ 0.4 V

V

14

pin 14 (VIC) −−V

V

17

pin 17 (VAT) −20 +60 V

V

20

pin 20 (DRAIN) continuous − +550 V

Currents

I

3

pin 3 (C

PFM

) − 0.2 mA

I

4

pin 4 (SOURCE) −1+1A

I

7

pin 7 (RI) −0.2 0 mA

I

9

pin 9 (R

ref

) −0.2 0 mA

I

11

pin 11 (G

OUT

) −0.2 0 mA

I

12

pin 12 (RV) −0.2 0 mA

I

14

pin 14 (VIC) −300 +1 mA

I

20

pin 20 (DRAIN) −1+1A

General

P

tot

total power dissipation T

amb

<50°C − 1.4 W

T

stg

storage temperature −55 +150 °C

T

amb

operating ambient temperature −20 +85 °C

T

vj

virtual junction temperature −20 +145 °C

1997 Mar 07 9

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

THERMAL CHARACTERISTICS

Note

1. Pins GND1, GND2, GND3 and GND4 connected to sufficient copper area on the printed-circuit board.

CHARACTERISTICS

V

in

= 330 V; VAT= 36 V; R

Rref

=31kΩ; T

amb

=25°C; IC not in current foldback mode; no over-voltage;
no over-temperature; unless otherwise specified. All voltages are measured with respect to ground; currents are
positive when flowing into the IC.

SYMBOL PARAMETER VALUE UNIT

R

th j-a

thermal resistance from junction to ambient in free air

(1)

65 K/W

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply

V

in

input voltage 60 − 400 V
input voltage limit 20 times 500 −−V

I

in

input supply current to VIC and gate VAT= 3 V 1.7 2.3 2.9 mA

I

in(gate)

input supply current to gate only VAT=36V;

non-switching

130 230 330 µA

V

IC

regulated supply voltage at V

IC

VAT= 3 V 6.7 7.2 7.7 V
V

AT

= 36 V 7.2 7.9 8.6 V

∆V

IC

/∆R

O

voltage decrease at VIC due to its
output impedance

VAT=20V;
I

VIC

=0to−100 mA

−−200 mV

V

POR

power-on reset voltage level, with
respect to regulated V

IC

−0.7 −0.5 −0.1 V

I

LI(VAT)

leakage current into pin V

AT

VAT=6V −−2µA

V

VAT

VAT input voltage −20 − +60 V

I

VAT

VAT input current VAT= 70 V; I

VIC

=0mA111417mA

Pulse peak modulator

V

SOURCE(max)

maximum peak voltage at
pin SOURCE

V

CV=VCI

=4V;

1.09 1.19 1.29 V

V

CV=VCI

=4V;

1.05 1.15 1.25 V

V

SOURCE(min)

minimum peak voltage at
pin SOURCE

VCV=VCI=0V;
ton>t

on(min)

75 95 120 mV

∆V

CV-SOURCE

level shift voltage VCIto V

SOURCE

VCV=4V − 2 − V

∆V

CI-SOURCE

level shift voltage VCVto V

SOURCE

VCI=4V − 2 − V

t

on(min)

minimum on-time (the minimum time
duration of the active stroke)

V-mode 490 550 610 ns
I-mode 675 750 825 ns

dV

SOURCE

dt

-------------------------- -

1V/µs=

dV

SOURCE

dt

-------------------------- -

0.1 V/µs=

1997 Mar 07 10

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

Pulse (maximum) frequency modulator

R

discharge

discharge resistance to ground V

CPFM

= 1.0 V 0.3 0.6 0.9 kΩ

I

charge(min)

minimum charge current VCV=VCI=0V − 2.5 −µA

I

charge(max)

maximum charge current VCV=VCI=4V − 130 −µA

I

charge(fix)

fixed charge current active stroke − 25 −µA

G

transferCI

transfer from pin CI to pin C

PFM

VCI= 2.1 to 3.1 V −−104 −µA/V

G

transferCV

transfer from pin CV to pin C

PFM

VCV= 2.1 to 3.1 V −−104 −µA/V

V

sw(high)

high switching voltage level at
pin C

PFM

− 1.0 − V

V

sw(low)

low switching voltage level at
pin C

PFM

DC at pin C

PFM

− 0.17 − V

V

ton(max)

maximum on-time t

on(max)

switching

voltage level at pin C

PFM

− 0.54 − V

∆f

PFM

frequency spread of the internal
oscillator; ;

V

CI=VCV

= 2.1 to 3.1 V 93 104 115 µA/V

2

∆t

on(max)

spread of t

on(max)

;

VCI=VCV=4V;
V

SOURCE

<1V

19 22 25 V/mA

SOPS

V

demag

demagnetization recognition voltage
level

−250 −130 −10 mV

Current regulation

V

i(pkc)

V

PEAK

-I converter input voltage 0.6 − 1.4 V

V

i(pkc)(slope)

V

PEAK

-I converter input voltage slope 0.1 − 1.0 V/µs

V

pkc(offset)

V

PEAK

-I converter systematic offset −−13 − mV

I

transfer(RI-CI)

RIto CI current transfer I

GOUT

=0 −−0.99 − A/A

I

transfer(GOUT-CI)

G

OUT

to CI current transfer IRI=0 − 0.17 − A/A

I

PEAKcor

current through sense capacitor in
block ‘I

PEAK

correction’ (see Fig.1);

sunk by pin FOLDBACK

under test conditions: in
lasting active stroke

71013µA

I

chain(CI)

CI chain error current −3.3 −1.0 +1.3 µA

I

ctrl(error)

current control total measured error −5 − +5 %

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

G

transferCI

V

sw(high)

------------------------

G

transferCV

V

sw(high)

------------------------- -

V

ton(max)

I

charge(fix)

---------------------- -

dV

SOURCE

dt

-------------------------- -

0.1 V/µs>

1997 Mar 07 11

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

Voltage regulation

I

transfer(RV-CV)

RVto CV current transfer VRI< 0.5 V −−1.00 − A/A

V

thres(RI)

R

OUT

converter voltage threshold at

pin R

I

− 0.65 − V

g

m(ROUT)

R

OUT

converter transconductance

ICV/V

RI

VRI> 0.7 V − 4.4 −µA/V

I

chain(CV)

CV chain error current ICV measurement,

analogue to that of
I

chain(CI)

−1.2 0 +1.2 µA

V

ctrl(error)

total error of voltage control loop in IC −4 − +4 %

Current foldback; FOLDBACK (pin 13) connected to V

IC

(pin 14)

I

RV/IRref

current ratio discrimination level 0.05 0.1 0.2 A/A

I

CI(foldback)/ICI(normal)

current ratio 0.26 0.33 0.4 A/A

Voltage overshoot

IRV/I

Rref

current ratio discrimination level 1.1 1.2 1.3 A/A

V

4(overshoot)

peak voltage at pin 4 at overshoot;

ton>t

on(min)

75 95 120 mV

I

charge(overshoot)

C

PFM

charge current at overshoot;

V

CPFM

=1V

− 2.5 −µA

References

V

ref

R

ref

reference voltage 1.24 1.28 1.32 V

I

transfer(Rref-CI)

R

ref

to CI current transfer − 0.99 − A/A

I

transfer(Rref-CV)

R

ref

to CV current transfer − 0.99 − A/A

Output stage

I

LO

DRAIN output leakage current V

DRAIN

= 550 V −−100 µA

V

DRAIN(cont)

DRAIN output voltage continuous 0 − 550 V

V

DRAIN(lim)

DRAIN output voltage limit 20 times 625 −−V

∆V

DRAIN-SOURCE

DRAIN-SOURCE voltage drop T

amb

=25°C;

I

DRAIN

= 500 mA

−−6V

T

amb

= 125 °C;

I

DRAIN

= 500 mA

−−11 V

t

f

DRAIN fall time Vin= 300 V;

no external capacitor at
pin DRAIN

− 100 − ns

Temperature protection

T

prot(max)

maximum temperature threshold 132 139 146 °C

T

prot(hyst)

hysteresis temperature −±1−°C

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1997 Mar 07 12

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

OUTPUT CHARACTERISTICS OF COMPLETE
POWER PLUG

Output power

Maximum switching frequency is approximately 150 kHz.
Internal MOS maximum switch current is 0.5 to 1 A.
Maximum handled power with universal mains is
approximately 10 W.

Accuracy of current regulation

The accuracy of the IC itself is ±5%. Accuracy of the
complete converter is approximately ±7%, depending on
the transformer and other components.

Accuracy of voltage regulation

The voltage loop inside the IC has an accuracy of ±4%.
Accuracy of the complete converter is approximately ±7%.

Voltage overshoot

When voltage overshoot is detected (during the secondary
stroke), the IC first has to wait until this stroke is finished in
the normal way. After that the power level of the converter
is set to the minimum level within one cycle.

Voltage overshoot is triggered at 20% above nominal
output voltage. If at the moment that overshoot is detected,
the transformer still contains energy; this energy can
cause some further increase of the output voltage.

In case of a pre-load resistor across the output,
the converter keeps the output voltage under static
conditions on its nominal value. Voltage overshoot will only
be a dynamic phenomenon in this situation. When only a
Zener diode is applied, the Zener voltage will appear at the
output continuously under no-load conditions.

Efficiency

An efficiency of 72 to 75% at maximum output power can
be achieved for a complete 8 W converter designed for
universal mains.

Ripple

The magnitude of the ripple in output voltage is determined
by the duty cycle of the converter, the output current level
and the value and Electrical Series Resistance (ESR) of
the output capacitor.

A minimal ripple is obtained in a system designed on a
maximum duty cycle of 50% under normal operating
conditions and a minimized dead time.

Ripple is inversely proportional to input and output
voltages.

INPUT CHARACTERISTICS OF COMPLETE
POWER PLUG

Input voltage

The input voltage range comprises the universal AC-mains
(90 to 280 V). The input transient voltage must be filtered
to a maximum of 450 V.

1997 Mar 07 13

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

APPLICATION INFORMATION

A converter with the TEA1401T consists of an input filter,
a transformer with a third winding (auxiliary), a secondary
diode with a capacitor plus other external components as
illustrated in Fig.5. The load (user) determines the
operating mode of the power plug, current or voltage
source.

The capacitor at VIC (pin 14) buffers the internal supply
voltage of the IC which is powered via Vin and/or VAT.

A sense resistor converts the primary current into a
voltage at SOURCE (pin 4). The voltage of the auxiliary
winding is converted into a current through resistor R

RV

and fed to pin RV.
Nominal current and voltage are set by resistors RRI and

RRV. Output conductance of the current is nullified by
resistor R

RGOUT

. The band-gap voltage is converted into a

reference current by resistor R

Rref

. Capacitor C

CPFM

determines the frequency in non-SOPS mode.
There are two loop capacitors, one for current control (CI),

and the other for voltage control (CV). The impedance at
CV (pin 10) can be made more complex, if required for
stability.

The secondary diode also protects the power plug against
a short-circuited output (during the primary stroke), and
must therefore be placed inside the power plug cabinet.
A pre-load resistor or a Zener diode is required to handle
an open output which will cause an excessively high output
voltage. This is because the power plug continues
operating, provided it is connected to the mains, and thus
continuously converts energy to the secondary side, even
though it is a low, predefined level.

If a Zener diode is used, the Zener voltage must be
selected with care, because the over-voltage protection of
the IC should not be blocked. If the Zener diode voltage is
too close to the nominal output voltage of the converter no
voltage overshoot will be detected by the IC, causing
increased dissipation in the Zener during switching of the
load.

A complete diagram with preliminary component values is
shown in Fig.6. More detailed information can be found in
the

“Application Note AN96096”

.

1997 Mar 07 14

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

handbook, full pagewidth

MBH573

GND

13

FOLDBACK

V

IC

C

VIC

4

14

5, 6,

15, 16

C

I

C

CI

8

R

I

R

RI

7

C

PFM

C

CPFM

3

R

ref

R

Rref

R

sense

G

OUT

R

GOUT

9

SOURCE

DRAIN

POWER

PLUG

4

20

V

in

1

11

C

V

C

CV

10

R

V

12

V

AT

V

OUT

17

TEA1401T

R

RV

USER

V

OUT

USER

mains

hard

wired

C

y

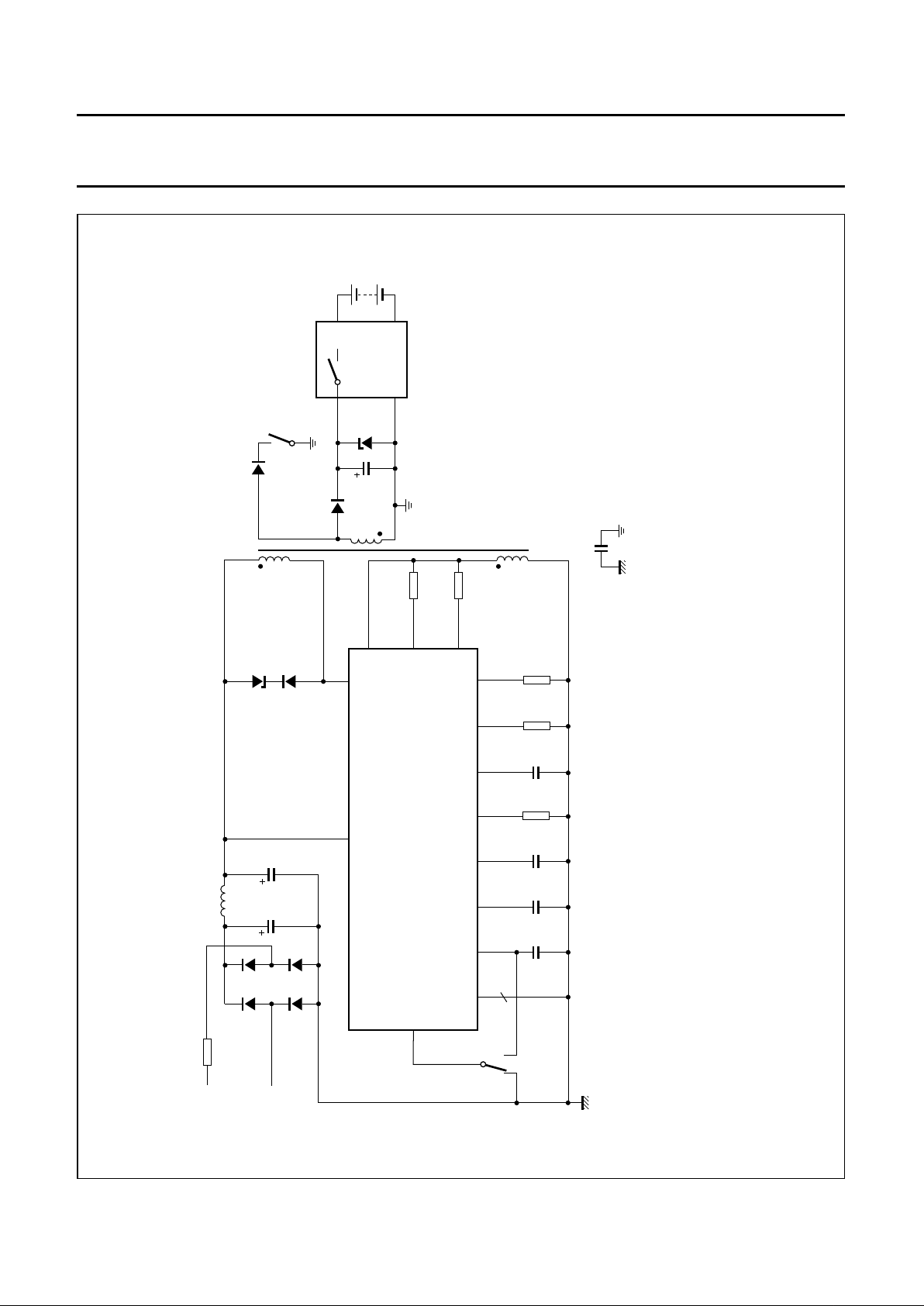

Fig.5 Power plug with TEA1401T.

1997 Mar 07 15

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

handbook, full pagewidth

MBH574

GND

1 µF

(10%)

8.2 nF

(10%)

10 nF

(10%)

470 pF

(5%)

13

FOLDBACK

V

IC

4

14

C

I

8

R

I

7

C

PFM

3

R

ref

R

sense

G

OUT

9

SOURCE

DRAIN

Z1

BZD27C150

D1

BYD33J

4

20

L4

L3

L2

L1

mains filter

R1

V

DC

<

450 V (also transient)

D2

BYD77B

V

in

C

f1

rectifier bridge

800 V at 0.5 A

C

f2

1

11

C

V

10

R

V

12

V

AT

V

OUT

17

TEA1401T

C1

Z2

USER

(1)

mains

hard

wired

10

kΩ

(1%)

30 kΩ

(1%)

2.2 Ω

(1%)

2.2 nF

100 kΩ

(1%)

240 kΩ

(1%)



C

VIC

5, 6,

15, 16

C

CI

R

RI

C

CPFM

R

Rref

R

GOUT

C

CV

R

RV

C

y

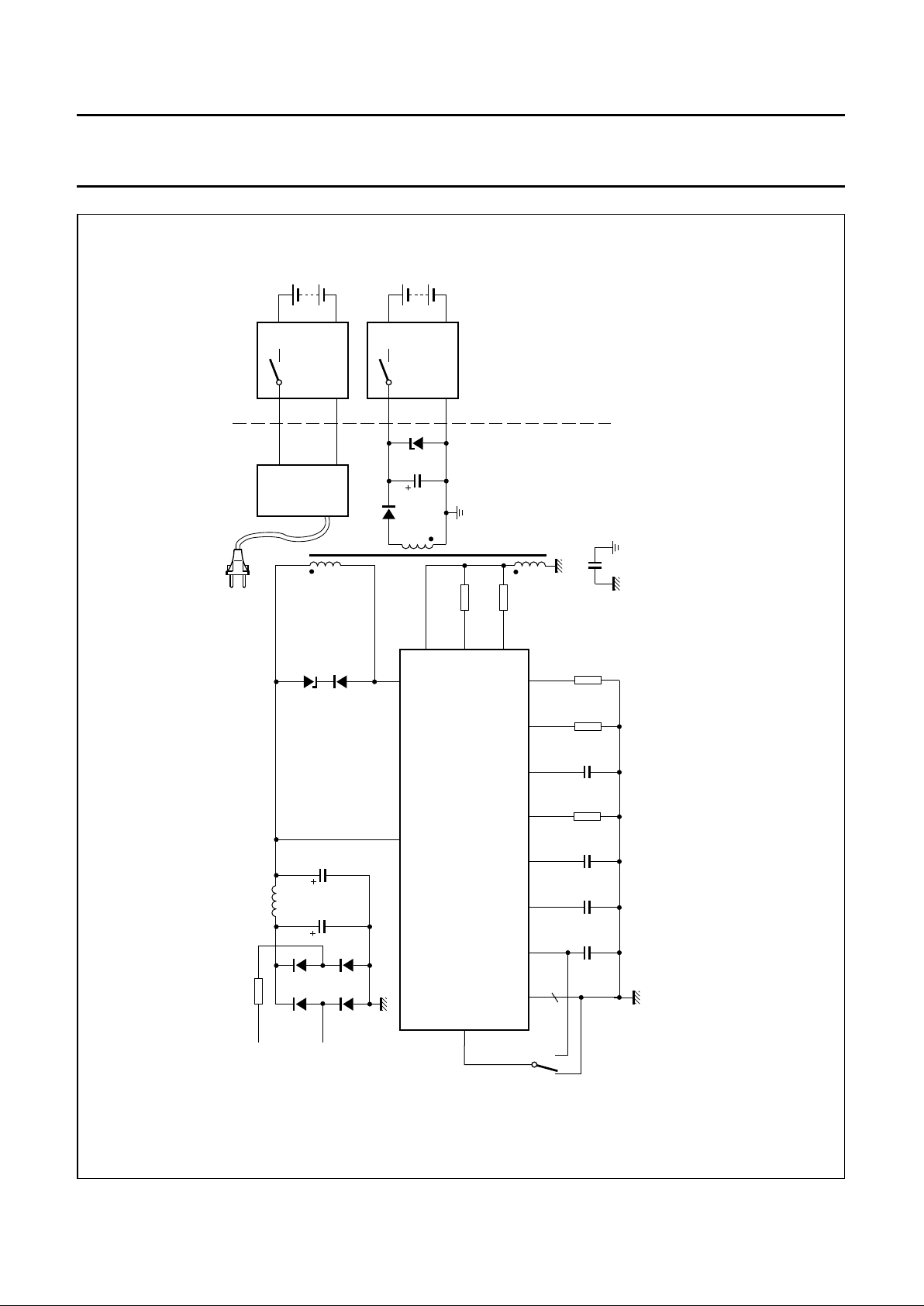

Fig.6 Power plug with TEA1401T; completed circuit diagram.

(1) Optional short-circuit provision based on FOLDBACK feature.

C1 =330 µF 16 V 10%; C

f1

=C

f2

= 6.8 µF 385 V 10%.

L1 = inductance filter = 560 µH 10%; L2 = 62 turns 0.14 copper inductance; L3 = 8 turns 0.4 copper inductance; L4 = 8 turns 0.14 copper inductance; core EF16/16/5 gap 130 µ.

R1 = R

fuse

=18Ω5% at 0.5 W.

Z2 = BZV55B12 2% at 0.4 W.

1997 Mar 07 16

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

PACKAGE OUTLINE

UNIT

A

max.

A

1

A2A

3

b

p

cD

(1)E(1) (1)

eHELLpQ

Z

ywv θ

REFERENCES

OUTLINE
VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

mm

inches

2.65

0.30

0.10

2.45

2.25

0.49

0.36

0.32

0.23

13.0

12.6

7.6

7.4

1.27

10.65

10.00

1.1

1.0

0.9

0.4

8
0

o
o

0.25 0.1

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

Note

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

1.1

0.4

SOT163-1

92-11-17
95-01-24

10

20

w M

b

p

detail X

Z

e

11

1

D

y

0.25

075E04 MS-013AC

pin 1 index

0.10

0.012

0.004

0.096

0.089

0.019

0.014

0.013

0.009

0.51

0.49

0.30

0.29

0.050

1.4

0.055

0.42

0.39

0.043

0.039

0.035

0.016

0.01

0.25

0.01

0.004

0.043

0.016

0.01

0 5 10 mm

scale

X

θ

A

A

1

A

2

H

E

L

p

Q

E

c

L

v M

A

(A )

3

A

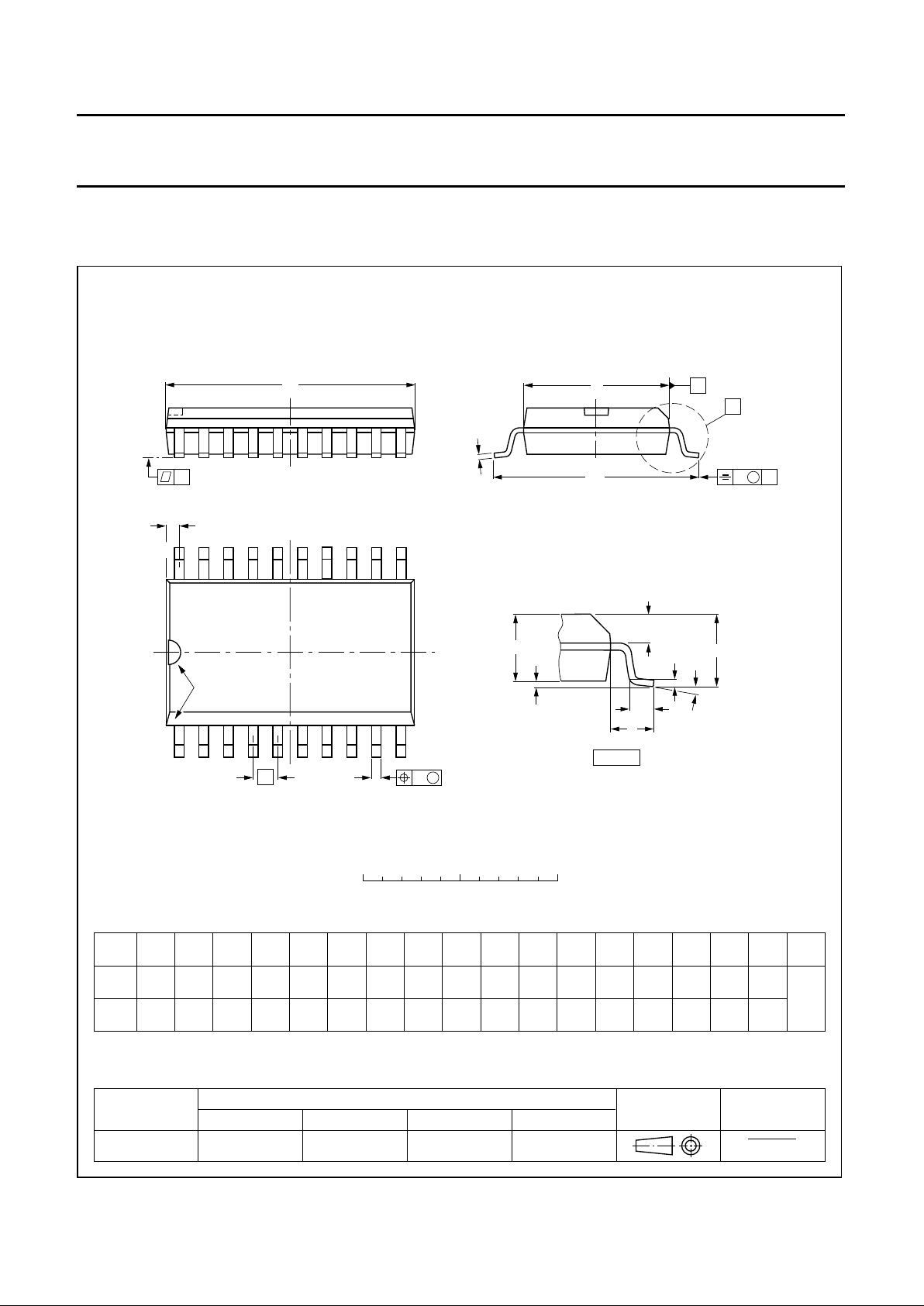

SO20: plastic small outline package; 20 leads; body width 7.5 mm

SOT163-1

1997 Mar 07 17

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

(order code 9398 652 90011).

Reflow soldering

Reflow soldering techniques are suitable for all SO
packages.

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.

Wave soldering

Wave soldering techniques can be used for all SO
packages if the following conditions are observed:

• A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave) soldering
technique should be used.

• The longitudinal axis of the package footprint must be
parallel to the solder flow.

• The package footprint must incorporate solder thieves at
the downstream end.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Repairing soldered joints

Fix the component by first soldering two diagonally­opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

1997 Mar 07 18

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

DEFINITIONS

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

1997 Mar 07 19

Philips Semiconductors Preliminary specification

Power plug for the universal mains TEA1401T

NOTES

Internet: http://www.semiconductors.philips.com

Philips Semiconductors – a worldwide company

© Philips Electronics N.V. 1997 SCA53
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,
Tel. [phone], Fax. [phone]

New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Tel. [phone], Fax. [phone]

Norway: Box 1, Manglerud 0612, OSLO,
Tel. [phone], Fax. [phone]

Philippines: Philips Semiconductors Philippines Inc.,
106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Rua do Rocio 220, 5th floor, Suite 51,
04552-903 São Paulo, SÃO PAULO - SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone], Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications,
Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: seeSouth America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]/xxx
France: 4 Rue du Port-aux-Vins, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: seeAustria
India: Philips INDIA Ltd, Shivsagar Estate, A Block, Dr. Annie Besant Rd.

Worli, MUMBAI 400 018, Tel. [phone], Fax. [phone]

Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, TEL AVIV 61180,

Tel. [phone], Fax. [phone]
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,

20124 MILANO, Tel. [phone], Fax. [phone]
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,

Tel. [phone], Fax. [phone]
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,

Tel. [phone], Fax. [phone]
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,

Tel. [phone]
Middle East: see Italy

Printed in The Netherlands 417027/1200/02/pp20 Date of release: 1997 Mar 07 Document order number: 9397 750 01503
