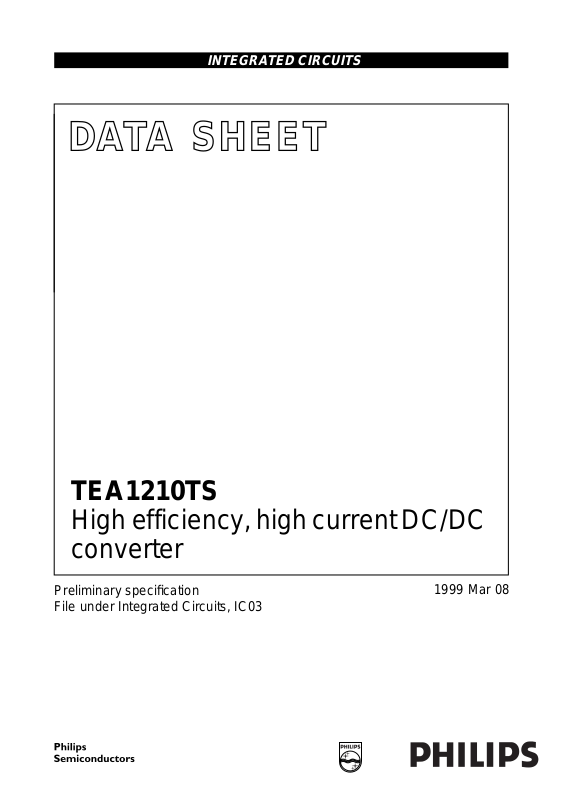

DATA SH EET

Preliminary specification
File under Integrated Circuits, IC03

1999 Mar 08

INTEGRATED CIRCUITS

TEA1210TS

High efficiency, high current DC/DC
converter

1999 Mar 08 2

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

FEATURES

• Fully integrated DC/DC converter circuit, featuring
internal very low R

DSon

power MOSFETs

• Up-or-down conversion

• Start-up from 1.85 V input voltage

• Adjustable output voltage

• High efficiency over large load range

• 600 kHz switching frequency

• Low quiescent power consumption

• Synchronizing with external clock

• Two selectable current limits for efficient battery use in

case of dynamic loads

• Up to 100% duty cycle in down mode

• Undervoltage lockout

• Shut-down function

• 16-pin small body SSOP16 package.

APPLICATIONS

• Cellular phones, Personal Digital Assistants (PDAs) and
others

• Supply voltage source for low-voltage chip sets

• Portable computers

• Battery backup supplies.

GENERAL DESCRIPTION

The TEA1210TS is a fully integrated DC/DC converter.
Efficient, compact and dynamic power conversion is
achieved using a novel digitally controlled concept like
Pulse Width Modulation (PWM) or Pulse Frequency
Modulation (PFM), integrated low R CMOS power
switches with low parasitic capacitances, and fully
synchronous rectification.

The device operates at 600 kHz switching frequency
which enables the use of external components with
minimum size. The switching frequency can be locked to
an external high-frequency clock.

Optionally, the device can be kept in the Pulse Width
Modulation (PWM) mode regardless of the load applied.

Deadlock is prevented by an on-chip undervoltage lockout
circuit.

Two selectable current limits in upconversion mode enable
efficient battery use even at highly dynamic loads such as
cellular phone electronics.

ORDERING INFORMATION

TYPE NUMBER

PACKAGE

NAME DESCRIPTION VERSION

TEA1210TS SSOP16 plastic shrink small outline package; 16 leads; body width 4.4 mm SOT369-1

1999 Mar 08 3

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

QUICK REFERENCE DATA

T

amb

= −40 to +80 °C; all voltages measured with respect to ground; positive currents flow into the IC; unless otherwise

specified.

SYMBOL P ARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Voltage levels

U

PCONVERSION; pin U/D = LOW

V

I

input voltage V

I(start)

− 5.50 V

V

O

output voltage 2.90 − 5.50 V

V

I(start)

start-up input voltage IL< 200 mA 1.20 1.60 1.85 V

V

I(uvlo)

undervoltage lockout input voltage 1.50 2.10 2.70 V
DOWNCONVERSION; pin U/D = HIGH
V

I

input voltage 2.90 − 5.50 V
V

O

output voltage 1.30 − 5.50 V
GENERAL
V

fb

feedback input voltage 1.20 1.25 1.30 V
∆V

window

output voltage window PWM mode 1.5 2.0 3.0 %

Current levels

I

q

quiescent current on pins LX VI=2.40 V; VO= 3.60 V 100 125 150 µA
I

shdwn

current in shut-down mode − 210µA
∆I

lim(up)

current limit deviation in up mode I

lim(up)

set to 2.0 A −12 − +12 %

I

lim(down)

current limit in down mode 4.8 A
I

LX

maximum continuous current on

pins LX

T

amb

=60°C −−1.8 A

Power MOSFETs

R

DSon(N)

drain-to-source on-state resistance

NFET

Tj=27°C − 56 63 mΩ

R

DSon(P)

drain-to-source on-state resistance

PFET

Tj=27°C − 68 77 mΩ

Efficiency

η efficiency upconversion VI= 2.4 V; VO= 3.6 V;

T

amb

=20°C

I

L

=1mA 83 86 − %

I

L

= 100 mA 90 93 − %

I

L

= 500 mA 92 94 − %

I

L

= 1.5 A; not continual 84 86 − %

Timing

f

sw

switching frequency PWM mode 480 600 720 kHz
f

sync

synchronization clock input frequency 9 13 20 MHz
t

res

response time from standby to P

o(max)

− 25 −µs

1999 Mar 08 4

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

BLOCK DIAGRAM

n

dbook, full pagewidth

MGR725

CONTROL LOGIC

AND

MODE GEARBOX

INTERNAL

SUPPLY

START-UP

CIRCUIT

I/V

CONVERTER

I/V

CONVERTER

TIME

COUNTER

BAND GAP

REFERENCE

13 MHz

OSCILLATOR

SYNC
GATE

SWITCH

LPF

TEMPERATURE

PROTECTION

DIGITAL CONTROLLER

sense FET

P-type POWER FET

sense

FET

SHDWN

GND

SYNC

U/D

N-type

POWER

FET

LX

UPOUT

FB

TEA1210TS

28, 9 3

PWM

146

4, 5, 12, 13

ILIMH

7

ILIML

10

ILIMSEL

11

1, 16

15

CURRENT LIMIT
COMPARATORS

Fig.1 Block diagram.

1999 Mar 08 5

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

PINNING

For all possible applications, the following groups of pins
must be connected together:

• Pins 4, 5, 12 and 13 (pins LX)

• Pins 1 and 16 (pins UPOUT)

• Pins 8 and 9 (pins GND).

SYMBOL PIN DESCRIPTION

UPOUT 1, 16 output voltage in up mode;

input voltage in down mode
SYNC 2 synchronization clock input
SHDWN 3 shut-down input
LX 4, 5, 12, 13 inductor connection
U/D 6 up-or-down mode selection

input; active LOW for up mode
ILIMH 7 current limiting resistor 1

connection
GND 8,9 ground
ILIML 10 current limiting resistor 2

connection
ILIMSEL 11 current limiting selection input
PWM 14 PWM-only mode selection

input
FB 15 feedback input

Fig.2 Pin configuration.

handbook, halfpage

TEA1210TS

MGR726

1
2
3
4
5
6
7
8

16
15
14
13
12
11
10

9

UPOUT

SYNC

SHDWN

LX
LX

U/D

ILIMH

GND

GND

ILIML

ILIMSEL

LX

LX

PWM

FB

UPOUT

FUNCTIONAL DESCRIPTION
Control mechanism

The TEA1210TS DC/DC converter is able to operate in
PFM (discontinuous conduction) or PWM (continuous
conduction) operating mode. All switching actions are
completely determined by a digital control circuit which
uses the output voltage level as its control input. This novel
digital approach enables the use of a new pulse width and
frequency modulation scheme, which ensures optimum
power efficiency over the complete operating range of the
converter.

When high output power is requested, the device will
operate in PWM (continuous conduction) operating mode.
This results in minimum AC currents in the circuit
components and hence optimum efficiency, cost and
EMC. In this operating mode, the output voltage is allowed
to vary between two predefined voltage levels. As long as
the output voltage stays within this so-called window,
switching continues in a fixed pattern. When the output
voltage reaches one of the window borders, the digital
controller immediately reacts by adjusting the pulse width
and inserting a current step in such a way that the output
voltage stays within the window with higher or lower
current capability. This approach enables very fast
reaction to load variations. Figure 3 shows the converter’s
response to a sudden load increase. The upper trace
shows the output voltage. The ripple on top of the DC level
is a result of the current in the output capacitor, which
changes in sign twice per cycle, times the capacitor’s
internal Equivalent Series Resistance (ESR). After each
ramp-down of the inductor current, i.e. when the ESR
effect increases the output voltage, the converter
determines what to do in the next cycle. As soon as more
load current is taken from the output the output voltage
starts to decay.

When the output voltage becomes lower than the low limit
of the window, a corrective action is taken by a ramp-up of
the inductor current during a much longer time. As a result,
the DC current level is increased and normal PWM control
can continue. The output voltage (including ESR effect) is
again within the predefined window.

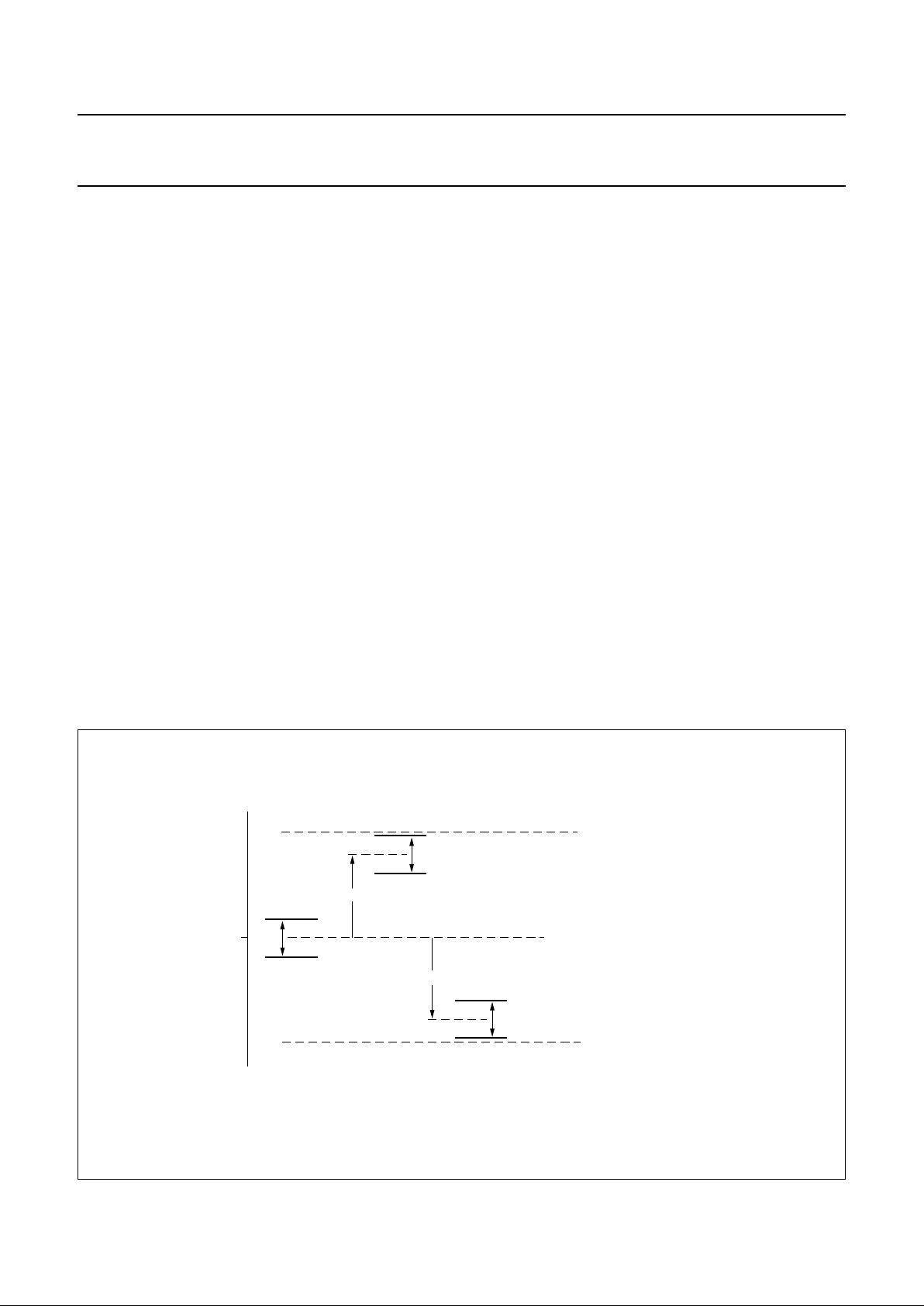

Figure 4 depicts the spread of the output voltage window.
The absolute value is most dependent on spread, while the
actual window size is not affected. For one specific device,
the output voltage will not vary more than 2% typically.

In low output power situations, the TEA1210TS will switch
over to PFM (discontinuous conduction) operating mode in
case the PWM-only mode is not active.

1999 Mar 08 6

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

In the PFM mode, regulation information from earlier PWM
operating modes is used. This results in optimum inductor
peak current levels in the PFM mode, which are slightly
larger than the inductor ripple current in the PWM mode.
As a result, the transition between PFM and PWM mode is
optimum under all circumstances. In the PFM mode,
TEA1210TS regulates the output voltage to the high
window limit shown in Fig.3.

Synchronous rectification

For optimum efficiency over the whole load range,
synchronous rectifiers inside the TEA1210TS ensure that
during the whole second switching phase, all inductor
current will flow through the low-ohmic power MOSFETs.
Special circuitry is included which detects that the inductor
current reaches zero. Following this detection, the digital
controller switches off the power MOSFET and proceeds
regulation.

PWM-only mode

When pin PWM is pulled to HIGH-level in the
upconversion mode, the TEA1210TS will use PWM
regulation independent of the load applied. As a result, the
switching frequency does not vary over the whole load
range. Furthermore, the P-type power MOSFET is always
on when the input voltage exceeds the target output
voltage. The internal synchronous rectifier still takes care

that the inductor current does not fall below zero. In this
way, the achieved efficiency is higher than in standard
PWM-controlled converters.

Start-up

Start-up from low input voltage in boost mode is realized
by an independent start-up oscillator, which starts
switching the N-type power MOSFET as soon as the
voltage on pins UPOUT is measured to be sufficiently
high. The switch actions of the start-up oscillator will
increase the output voltage. As soon as the output voltage
is high enough for normal regulation, the digital control
system takes over the control of the power MOSFETs.

Undervoltage lockout

As a result of too high load or disconnection of the input
power source, the output voltage can drop so low that
normal regulation cannot be guaranteed. In that case, the
device switches back to start-up mode. If the output
voltage drops down even further, switching is stopped
completely.

Shut-down

When the shut-down input is made HIGH, the converter
disables both switches and power consumption is reduced
to a few microamperes.

Fig.3 Response to load increase.

handbook, full pagewidth

MGK925

start corrective action

load increase

high window limit

low window limit

V

o

I

L

time

time

1999 Mar 08 7

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

Power switches

The power switches in the IC are one N-type and one
P-type power MOSFET, having a typical drain-to-source
resistance of 56 and 68 mΩ respectively. The maximum
average current in the power switches is 1.8 A at
T

amb

=60°C.

Temperature protection

When the device operates in the PWM mode, and the die
temperature gets too high (typically 175 °C), the converter
stops operating. It resumes operation when the die
temperature falls below 175 °C again. As a result,
low-frequent cycling between on and off state will occur.
It should be noted that in the event of device temperatures
around the cut-off limit, the application differs strongly from
maximum specifications.

Current limiters

If the current in one of the power switches exceeds its limit
in the PWM mode, the current ramp is stopped
immediately, and the next switching phase is entered.
Current limiting is required to keep power conversion
efficient during temporary high loads. Furthermore, current
limiting protects the IC against overload conditions,
inductor saturation, etc.

In the upconversion mode, the first current limit is set by an
external resistor connected between the pins ILIMH
and UPOUT and the second current limit is set by an
external resistor connected between the pins ILIML
and UPOUT. The digital signal on the current limiting
selection input determines which resistor sets the limit
level (pin ILIMSEL = HIGH results in the use of pin ILIMH).
The current limiting selection input can accept a digital
signal having a HIGH-level of just 55% of the voltage on
pins UPOUT. The noise margin on this input is increased
by a low-pass filter, having a cutoff frequency of about
50 MHz. However, for stability reasons the level on the
current limiting selection input shall not change within a
period shorter than 20 ms.

In case just one current limit is sufficient, the unused pin
(pin ILIML or ILIMH) must be connected either to the other
pin (pin ILIMH or ILIML), or to pin UPOUT.

In the downconversion mode, the current limiting level is
set internally at a fixed value which is higher than the
current level that most applications require. It should be
regarded as a protection function only. In the
downconversion mode, pins ILIMH and ILIML must be
connected to pin UPOUT.

Fig.4 Spread of location of output voltage window.

handbook, full pagewidth

MGR667

maximum positive spread of V

fb

maximum negative spread of V

fb

typical situation

lower specification limit

upper specification limit

+4%

−4%

2%

V

out, typ

V

h

V

l

2%

V

h

V

l

V

h

V

l

2%

1999 Mar 08 8

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

External synchronization

If an external high-frequency clock is applied to the
synchronization clock input, the switching frequency in
PWM mode will be exactly that frequency divided by 22.
In PFM mode, the switching frequency is always lower.
The quiescent current of the device increases when an
external clock is applied. In case no external
synchronization is necessary, the synchronization clock
input must be connected to ground level.

Behaviour at input voltage exceeding the specified
range

In general, an input voltage exceeding the specified range
is not recommended since instability may occur. There are
two exceptions:

• Upconversion: at an input voltage higher than the target
output voltage, but up to 6 V, the converter will stop
switching. As long as the device is in the PWM mode,
the internal P-type power MOSFET will be conducting
and the output voltage will equal V

I

minus some resistive

voltage drop. In case the converter is in the PFM mode
at high input voltage, the output voltage will equal
V

I

minus the voltage drop over the external diode.

The current limiting function is not active.

• Downconversion: when the input voltage is lower than
the target output voltage, but higher than 2.9 V, the
P-type power MOSFET will stay conducting resulting in
an output voltage being equal to the input voltage minus
some resistive voltage drop. The current limiting
function remains active.

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

Notes

1. Equivalent to discharging a 100 pF capacitor through a 1.5 kΩ resistor.

2. Equivalent to discharging a 200 pF capacitor via a 0.75 µH inductor.

THERMAL CHARACTERISTICS

QUALITY SPECIFICATION

Product lifetime is fully guaranteed over 2000 hours of operation at an ambient temperature of 60 °C with a continuously
repeating current profile on pins LX of 4 A during 577 µs followed by 1 A during 4.0 ms. All remaining quality
specifications are in accordance with

“SNW-FQ-611 part E”

.

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

n

voltage on any pin shut-down mode −0.2 +6.5 V

operating mode −0.2 +5.9 V

T

j

junction temperature −40 +150 °C

T

amb

operating ambient temperature −40 +80 °C

T

stg

storage temperature −40 +125 °C

V

es

electrostatic handling human body model; note 1 −1500 +1500 V

machine model; note 2 −300 +300 V

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th(j-a)

thermal resistance from junction to ambient in free air 140 K/W

1999 Mar 08 9

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

CHARACTERISTICS

T

amb

= −40 to +80 °C; all voltages are measured with respect to ground; positive currents flow into the IC; unless

otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Voltage levels

U

PCONVERSION; pin U/D = LOW

V

I

input voltage V

I(start)

− 5.50 V

V

O

output voltage 2.90 − 5.50 V

V

I(start)

start-up input voltage IL< 200 mA 1.20 1.60 1.85 V

V

I(uvlo)

undervoltage lockout input voltage note 1 1.50 2.10 2.70 V
DOWNCONVERSION; PIN U/D = HIGH
V

I

input voltage note 2 2.90 − 5.50 V
V

O

output voltage 1.30 − 5.50 V
GENERAL
V

fb

feedback input voltage 1.20 1.25 1.30 V
∆V

window

output voltage window PWM mode 1.5 2.0 3.0 %

Current levels

I

q

quiescent current on pins LX up mode; note 3 100 125 150 µA
I

shdwn

current in shut-down mode − 210µA
∆I

lim(up)

current limit deviation in up mode note 4

I

lim(up)

set to 0.4 A −20 − +20 %

I

lim(up)

set to 2.0 A −12 − +12 %

I

lim(down)

current limit in down mode − 4.8 − A
I

LX

maximum continuous current on

pins LX

T

amb

=80°C −−1.5 A

T

amb

=60°C −−1.8 A

I

UPOUT

maximum continuous current on

pins UPOUT

up mode;
VI= 1.8 V; VO= 3.6 V;
T

amb

=80°C

−−0.65 A

Power MOSFETs

R

DSon(N)

drain-to-source on-state resistance

NFET

Tj=27°C − 56 63 mΩ
T

j

= 100 °C − 75 84 mΩ

R

DSon(P)

drain-to-source on-state resistance

PFET

Tj=27°C − 68 77 mΩ
T

j

= 100 °C − 92 104 mΩ

1999 Mar 08 10

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

Efficiency

η1 efficiency upconversion T

amb

=20°C;
VI= 1.8 V; VO= 3.6 V;
note 5

I

L

= 1 mA 80 82 − %

I

L

= 4 mA 84 86 − %

I

L

= 100 mA 89 91 − %

I

L

= 500 mA 89 91 − %

I

L

= 1.5 A; note 6 73 75 − %

η2 efficiency upconversion T

amb

=80°C;
VI= 1.8 V; VO= 3.6 V;
note 5

I

L

= 1 mA 78 80 − %

I

L

= 4 mA 82 84 − %

I

L

= 100 mA 87 89 − %

I

L

= 500 mA 88 90 − %

I

L

= 1.5 A; note 6 67 72 − %

η3 efficiency upconversion T

amb

=20°C;
VI= 2.4 V; VO= 3.6 V;
note 5

I

L

= 1 mA 83 86 − %

I

L

= 4 mA 87 90 − %

I

L

= 100 mA 90 93 − %

I

L

= 500 mA 92 94 − %

I

L

= 1.5 A; note 6 84 86 − %

η4 efficiency upconversion T

amb

=80°C;
VI= 2.4 V; VO= 3.6 V;
note 5

I

L

= 1 mA 81 83 − %

I

L

= 4 mA 85 87 − %

I

L

= 100 mA 88 90 − %

I

L

= 500 mA 91 93 − %

I

L

= 1.5 A; note 6 82 85 − %

Timing

f

sw

switching frequency PWM mode 480 600 720 kHz

f

sync

synchronization clock input frequency 9 13 20 MHz

t

start

start-up time note 7 − 6 − ms

t

res

response time from standby to P

o(max)

− 25 −µs

Temperature

T

amb

operating ambient temperature −40 +25 +80 °C

T

max

internal cut-off temperature 150 175 200 °C

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1999 Mar 08 11

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

Notes

1. The undervoltage lockout voltage shows wide specification limits since it decreases at increasing temperature.
When the temperature increases, the minimum supply voltage of the digital control part of the IC decreases and
therefore the correct operation of this function is guaranteed over the whole temperature range.

2. When VI is lower than the target output voltage but higher than 2.9 V, the P-type power MOSFET will remain
conducting (100% duty cycle), resulting in VO following VI.

3. The quiescent current is specified as the input current in the upconversion configuration at VI= 2.40 V and
VO= 3.60 V, using L1 = 6.8 µH, R1 = 178 kΩ and R2 = 93.1 kΩ (see Fig.5).

4. The current limit is defined by the external current limiting resistors, see Section “Current limiting resistors”.
R

limx

= 996 Ω results in a typical current limit of 400 mA and R

limx

= 178 Ω results in a typical current limit of 2.0 A.

The spread of the current limit decreases with increasing the I

lim

setpoint.

5. The specified efficiency is valid when using an output capacitor having an ESR of 0.04 Ω and an inductor having an
inductance of 6.8 µH, an ESR of 0.04 Ω, and a sufficient saturation current level. The current limit is assumed to be
set at 4.0 A. In the PWM-only mode, the efficiency at IL= 1 mA and IL= 4 mA is lower than the values specified.

6. The specified efficiency at IL= 1.5 A is only valid if the average input current does not exceed the maximum
value of ILX. In most practical applications, this means that the load current is not continuous.

7. The specified start-up time is the time between the connection of a 2.40 V input voltage source and the moment the
output reaches 3.60 V. The output capacitance equals 2000 µF, the inductance equals 6.8 µH, no load is present.

8. V1 is the voltage on the pins UPOUT. If the applied HIGH-level voltage is less than V1− 1 V, the quiescent current
of the device will increase.

9. Maximum additional supply current on the pins UPOUT is 50 µA in case the voltage V1= 5.0 V and the input voltage
on pin ILIMSEL is 2.2 V.

Digital levels

V

lL

LOW-level input voltage
on pins SHDWN, ILIMSEL, U/D
and SYNC

0 − 0.4 V

V

IH

HIGH-level input voltage

on pins

U/D and PWM note 8 V1− 0.4 − V1+ 0.3 V

on pins SYNC and SHDWN note 8 0.55V

1

− V1+ 0.3 V

on pin ILIMSEL notes 8 and 9 0.55V

1

− V1+ 0.3 V

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1999 Mar 08 12

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

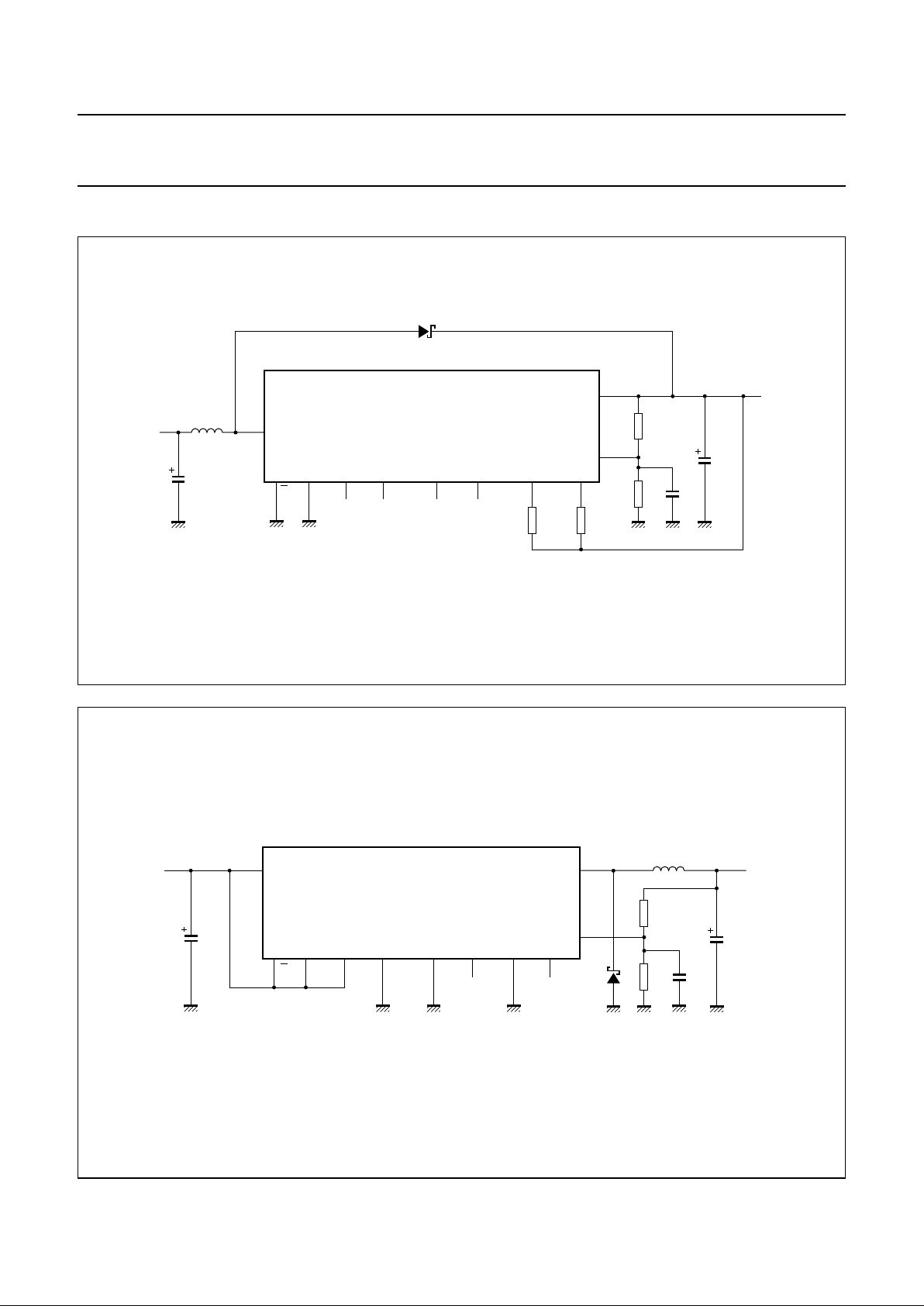

APPLICATION INFORMATION

Fig.5 Complete application for upconversion.

handbook, full pagewidth

MGR727

C1

L1

C2

C3

R2

R1

R

limh

D1

15

FB

1, 16

UPOUT

V

O

TEA1210TS

LX

8, 9

4, 5,
12, 13

623 7

V

I

GND

U/D

SYNC SHDWN

14

PWM11ILIMSEL ILIMH

R

liml

10

ILIML

Fig.6 Complete application for downconversion.

handbook, full pagewidth

106 2 8, 9 3

MGR728

C1

C2

D1

15

4, 5,

12, 13

L1

V

O

TEA1210TS

1, 16

UPOUT

V

I

R2

R1

FB

LX

GNDU/D SYNC

14

PWM SHDWNILIML

7

ILIMH

C3

11

ILIMSEL

1999 Mar 08 13

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

External component selection

I

NDUCTOR L1

The performance of the TEA1210TS is not very sensitive
to inductance value. Best efficiency performance over a
wide load current range is achieved by using an
inductance of 6.8 µH and a saturation current level of 3.0 A
at least. In case the maximum output current is lower,
other inductors are also suitable such as the
TDK SLF7032 range.

D

IODE D1

The Schottky diode is only used a short time during
takeover from N-type power MOSFET and P-type power
MOSFET and vice versa. Therefore, a medium-power
diode such as Philips PRLL5819 is sufficient in most
applications.

I

NPUT CAPACITOR C1

The value of capacitor C1 strongly depends on the type of
input source. In general, a 100 µF tantalum capacitor will
do, or a 10 µF ceramic capacitor featuring very low series
resistance (ESR value).

O

UTPUT CAPACITOR C2

The value and type of capacitor C2 depend on the
maximum output current and the ripple voltage which is
allowed in the application. Low-ESR tantalum capacitors
show best results. The most important specification of
capacitor C2 is its ESR value, which mainly determines the
output voltage ripple.

F

EEDBACK CAPACITOR C3

Capacitor C3 prevents the feedback voltage from polluting
by switching noise. A ceramic type of capacitor having a
maximum value of 33 pF is recommended.

F

EEDBACK RESISTORS R1 AND R2

The output voltage is determined by the resistors
R1 and R2. The following conditions apply:

• Use 1% accurate SMD type resistors

• Resistors R1 and R2 should have a maximum value of

50 kΩ when connected in parallel. A higher value will
result in inaccurate operation.

Under these conditions, the output voltage can be
calculated by the formula: V

O

1.25 1

R1
R2

------- -

+





×=

C

URRENT LIMITING RESISTORS

The maximum instantaneous current in upconversion
mode is set by one of the external resistors R

limh

and R

liml

.

The preferred type is SMD, 1% accurate.
The digital level on pin ILIMSEL defines which one of the

resistors is used to determine the current limiting level.
The functionality of both settings is identical.

In case one current limit is enough, the unused pin
(pin ILIML or ILIMH) must be connected either to the other
pin (pin ILIMH or ILIML), or to pin UPOUT.

The values of the current limiting resistors can be derived
from the simplified formula:

, active when ILIMSEL = HIGH

, active when ILIMSEL = LOW

The average inductor current during limited current
operation also depends on the inductance value and the
resistive losses in all components in the power path.
Ensure that both current limiting levels do not exceed the
saturation current of the inductor.

R

limh

346

I

lim up()

0.05–

------------------------------------

=

R

liml

346

I

lim up()

0.05–

------------------------------------

=

1999 Mar 08 14

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

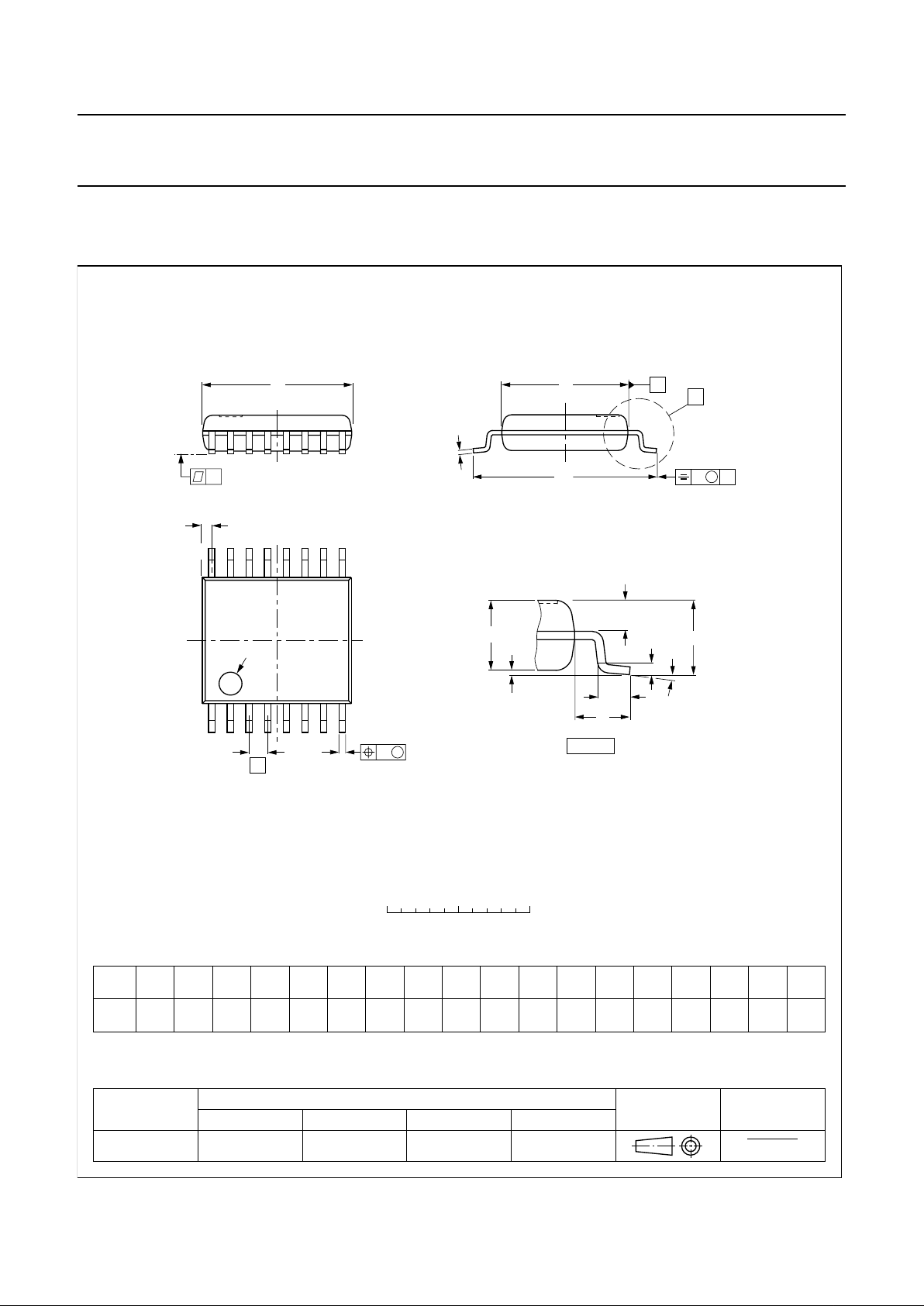

PACKAGE OUTLINE

UNIT A1A2A

3

b

p

cD

(1)E(1)

(1)

eHELLpQZywv θ

REFERENCES

OUTLINE
VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

mm

0.15

0.00

1.4

1.2

0.32

0.20

0.25

0.13

5.30

5.10

4.5

4.3

0.65

6.6

6.2

0.65

0.45

0.48

0.18

10

0

o

o

0.130.2 0.1

DIMENSIONS (mm are the original dimensions)

Note

1. Plastic or metal protrusions of 0.20 mm maximum per side are not included.

0.75

0.45

1.0

SOT369-1

94-04-20
95-02-04

w M

θ

A

A

1

A

2

b

p

D

y

H

E

L

p

Q

detail X

E

Z

e

c

L

v M

A

X

(A )

3

A

0.25

18

16

9

pin 1 index

0 2.5 5 mm

scale

SSOP16: plastic shrink small outline package; 16 leads; body width 4.4 mm

SOT369-1

A

max.

1.5

1999 Mar 08 15

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

SOLDERING
Introduction to soldering surface mount packages

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“Data Handbook IC26; Integrated Circuit Packages”

(document order number 9398 652 90011).
There is no soldering method that is ideal for all surface

mount IC packages. Wave soldering is not always suitable
for surface mount ICs, or for printed-circuit boards with
high population densities. In these situations reflow
soldering is often used.

Reflow soldering

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 100 and 200 seconds depending on heating
method.

Typical reflow peak temperatures range from
215 to 250 °C. The top-surface temperature of the
packages should preferable be kept below 230 °C.

Wave soldering

Conventional single wave soldering is not recommended
for surface mount devices (SMDs) or printed-circuit boards
with a high component density, as solder bridging and
non-wetting can present major problems.

To overcome these problems the double-wave soldering
method was specifically developed.

If wave soldering is used the following conditions must be
observed for optimal results:

• Use a double-wave soldering method comprising a
turbulent wave with high upward pressure followed by a
smooth laminar wave.

• For packages with leads on two sides and a pitch (e):
– larger than or equal to 1.27 mm, the footprint

longitudinal axis is preferred to be parallel to the
transport direction of the printed-circuit board;

– smaller than 1.27 mm, the footprint longitudinal axis

must be parallel to the transport direction of the
printed-circuit board.

The footprint must incorporate solder thieves at the
downstream end.

• For packages with leads on four sides, the footprint must
be placed at a 45° angle to the transport direction of the
printed-circuit board. The footprint must incorporate
solder thieves downstream and at the side corners.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Manual soldering

Fix the component by first soldering two
diagonally-opposite end leads. Use a low voltage (24 V or
less) soldering iron applied to the flat part of the lead.
Contact time must be limited to 10 seconds at up to
300 °C.

When using a dedicated tool, all other leads can be
soldered in one operation within 2 to 5 seconds between
270 and 320 °C.

1999 Mar 08 16

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

Suitability of surface mount IC packages for wave and reflow soldering methods

Notes

1. All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum
temperature (with respect to time) and body size of the package, there is a risk that internal or external package
cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the
Drypack information in the

“Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods”

.

2. These packages are not suitable for wave soldering as a solder joint between the printed-circuit board and heatsink
(at bottom version) can not be achieved, and as solder may stick to the heatsink (on top version).

3. If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction.
The package footprint must incorporate solder thieves downstream and at the side corners.

4. Wave soldering is only suitable for LQFP, TQFP and QFP packages with a pitch (e) equal to or larger than 0.8 mm;
it is definitely not suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.

5. Wave soldering is only suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65 mm; it is
definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.

DEFINITIONS

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

PACKAGE

SOLDERING METHOD

WAVE REFLOW

(1)

BGA, SQFP not suitable suitable
HLQFP, HSQFP, HSOP, HTSSOP, SMS not suitable

(2)

suitable

PLCC

(3)

, SO, SOJ suitable suitable

LQFP, QFP, TQFP not recommended

(3)(4)

suitable

SSOP, TSSOP, VSO not recommended

(5)

suitable

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

1999 Mar 08 17

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

NOTES

1999 Mar 08 18

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

NOTES

1999 Mar 08 19

Philips Semiconductors Preliminary specification

High efficiency, high current DC/DC converter TEA1210TS

NOTES

Internet: http://www.semiconductors.philips.com

Philips Semiconductors – a worldwide company

© Philips Electronics N.V. 1999 SCA62
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Middle East: see Italy
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: seeSouth America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: seeAustria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. [phone], Fax. [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone], Fax [phone]

Printed in The Netherlands 465002/800/01/pp20 Date of release: 1999Mar 08 Document order number: 9397750 04337
