DATA SH EET

Preliminary specification
Supersedes data of 1998 Mar 24
File under Integrated Circuits, IC03

1999 Sep 16

INTEGRATED CIRCUITS

TEA1206T

High efficiency DC/DC converter

1999 Sep 16 2

Philips Semiconductors Preliminary specification

High efficiency DC/DC converter TEA1206T

FEATURES

• Fully integrated DC/DC converter circuit

• Up-or-down conversion

• Start-up from 1.8 V input

• Adjustable output voltage

• High efficiency over large load range

• Power handling capability up to 1 A continuous

average current

• 600 kHz switching frequency

• Low quiescent power consumption

• Synchronizes to external 9 to 20 MHz clock

• True current limit for Li-ion battery compatibility

• Up to 100% duty cycle in down mode

• Undervoltage lockout

• Shut-down function

• 8-pin SO package.

APPLICATIONS

• Cellular and cordless phones, PDAs and others

• Supply voltage source for low-voltage chip sets

• Portable computers

• Battery backup supplies

• Cameras.

GENERAL DESCRIPTION

The TEA1206T (see Fig.1) is a fully integrated DC/DC
converter circuit. Efficient, compact and dynamic power
conversion is achieved using a novel, digitally controlled
Pulse Width and Frequency Modulation (PWFM) like
control concept, integrated low R

dsON

CMOS power
switches with low parasitic capacitances, and fully
synchronous rectification. The device operates at a high
590 kHz switching frequency which enables the use of
minimum size external components. Deadlock is
prevented by an on-chip undervoltage lockout circuit.
Compatibility with Li-ion batteries is guaranteed by an
accurate current limit function.

ORDERING INFORMATION

TYPE NUMBER

PACKAGE

NAME DESCRIPTION VERSION

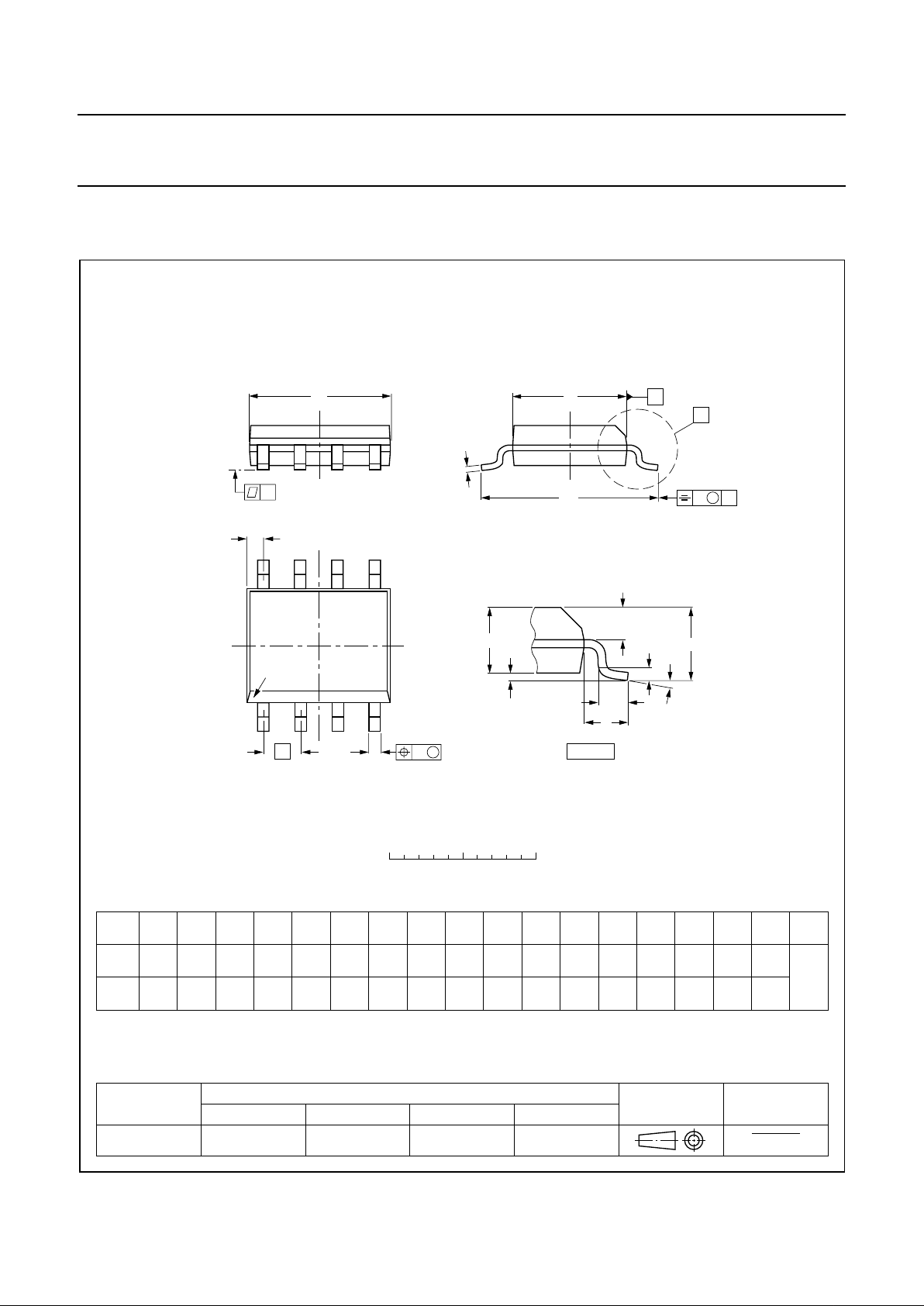

TEA1206T SO8 plastic small outline package; 8 leads; body width 3.9 mm SOT96-1

1999 Sep 16 3

Philips Semiconductors Preliminary specification

High efficiency DC/DC converter TEA1206T

QUICK REFERENCE DATA

Note

1. Current limit is defined by an external resistor R

lim

, having 1% accuracy. The typical value is presettable between

0.5 and 5.0 A with a spread of ±17.5%.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Voltage levels

V

O(up)

output voltage range in up mode U/D = LOW 2.80 − 5.50 V

V

O(down)

output voltage range in down mode U/D = HIGH 1.25 − 5.50 V

V

i(up)

input voltage range in up mode U/D = LOW V

start

− 5.50 V

V

i(down)

input voltage range in down mode U/D = HIGH 2.80 − 5.50 V

V

start

start-up voltage up mode; IL< 200 mA 1.40 1.60 1.85 V

V

fb

feedback voltage level 1.19 1.24 1.29 V

Current levels

I

q

quiescent current at pin 3 down mode, Vi= 3.6 V 65 75 85 µA

I

shdwn

shut-down current − 210µA

I

limN

current limit NFET up mode; note 1 0.5 − 5.0 A

I

limP

current limit PFET down mode; note 1 0.5 − 5.0 A

I

Lx

maximum continuous current at pin 4 −−1.0 A

Power MOSFETS

R

dsON(N)

pin-to-pin resistance NFET 0.08 0.14 0.20 Ω

R

dsON(P)

pin-to-pin resistance PFET 0.10 0.16 0.25 Ω

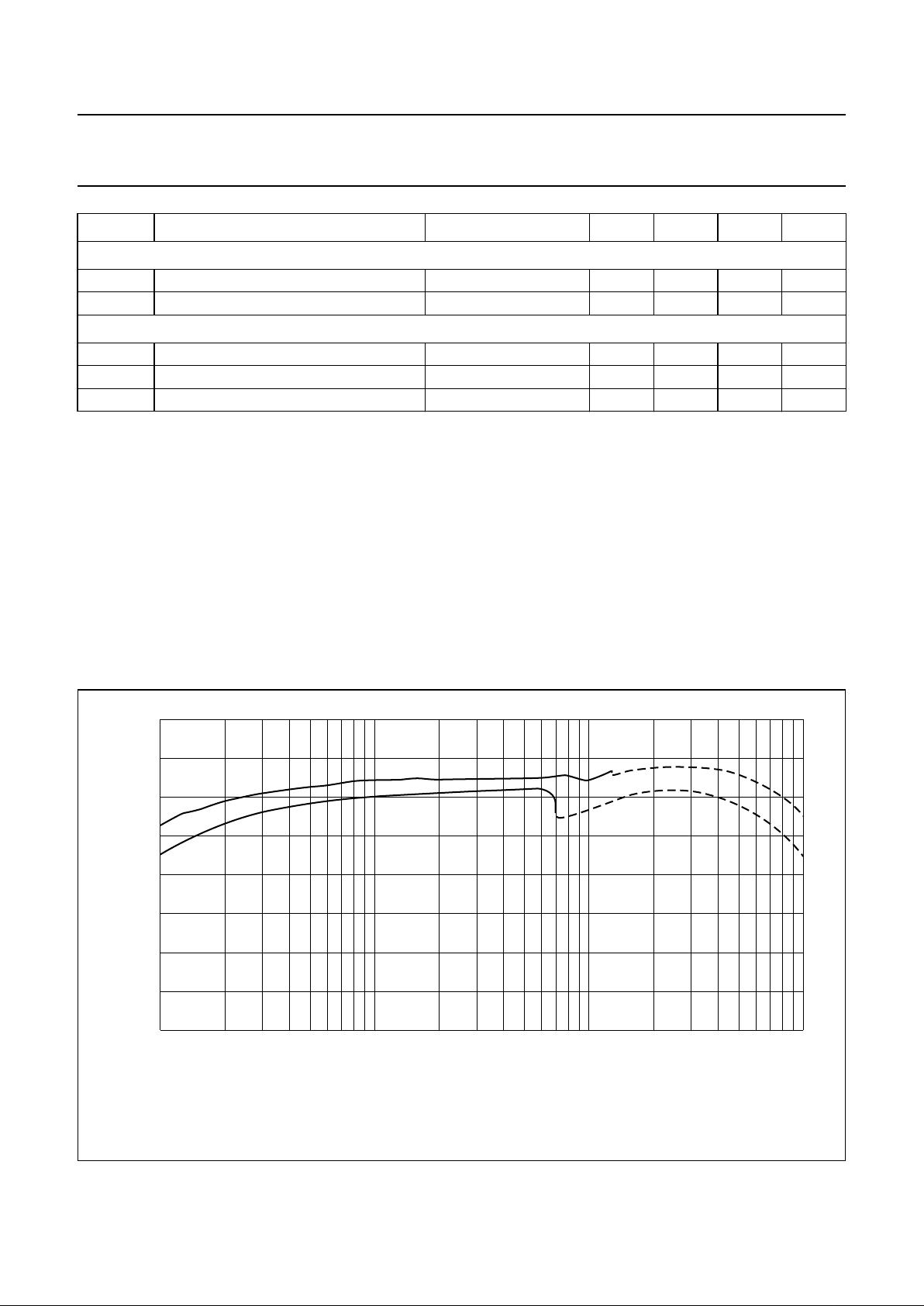

Efficiency; see Fig.5
η efficiency V

i

= 3.6 V; L = 10 µH −−−

V

i

= 3.6 up to 4.6 V IL=1mA − 86 − %

I

L

=10mA − 93 − %

I

L

=50mA − 93 − %

I

L

= 100 mA − 93 − %

I

L

= 500 mA − 93 − %

I

L

= 1000 mA; pulsed

load current

− 87 − %

V

i

= 3.6 down to 1.8 V IL=1mA − 83 − %

I

L

=10mA − 90 − %

I

L

=50mA − 91 − %

I

L

= 100 mA − 87 − %

I

L

= 500 mA − 88 − %

I

L

= 1000 mA; pulsed

load current

− 82 − %

Timing

f

sw

switching frequency PWM mode 475 560 645 kHz
f

sync

sync input frequency 9 13 20 MHz
t

res

response time from standby to P

max

− 25 −µs

1999 Sep 16 4

Philips Semiconductors Preliminary specification

High efficiency DC/DC converter TEA1206T

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through thepdf in the Acrobat reader.white to force landscape pagesto be ...

BLOCK DIAGRAM

handbook, full pagewidth

MGM666

CONTROL LOGIC

AND

MODE GEARBOX

START-UP

CIRCUIT

I/V

CONVERTER

I/V

CONVERTER

INTERNAL

SUPPLY

TIME

COUNTER

BAND GAP

REFERENCE

13 MHz

OSCILLATOR

SYNC
GATE

TEMPERATURE

PROTECTION

DIGITAL CONTROLLER

sense FET

P-type POWER FET

sense

FET

SHDN

GND

SYNC U/D

N-type

POWER

FET

LX

UPOUT/DNIN

FB

TEA1206T

5681

4

ILIM

2

3

7

CURRENT LIMIT
COMPARATORS

Fig.1 Block diagram.

1999 Sep 16 5

Philips Semiconductors Preliminary specification

High efficiency DC/DC converter TEA1206T

PINNING

SYMBOL PIN DESCRIPTION

U/D 1 conversion mode selection input
ILIM 2 current limit resistor connection
UPOUT/DNIN 3 up mode; output voltage/

down mode; input voltage
LX 4 inductor connection
SYNC 5 synchronization clock input
GND 6 ground
FB 7 feedback input
SHDWN 8 shut-down input

Fig.2 Pin configuration.

handbook, halfpage

MGM667

1
2
3
4

8
7
6
5

U/D SHDWN

ILIM FB

UPOUT/DNIN GND

LX SYNC

TEA1206T

FUNCTIONAL DESCRIPTION
Control mechanism

TheTEA1206TDC/DCconverterisabletooperateinPFM
(discontinuous conduction) or PWM (continuous
conduction)operation.Allswitching actions are completely
determined by a digital control circuit which uses the
output voltage level as its control input. This novel digital
approach enables the use of a new pulse width and
frequency modulation scheme, which ensures optimum
power efficiency over the complete range of operation of
the converter. The scheme works as follows.

When high output power is requested, the device will
operate in PWM (continuous conduction) mode.
This results in minimum AC currents in the circuit
components and hence optimum efficiency, cost and
EMC. In this mode, the output voltage is allowed to vary
between two predefined voltage levels. As long as the
output voltage stays within this so-called window,
switching continues in a fixed pattern. When the output
voltage reaches one of the window borders, the digital
controller immediately reacts by adjusting the pulse width
and inserting a current step in such a way that the output
voltage stays within the window with higher or lower
current capability. This approach enables very fast
reaction to load variations.

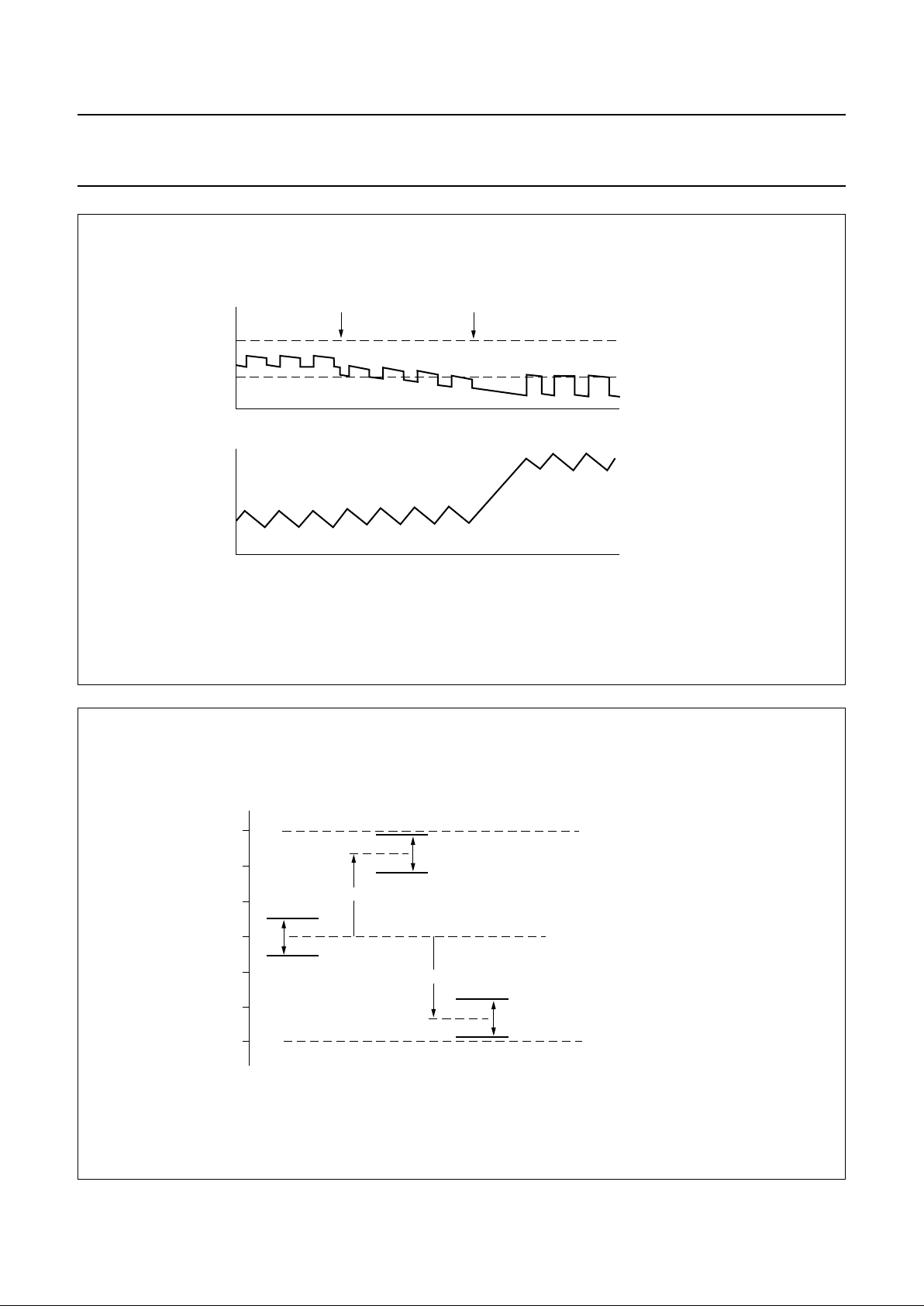

Figure 3 shows the converter’s response to a sudden load
increase. The upper trace shows the output voltage.
The ripple on top of the DC level is a result of the current
in the output capacitor, which changes in sign twice per
cycle, times the capacitor’s internal Equivalent Series
Resistance (ESR). After each ramp-down of the inductor
current, i.e. when the ESR effect increases the output
voltage, the converter determines what to do in the next

cycle. As soon as more load current is taken from the
output the output voltage starts to decay. When the output
voltage becomes lower than the low limit of the window,
a corrective action is taken by a ramp-up of the inductor
current during a much longer time. As a result, the DC
current level is increased and normal PWM control can
continue. The output voltage (including ESR effect) is
again within the predefined window.

Figure 4 depicts the spread of the output voltage window.
Theabsolutevalueismostdependent on spread, while the
actualwindow size is not affected. Forone specific device,
the output voltage will not vary more than 2% typically.

In low output power situations, TEA1206T will switch over
toPFM(discontinuousconduction)mode operation. In this
mode, regulation information from earlier PWM mode
operation is used. This results in optimum inductor peak
current levels in PFM mode, which are slightly larger than
the inductor ripple current in PWM mode. As a result, the
transition between PFM and PWM mode is optimal under
all circumstances. In PFM mode, TEA1206T regulates the
output voltage to the high window limit shown in Fig.3.

Synchronous rectification

For optimal efficiency over the whole load range,
synchronous rectifiers inside TEA1206T ensure that
during the whole second switching phase, all inductor
current will flow through the low-ohmic power MOSFETS.
Special circuitry is included whichdetects that the inductor
current reaches zero. Following this detection, the digital
controller switches off the power MOSFET and proceeds
regulation.

1999 Sep 16 6

Philips Semiconductors Preliminary specification

High efficiency DC/DC converter TEA1206T

Start-up

Start-up from low input voltage in boost mode is realised
by an independent start-up oscillator, which starts
switching the N-type powerfet as soon as the voltage at
pin 3 is measured to be sufficiently high. The switch
actions of the start-up oscillator will increase the output
voltage. As soon as the output voltage is high enough for
normalregulation, the digital control system takes over the
control over the power MOSFETS.

Undervoltage lockout

As a result of too high load or disconnection of the input
power source, the output voltage can drop so low that
normal regulation cannot be guaranteed. In that case, the
device switches back to start-up mode. If the output
voltage would drop down even further, switching is
stopped completely.

Shut-down

When the shut-down pin is made HIGH, the converter
disablesboth switches and power consumption is reduced
to a few µA.

Power switches

The power switches in the IC are one N-type and one
P-type MOSFET, having a typical pin-to-pin resistance of

0.14 Ω and 0.16 Ω respectively. The maximum average
current in the switches is 1.0 A.

Temperature protection

When the device operates in PWM mode, and the device
temperature gets too high (typically 175 °C), the converter
stops operating. It resumes operation when the device
temperature falls below 175 °C again. As a result,
low-frequent cycling between on and off state will occur.
It should be noted that in the event of device temperatures
aroundthecut-offlimit,theapplicationdiffersstronglyfrom
maximum specifications.

Current limiters

If the current in one of the power switches exceeds its limit
in PWM mode, current ramping is stopped immediately,
and the next switching phase is entered. Current limitation
is required to enable optimal use of energy in Lithium-Ion
batteries, and to keep power conversion efficient during
temporary high loads. Furthermore, current limitation
protects the IC against overload conditions, inductor
saturation, etc. The current limit level is set by an external
resistor which must be connected to pin 2.

External synchronisation

If a high-frequency clock is applied to the external
synchronisation pin, the switching frequency in PWM
mode will be exactly that frequency divided by 22. In PFM
mode, the switching frequency is always lower.
The quiescent current of the device increases when an
external clock is applied. In case no external
synchronisation is necessary, the sync pin must be tied to
ground level.

Behaviour at regulation limits

In two cases, the output voltage will not stay in normal
regulation because of excessive input voltage:

• Upconversion(seeFig.6):theoutput voltage will exceed
the high window limit if the input voltage is higher than
this limit plus the voltage drop over the diode. In that
case, the converter will stop switching and the external
schottky diode will take over all current. The output
voltage will be equal to Viminus the diode voltage drop.
The input voltage must not exceed 5.5 V. The current
limit function is not active since all current flows through
the external diode in this situation.

• Downconversion (see Fig.7): the output voltage will get
lowerthan the lower window limit whenthe input voltage
is lower than this limit plus the voltage drop over the
P-type FET. In that case, the P-type FET will stay
conducting(100%dutycycle)resultinginVobeingequal
to Vi minus some resistive voltage drop. The input
voltage must not be lower than 2.8 V. The current limit
function remains active.

1999 Sep 16 7

Philips Semiconductors Preliminary specification

High efficiency DC/DC converter TEA1206T

Fig.3 Response to load increase.

handbook, full pagewidth

MGK925

start corrective action

load increase

high window limit

low window limit

V

o

I

L

time

time

handbook, full pagewidth

MGM669

maximum positive spread

maximum negative spread

typical situation

lower specification limit

upper specification limit

+4%

−4%

2%

V

out, typ

V

h

V

l

2%

V

h

V

l

V

h

V

l

2%

Fig.4 Output voltage window spread.

1999 Sep 16 8

Philips Semiconductors Preliminary specification

High efficiency DC/DC converter TEA1206T

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

Note

1. Human body model: equivalent to discharging a 100 pF capacitor through a 1.5 kΩ series resistor.

THERMAL CHARACTERISTICS

QUALITY SPECIFICATION

In accordance with

“SNW-FQ-611 part E”

.

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

n

voltage on any pin shut-down mode −0.2 +6.5 V

operational mode −0.2 +5.9 V

T

j

junction temperature −25 +150 °C

T

amb

operating ambient temperature −40 +80 °C

T

stg

storage temperature −40 +150 °C

V

es

electrostatic handling, pins 1,2,3,5,6,8 note 1 −3000 +3000 V

V

es

electrostatic handling, pins 4 and 7 note 1 −1000 +1000 V

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th(j-a)

thermal resistance from junction to ambient infree air 150 K/W

1999 Sep 16 9

Philips Semiconductors Preliminary specification

High efficiency DC/DC converter TEA1206T

CHARACTERISTICS

Tj= −40 to +80 °C; all voltages with respect to ground; positive currents flow into theIC; unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Voltage levels

V

O(up)

output voltage range in up mode U/D = LOW 2.80 − 5.50 V

V

O(down)

output voltage range in down mode U/D = HIGH 1.25 − 5.50 V

V

i(up)

input voltage range in up mode U/D = LOW V

start

− 5.50 V

V

i(down)

input voltage range in down mode U/D = HIGH; note 1 2.80 − 5.50 V

V

start

start-up voltage up mode; IL< 200 mA 1.40 1.60 1.85 V

V

fb

feedback voltage level 1.19 1.24 1.29 V

V

wdw

output voltage window spread PWM mode; see Fig.4 1.5 2.0 3.0 %

V

uvlo

undervoltage lockout level up mode; note 2 1.50 2.10 2.50 V

Current levels

I

q

quiescent current at pin 3 V3= 3.6 V; note 3 65 75 85 µA

I

shdwn

shut-down current − 210µA

I

limN

current limit NFET up mode; note 4 0.5 − 5.0 A

I

limP

current limit PFET down mode; note 4 0.5 − 5.0 A

I

Lx

maximum continuous current at pin 4 −−1.0 A

Power MOSFETS

R

dsON(N)

pin-to-pin resistance NFET 0.08 0.14 0.20 Ω

R

dsON(P)

pin-to-pin resistance PFET 0.10 0.16 0.25 Ω
Efficiency; see Fig.5
η efficiency V

i

= 3.6 V; note 5 −−−

V

i

= 3.6 up to 4.6 V IL=1mA − 86 − %

I

L

=10mA − 93 − %

I

L

=50mA − 93 − %

I

L

= 100 mA − 93 − %

I

L

= 500 mA − 93 − %

I

L

= 1000 mA; pulsed

load current

− 87 − %

V

i

= 3.6 down to 1.8 V IL=1mA − 83 − %

I

L

=10mA − 90 − %

I

L

=50mA − 91 − %

I

L

= 100 mA − 87 − %

I

L

= 500 mA − 88 − %

I

L

= 1000 mA; pulsed

load current

− 82 − %

Timing

f

sw

switching frequency PWM mode 475 560 645 kHz
f

sync

sync input frequency 9 13 20 MHz
t

res

response time from standby to P

max

− 25 −µs

1999 Sep 16 10

Philips Semiconductors Preliminary specification

High efficiency DC/DC converter TEA1206T

Notes

1. At Vilower than the target output voltage, but higher than 2.8 V, the PFET will remain conducting (100% duty cycle),
resulting in Vo following the input voltage.

2. The undervoltage lockout level shows wide specification limits since it decreases at increasing temperature. Since
the minimum supply voltage of the digital control part also decreases when temperature goes up, correct operation
of this function is guaranteed over the whole temperature range.

3. V3 is the voltage at pin 3 (UPOUT/DNIN).

4. Current limit is defined by an external resistor R

lim

, having 1% accuracy. The typical value is presettable between

0.5 and 5.0 A with a spread of ±17.5%.

5. The specified efficiency is valid when using an output capacitor having an ESR of 0.10 Ω and a Coilcraft
DT1608C-103 10 µH small size inductor.

6. If the applied high level is less than V3− 1 V, the quiescent current level of the device will increase.

Temperature

T

amb

operating ambient temperature −40 +25 +80 °C

T

max

internal cut-off temperature 150 175 200 °C

Digital levels

V

lL

LOW-level input voltage pins 1, 5 and 8 0 − 0.5 V

V

IH

HIGH-level input voltage pin 1 note 6 V3− 0.4 − V3+ 0.3 V

V

IH

HIGH-level input voltage pins 5 and 8 note 6 0.55V3− V3+ 0.3 V

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Fig.5 Efficiency as a function of load current IL.

handbook, full pagewidth

60

100

MGM668

11010

2

10

3

80

70

90

efficiency

(%)

IL (mA)

(1)

(2)

(1) Represents the curve for upconversion from 3.6 to 4.6 V. The solid line indicates PFM and the dashed line indicates PWM.
(2) Represents the curve for downconversion from 3.6 to 1,8 V. The solid line indicates PFM and the dashed line indicates PWM.
Vi= 3.6 V; L = 10 µH (DT1608-103); C

out

= 330 µF (Sprague 595D) capacitor.

1999 Sep 16 11

Philips Semiconductors Preliminary specification

High efficiency DC/DC converter TEA1206T

APPLICATION INFORMATION

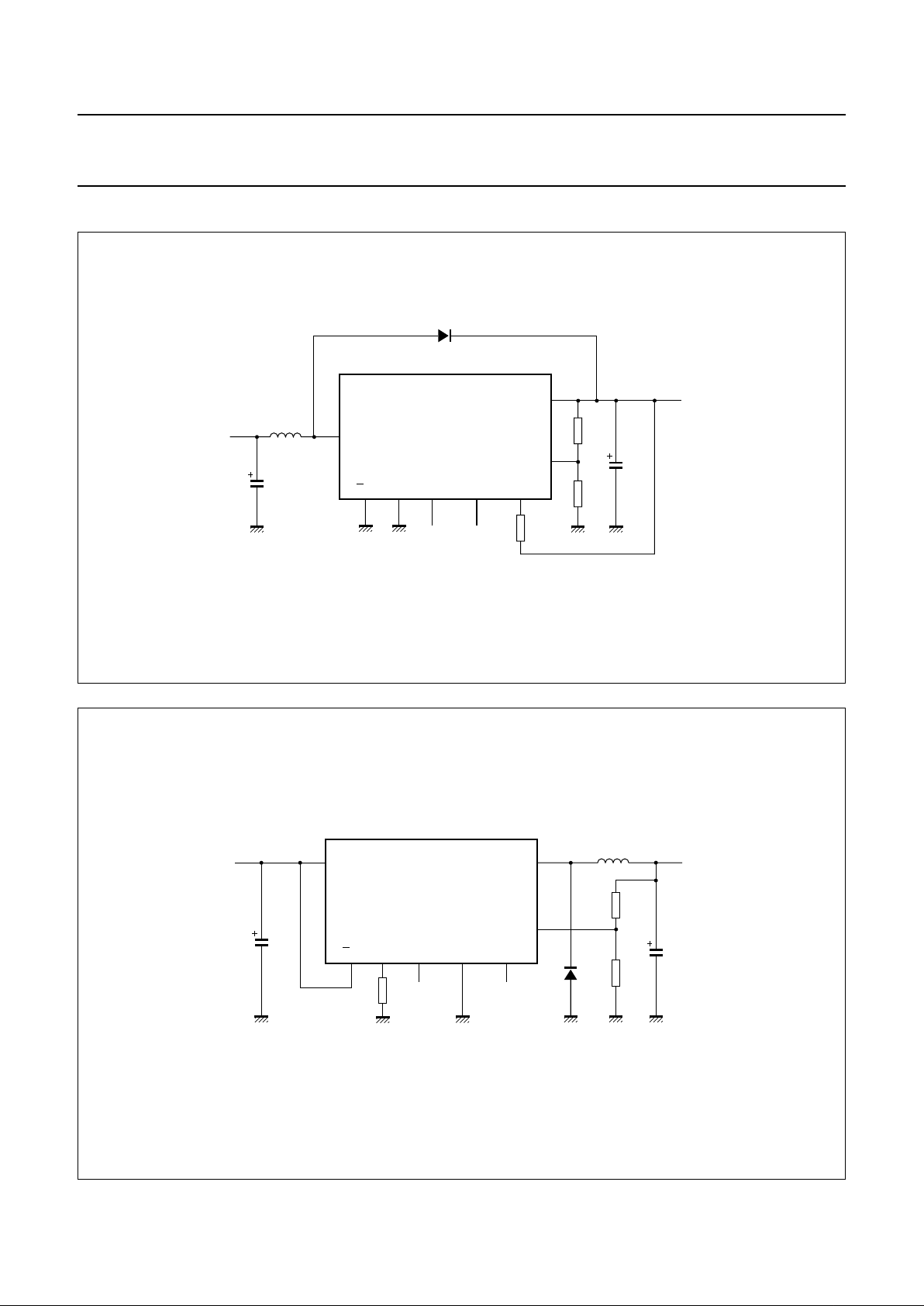

Fig.6 Complete application for upconversion.

handbook, full pagewidth

MGM670

C1

L1

C2

R2

R1

R

lim

D1

FB

UPOUT/DNIN

V

O

TEA1206T

LX

GNDU/D SYNC SHDWN ILIM

V

I

Fig.7 Complete application for downconversion.

handbook, full pagewidth

ILIMU/D SYNC GND SHDWN

MGM671

C2

C1

D2

FB

LX

L1

V

O

TEA1206T

UPOUT/DNIN

V

I

R

lim

R2

R1

1999 Sep 16 12

Philips Semiconductors Preliminary specification

High efficiency DC/DC converter TEA1206T

External component selection

INDUCTOR
The performance of the TEA1206 is not very sensitive to

inductancevalue. Best efficiency performance over a wide
load current range is achieved by using e.g. TDK
SLF7032-6R8M1R6, having an inductance of 6.8 µH and
a saturation current level of 1.6 A. In case the maximum
output current is lower, other inductors are also suitable
like the small sized Coilcraft DT1608 range.

INPUT CAPACITANCE
The value of Cin strongly depends on the type of input

source. In general, a 100 µF tantalum capacitor will do, or
a 10 µF ceramic capacitor featuring very low series
resistance (ESR).

OUTPUT CAPACITOR
The value and type of C

out

depends on the maximum
output current and the ripple voltage which is allowed in
the application. Low-ESR tantalum as well as ceramic
capacitorsshowgoodresults.Mostimportantspecification
of C

out

is its ESR, which mainly determines output voltage

ripple.

DIODE
The schottky diode is only used during a small time during

takeover from N-type powerfet and P-type powerfet and
vice versa. Therefore, a medium-power diode like Philips
PRLL5819 is sufficient.

OUTPUT VOLTAGE SETTING
The output voltage level is determined by the resistors R1

and R2. The following conditions apply:

• Use1%accurateSMDtyperesistorsonly.Incaselarger
body resistors are used, the capacitance on pin 7 (FB)
will be too large, causing inaccurate operation.

• Resistors R1 and R2 shall have a maximum value of
50 kΩ when connected in parallel. A higher value will
result in inaccurate operation.

Under these conditions, the output voltage can be set by
the formula: V

out

= 1.24 × (1 + R1/R2).

CURRENT LIMIT SETTING
The maximum instantaneous current is set by the external

resistor R

lim

. Preferred type is SMD, 1% accurate.

The connection of R

lim

differs per mode:

• In UP conversion mode, R

lim

must be connected
between pin 2 (ILIM) and pin 3 (UPOUT/DNIN).
The current limit level is defined by: I

limN

= 440/ R

lim

.

• In DOWN conversion mode, R

lim

must be connected
between pin 2 (ILIM) and pin 6 (GND).
The current limit level is defined by: I

limP

= 650/ R

lim

.

The average inductor current during current limit also
depends on inductance value and resistive losses in all
components in the power path. Ensure that I

lim<Isat

of the

inductor.

1999 Sep 16 13

Philips Semiconductors Preliminary specification

High efficiency DC/DC converter TEA1206T

PACKAGE OUTLINE

UNIT

A

max.

A1A2A

3

b

p

cD

(1)E(2)

(1)

eHELLpQZywv θ

REFERENCES

OUTLINE
VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

mm

inches

1.75

0.25

0.10

1.45

1.25

0.25

0.49

0.36

0.25

0.19

5.0

4.8

4.0

3.8

1.27

6.2

5.8

1.05

0.7

0.6

0.7

0.3

8
0

o
o

0.25 0.10.25

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

Notes

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

2. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

1.0

0.4

SOT96-1

X

w M

θ

A

A

1

A

2

b

p

D

H

E

L

p

Q

detail X

E

Z

e

c

L

v M

A

(A )

3

A

4

5

pin 1 index

1

8

y

076E03S MS-012AA

0.069

0.010

0.004

0.057

0.049

0.01

0.019

0.014

0.0100

0.0075

0.20

0.19

0.16

0.15

0.050

0.244

0.228

0.028

0.024

0.028

0.012

0.010.010.041 0.004

0.039

0.016

0 2.5 5 mm

scale

SO8: plastic small outline package; 8 leads; body width 3.9 mm

SOT96-1

95-02-04
97-05-22

1999 Sep 16 14

Philips Semiconductors Preliminary specification

High efficiency DC/DC converter TEA1206T

SOLDERING
Introduction to soldering surface mount packages

Thistextgivesaverybriefinsighttoacomplextechnology.
A more in-depth account of soldering ICs can be found in
our

“Data Handbook IC26; Integrated Circuit Packages”

(document order number 9398 652 90011).
There is no soldering method that is ideal for all surface

mount IC packages. Wave solderingis not always suitable
for surface mount ICs, or for printed-circuit boards with
high population densities. In these situations reflow
soldering is often used.

Reflow soldering

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
totheprinted-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 100 and 200 seconds depending on heating
method.

Typical reflow peak temperatures range from
215 to 250 °C. The top-surface temperature of the
packages should preferable be kept below 230 °C.

Wave soldering

Conventional single wave soldering is not recommended
forsurfacemountdevices(SMDs)orprinted-circuitboards
with a high component density, as solder bridging and
non-wetting can present major problems.

To overcome these problems the double-wave soldering
method was specifically developed.

If wave soldering is used the following conditions must be
observed for optimal results:

• Use a double-wave soldering method comprising a
turbulent wave with high upward pressure followed by a
smooth laminar wave.

• For packages with leads on two sides and a pitch (e):
– larger than or equal to 1.27 mm, the footprint

longitudinal axis is preferred to be parallel to the
transport direction of the printed-circuit board;

– smaller than 1.27 mm, the footprint longitudinal axis

must be parallel to the transport direction of the
printed-circuit board.

The footprint must incorporate solder thieves at the
downstream end.

• Forpackageswithleadsonfoursides,thefootprintmust
be placed at a 45° angle to the transport direction of the
printed-circuit board. The footprint must incorporate
solder thieves downstream and at the side corners.

During placement and beforesoldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Manual soldering

Fix the component by first soldering two
diagonally-opposite end leads. Use a low voltage (24 V or
less) soldering iron applied to the flat part of the lead.
Contact time must be limited to 10 seconds at up to
300 °C.

When using a dedicated tool, all other leads can be
soldered in one operation within 2 to 5 seconds between
270 and 320 °C.

1999 Sep 16 15

Philips Semiconductors Preliminary specification

High efficiency DC/DC converter TEA1206T

Suitability of surface mount IC packages for wave and reflow soldering methods

Notes

1. All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum
temperature (with respect to time) and body size of the package, there is a risk that internal or external package
cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the
Drypack information in the

“Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods”

.

2. These packages are not suitable for wave soldering as a solder joint between the printed-circuit board and heatsink
(at bottom version) can not be achieved, and as solder may stick to the heatsink (on top version).

3. If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction.
The package footprint must incorporate solder thieves downstream and at the side corners.

4. Wave soldering is only suitable for LQFP, TQFP and QFP packages with a pitch (e) equal to or larger than 0.8 mm;
it is definitely not suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.

5. Wave soldering is only suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65 mm; it is
definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.

DEFINITIONS

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

PACKAGE

SOLDERING METHOD

WAVE REFLOW

(1)

BGA, LFBGA, SQFP, TFBGA not suitable suitable
HLQFP, HSQFP, HSOP, HTQFP, HTSSOP, SMS not suitable

(2)

suitable

PLCC

(3)

, SO, SOJ suitable suitable

LQFP, QFP, TQFP not recommended

(3)(4)

suitable

SSOP, TSSOP, VSO not recommended

(5)

suitable

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

1999

68

Philips Semiconductors – a w orldwide compan y

For all other countries apply to: Philips Semiconductors,

International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

Argentina: see South America
Australia: 3 Figtree Drive, HOMEBUSH, NSW 2140,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: seeSouth America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]

Hungary: seeAustria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PT Philips DevelopmentCorporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS,Via Casati, 23 - 20052 MONZA (MI),
Tel. [phone], Fax [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone], Fax [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Al.Jerozolimskie 195 B, 02-222 WARSAW,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

Printed in The Netherlands 465002/25/02/pp16 Date of release: 1999 Sep 16 Document order number: 9397 750 05984
