2 stage RF power amp: PD84001 + PD54003L-E + LPF
Feature
■ Excellent thermal stability
■ Frequency: 380 - 512 MHz
■ Supply voltage: 7.2 V
■ Output power: 4 W
■ Current < 1.6 A
■ Input power < 10 dBm
■ Harmonics level < -70 dBc
■ Load mismatch 20:1
■ V
■ Beo free amplifier
■ RoHS compliant
APC
5 V max

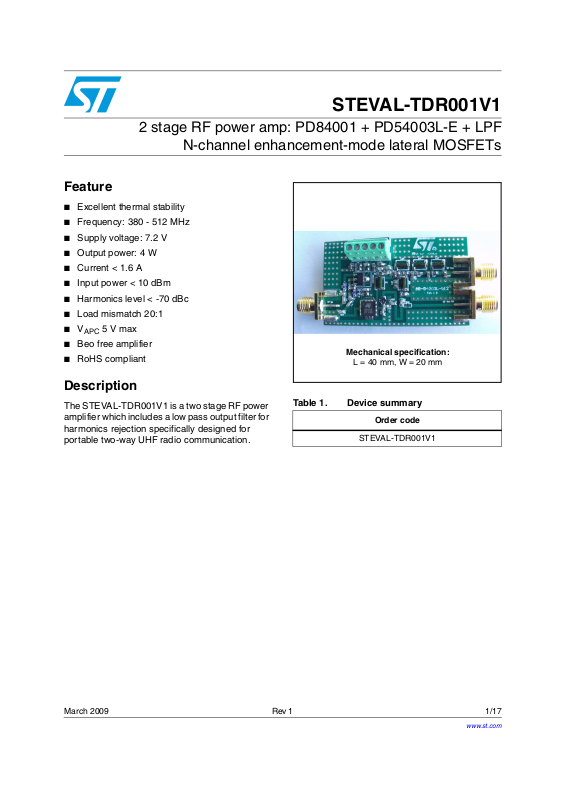

STEVAL-TDR001V1
N-channel enhancement-mode lateral MOSFETs
Mechanical specification:
L = 40 mm, W = 20 mm
Description
The STEVAL-TDR001V1 is a two stage RF power
amplifier which includes a low pass output filter for
harmonics rejection specifically designed for
portable two-way UHF radio communication.
Table 1. Device summary
Order code
STEVAL-TDR001V1
March 2009 Rev 1 1/17
www.st.com
17
Page 2
Contents STEVAL-TDR001V1
Contents
1 Electrical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Typical performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4 Circuit layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5 Circuit schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6.1 PowerFLAT™ mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
6.1.1 Mounting indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.2 Thermal pad and via design SOT-89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.2.1 Soldering profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2/17
Page 3
STEVAL-TDR001V1 Electrical data
1 Electrical data
1.1 Maximum ratings
Table 2. Absolute maximum ratings
Symbol Parameter Value Unit
V
T
CASE
DD
I
D
T
A
Supply voltage 15 V
Drain current 2.5 A
Operating case temperature -20 to +85 °C
Max. ambient temperature +55 °C
2 Electrical characteristics
TA = +25 °C, VDD = 7.2 V, V
Table 3. Electrical specification
Symbol Test conditions Min. Typ. Max. Unit
Freq. Frequency range 380 512 MHz
P
I
TOTAL
PA E @ P
VAPC @ P
Harmonics @ P
@ P
IN
@ P
= 4 W 10 dBm
OUT
= 4 W and PIN = 10 dBm 1.6 A
OUT
= 4 W and PIN = 10 dBm 36% - 40%
OUT
= 4 W and PIN = 10 dBm 4.5 5 V
OUT
= 4 W -70 dBc
OUT
APC
adjusted
3/17
Page 4
Typical performance STEVAL-TDR001V1
pp q y
3 Typical performance
Figure 1. Current consumption vs frequency Figure 2. Output power vs frequency
1.8
1.7
40
39
38
VDD=5 V VDD=7V VDD=9V
1.6
37
1.5
1.4
Current (A)
1.3
1.2
1.1
1
Pin = 10dBm
Vdd = 7.2V
Pout = 4W
360 380 400 420 440 460 480 500 520
Frequency (MHz)
Figure 3. Gain vs frequency Figure 4. Input return loss vs frequency
30
28
26
24
22
20
18
Gain (dB)
16
14
12
Vdd = 7.2V
Pin = 10dBm
Vapc = 4.6V
10
8
6
300 350 400 450 500 550 600
Frequency (MHz)
36
35
Pout (dBm)
34
33
32
31
30
360 380 400 420 440 460 480 500 520 540
Freq (MHz)
Vapc = 4.6V
Pin = 10 dBm
0
-2
-4
-6
-8
-10
IRL (dB)
-12
-14
Vdd = 7.2V
-16
Pin = 10dBm
Vapc = 4.6V
-18
300 350 400 450 500 550 600
Frequency (MHz)
4/17
Page 5
STEVAL-TDR001V1 Typical performance
Figure 5. Low pass filter - insertion loss
-5
-15
-25
-35
S21(dB)
-45
-55
-65
-75
1.0E+08 3.0E+08 5.0E+08 7.0E+08 9. 0E+ 08 1.1E+09 1.3E+09 1.5E+09
F(Hz)
Figure 6. Low pass filter - input return loss
0
-5
-10
-15
-20
S11( dB)
-25
-30
-35
1.0E+08 3.0E +08 5.0E+08 7.0E+08 9.0E+08 1.1E+09 1.3E+ 09 1.5E+09
F(Hz)
Low pass filter - Input Return Loss
5/17
Page 6
Typical performance STEVAL-TDR001V1
Table 4. Part list
Designator Value Quantity Manufacturer Part code Size
C1 1 µF 1 Murata GRM1885F51C105ZA01 603
C1F 2.2 pF 1 Murata GRM1885C1H2R2CZ01 603
C2, C3, C4 120 pF 3 Murata GRM1885C1H121JA01 603
C2F, C3F 3.3 pF 2 Murata GRM1885C1H3R3CZ01 603
C4F, C5F 2.2 pF 2 Murata GRM1885C1H2R2CZ01 603
C5, C6 1 µF 2 Murata GRM1885F51C105ZA01 603
C6F 4.7 pF 1 Murata GRM1885C1H4R7CZ01 603
C7 120 nF 1 Murata GRM1885C1H121JA01 603
C7F, C8F 3.9 pF 2 Murata GRM1885C1H3R9CZ01 603
C8, C10 470 pF 2 Murata GRM1885C1H471JA01 603
C9 470 pF 1 Murata GRM1885C1H471JA01 603
C9F 1.2 pF 1 Murata GRM1885C1H1R2CZ01 603
C11 15 pF 1 Murata GRM1885C1H150JA01 603
C12 4.7 pF 1 Murata GRM1885C1H4R7CZ01 603
C13 18 pF 1 Murata GRM1885C1H180JA01 603
C14 39 pF 1 Murata GRM1885C1H390JA01 603
C15, C16 18 pF 2 Murata GRM1885C1H180JA01 603
C17 15 pF 1 Murata GRM1885C1H150JA01 603
C18 NC 1 Murata GRM1885C1H471JA01 603
DC-Con 1 Phoenix contact 1725685 2.54mm, 5 poli
L1 24 nH 1 Coilcraft 0603HC-24NX_BW 603
L1F, L2, L2F, L3F,
L4F
12.55 nH 5 Coilcraft 1606-10_, 1606_10 1606
L3, L4 3.6 nH 2 Coilcraft 0603HC-3N6X_BW 603
L5 2.55 nH 1 Coilcraft 0906-3_ 906
PD54003L-E 1 STMicroelectronics PD54003L-E
PD84001 1 STMicroelectronics PD84001
R1 300 Ω 1
R2, R5 3 kΩ 2
R3, R6 15 kΩ 2
R4 1.5 kΩ 1
RF In, RF Out,
RF Out PA
3
Tyco/electronics
neohn
Tyco/electronics
neohn
Tyco/electronics
neohn
Tyco/electronics
neohn
CRG series thick film chip 603
CRG series thick film chip 603
CRG series thick film chip 603
CRG series thick film chip 603
SUB 1 FR-4 H=20 mil h=10 oz
TL1 50 1 L=6.88 mm W=0.92 mm
TL2 50 1 L=9.8 mm W=0.92 mm
TL3 1 L=9.8 mm W=0.92 mm
TL4 1 50 Ω
6/17
Page 7
STEVAL-TDR001V1 Circuit layout
4 Circuit layout
Figure 7. Test fixture component layout
7/17
Page 8
Circuit schematic STEVAL-TDR001V1
5 Circuit schematic

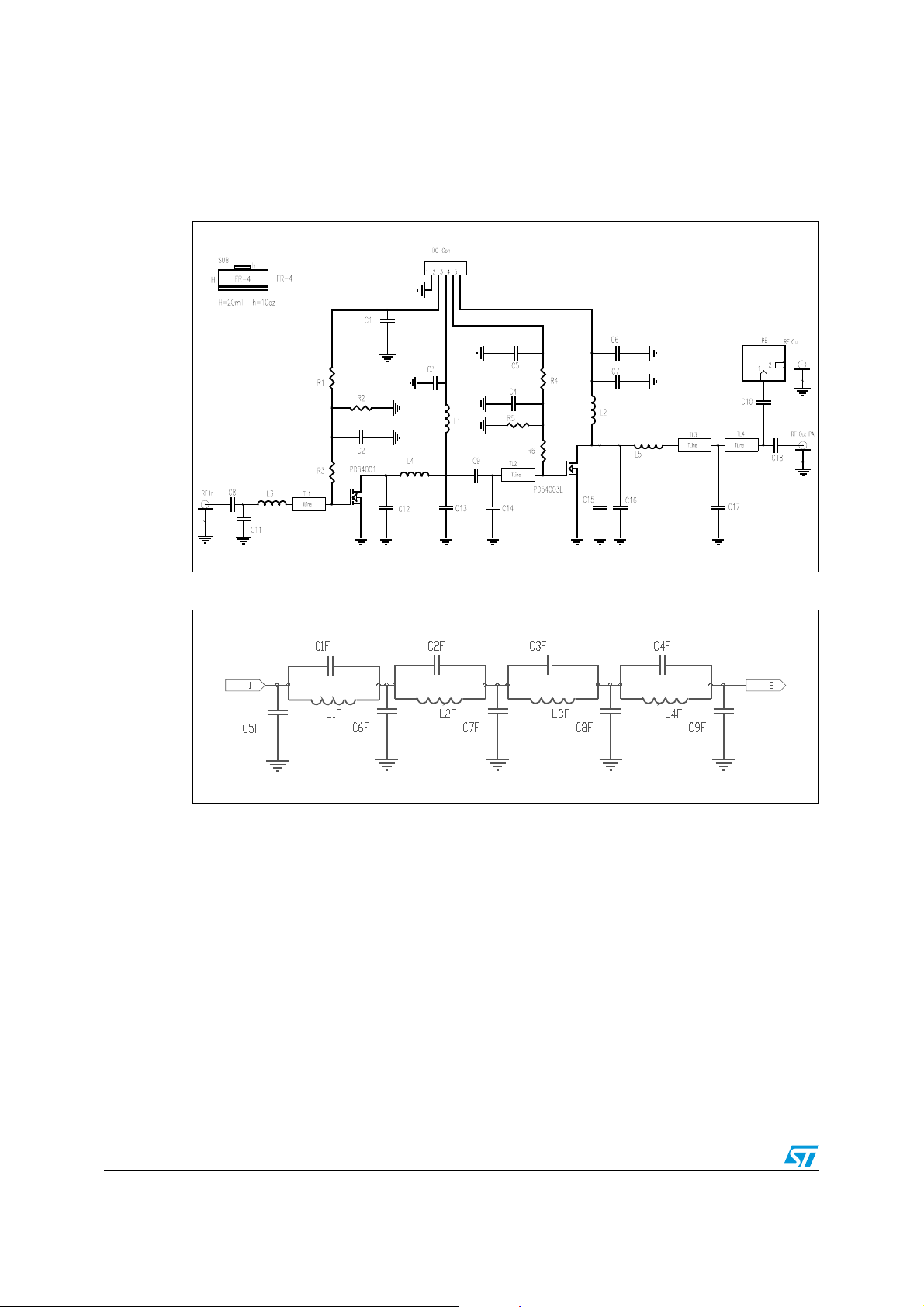

Figure 8. Circuit schematic
Figure 9. Filter schematic
8/17
Page 9
STEVAL-TDR001V1 Package mechanical data
6 Package mechanical data
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK is an ST trademark.
®
packages, depending on their level of environmental compliance. ECOPACK®
9/17
Page 10
Package mechanical data STEVAL-TDR001V1
6.1 PowerFLAT™ mechanical data
Table 5. PowerFLAT™ mechanical data
mm inch
Dim.
Min. Typ. Max. Min. Typ. Max.
A 0.90 1.00 0.035 0.039
A1 0.02 0.05 0.001 0.002
A3 0.24 0.009
AA 0.15 0.25 0.35 0.006 0.01 0.014
b 0.43 0.51 0.58 0.017 0.020 0.023
c 0.64 0.71 0.79 0.025 0.028 0.031
D 5.00 0.197
d 0.30 0.011
E 5.00 0.197
E2 2.49 2.57 2.64 0.098 0.101 0.104
e 1.27 0.050
f 3.37 0.132
g 0.74 0.03
h 0.21 0.008

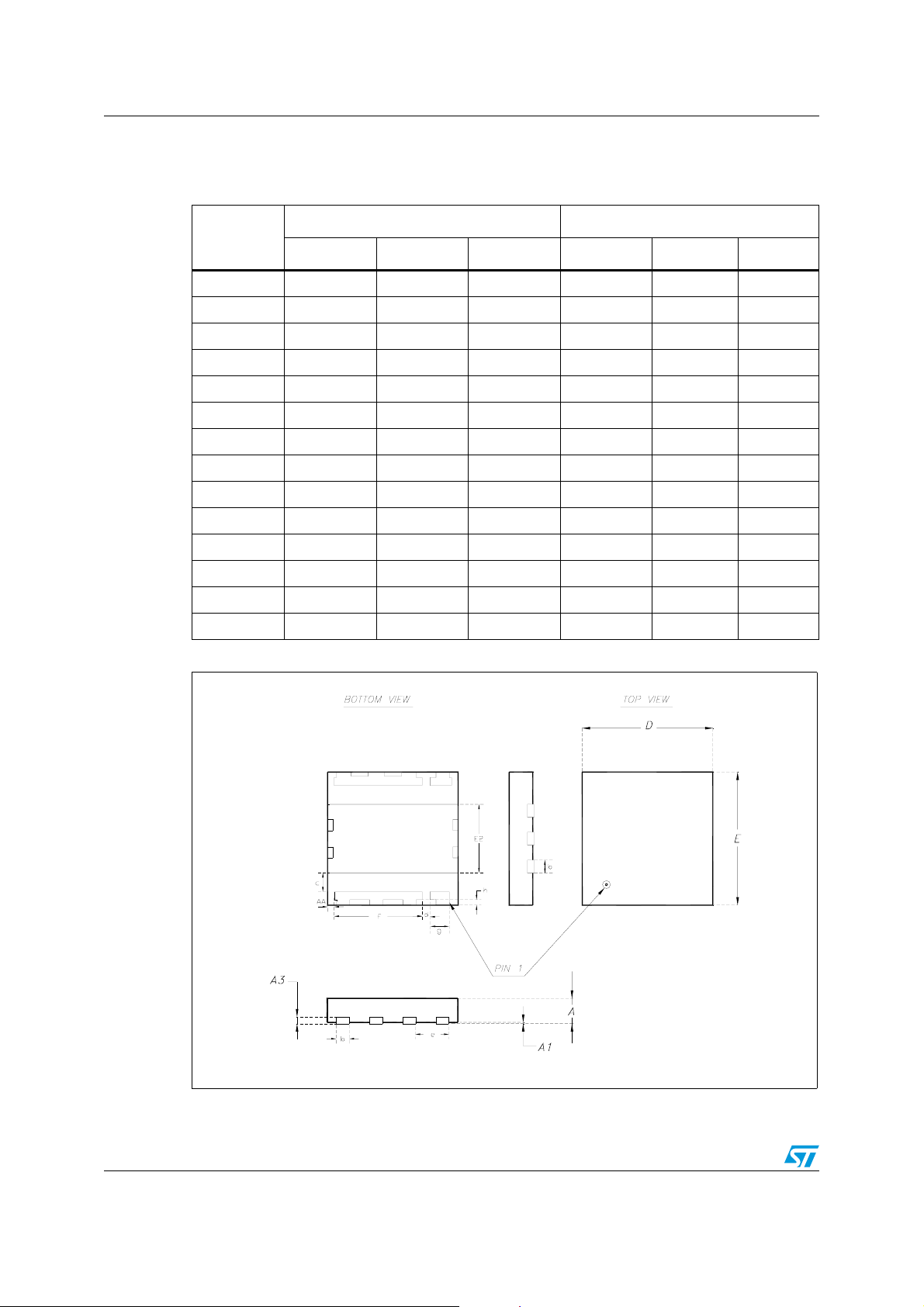

Figure 10. PowerFLAT™ package dimensions
10/17
Page 11
STEVAL-TDR001V1 Package mechanical data
Table 6. PowerFLAT™ tape and reel dimensions
mm. inch
Dim.
Min. Typ Max. Min. Typ Max.
Ao 5.15 5.25 5.35 0.12 0.13 0.13
Bo 5.15 5.25 5.35 0.12 0.13 0.13
Ko 1.0 1.1 1.2 0.02 0.02 0.02

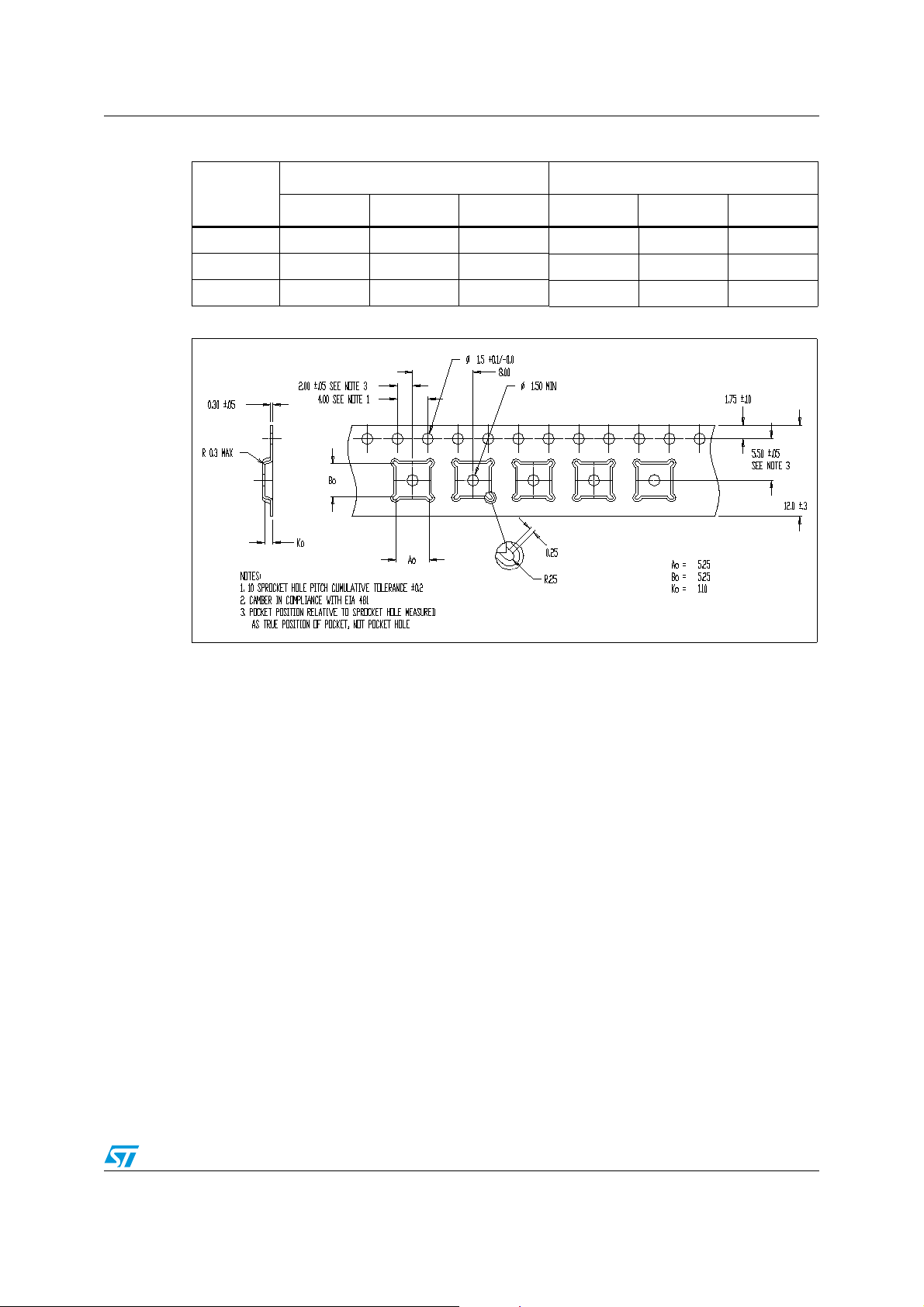

Figure 11. PowerFLAT™ tape and reel
11/17
Page 12
Package mechanical data STEVAL-TDR001V1
6.1.1 Mounting indications
Figure 12. Standard SMD mounting
12/17
Page 13
STEVAL-TDR001V1 Package mechanical data
6.2 Thermal pad and via design SOT-89
Thernal vias are required in the PCB layout to effectively conduct heat away from the
package. The via pattern has been designed to address thermal, power dissipation and
electrical requirements of the device.
The via pattern is based on thru-hole vias with 0.203 mm to 0.330 mm finished hole size on
a 0.5 mm to 1.2 mm grid pattern with 0.025 plating on via walls. If micro vias are used in a
design, it is suggested that the quantity of vias be increased by a 4:1 ratio to achieve similar
results.

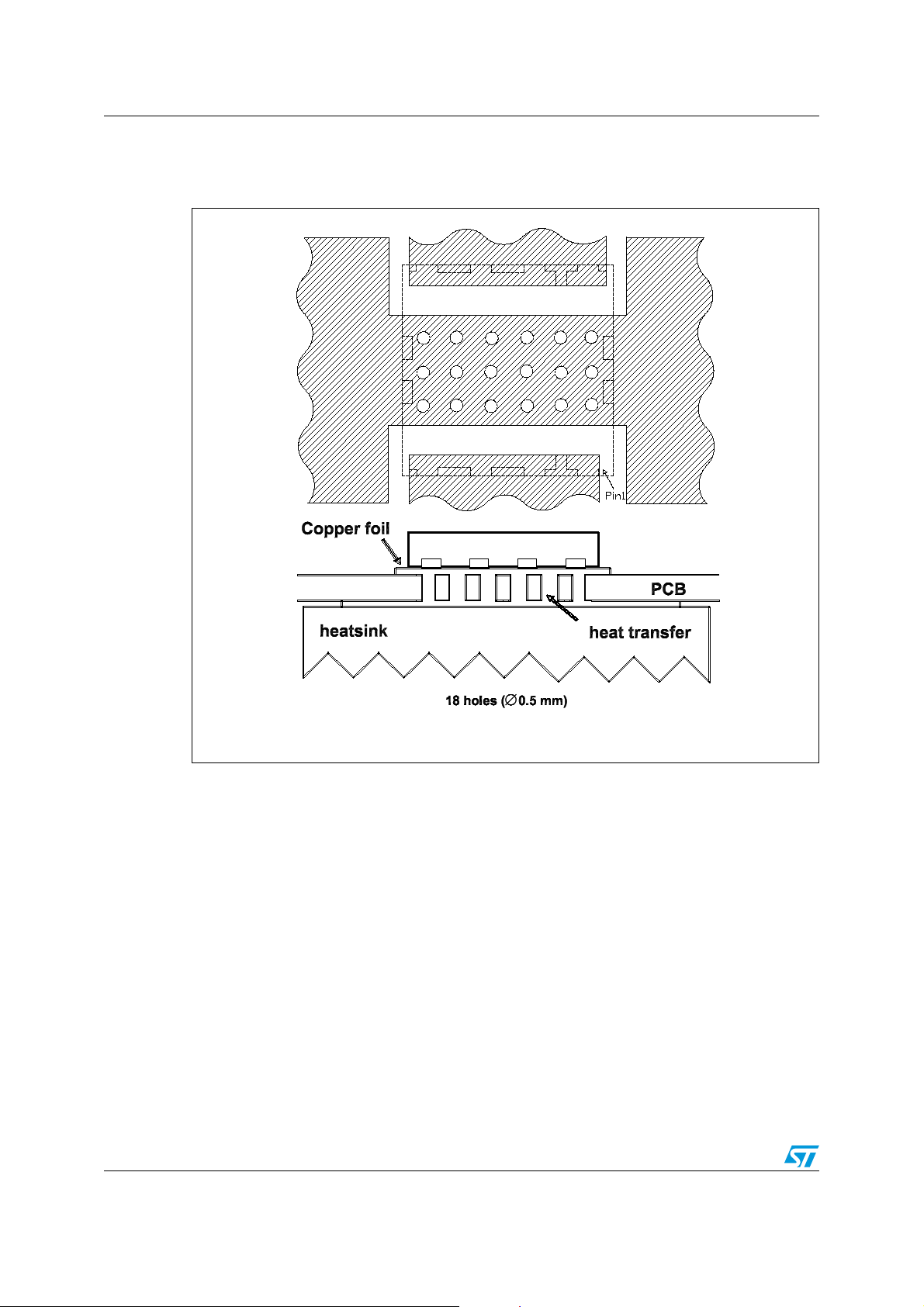

Figure 13. Pad layout details
13/17
Page 14
Package mechanical data STEVAL-TDR001V1
6.2.1 Soldering profile
Figure 14 shows the recommeded solder for devices that have Pb-free terminal plating and
where a Pb-free solder is used.

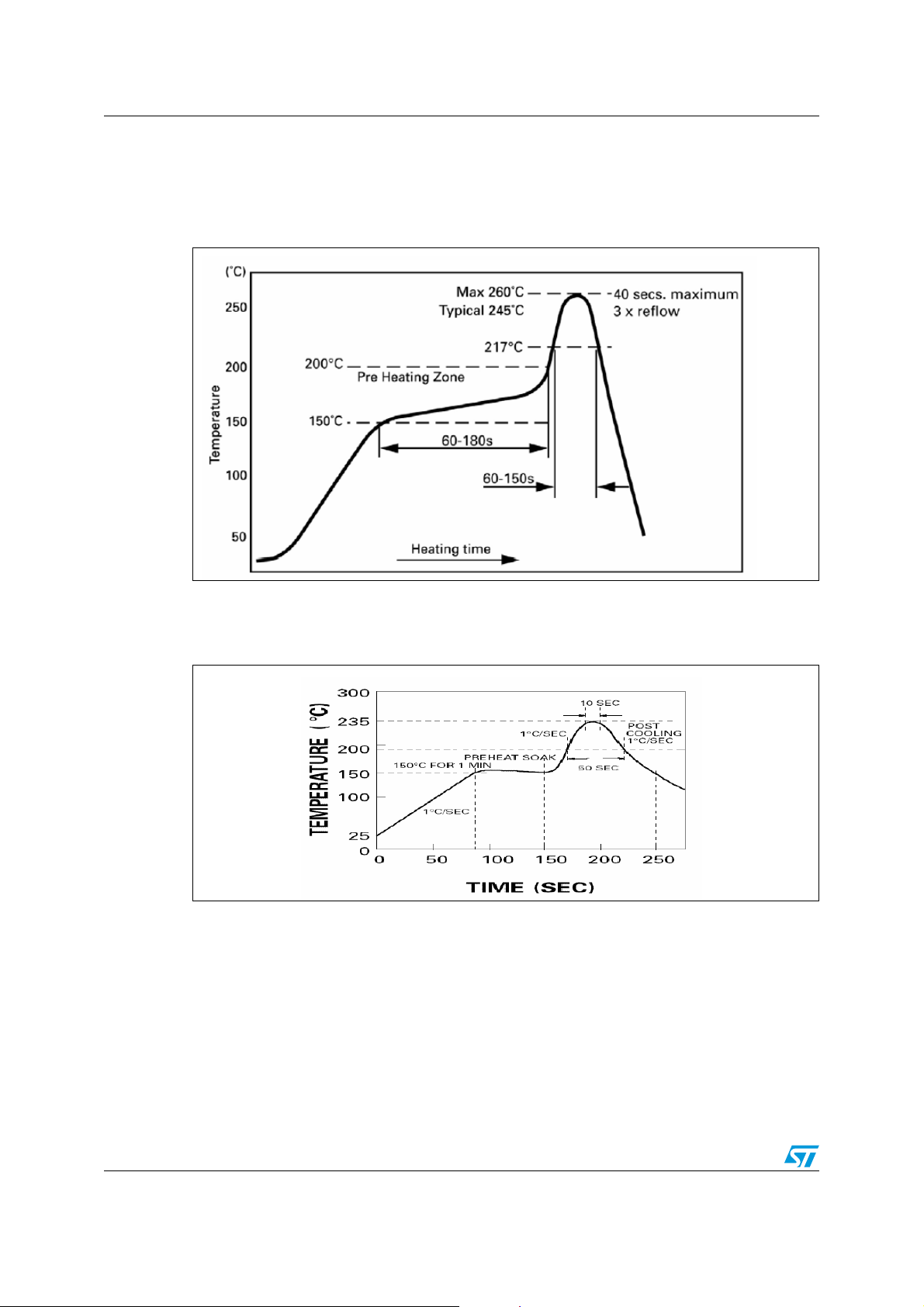

Figure 14. Recommended solder profile
Figure 15 shows the recommeded solder for devices with Pb-free terminal plating used with
leaded solder, or for devices with leaded terminal plating used with a leaded solder.
Figure 15. Recommended solder profile for leaded devices
14/17
Page 15
STEVAL-TDR001V1 Package mechanical data

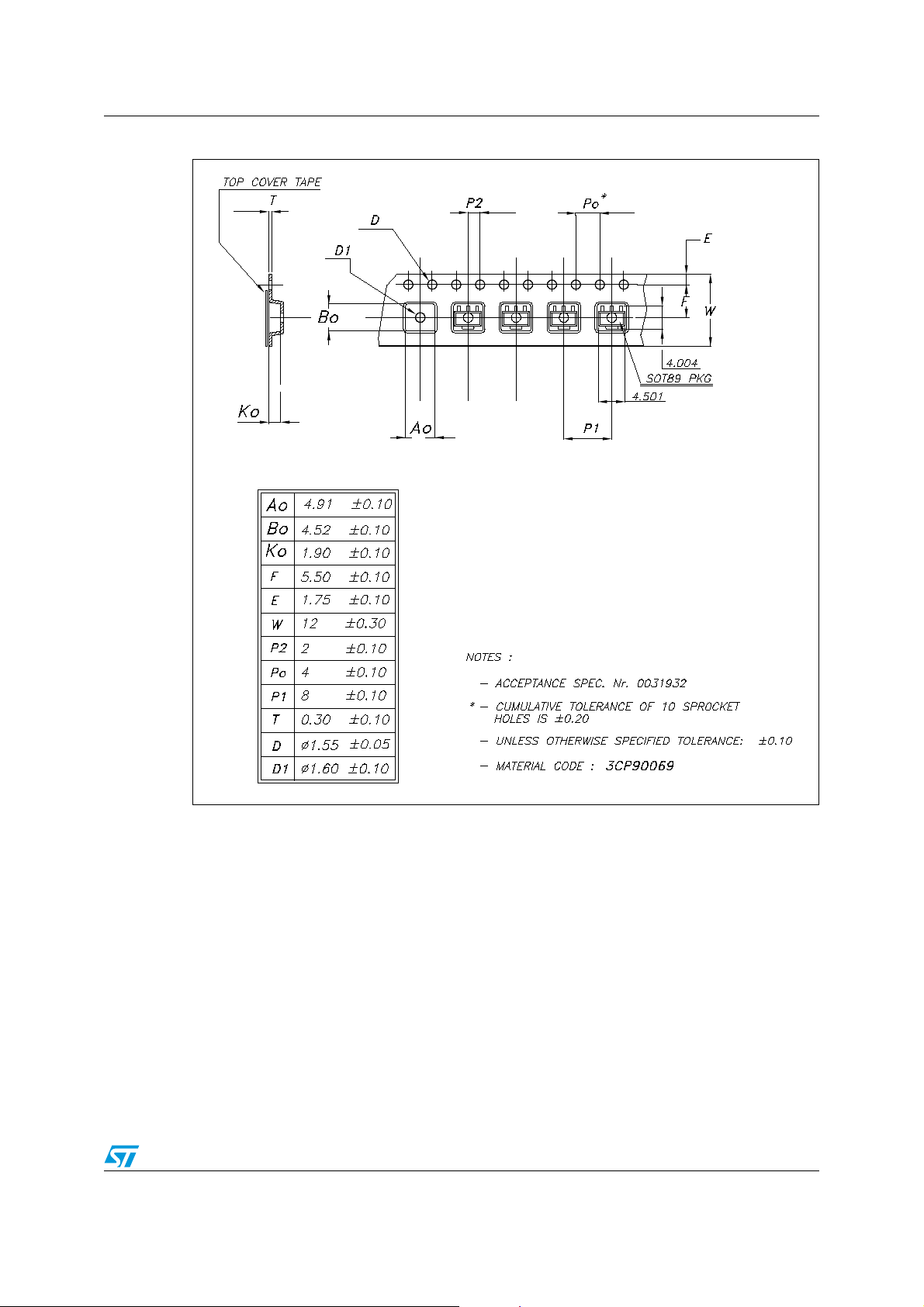

Figure 16. Reel information
15/17
Page 16
Revision history STEVAL-TDR001V1
7 Revision history
Table 7. Document revision history
Date Revision Changes
16-Mar-2009 1 Initial release.
16/17
Page 17
STEVAL-TDR001V1
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2009 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
17/17
