Page 1
Technical Data 2042
Effective June 2020
Supersedes April 2020
TDC180
1/4” x 1.0” Fast/medium British plug top fuse
HALOGEN
Pb
HF
FREE
Product features
•
1/4” x 1.0” Fast/medium British plug top fuse
•
Patent protected: GB2410626,
China No 202010304090.9, No 101308744B
•
High breaking capacity
•
240 Vac rated voltage
•
Designed to BS1362, IEC60269-3,
GB13539.3, GB13539.5
•
Ceramic tube fuse
•
Nickel plated single end cap construction
Applications
Primary circuit protection:
•
British/UK BS1363 plug top commonly used for,
but not limited to,
−
Hairdryers
−
Microwaves
−
Blenders
−
Crock pots
−
Kettles
−
Toasters
−
Baby bottle warmers
−
Televisions
−
Computers
−
Lamps
Agency information
•
ASTA: 658,
•
CCC: 2003010308039745
Ordering
•
Use ordering number (see page 6 for details)
Packaging prefixes
•
Blank (10 parts in a plastic bag)
•
BK- (100 parts in a plastic bag)
•
BK1- (1000 parts in plastic bag and box)
Page 2
Technical Data 2042
Effective June 2020
Electrical characteristics
TDC180
1/4” x 1.0” Fast/medium British plug top fuse
l
n
100% Rated
Current
TDC180-1A - 13 A 1000 hours
minimum
160% Rated
Current
30 minutes
minimum
190% Rated
Current
30 minutes
maximum
Product specifications
Interuppting
1
rating
Hz and rated
voltage
Part number
Current
rating
4
(A)
Voltage
rating
)
(V
AC
TDC180-1A 1.0 240 6000 162 0.9 1.0 Black X
TDC180-2A 2.0 240 6000 86 9.1 1.0 Black X X
TDC180-3A 3.0 240 6000 43.5 34.3 1.0 Red X X
TDC180-5A 5.0 240 6000 21.3 135 1.0 Black X X
TDC180-7A 7.0 240 6000 12.8 114 1.0 Black X X
TDC180-10A 10 240 6000 7.4 345 1.0 Black X X
TDC180-13A 13 240 6000 4.4 870 1.0 Brown X X
1. Breaking Capacity tested at 264 Vac, 50 Hz, Power factor (PF) 0.3-0.4
2. DC cold resistance measured at <10% of rated current at ambient temperature of +20 ºC
3. Typical pre-arcing I
2
t measured at 10In and rated voltage
at 50
(A)
Typical
DC cold
resistance
(mΩ )
2
Typical
prearcing
2
t (A2s)
l
Maximum
power
3
dissapation
(W) Print color AS TA CCC
Agency approvals
1. Part Number Definition: TDC180-xxA
TDC180 = Product code
-xx = Ampere rating
-A = Ampere

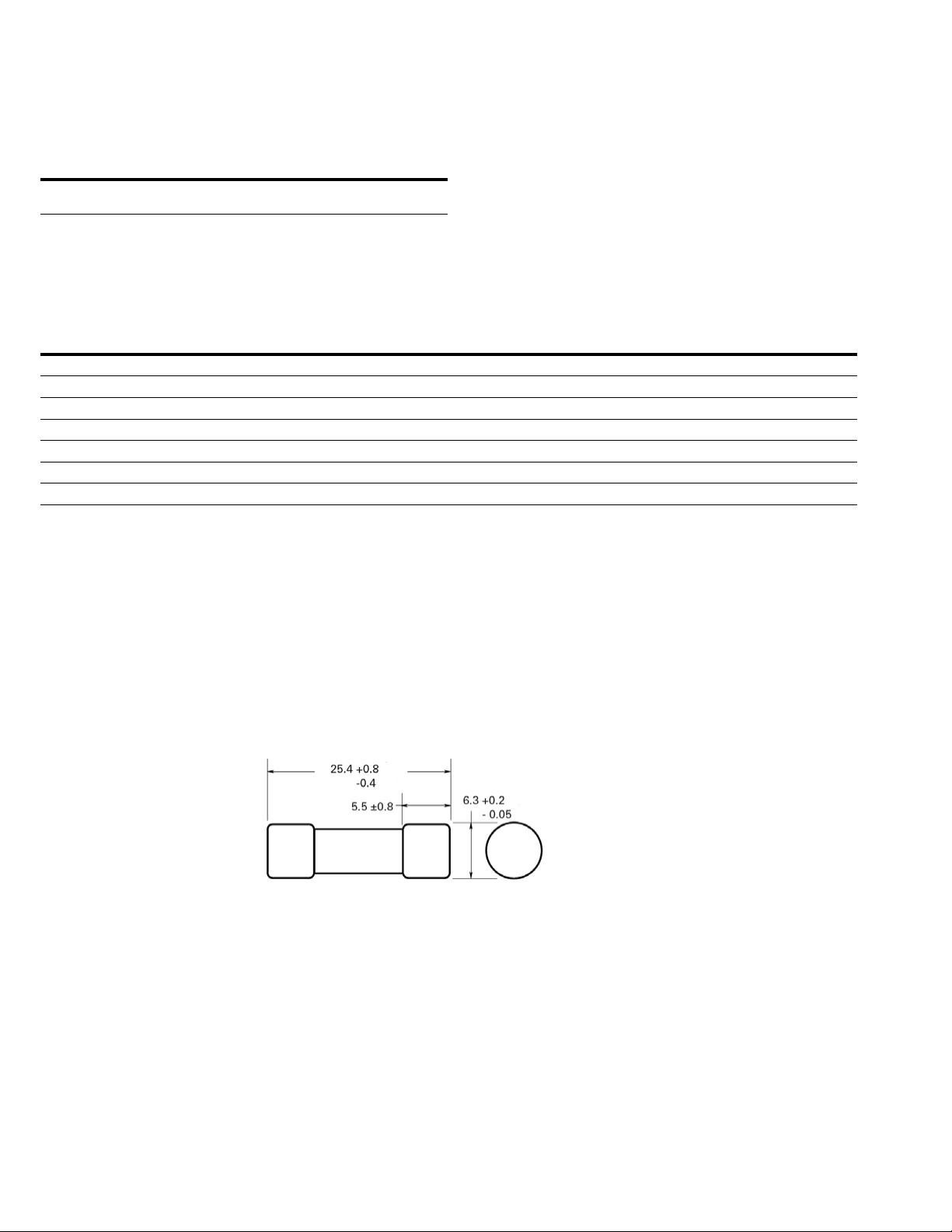

Dimensions–mm
2
www.eaton.com/electronics
Page 3
TDC180
1/4” x 1.0” Fast/medium British plug top fuse
Time vs. current curve
Technical Data 2042
Effective June 2020
Temperature derating curve
Percentage of rating
Temperature (°C)
www.eaton.com/electronics
3
Page 4
Technical Data 2042
Effective June 2020
General specifications
Operating ambient temperature: -5 °C to +35 °C
Storage temperature: -5 °C to +35 °C
Temperature inside an enclsure: < 15k of amabient temperature
Altitude: < 2000 feet above sea level
Atmospheric conditions: 50% relative humidity at maximum temperature of +40 °C,
Frequency range: 45 Hz to 62 Hz
Ordering codes
The ordering code is the part number plus adding the packaging prefix.
Packaging suffixes
•
Blank (10 parts in a plastic bag)
•
BK- (100 parts in a plastic bag)
•
BK1- (1000 parts in plastic bag and box)
TDC180
1/4” x 1.0” Fast/medium British plug top fuse
Ordering codes
Part number Blank option BK- option BK1- option
TDC180-1A TDC180-1A BK-TDC180-1A BK1-TDC180-1A
TDC180-2A TDC180-2A BK-TDC180-2A BK1-TDC180-2A
TDC180-3A TDC180-3A BK-TDC180-3A BK1-TDC180-3A
TDC180-5A TDC180-5A BK-TDC180-5A BK1-TDC180-5A
TDC180-7A TDC180-7A BK-TDC180-7A BK1-TDC180-7A
TDC180-10A TDC180-10A BK-TDC180-10A BK1-TDC180-10A
TDC180-13A TDC180-13A BK-TDC180-13A BK1-TDC180-13A
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly used
in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
Eaton
Electronics Division
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com/electronics
© 2020 Eaton
All Rights Reserved
Printed in USA
Publication No. 2042 PCN20001
