INTEGRATED CIRCUITS
DATA SH EET
TDA9860
Universal HiFi audio processor for TV
Preliminary specification File under Integrated Circuits, IC02
July 1994
Page 2
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860

FEATURES

• Multi-source selector switches six AF inputs (three stereo sources or six mono sources)
• Each of the input signals can be switched to each of the outputs (crossbar switch)
• Outputs for loudspeaker channel, headphone channel and peri-TV connector (SCART)
• Switchable spatial stereo and pseudo stereo effects
• Audio surround decoder can be added externally
• Two general purpose logic output ports
• I2C-bus control of all functions.

QUICK REFERENCE DATA

SYMBOL PARAMETER MIN. TYP. MAX. UNIT
V
P
I
P
V
i
V
o
G
v
positive supply voltage (pin 6) 7.2 8.0 8.8 V supply current − 25 − mA input signal levels for 0 dB gain (RMS value) 2 −− V output signal levels for 0 dB gain (RMS value) 2 −− V gain in main channel volume control (1 dB steps, balance included) −63 − +15 dB bass control (1.5 dB steps) −12 − +15 dB treble control (3 dB steps) −12 − +12 dB gain in headphone channel volume control (2 dB steps) −70 − 0dB
gain for muting in all channels −80 −− dB THD total harmonic distortion − 0.1 − % S/N signal-to-noise ratio − 85 − dB T
amb
operating ambient temperature 0 − +70 °C

GENERAL DESCRIPTION

The TDA9860 provides control facilities for the main, the headphone and the SCART channel of a TV set. Due to extended switching possibilities, signals from 3 stereo sources can be handled.

ORDERING INFORMATION

EXTENDED
TYPE NUMBER
PINS PIN POSITION MATERIAL CODE
TDA9860 32 SDIL plastic SOT232
Note
1. SOT232-1; 1996 November 21.
PACKAGE
(1)
Page 3
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860
July 1994 3
Fig.1 Block diagram and application circuit.
Page 4
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860

PINNING

SYMBOL PIN DESCRIPTION
V
i 3
P1 2 port 1 output V
i 5
C
SMO
V
i 6
V
P
V
o 6
GND 8 ground V
o 2
V
i 8
C
BR1
C
BR2
V
o 8
C
TR
V
o 4
SCL 16 I SDA 17 I V
o 3
C
TL
V
o 7
C
BL2
C
BL1
V
i 7
V
o1
MAD 25 module address select input V
o 5
C
PS2
V
i 1
C
PS1
V
i 2
P2 31 port 2 output V
i 4
1 SCART input signal LEFT
3 MAIN input signal LEFT 4 smoothing capacitor of reference voltage 5 MAIN input signal RIGHT 6 positive supply voltage 7 SCART output signal RIGHT
9 MAIN output signal RIGHT 10 input signal RIGHT to loudspeaker channel 11 bass capacitor RIGHT 1 12 bass capacitor RIGHT 2 13 headphone output signal RIGHT 14 treble capacitor RIGHT 15 loudspeaker channel output signal RIGHT
2
C-bus clock line
2
C-bus data line 18 loudspeaker channel output signal LEFT 19 treble capacitor LEFT 20 headphone output signal LEFT 21 bass capacitor LEFT 2 22 bass capacitor LEFT 1 23 input signal LEFT to loudspeaker channel 24 MAIN output signal LEFT
26 SCART output signal LEFT 27 pseudo stereo capacitor 2 28 AUX input signal LEFT 29 pseudo stereo capacitor 1 30 AUX input signal RIGHT
32 SCART input signal RIGHT
Fig.2 Pin configuration.
Page 5
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860

FUNCTIONAL DESCRIPTION

The TDA9860 consists of the following functions:
• source select switching block
• loudspeaker channel with effect controls
• headphone channel
• two port outputs for general purpose
• I2C-bus control

Source select switching block

The TDA9860 selects and switches the input signals from three stereo or six mono sources as there are MAIN, AUX and SCART (Fig.1) to one of the outputs SCART, loudspeaker and headphone (crossbar-switching Table 3). Due to the fact, that the main channel (LINE outputs) is looped outside the circuit (from pins 9 and 24 to pins 10 and 23), signals can be used as LINE output or to insert a ‘surround sound decoder’.

Loudspeaker channel

Volume control is divided into the parts volume 1 and volume 2 / balance. The first part (55 dB) controls left and right channels simultaneously; the second part (23 dB)
controls volume and balance of left and right channels independently. Treble control provides a control range from −12 to +12 dB and bass control from −12 to +15 dB. Extended bass control can be provided by an external T-network (Fig.1) from −15 to +19 dB (2 dB steps).

Effect controls

‘Linear stereo’, ‘stereo with spatial effect (30% or 52% anti-phase crosstalk)’ and ‘forced mono with or without pseudo-stereo effect’ are controlled by three bits. A muting of 85 dB is provided.

Headphone channel

The headphone channel is only equipped with volume / balance control. A muting of 85 dB is provided.
2
I
C-bus control
All settings of control are stored in subaddress registers. Data transmission is simplified by auto-incrementing the subaddresses. The on-chip power on reset sets the mute bit to active, so all 3 stereo outputs are muted. The muting can be switched off by writing a ‘0’ (non-muted) into the mute control bits.

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL PARAMETER MIN. MAX. UNIT
V
P
V
n
I
O
supply voltage (pin 6) 0 10 V voltage on all pins, ground excluded 0 V
P
output current
V
at pins 15, 18, 13, 20, 7 and 26 − 2.5 mA
at pins 2 and 31 − 1.5 mA P T T V
tot stg amb ESD
total power dissipation − 850 mW storage temperature −25 +150 °C operating ambient temperature 0 +70 °C electrostatic handling for all pins (note 1) −±300 V electrostatic handling for all pins (note 2) −±2000 V
Notes to the Limiting Values
1. Equivalent to discharging a 200 pF capacitor through a 0 Ω series resistor.
2. Equivalent to discharging a 100 pF capacitor through a 1.5 kΩ series resistor.

THERMAL RESISTANCE

SYMBOL PARAMETER THERMAL RESISTANCE
R
th j-a
from junction to ambient in free air 60 K/W
Page 6
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860

CHARACTERISTICS

= 8 V; T
V
P
function and forced-mono function in off position and measurements taken in Fig.1 unless otherwise specified.
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
V
P
I
P
V
ref
V
4
DC voltage on pins
V
l
V
O
V
C
Audio select switch. Line, SCART and headphone outputs (controlled via I V
i
R
i
f frequency response for all AF outputs −0.5 dB 20 − 20000 Hz V
o
R
L
G
v
α
cr
LOUDSPEAKER CHANNEL (controlled via I Volume control 1 (LEFT and RIGHT simultaneously)
V
i
R
i
G
v
∆G
v
= +25 °C; treble and bass in linear positions; balance in mid position; spatial function, pseudo-stereo
amb
supply voltage (pin 6) 7.2 8.0 8.8 V supply current (pin 6) − 25 − mA internal reference voltage − VP/2 − V voltage (pin 4) − VP− 0.1 − V
DC input voltage (pins 1, 3, 5, 10, 23,
− VP/2 − V
28, 30 and 32) DC output voltage (pins 7, 9, 13, 15, 18,
− VP/2 − V
20, 24 and 26) DC voltage on capacitors (pins 11, 12,
− VP/2 − V
14, 19, 21, 22, 27 and 29)
2
C-bus, Table 3)
maximum AF input signal on pins 1, 3, 5, 28, 30, 32 (RMS value)
THD ≤ 0.5% on output pins
2 −−V
input resistance (pins 1, 3, 5, 28, 30, 32) 20 30 40 kΩ
maximum AF output signal on pins 7, 9,
THD ≤ 0.5% 2 −−V
24, 26 (RMS value) allowed external load resistance on output (pins 9 and 24) 10 −−kΩ on output (pins 7 and 26) 5 −−kΩ gain for all signal arms − 0 − dB switch crosstalk on outputs between
AF inputs at f = 10 kHz
2
C-bus, Table 3)
unused inputs connected to ground
− 90 − dB
f = 1 kHz, 55 steps
maximum input signal (RMS value; pins 10 and 23)
Gv= 0; THD ≤ 0.5% on output pins 15 and 18
2 −−V
input resistance (pins 10 and 23) 7.5 10 − kΩ nominal volume control −40 − +15 dB minimum volume control −38 − +14 dB step width Gv= −32 to +15 dB 0.5 1.0 1.5 dB
G
= −40 to −33 dB 0.25 1.0 1.75 dB
v
gain set error G
= −32 to +15 dB −− 1dB
v
G
=−40 to −33 dB −− 2dB
v
Page 7
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
Volume 2 / balance control
G
v
nominal volume control −24 − 0dB minimum volume control −23 −−1dB gain in mute position −80 −85 − dB
∆G
v
step width 0.5 1.0 1.5 dB gain tracking error −− 2dB
Bass control
G
v
controllable bass CB= 33 nF maximum boost f = 40 Hz 14 15 16 dB
maximum attenuation f = 40 Hz 11 12 13 dB ∆G G
v
v
step width 1 1.5 2 dB
controllable enhanced bass Fig.1
maximum boost f = 60 Hz 18 19 20 dB
maximum attenuation f = 60 Hz 14 15 16 dB ∆G
v
step width 1 2 3 dB
Treble control
G
v
controllable treble
maximum boost f = 15 kHz 11 12 13 dB
maximum attenuation f = 15 kHz 11 12 13 dB ∆G
v
step width (resolution) 2.5 3 3.5 dB
Effect controls
α α
spat1 spat2
anti-phase crosstalk by spatial effect − 52 − %
ϕ phase shift by pseudo-stereo − Fig.3 −
f = 1 kHz, 24 steps
− 30 − %
Loudspeaker channel outputs (pins 15 and 18) V
o
∆V
15, 18
maximum output signal
(RMS value; pins 15 and 18)
THD ≤ 0.5%;
RL> 10 kΩ;CL<1.5 nF maximum DC offset voltage between adjoining step and any step to mute for volume control G
G for bass control G
G for treble control G
R
o
R
L
C
L
output resistance (pins 15 and 18) −− 100 Ω allowed output load resistor 10 −−kΩ allowed output load capacitor −− 1.5 nF
2 −−V
= 0 to +15 dB/mute − 215mV
v
=−64 to 0 dB/mute − 0.5 10 mV
v
= 0 to +15 dB/mute − 215mV
v
=−12 to 0 dB/mute − 0.5 10 mV
v
= −12 to +12 dB/mute − 0.5 10 mV
v
Page 8
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
V
N(W)
B AF bandwidth −1 dB − 20 to
THD total harmonic distortion f = 20 to 12500 Hz
α
sp
α
bus
RR
100
HEADPHONE CHANNEL (controlled via I Volume control headphone channel
G
v
∆G
v
∆V
13, 20
weighted noise voltage at output
CCIR468-3 (quasi-peak level)
for +15 dB gain − 102 −µV for 0 dB gain − 32 −µV for −40 dB gain − 27 −µV for mute position G
= −80 dB − 20 −µV
v
− Hz
20000
for V
= 0.2 V (RMS value) Gv= −30 to +15 dB − 0.1 0.3 %
i
= 1 V (RMS value) Gv= −30 to 0 dB − 0.1 0.3 %
for V
i
for V
= 2 V (RMS value) Gv= −30 to −6 dB − 0.1 0.3 %
i
stereo channel separation f = 10 kHz; Gv= 0 dB;
− 75 − dB opposite input grounded by 1 kΩ resistor
crosstalk of I2C-bus Gv= 0 dB; note 1 − 100 − dB ripple rejection with 100 Hz ripple on V
P
Gv= 0 dB;
− 55 − dB VR< 200 mV RMS
2
C-bus, Table 3)
f = 1 kHz, 36 steps
nominal volume control −70 − 0dB minimum volume control −67 −−1dB gain in mute position −80 −85 − dB step width (resolution) Gv= −36 to 0 dB 1.5 2 2.5 dB
= −70 to −36 dB 1 2 3 dB
G
v
gain set error G
DC offset voltage for adjoining step and
= −36 to 0 dB −− 1dB
v
=−70 to −36 dB −− 3dB
G
v
− 0.5 10 mV step to mute Gv= −70 to 0 dB
Headphone channel output (pins 13 and 20) V
o
maximum output signal (RMS value) THD ≤ 0.5%; RL> 10 kΩ;
C
R
o
R
L
C
L
V
N(W)
output resistance −− 100 Ω allowed output load resistor 10 −−kΩ allowed output load capacitor −− 1.5 nF weighted noise voltage at output (quasi-peak level) CCIR468-3 for 0 dB gain − 20 −µV for −16 dB gain − 15 −µV for mute position G
2 −−V
< 1.5 nF
L
= −80 dB − 12 −µV
v
Page 9
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
B AF bandwidth −1 dB − 20 to
20000
THD total harmonic distortion f = 20 to 12500 Hz
for V
= 1 V (RMS value) Gv= −40 to 0 dB − 0.08 0.25 %
i
α
sp
stereo channel separation f = 10 kHz; Gv= 0 dB;
− 75 − dB opposite input grounded by 1 kΩ resistor
α
RR
bus
100
crosstalk of I2C-bus Gv= 0 dB; note 1 − 100 − dB ripple rejection with 100 Hz ripple on V
P
Gv= 0 dB;
− 55 − dB VR< 200 mV RMS
SCART output (pins 7 and 26) V
o
R
L
maximum output signal (RMS value) THD ≤ 0.5%; RL> 5 kΩ 2 −−V admissible output load resistor 5 −−kΩ
Power on reset
V
PONR
increasing supply voltage start of reset −− 2.5 V end of reset 5.2 6.0 6.8 V
V
PONR
2
C-bus, SCL and SDA (pins 16 and 17, observe I2C-bus specification)
I
V
16, 17
decreasing supply voltage start of reset 4.4 5.2 6.0 V
input voltage HIGH-level 3 − V input voltage LOW-level 0 − 1.5 V
I
16, 17
V
ACK
input current −− ±10 µA
output voltage at acknowledge (pin 17) I17= −3 mA −− 0.4 V Module address (pin 25) V
IL
V
IH
LOW level input voltage 0 − 1.5 V
HIGH level input voltage 3 − V Port outputs P1 and P2 (open-collector outputs pins 2 and 31) V
I
2, 31
OL
LOW level output voltage I
= 1 mA (sink) −− 0.3 V
2, 31
port output current sink current −− 1mA
Note to the characteristics
1. α
= 20 log V
bus
bus
/ Vo(V
= spurious bus signal voltage on AF output pin).
bus
− Hz
V
P
V
P
Page 10
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860

I2C-BUS FORMAT

S SLAVE ADDRESS A SUBADDRESS A DATA P
S = start condition SLAVE ADDRESS = 1000 0000 (V A = acknowledge, generated by the slave or by the master SUBADDRESS = subaddress byte, see Table 1 DATA = data byte, see Table 1 P = stop condition
This circuit only operates as a slave transmitter. If more than 1 byte of DATA is transmitted, then auto-increment of the subaddress is performed.
Byte organisation Table 1 I
2
C-bus transmission.
= LOW) or 1000 0010 (V25= HIGH)
25
FUNCTION SUBADDRESS HEX
D7 D6 D5 D4 D3 D2 D1 D0
loudspeaker channel
volume control both 0000 0000 00 0 0 V05 V04 V03 V02 V01 V00 volume/balance left 0000 0001 01 0 0 0 VL4 VL3 VL2 VL1 VL0 volume/balance right 0000 0010 02 0 0 0 VR4 VR3 VR2 VR1 VR0 bass control byte 0000 0011 03 0 0 0 BA4 BA3 BA2 BA1 BA0 treble control byte 0000 0100 04 0000TR3TR2TR1TR0
headphone channel
volume control left 0000 0101 05 0 0 VHL5 VHL4 VHL3 VHL2 VHL1 VHL0 volume control right 0000 0110 06 0 0 VHR5 VHR4 VHR3 VHR2 VHR1 VHR0
switching control byte
headphone output 0000 0111 07 0 MU0 0 0 I03 I02 I01 I00 SCART output 0000 1000 08 0 MU1 P1 P2 I13 I12 I11 I10 loudspeaker output 0000 1001 09 EF2 MU2 EF1 ST I23 I22 I21 I20
DATA
July 1994 10
Page 11
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860
Table 2 Bits of data bytes.
FUNCTION OF THE BITS IN TABLE 1 DESCRIPTION
V00 to V05 volume control common for loudspeaker channel VL0 to VL4 volume control LEFT for loudspeaker channel VR0 to VR4 volume control RIGHT for loudspeaker channel BA0 to BA4 bass control for LEFT and RIGHT loudspeaker channel TR0 to TR3 treble control for LEFT and RIGHT loudspeaker channel VHL0 to VHL5 volume control LEFT for headphone channel VHR0 to VHR5 volume control RIGHT for headphone channel I00 to I03 input selection for headphone channel I10 to I13 input selection for SCART channel I20 to I23 input selection for loudspeaker channel MU0, MU1 and MU2 mute control bits: 0 = non-muted; 1 = muted EF1, EF2 and ST special mode control bits P1 and P2 control bits for port P1 (pin 2) and P2 (pin 31):
output levels: 0 = LOW; 1 = HIGH
Table 3 Output and input selection by subaddress bytes 07, 08 and 09.
OUTPUT AND INPUT CONTROL BYTES, MUTE INCLUDED (EFFECTS TABLE 4)
SELECT OUTPUT PINS INPUT GROUP
INPUT
SIGNAL
ADDR DATA BYTE TO SUBADDRESS
Loudspeaker channels
output pin 18 output pin 15 09 EF2 MU2 EF1 ST I23 I22 I21 I20
SCART channels
output pin 26 output pin 7 08 0 MU1 P1 P2 I13 I12 I11 I10
headphone channels
output pin 20 output pin 13 07 0 MU0 0 0 I03 I02 I01 I00
SELECT INPUT SIGNAL
HEX BITS OF DATA BYTE
PINS
28 28 AUX LEFT V 30 30 AUX RIGHT V 28 30 AUX STEREO V 1 1 SCART LEFT V 32 32 SCART RIGHT V 1 32 SCART STEREO V 3 3 MAIN LEFT V 5 5 MAIN RIGHT V 3 5 MAIN STEREO V
i1 i2 I 1 i 3 i 4 i 3 i5 i 6 i 5
and V
and V
and V
XB X 0 X X1011 X9 X 0 X X1001 X7 X 0 X X0111
i 2
XA X 0 X X1010 X5 X 0 X X0101 X6 X 0 X X0110
i 4
XC X 0 X X1100 XD X 0 X X1101 X8 X 0 X X1000
i 6
Note
1. X = don’t care
July 1994 11
Page 12
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860
Table 4 Effect controls.
SETTING SPECIAL MODES HEX
DATA BYTE TO SUBADDRESS 09
EF2 MU2 EF1 ST I23 I22 I21 I20
stereo with spatial (52%) BX 1011XXXX stereo with spatial (30%) 3X 0011XXXX stereo without spatial 1X 0001XXXX forced mono with pseudo stereo 2X 0010XXXX forced mono without pseudo stereo 0X 0000XXXX
Table 5 Volume 2 / balance control LEFT.
G
v
DATA
(dB) HEX VL4 VL3 VL2 VL1 VL0
0 1F11111
−1 1E11110
−2 1D11101
−3 1C11100
−4 1B11011
−5 1A11010
−6 1911001
−7 1811000
−8 1710111
−9 1610110
−10 1510101
−11 1410100
−12 1310011
−13 1210010
−14 1110001
−15 1010000
−16 0F01111
−17 0E01110
−18 0D01101
−19 0C01100
−20 0B01011
−21 0A01010
−22 0901001
−23 0801000
mute left 07 0 0 1 1 1
Table 6 Volume 2 / balance control RIGHT.
G
v
DATA
(dB) HEX VR4 VR3 VR2 VR1 VR0
0 1F11111
−1 1E11110
−2 1D11101
−3 1C11100
−4 1B11011
−5 1A11010
−6 1911001
−7 1811000
−8 1710111
−9 1610110
−10 1510101
−11 1410100
−12 1310011
−13 1210010
−14 1110001
−15 1010000
−16 0F01111
−17 0E01110
−18 0D01101
−19 0C01100
−20 0B01011
−21 0A01010
−22 0901001
−23 0801000
mute right 07 00111
July 1994 12
Page 13
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860
Table 7 Volume 1 to control both channels.
G
v
DATA
(dB) HEX V05 V04 V03 V02 V01 V00
+15 3F111111 +14 3E111110 +13 3D111101 +12 3C111100 +11 3B111011 +10 3A111010 +9 39111001 +8 38111000 +7 37110111 +6 36110110 +5 35110101 +4 34110100 +3 33110011 +2 32110010 +1 31110001 0 30110000
−1 2F101111
−2 2E101110
−3 2D101101
−4 2C101100
−5 2B101011
−6 2A101010
−7 29101001
−8 28101000
−9 27100111
−10 26100110
−11 25100101
−12 24100100
−13 23100011
−14 22100010
−15 21100001
−16 20100000
G
v
DATA
(dB) HEX V05 V04 V03 V02 V01 V00
−17 1F011111
−18 1E011110
−19 1D011101
−20 1C011100
−21 1B011011
−22 1A011010
−23 19011001
−24 18011000
−25 17010111
−26 16010110
−27 15010101
−28 14010100
−29 13010011
−30 12010010
−31 11010001
−32 10010000
−33 0F001111
−34 0E001110
−35 0D001101
−36 0C001100
−37 0B001011
−38 0A001010
−39 09001001
−40 08001000
July 1994 13
Page 14
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860
Table 8 Bass control LEFT and RIGHT.
G
v
(dB) HEX BA4 BA3 BA2 BA1 BA0
+15 19 1 1 0 0 1 +13.5 18 1 1 0 0 0 +12 17 1 0 1 1 1 +10.5 16 1 0 1 1 0 +9 15 1 0 1 0 1 +7.5 14 1 0 1 0 0 +6 13 1 0 0 1 1 +4.5 12 1 0 0 1 0 +3 11 10001 +1.5 10 1 0 0 0 0 0 0F 01111 0 0E 01110
−1.5 0D 0 1 1 0 1
−3 0C 01100
−4.5 0B 0 1 0 1 1
−6 0A 01010
−7.5 09 0 1 0 0 1
−9 08 01000
−10.5 07 0 0 1 1 1
−12 06 0 0 1 1 0
DATA
Table 9 Treble control LEFT and RIGHT.
G
v
(dB) HEX 0 TR3 TR2 TR1 TR0
+12 0A01010 +9 0901001 +6 0801000 +3 0700111 0 0600110
−3 0500101
−6 0400100
−9 0300011
−12 0200010
DATA
July 1994 14
Page 15
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860
Table 10 Volume control of headphone LEFT.
G
v
(dB) HEX VHL5VHL4VHL3VHL2VHL1VHL
03F111111
−23E111110
−43D111101
−63C111100
−83B111011
−103A111010
−1239111001
−1438111000
−1637110111
−1836110110
−2035110101
−2234110100
−2433110011
−2632110010
−2831110001
−3030110000
−322F101111
−342E101110
−362D101101
−382C101100
−402B101011
−422A101010
−4429101001
−4628101000
−4827100111
−5026100110
−5225100101
−5424100100
−5623100011
−5822100010
−6021100001
−6220100000
−641F011111
−661E011110
−681D011101
−701C011100
mute left
1B011011
DATA
0
Table 11 Volume control of headphone RIGHT.
G
v
(dB) HEX VHR5VHR4VHR3VHR2VHR1VHR
0 3F111111
−2 3E111110
−4 3D111101
−6 3C111100
−8 3B111011
−10 3A111010
−12 39111001
−14 38111000
−16 37110111
−18 36110110
−20 35110101
−22 34110100
−24 33110011
−26 32110010
−28 31110001
−30 30110000
−32 2F101111
−34 2E101110
−36 2D101101
−38 2C101100
−40 2B101011
−42 2A101010
−44 29101001
−46 28101000
−48 27100111
−50 26100110
−52 25100101
−54 24100100
−56 23100011
−58 22100010
−60 21100001
−62 20100000
−64 1F011111
−66 1E011110
−68 1D011101
−70 1C011100
mute right
1B011011
DATA
0
July 1994 15
Page 16
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860

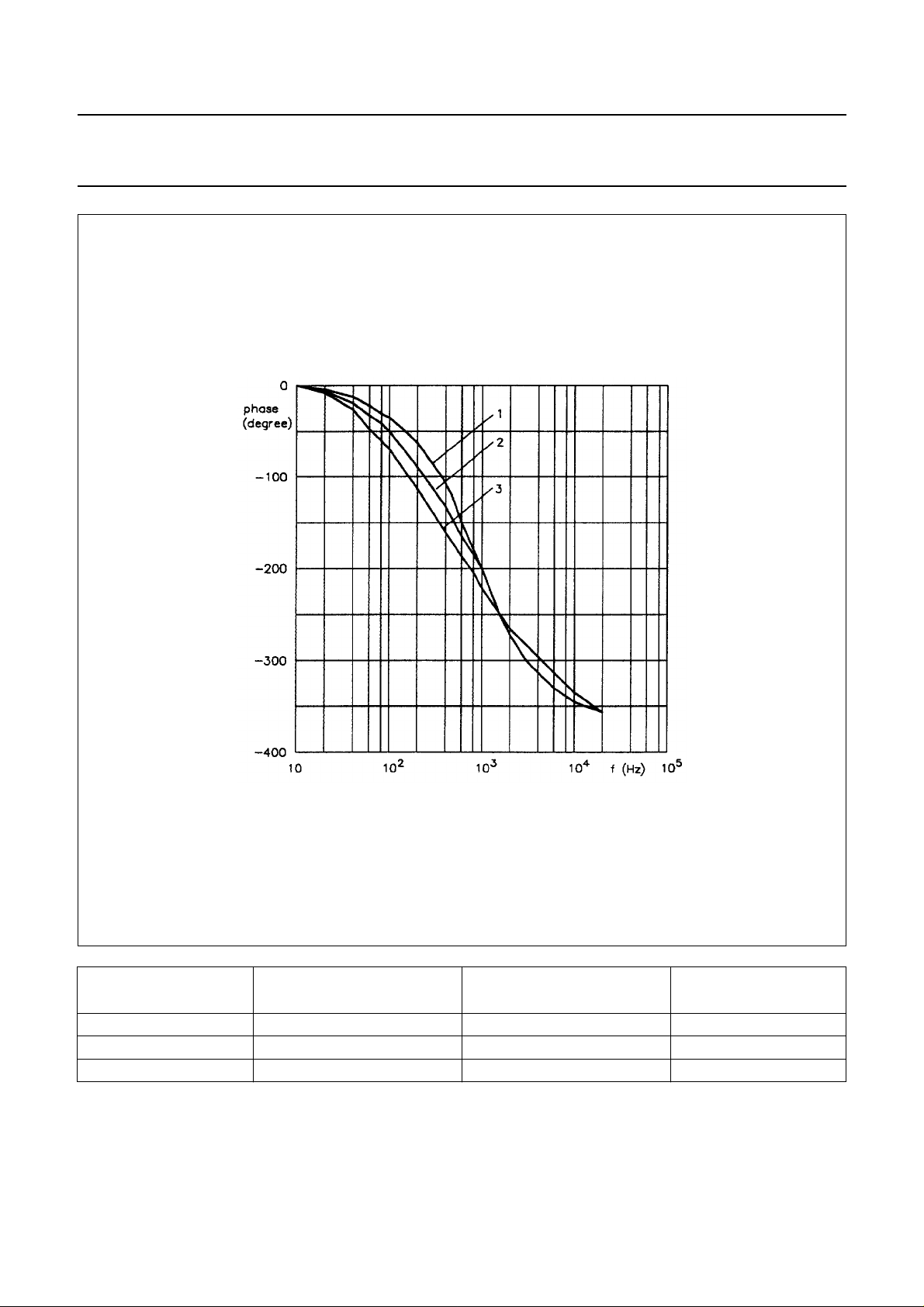

Fig.3 Pseudo (phase) as a function of frequency.
CURVE
1 15 15 normal 2 47 5.6 intensified 3 68 5.6 more intensified
July 1994 16
CAPACITANCE AT PIN 29
(nF)
CAPACITANCE AT PIN 27
(nF)
EFFECT
Page 17
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860

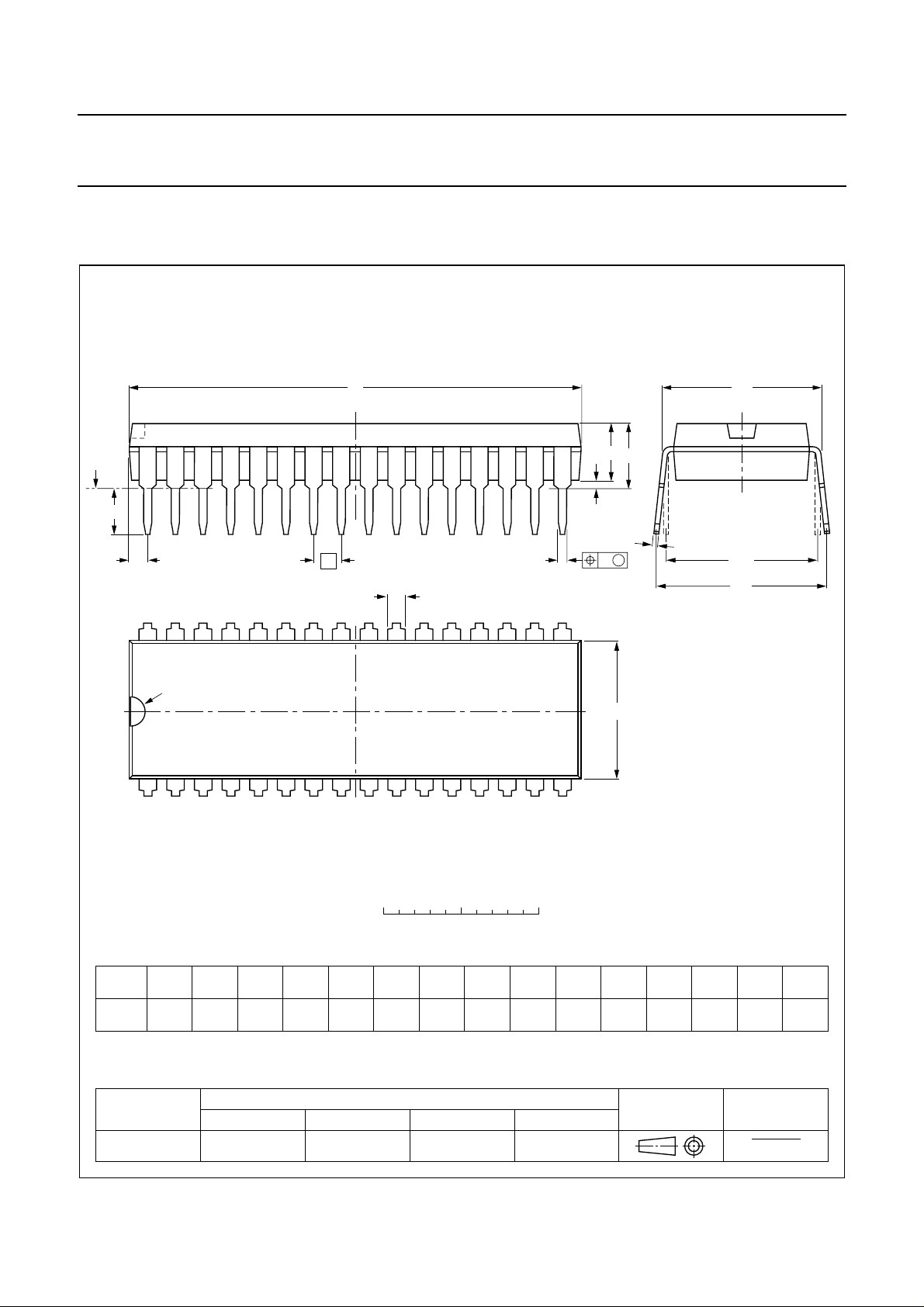

PACKAGE OUTLINE

SDIP32: plastic shrink dual in-line package; 32 leads (400 mil)
D
seating plane
L
Z
32
pin 1 index
e
b

SOT232-1

M
E
A
2
A
A
1
w M
b
1
17
E
c
(e )
M
1
H
1
0 5 10 mm
scale
DIMENSIONS (mm are the original dimensions)
A
A
A
UNIT b
Note
1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.
mm
OUTLINE VERSION
SOT232-1
max.
4.7 0.51 3.8
12
min.
max.
IEC JEDEC EIAJ
1.3
0.8
b
1
0.53
0.40
REFERENCES
0.32
0.23
cEe M
(1) (1)
D
29.4
28.5
July 1994 17
9.1
8.7
16
(1)
Z
L
3.2
2.8
EUROPEAN
PROJECTION
M
10.7
10.2
E
12.2
10.5
e
1
w
H
0.181.778 10.16
ISSUE DATE
92-11-17 95-02-04
max.
1.6
Page 18
Philips Semiconductors Preliminary specification
Universal HiFi audio processor for TV TDA9860
SOLDERING Introduction
There is no soldering method that is ideal for all IC packages. Wave soldering is often preferred when through-hole and surface mounted components are mixed on one printed-circuit board. However, wave soldering is not always suitable for surface mounted ICs, or for printed-circuits with high population densities. In these situations reflow soldering is often used.
This text gives a very brief insight to a complex technology. A more in-depth account of soldering ICs can be found in
“IC Package Databook”
our
(order code 9398 652 90011).
Soldering by dipping or by wave
The maximum permissible temperature of the solder is 260 °C; solder at this temperature must not be in contact
with the joint for more than 5 seconds. The total contact time of successive solder waves must not exceed 5 seconds.
The device may be mounted up to the seating plane, but the temperature of the plastic body must not exceed the specified maximum storage temperature (T
stg max
). If the printed-circuit board has been pre-heated, forced cooling may be necessary immediately after soldering to keep the temperature within the permissible limit.
Repairing soldered joints
Apply a low voltage soldering iron (less than 24 V) to the lead(s) of the package, below the seating plane or not more than 2 mm above it. If the temperature of the soldering iron bit is less than 300 °C it may remain in contact for up to 10 seconds. If the bit temperature is between 300 and 400 °C, contact may be up to 5 seconds.

DEFINITIONS

Data sheet status
Objective specification This data sheet contains target or goal specifications for product development. Preliminary specification This data sheet contains preliminary data; supplementary data may be published later. Product specification This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.
2
PURCHASE OF PHILIPS I
C COMPONENTS
Purchase of Philips I
2
C components conveys a license under the Philips’ I2C patent to use the components in the I2C system provided the system conforms to the I2C specification defined by Philips. This specification can be ordered using the code 9398 393 40011.
July 1994 18
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
