TDA9813T

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

1999 Sep 16 2

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

FEATURES

• 5 V supply voltage

• Gain controlled wide band VIF amplifier (AC-coupled)

• True synchronous demodulation with active carrier

regeneration (very linear demodulation, good
intermodulation figures, reduced harmonics,
excellent pulse response)

• Separate video amplifier for sound trap buffering with
high video bandwidth

• VIF-AGC detector for gain control, operating as peak
sync detector

• Tuner AGC with adjustable takeover point (TOP)

• AFC detector without extra reference circuit

• AC-coupled limiter amplifier forsound intercarrier signal

• Two alignment-free FM-PLL demodulators with

high linearity

• SIF input for single reference QSS mode (PLL
controlled); SIF-AGC detector for gain controlled SIF
amplifier; single reference QSS mixer able to operate in
high performance single reference QSS mode

• Stabilizer circuit for ripple rejection and to achieve
constant output signals

• ESD protection for all pins.

GENERAL DESCRIPTION

The TDA9813T is an integrated circuit for vision IF signal
processing and sound dual FM demodulation, with single
reference QSS-IF in TV and VCR sets. For negative
modulation standards only.

ORDERING INFORMATION

TYPE NUMBER

PACKAGE

NAME DESCRIPTION VERSION

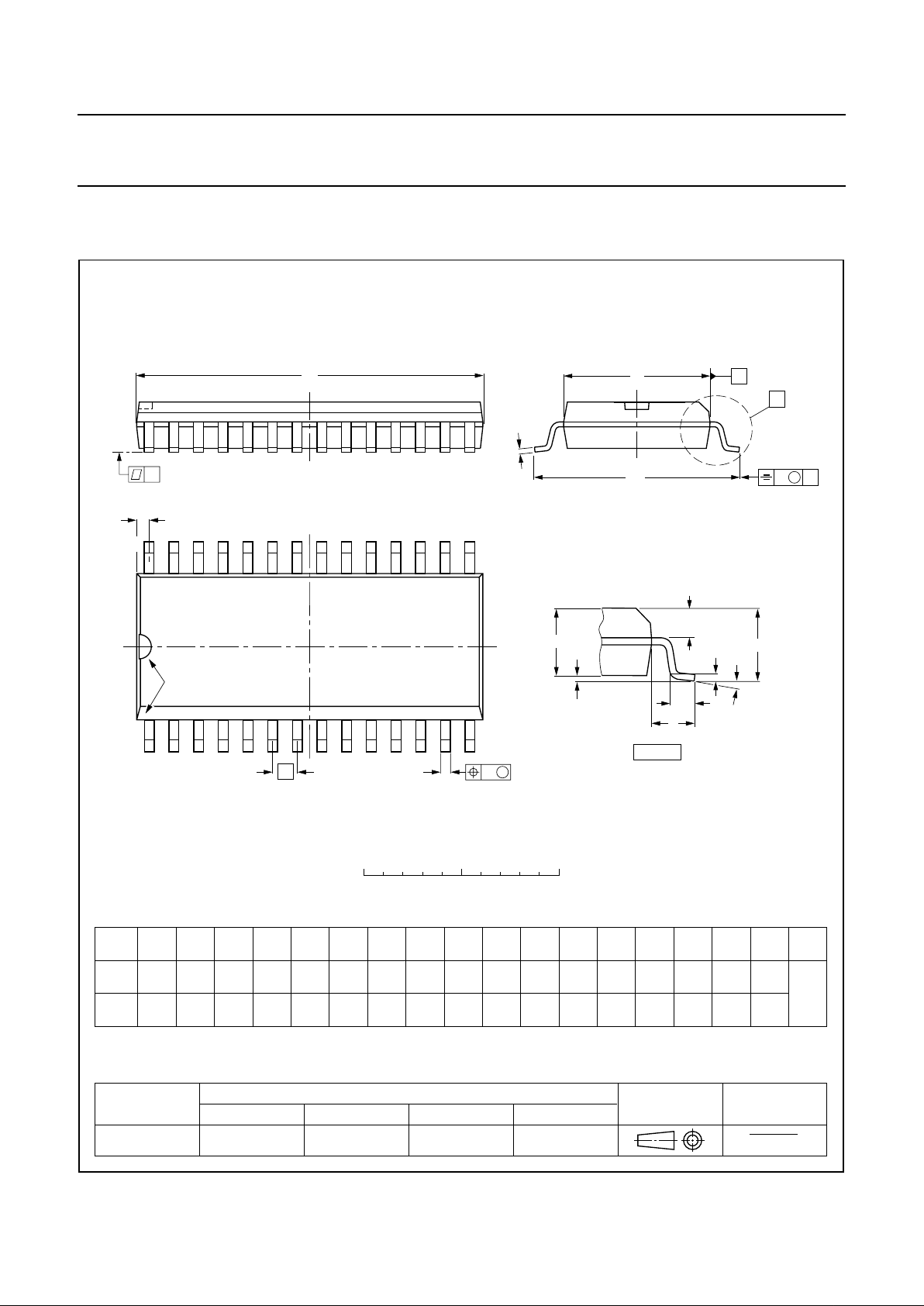

TDA9813T SO28 plastic small outline package; 28 leads; body width 7.5 mm SOT136-1

1999 Sep 16 3

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

P

supply voltage 4.5 5 5.5 V

I

P

supply current 93 109 125 mA

V

i VIF(rms)

vision IF input signal voltage sensitivity
(RMS value)

−1 dB video at output − 60 100 µV

V

o CVBS(p-p)

CVBS output signal voltage
(peak-to-peak value)

1.7 2.0 2.3 V

B

−3

−3 dB video bandwidth on pin 8 CL< 20 pF; RL> 1kΩ; AC load 7 8 − MHz

S/N(W) weighted signal-to-noise ratio for video 56 60 − dB
IM

α1.1

intermodulation attenuation at ‘blue’ f = 1.1 MHz 58 64 − dB

IM

α3.3

intermodulation attenuation at ‘blue’ f = 3.3 MHz 58 64 − dB

α

H(sup)

suppression of harmonics in video
signal

35 40 − dB

V

i SIF(rms)

sound IF input signal voltage
sensitivity (RMS value)

−3 dB at intercarrier output − 30 70 µV

V

o(rms)

audio output signal voltage for FM
(RMS value)

B/G standard; 54% modulation − 0.5 − V

THD total harmonic distortion 54% modulation − 0.15 0.5 %
S/N(W) weighted signal-to-noise ratio 54% modulation − 60 − dB

1999 Sep 16 4

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and

dual FM-PLL demodulator

TDA9813T

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pagestoberotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

BLOCK DIAGRAM

handbook, full pagewidth

SINGLE REFERENCE

MIXER

VCO TWD

AFC DETECTOR

TUNER AND VIF-AGC

FPLL

VIDEO DEMODULATOR

AND AMPLIFIER

SIF

AMPLIFIER

SIF-AGC

INTERNAL VOLTAGE

STABILIZER

FM DETECTOR (PLL)

AF AMPLIFIER

VIF AMPLIFIER

SIF

VIF

TDA9813T

26 24 23 7 6

8

18

19

13

10

11

20212251625 43

2
1

28
27

5 V

VP1/2

C

AGC

917 15

5.5

5.74
SIF

14 12

n.c.n.c.

AF2

FM DETECTOR (PLL)

AF AMPLIFIER

AF1

VIDEO

BUFFER

V

i(vid)

CVBS

2 V (p-p)

video

1 V (p-p)

AFC

2 x f

PC
tuner
AGC

loop
filter

n.c.

TOP

C

AGC

MHA037

Fig.1 Block diagram.

1999 Sep 16 5

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

PINNING

SYMBOL PIN DESCRIPTION

V

i VIF1

1 VIF differential input signal voltage 1

V

i VIF2

2 VIF differential input signal voltage 2
n.c. 3 not connected
TADJ 4 tuner AGC takeover adjust (TOP)
T

PLL

5 PLL loop filter
C

SAGC

6 SIF-AGC capacitor
n.c. 7 not connected
V

o CVBS

8 CVBS output signal voltage
n.c. 9 not connected
V

o AF1

10 audio voltage frequency output 1

V

o AF2

11 audio voltage frequency output 2

C

DEC2

12 decoupling capacitor 2

C

DEC1

13 decoupling capacitor 1

V

i FM2

14 sound intercarrier input voltage 2

V

i FM1

15 sound intercarrier input voltage 1
TAGC 16 tuner AGC output
V

o QSS

17 single reference QSS output voltage
V

o(vid)

18 composite video output voltage
V

i(vid)

19 video buffer input voltage
AFC 20 AFC output
VCO1 21 VCO1 reference circuit for 2f

PC

VCO2 22 VCO2 reference circuit for 2f

PC

C

ref

231⁄2VPreference capacitor
GND 24 ground
C

VAGC

25 VIF-AGC capacitor
V

P

26 supply voltage
V

i SIF1

27 SIF differential input signal voltage 1
V

i SIF2

28 SIF differential input signal voltage 2

Fig.2 Pin configuration.

handbook, halfpage

TDA9813T

MHA038

1
2
3
4
5
6
7
8

9
10
11
12
13
14

V
V

n.c.

TADJ

T

C

n.c.

V

n.c.

V

i FM2

28
27
26
25
24
23
22
21
20
19
18
17
16
15

V
V
V
C

GND
C

VCO2
VCO1
AFC

V
V
V

TAGC
V

o CVBS

SAGC

PLL

i VIF2

i VIF1

P

i SIF1

i SIF2

VAGC

ref

i FM1

o QSS

o(vid)

i(vid)

C

DEC1

C

DEC2

V

o AF2

V

o AF1

1999 Sep 16 6

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

FUNCTIONAL DESCRIPTION

The integrated circuit comprises the functional blocks as
shown in Fig.1:

• Vision IF amplifier

• Tuner and VIF-AGC

• Frequency Phase Locked Loop (FPLL) detector

• VCO, Travelling Wave Divider (TWD) and AFC

• Video demodulator and amplifier

• Video buffer

• SIF amplifier and SIF-AGC

• Single reference Quasi Split Sound (QSS) mixer

• FM-PLL demodulator

• Internal voltage stabilizer and1⁄2VPreference.

Vision IF amplifier

The vision IF amplifier consists of three AC-coupled
differential amplifier stages. Each differential stage
comprises a feedback network controlled by emitter
degeneration.

Tuner and VIF-AGC

The AGC capacitor voltage is transferred to an internal IF
control signal, and is fed to the tuner AGC to generate the
tuner AGC output current (open-collector output).
The tuner AGC takeover point can be adjusted. This
allows the tuner and the SAW filter to be matched to
achieve the optimum IF input level.

The AGC detector charges/discharges the AGC capacitor
to the required voltage for setting of VIF and tuner gain in
order to keep the video signal at a constant level.
Therefore the sync level of the video signal is detected.

Frequency Phase Locked Loop (FPLL) detector

The VIF amplifier output signal is fed into a frequency
detector and into a phase detector via a limiting amplifier.
During acquisition the frequency detector produces a DC
current proportional to the frequency difference between
the input and the VCO signal. After frequency lock-in the
phase detector produces a DC current proportional to the
phase difference between the VCO and the input signal.
The DC current of either frequency detector or phase
detector is converted into a DC voltage via the loop filter,
which controls the VCO frequency.

VCO, Travelling Wave Divider (TWD) and AFC

The VCO operates with a resonance circuit (with L and C
in parallel) at double the PC frequency. The VCO is
controlled by two integrated variable capacitors.
The control voltage required to tune the VCO from its
free-running frequency to actually double the PC
frequency is generated by the frequency-phase detector
(FPLL) and fed via the loop filter to the first variable
capacitor.Thiscontrol voltage is amplified and additionally
converted into a current which represents the AFC output
signal.AtcentrefrequencytheAFCoutputcurrentisequal
to zero.

The oscillator signal is divided-by-two with a TWD which
generates two differential output signals with a 90 degree
phase difference independent of the frequency.

Video demodulator and amplifier

The video demodulator is realized by a multiplier which is
designedfor low distortion and largebandwidth.The vision
IF input signal is multiplied with the ‘in phase’ signal of the
travelling wave divider output.

The demodulator output signal is fed via an integrated
low-pass filter for attenuation of the carrier harmonics to
the video amplifier. The video amplifier is realized by an
operational amplifier with internal feedback and high
bandwidth. A low-pass filter is integrated to achieve an
attenuation of the carrier harmonics. The video output
signal is 1 V (p-p) for nominal vision IF modulation.

Video buffer

For an easy adaption of the sound traps an operational
amplifier with internal feedback is used. This amplifier is
featured with a high bandwidth and 7 dB gain. The input
impedance is adapted for operating in combination with
ceramic sound traps. The output stage delivers a nominal
2 V (p-p) positive video signal. Noise clipping is provided.

SIF amplifier and SIF-AGC

The sound IF amplifier consists of two AC-coupled
differential amplifier stages. Each differential stage
comprises a controlled feedback network provided by
emitter degeneration.

The SIF-AGC detector is related to the SIF input signals
(average level of FM carriers) and controls the SIF
amplifier to provide a constant SIF signal to the single
reference QSS mixer.

1999 Sep 16 7

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

Single reference QSS mixer

The single reference QSS mixer is realized by a multiplier.
The SIF amplifier output signal is fed to the single
reference QSS mixer and converted to intercarrier
frequency by the regenerated picture carrier (VCO).
The mixer output signal is fed via a high-pass for
attenuation of the video signal components to the output
pin 17. With this system a high performance hi-fi stereo
sound processing can be achieved.

FM-PLL demodulator

Each FM-PLL demodulator consists of a limiter, an
FM-PLL and an AF amplifier. The limiter provides the
amplification and limitation of the FM sound intercarrier
signal before demodulation. The result is high sensitivity
and AM suppression. The amplifier consists of 7 stages
which are internally AC-coupled in order to minimize the
DC offset and to save pins for DC decoupling.

The second limiter is extended with an additional level
detector consisting of a rectifier and a comparator.
By means of this the AF2 signal is set to mute and the
PLL VCO is switched off, if the intercarrier signal at pin 14
is below 1 mV (RMS) in order to avoid false identification
of a stereo decoder. It should be noted that noise at pin 14
disables the mute state (at low SIF input signal), but this
willnot lead to false identification.This‘auto-mute’ function
can be disabled by connecting a 5.6 kΩ resistor from
pin 14 to VP (see Fig.11).

Furthermore the AF output signals can be muted by
connecting a resistor between the limiter inputs pin 14 or
pin 15 and ground.

TheFM-PLLconsists of an integrated relaxation oscillator,
an integrated loop filter and a phase detector.
The oscillatorislockedtotheFMintercarriersignal,output
from the limiter. As a result of locking, the oscillator
frequency tracks with the modulation of the input signal
and the oscillator control voltage is superimposed by the
AF voltage. The FM-PLL operates as an FM demodulator.

The AF amplifier consists of two parts:

1. The AF preamplifier for FM sound is an operational
amplifier with internal feedback, high gain and high
common mode rejection. The AF voltage from the PLL
demodulator, by principle a small output signal, is
amplified by approximately 33 dB. The low-pass
characteristicof the amplifierreducesthe harmonics of
the intercarrier signal at the sound output terminal.
An additionalDC control circuitisimplemented to keep
the DC level constant, independent of process spread.

2. The AF output amplifier (10 dB) provides the required
output level by a rail-to-rail output stage. This amplifier
makes use of an input selector for switching to FM or
mute state, controlled by the mute switching voltage.

Internal voltage stabilizer and

1

⁄2VPreference

The band gap circuit internally generates a voltage of
approximately 1.25 V, independent of supply voltage and
temperature. A voltage regulator circuit, connected to this
voltage, produces a constant voltage of 3.6 V which is
used as an internal reference voltage.

For all audio output signals the constant reference voltage
cannot be used because large output signals are required.
Therefore these signals refer to half the supply voltage to
achieve a symmetrical headroom, especially for the
rail-to-rail output stage. For ripple and noise attenuation
the

1

⁄2VP voltage has to be filtered via a low-pass filter by

using an external capacitor together with an integrated
resistor (fg= 5 Hz). For a fast setting to 1⁄2VP an internal
start-up circuit is added.

1999 Sep 16 8

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

Notes

1. IP= 125 mA; T

amb

=70°C; R

th(j-a)

= 80 K/W.

2. Machine model class B (L = 2.5 µH).

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

P

supply voltage (pin 26) maximum chip temperature

of 125 °C; note 1

0 5.5 V

V

n

voltage at pins 1 to 7, 9 to 16, 19, 20 and
23 to 28

0V

P

V

t

s(max)

maximum short-circuit time − 10 s

V

16

tuner AGC output voltage 0 13.2 V

T

stg

storage temperature −25 +150 °C

T

amb

ambient temperature −20 +70 °C

V

es

electrostatic handling voltage note 2 −300 +300 V

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th(j-a)

thermal resistance from junction to ambient in free air 80 K/W

1999 Sep 16 9

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

CHARACTERISTICS

VP=5V; T

amb

=25°C; see Table 1 for input frequencies and carrier ratios (B/G standard); input level

V

i IF 1-2

= 10 mV RMS value (sync-level); video modulation DSB; residual carrier: 10%; video signal in accordance with

“CCIR, line 17”

; measurements taken in Fig.11; unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply (pin 26)

V

P

supply voltage note 1 4.5 5 5.5 V

I

P

supply current 93 109 125 mA

Vision IF amplifier (pins 1 and 2)

V

i VIF(rms)

input signal voltage
sensitivity (RMS value)

−1 dB video at output − 60 100 µV

V

i max(rms)

maximum input signal
voltage (RMS value)

+1 dB video at output 120 200 − mV

∆V

o(int)

internal IF amplitude
difference between picture
and sound carrier

within AGC range;

∆f = 5.5 MHz

− 0.7 1 dB

G

IFcr

IF gain control range see Fig.3 65 70 − dB

R

i(diff)

differential input resistance note 2 1.7 2.2 2.7 kΩ

C

i(diff)

differential input capacitance note 2 1.2 1.7 2.5 pF

V

1,2

DC input voltage note 2 − 3.4 − V
True synchronous video demodulator; note 3
f

VCO(max)

maximum oscillator

frequency for carrier

regeneration

f=2f

PC

125 130 − MHz

∆f

osc

/∆T oscillator drift as a function

of temperature

oscillator is free-running;
I

AFC

= 0; note 4

−−±20 × 10−6K

−1

V

o ref(rms)

oscillator voltage swing at

pins 21 and 22 (RMS value)

70 100 130 mV

f

PC CR

picture carrier capture range ±1.4 ±1.8 − MHz
t

acq

acquisition time BL = 75 kHz; note 5 −−30 ms
V

i VIF(rms)

VIF input signal voltage

sensitivity for PLL to be

locked (RMS value; pins 1

and 2)

maximum IF gain; note 6 − 30 70 µV

Composite video amplifier (pin 18; sound carrier off)

V

o video(p-p)

output signal voltage

(peak-to-peak value)

see Fig.8 0.88 1.0 1.12 V

V/S ratio between video

(black-to-white) and

sync level

1.9 2.33 3.0 −

V

18(sync)

sync voltage level − 1.5 − V
V

18(clu)

upper video clipping voltage

level

VP− 1.1 VP− 1 − V

1999 Sep 16 10

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

V

18(cll)

lower video clipping voltage

level

− 0.7 0.9 V

R

o,18

output resistance note 2 −−10 Ω
I

int 18

internal DC bias current for

emitter-follower

2.2 3.0 − mA

I

18 max(sink)

maximum AC and DC output

sink current

1.6 −− mA

I

18 max(source)

maximum AC and DC output

source current

2.9 −− mA

B

−1

−1 dB video bandwidth CL< 50 pF; RL>1kΩ;

AC load

56− MHz

B

−3

−3 dB video bandwidth CL< 50 pF; RL>1kΩ;

AC load

78− MHz

α

H(sup)

suppression of video signal

harmonics

CL< 50 pF; RL>1kΩ;
AC load; note 7a

35 40 − dB

PSRR power supply ripplerejection

at pin 18

video signal; grey level;
see Fig.9

32 35 − dB

CVBS buffer amplifier (only) and noise clipper (pins 8 and 19)

R

i,19

input resistance note 2 2.6 3.3 4.0 kΩ
C

i,19

input capacitance note 2 1.4 2 3.0 pF
V

I,19

DC input voltage 1.4 1.7 2.0 V
G

v

voltage gain note 8 6.5 7 7.5 dB
V

8(clu)

upper video clipping voltage

level

3.9 4.0 − V

V

8(cll)

lower video clipping voltage

level

− 1.0 1.1 V

R

o,8

output resistance note 2 −−10 Ω
I

int 8

DC internal bias current for

emitter-follower

2.0 2.5 − mA

I

o,8 max(sink)

maximum AC and DC output

sink current

1.4 −− mA

I

o,10 max(source)

maximum AC and DC output

source current

2.4 −− mA

B

−1

−1 dB video bandwidth CL< 20 pF; RL>1kΩ;

AC load

8.4 11 − MHz

B

−3

−3 dB video bandwidth CL< 20 pF; RL>1kΩ;

AC load

11 14 − MHz

Measurements from IF input to CVBS output (pin 8; 330 Ω between pins 18 and 19, sound carrier off)

V

o CVBS(p-p)

CVBS output signal voltage

on pin 8

(peak-to-peak value)

note 8 1.7 2.0 2.3 V

V

o CVBS(sync)

sync voltage level − 1.35 − V

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1999 Sep 16 11

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

∆V

o

deviation of CVBS output

signal voltage at B/G

50 dB gain control −−0.5 dB
30 dB gain control −−0.1 dB

∆V

o(blB/G)

black level tilt in

B/G standard

gain variation; note 9 −−1%

G

diff

differential gain

“CCIR, line 330”

− 25 %

ϕ

diff

differential phase

“CCIR, line 330”

− 1 2 deg

B

−1

−1 dB video bandwidth CL< 20 pF; RL>1kΩ;

AC load

56− MHz

B

−3

−3 dB video bandwidth CL< 20 pF; RL>1kΩ;

AC load

78− MHz

S/N(W) weighted signal-to-noise

ratio

see Fig.5 and note 10 56 60 − dB

S/N unweighted signal-to-noise

ratio

see Fig.5 and note 10 49 53 − dB

IMα

1.1

intermodulation attenuation

at ‘blue’

f = 1.1 MHz;
see Fig.6 and note 11

58 64 − dB

intermodulation attenuation

at ‘yellow’

f = 1.1 MHz;
see Fig.6 and note 11

60 66 − dB

IMα

3.3

intermodulation attenuation

at ‘blue’

f = 3.3 MHz;
see Fig.6 and note 11

58 64 − dB

intermodulation attenuation

at ‘yellow’

f = 3.3 MHz;
see Fig.6 and note 11

59 65 − dB

α

pc(rms)

residual picture carrier

(RMS value)

fundamental wave and
harmonics

− 25 mV

α

H(sup)

suppression of video signal

harmonics

note 7a 35 40 − dB

α

H(spur)

spurious elements note 7b 40 −− dB
PSRR power supply ripplerejection

at pin 8

video signal; grey level;
see Fig.9

25 28 − dB

VIF-AGC detector (pin 25)

I

25

charging current note 9 0.75 1 1.25 mA

discharging current 15 20 25 µA
t

resp

AGC response to an

increasing VIF step

note 12 − 0.05 0.1 ms/dB

AGC response to a

decreasing VIF step

− 2.2 3.5 ms/dB

Tuner AGC (pin 16)

V

i(rms)

IF input signal voltage for

minimum starting point of

tuner takeover (RMS value)

input at pins 1 and 2;
R

TOP

=22kΩ; I16= 0.4 mA

− 25 mV

IF input signal voltage for

maximum starting point of

tuner takeover (RMS value)

input at pins 1 and 2;
R

TOP

=0Ω; I16= 0.4 mA

50 100 − mV

V

o,16

permissible output voltage from external source; note 2 −−13.2 V

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1999 Sep 16 12

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

V

sat,16

saturation voltage I16= 1.5 mA −−0.2 V
∆V

TOP,16

/∆T variation of takeoverpoint by

temperature

I16= 0.4 mA − 0.03 0.07 dB/K

I

16(sink)

sink current see Fig.3

no tuner gain reduction;
V

16

= 13.2 V

−−1 µA

maximum tuner gain
reduction

1.5 2 2.6 mA

∆G

IF

IF slip by automatic gain

control

tuner gain current from
20% to 80%

− 68 dB

AFC circuit (pin 20); see Fig.7 and note 13
S control steepness ∆I

20

/∆f note 14 0.5 0.75 1.0 µA/kHz

∆f

IF

/∆T frequency variation by

temperature

I

AFC

= 0; note 5 −−±20 × 10−6K

−1

V

o,20

output voltage upper limit see Fig.7 without external

components

VP− 0.6 VP− 0.3 − V

output voltage lower limit − 0.3 0.6 V
I

o,20(source)

output source current see Fig.7 150 200 250 µA
I

o,20(sink)

output sink current 150 200 250 µA
∆I

20(p-p)

residual video modulation

current (peak-to-peak value)

− 20 30 µA

Sound IF amplifier (pins 27 and 28)

V

i SIF(rms)

input signal voltage

sensitivity (RMS value)

−3 dB at intercarrier output
pin 17

− 30 70 µV

V

i max(rms)

maximum input signal

voltage (RMS value)

+1 dB at intercarrier output
pin 17

50 70 − mV

G

SIFcr

SIF gain control range see Fig.4 60 67 − dB
R

i(diff)

differential input resistance note 2 1.7 2.2 2.7 kΩ
C

i(diff)

differential input capacitance note 2 1.2 1.7 2.5 pF
V

I(27,28)

DC input voltage − 3.4 − V

α

ct(SIF,VIF)

crosstalk attenuation

between SIF and VIF input

between pins 1 and 2 and
pins 27 and 28; note 15

50 −− dB

SIF-AGC detector (pin 6)

I

6

charging current 8 12 16 µA

discharging current 8 12 16 µA

Single reference QSS intercarrier mixer (B/G standard; pin 17)

V

o(rms)

IF intercarrier level

(RMS value)

SC1; sound carrier 2 off 75 100 125 mV

B

−3

−3 dB intercarrier bandwidth upper limit 7.5 9 − MHz

α

SC(rms)

residual sound carrier

(RMS value)

fundamental wave and
harmonics

− 2 − mV

R

o,17

output resistance note 2 −−25 Ω
V

O,17

DC output voltage − 2.0 − V

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1999 Sep 16 13

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

I

int 17

DC internal bias current for

emitter-follower

1.5 1.9 − mA

I

17 max(sink)

maximum AC and DC output

sink current

1.1 1.5 − mA

I

17 max(source)

maximum AC and DC output

source current

3.0 3.5 − mA

Limiter amplifier 1 (pin 15); note 16
V

i FM(rms)

input signal voltage for

lock-in (RMS value)

−−100 µV

V

i FM(rms)

input signal voltage

(RMS value)

− 300 400 µV

allowed input signal voltage

(RMS value)

200 −− mV

R

i,15

input resistance note 2 480 600 720 Ω
V

I,15

DC input voltage − 2.8 − V
Limiter amplifier 2 (pin 14); note 16
V

i FM(rms)

input signal voltage for

lock-in (RMS value)

−−100 µV

V

i FM(rms)

input signal voltage

(RMS value)

PLL1 has to be in locked
mode; auto mute off

− 300 400 µV

allowed input signal voltage

(RMS value)

200 −− mV

input signal voltage for no

auto mute; PLL enabled

(RMS value)

0.7 1 1.5 mV

HYS

14

hysteresis of level detector

for auto mute

−3 −6 −8dB

R

i,14

input resistance note 2 480 600 720 Ω
V

I,14

DC input voltage − 2.0 − V

FM-PLL demodulator

f

i FM(catch)

catching range of PLL upper limit 7.0 −− MHz

lower limit −−4.0 MHz

f

i FM(hold)

holding range of PLL upper limit 8.0 −− MHz

lower limit −−3.5 MHz

t

acq

acquisition time −−4 µs

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

SN+

N

--------------

40 dB=

SN+

N

--------------

40 dB=

1999 Sep 16 14

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

FM operation (B/G standard; pins 10 and 11); notes 16 and 16a
V

o AF10,11(rms)

AF output signal voltage

(RMS value)

27 kHz (54% FM deviation);
see Fig.11 and note 17

R

x=Ry

= 470 Ω 200 250 300 mV

R

x=Ry

=0Ω 400 500 600 mV

V

o AF10,11(cl)

AF output clipping signal

voltage level

THD < 1.5% 1.3 1.4 − V

∆f

AF

frequency deviation THD < 1.5%; note 17 −−±53 kHz
∆V

o

/∆T temperature drift of AF

output signal voltage

− 3 × 10−37 × 10

−3

dB/K

V

12,13

DC voltage at decoupling

capacitor

voltage dependent on VCO
frequency; note 18

1.2 − 3.0 V

R

10,11

output resistance note 2 −−100 Ω
V

10,11

DC output voltage tracked with supply voltage −

1

⁄2V

P

− V

I

10,11max(sink)

maximum AC and DC output

sink current

−−1.1 mA

I

10,11max(source)

maximum AC and DC output

source current

−−1.1 mA

B

−3

−3 dB video bandwidth 100 125 − kHz

THD total harmonic distortion − 0.15 0.5 %
S/N(W) weighted signal-to-noise

ratio

FM-PLL only; with 50 µs
de-emphasis; 27 kHz
(54% FM deviation);

“CCIR 468-4”

55 60 − dB

α

SC(rms)

residual sound carrier

(RMS value)

fundamental wave and
harmonics

−−75 mV

α

AM

AM suppression 50 µs de-emphasis;

AM: f = 1 kHz; m = 0.3 refer
to 27 kHz (54% FM
deviation)

46 50 − dB

α

10,11

mute attenuation of AF

signal

70 80 − dB

∆V

10,11

DC jump voltage of AF

output terminals for

switching AF output to mute

state and vice versa

FM-PLLs in lock mode;
note 19

−±50 ±150 mV

PSRR power supply ripplerejection

at pins 10 and 11

R

x=Ry

=0Ω;

see Figs 9 and 11

22 28 − dB

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1999 Sep 16 15

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

Notes

1. Values of video and sound parameters are decreased at VP= 4.5 V.

2. This parameter is not tested during production and is only given as application information for designing the
television receiver.

3. LoopbandwidthBL = 75 kHz(natural frequency fn= 11 kHz;dampingfactord ≈ 3.5; calculated with sync level within
gain control range). Resonance circuit of VCO: Q0> 50; C

ext

= 8.2 pF ±0.25 pF; C

int

≈ 8.5 pF (loop voltage

approximately 2.7 V).

4. Temperature coefficient of external LC circuit is equal to zero.

5. V

iIF

= 10 mV RMS; ∆f = 1 MHz (VCO frequency offset related to picture carrier frequency); white picture

video modulation.

6. V

iIF

signal for nominal video signal.

7. Measurements taken with SAW filter G3962 (sound carrier suppression: 40 dB); loop bandwidth BL = 75 kHz:
a) Modulation VSB; sound carrier off; f

video

> 0.5 MHz.

b) Sound carrier on; SIF SAW filter G9353; f

video

= 10 kHz to 10 MHz.

8. The 7 dB buffer gain accounts for 1 dB loss in the sound trap. Buffer output signal is typical 2 V (p-p), in event of
CVBS video amplifier output typical 1 V (p-p). If no sound trap is applied a 330 Ω resistor must be connected from
output to input (between pin 18 and pin 19).

9. The leakage current of the AGC capacitor should not exceed 1 µA. Larger currents will increase the tilt.

10. S/N is the ratio of black-to-white amplitude to the black level noise voltage (RMS value), on pin 8. B = 5 MHz
weighted in accordance with

“CCIR 567”

.

11. The intermodulation figures are defined:

; α

1.1

value at 1.1 MHz referenced to black/white signal;

; α

3.3

value at 3.3 MHz referenced to colour carrier.

12. Response speed valid for a VIF input level range of 200 µVupto70mV.

Single reference QSS AF performance for FM operation (B/G standard); see Table 1 and notes 20, 21 and 22
S/N(W) weighted signal-to-noise

ratio (SC

1

/SC2)

PC/SC1 ratio at pins 1
and 2; 27 kHz (54% FM
deviation);

“CCIR 468-4”

40 −− dB

black picture 53/48 58/55 − dB
white picture 50/46 55/52 − dB
6 kHz sine wave;

black-to-white modulation

42/40 48/46 − dB

250 kHz square wave;
black-to-whitemodulation;
see note 2 in Fig.12

45/42 53/50 − dB

sound carrier
subharmonics;
f = 2.75 MHz ±3 kHz

45/44 51/50 − dB

sound carrier
subharmonics;
f = 2.87 MHz ±3 kHz

46/45 52/51 − dB

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

α

1.1

20

V

0

at 4.4 MHz

V

0

at 1.1 MHz

--------------------------------------





3.6 dB+log=

α

3.3

20

V

0

at 4.4 MHz

V

0

at 3.3 MHz

--------------------------------------





log=

1999 Sep 16 16

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

13. To match the AFC output signal to different tuning systems a current source output is provided. The test circuit is
given in Fig.7. The AFC steepness can be changed by the resistors at pin 20.

14. Depending on the ratio ∆C/C0 of the LC resonant circuit of VCO (Q0> 50; see note 3; C0=C

int+Cext

).

15. Source impedance: 2.3 kΩ in parallel to 12 pF (SAW filter); fIF= 38.9 MHz.

16. Input level for second IF from an external generator with 50 Ω source impedance. AC-coupled with 10 nF capacitor,
f

mod

= 1 kHz, 27 kHz (54% FM deviation) of audio references. A VIF/SIF input signal is not permitted. Pins 6 and 25
havetobe connected to positive supply voltage for minimum IF gain. S/N and THD measurements are taken at 50 µs
de-emphasis. The not tested FM-PLL has to be locked to an unmodulated carrier.

a) Second IF input level 10 mV RMS.

17. Measured with an FM deviation of 27 kHz the typical AF output signal is 500 mV RMS (Rx=Ry=0Ω; see Fig.11).
By using Rx=Ry= 470 Ω the AF output signal is attenuated by 6 dB (250 mV RMS) and adapted to the stereo
decoder family TDA9840. For handling an FM deviation of more than 53 kHz the AF output signal has to be reduced
by using Rxand Ryin order to avoid clipping (THD < 1.5%). For an FMdeviation up to 100 kHz an attenuation of 6 dB
is recommended with Rx=Ry= 470 Ω.

18. The leakage current of the decoupling capacitor (2.2 µF) should not exceed 1 µA.

19. In the event of activated auto mute state the second FM-PLL oscillator is switched off, if the input signal at pin 14 is
missing or too weak (see Fig.11). In the event of switching the second FM-PLL oscillator on by the auto mute stage
an increased DC jump is the consequence. It should be noted that noise at pin 14 disables the mute state (at low SIF
input signal), but this will not lead to false identification of the stereo decoder family TDA9840.

20. For all S/N measurements the used vision IF modulator has to meet the following specifications:
a) Incidental phase modulation for black-to-white jump less than 0.5 degrees.
b) QSS AF performance, measured with the television-demodulator AMF2 (audio output, weighted S/N ratio) better

than 60 dB (deviation 27 kHz) for 6 kHz sine wave black-to-white video modulation.

c) Picture-to-sound carrier ratio; PC/SC1= 13 dB (transmitter).

21. Measurements taken with SAW filter G3962 (Siemens) for vision IF (suppressed sound carrier) and G9350
(Siemens) for sound IF (suppressed picture carrier). Input level V

i SIF

= 10 mV RMS, 27 kHz (54% FM deviation).

22. The PC/SC ratio at pins 1 and 2 is calculated as the addition of TV transmitter PC/SC ratio and SAW filter PC/SC
ratio. This PC/SC ratio is necessary to achieve the S/N(W) values as noted. A different PC/SC ratio will change these
values.

Table 1 Input frequencies and carrier ratios

DESCRIPTION SYMBOL B/G STANDARD UNIT

Picture carrier f

PC

38.9 MHz

Sound carrier f

SC1

33.4 MHz

f

SC2

33.158 MHz

Picture-to-sound carrier ratio SC

1

13 dB

SC

2

20 dB

1999 Sep 16 17

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

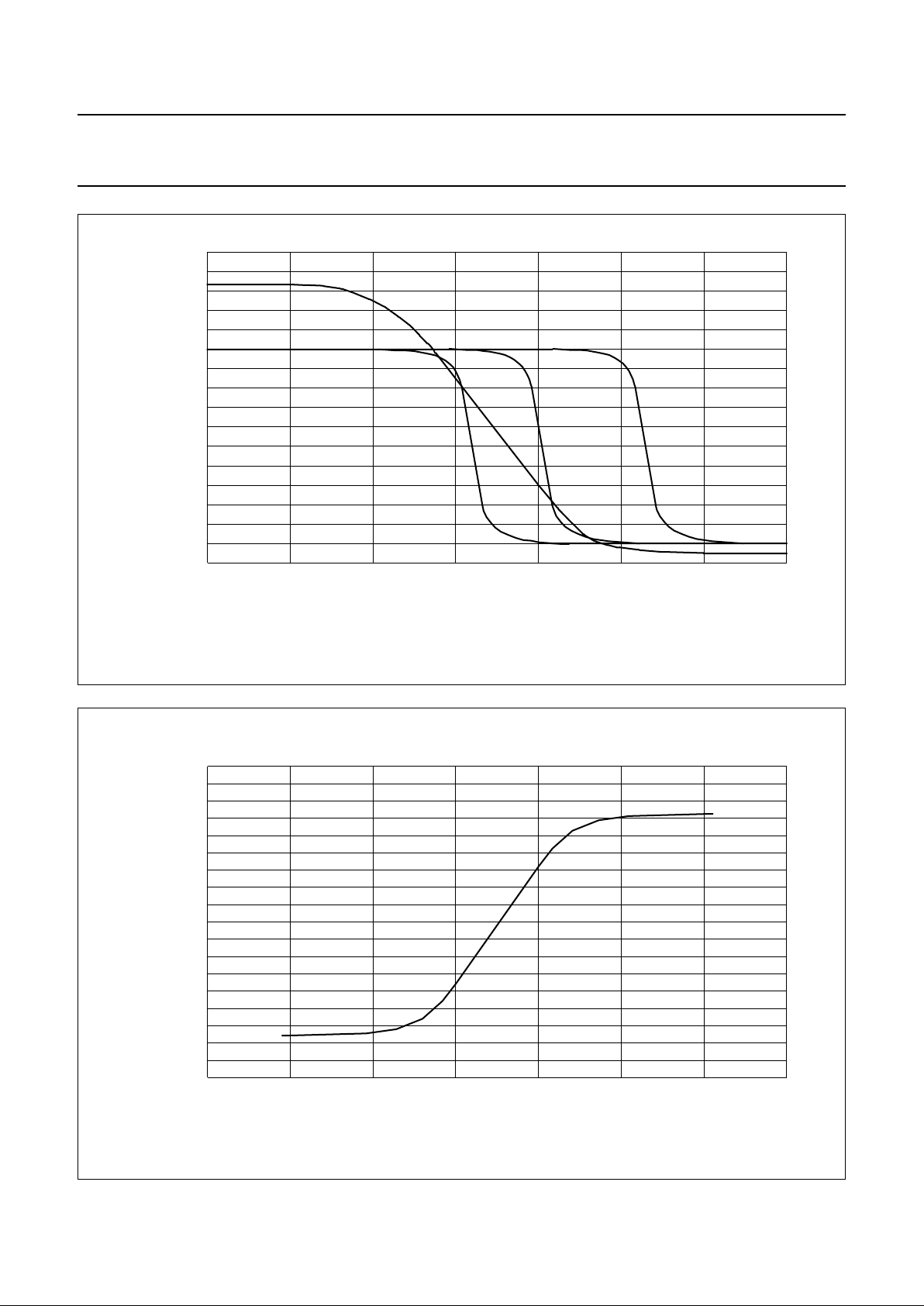

Fig.3 Typical VIF and tuner AGC characteristic.

handbook, full pagewidth

4.5

70

1 2.521.5 3 3.5 4

V25 (V)

MED861 - 1

50

600.06

40

0

1

2

0.6

30

206

10

060

−10

gain
(dB)

I

tuner
(mA)

VIF input

(1,2)

(mV RMS)

(1) (2) (3) (4)

(1) I

tuner

; R

TOP

=22kΩ.

(2) Gain.

(3) I

tuner

; R

TOP

=11kΩ.

(4) I

tuner

; R

TOP

=0Ω.

Fig.4 Typical SIF-AGC characteristic.

handbook, full pagewidth

4.5

80

90

100

110

1 2.521.5 3 3.5 4

V6 (V)

MHA039

60

70

50

40

30

20

10

100

1

0.1

0.01

(dBµV)

SIF input

(27,28)

(mV RMS)

1999 Sep 16 18

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

Fig.5 Typical signal-to-noise ratio as a function of

IF input voltage.

handbook, halfpage

−60 −40 −20 20

75

50

25

0

0

0.06 0.6 6 60060

MED684

S/N
(dB)

V

i (VIF)(rms)

(dB)

V

i (VIF)(rms)

(mV)

10

handbook, halfpage

SC CC PC SC CC PC

BLUE YELLOW

27 dB

13.2 dB

3.2 dB

27 dB

13.2 dB

10 dB

MED685 - 1

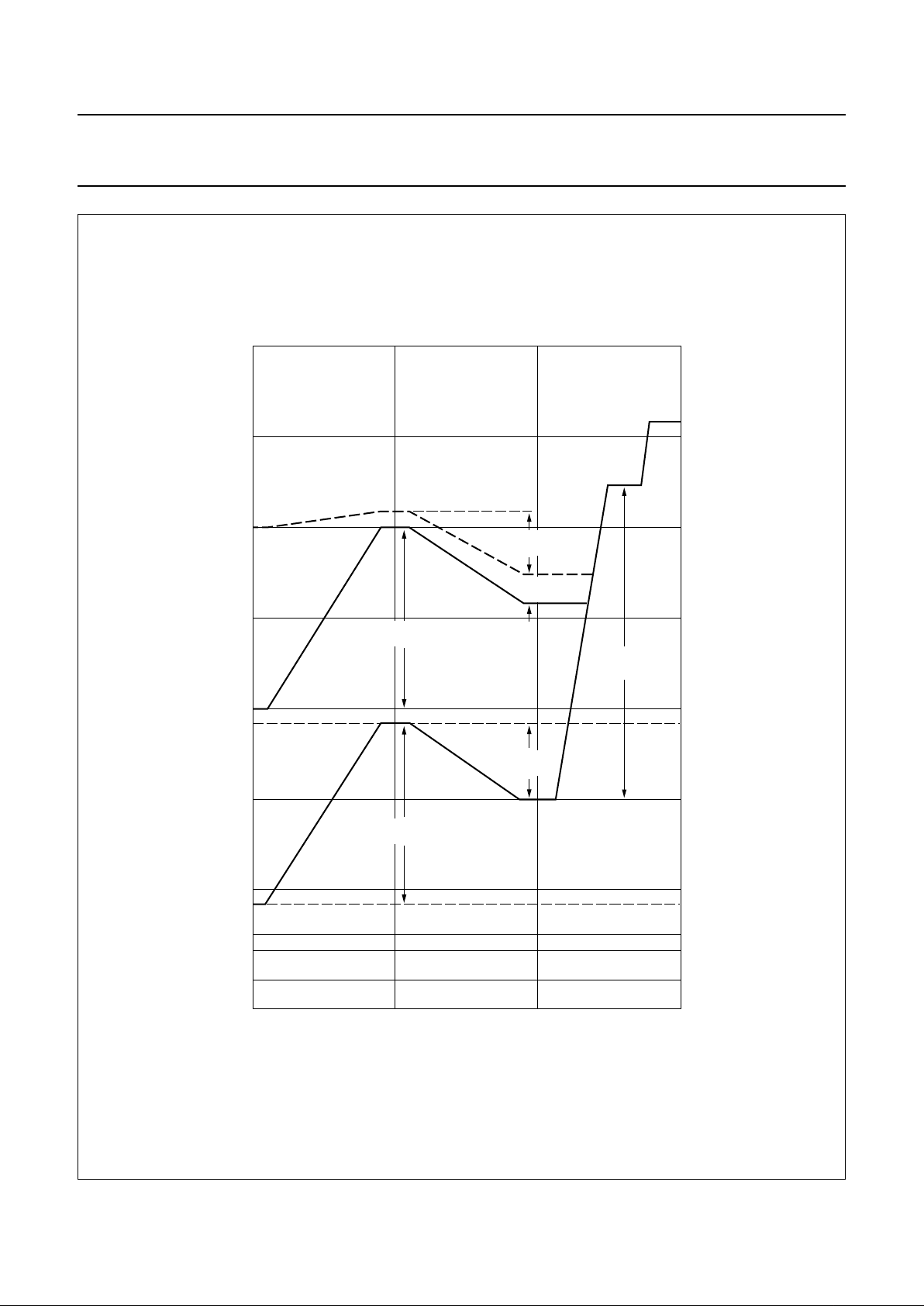

Fig.6 Input signal conditions.

SC = sound carrier, with respect to sync level.
CC = chrominance carrier, with respect to sync level.
PC = picture carrier, with respect to sync level.
The sound carrier levels are taking into account

a sound shelf attenuation of 20 dB (SAW filter G1962).

Fig.7 Measurement conditions and typical AFC characteristic.

handbook, full pagewidth

VP = 5 V

V

P

200

100

0

−200

−100

38.5 38.9 39.3

f (MHz)

(source current)

(sink current)

V

20

(V)

I

20

(µA)

2.5

TDA9813T

20

I

20

22 kΩ

22 kΩ

MHA040

1999 Sep 16 19

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

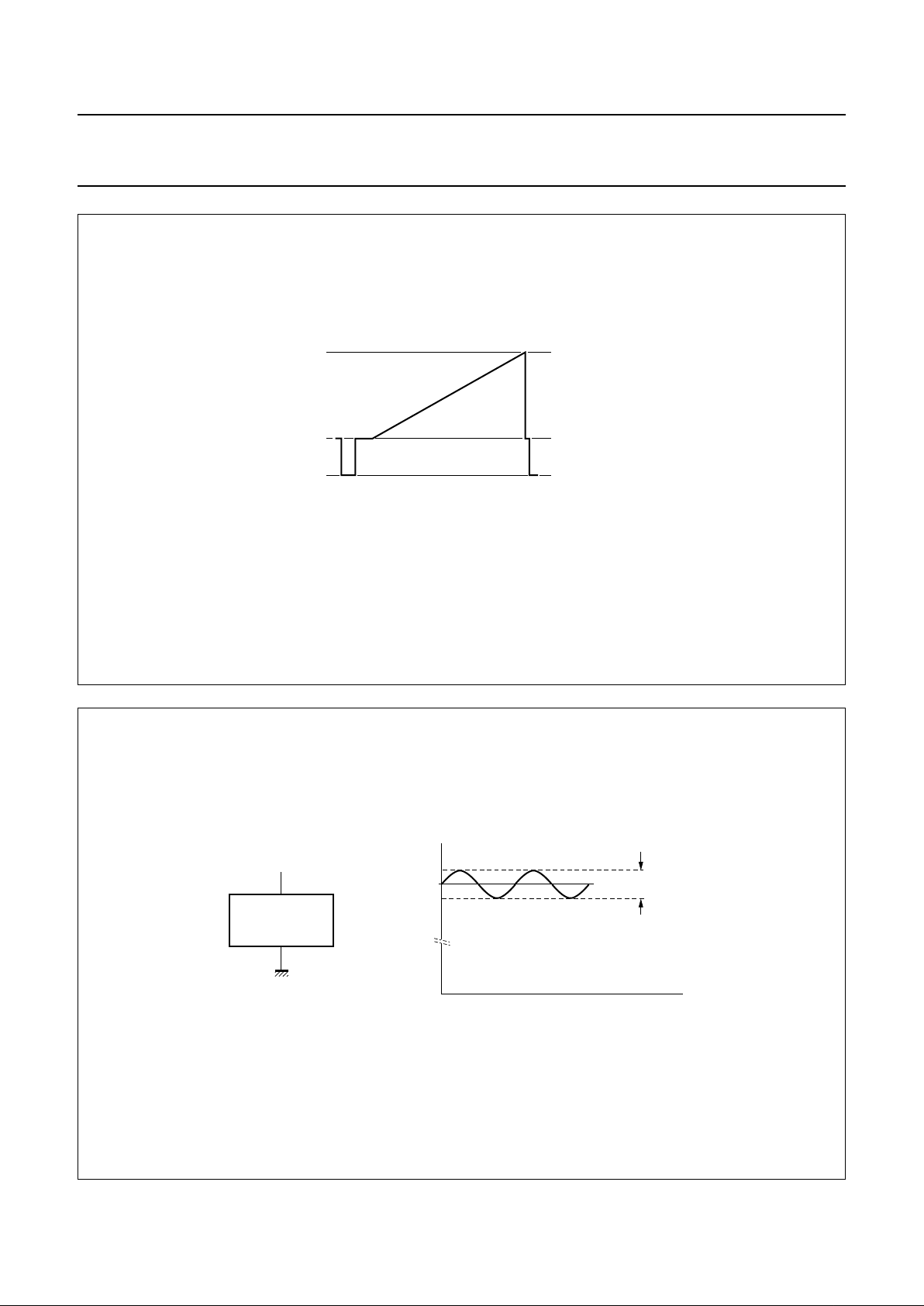

Fig.8 Typical video signal levels on output pin 18 (sound carrier off).

handbook, halfpage

1.5 V

1.8 V

2.5 V

white level

black level

sync level

B/G standard

MHA041

Fig.9 Ripple rejection condition.

handbook, full pagewidth

TDA9813T

VP = 5 V

VP = 5 V

t

100 mV

(f

ripple

= 70 Hz)

MHA042

1999 Sep 16 20

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

Fig.10 Front-end level diagram.

(1) Depends on TOP.

dbook, full pagewidth

video 2 V (p-p)

0.66 × 10

−3

0.66 × 10

−5

MHB571

20

40

60

80

100

antenna input

(dBµV)

120

140

10

VHF/UHF tuner VIF

VIF amplifier, demodulator

and video

tuner SAW filter TDA9813T

IF signals

RMS value

(V)

10

−1

10

−2

(TOP)

10

−3

10

−4

10

−5

1

10

(1)

SAW insertion

loss 14 dB

SAW insertion

loss 14 dB

tuning gain

control range

40 dB

RF gain

70 dB

VIF AGC

IF slip

6 dB

1999 Sep 16 21

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

INTERNAL CIRCUITRY

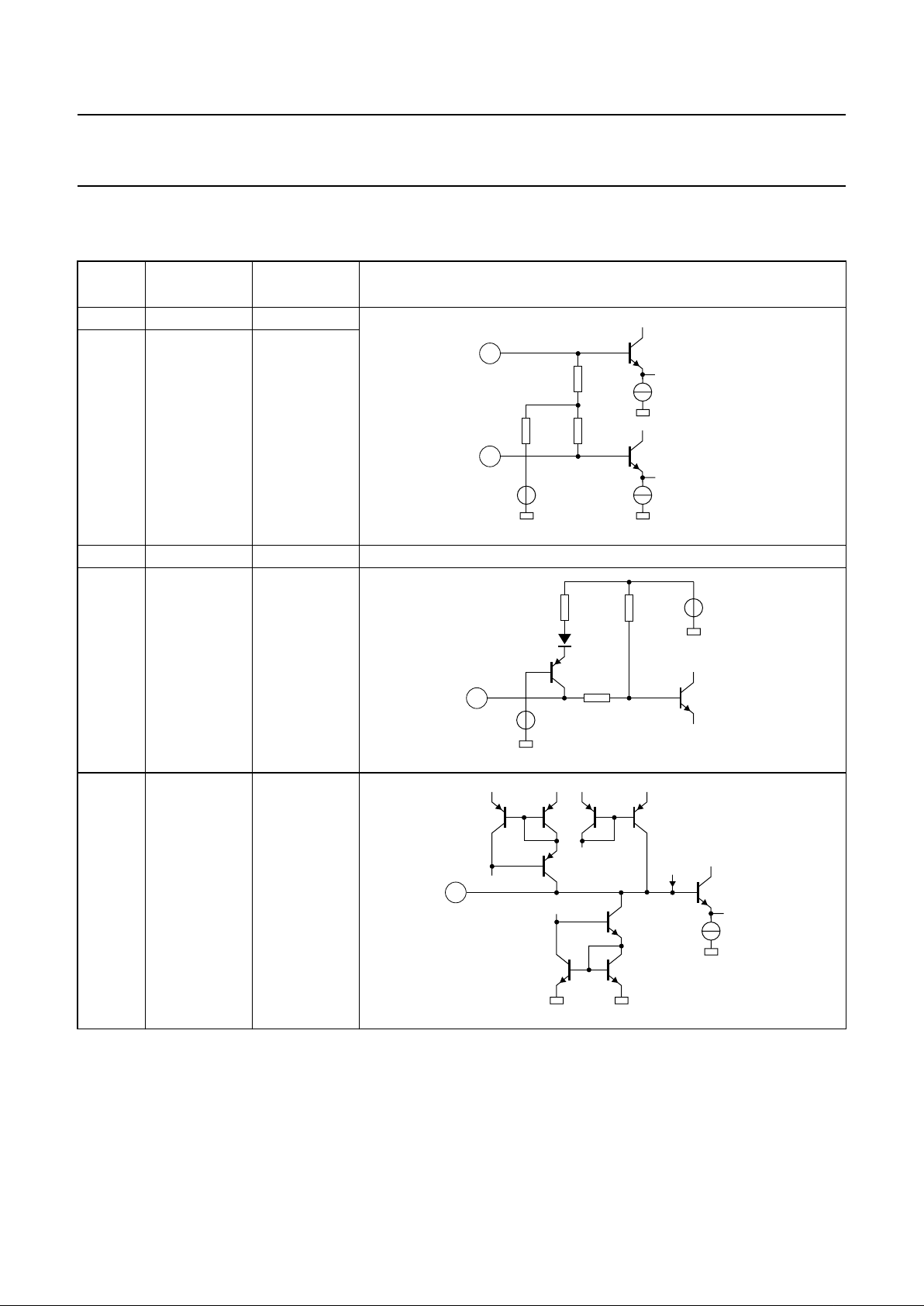

Table 2 Equivalent pin circuits and pin voltages

PIN
NO.

PIN

SYMBOL

DC VOLTAGE

(V)

EQUIVALENT CIRCUIT (WITHOUT ESD PROTECTION CIRCUIT)

1V

i VIF1

3.4

2V

i VIF2

3.4

3 n.c. −
4 TADJ 0 to 1.9

5T

PLL

1.5 to 4.0

MHA673

2

1

+

650 µA

1.1 kΩ

1.1 kΩ800 Ω

3.4 V

+

650 µA

MHB020

4

30 kΩ

9 kΩ

20 kΩ 3.6 V

1.9 V

5

+

200 µA

VCO

I

b

++++

MHB021

1999 Sep 16 22

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

6C

SAGC

1.5 to 4.0

7 n.c. −
8V

o CVBS

sync level:

1.35

9 n.c. −

10 V

o AF1

2.3

PIN
NO.

PIN

SYMBOL

DC VOLTAGE

(V)

EQUIVALENT CIRCUIT (WITHOUT ESD PROTECTION CIRCUIT)

MHB022

6

15 µA

+

+++

±1 µA

I

b

8

+

2.5 mA

MHB024

MHB025

10

21.7 kΩ

23.7 kΩ

25 pF

120 Ω

++

1999 Sep 16 23

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

11 V

o AF2

2.3

12 C

DEC2

1.2 to 3.0

13 C

DEC1

1.2 to 3.0

PIN
NO.

PIN

SYMBOL

DC VOLTAGE

(V)

EQUIVALENT CIRCUIT (WITHOUT ESD PROTECTION CIRCUIT)

MHB026

11

21.7 kΩ

23.7 kΩ

25 pF

120 Ω

++

12

1 kΩ

MHB027

90 µA

+

++

13

1 kΩ

MHB028

90 µA

+

++

1999 Sep 16 24

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

14 V

i FM2

2.65

15 V

i FM1

2.65

16 TAGC 0 to 13.2

17 V

o QSS

2.0

18 V

o(vid)

sync level: 1.5

PIN
NO.

PIN

SYMBOL

DC VOLTAGE

(V)

EQUIVALENT CIRCUIT (WITHOUT ESD PROTECTION CIRCUIT)

400 Ω

40 kΩ640 Ω

2.65 V 35 µA

600 µA

MHB029

14

400 Ω

40 kΩ640 Ω

2.65 V 35 µA

600 µA

MHB030

15

16

MHB031

17

1.9 mA

150 Ω

+

14.7 kΩ

MHB032

18

2.1 pF

3.0 mA

100 Ω

+

MHB033

1999 Sep 16 25

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

19 V

i(vid)

1.7

20 AFC 0.3 to VP− 0.3

21 VCO1 2.7
22 VCO2 2.7

PIN
NO.

PIN

SYMBOL

DC VOLTAGE

(V)

EQUIVALENT CIRCUIT (WITHOUT ESD PROTECTION CIRCUIT)

2.2
kΩ

3.3
kΩ

2 kΩ

19

MHB034

20

I

AFC

±200 µA

++

MHB035

21
22

+

+

420 Ω 420 Ω 50 Ω

500 µA 2.8 V

MHB570

1999 Sep 16 26

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

23 C

ref

1

⁄2V

P

24 GND 0
25 C

VAGC

1.5 to 4.0

26 V

P

V

P

27 V

i SIF1

3.4

28 V

i SIF2

3.4

PIN
NO.

PIN

SYMBOL

DC VOLTAGE

(V)

EQUIVALENT CIRCUIT (WITHOUT ESD PROTECTION CIRCUIT)

70 kΩ

20
kΩ

20
kΩ

650 Ω

MHB037

23

+

++

MHB038

25

40 µA

2.5 µA

0.3/20/40 µA

1 mA

I

b

MHB039

27

28

100 µA

400 µA

1.8 V

10 kΩ

+

+

400 µA

+

5 kΩ

800 Ω

1.1 kΩ

1.1 kΩ

3.4 V

1999 Sep 16 27

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and

dual FM-PLL demodulator

TDA9813T

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

TEST AND APPLICATION INFORMATION

handbook, full pagewidth

8.2 pF

C

ref

GND

VIF

AGC

22
kΩ

100

nF

10 nF

AFC

video
output

QSS

intercarrier

output

tuner
AGC

10
nF

SFT

5.5 MHz

SFT

5.74 MHz

10
nF

AF1

mute switch

1

2

5

4

3

1:1

SIF

input

1

2

5

4

3

1:1

VIF

input

1

TDA9813T

TOP

22
kΩ

loop
filter

220

nF

SIF

AGC

2.2 µF

CVBS

AF1 output

de-emphasis

AF2 output

de-emphasis

10 nF

10 nF

C

AF1

C

AF2

28227

3

n.c.

n.c. n.c.

26 25 2442352262172081991810171116

12 131514

MHA043

AF2 mute switch
+ 5 V: auto mute off
open: auto mute on
ground: mute

5.6
kΩ

5.6
kΩ

Q0 > 50

2.2
µF

2.2
µF

22 kΩ

V

P

560 Ω

560 Ω

5.6
kΩ

330

Ω

5.6
kΩ

50 Ω

50 Ω

470

Ω

39
pF

820

pF

+ 5 V

R

x

(2)

R

y

(2)

(1)

(1)

22
µF

22 µF

Fig.11 Test circuit.

(1) Application for improved 250 kHz sound performance.
(2) See note 17 of Chapter “Characteristics”.

1999 Sep 16 28

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and

dual FM-PLL demodulator

TDA9813T

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

handbook, full pagewidth

Q0 > 50

8.2 pF

2.2
µF

2.2
µF

C

ref

VIF

AGC

22

kΩ

100

nF

10 nF

22 kΩ

AFC

V

P

video

output

QSS intercarrier

output

330

Ω

tuner
AGC

10
nF

SFT

5.5 MHz

560 Ω

SFT

5.74 MHz

560 Ω

5.6
kΩ

10
nF

5.6
kΩ

AF1

mute switch

50 Ω

IF

input

1

TDA9813T

SAW

FILTER

G3962

SAW

FILTER

G9350

TOP

22 kΩ

470 Ω

loop
filter

220 nF

39
pF

820

pF

SIF

AGC

2.2 µF

+ 5 V

CVBS

de-emphasis

depending on

TV standard/stereo

decoder

C

AF1

C

AF2

(1)

(1)

R

x

(3)

R

y

(3)

28227

3

n.c.

n.c.

(2)

(2)

n.c.

26 25 2442352262172081991810171116

12 131514

MHA044

22
µF

22 µF

AF2 mute switch
+ 5 V: auto mute off
open: auto mute on
ground: mute

15
µH

Fig.12 Application circuit.

(1) Depends on standard.
(2) Application for improved 250 kHz sound performance.
(3) See note 17 of Chapter “Characteristics”.

1999 Sep 16 29

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

PACKAGE OUTLINE

UNIT

A

max.

A

1

A2A3b

p

cD

(1)E(1) (1)

eHELLpQ

Z

ywv θ

REFERENCES

OUTLINE

VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

mm

inches

2.65

0.30

0.10

2.45

2.25

0.49

0.36

0.32

0.23

18.1

17.7

7.6

7.4

1.27

10.65

10.00

1.1

1.0

0.9

0.4

8
0

o
o

0.25 0.1

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

Note

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

1.1

0.4

SOT136-1

X

14

28

w M

θ

A

A

1

A

2

b

p

D

H

E

L

p

Q

detail X

E

Z

c

L

v M

A

e

15

1

(A )

3

A

y

0.25

075E06 MS-013AE

pin 1 index

0.10

0.012

0.004

0.096

0.089

0.019

0.014

0.013

0.009

0.71

0.69

0.30

0.29

0.050

1.4

0.055

0.419

0.394

0.043

0.039

0.035

0.016

0.01

0.25

0.01

0.004

0.043

0.016

0.01

0 5 10 mm

scale

SO28: plastic small outline package; 28 leads; body width 7.5 mm

SOT136-1

95-01-24
97-05-22

1999 Sep 16 30

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

SOLDERING
Introduction to soldering surface mount packages

Thistextgives a very brief insight to a complextechnology.
A more in-depth account of soldering ICs can be found in
our

“Data Handbook IC26; Integrated Circuit Packages”

(document order number 9398 652 90011).
There is no soldering method that is ideal for all surface

mount IC packages. Wave soldering is not always suitable
for surface mount ICs, or for printed-circuit boards with
high population densities. In these situations reflow
soldering is often used.

Reflow soldering

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
totheprinted-circuitboardbyscreenprinting,stencillingor
pressure-syringe dispensing before package placement.

Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 100 and 200 seconds depending on heating
method.

Typical reflow peak temperatures range from
215 to 250 °C. The top-surface temperature of the
packages should preferable be kept below 230 °C.

Wave soldering

Conventional single wave soldering is not recommended
forsurface mount devices (SMDs) or printed-circuit boards
with a high component density, as solder bridging and
non-wetting can present major problems.

To overcome these problems the double-wave soldering
method was specifically developed.

If wave soldering is used the following conditions must be
observed for optimal results:

• Use a double-wave soldering method comprising a
turbulent wave with high upward pressure followed by a
smooth laminar wave.

• For packages with leads on two sides and a pitch (e):
– larger than or equal to 1.27 mm, the footprint

longitudinal axis is preferred to be parallel to the
transport direction of the printed-circuit board;

– smaller than 1.27 mm, the footprint longitudinal axis

must be parallel to the transport direction of the
printed-circuit board.

The footprint must incorporate solder thieves at the
downstream end.

• Forpackages with leads on four sides,thefootprintmust
be placed at a 45° angle to the transport direction of the
printed-circuit board. The footprint must incorporate
solder thieves downstream and at the side corners.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Manual soldering

Fix the component by first soldering two
diagonally-opposite end leads. Use a low voltage (24 V or
less) soldering iron applied to the flat part of the lead.
Contact time must be limited to 10 seconds at up to
300 °C.

When using a dedicated tool, all other leads can be
soldered in one operation within 2 to 5 seconds between
270 and 320 °C.

1999 Sep 16 31

Philips Semiconductors Product specification

VIF-PLL with QSS-IF and
dual FM-PLL demodulator

TDA9813T

Suitability of surface mount IC packages for wave and reflow soldering methods

Notes

1. All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum
temperature (with respect to time) and body size of the package, there is a risk that internal or external package
cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the
Drypack information in the

“Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods”

.

2. These packages are not suitable for wave soldering as a solder joint between the printed-circuit board and heatsink
(at bottom version) can not be achieved, and as solder may stick to the heatsink (on top version).

3. If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction.
The package footprint must incorporate solder thieves downstream and at the side corners.

4. Wave soldering is only suitable for LQFP, TQFP and QFP packages with a pitch (e) equal to or larger than 0.8 mm;
it is definitely not suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.

5. Wave soldering is only suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65 mm; it is
definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.

DEFINITIONS

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

PACKAGE

SOLDERING METHOD

WAVE REFLOW

(1)

BGA, SQFP not suitable suitable
HLQFP, HSQFP, HSOP, HTQFP, HTSSOP, SMS not suitable

(2)

suitable

PLCC

(3)

, SO, SOJ suitable suitable

LQFP, QFP, TQFP not recommended

(3)(4)

suitable

SSOP, TSSOP, VSO not recommended

(5)

suitable

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

1999

68

Philips Semiconductors – a w orldwide compan y

For all other countries apply to: Philips Semiconductors,

International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

Argentina: see South America
Australia: 3 Figtree Drive, HOMEBUSH, NSW 2140,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS, Via Casati, 23 - 20052 MONZA (MI),
Tel. [phone], Fax [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone], Fax [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Al.Jerozolimskie 195 B, 02-222 WARSAW,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

Printed in The Netherlands 545004/02/pp32 Date of release: 1999 Sep 16 Document order number: 9397 750 06056
