INTEGRATED CIRCUITS

DATA SH EET

TDA9811

Multistandard VIF-PLL
with QSS-IF and AM demodulator

Preliminary specification
File under Integrated Circuits, IC02

1995 Oct 03

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL
with QSS-IF and AM demodulator

FEATURES

• 5 V supply voltage

• Two switched VIF inputs, gain controlled wide band

VIF-amplifier (AC-coupled)

• True synchronous demodulation with active carrier
regeneration (very linear demodulation, good
intermodulation figures, reduced harmonics, excellent
pulse response)

• Gated phase detector for L/L accent standard

• VCO frequency switchable between L and L accent

(alignment external) picture carrier frequency

• Separate video amplifier for sound trap buffering with
high video bandwidth

• VIF AGC detector for gain control, operating as peak
sync detector for B/G (optional external AGC) and peak
white detector for L; signal controlled reaction time for L

• Tuner AGC with adjustable takeover point (TOP)

• AFC detector without extra reference circuit

• SIF input for single reference QSS mode (PLL

controlled); SIF AGC detector for gain controlled SIF
amplifier; single reference QSS mixer able to operate in
high performance single reference QSS mode

• AM demodulator without extra reference circuit

• AM mute (especially for NICAM)

• Stabilizer circuit for ripple rejection and to achieve

constant output signals.

TDA9811

GENERAL DESCRIPTION

The TDA9811 is an integrated circuit for multistandard
vision IF signal processing and sound AM demodulation,
with single reference QSS-IF in TV and VCR sets.

ORDERING INFORMATION

TYPE NUMBER

NAME DESCRIPTION VERSION

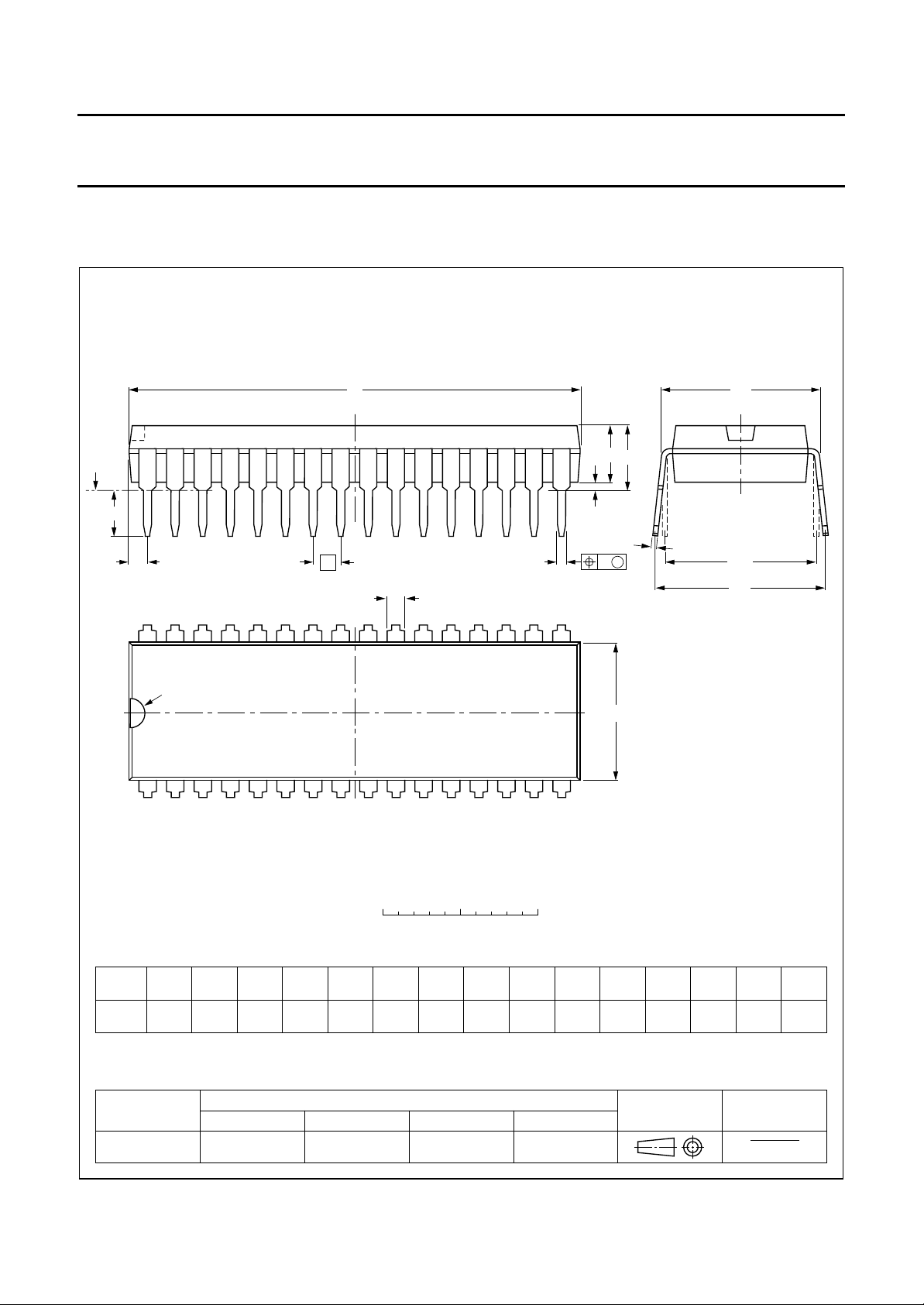

TDA9811 SDIP32 plastic shrink dual in-line package; 32 leads (400 mil) SOT232-1

1995 Oct 03 2

PACKAGE

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL

TDA9811

with QSS-IF and AM demodulator

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

P

I

P

V

i VIF(rms)

V

o CVBS(p-p)

B

−3

S/N (W) weighted signal-to-noise ratio for video 56 60 − dB
IM

α1.1

IM

α3.3

α

H(sup)

V

i SIF(rms)

V

o(rms)

THD total harmonic distortion 54% modulation − 0.5 1.0 %
S/N (W) weighted signal-to-noise ratio 54% modulation 47 53 − dB

supply voltage 4.5 5 5.5 V
supply current 93 109 125 mA
vision IF input signal voltage sensitivity

−1 dB video at output − 60 100 µV

(RMS value)
CVBS output signal voltage

1.7 2.0 2.3 V

(peak-to-peak value)

−3 dB video bandwidth on pin CVBS B/G and L standard;
< 20 pF; RL> 1kΩ;

C

L

78−MHz

AC load

intermodulation attenuation at ‘blue’ f = 1.1 MHz 58 64 − dB
intermodulation attenuation at ‘blue’ f = 3.3 MHz 58 64 − dB
suppression of harmonics in video

35 40 − dB

signal
sound IF input signal voltage sensitivity

−3 dB at intercarrier output − 30 70 µV

(RMS value)
audio output signal voltage

L standard; 54% modulation − 0.5 − V

(RMS value)

1995 Oct 03 3

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL
with QSS-IF and AM demodulator

BLOCK DIAGRAM

video

1 V (p-p)

2324257192830 63

AFC

AFC DETECTOR

VIDEO DEMODULATOR

i(vid)

CVBS

V

2 V (p-p)

102122

VIDEO

BUFFER

AND AMPLIFIER

TDA9811

AF/AM

12

AF AMPLIFIER

13

AND SWITCH

n.c.

TDA9811

n.c.

14

MHA046

17

15

16

1811

mute switch, AM

n.c.

n.c.

n.c.

book, full pagewidth

PC

2 x f

tuner

TOP

C

C

filter

loop

AGC

BL

AGC

VIF input switch

VCO TWD

FPLL

TUNER AND VIF-AGC

VIF AMPLIFIER

5

4

AND

INPUT SWITCH

2

1

MIXER AND

AM DEMODULATOR

SINGLE REFERENCE

SIF

AMPLIFIER

32

31

L′/L

20

AGC

C

SIF-AGC

P

V
1/2

STABILIZER

29 27 26 9 8

INTERNAL VOLTAGE

switch

(2nd SIF)

switch

standard

5 V

o QSS

V

Fig.1 Block diagram.

VIFB

VIFA

1995 Oct 03 4

SIF

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL
with QSS-IF and AM demodulator

PINNING

SYMBOL PIN DESCRIPTION

V

i VIF1

V

i VIF2

C

BL

V

i VIF3

V

i VIF4

TADJ 6 tuner AGC takeover adjust (TOP)
T

PLL

C

SAGC

STD 9 standard switch
V

o CVBS

LSWI 11 L/L accent switch
V

oAF

n.c. 13 not connected
n.c. 14 not connected
n.c. 15 not connected
n.c. 16 not connected
MUTE 17 AM mute
n.c. 18 not connected
TAGC 19 tuner AGC output
V

o QSS

V

o(vid)

V

i(vid)

AFC 23 AFC output
VCO1 24 VCO1 reference circuit for 2f
VCO2 25 VCO2 reference circuit for 2f
C

ref

GND 27 ground
C

VAGC

V

P

INSWI 30 VIF input switch
V

i SIF1

V

i SIF2

1 VIF differential input signal voltage 1
2 VIF differential input signal voltage 2
3 black level detector
4 VIF differential input signal voltage 3
5 VIF differential input signal voltage 4

7 PLL loop filter
8 SIF AGC capacitor

10 CVBS output signal voltage

12 AM audio voltage frequency output

20 single reference QSS output voltage
21 composite video output voltage
22 video buffer input voltage

PC
PC

261⁄2VP reference capacitor

28 VIF AGC capacitor
29 supply voltage

31 SIF differential input signal voltage 1
32 SIF differential input signal voltage 2

ndbook, halfpage

V
V

V
V

C

V

o CVBS

i VIF1
i VIF2

C

BL

i VIF3
i VIF4

TADJ

T

PLL

SAGC

STD

LSWI

V

o AF

n.c.
n.c.
n.c.
n.c.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

TDA9811

Fig.2 Pin configuration.

MHA047

V

32

i SIF2

V

31

i SIF1

30

INSWI
V

29

P

C

28

VAGC

GND

27

C

26

ref

VCO2

25

VCO1

24

AFC

23

V

22

i(vid)

V

21

o(vid)

V

20

o QSS

TAGC

19
18

n.c.

17

MUTE

TDA9811

1995 Oct 03 5

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL
with QSS-IF and AM demodulator

FUNCTIONAL DESCRIPTION
Vision IF amplifier and input switch

The vision IF amplifier consists of three AC-coupled
differential amplifier stages. Each differential stage
comprises a feedback network controlled by emitter
degeneration. The first differential stage is extended by
two pairs of emitter followers to provide two IF input
channels. The VIF input can be selected by pin 30.

Tuner and VIF AGC

The AGC capacitor voltage is transferred to an internal IF
control signal, and is fed to the tuner AGC to generate the
tuner AGC output current (open-collector output).
The tuner AGC takeover point can be adjusted. This allows
the tuner and the SWIF filter to be matched to achieve the
optimum IF input level.

The AGC detector charges/discharges the AGC capacitor
to the required voltage for setting of VIF and tuner gain in
order to keep the video signal at a constant level.
Therefore for negative video modulation the sync level and
for positive video modulation the peak white level of the
video signal is detected. In order to reduce the reaction
time for positive modulation, where a very large time
constant is needed, an additional level detector increases
the discharging current of the AGC capacitor (fast mode)
in the event of a decreasing VIF amplitude step. The
additional level information is given by the black-level
detector voltage.

TDA9811

VCO, Travelling Wave Divider (TWD) and AFC

The VCO operates with a resonance circuit (with L and C
in parallel) at double the PC frequency. The VCO is
controlled by two integrated variable capacitors.
The control voltage required to tune the VCO from its
free-running frequency to actually double the PC
frequency is generated by the frequency-phase detector
and fed via the loop filter to the first variable capacitor
(FPLL). This control voltage is amplified and additionally
converted into a current which represents the AFC output
signal. The VCO centre frequency can be decreased
(required for L accent standard) by activating an additional
internal capacitor. This is achieved by using the L accent
switch. In this event the second variable capacitor can be
controlled by a variable resistor at the L accent switch for
setting the VCO centre frequency to the required L accent
value. At centre frequency the AFC output current is equal
to zero.

The oscillator signal is divided-by-two with a TWD which
generates two differential output signals with a 90 degree
phase difference independent of the frequency.

Video demodulator and amplifier

The video demodulator is realized by a multiplier which is
designed for low distortion and large bandwidth. The vision
IF input signal is multiplied with the ‘in phase’ signal of the
travelling wave divider output. In the demodulator stage
the video signal polarity can be switched in accordance
with the TV standard.

Frequency Phase Locked Loop detector (FPLL)

The VIF-amplifier output signal is fed into a frequency
detector and into a phase detector via a limiting amplifier.
During acquisition the frequency detector produces a DC
current proportional to the frequency difference between
the input and the VCO signal. After frequency lock-in the
phase detector produces a DC current proportional to the
phase difference between the VCO and the input signal.
The DC current of either frequency detector or phase
detector is converted into a DC voltage via the loop filter,
which controls the VCO frequency. In the event of positive
modulated signals the phase detector is gated by
composite sync in order to avoid signal distortion for
overmodulated VIF signals.

1995 Oct 03 6

The demodulator output signal is fed via an integrated
low-pass filter for attenuation of the carrier harmonics to
the video amplifier. The video amplifier is realized by an
operational amplifier with internal feedback and high
bandwidth. A low-pass filter is integrated to achieve an
attenuation of the carrier harmonics for B/G and
L standard. The standard dependent level shift in this
stage delivers the same sync level for positive and
negative modulation. The video output signal is 1 V (p-p)
for nominal vision IF modulation.

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL
with QSS-IF and AM demodulator

Video buffer

For an easy adaption of the sound traps an operational
amplifier with internal feedback is used in the event of B/G
and L standard. This amplifier is featured with a high
bandwidth and 7 dB gain. The input impedance is adapted
for operating in combination with ceramic sound traps. The
output stage delivers a nominal 2 V (p-p) positive video
signal. Noise clipping is provided.

SIF amplifier and AGC

The sound IF amplifier consists of two AC-coupled
differential amplifier stages. Each differential stage
comprises a controlled feedback network provided by
emitter degeneration.

The SIF AGC detector is related to the SIF input signals
(average level of AM or FM carriers) and controls the SIF
amplifier to provide a constant SIF signal to the AM
demodulator and single reference QSS mixer. The SIF
AGC reaction time is set to ‘slow’ for nominal video
conditions. But with a decreasing VIF amplitude step the
SIF AGC is set to ‘fast’ mode controlled by the VIF AGC
detector. In FM mode this reaction time is also set to ‘fast’
controlled by the standard switch.

TDA9811

AM demodulator

The AM demodulator is realized by a multiplier. The
modulated SIF amplifier output signal is multiplied in
phase with the limited (AM is removed) SIF amplifier
output signal. The demodulator output signal is fed via an
integrated low-pass filter for attenuation of the carrier
harmonics to the AF amplifier.

1

Internal voltage stabilizer and

The bandgap circuit internally generates a voltage of
approximately 1.25 V, independent of supply voltage and
temperature. A voltage regulator circuit, connected to this
voltage, produces a constant voltage of 3.6 V which is
used as an internal reference voltage.

For all audio output signals the constant reference voltage
cannot be used because large output signals are required.
Therefore these signals refer to half the supply voltage to
achieve a symmetrical headroom, especially for the
rail-to-rail output stage. For ripple and noise attenuation

1

the

⁄2VP voltage has to be filtered via a low-pass filter by

using an external capacitor together with an integrated
resistor (fg= 5 Hz). For a fast setting to 1⁄2VP an internal
start-up circuit is added.

⁄2VP-reference

Single reference QSS mixer

The single reference QSS mixer is realized by a multiplier.
The SIF amplifier output signal is fed to the single
reference QSS mixer and converted to intercarrier
frequency by the regenerated picture carrier (VCO).
The mixer output signal is fed via a high-pass for
attenuation of the video signal components to the output
pin 20. With this system a high performance hi-fi stereo
sound processing can be achieved.

1995 Oct 03 7

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL

TDA9811

with QSS-IF and AM demodulator

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

P

V

i

t

s(max)

V

19

T

stg

T

amb

V

es

Notes

1. I

P

2. Machine model class B.

supply voltage (pin 29) maximum chip

0 7.0 V
temperature of 125 °C;
note 1

voltage at pins 1 to 9, 11, 12, 19, 22, 23

0V

and 26 to 32
maximum short-circuit time − 10 s
tuner AGC output voltage 0 13.2 V
storage temperature −25 +150 °C
operating ambient temperature −20 +70 °C
electrostatic handling voltage note 2 −300 +300 V

= 125 mA; T

=70°C; R

amb

th j-a

= 60 K/W.

P

V

THERMAL CHARACTERISTICS

SYMBOL PARAMETER VALUE UNIT

R

th j-a

thermal resistance from junction to ambient in free air 60 K/W

1995 Oct 03 8

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL

TDA9811

with QSS-IF and AM demodulator

CHARACTERISTICS

VP=5V; T
(sync-level for B/G, peak white level for L); video modulation DSB; residual carrier B/G: 10%; L = 3%; video signal in
accordance with

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply (pin 29)

V

P

I

P

Vision IF amplifier (pins 1, 2, 4 and 5)

V

i VIF(rms)

V

i max(rms)

∆V

o(int)

G

IFcr

R

i(diff)

C

i(diff)

V

1, 2,4, 5

R

i

V

1, 2, 4, 5

α

ct IF

=25°C; see Table 1 for input frequencies and level; input level V

amb

“CCIR, line 17”

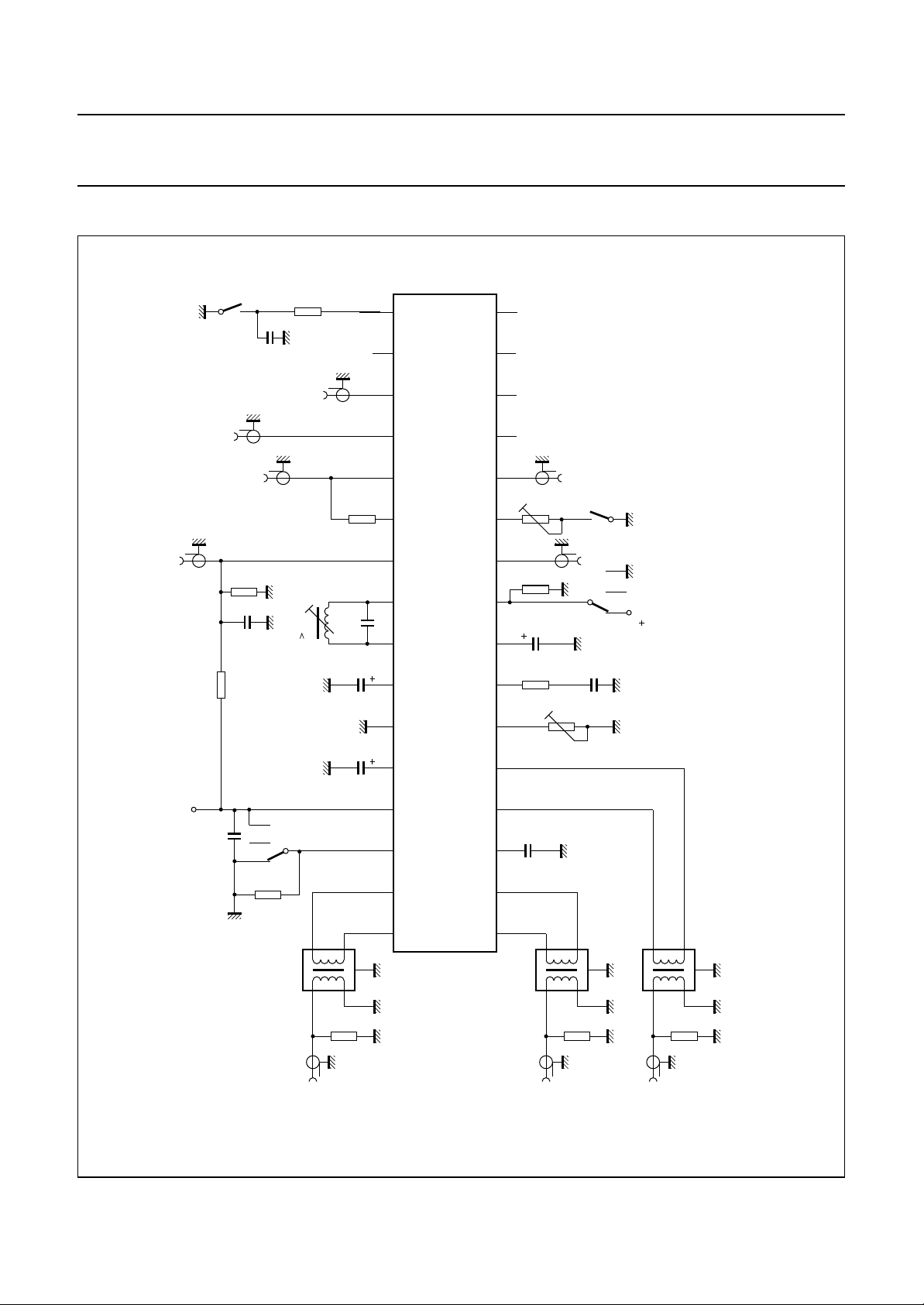

; measurements taken in Fig.13; unless otherwise specified.

iIF1,2,3,4

= 10 mV RMS value

supply voltage note 1 4.5 5 5.5 V
supply current 93 109 125 mA

input signal voltage sensitivity
(RMS value)

maximum input signal voltage
(RMS value)

internal IF amplitude difference
between picture and
sound carrier

B/G standard;

−1 dB video at output
B/G standard;

+1 dB video at output
within AGC range;

B/G standard;

∆f = 5.5 MHz

− 60 100 µV

120 200 − mV

− 0.7 1 dB

IF gain control range see Fig.3 65 70 − dB
differential input resistance note 2; activated input 1.7 2.2 2.7 kΩ
differential input capacitance note 2; activated input 1.2 1.7 2.5 pF
DC input voltage note 2; activated input − 3.4 − V
input resistance to ground note 2; not activated input − 1.1 − kΩ
DC input voltage note 2; not activated input − 0.2 − V
crosstalk attenuation of IF input

notes 2 and 3 55 60 − dB

switch at pins 1, 2, 4 and 5
True synchronous video demodulator; note 4
f

VCO(max)

maximum oscillator frequency for

carrier regeneration

/∆T oscillator drift as a function of

∆f

osc

temperature
V

0 ref(rms)

oscillator voltage swing at pins 24

and 25 (RMS value)
f

PC CR

Qf

PC(fr)

picture carrier capture range B/G and L standard ±1.5 ±2.0 − MHz

picture carrier frequency

(free-running) accuracy

f

PC(alg)CR

L accent alignment frequency

range
t

acq

V

i VIF(rms)

acquisition time BL = 180 kHz; note 6 −−30 ms

VIF input signal voltage sensitivity

for PLL to be locked (RMS value;

pins 1, 2, 4 and 5)
I

FPLL(offset)

FPLL offset current at pin 7 note 8 −−±4.5 µA

f=2f

PC

oscillator is free-running;
I

= 0; note 5

AFC

125 130 − MHz

−−±20 ppm/K

70 100 130 mV

L accent standard;

= 33.9 MHz;

f

PC

±1.0 ±1.3 − MHz

R11= 5.6 kΩ
L accent standard;

−±200 ±400 kHz
fPC= 33.9 MHz;
R11= 5.6 kΩ

I

=0 ±400 ±600 − kHz

AFC

maximum IF gain; note 7 − 30 70 µV

1995 Oct 03 9

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL

TDA9811

with QSS-IF and AM demodulator

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Composite video amplifier (pin 21; sound carrier off)

V

o video(p-p)

output signal voltage
(peak-to-peak value)

V

21(sync)

V

21(clu)

V

21(cll)

R

o,21

I

int 21

sync voltage level B/G and L standard − 1.5 − V
upper video clipping voltage level VP− 1.1 VP− 1 − V
lower video clipping voltage level − 0.3 0.4 V
output resistance note 2 −−10 Ω
internal DC bias current for

emitter-follower

I

21 max(sink)

maximum AC and DC output
sink current

I

21 max(source)

maximum AC and DC output
source current

B

−1

B

−3

α

H(sup)

−1 dB video bandwidth B/G and L standard;

−3 dB video bandwidth B/G and L standard;

suppression of harmonics
in video signal

PSRR power supply ripple rejection

at pin 21

see Fig.8 0.88 1.0 1.12 V

2.2 3.0 − mA

1.6 −−mA

2.9 −−mA

56−MHz
CL< 50 pF; RL> 1kΩ;
AC load

78−MHz
CL< 50 pF; RL> 1kΩ;
AC load

CL< 50 pF; RL> 1kΩ;

35 40 − dB
AC load; note 9a

video signal; grey level;
see Fig.11

B/G standard 32 35 − dB
L standard 26 30 − dB

1995 Oct 03 10

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL

TDA9811

with QSS-IF and AM demodulator

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

CVBS buffer amplifier (only) and noise clipper (pins 10 and 22)

R

i,22

C

i,22

V

I,22

G

v

V

10(clu)

V

10(cll)

R

o,10

I

int 10

I

o,10 max(sink)

I

o,10 max(source)

B

−1

B

−3

input resistance note 2 2.6 3.3 4.0 kΩ
input capacitance note 2 1.4 2 3.0 pF
DC input voltage 1.4 1.7 2.0 V
voltage gain B/G and L standard;

6.5 7 7.5 dB

note 10

upper video clipping voltage level 3.9 4.0 − V
lower video clipping voltage level − 1.0 1.1 V
output resistance note 2 −−10 Ω
DC internal bias current

2.0 2.5 − mA

for emitter-follower
maximum AC and DC output sink

1.4 −−mA

current
maximum AC and DC output

2.4 −−mA

source current

−1 dB video bandwidth B/G and L standard;

8.4 11 − MHz
CL< 20 pF; RL> 1kΩ;
AC load

−3 dB video bandwidth B/G and L standard;

11 14 − MHz
CL< 20 pF; RL> 1kΩ;
AC load

1995 Oct 03 11

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL

TDA9811

with QSS-IF and AM demodulator

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Measurements from IF input to CVBS output (pin 10; 330 Ω between pins 21 and 22, sound carrier off)

V

o CVBS(p-p)

CVBS output signal voltage
on pin 10 (peak-to-peak value)

V

o CVBS(sync)

∆V

o

sync voltage level B/G standard − 1.35 − V

deviation of CVBS output signal
voltage at B/G

∆V

o(blB/G)

∆V

o(blL)

black level tilt in B/G standard gain variation; note 11 −−1%
black level tilt for worst case

in L standard

G

diff

ϕ

diff

B

−1

B

−3

differential gain
differential phase

−1 dB video bandwidth CL< 20 pF; RL> 1kΩ;

−3 dB video bandwidth CL< 20 pF; RL> 1kΩ;

S/N (W) weighted signal-to-noise ratio see Fig.5 and note 12 56 60 − dB
S/N unweighted signal-to-noise ratio see Fig.5 and note 12 49 53 − dB
IMα

1.1

intermodulation attenuation
at ‘blue’

intermodulation attenuation
at ‘yellow’

IMα

3.3

intermodulation attenuation
at ‘blue’

intermodulation attenuation
at ‘yellow’

α

pc(rms)

residual picture carrier
(RMS value)

α

H(sup)

suppression of harmonics
in video signal

α

H(spur)

spurious elements note 9b 40 −−dB

PSRR power supply ripple rejection at

pin 10

note 10 1.7 2.0 2.3 V

L standard − 1.35 − V
50 dB gain control −−0.5 dB
30 dB gain control −−0.1 dB

picture carrier modulated

−−1.9 %
by test line (VITS) only;
gain variation; note 11

“CCIR, line 330”
“CCIR, line 330”

− 25%

− 1 2 deg

56−MHz
AC load;
B/G and L standard

78−MHz
AC load;
B/G and L standard

f = 1.1 MHz; see Fig.6

58 64 − dB
and note 13

f = 1.1 MHz; see Fig.6

60 66 − dB
and note 13

f = 3.3 MHz; see Fig.6

58 64 − dB
and note 13

f = 3.3 MHz; see Fig.6

59 65 − dB
and note 13

fundamental wave and

− 25mV
harmonics;
B/G and L standard

note 9a 35 40 − dB

video signal; grey level;
see Fig.11

B/G standard 25 28 − dB
L standard 20 23 − dB

1995 Oct 03 12

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL

TDA9811

with QSS-IF and AM demodulator

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

VIF-AGC detector (pin 28)

I

28

charging current B/G and L standard;

additional charging current L standard in event of

discharging current B/G standard 15 20 25 µA

t

resp

AGC response to an increasing
VIF step

AGC response to a decreasing
VIF step

∆IF VIF amplitude step for activating

fast AGC mode

V

3(th)

threshold voltage level additional
charging current

note 11

missing VITS pulses and
no white video content

normal mode L 225 300 375 nA
fast mode L 30 40 50 µA
B/G and L standard;

note 14
B/G standard − 2.2 3.5 ms/dB
fast mode L − 1.1 1.8 ms/dB
normal mode L; note 14 − 150 240 ms/dB
L standard −2 −6 −10 dB

see Fig.8

L standard − 1.95 − V
L standard; fast mode L − 1.65 − V

0.75 1 1.25 mA

1.9 2.5 3.1 µA

− 0.05 0.1 ms/dB

Tuner AGC (pin 19)

V

i(rms)

IF input signal voltage for
minimum starting point of tuner
takeover (RMS value)

IF input signal voltage for
maximum starting point of tuner
takeover (RMS value)

V

V
∆V

o,19

sat,19

TOP,19

permissible output voltage from external source;

saturation voltage I19= 1.5 mA −−0.2 V

/∆T variation of takeover point by

temperature

I

19(sink)

∆G

IF

sink current see Fig.3

IF slip by automatic gain control tuner gain current from

input at pins 1, 2,
4 and 5; R

TOP

=22kΩ;

− 25mV

I19= 0.4 mA
input at pins 1, 2,

4 and 5; R

TOP

=0Ω;

50 100 5 mV

I19= 0.4 mA

−−13.2 V
note 2

I19= 0.4 mA − 0.03 0.07 dB/K

no tuner gain reduction;

= 13.2 V

V

19

maximum tuner gain

−−5µA

1.5 2 2.6 mA

reduction

− 68dB
20 to 80%

1995 Oct 03 13

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL

TDA9811

with QSS-IF and AM demodulator

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

AFC circuit (pin 23); see Fig.7 and note 15

S control steepness ∆I

/∆T frequency variation by

∆f

IF

temperature

V

o,23

output voltage upper limit see Fig.7 VP − 0.6 VP − 0.3 − V
output voltage lower limit see Fig.7 − 0.3 0.6 V

I

o,23(source)

I

o,23(sink)

∆I

23(p-p)

output source current 150 200 250 µA
output sink current 150 200 250 µA
residual video modulation current

(peak-to-peak value)

Sound IF amplifier (pins 31 and 32)

V

i SIF(rms)

input signal voltage sensitivity
(RMS value)

V

i max(rms)

maximum input signal voltage
(RMS value)

G

SIFcr

R

i(diff)

C

i(diff)

V

I(31,32)

α

ct(SIF,VIF)

SIF gain control range FM and AM mode;

differential input resistance note 2 1.7 2.2 2.7 kΩ
differential input capacitance note 2 1.2 1.7 2.5 pF
DC input voltage − 3.4 − V
crosstalk attenuation between SIF

and VIF input

/∆f note 16 0.5 0.72 1.0 µA/kHz

23

I

= 0; note 6 −−±20 ppm/K

AFC

B/G and L standard − 20 30 µA

FM mode; −3 dB at

− 30 70 µV
intercarrier output pin 20

AM mode; −3 dB at

− 70 100 µV
AF output pin 12

FM mode; +1 dB at

50 70 − mV

intercarrier output pin 20
AM mode; +1 dB at

80 140 − mV

AF output pin 12

60 67 − dB

see Fig.4

between pins 1, 2,

50 −−dB
4 and 5 and
pins 31 and 32; note 3

SIF-AGC detector (pin 8)

I

8

charging current FM mode 8 12 16 µA

AM mode 0.8 1.2 1.6 µA

discharging current FM mode 8 12 16 µA

normal mode AM 1 1.4 1.8 µA
fast mode AM 60 85 110 µA

1995 Oct 03 14

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL

TDA9811

with QSS-IF and AM demodulator

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Single reference QSS intercarrier mixer (B/G standard; pin 20)

V

o(rms)

B

−3

α

SC(rms)

R

o,20

V

O,20

I

int 20

I

20 max(sink)

I

20 max(source)

AM mute switch (pin 17)

V

17

I

17

Single reference QSS AF performance for FM operation (B/G standard); notes 17 to 20; see Table 1
S/N (W) weighted signal-to-noise ratio

IF intercarrier level (RMS value) SC1; sound carrier 2 off 75 100 125 mV

−3 dB intercarrier bandwidth upper limit 7.5 9 − MHz
residual sound carrier

(RMS value)

fundamental wave and
harmonics

− 2 − mV

output resistance note 2 −−25 Ω
DC output voltage − 2.0 − V
DC internal bias current for

1.5 1.9 − mA

emitter-follower
maximum AC and DC output sink

1.1 1.5 − mA

current
maximum AC and DC output

3.0 3.5 − mA

source current

DC voltage pin 11: 2.8 V to V

P

− 2.8 − V

pin 11: 0 to 2 V − 1.8 − V

DC current mute −−230 −µA

(SC

/SC2)

1

PC/SC1 ratio at pins 1 and
2; 27 kHz (54% FM
deviation);

“CCIR 468-4”

40 −−dB

black picture 53/48 58/55 − dB
white picture 52/46 55/52 − dB
6 kHz sine wave (black

44/42 48/46 − dB

to white modulation)
250 kHz square wave

35/25 41/30 − dB

(black to white
modulation)

sound carrier

45/44 51/50 − dB

subharmonics;
f = 2.75 MHz ±3 kHz

sound carrier

46/45 52/51 − dB

subharmonics;
f = 2.87 MHz ±3 kHz

1995 Oct 03 15

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL

TDA9811

with QSS-IF and AM demodulator

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

AM operation (L standard; pin 12); note 21

V

o AF 12(rms)

AF output signal voltage
(RMS value)

THD total harmonic distortion 54% modulation;

B

−3

−3 dB AF bandwidth 100 125 − kHz

S/N (W) weighted signal-to-noise ratio
V

12

DC potential voltage tracked with supply

PSRR power supply ripple rejection see Fig.11 22 25 − dB
Standard switch (pin 9); see also Table 2
V

9

DC potential voltage for preferred
settings

input voltage for negative
standard

input voltage for negative
standard

input voltage for positive
standard

I

IL

LOW level input current V9= 0 V 190 250 310 µA
VIF input switch (pin 30); see also Table 2
V

30

DC potential voltage for preferred

settings

input voltage for VIF input A B/G and L standard;

input voltage for VIF input B B/G and L standard 0 − 0.8 V

I

IL

LOW level input current V30= 0 V 170 230 290 µA

L accent switch (pin 11)

V

11

DC potential voltage for

L standard VCO frequency

switching

L standard note 22 2.8 − V
L accent standard and

alignment

I

IL

LOW level input current V11= 0 V 150 200 250 µA

Notes to the characteristics

1. Values of video and sound parameters are decreased at VP= 4.5 V.

2. This parameter is not tested during production and is only given as application information for designing the
television receiver.

3. Source impedance: 2.3 kΩ in parallel to 12 pF (SAW filter); fIF= 38.9 MHz.

54% modulation 400 500 600 mV

− 0.5 1.0 %

see Fig.10

“CCIR 468-4”

; see Fig.9 47 53 − dB

−

1

⁄2V

P

− V

voltage

B/G standard; note 22 2.8 − V

P

negative AGC off 1.3 − 2.3 V

L standard 0 − 0.8 V

2.8 − V

P

note 22

P

0 − 2.0 V

V

V

V

1995 Oct 03 16

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL

TDA9811

with QSS-IF and AM demodulator

4. Loop bandwidth BL = 180 kHz (natural frequency fn= 15 kHz; damping factor d ≈ 5; calculated with sync level within
gain control range). Resonance circuit of VCO: Q0> 50; C
approximately 2.7 V).

5. Temperature coefficient of external LC-circuit is equal to zero.

6. V

= 10 mV (RMS); ∆f = 1 MHz (VCO frequency offset related to picture carrier frequency); white picture

iIF

video modulation.

7. V

signal for nominal video signal.

iIF

8. Offset current measured between pin 7 and half of supply voltage (VP= 2.5 V) under the following conditions: no
input signal at VIF input (pins 1, 2, 4 and 5) and VIF amplifier gain at minimum (V28=VP). Due to sample-and-hold
mode of the FPLL in L standard, the leakage current of the loop filter capacitor (C = 220 nF) should not exceed
500 nA.

9. Measurements taken with SAW filter G3962 (sound carrier suppression: 40 dB); loop bandwidth BL = 180 kHz:
a) Modulation VSB; sound carrier off; f
b) Sound carrier on; SIF SAW filter L9453; f

video

> 0.5 MHz.

= 10 kHz to 10 MHz.

video

10. The 7 dB buffer gain accounts for 1 dB loss in the sound trap. Buffer output signal is typical 2 V (p-p), in event of
CVBS video amplifier output typical 1 V (p-p). If no sound trap is applied a 330 Ω resistor must be connected from
output to input (from pin 21 to pin 22).

11. The leakage current of the AGC capacitor should not exceed 1 µA at B/G standard respectively 10 nA current at
L standard. Larger currents will increase the tilt.

12. S/N is the ratio of black-to-white amplitude to the black level noise voltage (RMS value, pin 10). B = 5 MHz weighted
in accordance with

“CCIR 567”

.

13. The intermodulation figures are defined:



at 4.4 MHz

V

0

α

1.1

α

3.3



20

20

-------------------------------------- ­V

at 1.1 MHz



0



at 4.4 MHz

V

0



log=

------------------------------------- ­at 3.3 MHz

V



0

3.6 dB+log=

; α

value at 1.1 MHz referenced to black/white signal;

1.1

; α

value at 3.3 MHz referenced to colour carrier.

3.3

14. Response speed valid for a VIF input level range of 200 µVupto70mV.

15. To match the AFC output signal to different tuning systems a current source output is provided. The test circuit is
given in Fig.7. The AFC-steepness can be changed by the resistors at pin 23.

16. Depending on the ratio ∆C/C0 of the LC resonant circuit of VCO (Q0> 50; see note 4; C0=C

17. The V

output (pin 20) is analysed by a test demodulator TDA9820. The S/N of this equipment should be higher

o QSS

than 60 dB, related to a deviation of ±27 kHz, in accordance with

18. For all S/N measurements the used vision IF modulator has to meet the following specifications:
a) Incidental phase modulation for black-to-white jump less than 0.5 degrees.
b) QSS AF performance, measured with the television-demodulator AMF2 (audio output, weighted S/N ratio) better

than 60 dB (deviation 27 kHz) for 6 kHz sine wave black-to-white video modulation.

c) Picture-to-sound carrier ratio; PC/SC1= 13 dB (transmitter).

19. Measurements taken with SAW filter G3962 (Siemens) for vision IF (suppressed sound carrier) and G9350
(Siemens) for sound IF (suppressed picture carrier). Input level V

20. The PC/SC ratio at pins 1 and 2 is calculated as the addition of TV transmitter PC/SC ratio and SAW filter PC/SC
ratio. This PC/SC ratio is necessary to achieve the S/N(W) values as noted. A different PC/SC ratio will change
these values.

21. Measurements taken with SAW filter L9453 (Siemens) for AM sound IF (suppressed picture carrier).

22. The input voltage has to be Vi> 2.8 V or open-circuit.

= 8.2 pF ±0.25 pF; C

ext

“CCIR 468-4”

= 10 mV (RMS), 27 kHz (54% FM deviation).

i SIF

≈ 8.5 pF (loop voltage

int

int+Cext

.

).

1995 Oct 03 17

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL

TDA9811

with QSS-IF and AM demodulator

Table 1 Input frequencies and carrier ratios

DESCRIPTION SYMBOL B/G STANDARD L STANDARD

Picture carrier f
Sound carrier f

SC1

f

SC2

PC

Picture-to-sound carrier ratio SC

SC

1
2

38.9 38.9 33.9 MHz

33.4 32.4 40.4 MHz

33.158 −−MHz
13 10 10 dB
20 −−dB

Table 2 Switch logic

INPUT SWITCH

(PIN 30)

2.8VtoV

P

ST ANDARD SWITCH

(PIN 9)

2.8 V to V

P

SELECTED VIF

INPUT

SELECTED

ST ANDARD

A B/G negative −

1.3 to 2.3 V A B/G, with external
VIF AGC

0 to 0.8 V A L positive AM

1.3 to 2.3 V 0 to 0.8 V B L (note 1) positive AM
0 to 0.8 V 2.8 V to V

P

B B/G negative −

1.3 to 2.3 V B B/G, with external
VIF AGC

0 to 0.8 V B L positive AM

L ACCENT

STANDARD

VIDEO

POLARITY

UNIT

AF-AMPLIFIER

negative −

negative −

Note

1. Without external sound trap (video signal internally switched to video buffer).

1995 Oct 03 18

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL
with QSS-IF and AM demodulator

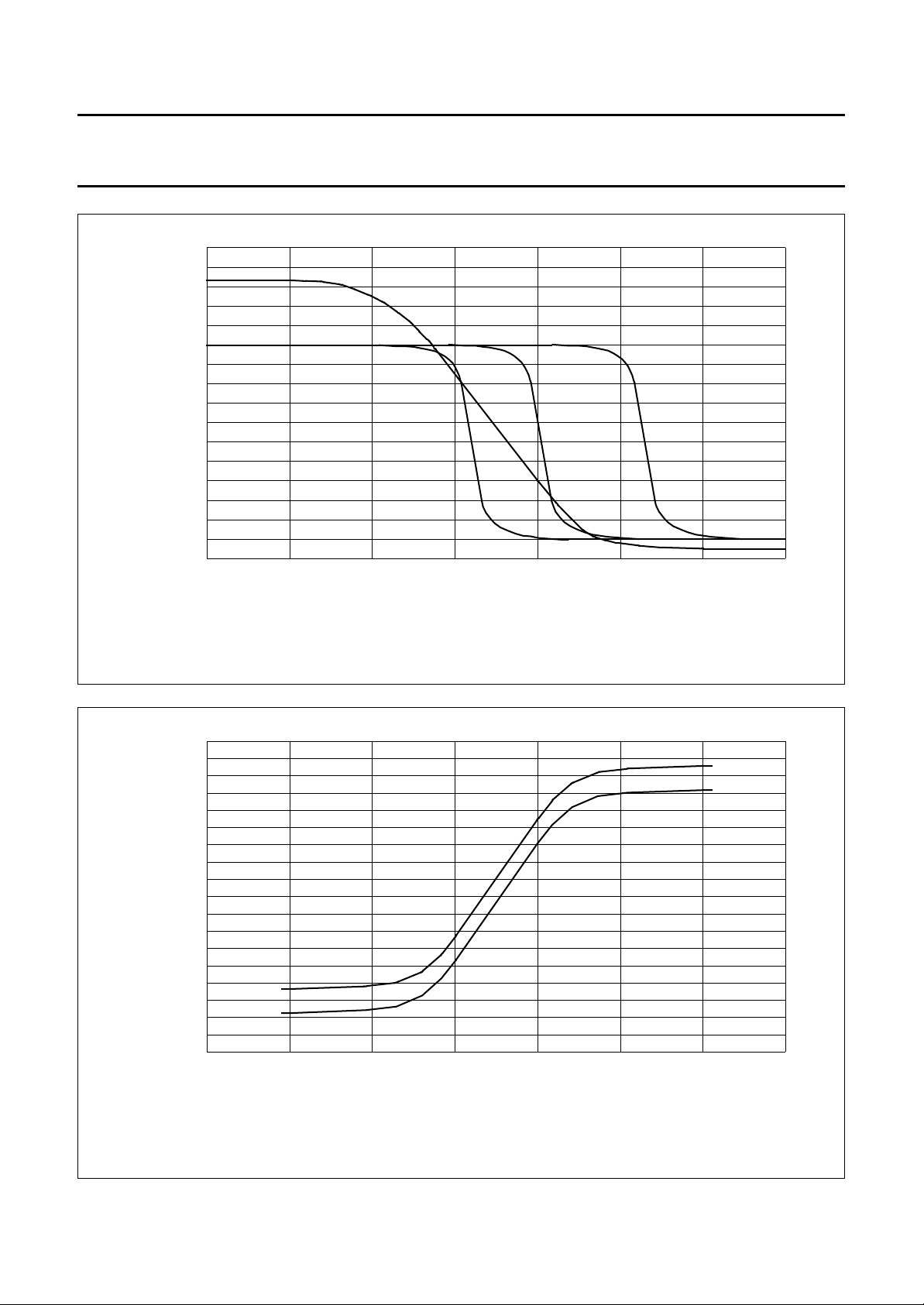

handbook, full pagewidth

VIF input

(1/2 or 4/5)

(mV RMS)

0.6

70
gain
(dB)

600.06

50

40

30

206

10

060

−10

1.0 2.521.5 3 3.5 4

(1) (2) (3) (4)

TDA9811

MED682 - 1

0

1.0

2.0

V28 (V)

4.5

I

tuner
(mA)

(1) I

; R

100

(31,32)

10

0.1

0.01

TOP

1

=22kΩ.

(dBµV)

tuner

(2) Gain.

handbook, full pagewidth

SIF input

(mV RMS)

(3) I

; R
; R

TOP
TOP

=11kΩ.
=0Ω.

(4) I

tuner
tuner

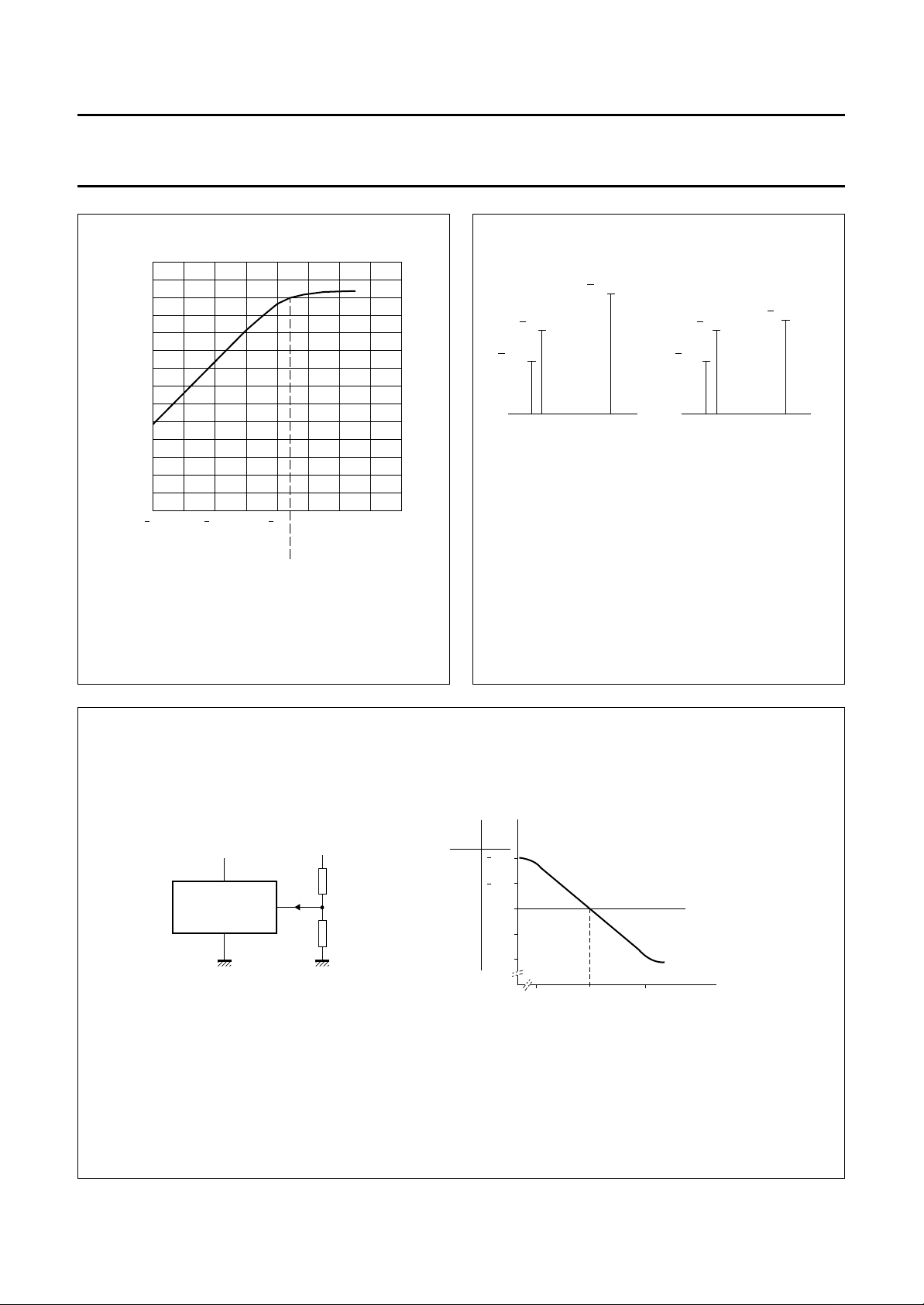

Fig.3 Typical VIF and tuner AGC characteristic.

110

100

90

80

70

60

50

40

30

20

1.0 2.521.5 3 3.5 4

(1)

(2)

MED683 - 1

V8 (V)

4.5

(1) AM mode.
(2) FM mode.

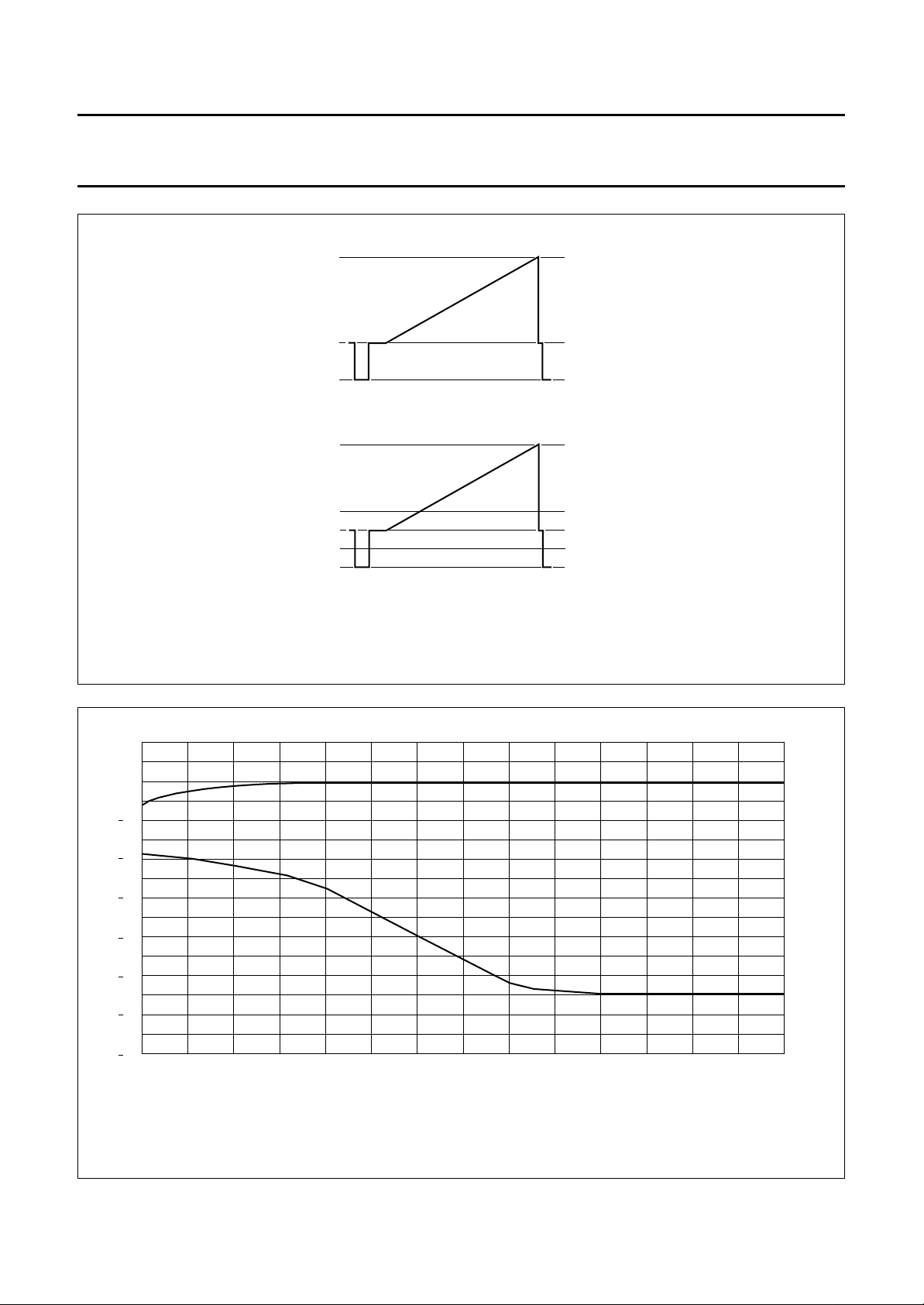

Fig.4 Typical SIF AGC characteristic.

1995 Oct 03 19

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL
with QSS-IF and AM demodulator

0

V

i IF(rms)

600.06 0.6 6

V

i IF(rms)

MED684

(dB)

600

(mV)

70

handbook, halfpage

S/N
(dB)

60

50

40

30

20

10

0

60 40 20 20

10

Fig.5 Typical signal-to-noise ratio as a function

of IF input voltage.

handbook, halfpage

13.2 dB

27 dB

SC CC PC SC CC PC

3.2 dB

27 dB

BLUE YELLOW

SC = sound carrier, with respect to sync level.
CC = chrominance carrier, with respect to sync level.
PC = picture carrier, with respect to sync level.
The sound carrier levels are taking into account

a sound shelf attenuation of 20 dB (SWIF G1962).

Fig.6 Input signal conditions.

TDA9811

13.2 dB

10 dB

MED685 - 1

handbook, full pagewidth

V

P





TDA9811



V = 5 V

P





22 kΩ

I

23

23

22 kΩ

V

Fig.7 Measurement conditions and typical AFC characteristic.

1995 Oct 03 20



(V)

4.5

3.5

2.5

1.5

0.5

I

23

23



(µA)







200



100

0

100

200

38.5

38.9





MHA048

(source current)


(sink current)


39.3

f (MHz)





Philips Semiconductors Preliminary specification

Multistandard VIF-PLL
with QSS-IF and AM demodulator

handbook, halfpage

2.5 V

1.8 V

1.5 V

2.5 V

1.95 V

1.8 V

1.65 V

1.5 V

TDA9811

white level

black level

sync level

standard B/G

white level

threshold level
black level
threshold level
sync level

10

handbook, full pagewidth

CCIR-468

(dB)

0

10

20

30

40

50

60

standard L

MED864

Fig.8 Typical video signal levels on output pin 21 (sound carrier off).

(1)

(2)

MED688

70

30 50 60 7040 80 90

m = 54%.(1) Signal.

(2) Noise.

Fig.9 Typical audio sound-to-noise ratio as a function of input signal at AM standard.

1995 Oct 03 21

input voltage (dBµV)

100

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL
with QSS-IF and AM demodulator

1.25

handbook, full pagewidth

THD

(%)

1.0

0.75

0.5

0.25

0

2

1

10

TDA9811

MED689

10110

f (kHz)

2

10

C

= 2.2 µF.

AGC

m = 54%.

ndbook, full pagewidth

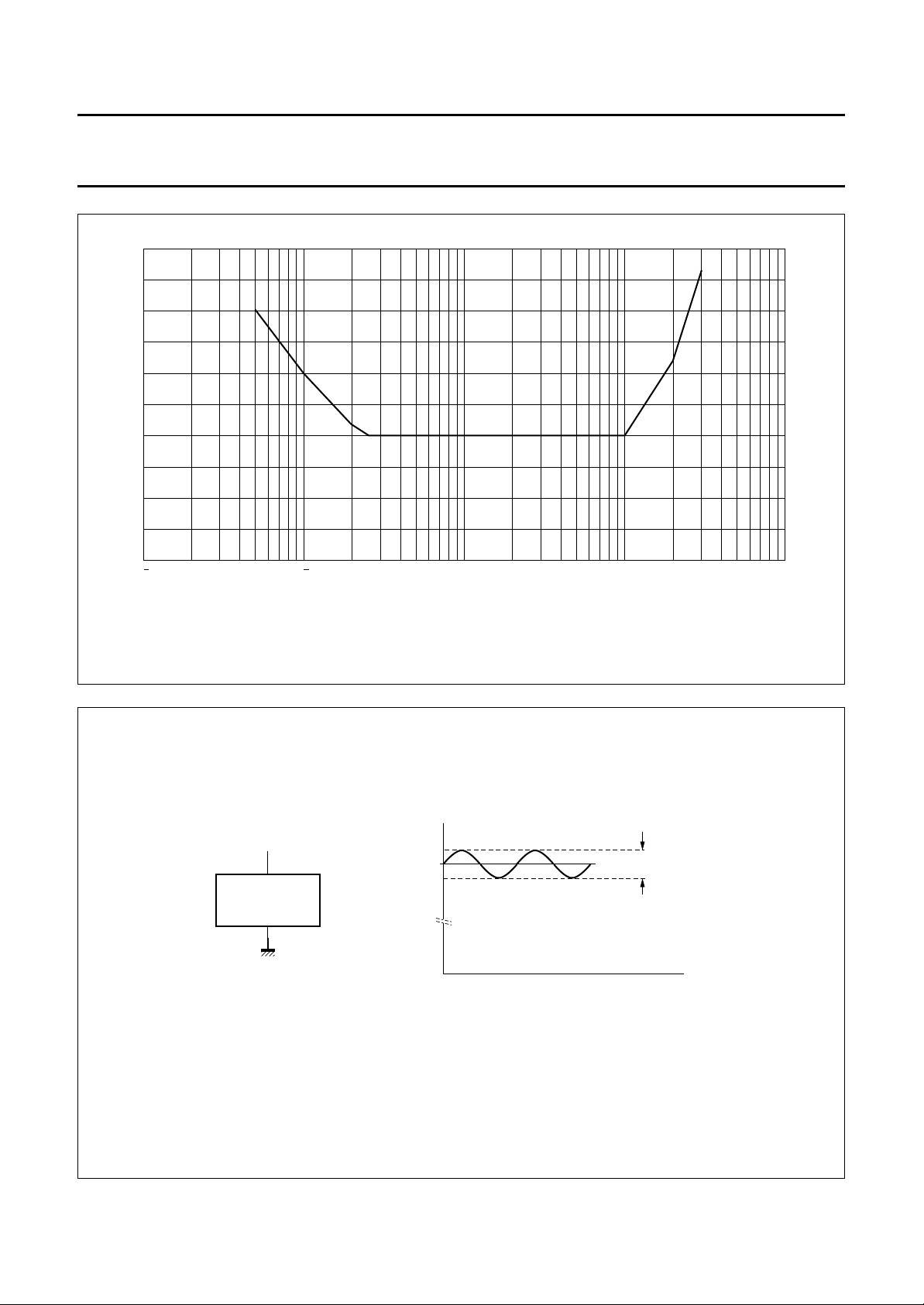

Fig.10 Typical total harmonic distortion as a function of audio frequency at AM standard.

VP = 5 V



TDA9811



VP = 5 V



MHA049

100 mV

(f = 70 kHz)

ripple

t


Fig.11 Ripple rejection condition.

1995 Oct 03 22

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL
with QSS-IF and AM demodulator

INTERNAL PIN CONFIGURATION

2.5 mA

10 kΩ10 kΩ

13 kΩ

18

+

n.c.

3.6 V

1.1 kΩ

+

+

31

GND

P

V

19

0.5 pF

1.6 kΩ

20

21

22

23

+

24

+

+

25

+

2627

+

28

29

10 kΩ

+

9 kΩ

1.7 pF

+

+

2.2

kΩ

3.3

kΩ

+

200 µA

420 Ω

420

+
+

20 kΩ

+

70 kΩ

+

Ω

20 kΩ

1.7 pF

2 kΩ

650 Ω

+

+
+

1.9 mA

3.0 mA

1 kΩ

1 kΩ

2.8 V

1 mA

3.6 V

+

30

17

640 Ω

3.9 kΩ

10 kΩ

3.6 V

TDA9811

1.1 kΩ

32

40 kΩ

40 kΩ

3.6 V

10 pF

+

3.6 V

1

16

n.c.

VCO

1.1 kΩ

TDA9811

13

14

15

2.3 mA

3.6 V

16 kΩ

3.6 V

17 kΩ

1.1 kΩ

+

+

+

13

3.6 V

+

+

9 kΩ

kΩ

24

20 kΩ

2.5 µA

n.c.

n.c.

n.c.

3.6 V

23 µA

+

67 µA

+

1.1 kΩ

0.6 µA

+

2

kΩ

+

14.7 kΩ

+

+

+

2.5 mA

+

+

+
+

+

+

9 kΩ

1.1 kΩ

+

25 pF

120 Ω

25 µA

1 mA

MHA052

12

11

10

9

8

7

handbook, full pagewidth

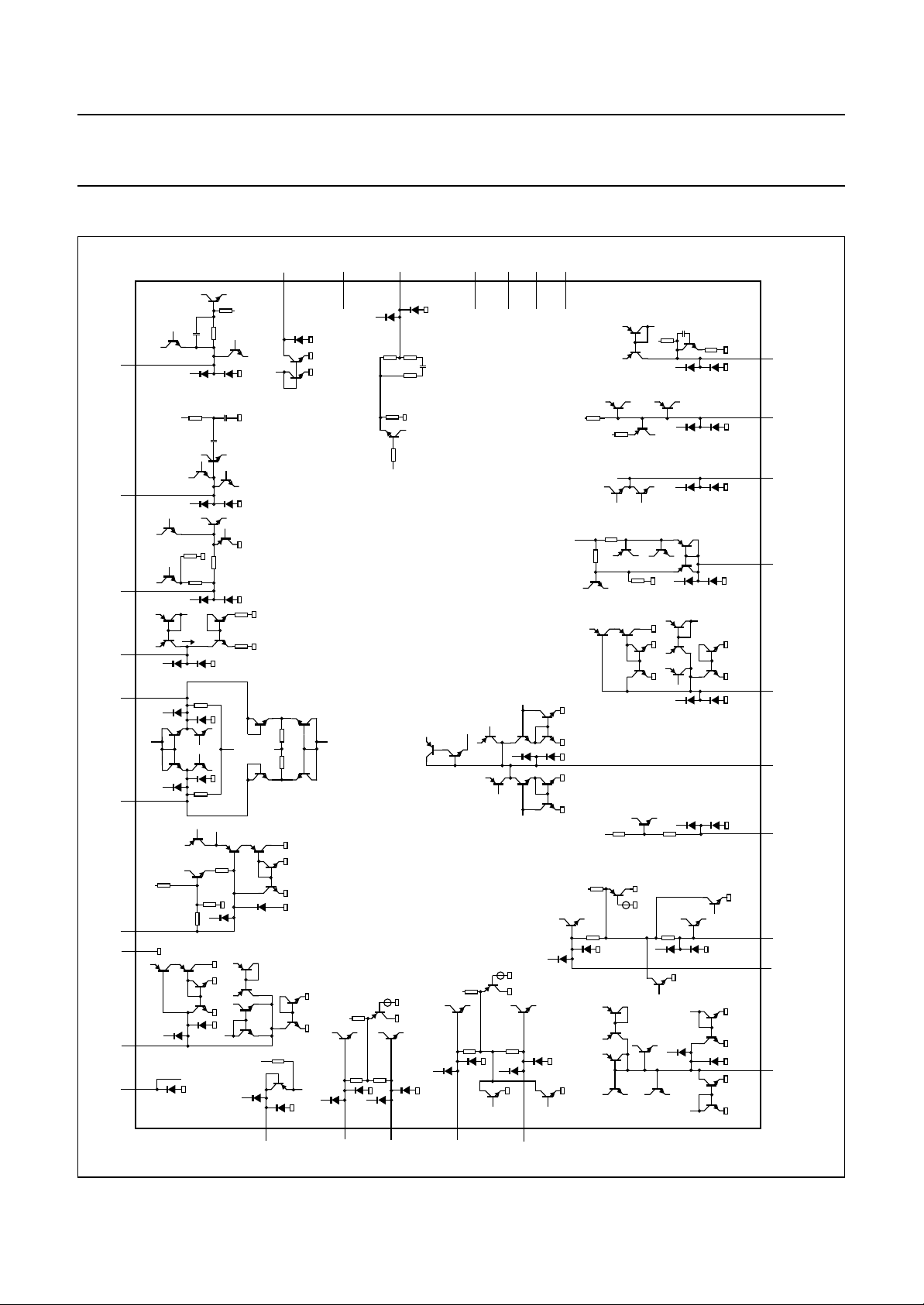

Fig.12 Internal circuitry.

6

54

3

1995 Oct 03 23

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL
with QSS-IF and AM demodulator

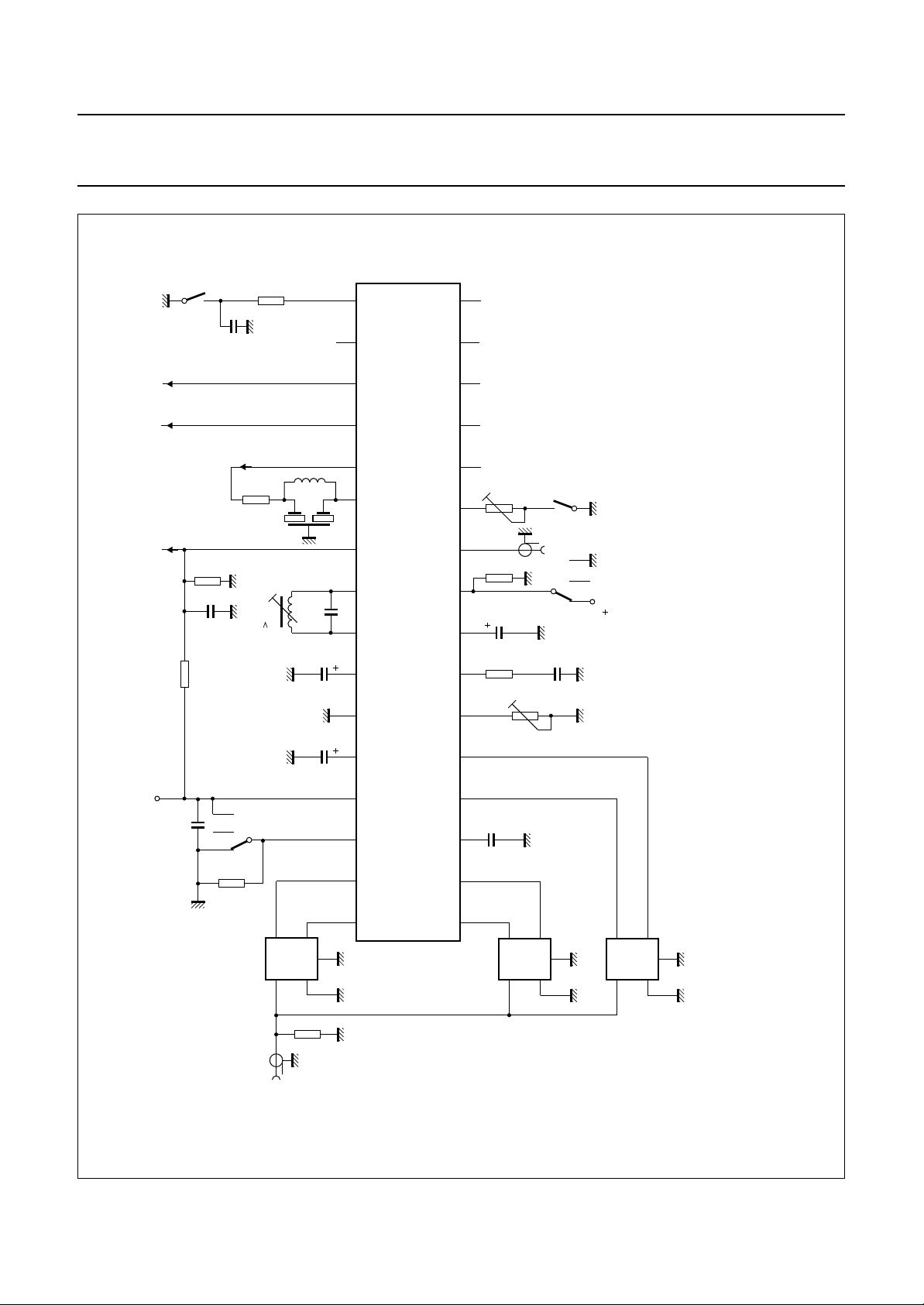

TEST AND APPLICATION INFORMATION

10

nF

VIF

input switch

kΩ

5.6 kΩ

AGC

tuner

50

0

Q

n.c.

Ω

330

8.2 pF
ref

C

2.2

GND

2.2

VIF

µF

µF

AFC

V

P

AM

mute switch

output

QSS intercarrier

video

output

22

kΩ

nF

100

22 kΩ

10 nF

22

AGC

TDA9811

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31



16



15



14



13



12



11



10



9

TDA9811



8



7



6

5

4



3



2

n.c.n.c.n.c.n.c.

22

100

22

2.2

470

nF

kΩ

kΩ

µF

Ω

TOP

BL

C

SIF

22

AFAM

AGC

loop

kΩ

filter

MHA050

L/L

accent

CVBS

switch

standard

nF

220

switch

5 V

handbook, full pagewidth

Fig.13 Test circuit.

32

3

1:1

5

1

SIF

input

4

2

Ω

50

1995 Oct 03 24



1

1:1

5

1

VIF

4

2

50

input A

5

4

3

1:1

1

Ω

VIF

2
50

input B

3

Ω

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL
with QSS-IF and AM demodulator

17

10

nF

330

VIF

input switch

kΩ

5.6 kΩ

Ω

15

µH

50
Q

8.2 pF

0

n.c.

ref

C

2.2

2.2

VIF

18

19

20

21

22

23

24

25

26

µF

27

µF

28

AGC

29

30

31

AM

mute switch

AGC

tuner

output

QSS intercarrier

AFC

P

V

video

22

100

22 kΩ

10 nF

output

kΩ

nF

22



16



15



14



13



12



11



10



9

TDA9811



8



7



6

5

4



3



2

TDA9811

n.c.n.c.n.c.n.c.

MHA051

22

AGC

loop

kΩ

filter

L/L

accent

CVBS

switch

standard

nF

220

switch

5 V

handbook, full pagewidth

Fig.14 Application circuit.

output

AM-AF

22

kΩ

22

kΩ

(2)

µF

2.2

SIF

Ω

470

TOP

BL

C

nF

100



32

(1)

SWIF

G9350

50 Ω

IF

input

1

1995 Oct 03 25

SWIF

G3962

(1)

SWIF

F4952

(1)

(1) Depends on standard.

(2) Only required for external AGC mode.

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL
with QSS-IF and AM demodulator

PACKAGE OUTLINE

SDIP32: plastic shrink dual in-line package; 32 leads (400 mil)

D

seating plane

L

Z

32

e

b

TDA9811

SOT232-1

M

E

A

2

A

A

1

w M

b

1

17

c

(e )

M

1

H

pin 1 index

1

0 5 10 mm

scale

DIMENSIONS (mm are the original dimensions)

A

A

A

UNIT b

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

mm

OUTLINE

VERSION

SOT232-1

max.

4.7 0.51 3.8

12

min.

max.

IEC JEDEC EIAJ

1.3

0.8

b

1

0.53

0.40

REFERENCES

0.32

0.23

cEe M

(1) (1)

D

29.4

28.5

9.1

8.7

E

16

(1)

Z

L

e

1

3.2

2.8

M

E

10.7

10.2

EUROPEAN

PROJECTION

12.2

10.5

w

H

0.181.778 10.16

ISSUE DATE

92-11-17
95-02-04

max.

1.6

1995 Oct 03 26

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL
with QSS-IF and AM demodulator

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

Soldering by dipping or by wave

The maximum permissible temperature of the solder is
260 °C; solder at this temperature must not be in contact
with the joint for more than 5 seconds. The total contact
time of successive solder waves must not exceed
5 seconds.

(order code 9398 652 90011).

TDA9811

The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (T
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.

Repairing soldered joints

Apply a low voltage soldering iron (less than 24 V) to the
lead(s) of the package, below the seating plane or not
more than 2 mm above it. If the temperature of the
soldering iron bit is less than 300 °C it may remain in
contact for up to 10 seconds. If the bit temperature is
between 300 and 400 °C, contact may be up to 5 seconds.

stg max

). If the

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

1995 Oct 03 27

Philips Semiconductors – a worldwide company

Argentina: IEROD, Av. Juramento 1992 - 14.b, (1428)

BUENOS AIRES, Tel. [phone], Fax. [phone]

Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]

Austria: Triester Str. 64, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]

Belgium: Postbus 90050, 5600 PB EINDHOVEN, The Netherlands,

Tel. [phone], Fax. [phone]

Brazil: Rua do Rocio 220 - 5

CEP: 04552-903-SÃO PAULO-SP, Brazil.
P.O. Box 7383 (01064-970),
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS:

Tel. [phone], Fax. [phone]

Chile: Av. Santa Maria 0760, SANTIAGO,

Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,

72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: IPRELENSO LTDA, Carrera 21 No. 56-17,

77621 BOGOTA, Tel. [phone],
Fax. [phone]

Denmark: Prags Boulevard 80, PB 1919, DK-2300

COPENHAGEN S, Tel. [phone], Fax. [phone]

Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]

France: 4 Rue du Port-aux-Vins, BP317,

92156 SURESNES Cedex,
Tel. [phone], Fax. [phone]

Germany: P.O. Box 10 63 23, 20043 HAMBURG,

Tel. [phone], Fax. [phone].

Greece: No. 15, 25th March Street, GR 17778 TAVROS,

Tel. [phone] 911, Fax. [phone]

India: Philips INDIA Ltd, Shivsagar Estate, A Block,

Dr. Annie Besant Rd. Worli, Bombay 400 018
Tel. [phone], Fax. [phone]

Indonesia: Philips House, Jalan H.R. Rasuna Said Kav. 3-4,

P.O. Box 4252, JAKARTA 12950,
Tel. [phone], Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS S.r.l.,

Piazza IV Novembre 3, 20124 MILANO,
Tel. [phone], Fax. [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong,

Yongsan-ku, SEOUL, Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA,

SELANGOR, Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TX 79905,

Tel. [phone], Fax. [phone]

th

floor, Suite 51,

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]

New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]

Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: Philips Electrical Industries of Pakistan Ltd.,

Exchange Bldg. ST-2/A, Block 9, KDA Scheme 5, Clifton,
KARACHI 75600, Tel. [phone],
Fax. [phone]

Philippines: PHILIPS SEMICONDUCTORS PHILIPPINES Inc,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Portugal: PHILIPS PORTUGUESA, S.A.,

Rua dr. António Loureiro Borges 5, Arquiparque - Miraflores,
Apartado 300, 2795 LINDA-A-VELHA,
Tel. [phone], Fax. [phone]

Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

South Africa: S.A. PHILIPS Pty Ltd.,

195-215 Main Road Martindale, 2092 JOHANNESBURG,
P.O. Box 7430, Johannesburg 2000,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,

Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla. S-164 85 STOCKHOLM,

Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,

Tel. [phone], Fax. [phone]

Taiwan: PHILIPS TAIWAN Ltd., 23-30F, 66, Chung Hsiao West

Road, Sec. 1. Taipeh, Taiwan ROC, P.O. Box 22978,
TAIPEI 100, Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,

209/2 Sanpavuth-Bangna Road Prakanong,
Bangkok 10260, THAILAND,
Tel. [phone], Fax. [phone]

Turkey:Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,

Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors LTD.,

276 Bath Road, Hayes, MIDDLESEX UB3 5BX,
Tel. [phone], Fax. [phone]

United States:811 East Arques Avenue, SUNNYVALE,

CA 94088-3409, Tel. [phone], Fax. [phone]

Uruguay: Coronel Mora 433, MONTEVIDEO,

Tel. [phone], Fax. [phone]

Internet: http://www.semiconductors.philips.com/ps/
For all other countries apply to: Philips Semiconductors,

International Marketing and Sales, Building BE-p,
P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands,
Telex 35000 phtcnl, Fax. [phone]

SCD44 © Philips Electronics N.V. 1995

All rights are reserved. Reproduction in whole or in part is prohibited without the
prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation
or contract, is believed to be accurate and reliable and may be changed without
notice. No liability will be accepted by the publisher for any consequence of its
use. Publication thereof does not convey nor imply any license under patent- or
other industrial or intellectual property rights.

Printed in The Netherlands

533061/1500/01/pp28 Date of release: 1995 Oct 03
Document order number: 9397 750 00337
