INTEGRATED CIRCUITS

DATA SH EET

TDA9810

Multistandard VIF-PLL with QSS-IF
and AM demodulator

Preliminary specification
File under Integrated Circuits, IC02

1997 Jun 19

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

FEATURES

• 5 V supply voltage

• Gain controlled wide band Video Intermediate

Frequency (VIF)-amplifier (AC-coupled)

• True synchronous demodulation with active carrier
regeneration (very linear demodulation, good
intermodulation figures, reduced harmonics, excellent
pulse response)

• Gated phase detector for L/L accent standard;
robustness for over-modulation until 105%

• Voltage Controlled Oscillator (VCO) frequency
switchable between L and L accent (alignment external)
picture carrier frequency

• Separate video amplifier for sound trap buffering with
high video bandwidth

• VIF Automatic Gain Control (AGC) detector for gain
control, operating as peak sync detector for B/G
(optional external AGC) and peak white detector for L;
signal controlled reaction time for L

TDA9810

• Tuner AGC with adjustable TakeOver Point (TOP)

• AFC detector without extra reference circuit

• SIF-input for single reference Quasi Split Sound (QSS)

mode (Phase Locked Loop (PLL) controlled); Sound
Intermediate Frequency (SIF) AGC detector for gain
controlled SIF amplifier; single reference QSS mixer
able to operate in high performance single reference
QSS mode

• AM demodulator without extra reference circuit

• AM mute (especially for NICAM)

• Stabilizer circuit for ripple rejection and to achieve

constant output signals.

GENERAL DESCRIPTION

The TDA9810 is an integrated circuit for multistandard
vision IF signal processing and sound AM demodulation,
with single reference QSS-IF in TV and VCR sets.

ORDERING INFORMATION

TYPE NUMBER

NAME DESCRIPTION VERSION

TDA9810 SDIP24 plastic shrink dual in-line package; 24 leads (400 mil) SOT234-1
TDA9810T SO24 plastic small outline package; 24 leads; body width 7.5 mm SOT137-1

PACKAGE

1997 Jun 19 2

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and

TDA9810

AM demodulator

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

P

I

P

V

i(VIF)(rms)

V

o(CVBS)(p-p)

B

−3

S/N

W(video)

α

IM(1.1)

α

IM(3.3)

α

H(sup)

V

i(SIF)(rms)

V

o(intercarrier)(rms)

V

o(AF)(rms)

THD total harmonic distortion 54% modulation − 0.5 1.0 %
S/N

W

supply voltage 4.5 5 5.5 V
supply current 77 90 103 mA
vision IF input signal voltage sensitivity

−1 dB video at output − 60 100 µV

(RMS value)
CVBS output signal voltage

1.7 2.0 2.3 V

(peak-to-peak value)

−3 dB video bandwidth on pin CVBS B/G and L standard;
< 20 pF; RL> 1kΩ;

C

L

78−MHz

AC load
weighted signal-to-noise ratio for video 56 60 − dB
intermodulation attenuation at ‘blue’ f = 1.1 MHz 58 64 − dB
intermodulation attenuation at ‘blue’ f = 3.3 MHz 58 64 − dB
suppression of video signal harmonics 35 40 − dB
sound IF input signal voltage sensitivity

−3 dB at intercarrier output − 30 70 µV

(RMS value)
IF intercarrier level (RMS value) SC1 output signal 100 140 180 mV

SC

output signal 100 140 180 mV

AM

SC
AF output signal voltage (RMS value) L standard;

output signal 14 20 26 mV

NICAM

− 500 − mV

54% modulation

weighted signal-to-noise ratio 54% modulation 47 53 − dB

1997 Jun 19 3

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

BLOCK DIAGRAM

video

1 V (p-p)

12913

1719184162114 315

AFC

AFC DETECTOR

pc

2 x f

VCO TWD

handbook, full pagewidth

AND AMPLIFIER

VIDEO DEMODULATOR

CVBS

2 V (p-p)

VIDEO

i(vid)

V

BUFFER

AF/AM

6

AF AMPLIFIER

TDA9810

MHA713

11

AMPLIFIER SWITCH

7

10

AM mute

switch

L/L accent

QSS

intercarrier

TDA9810

switch

output

tuner

TOP

loop

AGC

BL

C

VAGC

C

L/L accent

filter

TOP

R

gating switch

FPLL

TUNER AND VIF-AGC

VIF AMPLIFIER

2

1

VIF

SAW

MIXER AND

AM DEMODULATOR

SINGLE REFERENCE

SIF

AMPLIFIER

23

24

SIF

SAW

SAGC

C

SIF-AGC

standards

22 20 8 5

STABILIZER

INTERNAL VOLTAGE

switch

selection

GND

= +5 V

P

V

Fig.1 Block diagram.

1997 Jun 19 4

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

PINNING

SYMBOL PIN DESCRIPTION

V

i VIF1

V

i VIF2

TADJ 3 tuner AGC takeover point adjust
T

PLL

C

SAGC

V

oAF

LSWI 7 L/L accent switch
STD 8 standard switch
V

o(vid)

V

o QSS

MUTE 11 AM mute switch
V

o CVBS

1 VIF differential input signal voltage 1
2 VIF differential input signal voltage 2

4 PLL loop filter
5 SIF AGC capacitor
6 AM audio frequency output voltage

9 composite video output voltage

10 single reference QSS output voltage

12 CVBS output signal voltage

TDA9810

SYMBOL PIN DESCRIPTION

V

i(vid)

LGATSWI 14 L/L accent gating switch

C

BL

TAGC 16 tuner AGC output

AFC 17 AFC output

VCO1 18 VCO1 reference circuit for 2f

VCO2 19 VCO2 reference circuit for 2f

GND 20 ground

C

VAGC

V

P

V

i SIF1

V

i SIF2

13 video buffer input voltage

15 black level detector

21 VIF AGC capacitor
22 supply voltage
23 SIF differential input signal voltage 1
24 SIF differential input signal voltage 2

pc
pc

handbook, halfpage

V

V

i VIF1

V

i VIF2

TADJ

T

PLL

C

SAGC
V

o AF

LSWI

STD

V

o(vid)

V

o QSS

MUTE

o CVBS

1
2
3
4
5
6
7
8

9
10
11
12

TDA9810

MHA712

V

24

V

23

V

22

C

21
20

GND

19

VCO2

18

VCO1

17

AFC

16

TAGC
C

15
14

LGATSWI
V

13

i SIF2
i SIF1

P
VAGC

BL

i(vid)

handbook, halfpage

V

V

i VIF1

V

i VIF2

TADJ

T

PLL

C

SAGC
V

o AF

LSWI

STD

V

o(vid)

V

o QSS

MUTE

o CVBS

1
2
3
4
5
6

TDA9810T

7
8

9
10
11
12

MHA722

V

24

V

23

V

22

C

21
20

GND

19

VCO2

18

VCO1

17

AFC

16

TAGC
C

15
14

LGATSWI
V

13

i SIF2
i SIF1

P
VAGC

BL

i(vid)

Fig.2 Pin configuration SDIP24 package.

1997 Jun 19 5

Fig.3 Pin configuration SO24 package.

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

FUNCTIONAL DESCRIPTION
Vision IF amplifier

The vision IF amplifier consists of three AC-coupled
differential amplifier stages. Each differential stage
comprises a feedback network controlled by emitter
degeneration.

Tuner and VIF AGC

The AGC capacitor voltage is transferred to an internal IF
control signal, and is fed to the tuner AGC to generate the
tuner AGC output current (pin TAGC, open-collector
output). The tuner AGC takeover point can be adjusted.
This allows the tuner and the SWIF filter to be matched to
achieve the optimum IF input level.

The AGC detector charges/discharges the AGC capacitor
to the required voltage for setting of VIF and tuner gain in
order to keep the video signal at a constant level.
Therefore for negative video modulation the sync level and
for positive video modulation the peak white level of the
video signal is detected. In order to reduce the reaction
time for positive modulation, where a very large time
constant is needed, an additional level detector increases
the discharging current of the AGC capacitor (fast mode)
in the event of a decreasing VIF amplitude step.
The additional level information is given by the black-level
detector voltage.

Frequency Phase Locked Loop detector (FPLL)

The VIF-amplifier output signal is fed into a frequency
detector and into a phase detector via a limiting amplifier.
During acquisition the frequency detector produces a DC
current proportional to the frequency difference between
the input and the VCO signal. After frequency lock-in the
phase detector produces a DC current proportional to the
phase difference between the VCO and the input signal.
The DC current of either frequency detector or phase
detector is converted into a DC voltage via the loop filter,
which controls the VCO frequency. In the event of positive
modulated signals the phase detector is gated by
composite sync in order to avoid signal distortion for
overmodulated VIF signals. This mode can be switched off
by the L/L accent gating switch.

VCO, Travelling Wave Divider (TWD) and AFC

The VCO operates with a resonance circuit (with L and C
in parallel) at double the Picture Carrier (PC) frequency.

TDA9810

The VCO is controlled by two integrated variable
capacitors. The control voltage required to tune the VCO
from its free-running frequency to actually double the PC
frequency is generated by the Frequency-Phase detector
and fed via the loop filter to the first variable capacitor
(FPLL). This control voltage is amplified and additionally
converted into a current which represents the AFC output
signal. The VCO centre frequency can be decreased
(required for L accent standard) by activating an additional
internal capacitor. This is achieved by using the L/L accent
gating switch. In this event the second variable capacitor
can be controlled by a variable resistor at the L/L accent
gating switch for setting the VCO centre frequency to the
required L accent value. At centre frequency the AFC
output current is equal to zero.

The oscillator signal is divided-by-two with a TWD which
generates two differential output signals with a 90 degree
phase difference independent of the frequency.

Video demodulator and amplifier

The video demodulator is realized by a multiplier which is
designed for low distortion and large bandwidth. The vision
IF input signal is multiplied with the ‘in phase’ signal of the
travelling wave divider output. In the demodulator stage
the video signal polarity can be switched in accordance
with the TV standard.

The demodulator output signal is fed via an integrated
low-pass filter for attenuation of the carrier harmonics to
the video amplifier. The video amplifier is realized by an
operational amplifier with internal feedback and high
bandwidth. A low-pass filter is integrated to achieve an
attenuation of the carrier harmonics for B/G and
L standard. The standard dependent level shift in this
stage delivers the same sync level for positive and
negative modulation. The video output signal is 1 V (p-p)
for nominal vision IF modulation.

Video buffer

For an easy adaption of the sound traps an operational
amplifier with internal feedback is used in the event of B/G
and L standard. This amplifier is featured with a high
bandwidth and 7 dB gain. The input impedance is adapted
for operating in combination with ceramic sound traps.
The output stage delivers a nominal 2 V (p-p) positive
video signal. Noise clipping is provided.

1997 Jun 19 6

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

SIF amplifier and AGC

The sound IF amplifier consists of two AC-coupled
differential amplifier stages. Each differential stage
comprises a controlled feedback network provided by
emitter degeneration.

The SIF AGC detector is related to the SIF input signals
(average level of AM or FM carriers) and controls the SIF
amplifier to provide a constant SIF signal to the AM
demodulator and single reference QSS mixer. The SIF
AGC reaction time is set to ‘slow’ for nominal video
conditions. But with a decreasing VIF amplitude step the
SIF AGC is set to ‘fast’ mode controlled by the VIF AGC
detector. In FM mode this reaction time is also set to ‘fast’
controlled by the standard switch.

Single reference QSS mixer

The single reference QSS mixer is realized by a multiplier.
The SIF amplifier output signal is fed to the single
reference QSS mixer and converted to intercarrier
frequency by the regenerated picture carrier (VCO).
The mixer output signal is fed via a high-pass for
attenuation of the video signal components to the output
pin 10. With this system a high performance hi-fi stereo
sound processing can be achieved.

TDA9810

AM demodulator

The AM demodulator is realized by a multiplier.
The modulated SIF amplifier output signal is multiplied in
phase with the limited (AM is removed) SIF amplifier
output signal. The demodulator output signal is fed via an
integrated low-pass filter for attenuation of the carrier
harmonics to the AF amplifier. This AM output signal can
be muted by using the AM mute switch.

1

Internal voltage stabilizer and

The bandgap circuit internally generates a voltage of
approximately 1.25 V, independent of supply voltage and
temperature. A voltage regulator circuit, connected to this
voltage, produces a constant voltage of 3.6 V which is
used as an internal reference voltage.

For all audio output signals the constant reference voltage
cannot be used because large output signals are required.
Therefore these signals refer to half the supply voltage to
achieve a symmetrical headroom, especially for the
rail-to-rail output stage. For ripple and noise attenuation

1

the

⁄2VP voltage has to be filtered via a low-pass filter by

using an external capacitor together with an integrated
resistor (f
start-up circuit is available.

= 5 Hz). For a fast setting to 1⁄2VP an internal

−3dB

⁄2VP-reference

1997 Jun 19 7

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and

TDA9810

AM demodulator

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

P

V

I

t

sc(max)

V

TAGC

T

stg

T

amb

V

es

Notes

1. I

P

2. Machine Model class B: L = 2.5 µH.

supply voltage (pin 22) maximum chip temperature

0 5.5 V

of 125 °C; note 1

input voltage at pins 1 to 8, 1 1, 13 to 17

0V

and 20 to 24
maximum short-circuit time − 10 s
tuner AGC output voltage 0 13.2 V
storage temperature −25 +150 °C
operating ambient temperature −20 +70 °C
electrostatic handling voltage note 2 −300 +300 V

= 103 mA; T

=70°C; R

amb

= 69 K/W for SDIP24 and R

th j-a

= 90 K/W for SO24.

th j-a

P

V

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th j-a

thermal resistance from junction to ambient in free air

SOT234-1 69 K/W
SOT137-1 90 K/W

1997 Jun 19 8

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and

TDA9810

AM demodulator

CHARACTERISTICS

VP=5V; T
peak white level for L); IF input from 50 Ω via broadband transformer 1 : 1; video modulation DSB; residual carrier
B/G: 10%; L = 3%; video signal in accordance with
specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply (pin 22)

V

P

I

P

Vision IF amplifier (pins 1 and 2)

V

i(VIF)(rms)

V

i(max)(rms)

∆V

o(int)

G

IFcr

R

i(diff)

C

i(diff)

V

I(1,2)

True synchronous video demodulator; note 3
f

VCO(max)

∆f

/∆T oscillator drift as a function

osc

V

VCO(rms)

f

cr(pc)

∆f

pc(fr)

f

alg(L accent)

t

acq

V

i(VIF)(rms)

I

offset(FPLL)

=25°C; see Table 1 for input frequencies and level; input level V

amb

“CCIR, line 17”

; measurements taken in Fig.14; unless otherwise

supply voltage note 1 4.5 5 5.5 V
supply current 77 90 103 mA

input signal voltage
sensitivity (RMS value)

maximum input signal
voltage (RMS value)

internal IF amplitude
difference between picture
and sound carrier

B/G standard; −1 dB video
at output

B/G standard; +1 dB video
at output

within AGC range;
B/G standard;

∆f = 5.5 MHz
IF gain control range see Fig.4 65 70 − dB
differential input resistance note 2 1.7 2.2 2.7 kΩ
differential input capacitance note 2 1.2 1.7 2.5 pF
DC input voltage note 2 − 3.4 − V

maximum oscillator

f=2f

pc

frequency for carrier
regeneration

oscillator is free-running;
of temperature

I

AFC

= 0; note 4

oscillator voltage swing at
pins 18 and 19 (RMS value)

picture carrier capture
frequency range

B/G and L standard ±1.5 ±2.0 − MHz

L accent standard;

f

= 33.9 MHz;

pc

R7= 5.6 kΩ
picture carrier frequency

(free-running) accuracy

L accent standard;

fpc= 33.9 MHz;

R7= 5.6 kΩ
L accent alignment

I

=0 ±400 ±600 − kHz

AFC

frequency range
acquisition time BL = 70 kHz; note 5 −−30 ms
VIF input signal voltage

maximum IF gain; note 6 − 30 70 µV
sensitivity for PLL to be
locked (RMS value;
pins 1 and 2)

FPLL offset current at pin 4 note 7 −−±4.5 µA

i(IF)(rms)

= 10 mV (sync-level for B/G,

− 60 100 µV

120 200 − mV

− 0.7 1 dB

125 130 − MHz

−−±20 × 10−6K

70 100 130 mV

±1.0 ±1.3 − MHz

−±200 ±400 kHz

−1

1997 Jun 19 9

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and

TDA9810

AM demodulator

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Composite video amplifier (pin 9; sound carrier off)

V

o(video)(p-p)

output signal voltage
(peak-to-peak value)

V/S ratio between video

(black-to-white) and
sync level

V

sync(9)

V

clu(9)

sync voltage level B/G and L standard − 1.5 − V
upper video clipping voltage

level

V

cll(9)

lower video clipping voltage
level

R

o(9)

I

bias(9)(int)

output resistance note 2 −−10 Ω
internal DC bias current for

emitter-follower

I

sink(9)(max)

maximum AC and DCoutput
sink current

I

source(9)(max)

maximum AC and DC output
source current

B

−1

B

−3

α

H(sup)

−1 dB video bandwidth B/G and L standard;

−3 dB video bandwidth B/G and L standard;

suppression of video signal
harmonics

PSRR power supply ripple rejection

at pin 9

see Fig.9 0.88 1.0 1.12 V

1.9 2.33 3.0 −

VP− 1.1 VP− 1 − V

− 0.3 0.4 V

2.2 3.0 − mA

1.6 −− mA

2.9 −− mA

56− MHz
CL< 50 pF; RL> 1kΩ;
AC load

78− MHz
CL< 50 pF; RL> 1kΩ;
AC load

CL< 50 pF; RL> 1kΩ;

35 40 − dB
AC load; note 8a

video signal; grey level;
see Fig.12

B/G standard 32 35 − dB
L standard 26 30 − dB

CVBS buffer amplifier (only) and noise clipper (pins 12 and 13)

R

i(13)

C

i(13)

V

I(13)

G

v

V

clu(12)

input resistance note 2 2.6 3.3 4.0 kΩ
input capacitance note 2 1.4 2 3.0 pF
DC input voltage 1.4 1.7 2.0 V
voltage gain B/G and L standard; note 9 6.5 7 7.5 dB
upper video clipping voltage

level

V

cll(12)

lower video clipping voltage
level

R

o(12)

I

bias(12)(int)

output resistance note 2 −−10 Ω
DC internal bias current for

emitter-follower

I

sink(12)(max)

maximum AC and DC output
sink current

1997 Jun 19 10

3.9 4.0 − V

− 1.0 1.1 V

2.0 2.5 − mA

1.4 −− mA

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and

TDA9810

AM demodulator

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

I

source(12)(max)

B

−1

B

−3

Measurements from IF input to CVBS output (pin 12; 330 Ω between pins 9 and 13, sound carrier off)

V

o(CVBS)(p-p)

∆V

o(CVBS)

V

o(CVBS)(sync)

∆V

o(CVBS)

∆V

o(bl)(BG)

∆V

o(bl)(L)

G

diff

ϕ

diff

B

−1

B

−3

S/N

W(video)

S/N unweighted signal-to-noise

α

IM(1.1)

α

IM(3.3)

maximum AC and DC output

2.4 −− mA

source current

−1 dB video bandwidth B/G and L standard;

8.4 11 − MHz
CL< 20 pF; RL> 1kΩ;
AC load

−3 dB video bandwidth B/G and L standard;

11 14 − MHz
CL< 20 pF; RL> 1kΩ;
AC load

CVBS output signal voltage

note 9 1.7 2.0 2.3 V

on pin 12
(peak-to-peak value)

output signal voltage
difference

difference between B/G
and L standard

−−10 %

sync voltage level B/G standard − 1.35 − V

L standard − 1.35 − V

deviation of CVBS output
signal voltage at B/G

black level tilt in

50 dB gain control −−0.5 dB
30 dB gain control −−0.1 dB
gain variation; note 10 −−1%

B/G standard
black level tilt for worst case

in L standard

vision carrier modulated
by test line (VITS) only;

−−1.9 %

gain variation; note 10

differential gain
differential phase

−1 dB video bandwidth CL< 20 pF; RL> 1kΩ;

“CCIR, line 330”
“CCIR, line 330”

− 25 %

− 1 2 deg

56− MHz
AC load;
B/G and L standard

−3 dB video bandwidth CL< 20 pF; RL> 1kΩ;

78− MHz
AC load;
B/G and L standard

weighted signal-to-noise

see Fig.6 and note 11 56 60 − dB

ratio for video

see Fig.6 and note 11 49 53 − dB

ratio
intermodulation attenuation

at ‘blue’
intermodulation attenuation

at ‘yellow’
intermodulation attenuation

at ‘blue’
intermodulation attenuation

at ‘yellow’

f = 1.1 MHz; see Fig.7 and
note 12

f = 1.1 MHz; see Fig.7 and
note 12

f = 3.3 MHz; see Fig.7 and
note 12

f = 3.3 MHz; see Fig.7 and
note 12

58 64 − dB

60 66 − dB

58 64 − dB

59 65 − dB

1997 Jun 19 11

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and

TDA9810

AM demodulator

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

α

c(rms)

∆f

unwanted(p-p)

∆ϕ robustness for modulator

α

H(sup)

α

H(spur)

PSRR power supply ripple rejection

residual vision carrier
(RMS value)

fundamental wave and
harmonics;

− 25 mV

B/G and L standard

robustness for unwanted
frequency deviation of
picture carrier
(peak-to-peak value)

imbalance

L standard;
residual carrier: 3%;
serration pulses: 50%;
note 2

L standard;
residual carrier: 0%;

−−12 kHz

−−3%

serration pulses: 50%;
note 2

suppression of video signal

note 8a 35 40 − dB

harmonics
spurious elements note 8b 40 −− dB

video signal; grey level;

at pin 12

see Fig.12

B/G standard 25 28 − dB
L standard 20 23 − dB

VIF-AGC detector (pin 21)

I

ch(21)

charging current B/G and L standard;

additional charging current L standard in event of

discharging current B/G standard 15 20 25 µA

t

resp(AGC)(r)

AGC response to a rising
VIF step

t

resp(AGC)(f)

AGC response to a falling
VIF step

∆IF VIF amplitude step for

activating fast AGC mode

V

th(15)

threshold voltage level
additional charging current

0.75 1 1.25 mA

note 10

1.9 2.5 3.1 µA
missing VITS pulses and
no white video content

normal mode L standard 225 300 375 nA
fast mode L standard 30 40 50 µA
B/G and L standard;

− 0.05 0.1 ms/dB
note 13

B/G standard − 2.2 3.5 ms/dB
fast mode L standard − 1.1 1.8 ms/dB
normal mode L standard;

− 150 240 ms/dB
note 13

L standard −2 −6 −10 dB

see Fig.9

L standard − 1.95 − V
L standard; fast mode L − 1.65 − V

1997 Jun 19 12

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and

TDA9810

AM demodulator

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Tuner AGC (pin 16)

V

i(rms)

V

o(16)(max)

V

sat(16)

∆V

TOP(16)

I

sink(16)

∆G

IF

IF input signal voltage for
minimum starting point of
tuner takeover (RMS value)

IF input signal voltage for
maximum starting point of
tuner takeover (RMS value)

maximum output voltage from external source;

saturation voltage I16= 1.5 mA −−0.2 V

/∆T variation of takeover point by

temperature
sink current see Fig.4

IF slip by automatic gain
control

input at pins 1 and 2;
R

=22kΩ; I16= 0.4 mA

TOP

input at pins 1 and 2;

=0Ω; I16= 0.4 mA

R

TOP

− 25 mV

50 100 − mV

−−13.2 V
note 2

I16= 0.4 mA − 0.03 0.07 dB/K

no tuner gain reduction;
V

= 13.2 V

16

maximum tuner gain

−−1 µA

1.5 2 2.6 mA

reduction

tuner gain current from

− 68 dB
20 to 80%

AFC circuit (pin 17); see Fig.8 and note 14
S control steepness ∆I17/∆f note 15 0.5 0.75 1.0 µA/kHz

∆f

/∆T frequency variation by

IF

temperature

V

o(17)(max)

V

o(17)(min)

I

o(source)(17)

I

o(sink)(17)

∆I

17(p-p)

output voltage upper limit VP − 0.6 VP − 0.3 − V
output voltage lower limit − 0.3 0.6 V
output source current 150 200 250 µA
output sink current 150 200 250 µA
residual video modulation

B/G and L standard;
I

= 0; note 4

AFC

−−±20 × 10−6K

B/G and L standard − 20 30 µA

−1

current (peak-to-peak value)

1997 Jun 19 13

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and

TDA9810

AM demodulator

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Sound IF amplifier (pins 23 and 24)

V

i(SIF)(rms)

V

i(max)(rms)

G

cr(SIF)

R

i(diff)

C

i(diff)

V

I(23,24)

α

SIF,VIF

input signal voltage
sensitivity (RMS value)

maximum input signal
voltage (RMS value)

SIF gain control range FM and AM mode;

differential input resistance note 2 1.7 2.2 2.7 kΩ
differential input capacitance note 2 1.2 1.7 2.5 pF
DC input voltage − 3.4 − V
crosstalk attenuation

between SIF and VIF input

FM mode; −3 dB at
intercarrier output pin 10

AM mode; −3 dB at
AF output pin 6

FM mode; +1 dB at
intercarrier output pin 10

AM mode; +1 dB at
AF output pin 6

see Fig.5

between pins 1 and 2 and
pins 23 and 24; note 16

− 30 70 µV

− 70 100 µV

50 70 − mV

80 140 − mV

60 67 − dB

50 −− dB

SIF-AGC detector (pin 5)

I

ch(5)

charging current FM mode 8 12 16 µA

AM mode 0.8 1.2 1.6 µA

I

dch(5)

discharging current FM mode 8 12 16 µA

normal mode AM 1 1.4 1.8 µA
fast mode AM 60 85 110 µA

Single reference QSS intercarrier mixer (pin 10); note 17
V

o(intercarrier)(rms)

IF intercarrier level
(RMS value)

B/G standard; SC1;
sound carrier 2 off

L standard;
without modulation

NICAM 14 20 26 mV

B

−3

α

c(rms)

R

o(10)

V

O(10)

I

bias(int)(10)

−3 dB intercarrier bandwidth upper limit 7.5 9 − MHz
residual sound carrier

(RMS value)

fundamental wave and
harmonics

output resistance note 2 −−25 Ω
DC output voltage − 2.0 − V
DC internal bias current for

emitter-follower

I

(sink)(max)10

maximum AC and DC output
sink current

I

(source)(max)10

maximum AC and DC output
source current

100 140 180 mV

100 140 180 mV

− 2 − mV

1.5 1.9 − mA

1.1 1.5 − mA

3.0 3.5 − mA

1997 Jun 19 14

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and

TDA9810

AM demodulator

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Single reference QSS AF performance for FM operation (B/G standard); notes 18 to 21; see Table 1

S/N

S/N

W(SC1)

W(SC2)

weighted signal-to-noise
ratio for SC

1

weighted signal-to-noise
ratio for SC

2

PC/SC1 ratio at pins 1 and

40 −− dB
2; 27 kHz (54% FM
deviation);

“CCIR 468-4”

black picture 53 58 − dB
white picture 52 55 − dB
6 kHz sine wave (black to

44 48 − dB

white modulation)
250 kHz square wave

40 45 − dB

(black to white
modulation)

sound carrier

45 51 − dB

subharmonics;
f = 2.75 MHz ±3 kHz

sound carrier

46 52 − dB

subharmonics;
f = 2.87 MHz ±3 kHz

PC/SC2 ratio at pins 1 and

40 −− dB
2; 27 kHz (54% FM
deviation);

“CCIR 468-4”

black picture 48 55 − dB
white picture 46 52 − dB
6 kHz sine wave (black to

42 46 − dB

white modulation)
250 kHz square wave

29 34 − dB

(black to white
modulation)

sound carrier

44 50 − dB

subharmonics;
f = 2.75 MHz ±3 kHz

sound carrier

45 51 − dB

subharmonics;

f = 2.87 MHz ±3 kHz
AM operation (L standard; pin 6); note 22
V

o(AF)(rms)

AF output signal voltage

54% modulation 400 500 600 mV

(RMS value)

THD total harmonic distortion 54% modulation;

− 0.5 1.0 %

see Fig.11

B

−3

S/N

W

−3 dB AF bandwidth 100 125 − kHz
weighted signal-to-noise

“CCIR 468-4”

; see Fig.10 47 53 − dB

ratio

V

6

DC potential voltage tracked with supply voltage − 2.5 − V

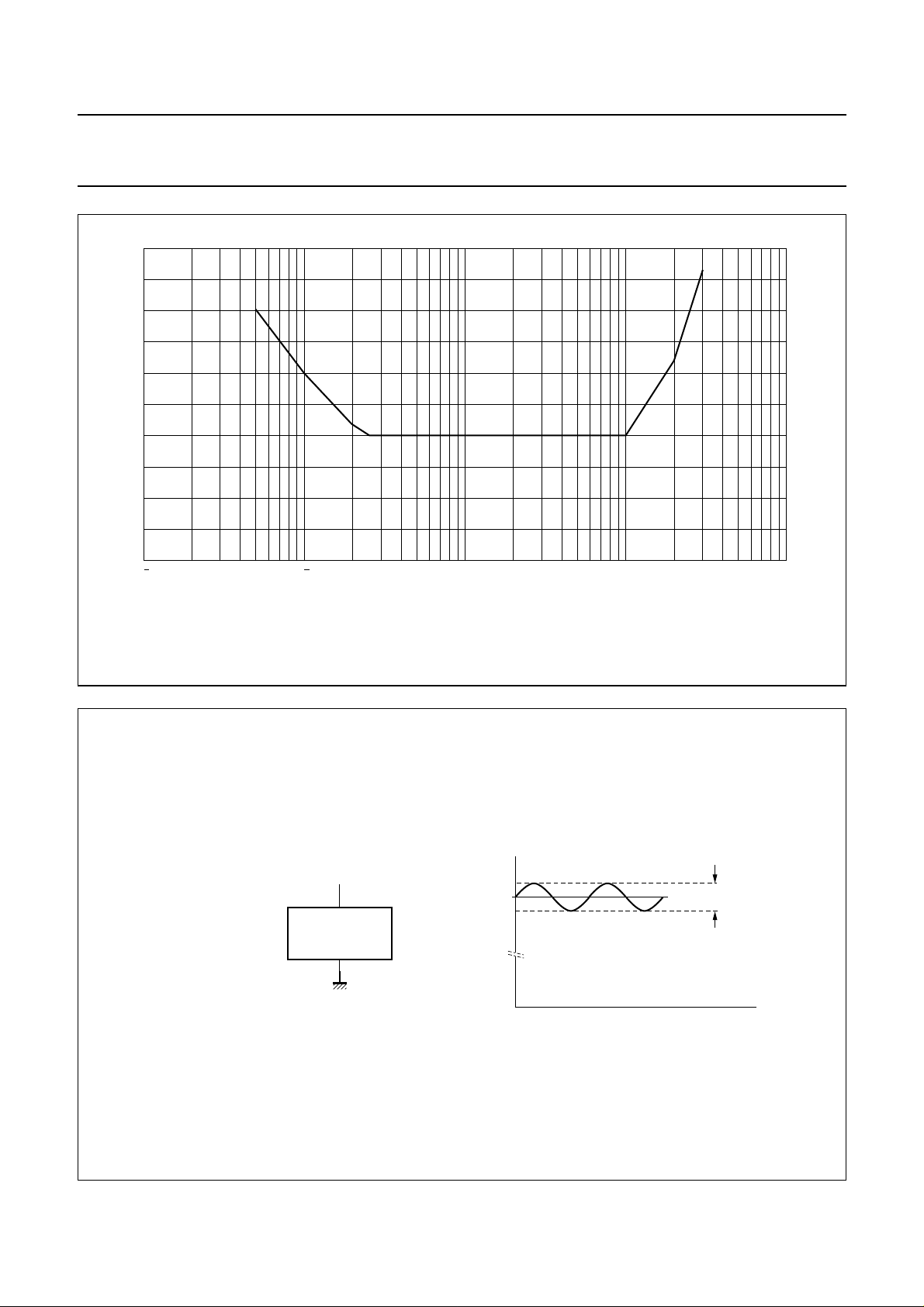

PSRR power supply ripple rejection see Fig.12 22 25 − dB

1997 Jun 19 15

Philips Semiconductors Preliminary specification



α



Multistandard VIF-PLL with QSS-IF and

TDA9810

AM demodulator

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

AM mute switch (pin 11)

V

11

I

IL

L/L accent gating switch (pin 14)

V

14

I

IL

Notes

1. Values of video and sound parameters are decreased at VP= 4.5 V.

2. This parameter is not tested during production and is only given as application information for designing the
television receiver.

3. Loop bandwidth BL = 70 kHz (natural frequency fn= 12 kHz; damping factor d ≈ 3; calculated for peak level).
Resonance circuit of VCO: Q0> 50; C

4. Temperature coefficient of external LC-circuit is equal to zero.

5. V

i(IF)(rms)

video modulation.

6. V

signal for nominal video signal.

i(IF)

7. Offset current measured between pin 4 and half of supply voltage (VP= 2.5 V) under the following conditions: no
input signal at VIF input (pins 1 and 2) and VIF amplifier gain at minimum (V21=VP). Due to sample-and-hold mode
of the FPLL in L standard, the leakage current of the loop filter capacitor (C = 220 nF) should not exceed 500 nA.

8. Measurements taken with SAW filter K6257 (sound carrier suppression: 40 dB); loop bandwidth = 70 kHz.
a) Modulation VSB; sound carrier off; f
b) Sound carrier on; SIF SAW filter K9453; f

9. The 7 dB buffer gain accounts for 1 dB loss in the sound trap. Buffer output signal is typically 2 V (p-p), in event of
CVBS video amplifier output typical 1 V (p-p). If no sound trap is applied a 330 Ω resistor must be connected from
output to input (from pin 9 to pin 13).

10. The leakage current of the AGC capacitor should not exceed 1 µA at B/G standard respectively 10 nA current at
L standard. Larger currents will increase the tilt.

11. S/N is the ratio of black-to-white amplitude to the black level noise voltage (RMS value, pin 12). B = 5 MHz weighted
in accordance with

12. The intermodulation figures are defined:

α

IM 1.1()

IM 3.3()

13. Response speed valid for a VIF input level range of 200 µVupto70mV.

14. To match the AFC output signal to different tuning systems a current source output is provided. The test circuit is
given in Fig.8. The AFC-steepness can be changed by the resistors at pin 17.

DC potential

input voltage for no mute note 23 2.8 − V

P

input voltage for mute 0 − 0.8 V

LOW level input current V11= 0 V 175 250 325 µA

DC potential voltage for

gating on note 23 2.8 − V

P

gating off 0 − 2.0 V

LOW level input current V14= 0 V 140 200 260 µA

= 8.2 pF ±0.25 pF; C

ext

≈ 8.5 pF (loop voltage ≈2.7 V).

int

= 10 mV; ∆f = 1 MHz (VCO frequency offset related to picture carrier frequency); white picture

> 0.5 MHz.

video

= 10 kHz to 10 MHz.

video

“CCIR 567”

at 4.4 MHz

V

0



20

20

------------------------------------­at 1.1 MHz

V



0

V

at 4.4 MHz

0



log=

-------------------------------------­V

at 3.3 MHz



0

.

value at 1.1 MHz referenced to black/white signal;

IM(1.1)

; α

3.6dB+log=

; α

value at 3.3 MHz referenced to colour carrier.

IM(3.3)

V

V

1997 Jun 19 16

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and

TDA9810

AM demodulator

15. Depending on the ratio ∆C/C0 of the LC resonant circuit of VCO (Q0> 50; see note 3; C0=C

int+Cext

16. Source impedance: 2.3 kΩ in parallel to 12 pF (SAW filter); fIF= 38.9 MHz.

17. For picture to sound carrier ratio see Table 1. The NICAM L subcarrier is 17 dB lower than the AM sound carrier and
depends on its AM modulation.

18. The V
related to a deviation of ±27 kHz, in accordance with

output (pin 10) is analysed by a test demodulator TDA9820. The S/N ratio of this IC is more than 60 dB,

o QSS

“CCIR 468-4”

.

19. For all S/N measurements the used vision IF modulator has to meet the following specifications:
a) Incidental phase modulation for black-to-white jump less than 0.5 degrees.
b) QSS AF performance, measured with the television-demodulator AMF2 (audio output, weighted S/N ratio) better

than 60 dB (deviation ±27 kHz) for 6 kHz sine wave black-to-white video modulation.

c) Picture-to-sound carrier ratio; PC/SC1= 13 dB; (transmitter).

20. Measurements taken with SAW filter K6257 (Siemens) for vision IF (suppressed sound carrier) and K9453
(Siemens) for sound IF (suppressed picture carrier). Input level V

i(SIF)(rms)

= 10 mV, 27 kHz (54% FM deviation).

21. The PC/SC ratio at pins 1 and 2 is calculated as the addition of TV transmitter PC/SC ratio and SAW filter PC/SC
ratio. This PC/SC ratio is necessary to achieve the S/NW values as noted. A different PC/SC ratio will change
these values.

22. Measurements taken with SAW filter K9453 (Siemens) for AM sound IF (suppressed picture carrier).

23. The input voltage has to be Vi> 2.8 V, or open-circuit.

).

Table 1 Input frequencies and carrier ratios

DESCRIPTION SYMBOL B/G STANDARD L STANDARD

Picture carrier f
Sound carrier f

f

sc2/NICAM

Picture to sound
carrier ratio

PC/SC

PC/SC

pc

sc1

1

2/NICAM

38.9 38.9 33.9 38.9 MHz

33.4 32.4 40.4 32.4 MHz

33.158 −− 32.05 MHz
13 10 10 10 dB
20 −− 27 dB

L ACCENT

STANDARD

NICAM L UNIT

Table 2 Switch logic

STANDARD SWITCH

(PIN 8)

2.8VtoV

P

SELECTED STANDARD VIDEO POLARITY

B/G negative on on FM FM

FM-PLL AF-AMPLIFIER

1212

1.3 to 2.3 V B/G, with external VIF AGC negative on on FM FM
0 to 0.8 V L positive off off AM mute

1997 Jun 19 17

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

; R

70
gain
(dB)

600.06

50

40

30

206

10

060

−10
1 2.521.5 3 3.5 4

TOP

=22kΩ.

(3) I
(4) I

tuner
tuner

; R
; R

TOP
TOP

=11kΩ.
=0Ω.

ndbook, full pagewidth

V

i(VIF)(rms)

(mV)

0.6

(1) I

tuner

(2) Gain.

(1) (2) (3) (4)

TDA9810

MHA714

V21 (V)

4.5

I

0

1

2

tuner
(mA)

handbook, full pagewidth

(1) AM mode.
(2) FM mode.

100

V

i(SIF)(rms)

(mV)

10

1

0.1

0.01

(dBµV)

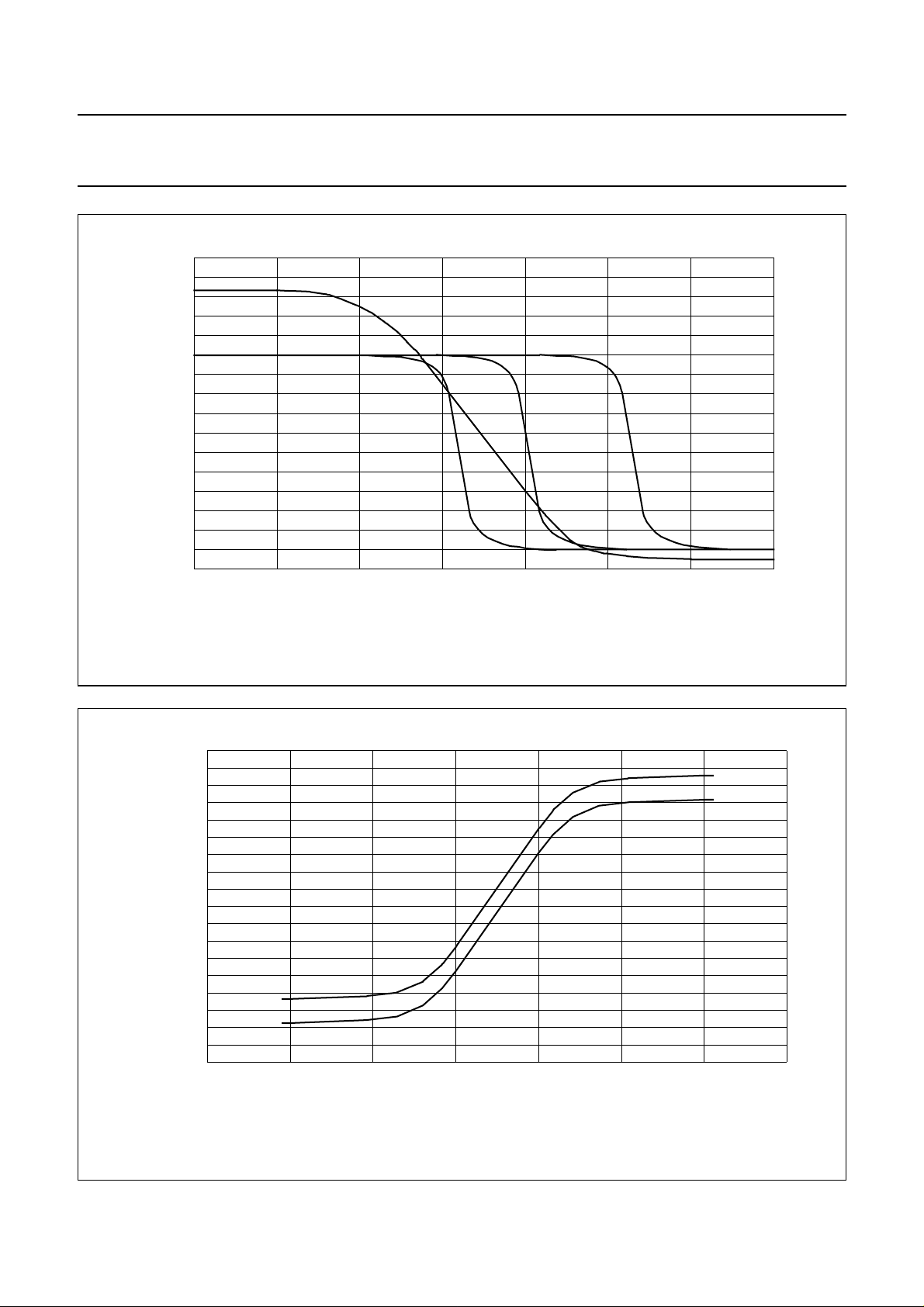

Fig.4 Typical VIF and tuner AGC characteristic.

110

100

90

80

70

60

50

40

30

20

1 2.521.5 3 3.5 4

(1)

(2)

V5 (V)

MHA715

4.5

Fig.5 Typical SIF AGC characteristic.

1997 Jun 19 18

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

0

V

i(IF)(rms)

600.06 0.6 6

V

i(IF)(rms)

MED684

(dB)

600

(mV)

70

handbook, halfpage

S/N

(dB)

60

50

40

30

20

10

0

60 40 20 20

10

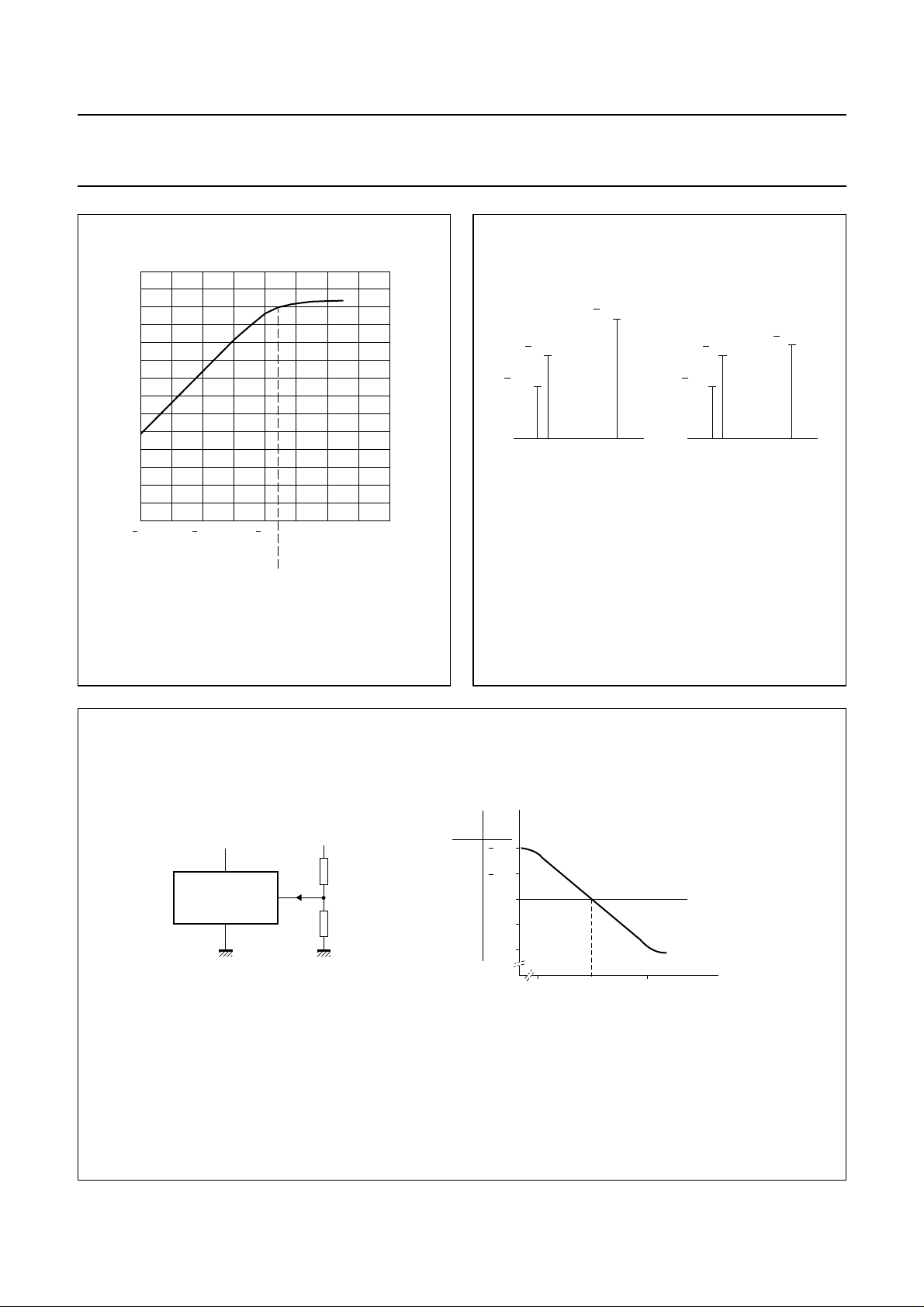

Fig.6 Typical signal-to-noise ratio as a function of

IF input voltage.

handbook, halfpage

13.2 dB

27 dB

SC CC PC SC CC PC

3.2 dB

13.2 dB

27 dB

BLUE YELLOW

SC = sound carrier, with respect to sync level.
CC = chrominance carrier, with respect to sync level.
PC = picture carrier, with respect to sync level.
The sound carrier levels are taking into account

a sound shelf attenuation of 20 dB (SAW filter G1962).

Fig.7 Input signal conditions.

TDA9810

10 dB

MED685 - 1

handbook, full pagewidth

V

P

TDA9810

V = 5 V

P

22 kΩ

I

17

17

V

AFC

22 kΩ

V

AFC
(V)

Fig.8 Measurement conditions and typical AFC characteristic.

1997 Jun 19 19

2.5

I

17

(µA)

200

100

0

100

200

38.5 38.9 39.3

MHA716

(source current)

(sink current)

f (MHz)

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

handbook, halfpage

2.5 V

1.8 V

1.5 V

standard B/G

2.5 V

1.95 V

1.8 V

1.65 V

1.5 V

TDA9810

white level

black level

sync level

white level

threshold level
black level
threshold level
sync level

10

handbook, full pagewidth

CCIR-468

(dB)

0

10

20

30

40

50

60

70

30 50 60 7040 80 90

(1) Signal.
(2) Noise.

standard L

MED864

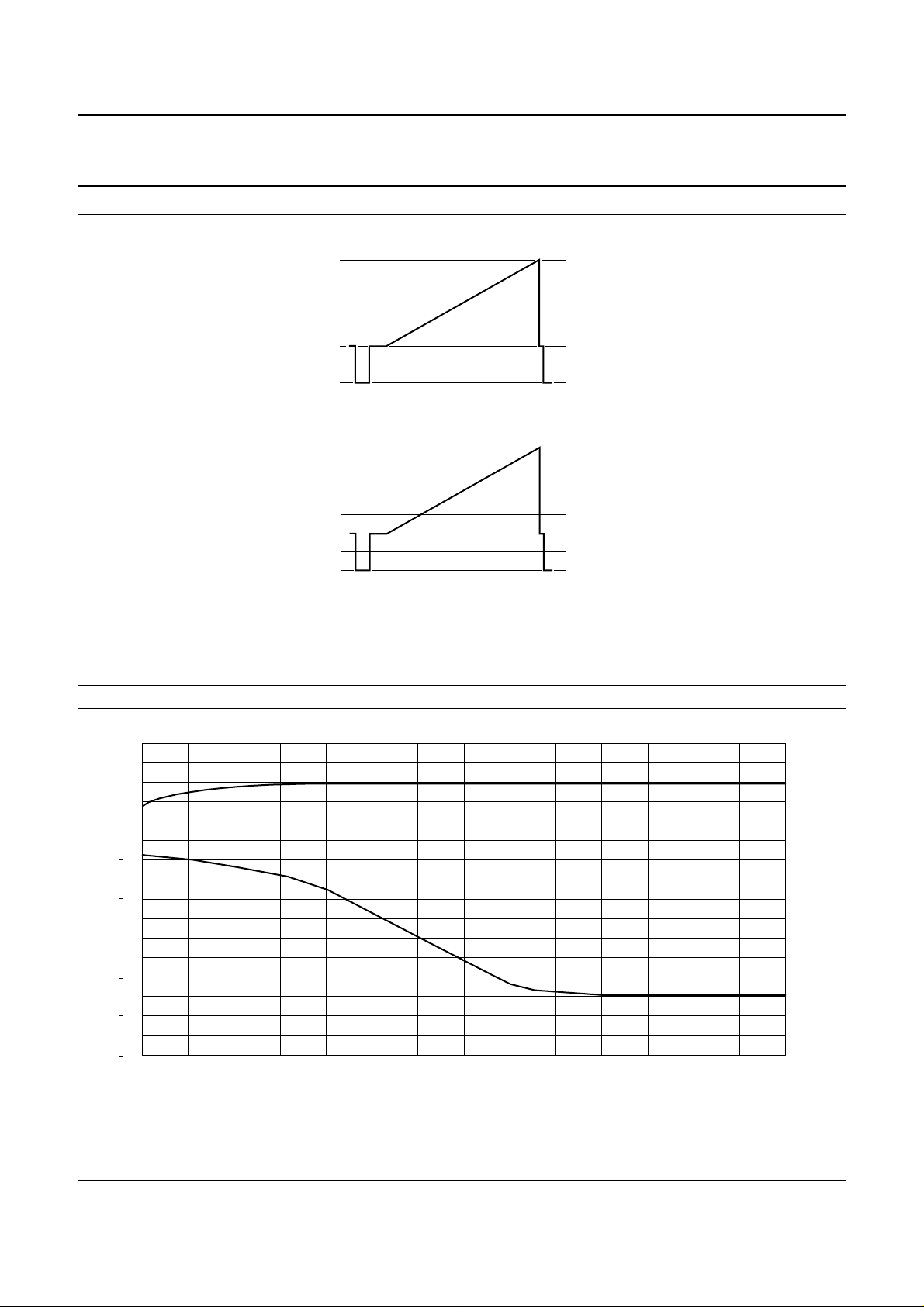

Fig.9 Typical video signal levels on output pin 9 (sound carrier off).

(1)

(2)

input voltage (dBµV)

MED688

100

Fig.10 Typical audio signal-to-noise ratio as a function of input signal at AM standard (m = 54%).

1997 Jun 19 20

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

1.25

handbook, full pagewidth

THD

(%)

1.0

0.75

0.5

0.25

0

2

1

10

TDA9810

MED689

10110

f (kHz)

2

10

C

= 2.2 µF.

AGC

Fig.11 Typical total harmonic distortion as a function of audio frequency at AM standard (m = 54%).

handbook, full pagewidth

VP = 5 V

TDA9810

MHA717

VP = 5 V

(f = 70 Hz)

ripple

100 mV

t

Fig.12 Ripple rejection condition.

1997 Jun 19 21

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

INTERNAL PIN CONFIGURATION

16

kΩ

1.6

10 kΩ

0.5 pF

10

+

pF

1.7

9 kΩ

1.7 pF

9

+

+

420

+

kΩ

2.2

2 kΩ

kΩ

3.3

+

1

200 µA

Ω

kΩ

1

kΩ

2.5 mA

1.9 mA

3.0 mA

+

13 kΩ

3.6 V

14

16 kΩ

TDA9810

TDA9810

13

kΩ

3.6 V

16 kΩ

24

kΩ

24

kΩ

3.6 V

3.6 V

2.3 mA

++

17

kΩ

9

+

13

kΩ

16 kΩ

24

kΩ

kΩ

+

25

pF

kΩ

14.7

2.5 mA

+++

120

++

+

+

MHA720

11

Ω

76

12

8

handbook, full pagewidth

5

2.8 V

10 kΩ 10 kΩ

GND

P

V

+ +

19 18 17 13

+

2122

20

Ω

420

+++

1 mA

3.6 V

3.6 V

1.1 kΩ

+

+

23

1.1 kΩ

1.1 kΩ

+

+

24

1

+

1997 Jun 19 22

VCO

3.6 V

+

1.1 kΩ

2

+

0.6 µA

23 µA

+ +

67 µA

+

9 kΩ

20 kΩ

2.5 µA
25 µA

+

1 mA

15 3 4

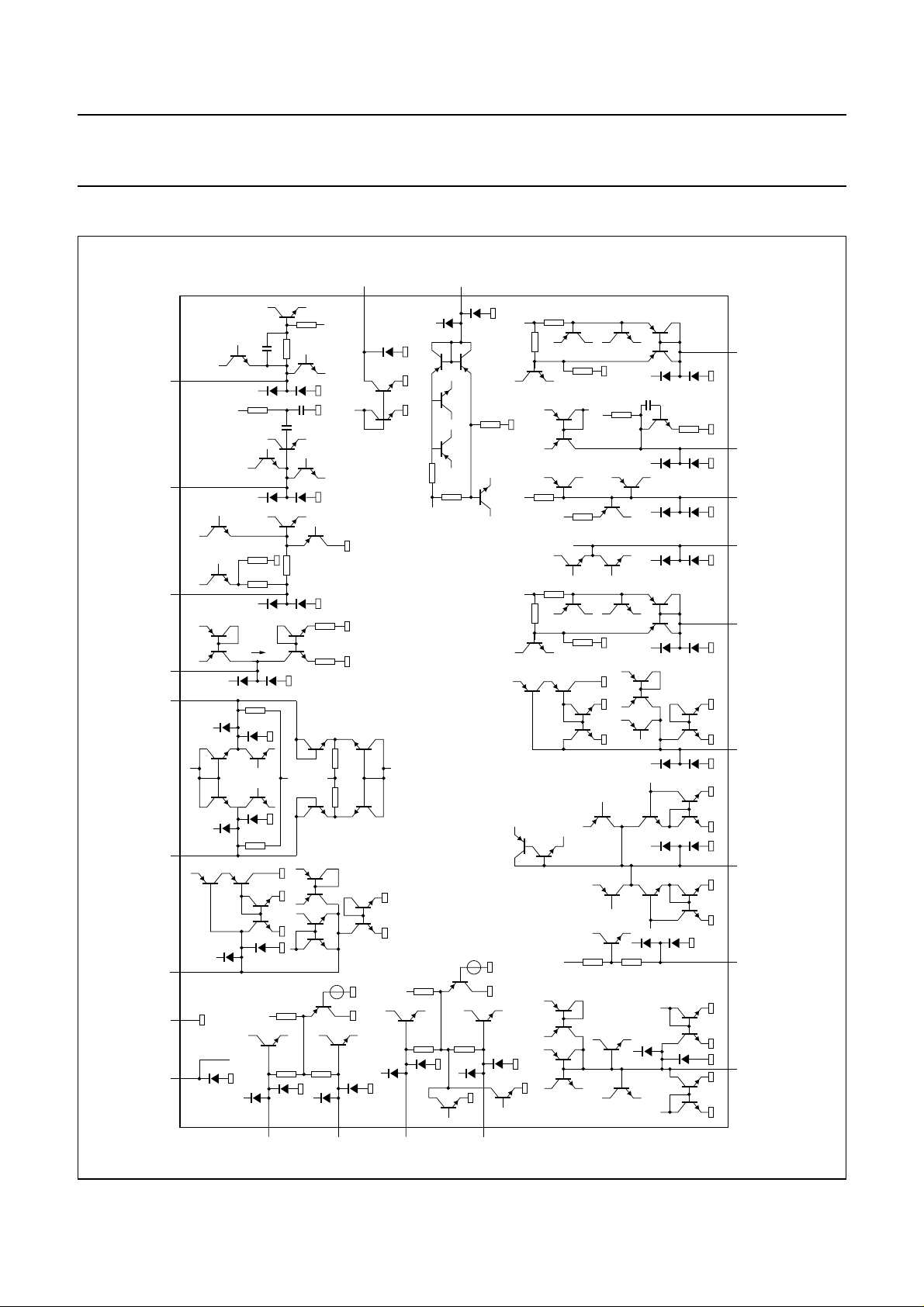

Fig.13 Internal pin configuration.

Philips Semiconductors Preliminary specification

b

Multistandard VIF-PLL with QSS-IF and
AM demodulator

TEST AND APPLICATION INFORMATION

330

L/L accent

AFC

22

100

gating switch

tuner

kΩ

nF

50

Q

0

100

AGC

8.2 pF

TDA9810

Ω

nF

BL

C

TDA9810

2.2

CVBS

switch

AM mute

QSS intercarrier

video

output

22

kΩ

22

kΩ

L/L

switch

accent

AFAM

µF

output

standards

MHA718

+5 V

switch

selection

ook, full pagewidth

GND

22 kΩ

P

V

10 nF

5

1:1

1

SIF

input

µF

2.2

VIF

AGC

23 22 21 20 19 18 17 16 15 1314

4

2

Ω

50

24

3

1 2 3 4 5 6 8 9 10 11 127

1:1

330

TOP

Ω

5

1

VIF

SIF

22

input

AGC

kΩ

4

2

50

220 nF

3

Ω

loop

filter

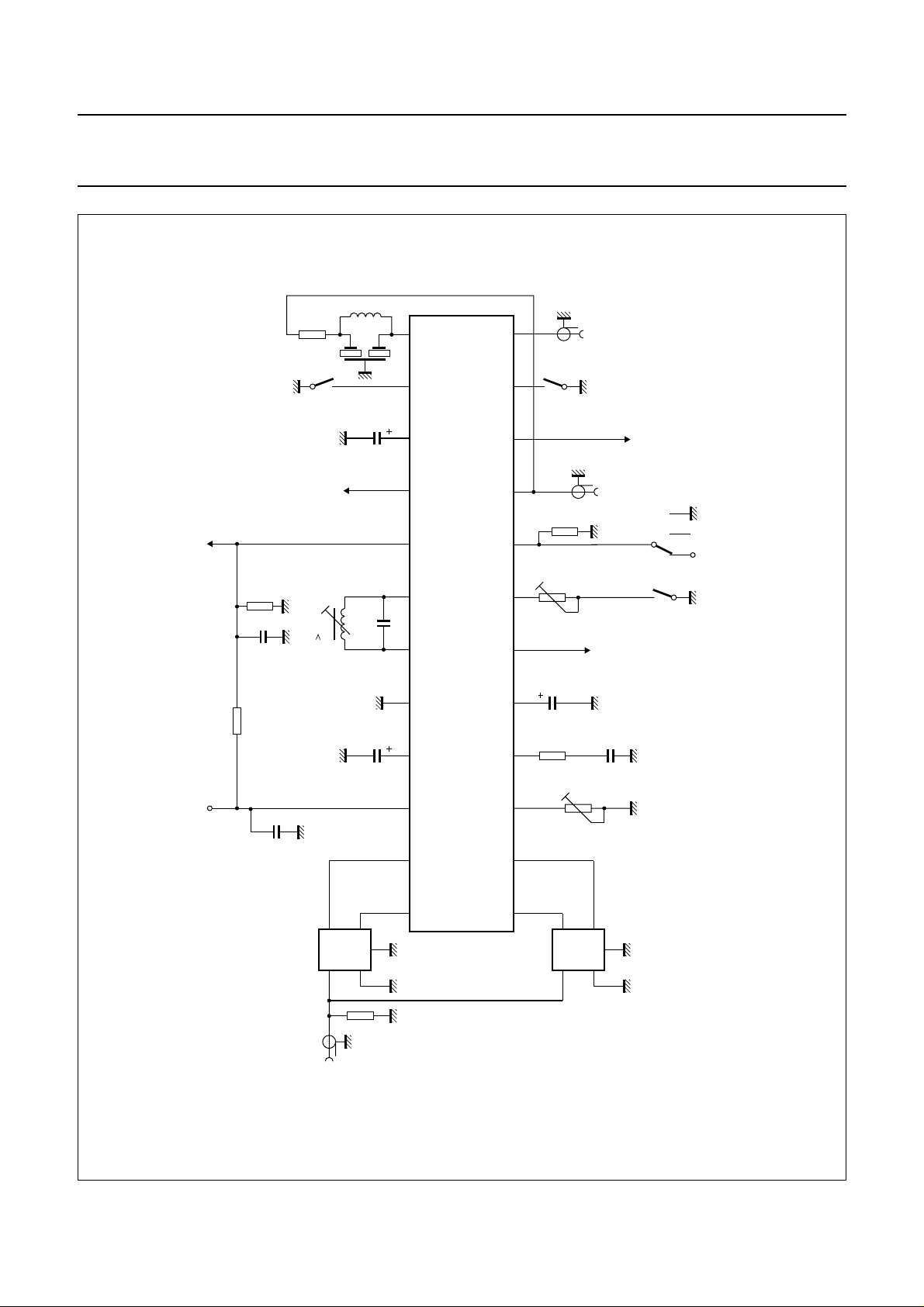

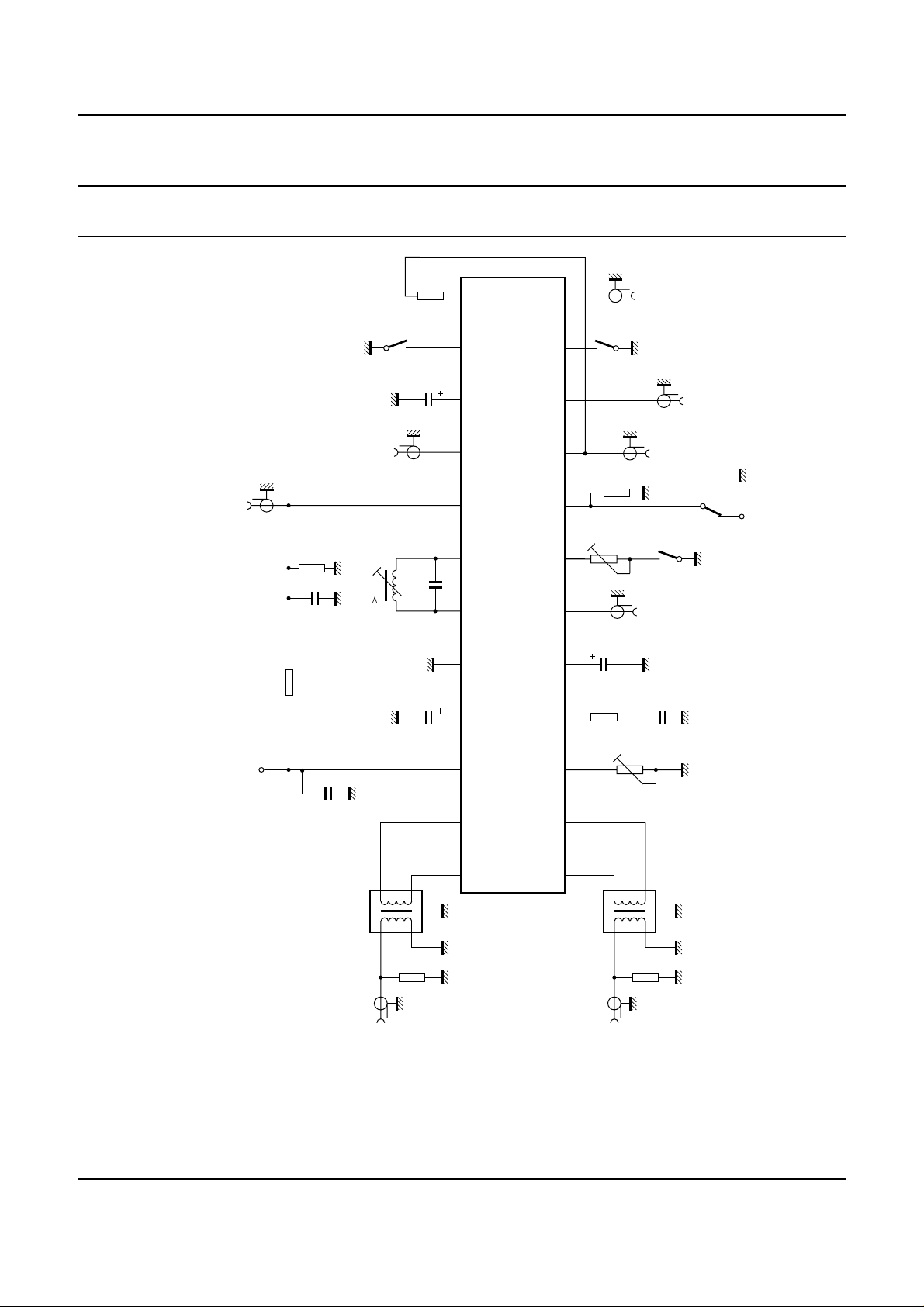

Fig.14 Test circuit.

1997 Jun 19 23

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

15

µH

Ω

330

L/L accent

AFC

22

kΩ

gating switch

tuner

AGC

100

nF

C

BL

TDA9810

CVBS

switch

AM mute

QSS intercarrier

video

output

22

(2)

kΩ

22

kΩ

output

MHA719

switch

selection

standards

+5 V

50

nF

100

22 kΩ

P

V

Q

10 nF

0

SAW

FILTER

8.2 pF

GND

2.2

K9453

50 Ω

µF

VIF

(1)

AGC

TDA9810

de-emphasis

µF

2.2

SIF

AGC

220 nF

Ω

330

3 4 5 6 8 9 10 11 127

22

kΩ

TOP

23 22 21 20 19 18 17 16 15 1314

24

12

SAW

K6257

FILTER

(1)

L/L

accent

decoder

depending on

TV standard/stereo

loop

filter

switch

handbook, full pagewidth

Fig.15 Application circuit.

IF

input

1997 Jun 19 24

(1) Depends on standard.

(2) Only required for external AGC mode.

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

PACKAGE OUTLINES

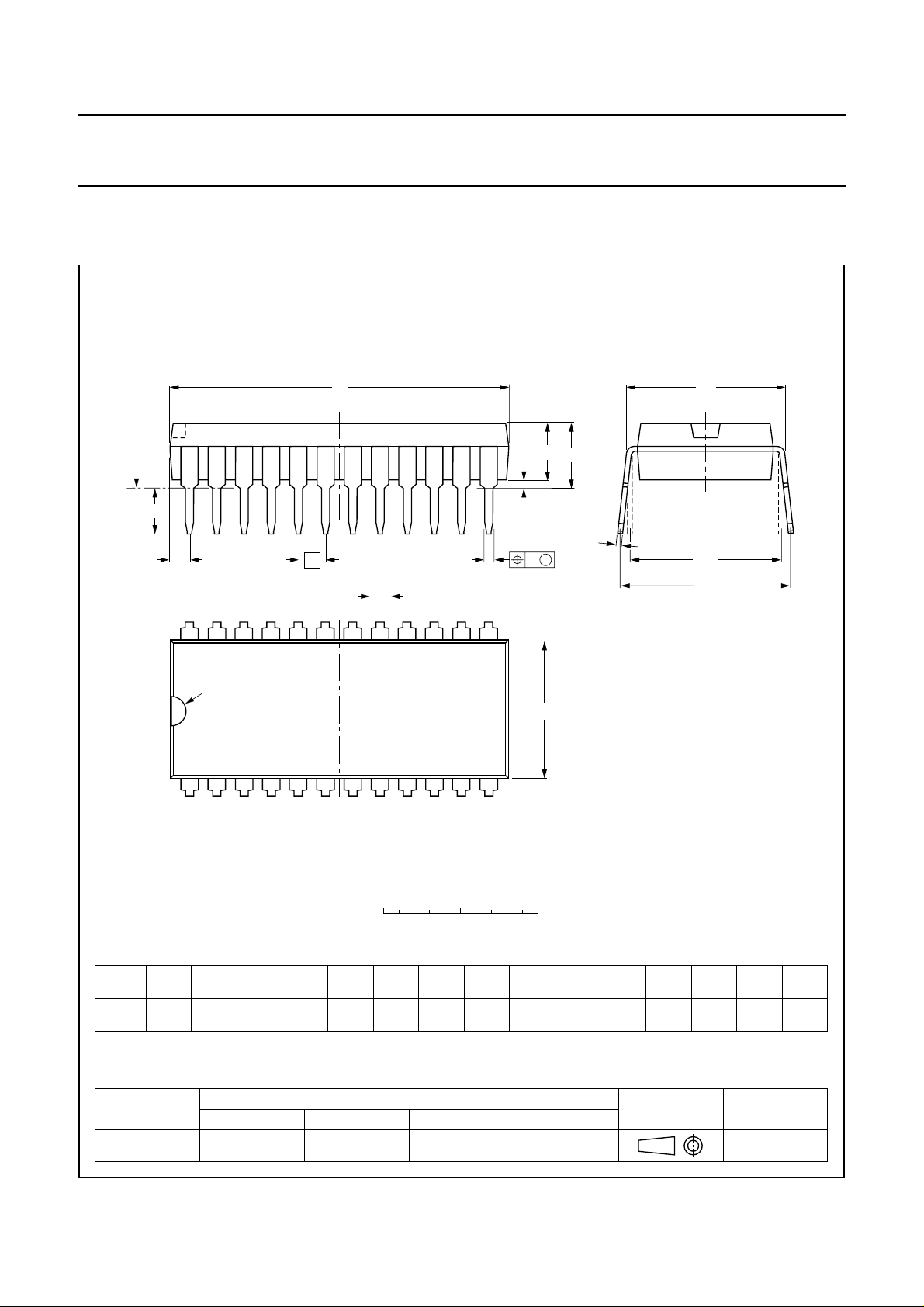

SDIP24: plastic shrink dual in-line package; 24 leads (400 mil)

D

seating plane

L

Z

24

e

b

b

13

TDA9810

SOT234-1

M

E

A

2

A

A

1

w M

1

c

(e )

M

1

H

pin 1 index

1

0 5 10 mm

scale

DIMENSIONS (mm are the original dimensions)

A

A

A

UNIT b

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

mm

OUTLINE

VERSION

SOT234-1

max.

4.7 0.51 3.8

12

min.

max.

IEC JEDEC EIAJ

1.3

0.8

b

1

0.53

0.40

REFERENCES

cEe M

0.32

0.23

(1) (1)

D

22.3

21.4

9.1

8.7

E

12

(1)

Z

L

3.2

2.8

EUROPEAN

PROJECTION

M

10.7

10.2

E

12.2

10.5

e

1

w

H

0.181.778 10.16

ISSUE DATE

92-11-17
95-02-04

max.

1.6

1997 Jun 19 25

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

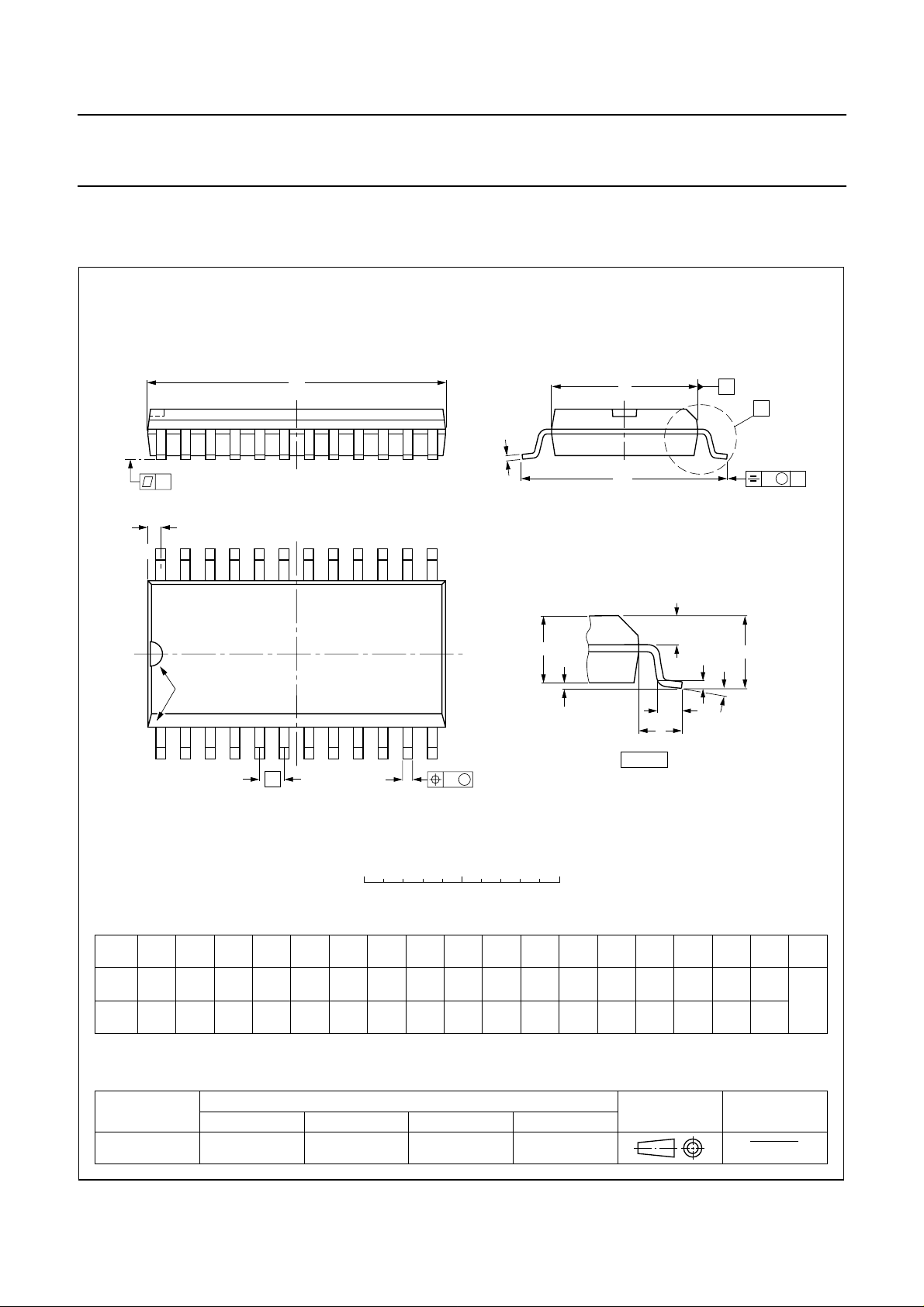

SO24: plastic small outline package; 24 leads; body width 7.5 mm

D

c

y

Z

24

13

TDA9810

SOT137-1

E

H

E

A

X

v M

A

pin 1 index

1

e

0 5 10 mm

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

UNIT

mm

inches

Note

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

A

max.

2.65

0.10

A1A2A

0.30

2.45

0.10

2.25

0.012

0.096

0.004

0.089

0.25

0.01

b

3

p

0.49

0.32

0.36

0.23

0.019

0.013

0.014

0.009

(1)E(1) (1)

cD

15.6

15.2

0.61

0.60

12

w M

b

p

scale

eHELLpQ

7.6

1.27

7.4

0.30

0.050

0.29

10.65

10.00

0.419

0.394

A

1.4

0.055

Q

2

A

1

detail X

1.1

1.1

0.4

0.043

0.016

1.0

0.043

0.039

0.25

0.01

L

p

L

(A )

0.25 0.1

0.01

A

3

θ

ywv θ

Z

0.9

0.4

0.035

0.004

0.016

o

8

o

0

OUTLINE
VERSION

SOT137-1

IEC JEDEC EIAJ

075E05 MS-013AD

REFERENCES

1997 Jun 19 26

EUROPEAN

PROJECTION

ISSUE DATE

95-01-24
97-05-22

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

SOLDERING DIP, SDIP, HDIP, DBS and SIL
Introduction

There is no soldering method that is ideal for all
IC packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
cases reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

Soldering by dip or wave

The maximum permissible temperature of the solder is
260 °C; solder at this temperature must not be in contact
with the joint for more than 5 seconds. The total contact
time of successive solder waves must not exceed
5 seconds.

The device may be mounted to the seating plane, but the
temperature of the plastic body must not exceed the
specified storage maximum. If the printed-circuit board has
been pre-heated, forced cooling may be necessary
immediately after soldering to keep the temperature within
the permissible limit.

Repairing soldered joints

Apply a low voltage soldering iron (less than 24 V) to the
lead(s) of the package, below the seating plane or not
more than 2 mm above it. If the temperature of the
soldering iron bit is less than 300 °C it may remain in
contact for up to 10 seconds. If the bit temperature is
between 300 and 400 °C, contact may be up to 5 seconds.

SOLDERING SO
Introduction

There is no soldering method that is ideal for all
IC packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
cases reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

(order code 9398 652 90011).

(order code 9398 652 90011).

TDA9810

Reflow soldering

Reflow soldering techniques are suitable for all
SO packages.

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.

Wave soldering

Wave soldering techniques can be used for all
SO packages if the following conditions are observed:

• A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave) soldering
technique should be used.

• The longitudinal axis of the package footprint must be
parallel to the solder flow.

• The package footprint must incorporate solder thieves at
the downstream end.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

Repairing soldered joints

Fix the component by first soldering two
diagonally-opposite end leads. Use only a low voltage
soldering iron (less than 24 V) applied to the flat part of the
lead. Contact time must be limited to 10 seconds at up to
300 °C. When using a dedicated tool, all other leads can
be soldered in one operation within 2 to 5 seconds at
between 270 and 320 °C.

1997 Jun 19 27

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and

TDA9810

AM demodulator

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

1997 Jun 19 28

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

NOTES

TDA9810

1997 Jun 19 29

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

NOTES

TDA9810

1997 Jun 19 30

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL with QSS-IF and
AM demodulator

NOTES

TDA9810

1997 Jun 19 31

Philips Semiconductors – a worldwide company

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 4 Rue du Port-aux-Vins, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Shivsagar Estate, A Block, Dr. Annie Besant Rd.

Worli, MUMBAI 400 018, Tel. [phone], Fax. [phone]

Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,

TEL AVIV 61180, Tel. [phone], Fax. [phone]
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,

20124 MILANO, Tel. [phone], Fax. [phone]
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,

Tel. [phone], Fax. [phone]
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,

Tel. [phone], Fax. [phone]
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,

Tel. [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone]

South America: Rua do Rocio 220, 5th floor, Suite 51,
04552-903 São Paulo, SÃO PAULO - SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone], Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications,
Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

© Philips Electronics N.V. 1997 SCA54
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

Printed in The Netherlands 547047/1200/01/pp32 Date of release: 1997 Jun 19 Document order number: 9397 750 01898
