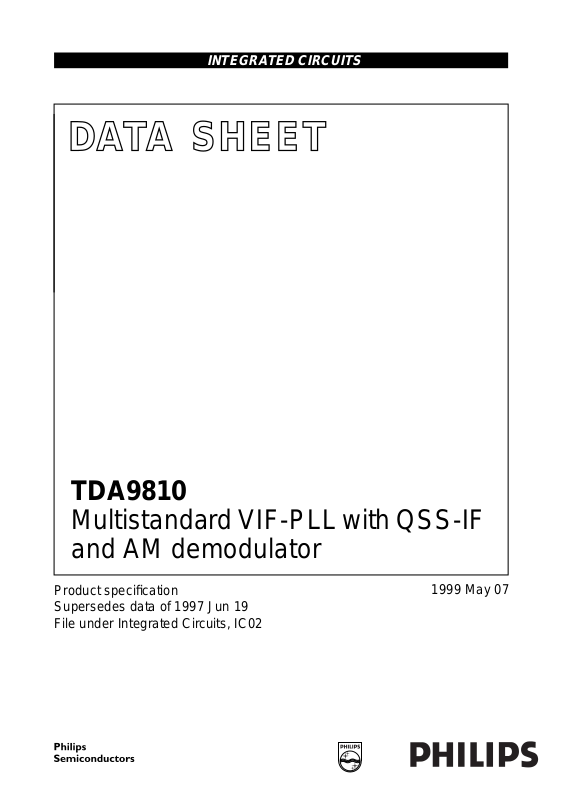

INTEGRATED CIRCUITS

DATA SH EET

TDA9810

Multistandard VIF-PLL with QSS-IF and AM demodulator

Product speciﬁcation Supersedes data of 1997 Jun 19 File under Integrated Circuits, IC02

1999 May 07

Page 2

Philips Semiconductors Product speciﬁcation

Multistandard VIF-PLL with QSS-IF and AM demodulator

FEATURES

• 5 V supply voltage

• Gain controlled wide band Video Intermediate

Frequency (VIF)-amplifier (AC-coupled)

• True synchronous demodulation with active carrier regeneration (very linear demodulation, good intermodulation figures, reduced harmonics, excellent pulse response)

• Gated phase detector for L/L accent standard; robustness for over-modulation until 105%

• Voltage Controlled Oscillator (VCO) frequency switchable between L and L accent (alignment external) picture carrier frequency

• Separate video amplifier for sound trap buffering with high video bandwidth

• VIF Automatic Gain Control (AGC) detector for gain control, operating as peak sync detector for B/G (optional external AGC) and peak white detector for L; signal controlled reaction time for L

TDA9810

• Tuner AGC with adjustable TakeOver Point (TOP)

• AFC detector without extra reference circuit

• SIF-input for single reference Quasi Split Sound (QSS)

mode (Phase Locked Loop (PLL) controlled); Sound Intermediate Frequency (SIF) AGC detector for gain controlled SIF amplifier; single reference QSS mixer able to operate in high performance single reference QSS mode

• AM demodulator without extra reference circuit

• AM mute (especially for NICAM)

• Stabilizer circuit for ripple rejection and to achieve

constant output signals.

GENERAL DESCRIPTION

The TDA9810 is an integrated circuit for multistandard vision IF signal processing and sound AM demodulation, with single reference QSS-IF in TV and VCR sets.

ORDERING INFORMATION

TYPE NUMBER

NAME DESCRIPTION VERSION

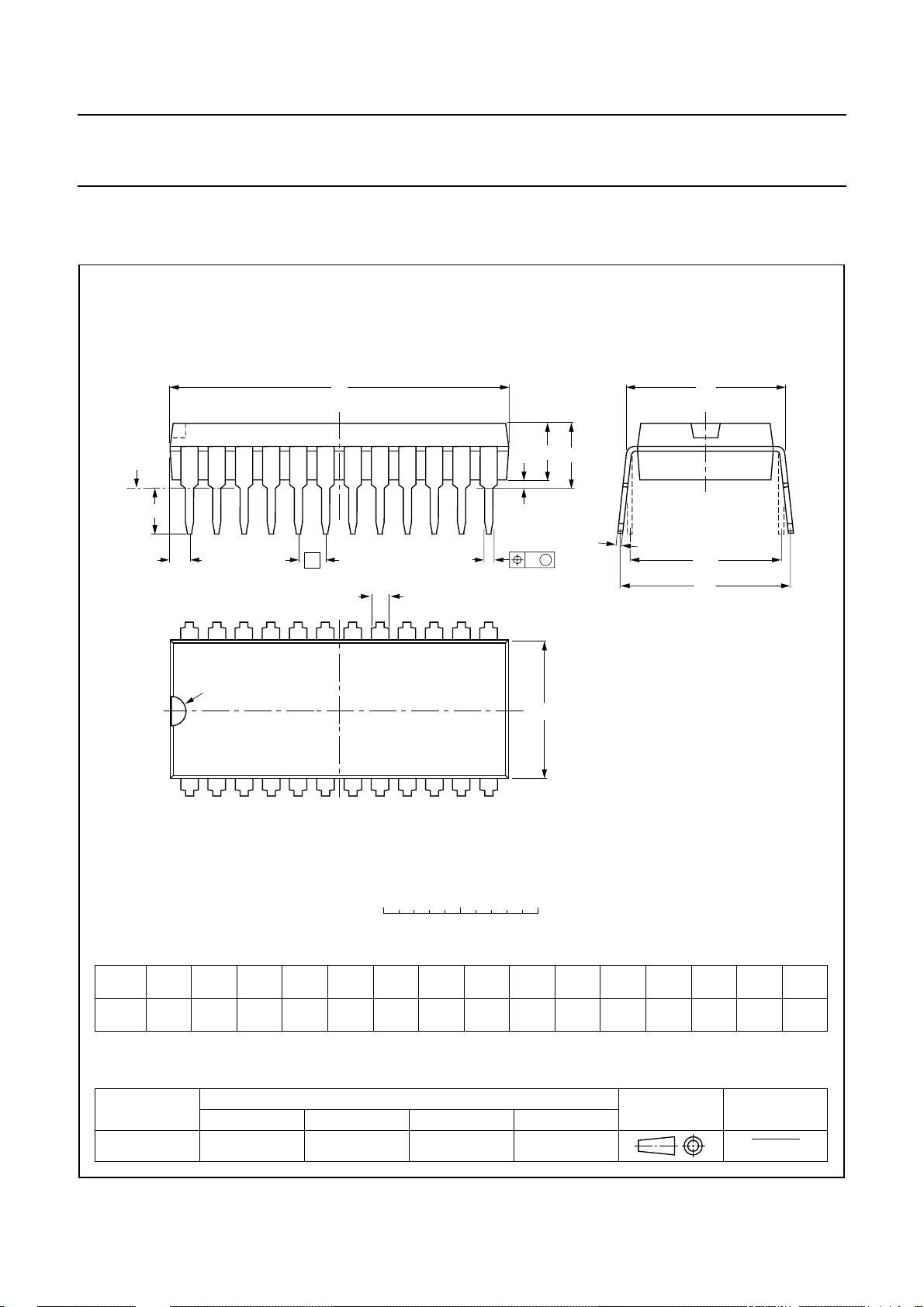

TDA9810 SDIP24 plastic shrink dual in-line package; 24 leads (400 mil) SOT234-1 TDA9810T SO24 plastic small outline package; 24 leads; body width 7.5 mm SOT137-1

PACKAGE

1999 May 07 2

Page 3

Philips Semiconductors Product speciﬁcation

Multistandard VIF-PLL with QSS-IF and

TDA9810

AM demodulator

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

i(VIF)(rms)

o(CVBS)(p-p)

−3

S/N

W(video)

IM(1.1)

IM(3.3)

H(sup)

i(SIF)(rms)

o(intercarrier)(rms)

o(AF)(rms)

THD total harmonic distortion 54% modulation − 0.5 1.0 % S/N

supply voltage 4.5 5 5.5 V supply current 77 90 103 mA vision IF input signal voltage sensitivity

−1 dB video at output − 60 100 µV

(RMS value) CVBS output signal voltage

1.7 2.0 2.3 V

(peak-to-peak value)

−3 dB video bandwidth on pin CVBS B/G and L standard;

78−MHz CL< 20 pF; RL> 1kΩ; AC load

weighted signal-to-noise ratio for video 56 60 − dB intermodulation attenuation at ‘blue’ f = 1.1 MHz 58 64 − dB intermodulation attenuation at ‘blue’ f = 3.3 MHz 58 64 − dB suppression of video signal harmonics 35 40 − dB sound IF input signal voltage sensitivity

−3 dB at intercarrier output − 30 70 µV

(RMS value) IF intercarrier level (RMS value) SC1 output signal 100 140 180 mV

output signal 100 140 180 mV

AF output signal voltage (RMS value) L standard;

output signal 14 20 26 mV

NICAM

− 500 − mV

54% modulation

weighted signal-to-noise ratio 54% modulation 47 53 − dB

1999 May 07 3

Page 4

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

1999 May 07 4

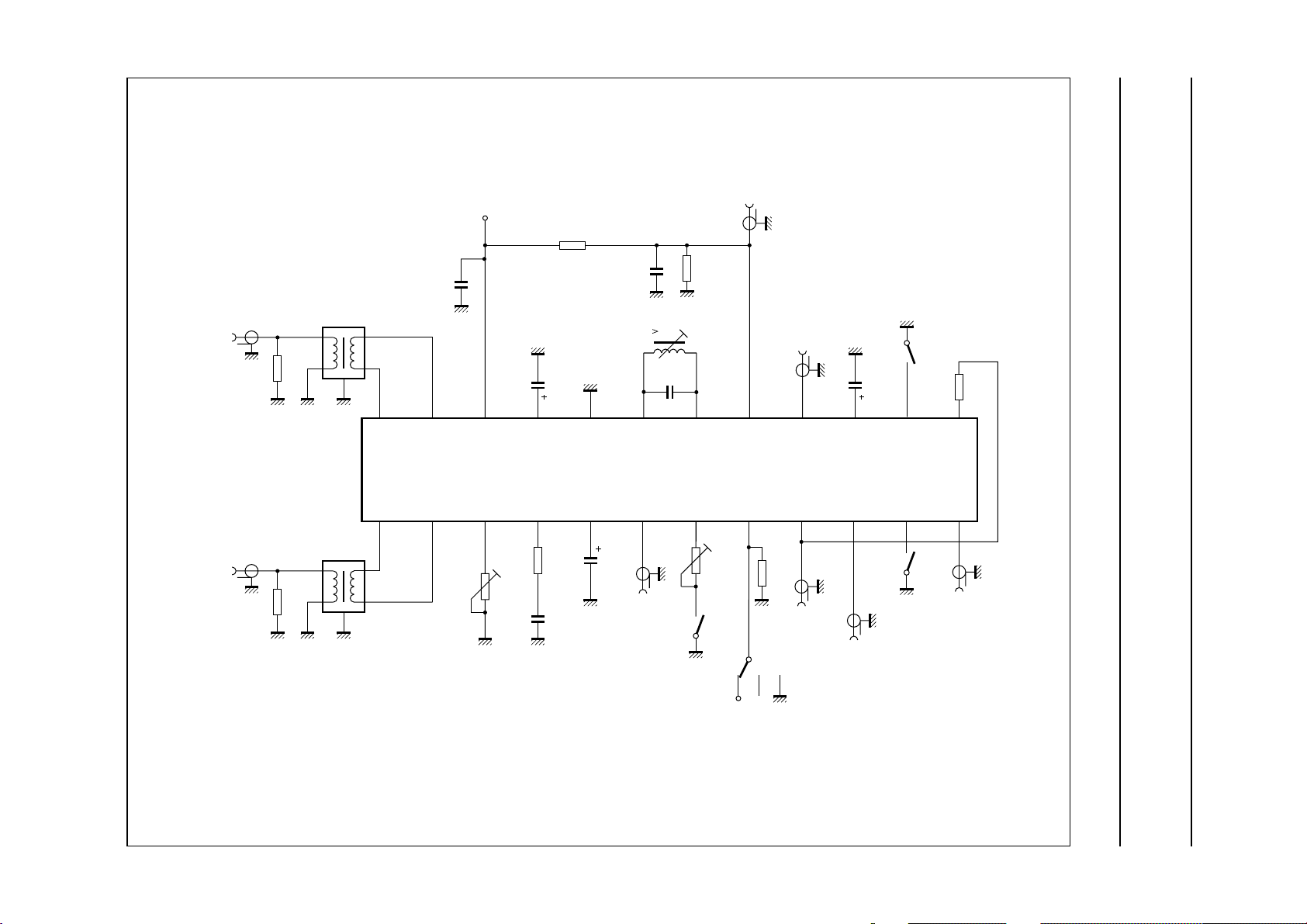

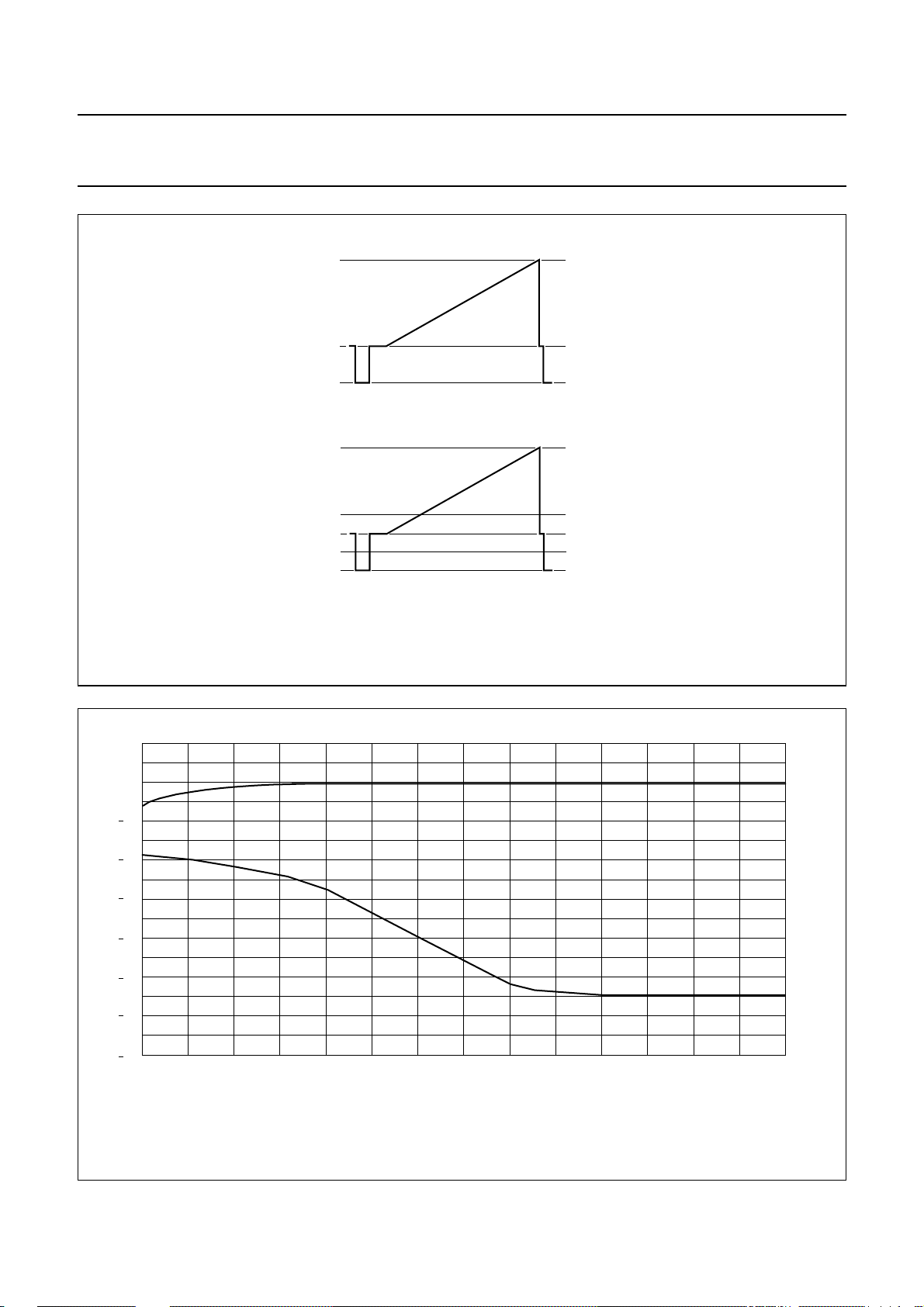

handbook, full pagewidth

BLOCK DIAGRAM

Multistandard VIF-PLL with QSS-IF and

AM demodulator

Philips Semiconductors Product speciﬁcation

VIF

SAW

SIF

SAW

L/L accent

gating switch

VIF AMPLIFIER

23 24

INTERNAL VOLTAGE

STABILIZER

22 20 8 5

VAGC

TOP

TUNER AND VIF-AGC

SIF

AMPLIFIER

SIF-AGC

TOP

tuner AGC

loop filter

FPLL

SINGLE REFERENCE

MIXER AND

AM DEMODULATOR

2 x f

VCO TWD

AFC DETECTOR

VIDEO DEMODULATOR

AND AMPLIFIER

TDA9810

AFC

1719184162114 315

AMPLIFIER SWITCH

VIDEO

BUFFER

AF AMPLIFIER

video

1 V (p-p)

CVBS

2 V (p-p)

i(vid)

AF/AM

MHA713

VP = +5 V

GND

standards

selection

switch

SAGC

Fig.1 Block diagram.

QSS

intercarrier

output

L/L accent

switch

AM mute

switch

TDA9810

Page 5

Philips Semiconductors Product speciﬁcation

Multistandard VIF-PLL with QSS-IF and AM demodulator

PINNING

SYMBOL PIN DESCRIPTION

i VIF1

i VIF2

TADJ 3 tuner AGC takeover point adjust T

PLL

SAGC

oAF

LSWI 7 L/L accent switch STD 8 standard switch V

o(vid)

o QSS

MUTE 11 AM mute switch V

o CVBS

1 VIF differential input signal voltage 1 2 VIF differential input signal voltage 2

4 PLL loop ﬁlter 5 SIF AGC capacitor 6 AM audio frequency output voltage

9 composite video output voltage

10 single reference QSS output voltage

12 CVBS output signal voltage

TDA9810

SYMBOL PIN DESCRIPTION

i(vid)

LGATSWI 14 L/L accent gating switch C

TAGC 16 tuner AGC output AFC 17 AFC output VCO1 18 VCO1 reference circuit for 2f VCO2 19 VCO2 reference circuit for 2f GND 20 ground C

VAGC

i SIF1

i SIF2

13 video buffer input voltage

15 black level detector

21 VIF AGC capacitor 22 supply voltage 23 SIF differential input signal voltage 1 24 SIF differential input signal voltage 2

pc pc

handbook, halfpage

i VIF1

i VIF2

TADJ

PLL

SAGC V

o AF

LSWI

STD

o(vid)

o QSS

MUTE

o CVBS

1 2 3 4 5 6 7 8

9 10 11 12

TDA9810

MHA712

21 20

GND

VCO2

VCO1

AFC

TAGC C

15 14

LGATSWI V

i SIF2 i SIF1

P VAGC

i(vid)

handbook, halfpage

i VIF1

i VIF2

TADJ

PLL

SAGC V

o AF

LSWI

STD

o(vid)

o QSS

MUTE

o CVBS

1 2 3 4 5 6

TDA9810T

7 8

9 10 11 12

MHA722

21 20

GND

VCO2

VCO1

AFC

TAGC C

15 14

LGATSWI V

i SIF2 i SIF1

P VAGC

i(vid)

Fig.2 Pin configuration SDIP24 package.

1999 May 07 5

Fig.3 Pin configuration SO24 package.
