DATA SH EET

Product specification
Supersedes data of 1999 Jan 18
File under Integrated Circuits, IC02

1999 Jun 04

INTEGRATED CIRCUITS

TDA9808

Single standard VIF-PLL with
QSS-IF and FM-PLL demodulator

1999 Jun 04 2

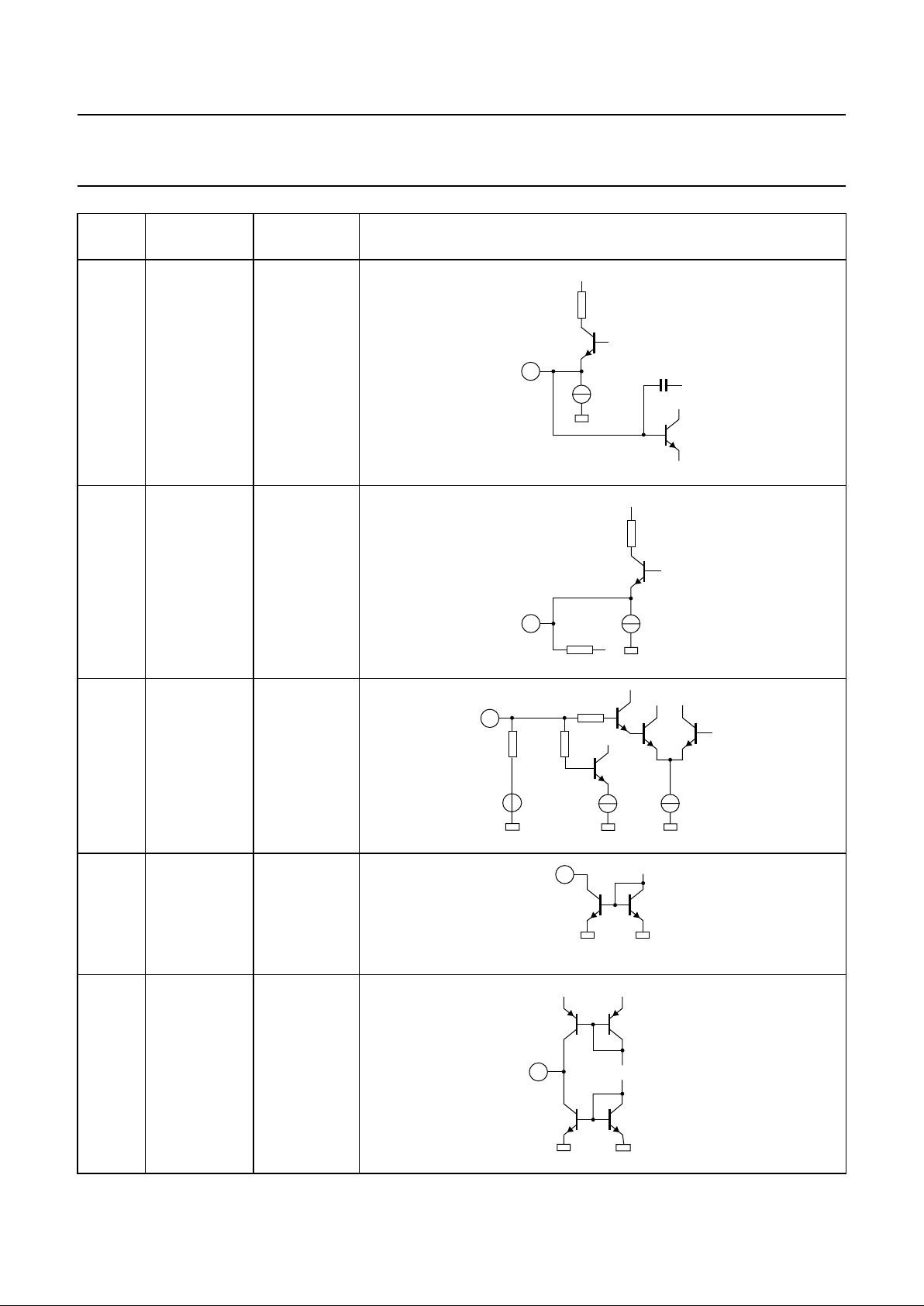

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

FEATURES

• 5 V supply voltage (9 V supply voltage for TDA9808
(DIP20) only)

• Applicable for IFs (Intermediate Frequencies) of

38.9 MHz, 45.75 MHz and 58.75 MHz

• Gain controlled wide band Video IF (VIF)-amplifier
(AC-coupled)

• True synchronous demodulation with active carrier
regeneration (very linear demodulation, good
intermodulation figures, reduced harmonics, excellent
pulse response)

• Robustness for over-modulation better than 105% due
to Phase Locked Loop (PLL)-bandwidth control at
negative modulated standards

• VIF Automatic Gain Control (AGC) detector for gain
control, operating as peak sync detector

• Tuner AGC with adjustable TakeOver Point (TOP)

• Automatic Frequency Control (AFC) detector without

extra reference circuit

• AC-coupled limiter amplifier for sound intercarrier signal

• Alignment-free FM-PLL demodulator with high linearity

• Sound IF (SIF) input for single reference Quasi Split

Sound (QSS) mode (PLL controlled); SIF AGC detector
for gain controlled SIF amplifier; single reference QSS
mixer for high performance

• Electrostatic Discharge (ESD) protection for all pins.

GENERAL DESCRIPTION

The TDA9808 is an integrated circuit for single standard
(negative modulated) vision IF signal processing and FM
demodulation, with single reference QSS-IF in TV and
VTR sets.

ORDERING INFORMATION

TYPE NUMBER

PACKAGE

NAME DESCRIPTION VERSION

TDA9808 DIP20

plastic dual in-line package; 20 leads (300 mil)

SOT146-1

TDA9808T SO20

plastic small outline package; 20 leads; body width 7.5 mm

SOT163-1

1999 Jun 04 3

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

P

supply voltage VP= 9 V for TDA9808 (DIP20)

only

4.5 5 9.9 V

I

P

supply current 71 83 95 mA

V

i(VIF)(rms)

VIF input signal voltage sensitivity
(RMS value)

−1 dB video at output − 60 100 µV

V

o(video)(p-p)

video output signal voltage
(peak-to-peak value)

1.2 1.35 1.5 V

B

−3

−3 dB video bandwidth on pin 9 CL< 30 pF; RL> 1.5 kΩ; AC load 7 8 − MHz

S/N

W(video)

weighted signal-to-noise ratio for
video

56 60 − dB

α

IM(0.92)

intermodulation attenuation at ‘blue’ f = 0.92 MHz 58 64 − dB

α

IM(2.76)

intermodulation attenuation at ‘blue’ f = 2.76 MHz 58 64 − dB

α

H(sup)

suppression of harmonics in video
signal

35 40 − dB

V

i(SIF)(rms)

sound IF input signal voltage
sensitivity (RMS value)

−3 dB at intercarrier output − 50 100 µV

V

o(rms)

audio output signal voltage for FM
(RMS value)

M, N standard;
25 kHz modulation

0.4 0.5 0.6 V

THD total harmonic distortion 25 kHz modulation − 0.15 1.0 %
S/N

W(audio)

weighted signal-to-noise ratio 25 kHz modulation; τ =75µs5560−dB

1999 Jun 04 4

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and

FM-PLL demodulator

TDA9808

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

BLOCK DIAGRAM

handbook, full pagewidth

MHA736

VCO
TWD

SINGLE

REFERENCE

QSS MIXER

FPLL

VIF

AMPLIFIER

TUNER

AGC

VIF

AGC

VIF

SAW

SOUND

TRAP

VIDEO
DEMODULATOR
AND AMPLIFIER

AFC

DETECTOR

VOLTAGE

REFERENCE

GNDV

P

AFC

n.c.

2 x f

pc

T

PLL

C

VAGC

TADJ

TAGC

NOISE

CLIPPING

1

12

2

SIF

AMPLIFIER

SIF

SAW

SIF

AGC

C

SAGC

19
20

5

C

DEC

mute

switch

4.5 MHz

V

i FM

711

V

o QSS

10

9

6

13 18815144173 16

V

o(vid)

V

o AF

1.35 V (p-p)

FM-PLL

DEMODULATOR

TDA9808

Fig.1 Block diagram.

1999 Jun 04 5

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

PINNING

SYMBOL PIN DESCRIPTION

V

i VIF1

1 VIF differential input signal voltage 1

V

i VIF2

2 VIF differential input signal voltage 2
TADJ 3 tuner AGC takeover point adjust
T

PLL

4 PLL loop filter
C

SAGC

5 SIF AGC capacitor
V

oAF

6 audio output
C

DEC

7 decoupling capacitor
n.c. 8 not connected
V

o(vid)

9 composite video output voltage
V

o QSS

10 single reference QSS output voltage

V

iFM

11 sound intercarrier input voltage
TAGC 12 tuner AGC output
AFC 13 AFC output
VCO1 14 VCO1 resonance circuit
VCO2 15 VCO2 resonance circuit
GND 16 ground
C

VAGC

17 VIF AGC capacitor
V

P

18 supply voltage
V

i SIF1

19 SIF differential input signal voltage 1
V

i SIF2

20 SIF differential input signal voltage 2

SYMBOL PIN DESCRIPTION

Fig.2 Pin configuration DIP20.

handbook, halfpage

MHA734

1
2
3
4
5
6
7
8
9

10

20
19
18
17
16
15
14
13
12
11

TDA9808

V

i VIF1

V

i VIF2

T

PLL

C

SAGC
V

o AF

V

o(vid)

V

o QSS

C

DEC

n.c.

TADJ

V

i SIF2

V

i SIF1

V

i FM

V

P

C

VAGC

GND
VCO2
VCO1
AFC
TAGC

Fig.3 Pin configuration SO20.

handbook, halfpage

MHA735

1
2
3
4
5
6
7
8
9

10

20
19
18
17
16
15
14
13
12
11

TDA9808T

V

i VIF1

V

i VIF2

T

PLL

C

SAGC

V

o AF

V

o(vid)

V

o QSS

C

DEC

n.c.

TADJ

V

i SIF2

V

i SIF1

V

i FM

V

P

C

VAGC

GND
VCO2
VCO1
AFC
TAGC

1999 Jun 04 6

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

FUNCTIONAL DESCRIPTION

The integrated circuit comprises the functional blocks as
shown in Fig.1:

1. Vision IF amplifier and VIF AGC detector

2. Tuner AGC

3. Frequency Phase Locked Loop (FPLL) detector

4. Voltage Controlled Oscillator (VCO), Travelling Wave
Divider (TWD) and AFC

5. Video demodulator and amplifier

6. SIF amplifier and SIF AGC

7. Single reference QSS mixer

8. FM-PLL demodulator

9. Audio Frequency (AF) signal processing

10. Internal voltage stabilizer.

Vision IF amplifier and VIF AGC detector

The vision IF amplifier consists of three AC-coupled
differential amplifier stages. Each differential stage
comprises a feedback network controlled by emitter
degeneration.

The AGC detector generates the required VIF gain control
voltage for constant video output by charging/discharging
the AGC capacitor. Therefore, for negative video
modulation the synchronisation level of the video signal is
detected.

Tuner AGC

The AGC capacitor voltage is converted to an internal IF
control signal, and is fed to the tuner AGC to generate the
tuner AGC output current at pin TAGC (open-collector
output). The tuner AGC takeover point can be adjusted at
pin TADJ. This allows to match the tuner to the SAW filter
in order to achieve the optimum IF input level.

Frequency Phase Locked Loop (FPLL) detector

The VIF-amplifier output signal is fed into a frequency
detector and into a phase detector via a limiting amplifier.
During acquisition the frequency detector produces a DC
current proportional to the frequency difference between
the input and the VCO signal. After frequency lock-in the
phase detector produces a DC current proportional to the
phase difference between the VCO and the input signal.
The DC current of either the frequency detector or the
phase detector is converted to a DC voltage via the loop
filter, which controls the VCO frequency.

VCO, Travelling Wave Divider (TWD) and AFC

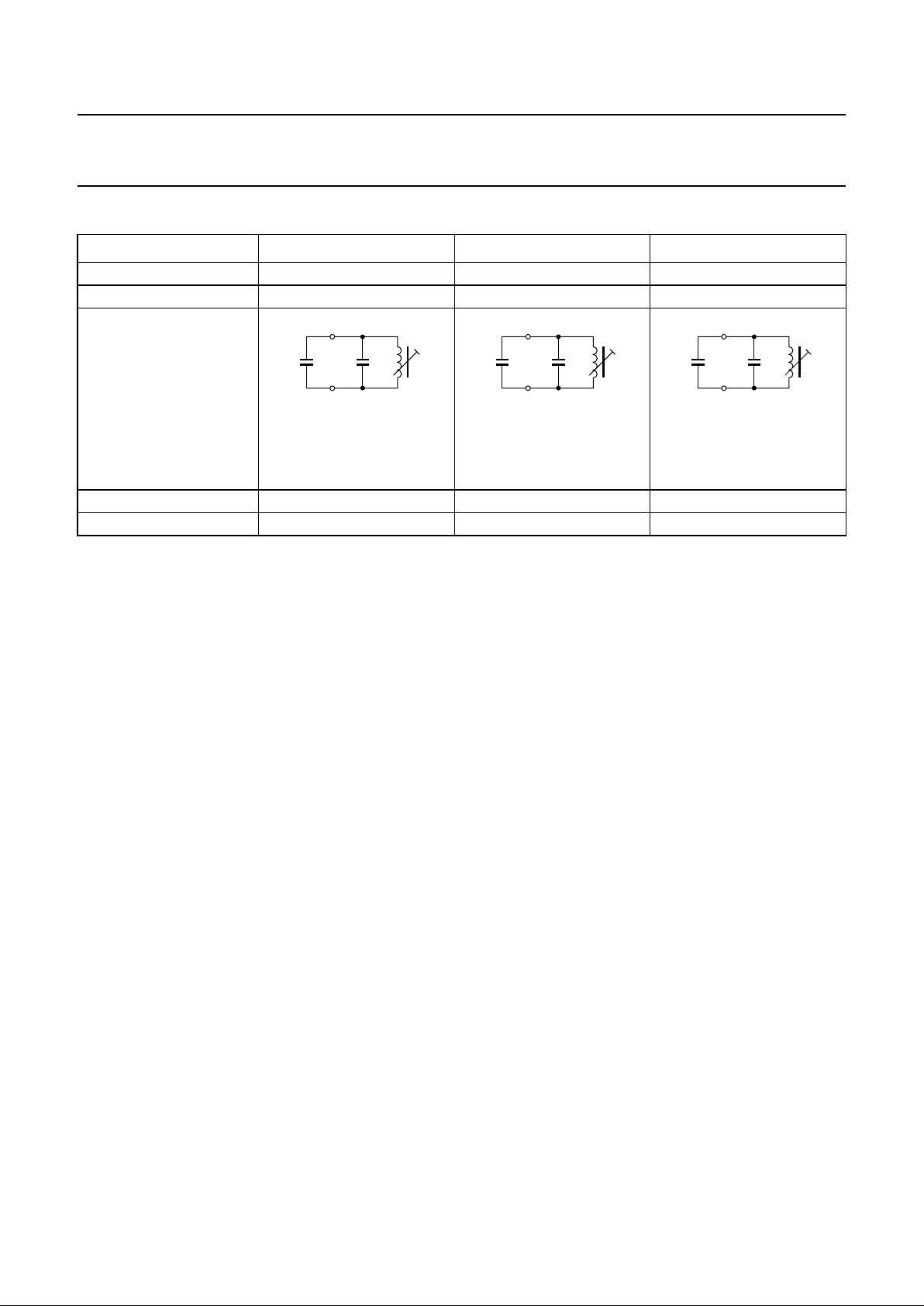

The VCO operates with a resonance circuit (with L and C
in parallel) at double the Picture Carrier (PC) frequency.
The VCO is controlled by two integrated variable
capacitors. The control voltage required to tune the VCO
from its free-running frequency to double the PC frequency
is generated by the frequency-phase detector of the FPLL
and fed via the loop filter to the first variable capacitor. This
control voltage is amplified and additionally converted into
a current which represents the AFC output signal. At the
centre frequency the AFC output current is equal to zero.

The oscillator signal is divided-by-two with a TWD which
generates two differential output signals with a 90 degree
phase difference independent of the frequency.

Video demodulator and amplifier

The video demodulator is realized by a multiplier which is
designed for low distortion and large bandwidth. The vision
IF input signal is multiplied with the ‘in phase’ signal of the
travelling wave divider output.

The demodulator output signal is fed to the video amplifier
via an integrated low-pass filter for attenuation of the
carrier harmonics. The video amplifier is realized by an
operational amplifier with internal feedback and high
bandwidth. A low-pass filter is integrated to achieve an
attenuation of the carrier harmonics. The video output
signal at pin V

o(vid)

is 1.35 V (p-p) for nominal vision IF

modulation. Noise clipping is provided.

SIF amplifier and SIF AGC

The sound IF amplifier consists of two AC-coupled
differential amplifier stages. Each differential stage
comprises a controlled feedback network provided by
emitter degeneration.

The SIF AGC detector is related to the SIF input signal
(average level of FM carrier) and controls the SIF amplifier
to provide a constant SIF signal to the single reference
QSS mixer.

1999 Jun 04 7

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

Single reference QSS mixer

The single reference QSS mixer is realized by a multiplier.
The SIF amplifier output signal is fed to the single
reference QSS mixer and converted to intercarrier
frequency by the regenerated picture carrier (VCO).
The mixer output signal is fed via a high-pass filter for
attenuation of the video signal components to the output
pin 10. With this system a high performance hi-fi stereo
sound processing can be achieved.

FM-PLL demodulator

The FM-PLL demodulator consists of a limiter and an
FM-PLL. The limiter provides the amplification and
limitation of the FM sound intercarrier signal. The result is
high sensitivity and AM suppression. The amplifier
consists of 7 stages which are internally AC-coupled in
order to minimize the DC offset.

Furthermore the AF output signal can be muted by
connecting a resistor between the limiter input pin 11 and
ground.

The FM-PLL consists of an integrated relaxation oscillator,
an integrated loop filter and a phase detector.
The oscillator is locked to the FM intercarrier signal, output
from the limiter. As a result of locking, the oscillator
frequency tracks with the modulation of the input signal
and the oscillator control voltage is superimposed by the
AF voltage. The FM-PLL operates as an FM demodulator.

AF signal processing

The AF amplifier consists of two parts:

1. The AF pre-amplifier for FM sound is an operational
amplifier with internal feedback, high gain and high
common mode rejection. The AF voltage from the
PLL demodulator, by principle a small output signal, is
amplified by approximately 33 dB. The low-pass
characteristic of the amplifier reduces the harmonics of
the intercarrier signal at the sound output terminal
pin 10. An additional DC control circuit is implemented
to keep the DC level constant, independent of process
spread.

2. The AF output amplifier (10 dB) provides the required
output level by a rail-to-rail output stage. This amplifier
makes use of an input selector for switching to FM or
mute state, controlled by the mute switching voltage.

Internal voltage stabilizer

The bandgap circuit internally generates a voltage of
approximately 1.25 V, independent of supply voltage and
temperature. A voltage regulator circuit, connected to this
voltage, produces a constant voltage of 3.6 V which is
used as an internal reference voltage.

1999 Jun 04 8

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

Notes

1. I

P

= 95 mA; T

amb

=70°C.

2. Machine model class B (L = 2.5 µH).

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

P

supply voltage note 1

T

j(max)

= 125 °C;

TDA9808 (DIP20)

− 9.9 V

T

j(max)

= 115 °C;

TDA9808T (SO20)

− 5.5 V

V

i

voltage at pins 1, 2, 5, 13, 17, 19 and 20 0 V

P

V

t

s(max)

maximum short-circuit time to ground or V

P

− 10 s

V

12

tuner AGC output voltage 0 13.2 V

T

stg

storage temperature −25 +150 °C

T

amb

operating ambient temperature −20 +70 °C

V

es

electrostatic handling voltage note 2 −300 +300 V

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th(j-a)

thermal resistance from junction to ambient in free air

TDA9808 (DIP20) 62 K/W
TDA9808T (SO20) 85 K/W

1999 Jun 04 9

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

CHARACTERISTICS (9 V SUPPLY, TDA9808; DIP20 only)

VP=9V; T

amb

=25°C; see Table 1 for input frequencies and carrier ratios; input level V

i(VIF)(rms)

=10mV

(pins 1 and 2) (sync-level); V

i(SIF)(rms)

= 4.5 mV (pins 19 and 20) (sound carrier); IF input from 50 Ω via broadband

transformer 1 : 1; video modulation DSB; residual carrier: 10%; video signal in accordance with

“NTC-7 Composite”

;

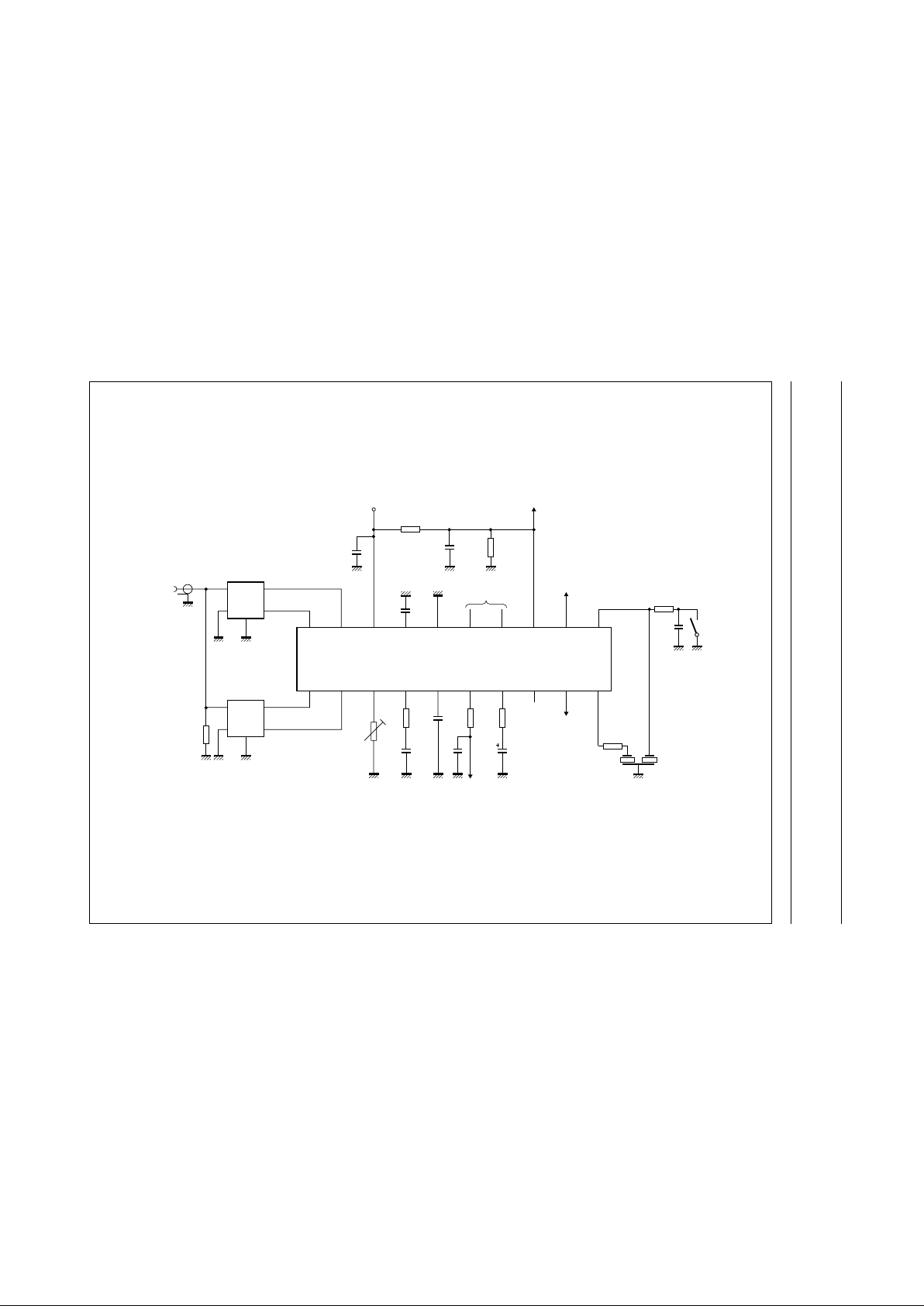

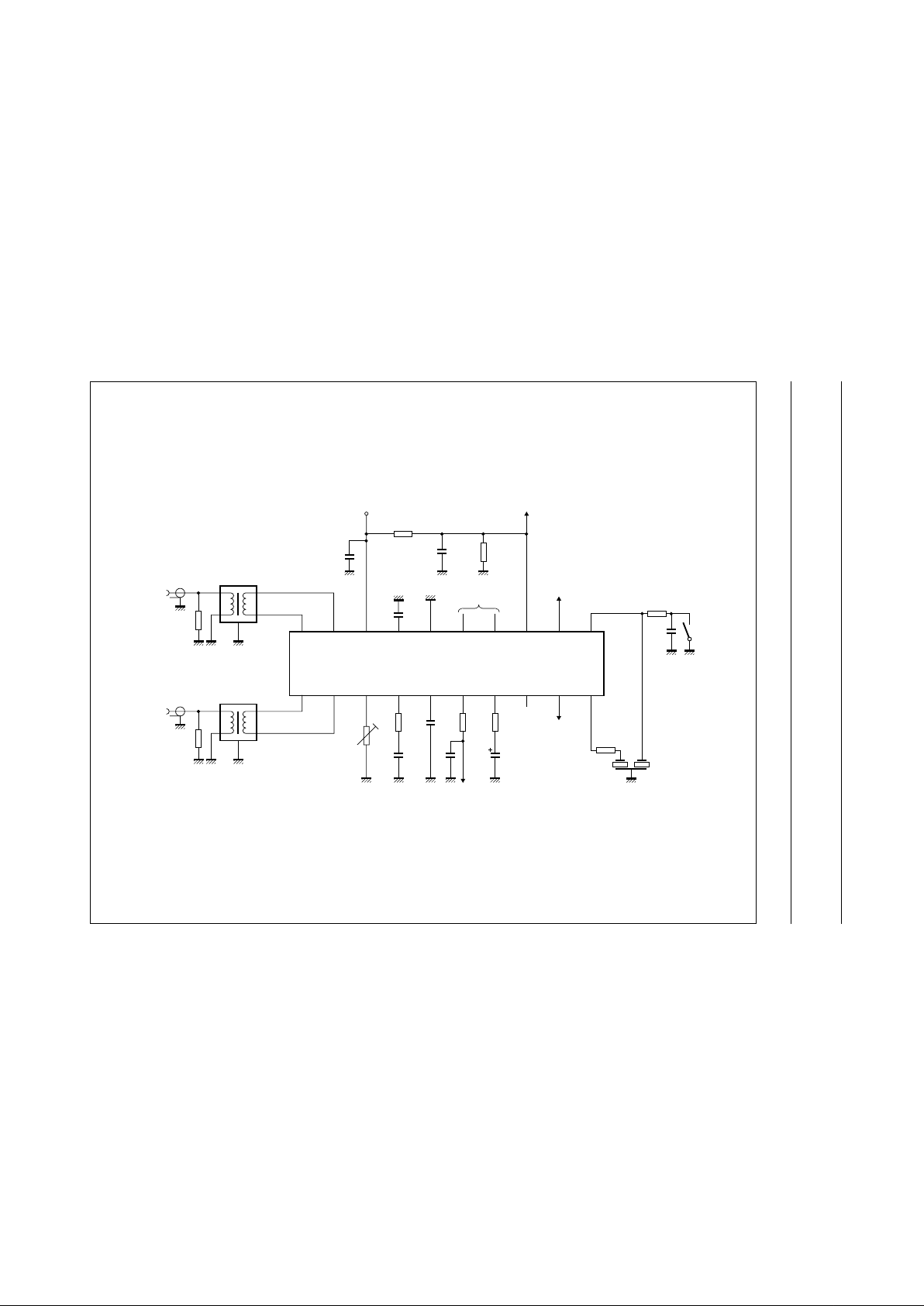

measurements taken in Fig.13; unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply (pin 18)

V

P

supply voltage note 1 4.5 5.0 9.9 V

I

P

supply current 72 85 98 mA
True synchronous video demodulator; note 2
V

i(VIF)(rms)

VIF input signal voltage

sensitivity (RMS value)

PLL still locked;
maximum IF gain; note 3

− 60 90 µV

Composite video amplifier (pin 9; sound carrier off)

V

o(video)(p-p)

video output signal voltage

(peak-to-peak value)

see Fig.8 1.27 1.45 1.63 V

S/N

W(video)

weighted signal-to-noise ratio see Fig.6 and note 4 56 60 − dB
PSRR power supply ripple rejection

at pin 9

see Fig.11 25 30 − dB

Tuner AGC (pin 12)

∆G

IF

IF slip by automatic gain

control

tuner gain current from
20 to 80%

− 68 dB

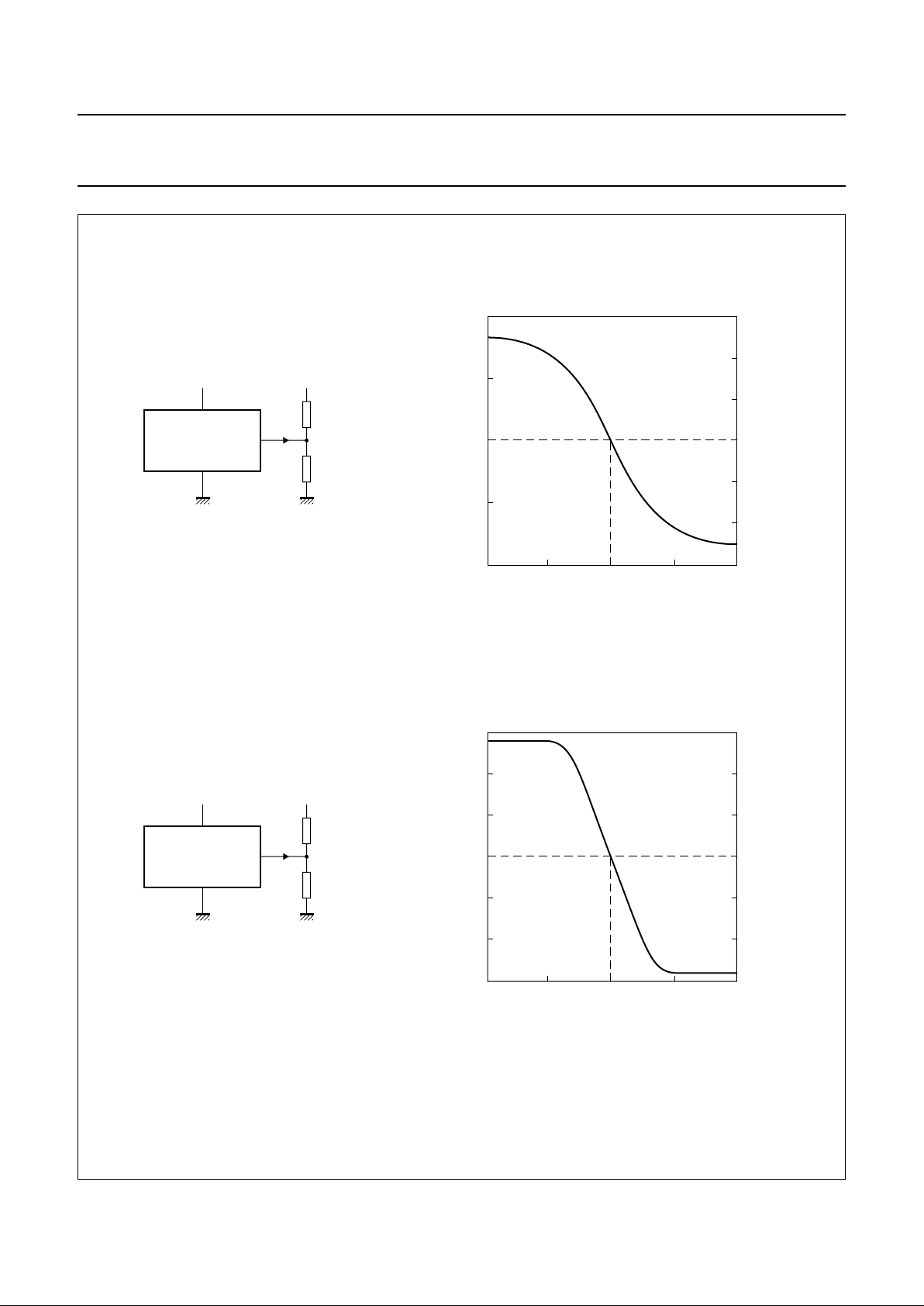

AFC circuit (pin 13); see Fig.10 and note 5
S control steepness ∆I13/∆f note 6

f

pc

= 38.9 MHz 0.35 0.55 0.75 µA/kHz

f

pc

= 45.75 MHz 0.35 0.55 0.75 µA/kHz

f

pc

= 58.75 MHz 0.35 0.55 0.75 µA/kHz

∆f

IF

/∆T frequency variation by

temperature

I

AFC

= 0; note 7 −−±20 × 10−6K

−1

FM-PLL sound demodulator and AF output (pin 6); note 8
V

o(AF)(6)(rms)

AF output signal voltage

(RMS value)

±25 kHz
(50% FM deviation);
see Fig.13

375 500 625 mV

S/N

W(audio)

weighted signal-to-noise ratio

“CCIR 468-4”

;

see Fig.13

55 60 − dB

α

6

mute attenuation 70 75 − dB
∆V

5

DC jump voltage of AF output

terminal

FM-PLL in lock mode −±50 ±175 mV

1999 Jun 04 10

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

Notes to the characteristics

1. Values of video and sound parameters are decreased at VP= 4.5 V.

2. Loop bandwidth BL = 70 kHz (natural frequency fn= 12 kHz; damping factor d ≈ 3; calculated with sync level within
gain control range). Resonance circuit of VCO: Q0> 50; C

ext

: see Table 3; C

int

≈ 8.5 pF (loop voltage approximately

2.7 V).

3. V

i(VIF)

signal for nominal video signal.

4. S/N is the ratio of black to white amplitude to the black level noise voltage (RMS value, pin 9). B = 5 MHz weighted
in accordance with

“CCIR 567”

at a source impedance of 50 Ω.

5. To match the AFC output signal to different tuning systems a current source output is provided (Fig.10).

6. Depending on the ratio ∆C/C0 of the LC resonant circuit of VCO (Q0> 50; see note 2; C0=C

int+Cext

).

7. Temperature coefficient of external LC-circuit is equal to zero.

8. Input level for second IF from an external generator with 50 Ω source impedance. AC-coupled with 10 nF capacitor,
f

mod

= 1 kHz, 25 kHz (50% FM deviation) of audio reference. A VIF/SIF input signal is not permitted. Pin 17 has to be
connected to positive supply voltage. S/N and THD measurements are taken at 50 µs (75 µs at M standard)
de-emphasis.

1999 Jun 04 11

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

CHARACTERISTICS (5 V SUPPLY)

V

P

=5V; T

amb

=25°C; see Table 1 for input frequencies and carrier ratios; input level V

i(VIF)(rms)

= 10 mV (pins 1 and 2)

(sync-level); V

i(SIF)(rms)

= 4.5 mV (pins 19 and 20) (sound carrier); IF input from 50 Ω via broadband transformer 1 : 1;

video modulation DSB; residual carrier: 10%; video signal in accordance with

“NTC-7 Composite”

; measurements taken

in Fig.13; unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply (pin 18)

V

P

supply voltage note 1 4.5 5 5.5 V

I

P

supply current 71 83 95 mA

Vision IF amplifier (pins 1 and 2)

V

i(rms)

allowable overload input
voltage (RMS value)

note 2 −−440 mV

V

I(max)(rms)

maximum input signal voltage
(RMS value)

+1 dB video at output;

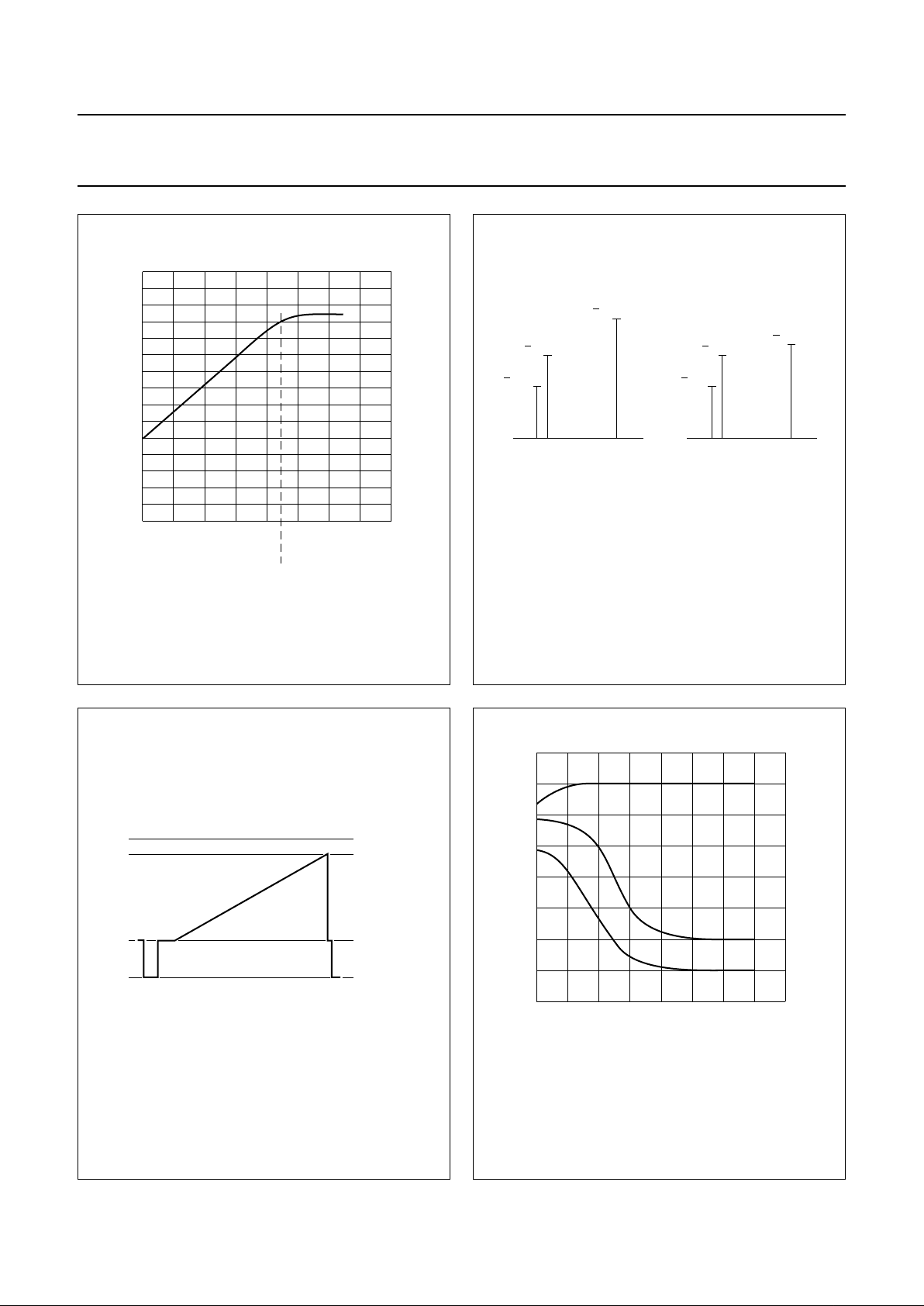

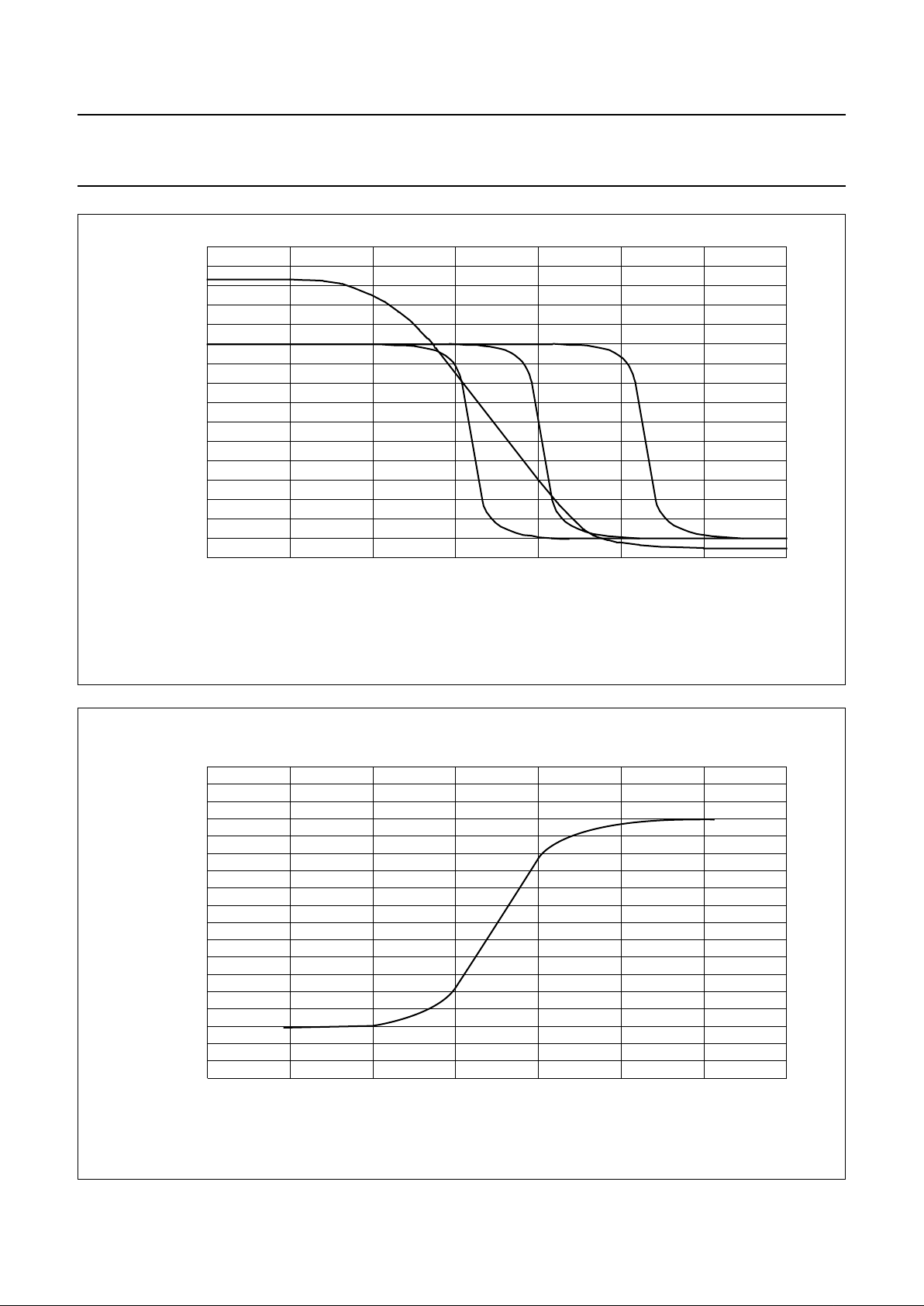

see Fig.4

−−140 mV

V

i(VIF)(rms)

VIF input signal voltage
sensitivity (RMS value)

−1 dB video at output;
see Fig.4

− 60 100 µV

∆V

o(int)

internal IF amplitude
difference between picture
and sound carrier

within AGC range;
M standard;

∆f = 4.5 MHz

− 0.7 1 dB

G

IFcr

IF gain control range see Fig.4 65 70 − dB

R

i(diff)

differential input resistance note 3 1.7 2.2 2.7 kΩ

C

i(diff)

differential input capacitance note 3 1.2 1.7 2.5 pF

V

I(1,2)

DC input voltage note 3 − 3.4 − V
True synchronous video demodulator; note 4
f

VCO(max)

maximum oscillator frequency

for carrier regeneration

f=2f

pc

125 130 − MHz

∆f

osc

/∆T oscillator drift as a function of

temperature

oscillator is
free-running; I

AFC

=0;

note 5

−−±20 × 10

−6

K

−1

∆f

osc

/∆V

P

oscillator shift as a function of

supply voltage

oscillator is
free-running; note 5

−−±1500 × 10−6V

−1

V

VCO(rms)

oscillator voltage swing at

pins 14 and 15 (RMS value)

50 80 110 mV

f

cr(pc)

picture carrier capture range ±1.4 ±1.8 − MHz
t

acq

acquisition time BL = 70 kHz; note 6 −−30 ms
V

i(IF)(rms)

IF input signal voltage

sensitivity for PLL to be locked

(RMS value; pins 1 and 2)

maximum IF gain;
note 7

− 60 90 µV

1999 Jun 04 12

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

Composite video amplifier (pin 9; sound carrier off)

V

o(video)(p-p)

output signal voltage

(peak-to-peak value)

see Fig.8 1.2 1.35 1.5 V

V/S ratio between video

(black-to-white) and sync level

2.0 2.5 3.0

V

sync(9)

sync voltage level 1.4 1.5 1.6 V
V

clu(9)

upper video clipping voltage

level

3.3 3.45 − V

V

cll(9)

lower video clipping voltage

level

− 1.1 1.25 V

R

o(9)

output resistance note 3 −−10 Ω
I

int(9)

internal DC bias current for

emitter-follower

1.6 2.0 − mA

I

o(sink)(9)(max)

maximum AC and DC output

sink current

1.0 −− mA

I

o(source)(9)(max)

maximum AC and DC output

source current

2.0 −− mA

∆V

o

deviation of CVBS output

signal voltage

50 dB gain control −−0.5 dB
30 dB gain control −−0.1 dB

∆V

o(bl)

black level tilt gain variation; note 8 −−1%
G

diff

differential gain

“NTC-7 Composite”

− 25 %

ϕ

diff

differential phase

“NTC-7 Composite”

− 2 4 deg

B

−1

−1 dB video bandwidth CL<30pF;

RL> 1.5 kΩ; AC load

56− MHz

B

−3

−3 dB video bandwidth CL<30pF;

RL> 1.5 kΩ; AC load

78− MHz

S/N

W(video)

weighted signal-to-noise ratio

for video

see Fig.6 and note 9 56 60 − dB

S/N

(video)

unweighted signal-to-noise

ratio for video

see Fig.6 and note 9 49 53 − dB

α

IM(0.92)

intermodulation attenuation at f = 0.92 MHz; see Fig.7

and note 10

‘blue’ 58 64 − dB
‘yellow’ 60 66 − dB

α

IM(2.76)

intermodulation attenuation at f = 2.76 MHz; see Fig.7

and note 10

‘blue’ 58 64 − dB
‘yellow’ 59 65 − dB

V

VC(rms)

residual vision carrier

(RMS value)

fundamental wave and
harmonics

− 210 mV

α

H(sup)

suppression of video signal

harmonics

note 11a 35 40 − dB

α

H(spur)

spurious elements note 11b 40 −− dB
PSRR power supply ripple rejection

at pin 9

video signal; grey level;

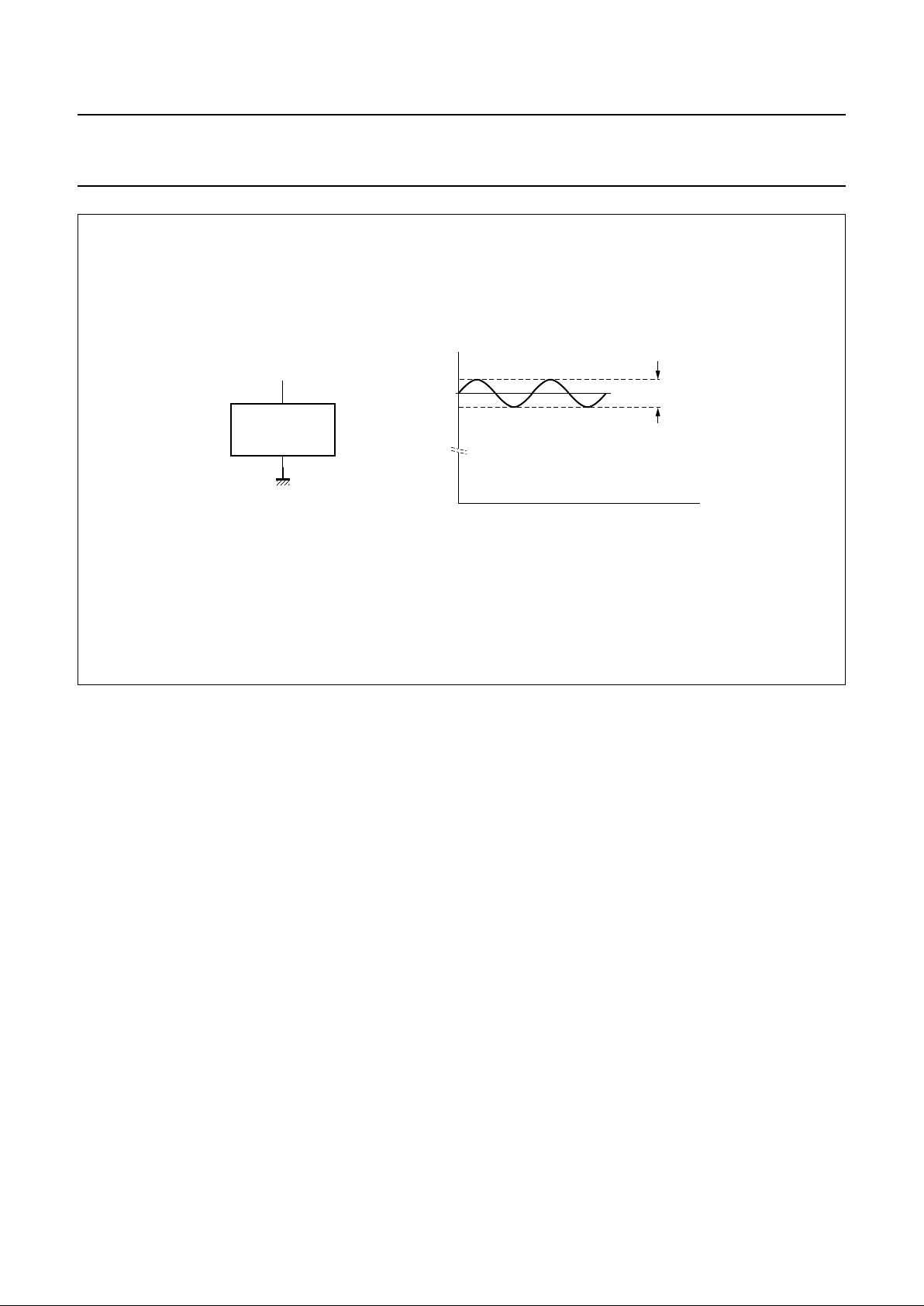

see Fig.1 1

25 30 − dB

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1999 Jun 04 13

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

VIF-AGC detector (pin 17)

I

17

charging current 55 75 95 µA

discharging current note 8 1.0 1.4 1.8 µA
t

resp

AGC response to an

increasing VIF step

note 12 − 0.05 0.1 ms/dB

AGC response to a

decreasing VIF step

− 2.2 3.5 ms/dB

Tuner AGC (pin 12)

V

i(rms)

IF input signal voltage for

minimum starting point of

tuner takeover (RMS value)

input at pins 1 and 2;
R

TOP

=22kΩ;

I12= 0.4 mA

− 25 mV

IF input signal voltage for

maximum starting point of

tuner takeover (RMS value)

input at pins 1 and 2;
R

TOP

=0Ω;

I12= 0.4 mA

50 100 − mV

tuner takeover point accuracy R

TOP

=13kΩ;

I12= 0.4 mA

6 − 14 mV

V

o(12)

permissible output voltage from external source;

note 3

−−13.2 V

V

sat(12)

saturation voltage I12= 1.6 mA −−0.2 V
∆V

TOP(12)

/∆T variation of takeover point by

temperature

I12= 0.4 mA − 0.03 0.07 dB/K

I

12(sink)

sink current see Fig.4

no tuner gain
reduction;
V

12

= 13.2 V

−−5 µA

maximum tuner gain
reduction

1.5 2 2.6 mA

∆G

IF

IF slip by automatic gain

control

tuner gain current from
20 to 80%

− 68 dB

AFC circuit (pin 13); see Fig.10 and note 13
S control steepness ∆I13/∆f note 14

f

pc

= 38.9 MHz 0.35 0.55 0.75 µA/kHz

f

pc

= 45.75 MHz 0.35 0.55 0.75 µA/kHz

f

pc

= 58.75 MHz 0.35 0.55 0.75 µA/kHz

∆f

IF

/∆T frequency variation by

temperature

I

AFC

= 0; note 5 −−±20 × 10

−6

K

−1

V

o(13)

output voltage upper limit see Fig.10 VP− 0.7 VP− 0.3 − V

output voltage lower limit see Fig.10 − 0.3 0.7 V
I

o(source)(13)

output source current 150 200 250 µA
I

o(sink)(13)

output sink current 150 200 250 µA
∆I

13(p-p)

residual video modulation

current (peak-to-peak value)

− 20 30 µA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1999 Jun 04 14

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

Sound IF amplifier (pins 19 and 20)

V

i(SIF)(rms)

input signal voltage sensitivity

(RMS value)

−1 dB at intercarrier
output pin 10

− 50 100 µV

V

i(max)(rms)

maximum input signal voltage

(RMS value)

+1 dB at intercarrier
output pin 10

40 110 − mV

G

cr(SIF)

SIF gain control range see Fig.5 60 66 − dB
R

i(diff)

differential input resistance note 3 1.7 2.2 2.7 kΩ
C

i(diff)

differential input capacitance note 3 1.2 1.7 2.5 pF
V

I(19,20)

DC input voltage − 3.4 − V

α

SIF,VIF

crosstalk attenuation between

SIF and VIF input

between pins 1 and 2
and pins 19 and 20;
note 15

50 −− dB

SIF AGC detector (pin 5)

I

ch(5)

charging current 3.5 5 6.5 µA
I

dch(5)

discharging current 4.5 6 7.5 µA

Single reference QSS intercarrier mixer (pin 10)

V

o(rms)

IF intercarrier output level

(RMS value)

SC1; sound carrier 2 off 75 100 125 mV

V

o(peak)

IF intercarrier output level

(peak value)

141 198 225 mV

B

−3

−3 dB intercarrier bandwidth upper limit 7.5 9 − MHz

V

SC(rms)

residual sound carrier

(RMS value)

fundamental wave and
harmonics

− 25 mV

V

VC(rms)

residual vision carrier

(RMS value)

fundamental wave and
harmonics

− 25 mV

R

o(10)

output resistance note 3 −−25 Ω
V

O(10)

DC output voltage − 2.0 − V
I

int(10)

DC internal bias current for

emitter-follower

1.5 1.9 − mA

I

sink(max)(10)

maximum AC and DC output

sink current

1.2 1.6 − mA

I

source(max)(10)

maximum AC and DC output

source current

2.0 2.5 − mA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1999 Jun 04 15

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

Limiter amplifier (pin 11); note 16
V

i(FM)(rms)

input signal voltage for lock-in

(RMS value)

−−100 µV

V

i(FM)(rms)

input signal voltage

(RMS value)

− 300 400 µV

allowed input signal voltage

(RMS value)

200 −− mV

α

AM

AM suppression 50 µs de-emphasis;

AM: f = 1 kHz; m = 0.3
refer to 25 kHz
(50% FM deviation)

46 50 − dB

R

i(11)

input resistance note 3 480 600 720 Ω
V

I(11)

DC input voltage − 2.8 − V

FM-PLL demodulator

f

cr

catching range of PLL upper limit 7.0 −− MHz

lower limit −−4.0 MHz

f

hr

holding range of PLL upper limit 9.0 −− MHz

lower limit −−3.5 MHz

t

acq

acquisition time −−4 µs
FM operation (M, N standard; pin 6); notes 16 and 16a
V

o(AF)(6)(rms)

AF output signal voltage

(RMS value)

25 kHz
(50% FM deviation);
Rx=0Ω; see Fig.13
and note 17

400 500 600 mV

V

o(AF)(6)(cl)

AF output clipping signal

voltage level

THD < 1.5% 1.0 − 1.2 V

∆f

AF

frequency deviation THD < 1.5%; Rx=0Ω;

note 17

−−±53 kHz

∆V

o

/∆T temperature drift of AF output

signal voltage

− 3 × 10−37 × 10

−3

dB/K

V

7

DC voltage at decoupling

capacitor

voltage dependent on
VCO frequency;
note 18

1.2 − 3.0 V

R

o(6)

output resistance note 3 −−100 Ω
V

O(6)

DC output voltage − 2.3 − V
I

sink(max)(6)

maximum AC and DC output

sink current

−−1.1 mA

I

source(max)(6)

maximum AC and DC output

source current

−−1.1 mA

B

−3

−3 dB audio frequency

bandwidth

without de-emphasis
capacitor

100 125 − kHz

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

SN+

N

--------------





weighted

40 dB

=

1999 Jun 04 16

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

Notes to the characteristics

1. Values of video and sound parameters are decreased at VP= 4.5 V.

2. Level headroom for input level jumps during gain control setting.

3. This parameter is not tested during production and is only given as an application information for designing the
television receiver.

4. Loop bandwidth BL = 70 kHz (natural frequency fn= 12 kHz; damping factor d ≈ 3; calculated with sync level within
gain control range). Resonance circuit of VCO: Q0> 50; C

ext

see Table 3; C

int

≈ 8.5 pF (loop voltage approximately

2.7 V).

5. Temperature coefficient of external LC-circuit is equal to zero.

6. V

i(IF)(rms)

= 10 mV; ∆f = 1 MHz (VCO frequency offset related to picture carrier frequency); white picture

video modulation.

7. V

i(VIF)

signal for nominal video signal.

8. The leakage current of the AGC capacitor should not exceed 100 nA at M, N standard. Larger currents will increase
the tilt.

9. S/N is the ratio of black-to-white amplitude to the black level noise voltage (RMS value, pin 9). B = 5 MHz weighted
in accordance with

“CCIR 567”

.

10. The intermodulation figures are defined:

; α

0.92

value at 0.92 MHz referenced to black/white signal;

; α

2.76

value at 2.76 MHz referenced to colour carrier.

THD total harmonic distortion 25 kHz

(50% FM deviation)

− 0.15 0.5 %

S/N

W(audio)

weighted signal-to-noise ratio
for audio

FM-PLL only; with
75 µs de-emphasis;
25 kHz
(50% FM deviation);

“CCIR 468-4”

55 60 − dB

V

SC(rms)

residual sound carrier
(RMS value)

fundamental wave and
harmonics

−−75 mV

α

6

mute attenuation of AF signal 70 75 − dB

∆V

6

DC jump voltage of AF output
terminal for switching AF
output to mute state and vice
versa

FM-PLL in lock mode −±50 ±150 mV

PSRR power supply ripple rejection

at pin 6

R

x

=0Ω; f = 70 Hz;

see Figs 11 and 13

20 26 − dB

Single reference QSS AF performance for FM operation (M standard); notes 19, 20 and 21; see Table 1
S/N

W(audio)

weighted signal-to-noise ratio
for audio

black picture 50 56 − dB
white picture 47 53 − dB
colour bar 45 51 − dB

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

α

0.92

20

V

o

at 3.58 MHz

V

o

at 0.92 MHz

-----------------------------------------







3.6 dB+log=

α

2.76

20

V

o

at 3.58 MHz

V

o

at 2.76 MHz

-----------------------------------------







log=

1999 Jun 04 17

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

11. Measurements taken with SAW filter M3951 (sound carrier suppression: 32 dB); loop bandwidth BL = 70 kHz:
a) Modulation VSB; sound carrier off; f

video

> 0.5 MHz.

b) Sound carrier on; SIF SAW filter M9352; f

video

= 10 kHz to 10 MHz.

12. Response speed valid for a VIF input level range of 200 µVupto70mV.

13. To match the AFC output signal to different tuning systems a current source output is provided. The test circuit is
given in Fig.10. The AFC-steepness can be changed by the resistors at pin 13.

14. Depending on the ratio ∆C/C0 of the LC resonant circuit of VCO (Q0> 50; see note 4; C0=C

int+Cext

).

15. Source impedance: 2.3 kΩ in parallel to 12 pF (SAW filter); fIF= 38.9 MHz.

16. Input level for second IF from an external generator with 50 Ω source impedance, AC-coupled with 10 nF capacitor,
f

mod

= 400 Hz, 25 kHz (50% FM deviation) of audio reference. A VIF/SIF input signal is not permitted. Pins 5 and 17
have to be connected to positive supply voltage for minimum IF gain. S/N and THD measurements are taken at
75 µs de-emphasis (modulator pre-emphasis has to be activated). The FM demodulator steepness ∆V

o(AF)

/∆fAF is

positive.
a) Second IF input level 10 mV RMS.

17. Measured at de-emphasis circuitry with an FM deviation of 25 kHz (f

mod

= 400 Hz) the typical AF output signal is
500 mV RMS (Rx=0Ω). By using Rx= 470 Ω the AF output signal is attenuated by 6 dB (250 mV RMS).
For handling a frequency deviation of more than 53 kHz the AF output signal has to be reduced by using Rx in order
to avoid clipping (THD < 1.5%). For an FM deviation up to 100 kHz an attenuation of 6 dB is recommended with
Rx= 470 Ω.

18. The leakage current of the decoupling capacitor (22 µF) should not exceed 1 µA.

19. For all S/N measurements the used vision IF modulator has to meet the following specifications:
a) Incidental phase modulation for black-to-white jump less than 0.5 degrees.
b) QSS AF performance, measured with the television demodulator AMF2 (audio output, weighted S/N ratio) better

than 60 dB (deviation 25 kHz) for 6 kHz sine wave black-to-white video modulation.

c) Picture-to-sound carrier ratio; PC/SC1= 7 dB (transmitter).

20. The PC/SC1 ratio is calculated as the addition to TV transmitter PC/SC1 ratio and SAW filter PC/SC1 ratio.
This PC/SC1 ratio is necessary to achieve the S/N

W(audio)

values as noted. A different PC/SC1 ratio will change these

values.

21. Measurements taken with SAW filter M3951 for vision IF (suppressed sound carrier, minimum 25 dB) and M9352 for
sound IF (suppressed picture carrier). Input level V

i(SIF)(rms)

= 10 mV, 25 kHz (50% FM deviation). Measurements in

accordance with

“CCIR 468-4”

.

Table 1 Input frequencies and carrier ratios

SYMBOL DESCRIPTION B/G STANDARD M, N STANDARD UNIT

f

pc

or f

IF

picture/IF carrier 38.9 45.75/58.75 MHz

f

SC1

sound carrier 33.4 41.25/54.25 MHz

f

SC2

33.158 − MHz

SC

1

picture-to-sound carrier 13 7 dB

SC

2

20 − dB

1999 Jun 04 18

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

Fig.4 Typical VIF (pins 1 and 2) and tuner AGC characteristic.

(1) I

tuner

; R

TOP

=22kΩ.

(2) Gain.

(3) I

tuner

; R

TOP

=11kΩ.

(4) I

tuner

; R

TOP

=0Ω.

handbook, full pagewidth

4.5

70

1 2.521.5 3 3.5 4

V17 (V)

MHA737

50

600.06

40

0

1

2

0.6

30

206

10

060

−10

gain
(dB)

I

tuner

(mA)

V

i(VIF)(rms)

(mV)

(1) (2) (3) (4)

Fig.5 Typical SIF (pins 19 and 20) AGC characteristic.

handbook, full pagewidth

4.5

80

90

100

110

1 2.521.5 3 3.5 4

V5 (V)

MHA738

60

70

50

40

30

20

10

100

1

0.1

0.01

(mV) (dBµV)

V

i(SIF)(rms)

1999 Jun 04 19

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

Fig.6 Typical signal-to-noise ratio as a function of

IF input voltage.

handbook, halfpage

−60 −40 −20 20

75

50

25

0

0

0.06 0.6 6 60060

MED684

S/N
(dB)

V

i (VIF)(rms)

(dB)

V

i (VIF)(rms)

(mV)

10

Fig.7 Input signal conditions.

SC = sound carrier, with respect to sync level.
CC = chrominance carrier, with respect to sync level.
PC = picture carrier, with respect to sync level.

handbook, halfpage

SC CC PC SC CC PC

BLUE YELLOW

21 dB

13.2 dB

3.2 dB

21 dB

13.2 dB

10 dB

MHA739

Fig.8 Typical video signal levels on output pin 9

(sound carrier off).

handbook, halfpage

1.5 V

1.85 V

2.85 V

white level

3.0 V

zero carrier level

black level

sync level

M, N standard

MHA740

Fig.9 Typical audio level, noise and AM rejection

(50% FM deviation).

(1) Signal.
(2) AM rejection.
(3) Noise.

handbook, halfpage

30 50 70

(dB)

110

10

−10

−50

−70

−30

90

input voltage (dBµV)

MHA741

(1)

(2)

(3)

1999 Jun 04 20

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

Fig.10 Measurement conditions and typical AFC characteristic.

a. VP=5V.

b. VP=9V.

handbook, full pagewidth

TDA9808

13

22 kΩ

22 kΩ

VP = 5 V VP = 5 V

V

AFC

I

13

MHA742

0

1.25

2.5

3.75

5

45.35 45.75 46.15

−225

−150

−75

0

75

150

225

(source current)

(sink current)

f (MHz)

V

AFC
(V)

I

13

(µA)

handbook, full pagewidth

TDA9808

13

62 kΩ

62 kΩ

VP = 9 V VP = 9 V

V

AFC

I

13

MHA743

0

3

1.5

4.5

7.5

V

AFC
(V)

6

9

45.35 45.75 46.15

−150

−100

−50

0

50

100

I

13

(µA)

150

(source current)

(sink current)

f (MHz)

1999 Jun 04 21

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

Fig.11 Ripple rejection condition.

handbook, full pagewidth

TDA9808

VP = 5 V

t

VP = 5 V

100 mV

ripple

(f = 70 Hz)

MHA744

1999 Jun 04 22

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

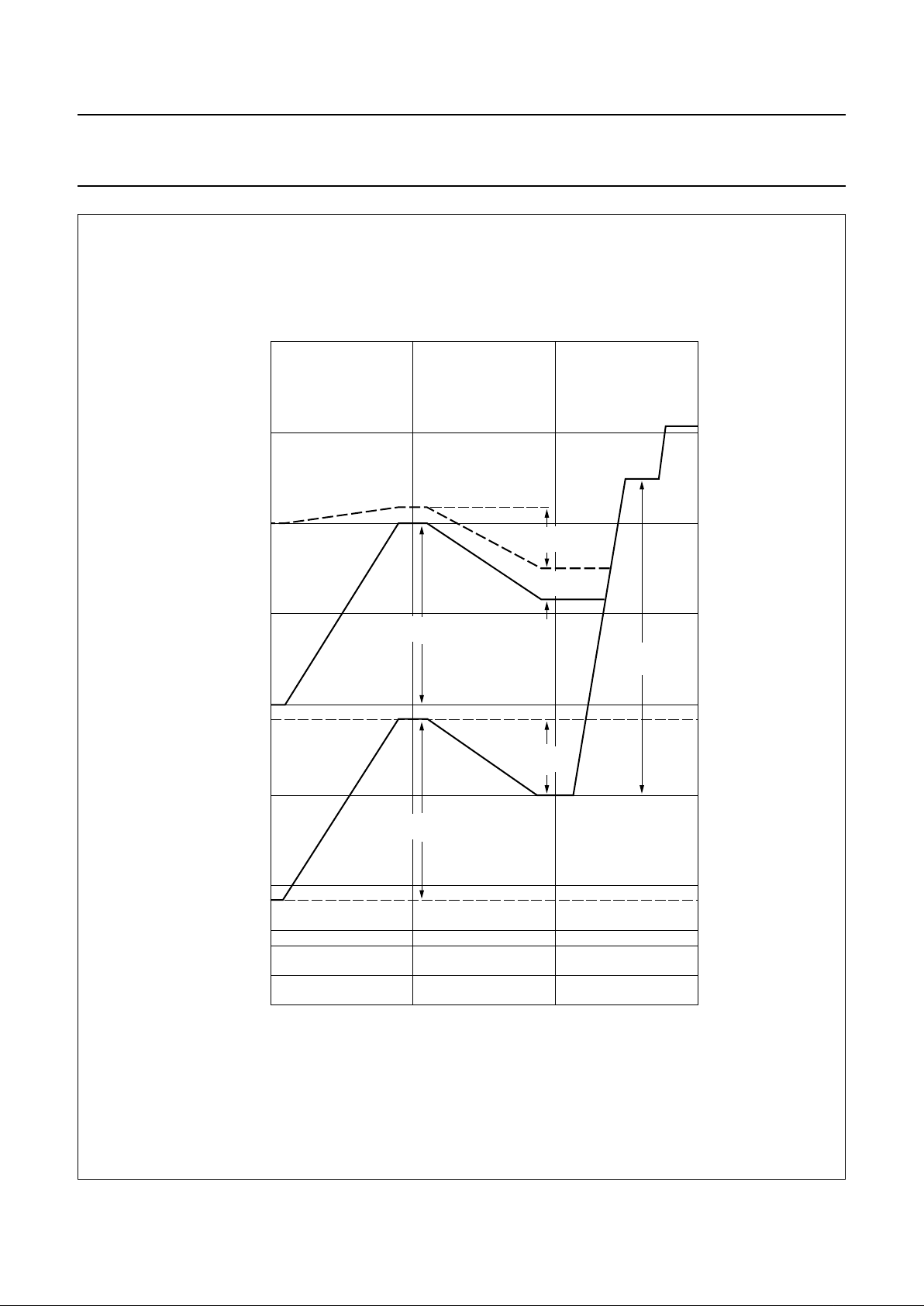

Fig.12 Front end level diagram.

(1) Depends on TOP.

handbook, full pagewidth

video 1.35 V (p-p)

0.66 × 10

−3

0.66 × 10

−5

MHA745

20

40

60

80

100

antenna input

(dBµV)

120

140

10

VHF/UHF tuner VIF

VIF amplifier, demodulator

and video

tuner SAW filter

TDA9808

IF signals

RMS value

(V)

10

−1

10

−2

(TOP)

10

−3

10

−4

10

−5

1

10

(1)

SAW insertion

loss 14 dB

SAW insertion

loss 14 dB

tuning gain

control range

40 dB

RF gain

70 dB

VIF AGC

IF slip

6 dB

1999 Jun 04 23

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

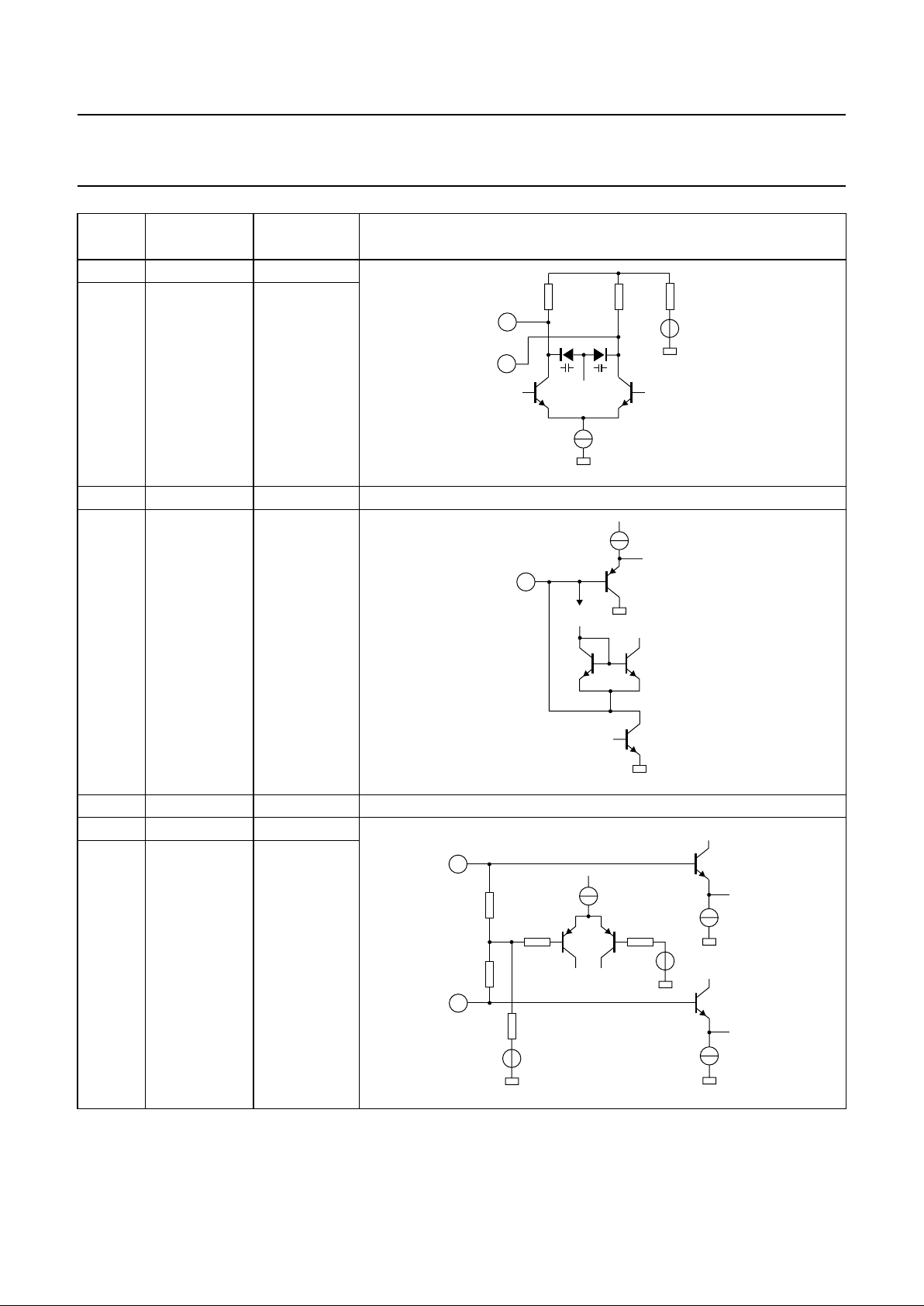

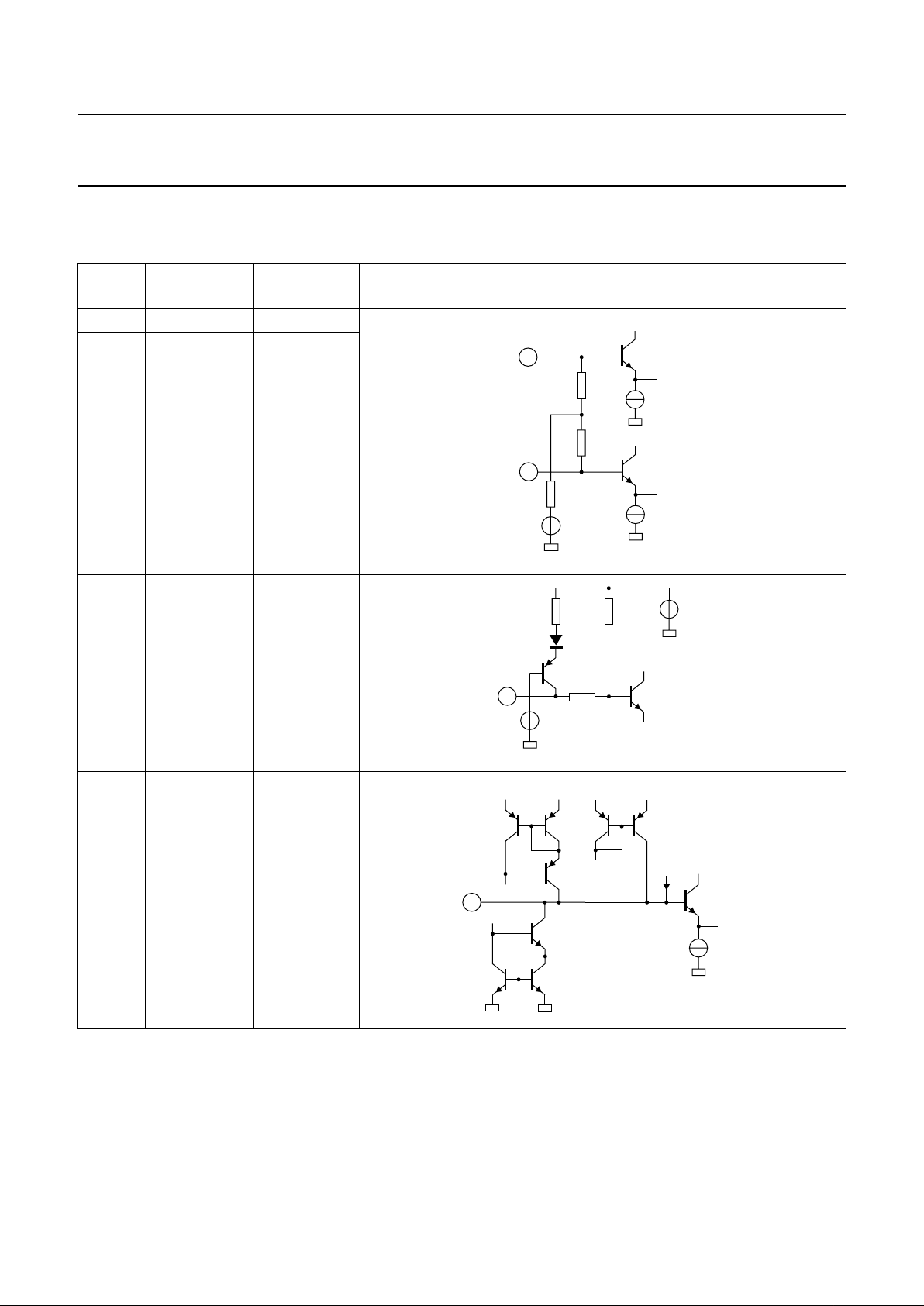

INTERNAL CIRCUITRY
Table 2 Equivalent pin circuits and pin voltages

PIN
NO.

PIN

SYMBOL

DC VOLTAGE

(V)

EQUIVALENT CIRCUIT (WITHOUT ESD PROTECTION CIRCUIT)

1V

i VIF1

3.4

2V

i VIF2

3.4

3 TADJ (TOP) 0 to 1.9

4T

PLL

1.5 to 4.0

MHA752

400 µA

+

1

1.1 kΩ

1.1 kΩ

800 Ω

3.4 V

2

400 µA

+

MHA753

3.6 V

20 kΩ

3

30 kΩ

9 kΩ

1.9 V

MHA754

4

+

200 µA

+

VCO

++

+

I

b

1999 Jun 04 24

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

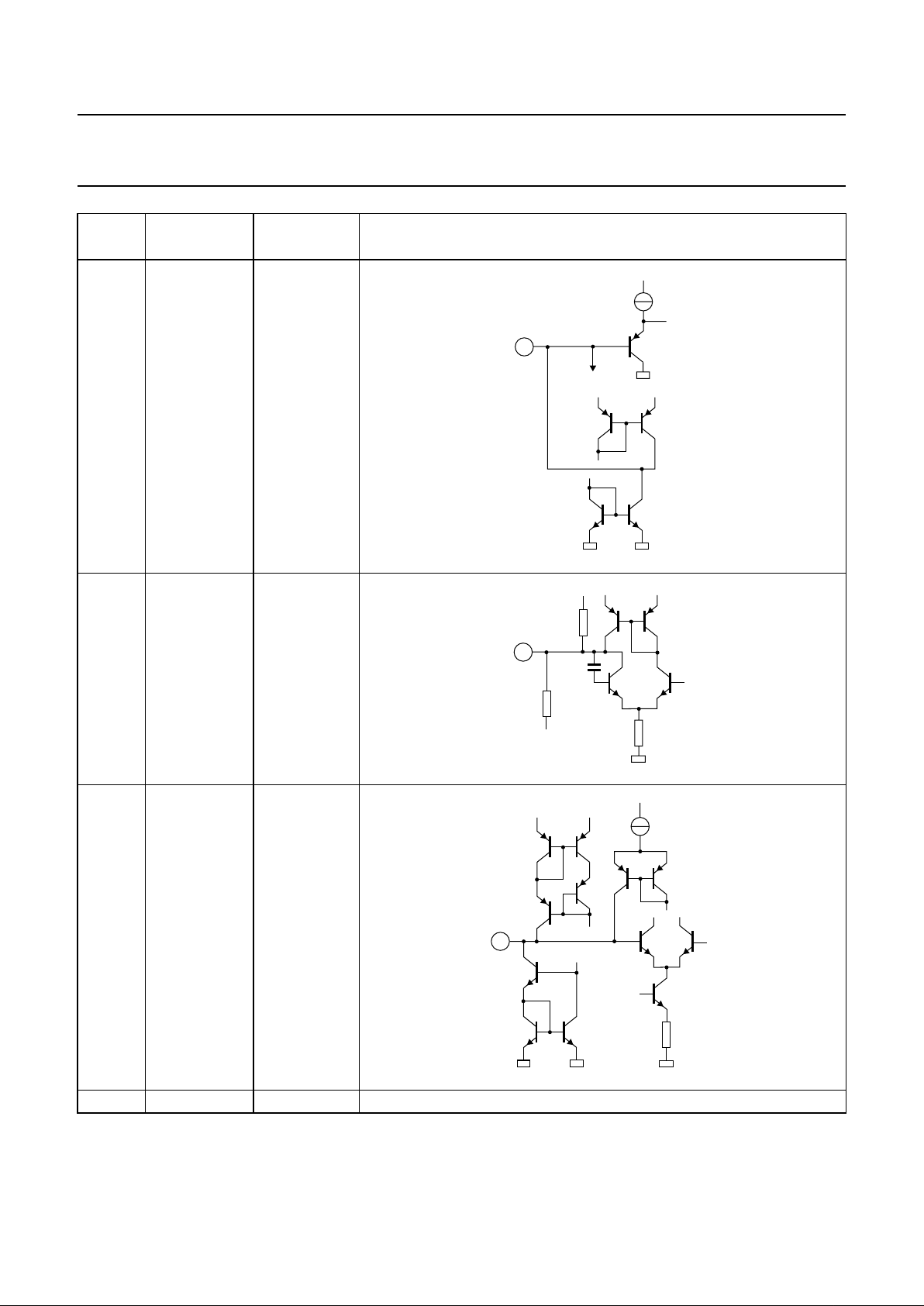

5C

SAGC

1.5 to 4.0

6V

oAF

2.3

7C

DEC

1.2 to 3.0

8 n.c.

PIN
NO.

PIN

SYMBOL

DC VOLTAGE

(V)

EQUIVALENT CIRCUIT (WITHOUT ESD PROTECTION CIRCUIT)

MHA755

+

+

5

+

15 µA

I

b

5 µA

MHA756

+

+

120 Ω

6

27.7 kΩ

25 pF

27.3 kΩ

MHA757

7

+

+

+

90 µA

1 kΩ

1999 Jun 04 25

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

9V

o(vid)

sync level: 1.5

10 V

o QSS

2.0

11 V

iFM

2.65

12 TAGC 0 to 13.2

13 AFC 0.3 to VP− 0.3

PIN
NO.

PIN

SYMBOL

DC VOLTAGE

(V)

EQUIVALENT CIRCUIT (WITHOUT ESD PROTECTION CIRCUIT)

MHA758

2.0 mA

+

100 Ω

2.1 pF

9

MHA759

1.9 mA

14.7 kΩ

+

150 Ω

10

MHA760

11

2.65 V

35 µA

600 µA

40 kΩ640 Ω

400 Ω

MHA761

12

MHA762

+

+

13

I

AFC

±200 µA

1999 Jun 04 26

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

14 VCO1 2.7
15 VCO2 2.7

16 GND 0
17 C

VAGC

1.5 to 4.0

18 V

P

V

P

19 V

i SIF1

3.4

20 V

i SIF2

3.4

PIN
NO.

PIN

SYMBOL

DC VOLTAGE

(V)

EQUIVALENT CIRCUIT (WITHOUT ESD PROTECTION CIRCUIT)

MHA763

2.8 V

420 Ω

14

420 Ω

50 Ω

15

500 µA

MHA764

17

40 µA

I

b

1.4 µA

75 µA

MHA765

250 µA

3.4 V

800 Ω

100 µA

1.8 V

10 kΩ

250 µA

+

+

+

5 kΩ

1.1
kΩ

1.1
kΩ

20

19

1999 Jun 04 27

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and

FM-PLL demodulator

TDA9808

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

TEST AND APPLICATION INFORMATION

handbook, full pagewidth

MHA746

13 72456

1819 1417 16

GND

C

VAGC

15

(1)

8910

13 12 11

tuner

AGC-output

5.6 kΩ

20

mute

switch

15
nF

100

nF

22
kΩ

n.c.

R

x

(3)

V

o QSS

V

i FM

4.5 MHz

(4)

560 Ω

10 nF

22 kΩ

V

P

AFC

22 kΩ

100 nF

10 nF

330

Ω

220

nF

220
nF

4.7
kΩ

22

µF

TADJ T

PLLCSAGC

C

DEC

V

o AF

V

o(vid)

1.35 V (p-p)

TDA9808

(2)

5

50

Ω

4

3

1

2

1:1

VIF

input

5

50

Ω

4

3

1

2

1:1

SIF

input

Fig.13 Test circuit.

(1) See Table 3.
(2) De-emphasis circuitry for 75 µs.
(3) See note 17 of Chapter “Characteristics (5 V supply)”.
(4) Depends on TV standard.

1999 Jun 04 28

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and

FM-PLL demodulator

TDA9808

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

handbook, full pagewidth

MHA747

1

50

Ω

372456

1819 1417 16

GND

C

VAGC

15

(2)

8910

13 12 11

tuner

AGC-output

5.6 kΩ

20

mute

switch

15

nF

100

nF

22
kΩ

n.c.

R

x

(4)

V

o QSS

V

i FM

4.5 MHz

(1)

560 Ω

(1)

(1)

IF

input

10 nF

22 kΩ

V

P

SIF

SAW
FILTER
M9352

SAW
FILTER
M3951

VIF

AFC

22 kΩ

100 nF

10 nF

330

Ω

220
nF

220
nF

4.7
kΩ

22

µF

TADJ T

PLLCSAGC

C

DEC

V

o AF

V

o(vid)

1.35 V (p-p)

TDA9808

(3)

Fig.14 Application circuit.

(1) Depends on TV standard.
(2) See Table 3.
(3) De-emphasis circuitry for 75 µs.
(4) See note 17 of Chapter “Characteristics (5 V supply)”.

1999 Jun 04 29

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

Table 3 Oscillator circuit for the different TV standards

PARAMETER EUROPE USA JAPAN

IF frequency 38.9 MHz 45.75 MHz 58.75 MHz
VCO frequency 77.8 MHz 91.5 MHz 117.5 MHz
Oscillator circuit

e.g. Toko coil 5KM 369SNS-2010Z 5KMC V369SCS-2370Z MC139 NE545SNAS100108
Philips ceramic capacitor 2222 632 51828 inside of coil 15 pF SMD; size = 0805

MHA766

14

15

(3)

(1) (2)

(1) C

VCO

= 8.5 pF.
(2) C = 8.2 ±0.25 pF.
(3) L = 251 nH.

MHA766

14

15

(3)

(1) (2)

(1) C

VCO

= 8.5 pF.
(2) C = 10 ±0.25 pF.
(3) L = 163 nH.

MHA766

14

15

(3)

(1) (2)

(1) C

VCO

= 8.5 pF.
(2) C = 15 ±0.25 pF.
(3) L = 78 nH.

1999 Jun 04 30

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

PACKAGE OUTLINES

UNIT

A

max.

1 2

b

1

cD E e M

H

L

REFERENCES

OUTLINE
VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

mm

inches

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

SOT146-1

92-11-17
95-05-24

A

min.

A

max.

b

Z

max.

w

M

E

e

1

1.73

1.30

0.53

0.38

0.36

0.23

26.92

26.54

6.40

6.22

3.60

3.05

0.2542.54 7.62

8.25

7.80

10.0

8.3

2.04.2 0.51 3.2

0.068

0.051

0.021

0.015

0.014

0.009

1.060

1.045

0.25

0.24

0.14

0.12

0.010.10 0.30

0.32

0.31

0.39

0.33

0.0780.17 0.020 0.13

SC603

M

H

c

(e )

1

M

E

A

L

seating plane

A

1

w M

b

1

e

D

A

2

Z

20

1

11

10

b

E

pin 1 index

0 5 10 mm

scale

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

(1)

(1) (1)

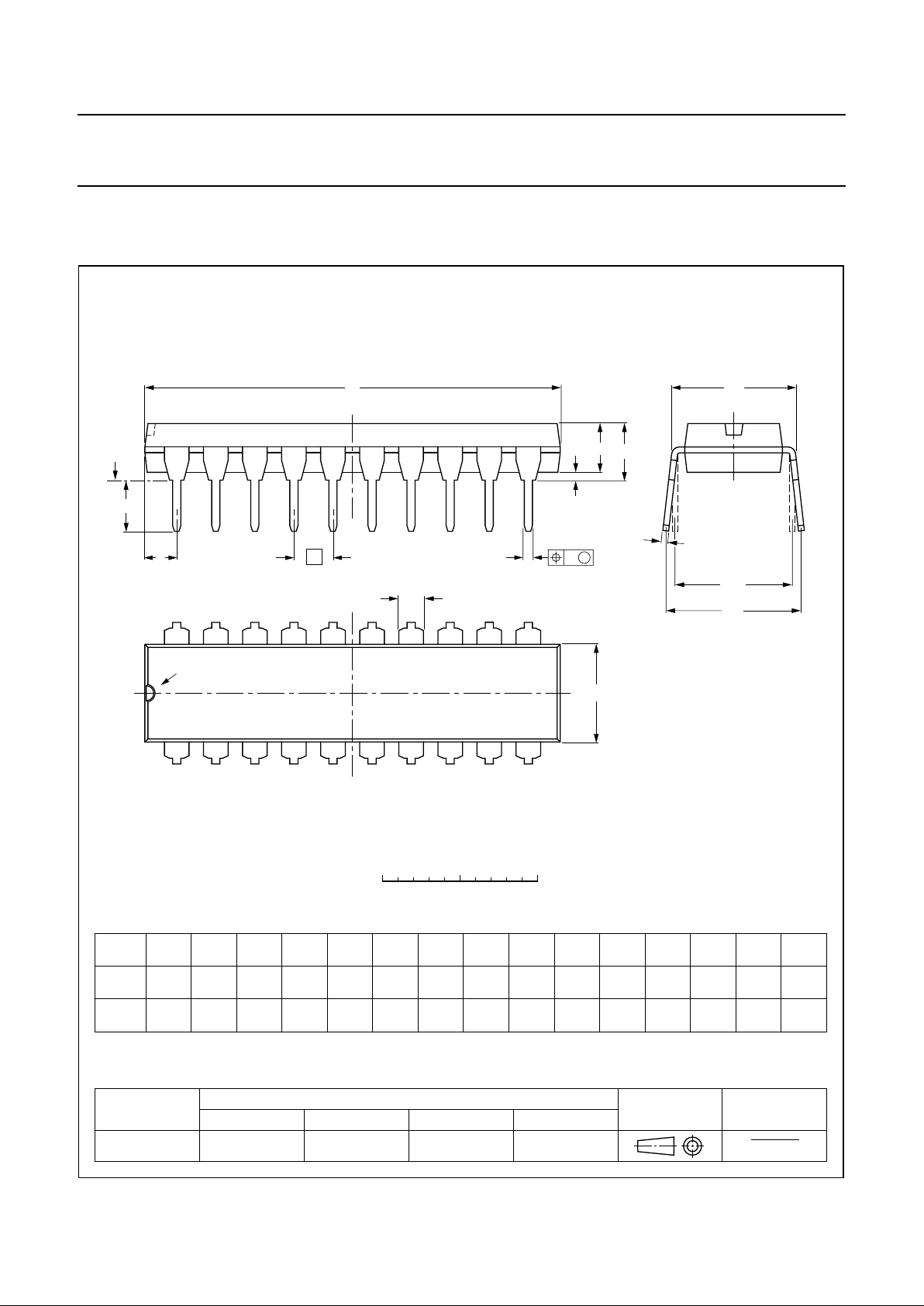

DIP20: plastic dual in-line package; 20 leads (300 mil)

SOT146-1

1999 Jun 04 31

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

UNIT

A

max.

A

1

A2A3b

p

cD

(1)E(1) (1)

eHELLpQ

Z

ywv θ

REFERENCES

OUTLINE
VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

mm

inches

2.65

0.30

0.10

2.45

2.25

0.49

0.36

0.32

0.23

13.0

12.6

7.6

7.4

1.27

10.65

10.00

1.1

1.0

0.9

0.4

8
0

o
o

0.25 0.1

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

Note

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

1.1

0.4

SOT163-1

10

20

w M

b

p

detail X

Z

e

11

1

D

y

0.25

075E04 MS-013AC

pin 1 index

0.10

0.012

0.004

0.096

0.089

0.019

0.014

0.013

0.009

0.51

0.49

0.30

0.29

0.050

1.4

0.055

0.419

0.394

0.043

0.039

0.035

0.016

0.01

0.25

0.01

0.004

0.043

0.016

0.01

0 5 10 mm

scale

X

θ

A

A

1

A

2

H

E

L

p

Q

E

c

L

v M

A

(A )

3

A

SO20: plastic small outline package; 20 leads; body width 7.5 mm

SOT163-1

95-01-24
97-05-22

1999 Jun 04 32

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

SOLDERING
Introduction

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“Data Handbook IC26; Integrated Circuit Packages”

(document order number 9398 652 90011).
There is no soldering method that is ideal for all IC

packages. Wave soldering is often preferred when
through-hole and surface mount components are mixed on
one printed-circuit board. However, wave soldering is not
always suitable for surface mount ICs, or for printed-circuit
boards with high population densities. In these situations
reflow soldering is often used.

Through-hole mount packages

S

OLDERING BY DIPPING OR BY SOLDER WAVE

The maximum permissible temperature of the solder is
260 °C; solder at this temperature must not be in contact
with the joints for more than 5 seconds. The total contact
time of successive solder waves must not exceed
5 seconds.

The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (T

stg(max)

). If the
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.

M

ANUAL SOLDERING

Apply the soldering iron (24 V or less) to the lead(s) of the
package, either below the seating plane or not more than
2 mm above it. If the temperature of the soldering iron bit
is less than 300 °C it may remain in contact for up to
10 seconds. If the bit temperature is between
300 and 400 °C, contact may be up to 5 seconds.

Surface mount packages

REFLOW SOLDERING
Reflow soldering requires solder paste (a suspension of

fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

Several methods exist for reflowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary
between 100 and 200 seconds depending on heating
method.

Typical reflow peak temperatures range from
215 to 250 °C. The top-surface temperature of the
packages should preferable be kept below 230 °C.

W

AVE SOLDERING

Conventional single wave soldering is not recommended
for surface mount devices (SMDs) or printed-circuit boards
with a high component density, as solder bridging and
non-wetting can present major problems.

To overcome these problems the double-wave soldering
method was specifically developed.

If wave soldering is used the following conditions must be
observed for optimal results:

• Use a double-wave soldering method comprising a
turbulent wave with high upward pressure followed by a
smooth laminar wave.

• For packages with leads on two sides and a pitch (e):
– larger than or equal to 1.27 mm, the footprint

longitudinal axis is preferred to be parallel to the
transport direction of the printed-circuit board;

– smaller than 1.27 mm, the footprint longitudinal axis

must be parallel to the transport direction of the
printed-circuit board.

The footprint must incorporate solder thieves at the
downstream end.

• For packages with leads on four sides, the footprint must
be placed at a 45° angle to the transport direction of the
printed-circuit board. The footprint must incorporate
solder thieves downstream and at the side corners.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

M

ANUAL SOLDERING

Fix the component by first soldering two
diagonally-opposite end leads. Use a low voltage (24 V or
less) soldering iron applied to the flat part of the lead.
Contact time must be limited to 10 seconds at up to
300 °C.

When using a dedicated tool, all other leads can be
soldered in one operation within 2 to 5 seconds between
270 and 320 °C.

1999 Jun 04 33

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

Suitability of IC packages for wave, reflow and dipping soldering methods

Notes

1. All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum
temperature (with respect to time) and body size of the package, there is a risk that internal or external package
cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to the
Drypack information in the

“Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods”

.

2. For SDIP packages, the longitudinal axis must be parallel to the transport direction of the printed-circuit board.

3. These packages are not suitable for wave soldering as a solder joint between the printed-circuit board and heatsink
(at bottom version) can not be achieved, and as solder may stick to the heatsink (on top version).

4. If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction.
The package footprint must incorporate solder thieves downstream and at the side corners.

5. Wave soldering is only suitable for LQFP, QFP and TQFP packages with a pitch (e) equal to or larger than 0.8 mm;
it is definitely not suitable for packages with a pitch (e) equal to or smaller than 0.65 mm.

6. Wave soldering is only suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65 mm; it is
definitely not suitable for packages with a pitch (e) equal to or smaller than 0.5 mm.

DEFINITIONS

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

MOUNTING PACKAGE

SOLDERING METHOD

WAVE REFLOW

(1)

DIPPING

Through-hole mount DBS, DIP, HDIP, SDIP, SIL suitable

(2)

− suitable

Surface mount BGA, SQFP not suitable suitable −

HLQFP, HSQFP, HSOP, HTSSOP, SMS not suitable

(3)

suitable −

PLCC

(4)

, SO, SOJ suitable suitable −

LQFP, QFP, TQFP not recommended

(4)(5)

suitable −

SSOP, TSSOP, VSO not recommended

(6)

suitable −

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

1999 Jun 04 34

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

NOTES

1999 Jun 04 35

Philips Semiconductors Product specification

Single standard VIF-PLL with QSS-IF and
FM-PLL demodulator

TDA9808

NOTES

© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

1999 65

Philips Semiconductors – a worldwide company

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

For all other countries apply to: Philips Semiconductors,
International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PT Philips Development Corporation, Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. [phone], Fax. [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone], Fax [phone]

Middle East: see Italy

Printed in The Netherlands 545004/06/pp36 Date of release: 1999 Jun 04 Document order number: 9397 750 05973
