DATA SH EET

Preliminary specification
File under Integrated Circuits, IC02

1995 Sep 05

INTEGRATED CIRCUITS

TDA9806

Multistandard VIF-PLL and
FM-PLL demodulator

1995 Sep 05 2

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

FEATURES

• 5 V supply voltage

• Gain controlled wide band VIF-amplifier (AC-coupled)

• True synchronous demodulation with active carrier

regeneration (very linear demodulation,
good intermodulation figures, reduced harmonics,
excellent pulse response)

• Separate video amplifier for sound trap buffering with
high video bandwidth

• VIF AGC detector for gain control, operating as peak
sync detector for B/G

• Tuner AGC with adjustable takeover point (TOP)

• AFC detector without extra reference circuit

• AC-coupled limiter amplifier for sound intercarrier signal

• Alignment-free FM-PLL demodulator with high linearity,

switchable de-emphasis for FM

• Stabilizer circuit for ripple rejection and to achieve
constant output signals.

GENERAL DESCRIPTION

The TDA9806 is an integrated circuit for multistandard
vision IF signal processing and FM sound demodulation in
TV and VCR sets.

ORDERING INFORMATION

TYPE NUMBER

PACKAGE

NAME DESCRIPTION VERSION

TDA9806 SDIP32 plastic shrink dual in-line package; 32 leads (400 mil) SOT232-1

1995 Sep 05 3

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

P

supply voltage 4.5 5 5.5 V

I

P

supply current 82 96 110 mA

V

i VIF(rms)

vision IF input signal voltage sensitivity
(RMS value)

−1 dB video at output − 60 100 µV

V

o CVBS(p-p)

CVBS output signal voltage
(peak-to-peak value)

1.7 2.0 2.3 V

B

−3

−3 dB video bandwidth on pin CVBS B/G standard; CL< 20 pF;

R

L

> 1kΩ; AC load

78−MHz

S/N (W) weighted signal-to-noise ratio for video 56 60 − dB
IM

α1.1

intermodulation attenuation at ‘blue’ f = 1.1 MHz 58 64 − dB

IM

α3.3

intermodulation attenuation at ‘blue’ f = 3.3 MHz 58 64 − dB

α

H(sup)

suppression of harmonics in video
signal

35 40 − dB

V

o(rms)

audio output signal voltage for FM
(RMS value)

B/G standard;
54% modulation

− 0.5 − V

THD total harmonic distortion for FM 54% modulation − 0.15 0.5 %
S/N (W) weighted signal-to-noise ratio for FM 54% modulation − 60 − dB

1995 Sep 05 4

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and

FM-PLL demodulator

TDA9806

BLOCK DIAGRAM

h

andbook, full pagewidth

INTERCARRIER

MIXER

VCO TWD

AFC DETECTOR

TUNER AND VIF-AGC

FPLL

VIDEO DEMODULATOR

AND AMPLIFIER

INTERNAL VOLTAGE

STABILIZER

FM DETECTOR (PLL)

AF AMPLIFIER

VIF AMPLIFIER

VIF

TDA9806

29 27 26 9

10

21

22

15

12

23242571928 63

2
1

32
31

5 V

VP1/2

11 20 17

5.5
SIF

14 13

16

n.c. n.c.n.c.

8

n.c.

AF

de-emphasis

VIDEO

BUFFER

CVBS

2 V (p-p)

video

1 V (p-p)

AFC

2 x f

PC
tuner
AGC

loop
filter

n.c.

4

n.c.5n.c.

18

n.c.

30

n.c.

n.c.
n.c.

TOP

C

AGC

MHA054

V

i(vid)

Fig.1 Block diagram.

1995 Sep 05 5

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

PINNING

SYMBOL PIN DESCRIPTION

V

i VIF1

1 VIF differential input signal voltage 1

V

i VIF2

2 VIF differential input signal voltage 2
n.c. 3 not connected
n.c. 4 not connected
n.c. 5 not connected
TADJ 6 tuner AGC takeover adjust (TOP)
T

PLL

7 PLL loop filter
n.c. 8 not connected
n.c. 9 not connected
V

o CVBS

10 CVBS output signal voltage
n.c. 11 not connected
V

oAF

12 audio voltage frequency output
DEEM

I

13 de-emphasis input
DEEM

O

14 de-emphasis output
C

DEC

15 decoupling capacitor
n.c. 16 not connected
V

iFM

17 sound intercarrier input voltage
n.c. 18 not connected
TAGC 19 tuner AGC output
V

o(int)

20 sound intercarrier output voltage
V

o(vid)

21 composite video output voltage
V

i(vid)

22 video buffer input voltage
AFC 23 AFC output
VCO1 24 VCO1 reference circuit for 2f

PC

VCO2 25 VCO2 reference circuit for 2f

PC

C

ref

261⁄2VP reference capacitor
GND 27 ground
C

VAGC

28 VIF AGC capacitor
V

P

29 supply voltage
n.c. 30 not connected
n.c. 31 not connected
n.c. 32 not connected

Fig.2 Pin configuration.

handbook, halfpage

TDA9806

MHA053

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17

V
V

TADJ

T

V

V

n.c.

n.c.

n.c.

n.c.

n.c.

n.c.

n.c.

V
C

GND

n.c.

n.c.

n.c.

C

VCO2
VCO1
AFC

V
V
V

TAGC
n.c.

o AF

DEEM

I

DEEM

O

C

DEC

o CVBS

PLL

i VIF2

i VIF1

P

VAGC

ref

V

i FM

o(int)

o(vid)

i(vid)

1995 Sep 05 6

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

FUNCTIONAL DESCRIPTION
Vision IF amplifier

The vision IF amplifier consists of three AC-coupled
differential amplifier stages. Each differential stage
comprises a feedback network controlled by emitter
degeneration.

Tuner and VIF AGC

The AGC capacitor voltage is transferred to an internal IF
control signal, and is fed to the tuner AGC to generate the
tuner AGC output current (open-collector output). The
tuner AGC takeover point can be adjusted. This allows the
tuner and the SWIF filter to be matched to achieve the
optimum IF input level.

The AGC detector charges/discharges the AGC capacitor
to the required voltage for setting of VIF and tuner gain in
order to keep the video signal at a constant level.
Therefore for negative video modulation the sync level of
the video signal is detected.

Frequency Phase Locked Loop detector (FPLL)

The VIF-amplifier output signal is fed into a frequency
detector and into a phase detector via a limiting amplifier.
During acquisition the frequency detector produces a DC
current proportional to the frequency difference between
the input and the VCO signal. After frequency lock-in the
phase detector produces a DC current proportional to the
phase difference between the VCO and the input signal.
The DC current of either frequency detector or phase
detector is converted into a DC voltage via the loop filter,
which controls the VCO frequency.

VCO, travelling wave divider and AFC

The VCO operates with a resonance circuit (with L and C
in parallel) at double the PC frequency. The VCO is
controlled by two integrated variable capacitors. The
control voltage required to tune the VCO from its
free-running frequency to actually double the PC
frequency is generated by the Frequency-Phase detector
and fed via the loop filter to the first variable capacitor
(FPLL). This control voltage is amplified and additionally
converted into a current which represents the AFC output
signal. At centre frequency the AFC output current is equal
to zero.

The oscillator signal is divided-by-two with a Travelling
Wave Divider (TWD) which generates two differential
output signals with a 90 degree phase difference
independent of the frequency.

Video demodulator and amplifier

The video demodulator is realized by a multiplier which is
designed for low distortion and large bandwidth. The vision
IF input signal is multiplied with the ‘in-phase’ signal of the
travelling wave divider output.

The demodulator output signal is fed via an integrated
low-pass filter for attenuation of the carrier harmonics to
the video amplifier. The video amplifier is realized by an
operational amplifier with internal feedback and high
bandwidth. A low-pass filter is integrated to achieve an
attenuation of the carrier harmonics. The video output
signal is 1 V (p-p) for nominal vision IF modulation.

Video buffer

For an easy adaption of the sound traps an operational
amplifier with internal feedback is used. This amplifier is
featured with a high bandwidth and 7 dB gain. The input
impedance is adapted for operating in combination with
ceramic sound traps. The output stage delivers a nominal
2 V (p-p) positive video signal. Noise clipping is provided.

Intercarrier mixer

The intercarrier mixer is realized by a multiplier. The VIF
amplifier output signal is fed to the intercarrier mixer and
converted to intercarrier frequency by the regenerated
picture carrier (VCO). The mixer output signal is fed via a
high-pass for attenuation of the video signal components.

1995 Sep 05 7

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

FM detector

The FM detector consists of a limiter, an FM-PLL and an
AF amplifier. The limiter provides the amplification and
limitation of the FM sound intercarrier signal before
demodulation. The result is high sensitivity and AM
suppression. The amplifier consists of 7 stages which are
internally AC-coupled in order to minimize the DC offset
and to save pins for DC decoupling.

The FM-PLL consists of an integrated relaxation oscillator,
an integrated loop filter and a phase detector. The
oscillator is locked to the FM intercarrier signal, output
from the limiter. As a result of locking, the oscillator
frequency tracks with the modulation of the input signal
and the oscillator control voltage is superimposed by the
AF voltage. The FM-PLL operates as an FM-demodulator.

The AF amplifier consists of two parts:

1. The AF preamplifier for FM sound is an operational
amplifier with internal feedback, high gain and high
common mode rejection. The AF voltage from the PLL
demodulator, by principle a small output signal, is
amplified by approximately 33 dB. The low-pass
characteristic of the amplifier reduces the harmonics of
the intercarrier signal at the sound output terminal, at
which the de-emphasis network for FM sound is
applied. An additional DC control circuit is
implemented to keep the DC level constant,
independent of process spread.

2. The AF output amplifier (10 dB) provides the required
output level by a rail-to-rail output stage. This amplifier
makes use of an input selector for switching to FM
de-emphasis or mute state, controlled by the mute
switching voltage.

Internal voltage stabilizer and

1

⁄2VP-reference

The bandgap circuit internally generates a voltage of
approximately 1.25 V, independent of supply voltage and
temperature. A voltage regulator circuit, connected to this
voltage, produces a constant voltage of 3.6 V which is
used as an internal reference voltage.

For all audio output signals the constant reference voltage
cannot be used because large output signals are required.
Therefore these signals refer to half the supply voltage to
achieve a symmetrical headroom, especially for the
rail-to-rail output stage. For ripple and noise attenuation
the

1

⁄2VPvoltage has to be filtered via a low-pass filter by

using an external capacitor together with an integrated
resistor (fg= 5 Hz). For a fast setting to 1⁄2VP an internal
start-up circuit is added.

1995 Sep 05 8

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

Notes

1. I

P

= 110 mA; T

amb

=70°C; R

th j-a

= 60 K/W.

2. Charge device model class B: equivalent to discharging a 200 pF capacitor via a 0 Ω series resistor.

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

P

supply voltage (pin 29) maximum chip temperature

of 120 °C; note 1

0 5.5 V

V

i

voltage at pins 1 to 7, 12 to 19, 22, 23, 28
and 29

0V

P

V

t

s(max)

maximum short-circuit time − 10 s

V

19

tuner AGC output voltage 0 13.2 V

T

stg

storage temperature −25 +150 °C

T

amb

operating ambient temperature −20 +70 °C

V

es

electrostatic handling voltage note 2 −300 +300 V

SYMBOL PARAMETER VALUE UNIT

R

th j-a

thermal resistance from junction to ambient in free air 60 K/W

1995 Sep 05 9

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

CHARACTERISTICS

VP=5V; T

amb

= 25°C; see Table 1 for input frequencies and level; input level V

i IF 1, 2

= 10 mV RMS value (sync-level

for B/G); video modulation DSB; residual carrier B/G: 10%; video signal in accordance with

“CCIR, line 17”

;

measurements taken in Fig.10; unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply (pin 29)

V

P

supply voltage note 1 4.5 5 5.5 V

I

P

supply current 82 96 110 mA

Vision IF amplifier (pins 1 and 2)

V

i VIF(rms)

input signal voltage sensitivity
(RMS value)

B/G standard;

−1 dB video at output

− 60 100 µV

V

i max(rms)

maximum input signal voltage
(RMS value)

B/G standard;
+1 dB video at output

120 200 − mV

∆V

o(int)

internal IF amplitude difference
between picture and sound
carrier

within AGC range;
B/G standard;

∆f = 5.5 MHz

− 0.7 1 dB

G

IFcr

IF gain control range see Fig.3 65 70 − dB

R

i(diff)

differential input resistance note 2 1.7 2.2 2.7 kΩ

C

i(diff)

differential input capacitance note 2 1.2 1.7 2.5 pF

V

1,2

DC input voltage − 3.4 − V
True synchronous video demodulator; note 3
f

VCO(max)

maximum oscillator frequency

for carrier regeneration

f=2f

PC

125 130 − MHz

∆f

osc

/∆T oscillator drift as a function of

temperature

oscillator is free-running;
I

AFC

= 0; note 4

−−±20 ppm/K

V

0 ref(rms)

oscillator voltage swing at

pins 24 and 25 (RMS value)

B/G standard 70 100 130 mV

f

pcCR

picture carrier capture range B/G standard ±1.5 ±2.0 − MHz
t

acq

acquisition time BL = 60 kHz; note 5 −−30 ms
V

i VIF(rms)

VIF input signal voltage

sensitivity for PLL to be locked

(RMS value; pins 1 and 2)

maximum IF gain; note 6 − 30 70 µV

I

FPLL(offset)

FPLL offset current at pin 7 note 7 −−±4.5 µA

1995 Sep 05 10

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

Composite video amplifier (pin 21; sound carrier off)

V

o video(p-p)

output signal voltage

(peak-to-peak value)

see Fig.7 0.88 1.0 1.12 V

V

21(sync)

sync voltage level B/G standard − 1.5 − V
V

21(clu)

upper video clipping voltage

level

VP− 1.1 VP− 1 − V

V

21(cll)

lower video clipping voltage

level

− 0.3 0.4 V

R

o,21

output resistance note 2 −−10 Ω
I

int 21

internal DC bias current for

emitter-follower

1.6 2.0 − mA

I

21 max(sink)

maximum AC and DC output

sink current

1.0 −−mA

I

21 max(source)

maximum AC and DC output

source current

2.0 −−mA

B

−1

−1 dB video bandwidth B/G standard; CL< 50 pF;

RL> 1kΩ; AC load

56−MHz

B

−3

−3 dB video bandwidth B/G standard; CL< 50 pF;

RL> 1kΩ; AC load

78−MHz

α

H

suppression of video signal

harmonics

CL< 50 pF; RL> 1kΩ;
AC load; note 8a

35 40 − dB

PSRR power supply ripple rejection at

pin 21

video signal; grey level;
B/G standard; see Fig.8

32 35 − dB

CVBS buffer amplifier (only) and noise clipper (pins 10 and 22)

R

i,22

input resistance note 2 2.6 3.3 4.0 kΩ
C

i,22

input capacitance note 2 1.4 2 3.0 pF
V

I,22

DC input voltage 1.5 1.8 2.1 V
G

v

voltage gain B/G standard; note 9 6.5 7 7.5 dB
V

10(clu)

upper video clipping voltage

level

3.9 4.0 − V

V

10(cll)

lower video clipping voltage

level

− 1.0 1.1 V

R

o,10

output resistance note 2 −−10 Ω
I

int 10

DC internal bias current for

emitter-follower

2.0 2.5 − mA

I

o,10 max(sink)

maximum AC and DC output

sink current

1.4 −−mA

I

o,10 max(source)

maximum AC and DC output

source current

2.4 −−mA

B

−1

−1 dB video bandwidth B/G standard; CL< 20 pF;

RL> 1kΩ; AC load

8.4 11 − MHz

B

−3

−3 dB video bandwidth B/G standard; CL< 20 pF;

RL> 1kΩ; AC load

11 14 − MHz

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1995 Sep 05 11

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

Measurements from IF input to CVBS output (pin 10; 330 Ω between pins 21 and 22, sound carrier off)

V

o CVBS(p-p)

CVBS output signal voltage

on pin 10 (peak-to-peak value)

note 9 1.7 2.0 2.3 V

V

o CVBS(sync)

sync voltage level B/G standard − 1.35 − V
∆V

o

deviation of CVBS output

signal voltage at B/G

50 dB gain control −−0.5 dB
30 dB gain control −−0.1 dB

∆V

o(blBG)

black level tilt in B/G standard gain variation; note 10 −−1%
G

diff

differential gain

“CCIR, line 330”

− 25%

ϕ

diff

differential phase

“CCIR, line 330”

− 1 2 deg

B

−1

−1 dB video bandwidth B/G standard; CL< 20 pF;

RL> 1kΩ; AC load

56−MHz

B

−3

−3 dB video bandwidth B/G standard; CL< 20 pF;

RL> 1kΩ; AC load

78−MHz

S/N (W) weighted signal-to-noise ratio see Fig.4 and note 11 56 60 − dB
S/N unweighted signal-to-noise

ratio

see Fig.4 and note 11 49 53 − dB

IMα

1.1

intermodulation attenuation at

‘blue’

f = 1.1 MHz;
see Fig.5 and note 12

58 64 − dB

intermodulation attenuation at

‘yellow’

f = 1.1 MHz;
see Fig.5 and note 12

60 66 − dB

IMα

3.3

intermodulation attenuation at

‘blue’

f = 3.3 MHz;
see Fig.5 and note 12

58 64 − dB

intermodulation attenuation at

‘yellow’

f = 3.3 MHz;
see Fig.5 and note 12

59 65 − dB

α

c(rms)

residual vision carrier

(RMS value)

B/G standard; fundamental
wave and harmonics

− 25mV

α

H(sup)

suppression of video signal

harmonics

note 8a 35 40 − dB

α

H(spur)

spurious elements note 8b 40 −−dB
PSRR power supply ripple rejection at

pin 10

video signal; grey level;
B/G standard; see Fig.8

25 28 − dB

VIF-AFC detector (pin 28)

I

28

charging current B/G standard; note 10 0.75 1 1.25 mA

discharging current B/G standard 15 20 25 µA
t

resp

AGC response to an

increasing VIF step

B/G standard; note 13 − 0.05 0.1 ms/dB

AGC response to a decreasing

VIF step

B/G standard − 2.2 3.5 ms/dB

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1995 Sep 05 12

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

Tuner AGC (pin 19)

V

i(rms)

IF input signal voltage for

minimum starting point of tuner

takeover (RMS value)

input at pins 1 and 2;
R

TOP

=22kΩ; I19= 0.4 mA

− 25mV

IF input signal voltage for

maximum starting point of

tuner takeover (RMS value)

input at pins 1 and 2;
R

TOP

=0Ω; I19= 0.4 mA

50 100 5 mV

V

o,19

permissible output voltage from external source; note 2 −−13.2 V
V

sat,19

saturation voltage I19= 1.5 mA −−0.2 V
∆V

TOP,19

/∆T variation of takeover point by

temperature

I19= 0.4 mA − 0.03 0.07 dB/K

I

19(sink)

sink current no tuner gain reduction;

see Fig.3

V

19

=12V −−2.5 µA

V

19

= 13.2 V −−5µA

maximum tuner gain
reduction

1.5 2 2.6 mA

∆G

IF

IF slip by automatic gain

control

tuner gain current from
20 to 80%

− 68dB

AFC circuit (pin 23); see Fig.6 and note 14
S control steepness ∆I23/∆f note 15 0.5 0.72 1.0 µA/kHz

∆f

IF

/∆T frequency variation by

temperature

I

AFC

= 0; note 5 −−±20 ppm/K

V

o,23

output voltage upper limit see Fig.6 VP − 0.6 VP − 0.3 − V

output voltage lower limit see Fig.6 − 0.3 0.6 V
I

o,23(source)

output source current 150 200 250 µA
I

o,23(sink)

output sink current 150 200 250 µA
∆I

23(p-p)

residual video modulation

current (peak-to-peak value)

B/G standard − 20 30 µA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1995 Sep 05 13

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

Intercarrier mixer (B/G standard; pin 20)

V

o(rms)

IF intercarrier level

(RMS value)

SC − note 16 − mV

B

−3

−3 dB intercarrier bandwidth upper limit 7.5 9 − MHz

α

c(rms)

residual sound carrier

(RMS value)

fundamental wave and
harmonics

− 2 − mV

R

o,20

output resistance note 2 −−25 Ω
V

O,20

DC output voltage − 2.0 − V
I

int 20

DC internal bias current for

emitter-follower

1.5 1.9 − mA

I

20 max(sink)

maximum AC and DC output

sink current

1.1 1.5 − mA

I

20 max(source)

maximum AC and DC output

source current

3.0 3.5 − mA

Limiter amplifier (pin 17); note 17
V

i FM(rms)

input signal voltage for lock-in

(RMS value)

−−100 µV

V

i FM(rms)

input signal voltage

(RMS value)

− 300 400 µV

allowed input signal voltage

(RMS value)

200 −−mV

R

i,17

input resistance note 2 480 600 720 Ω
V

I,17

DC input voltage − 2.8 − V

FM-PLL detector

f

i FM(catch)

catching range of PLL upper limit 7.0 −−MHz

lower limit −−4.0 MHz

f

i FM(hold)

holding range of PLL upper limit 9.0 −−MHz

lower limit −−3.5 MHz

t

acq

acquisition time −−4µs

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

SN+

N

--------------





40 dB=

1995 Sep 05 14

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

FM operation (B/G standard; pin 12); notes 17 and 17a
V

o AF12(rms)

AF output signal voltage

(RMS value)

without de-emphasis;
short-circuit from
pin 13 to pin 14; 27 kHz
(54% FM deviation);
see Fig.10 and note 18

R

x

= 470 Ω 200 250 300 mV

R

x

=0Ω 400 500 600 mV

V

o AF12(cl)

AF output clipping signal

voltage level

THD < 1.5% 1.3 1.4 − V

∆f

AF

frequency deviation THD < 1.5%; note 18 −−53 kHz
∆V

o

/∆T temperature drift of AF output

signal voltage

− 3 × 10−37 × 10−3dB/K

V

15

DC voltage at decoupling

capacitor

voltage dependent on VCO
frequency; note 19

1.2 − 3.0 V

R

12

output resistance note 2 −−100 Ω
V

12

DC output voltage tracked with supply voltage −

1

⁄2V

P

− V

I

12 max(sink)

maximum AC and DC output

sink current

−−1.1 mA

I

12 max(source)

maximum AC and DC output

source current

−−1.1 mA

B

−3

−3 dB video bandwidth without de-emphasis;

short-circuit from
pin 13 to pin 14

100 125 − kHz

THD total harmonic distortion − 0.15 0.5 %
S/N (W) weighted signal-to-noise ratio FM-PLL only; with 50 µs

de-emphasis; 27 kHz
(54% FM deviation);

“CCIR 468-4”

55 60 − dB

α

c(rms)

residual sound carrier

(RMS value)

fundamental wave and
harmonics

−−75 mV

α

AM

AM suppression 50 µs de-emphasis; AM:

f = 1 kHz; m = 0.3 refer to
27 kHz (54% FM deviation)

46 50 − dB

α

12

mute attenuation of AF signal B/G standard 70 75 − dB
∆V

12

DC jump voltage of AF output

terminal for switching AF

output to mute state and vice

versa

FM-PLL in lock mode −±50 ±150 mV

PSRR power supply ripple rejection at

pin 12

R

x

= 470 Ω; see Fig.8 26 30 − dB

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

1995 Sep 05 15

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

Notes

1. Values of video and sound parameters are decreased at VP= 4.5 V.

2. This parameter is not tested during production and is only given as application information for designing the
television receiver.

3. Loop bandwidth BL = 60 kHz (natural frequency fn= 15 kHz; damping factor d = 2; calculated with sync level within
gain control range). Resonance circuit of VCO: Q0> 50; C

ext

= 8.2 pF ±0.25 pF; C

int

≈ 8.5 pF (loop voltage

approximately 2.7 V).

4. Temperature coefficient of external LC-circuit is equal to zero.

5. V

iIF

= 10 mV (RMS); ∆f = 1 MHz (VCO frequency offset related to picture carrier frequency); white picture

video modulation.

6. V

iIF

signal for nominal video signal.

7. Offset current measured between pin 7 and half of supply voltage (VP= 2.5 V) under the following conditions: no
input signal at VIF input (pins 1 and 2) and VIF amplifier gain at minimum (V28=VP).

8. Measurements taken with SAW filter G1962 (sound shelf: 20 dB); loop bandwidth BL = 60 kHz:
a) modulation VSB; sound carrier off; f

video

> 0.5 MHz.

b) sound carrier on; f

video

= 10 kHz to 10 MHz.

9. The 7 dB buffer gain accounts for 1 dB loss in the sound trap. Buffer output signal is typical 2 V (p-p), in event of
CVBS video amplifier output typical 1 V (p-p). If no sound trap is applied a 330 Ω resistor must be connected from
output to input (from pin 21 to pin 22).

10. The leakage current of the AGC capacitor should not exceed 1 µA at B/G standard. Larger currents will increase
the tilt.

11. S/N is the ratio of black-to-white amplitude to the black level noise voltage (RMS value, pin 10). B = 5 MHz weighted
in accordance with

“CCIR 567”

.

12. The intermodulation figures are defined:

; α

1.1

value at 1.1 MHz referenced to black/white signal;

; α

3.3

value at 3.3 MHz referenced to colour carrier.

13. Response speed valid for a VIF input level range of 200 µVupto70mV.

AF performance for FM operation (B/G standard); notes 20, 21 and 22; see Table 1
S/N (W) weighted signal-to-noise ratio PC/SC ratio at pins 1 and 2;

27 kHz (54% FM
deviation);

“CCIR 468-4”

27 −−dB

black picture 45 51 − dB
white picture 45 51 − dB
6 kHz sine wave (black to

white modulation)

40 46 − dB

sound carrier
subharmonics;
f = 2.75 MHz ±3 kHz

35 40 − dB

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

α

1.1

20

V

0

at 4.4 MHz

V

0

at 1.1 MHz

--------------------------------------







3.6dB+log=

α

3.3

20

V

0

at 4.4 MHz

V

0

at 3.3 MHz

--------------------------------------







log=

1995 Sep 05 16

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

14. To match the AFC output signal to different tuning systems a current source output is provided. The test circuit is
given in Fig.6. The AFC-steepness can be changed by the resistors at pin 23.

15. Depending on the ratio ∆C/C0 of the LC resonant circuit of VCO (Q0> 50; see note 3; C0=C

int+Cext

).

16. The intercarrier output signal at pin 20 can be calculated by the following formula taking into account the video output
signal at pin 21 (V

o video(p-p)

= 1 V typical) as a reference:

with = correction term for RMS value,

= sound-to-picture carrier ratio at VIF input (pins 1 and 2) in dB,

6 dB = correction term of internal circuitry
and ±3 dB = tolerance of video output and intercarrier output amplitude V

o(rms)

.

Example: SAW filter G1962 (sound shelf: 20 dB) ⇒⇒ V

o(rms)

= 32 mV typical.

17. Input level for second IF from an external generator with 50 Ω source impedance. AC-coupled with 10 nF capacitor,
f

mod

= 1 kHz, 27 kHz (54% FM deviation) of audio references. A VIF input signal is not permitted. Pin 28 has to be
connected to positive supply voltage for minimum IF gain. S/N and THD measurements are taken at 50 µs
de-emphasis.

a) Second IF input level 10 mV RMS.

18. Measured with an FM deviation of 27 kHz the typical AF output signal is 500 mV (RMS) (Rx=0Ω; see Fig.10).
By using Rx= 470 Ω the AF output signal is attenuated by 6 dB (250 mV RMS). For handling an FM deviation of
more than 53 kHz the AF output signal has to be reduced by using Rx in order to avoid clipping (THD < 1.5%).
For an FM deviation up to 100 kHz an attenuation of 6 dB is recommended with Rx= 470 Ω.

19. The leakage current of the decoupling capacitor (2.2 µF) should not exceed 1 µA.

20. For all S/N measurements the used vision IF modulator has to meet the following specifications:
a) Incidental phase modulation for black-to-white jump less than 0.5 degrees.
b) Picture-to-sound carrier ratio; PC/SC = 13 dB (transmitter).
c) Sound shelf of VIF SAW filter: minimum 20 dB.

21. Measurements taken with SAW filter K6256 (Siemens) for vision and sound IF (sound shelf: 20 dB). Input level
V

i SIF

= 10 mV (RMS), 27 kHz (54% FM deviation).

22. The PC/SC ratio at pins 1 and 2 is calculated as the addition of TV transmitter PC/SC ratio and SAW filter PC/SC
ratio. This PC/SC ratio is necessary to achieve the S/N (W) values as noted. A different PC/SC ratio will change
these values.

Table 1 Input frequencies and carrier ratios

DESCRIPTION SYMBOL B/G STANDARD UNIT

Picture carrier f

PC

38.9 MHz

Sound carrier f

SC

33.4 MHz

Picture-to-sound carrier ratio SC 13 dB

V

o rms()

1V p p–()

1

22

---------- -

× 10

V

iSC

V

iPC

----------- -

dB()6dB 3d

B

±+

20

-------------------------------------------------------------- -

×=

1

22

---------- -

V

iSC

V

iPC

----------- -

dB()

V

iSC

V

iPC

----------- -

27 dB–=

1995 Sep 05 17

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

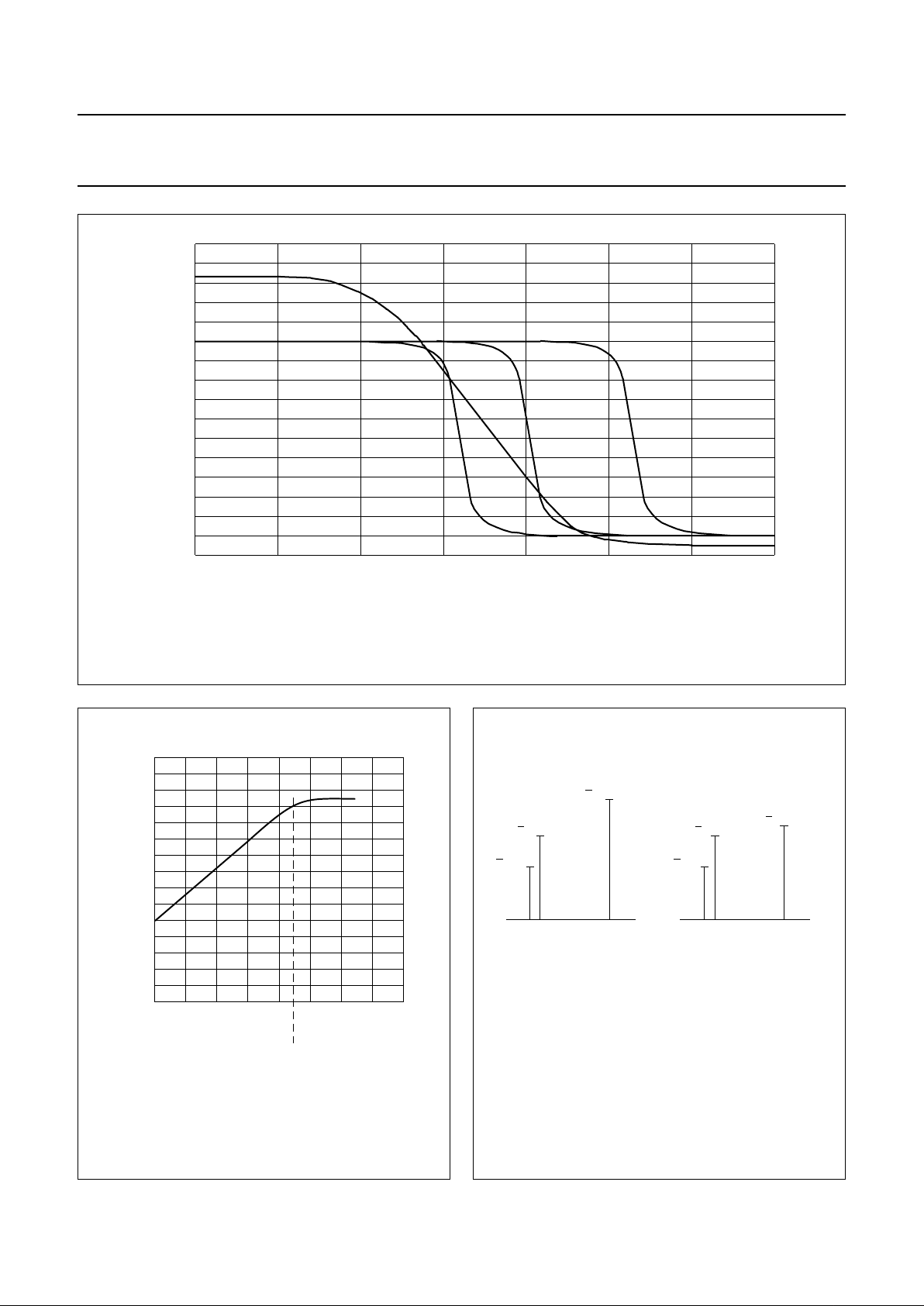

Fig.3 Typical VIF and tuner AGC characteristic.

ndbook, full pagewidth

4.5

70

1.0 2.521.5 3 3.5 4

V28 (V)

MHA061

50

600.06

40

0

1.0

2.0

0.6

30

206

10

060

−10

gain
(dB)

I

tuner

(mA)

VIF input

(1,2)

(mV RMS)

(1) (2) (3) (4)

(1) I

tuner

; R

TOP

=22kΩ.

(2) Gain.

(3) I

tuner

; R

TOP

=11kΩ.

(4) I

tuner

; R

TOP

=0Ω.

Fig.4 Typical signal-to-noise ratio as a

function of IF input voltage.

handbook, halfpage

−60 −40 −20 20

80

60

40

20

0

0

0.06 0.6 6 60060

MED684

S/N
(dB)

V

i (VIF)(rms)

(dB)

V

i (VIF)(rms)

(mV)

10

Fig.5 Input signal conditions.

andbook, halfpage

SC CC PC SC CC PC

BLUE YELLOW

27 dB

13.2 dB

3.2 dB

27 dB

13.2 dB

10 dB

MED685 - 1

SC = sound carrier, with respect to sync level.
CC = chrominance carrier, with respect to sync level.
PC = picture carrier, with respect to sync level.
The sound carrier levels are taking into account

a sound shelf attenuation of 20 dB (SWIF G1962).

1995 Sep 05 18

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

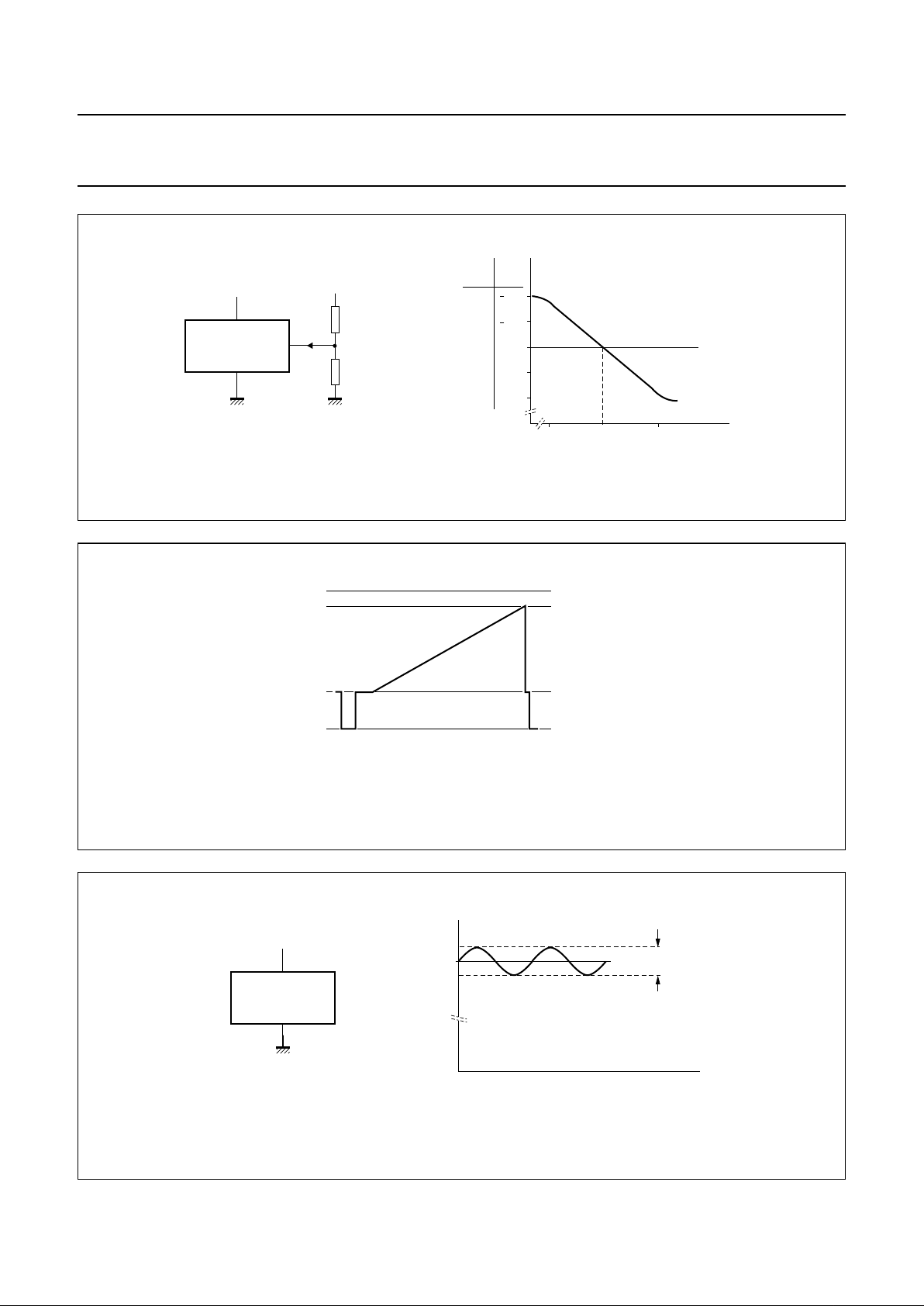

Fig.6 Measurement conditions and typical AFC characteristic.

handbook, full pagewidth

V = 5 V

P

V

P

200

100

0

200
100

(µA)

38.5 38.9 39.3

f (MHz)

(source current)

(sink current)

V

23I23

(V)

4.5

3.5

2.5

1.5

0.5

TDA9806

23

I

23

22 kΩ

22 kΩ

MHA055

Fig.7 Typical video signal levels on output pin 21 (sound carrier off).

handbook, halfpage

1.5 V

1.8 V

2.5 V

white level

2.6 V

zero carrier level

black level

sync level

B/G standard

MHA056

Fig.8 Ripple rejection condition.

handbook, full pagewidth

TDA9806

VP = 5 V

t

VP = 5 V

100 mV

ripple

(f = 70 kHz)

MHA057

1995 Sep 05 19

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and

FM-PLL demodulator

TDA9806

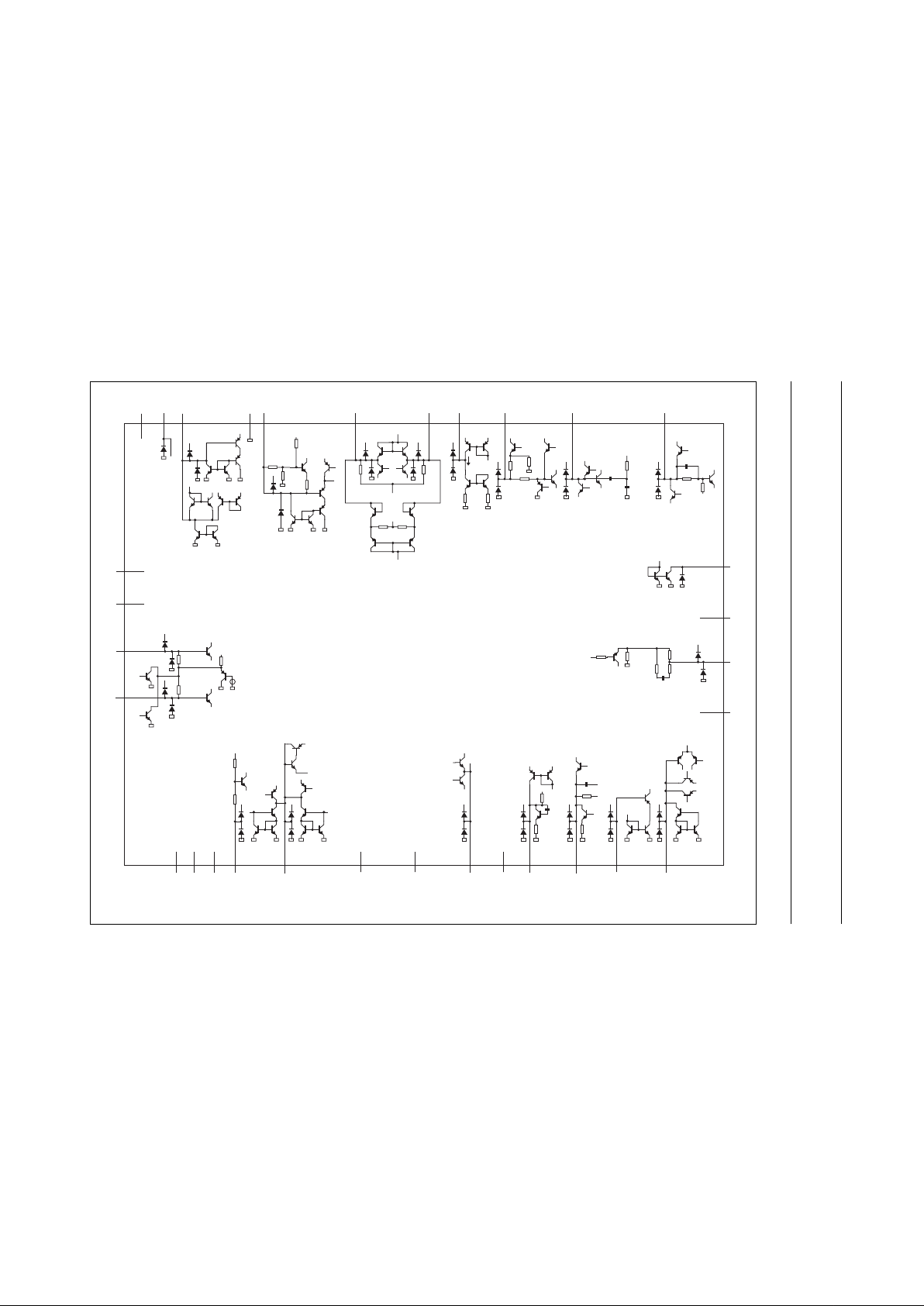

INTERNAL PIN CONFIGURATION

handbook, full pagewidth

MHA060

TDA9806

+

20

1.9 mA

10 kΩ

0.5 pF

1.6 kΩ

+

21

2.0 mA

+

1.7 pF

1.7 pF

9 kΩ

+

22

2.2

3.3

2 kΩ

+

23

1 kΩ

1 kΩ

200 µA

+

+

2.8 V

420 Ω

420

24

25

10 kΩ10 kΩ

+

+

650 Ω

+

20 kΩ

20 kΩ

+

70 kΩ

2627

GND

+

28

1 mA

+

+

+

29

V

P

+

30

n.c.

16

n.c.

+

17

640 Ω
40 kΩ

40 kΩ

10 pF

3.9 kΩ

3.6 V

10 kΩ

3.6 V

19

18

n.c.

2.5 mA

+

9 kΩ

20 kΩ

3.6 V

67 µA

+

23 µA

VCO

3 546 7 8 9

+

10

2.5 mA

+

11+12

120 Ω

14.7 kΩ
25 pF

+

+

2.3 mA

+

13

650 Ω

300 µA

4.2 kΩ

10 pF

+

+

14

+

15

n.c. n.c.

32

31

3.6 V

+

2

1.1 kΩ

1.1 kΩ

+

1

0.6 µA

kΩ

kΩ

Ω

n.c.

n.c.

n.c.

n.c. n.c. n.c.

Fig.9 Internal circuitry.

1995 Sep 05 20

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and

FM-PLL demodulator

TDA9806

TEST AND APPLICATION INFORMATION

handbook, full pagewidth

Q

0

50

8.2 pF

2.2
µF

C

ref

GND

2.2
µF

VIF

AGC

22
kΩ

100

nF

10
nF

22 kΩ

AFC

V

P

video

output

intercarrier

output

330

Ω

n.c.

tuner
AGC

10
nF

SFT

5.5 MHz

560 Ω

5.6
kΩ

FM

mute switch

1

2

5

4

3

1:1

50

Ω

VIF

input

32

1

TDA9806

n.c.n.c.n.c.

n.c.n.c. n.c.

TOP

22

kΩ

390

Ω

loop
filter

220

nF

CVBS

AF output

5.6
kΩ

10 nF

R

22

µF

n.c.n.c.n.c.n.c.

C

DEC

x

(1)

31230329428527626725824923102211211220131914181517

16

MHA058

(1) See note 18 of Chapter “Characteristics”.

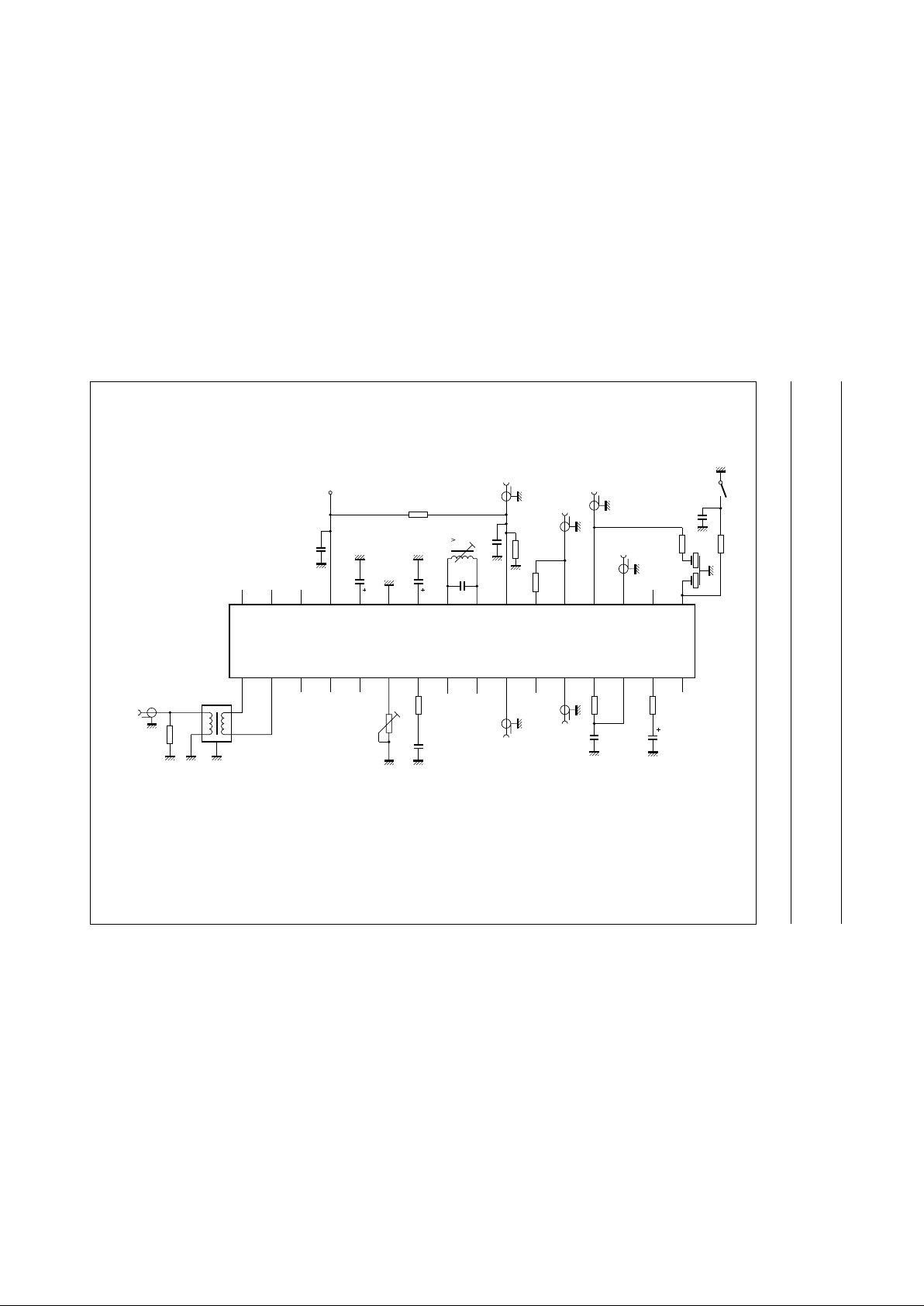

Fig.10 Test circuit.

1995 Sep 05 21

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and

FM-PLL demodulator

TDA9806

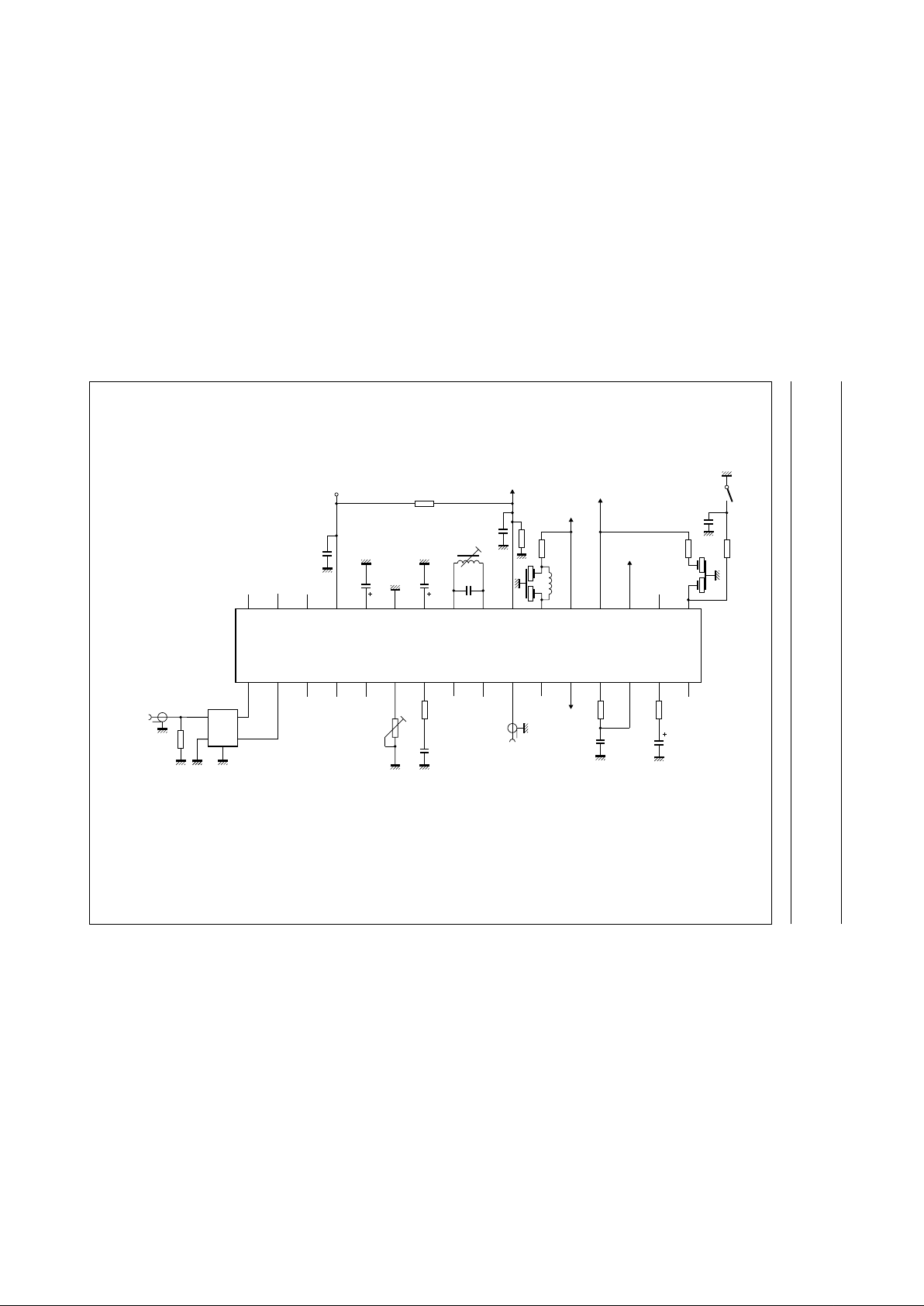

handbook, full pagewidth

8.2 pF

2.2
µF

C

ref

GND

2.2
µF

VIF

AGC

22

kΩ

100

nF

10
nF

22 kΩ

AFC

V

P

video

output

intercarrier

output

330

Ω

n.c.

tuner

AGC

10
nF

5.5 MHz

560 Ω

5.6
kΩ

FM

mute switch

50 Ω

IF

input

32

1

TDA9806

n.c.n.c. n.c.

n.c.n.c. n.c. n.c. n.c. n.c.

TOP
22

kΩ

390

Ω

loop
filter

220

nF

CVBS

AF

output

5.6
kΩ

10 nF

R

22
µF

n.c.

C

DEC

x

(2)

31230329428527626725824923102211211220131914181517

16

15

µH

(1)

SWIF

G1962

MHA059

Fig.11 Application circuit.

(1) Depends on standard.
(2) See note 18 of Chapter “Characteristics”.

1995 Sep 05 22

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

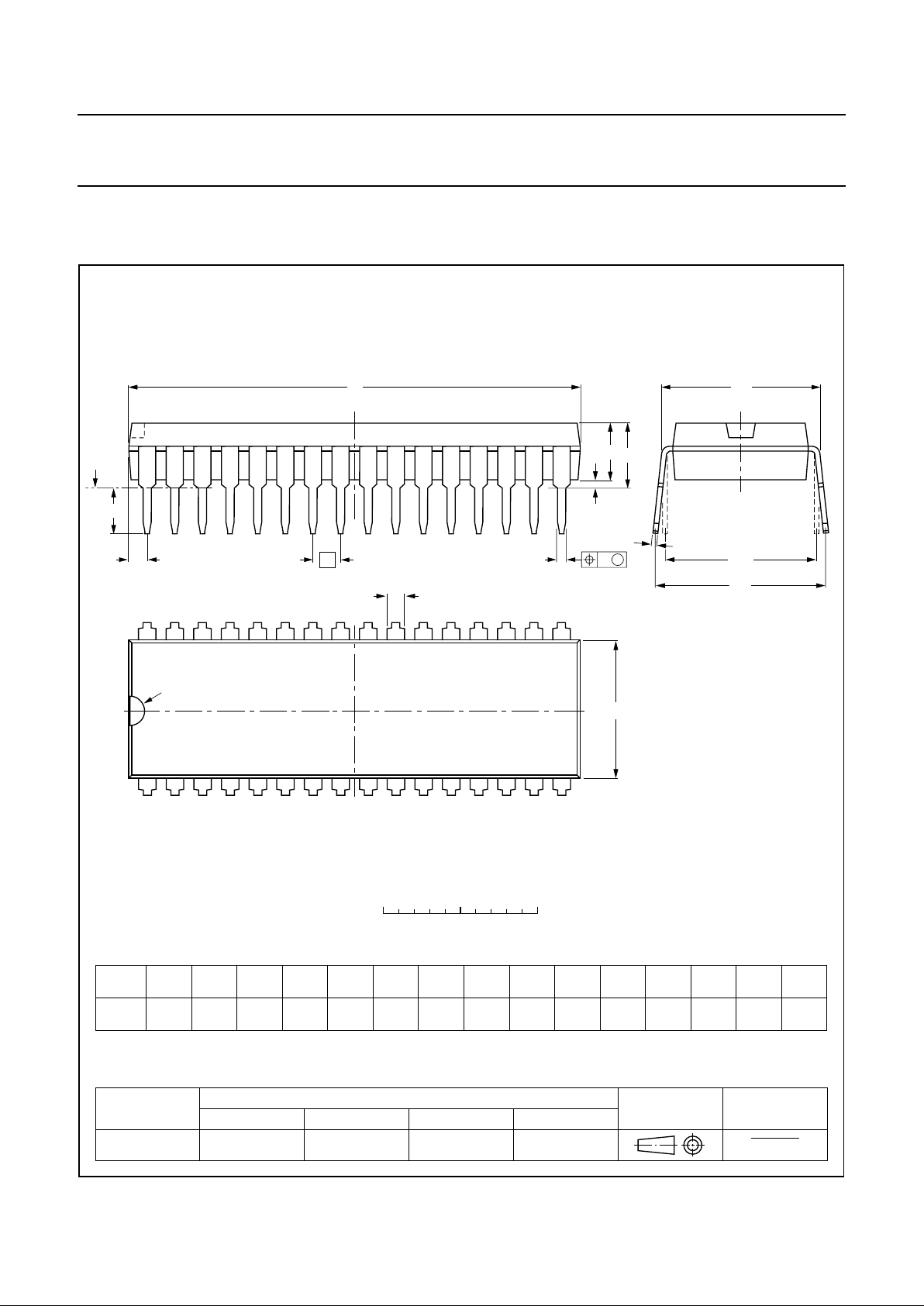

PACKAGE OUTLINE

UNIT b

1

cEe M

H

L

REFERENCES

OUTLINE
VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

mm

DIMENSIONS (mm are the original dimensions)

SOT232-1

92-11-17
95-02-04

b

max.

w

M

E

e

1

1.3

0.8

0.53

0.40

0.32

0.23

29.4

28.5

9.1

8.7

3.2

2.8

0.181.778 10.16

10.7

10.2

12.2

10.5

1.6

4.7 0.51 3.8

M

H

c

(e )

1

M

E

A

L

seating plane

A

1

w M

b

1

e

D

A

2

Z

32

1

17

16

b

E

pin 1 index

0 5 10 mm

scale

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

(1) (1)

D

(1)

Z

A

max.

12

A

min.

A

max.

SDIP32: plastic shrink dual in-line package; 32 leads (400 mil)

SOT232-1

1995 Sep 05 23

Philips Semiconductors Preliminary specification

Multistandard VIF-PLL and
FM-PLL demodulator

TDA9806

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

(order code 9398 652 90011).

Soldering by dipping or by wave

The maximum permissible temperature of the solder is
260 °C; solder at this temperature must not be in contact
with the joint for more than 5 seconds. The total contact
time of successive solder waves must not exceed
5 seconds.

The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (T

stg max

). If the
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.

Repairing soldered joints

Apply a low voltage soldering iron (less than 24 V) to the
lead(s) of the package, below the seating plane or not
more than 2 mm above it. If the temperature of the
soldering iron bit is less than 300 °C it may remain in
contact for up to 10 seconds. If the bit temperature is
between 300 and 400 °C, contact may be up to 5 seconds.

DEFINITIONS

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

Philips Semiconductors – a worldwide company

Argentina: IEROD, Av. Juramento 1992 - 14.b, (1428)

BUENOS AIRES, Tel. [phone], Fax. [phone]

Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]

Austria: Triester Str. 64, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]

Belgium: Postbus 90050, 5600 PB EINDHOVEN, The Netherlands,

Tel. [phone], Fax. [phone]

Brazil: Rua do Rocio 220 - 5

th

floor, Suite 51,
CEP: 04552-903-SÃO PAULO-SP, Brazil.
P.O. Box 7383 (01064-970),
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS:

Tel. [phone], Fax. [phone]

Chile: Av. Santa Maria 0760, SANTIAGO,

Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,

72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: IPRELENSO LTDA, Carrera 21 No. 56-17,

77621 BOGOTA, Tel. [phone],
Fax. [phone]

Denmark: Prags Boulevard 80, PB 1919, DK-2300

COPENHAGEN S, Tel. [phone], Fax. [phone]

Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]

France: 4 Rue du Port-aux-Vins, BP317,

92156 SURESNES Cedex,
Tel. [phone], Fax. [phone]

Germany: P.O. Box 10 63 23, 20043 HAMBURG,

Tel. [phone], Fax. [phone].

Greece: No. 15, 25th March Street, GR 17778 TAVROS,

Tel. [phone] 911, Fax. [phone]

India: Philips INDIA Ltd, Shivsagar Estate, A Block,

Dr. Annie Besant Rd. Worli, Bombay 400 018
Tel. [phone], Fax. [phone]

Indonesia: Philips House, Jalan H.R. Rasuna Said Kav. 3-4,

P.O. Box 4252, JAKARTA 12950,
Tel. [phone], Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS S.r.l.,

Piazza IV Novembre 3, 20124 MILANO,
Tel. [phone], Fax. [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong,

Yongsan-ku, SEOUL, Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA,

SELANGOR, Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TX 79905,

Tel. [phone], Fax. [phone]

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
(From 10-10-1995: Tel. [phone], Fax. [phone])

New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]

Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: Philips Electrical Industries of Pakistan Ltd.,

Exchange Bldg. ST-2/A, Block 9, KDA Scheme 5, Clifton,
KARACHI 75600, Tel. [phone],
Fax. [phone]

Philippines: PHILIPS SEMICONDUCTORS PHILIPPINES Inc,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Portugal: PHILIPS PORTUGUESA, S.A.,

Rua dr. António Loureiro Borges 5, Arquiparque - Miraflores,
Apartado 300, 2795 LINDA-A-VELHA,
Tel. [phone], Fax. [phone]

Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

South Africa: S.A. PHILIPS Pty Ltd.,

195-215 Main Road Martindale, 2092 JOHANNESBURG,
P.O. Box 7430, Johannesburg 2000,
Tel. [phone], Fax. [phone].

Spain: Balmes 22, 08007 BARCELONA,

Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla. S-164 85 STOCKHOLM,

Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,

Tel. [phone], Fax. [phone]

Taiwan: PHILIPS TAIWAN Ltd., 23-30F, 66, Chung Hsiao West

Road, Sec. 1. Taipeh, Taiwan ROC, P.O. Box 22978,
TAIPEI 100, Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,

209/2 Sanpavuth-Bangna Road Prakanong,
Bangkok 10260, THAILAND,
Tel. [phone], Fax. [phone]

Turkey:Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,

Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors LTD.,

276 Bath Road, Hayes, MIDDLESEX UB3 5BX,
Tel. [phone], Fax. [phone]

United States:811 East Arques Avenue, SUNNYVALE,

CA 94088-3409, Tel. [phone], Fax. [phone]

Uruguay: Coronel Mora 433, MONTEVIDEO,

Tel. [phone], Fax. [phone]

Internet: http://www.semiconductors.philips.com/ps/
For all other countries apply to: Philips Semiconductors,

International Marketing and Sales, Building BE-p,
P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands,
Telex 35000 phtcnl, Fax. [phone] (from 10-10-1995: [phone])

SCD41 © Philips Electronics N.V. 1995

All rights are reserved. Reproduction in whole or in part is prohibited without the
prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation
or contract, is believed to be accurate and reliable and may be changed without
notice. No liability will be accepted by the publisher for any consequence of its
use. Publication thereof does not convey nor imply any license under patent- or
other industrial or intellectual property rights.

Printed in The Netherlands

533061/1500/01/pp24 Date of release: 1995 Sep 05
Document order number: 9397 750 00307
