Page 1

INTEGRATED CIRCUITS

DEVICE SPECIFICATION

DATA SH EET

TDA935X/6X/8X PS/N2 series

TV signal processor-Teletext decoder with embedded µ-Controller

Tentative Device Speciﬁcation File under Integrated Circuits, <Handbook>

Version: 2.8

Previous date: 2000 Nov 29

2001 Jan 18

Page 2

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

GENERAL DESCRIPTION

The various versions of theTDA935X/6X/8X PS/N2 series combine the functions of a TV signal processor together with a µ-Controller and US Closed Caption decoder. Most versions have a Teletext decoder on board. The Teletext decoderhasaninternal RAMmemory for1or 10page text. The ICs are intended to be used in economy television receivers with 90° and 110° picture tubes.

The ICs have supply voltages of 8 V and 3.3 V and they are mounted in S-DIP envelope with 64 pins.

The features are given in the following feature list. The differences between the various ICs are given in the table on page 4.

TDA935X/6X/8X PS/N2 series

FEATURES TV-signal processor

• Multi-standard vision IF circuit with alignment-free PLL demodulator

• Internal (switchable) time-constant forthe IF-AGC circuit

• A choice can be made between versions with mono

intercarrier sound FM demodulator and versions with QSS IF amplifier.

• The mono intercarrier sound versions have a selective FM-PLL demodulator which can be switched to the different FM sound frequencies (4.5/5.5/6.0/6.5 MHz). The quality of this system is such that the external band-pass filters can be omitted.

• Source selection between ‘internal’ CVBS and external CVBS or Y/C signals

• Integrated chrominance trap circuit

• Integrated luminance delay line with adjustable delay

time

• Picture improvement features with peaking (with variable centre frequency and positive/negative overshoot ratio) and black stretching

• Integrated chroma band-pass filter with switchable centre frequency

• Only one reference (12 MHz) crystal required for the µ-Controller, Teletext- and the colour decoder

• PAL/NTSC or multi-standard colour decoder with

automatic search system

• Internal base-band delay line

• RGB control circuit with ‘Continuous Cathode

Calibration’, white point and black level offset adjustment so that the colour temperature of the dark and the light parts of the screen can be chosen independently.

• Linear RGB or YUV input with fast blanking for external RGB/YUV sources. The Text/OSD signals are internally supplied from the µ-Controller/Teletext decoder

• Contrast reduction possibility during mixed-mode of OSD and Text signals

• Horizontal synchronization with two control loops and alignment-free horizontal oscillator

• Vertical count-down circuit

• Vertical driver optimized for DC-coupled vertical output

stages

• Horizontal and vertical geometry processing

• Horizontal and vertical zoom function for 16 : 9

applications

• Horizontal parallelogram and bow correction for large screen picture tubes

• Low-power start-up of the horizontal drive circuit

2001 Jan 18 2

Page 3

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

µ-Controller

• 80C51 µ-controller core standard instruction set and

timing

• 1 µs machine cycle

• 32 - 128Kx8-bit late programmed ROM

• 3 - 12Kx8-bit Auxiliary RAM (shared with Display and

Acquisition)

• Interrupt controller for individual enable/disable with two level priority

• Two 16-bit Timer/Counter registers

• One 16 bit Timer with 8-bit Pre-scaler

• WatchDog timer

• Auxiliary RAM page pointer

• 16-bit Data pointer

• Stand-by, Idle and Power Down (PD) mode

• 14 bits PWM for Voltage Synthesis Tuning

• 8-bit A/D converter

• 4 pins which can be programmed as general I/O pin,

ADC input or PWM (6-bit) output

Data Capture

• Text memory for 0, 1 or 10 pages

• Inthe 10page versionsinventory oftransmitted Teletext

pages stored in the Transmitted Page Table (TPT) and Subtitle Page Table (SPT)

• Data Capture for US Closed Caption

• Data Capture for 525/625 line WST, VPS (PDC system

A) and Wide Screen Signalling (WSS) bit decoding

• Automatic selection between 525 WST/625 WST

• Automatic selection between 625 WST/VPS on line 16

of VBI

• Real-time capture and decoding for WST Teletext in Hardware, to enable optimized µ-processor throughput

• Automatic detection of FASTEXT transmission

• Real-time packet 26 engine in Hardware for processing

accented, G2 and G3 characters

• Signal quality detector for video and WST/VPS data types

• Comprehensive teletext language coverage

• Full Field and Vertical Blanking Interval (VBI) data

capture of WST data

TDA935X/6X/8X PS/N2 series

Display

• Teletext and Enhanced OSD modes

• Features of level 1.5 WST and US Close Caption

• Serial and Parallel Display Attributes

• Single/Double/Quadruple Width and Height for

characters

• Scrolling of display region

• Variable flash rate controlled by software

• Enhanced display features including overlining,

underlining and italics

• Soft colours using CLUT with 4096 colour palette

• Globally selectable scan lines per row (9/10/13/16) and

character matrix [12x10, 12x13, 12x16 (VxH)]

• Fringing (Shadow) selectable from N-S-E-W direction

• Fringe colour selectable

• Meshing of defined area

• Contrast reduction of defined area

• Cursor

• Special Graphics Characters with two planes, allowing

four colours per character

• 32 software redefinable On-Screen display characters

• 4 WST Character sets (G0/G2) in single device (e.g.

Latin, Cyrillic, Greek, Arabic)

• G1 Mosaic graphics, Limited G3 Line drawing characters

• WST Character sets and Closed Caption Character set in single device

2001 Jan 18 3

Page 4

2001 Jan 18 4

FUNCTIONAL DIFFERENCE BETWEEN THE VARIOUS IC VERSIONS

IC VERSION (TDA) 9350935193529353936093619362936393649365936693679380 9381 9382 9383 938493859386938793889389

TV range 90° 90° 90° 110° 90° 90° 110° 110° 110° 110° 90° 90° 90° 90° 90° 110° 110° 110° 110° 90° 110° 110° Mono intercarrier multi-standard

sound demodulator (4.5 - 6.5 MHz) with switchable centre frequency

Audio switch √√ √√√√√ √√ √√ √√ Automatic Volume Levelling √√√ √√ √√√√√ √ Automatic Volume Levelling or

subcarrier output (for comb ﬁlter applications)

QSS sound IF ampliﬁer with separate input and AGC circuit

AM sound demodulator without extra reference circuit

PAL decoder √√√√√√√√√√√√√√√√√√√ SECAM decoder √√√√√√√√√√√ NTSC decoder √√√√√√√√√√√√√√√√√√√√√√ Horizontal geometry (E-W) √ √√√√ √√√√ √√ Horizontal and Vertical Zoom √ √√√√ √√√√ √√ ROM size 32-

User RAM size 1 k 1 k 1 k 1 k 2 k 2 k 2 k 2 k 2 k 2 k 2 k 2 k 1 k 1 k 1 k 1 k 1 k 1 k 1 k 1 k 1 k 1 k Teletext 1

Closed captioning √√√√√√√√√√√√√√√√√√√√√√

√√ √√√√√ √√ √√ √√

√ √√√√ √√√√ √√

√ √√√√√√√√

√√

32-

64-

16-

64 k

128k

64 k

page1page1page1page10page10page10page10page10page10page10page10page

16-

64 k

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

embedded µ-Controller

TDA935X/6X/8X PS/N2 series

Page 5

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

QUICK REFERENCE DATA

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

Supply

Input voltages

iVIFrms)

iSIF(rms)

iAUDIO(rms)

iCVBS(p-p)

iCHROMA(p-p)

iRGB(p-p)

iYIN(p-p)

iUVIN(p-p)

Output signals

o(IFVO)(p-p)

o(QSSO)(rms)

o(AMOUT)(rms)

o(AGCOUT)

oRGB(p-p)

oHOUT

oVERT

oEWD

supply voltages − 8.0/3.3 − V supply current − tbf − mA

video IF ampliﬁer sensitivity (RMS value) − 75 −µV QSS sound IF ampliﬁer sensitivity (RMS value) − 60 −µV external audio input (RMS value) − 500 − mV external CVBS/Y input (peak-to-peak value) − 1.0 − V external chroma input voltage (burst amplitude)

− 0.3 − V

(peak-to-peak value) RGB inputs (peak-to-peak value) − 0.7 − V luminance input signal (peak-to-peak value) − 1.4 − V U/V input signal (peak-to-peak value) − 1.33/1.05 − V

demodulated CVBS output (peak-to-peak value) − 2.5 − V sound IF intercarrier output in QSS versions (RMS value) − 100 − mV demodulated AM sound output in QSS versions (RMS

− 500 − mV

value) tuner AGC output current range 0 − 5mA RGB output signal amplitudes (peak-to-peak value) − 2.0 − V horizontal output current 10 −−mA vertical output current (peak-to-peak value) 1 −−mA EW drive output current 1.2 −−mA

2001 Jan 18 5

Page 6

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

BLOCK DIAGRAM

+3.3 V

SDASCL

54 56

I/O PORTS (4x)

5-8

ADC IN (4x) VST OUT

34 2

10/11

LED OUT (2x)

1/10 PAGE

MEMORY

1+62-64

C-BUS

TRANSCEIVER

VST PWM-DAC

I/O PORTS

DISPLAY

TELETEXT/OSD

TELETEXT

ACQUISITION

CVBS

SYNC

ROGOB0

515253

COR

CCC

CONTR/BRIGHTN

OSD/TEXT INSERT

TDA935X/6X/8X PS/N2 series

BLKIN

BCLIN

45 484746

GB R

WHITE-P. ADJ.

RGB/YUV INSERT

SATURATION

RGB/YUV MATRIX

YUV/RGB MATRIX

(20)

(EW GEOMETRY)

G/Y B/U BL R/V

EWD

EHTO

TRAP

SOUND

VPE

RESET

AUDOUT

AUDEXT

SNDIF

TUNERAGC

60 55 59 58 57

29 28

(20)

(32)

27 37 38

(32)

80C51 CPU

ENHANCED

(AVL)

DEEMPHASIS

AUDIO SWITCH

VOLUME CONTROL

AGC/AFC

VISION IF

VIDEO AMP.

PLL DEMOD.

ALIGNMENT-FREE

IFIN

ROM/RAM

PLL

AGC CIRCUIT

NARROW BAND

DEMODULATOR

VIDEO IDENT.

VIDEO SWITCH

VIDEO FILTERS

CHROMA

CVBS/Y

PEAKING

LUMA DELAY

BASE-BAND

REF

PAL/SECAM/NTSC

BLACK STRETCH

DELAY LINE

DECODER

(32)

V-DRIVE +

GEOMETRY

LOOP

H-SHIFT

H-DRIVE

H-OSC. + PLL

H/V SYNC SEP.

+8V

222625

HOUT V-DRIVE

Fig. 1 Block diagram TDA935X/6X8X PS/N2 with mono intercarrier sound demodulator

2001 Jan 18 6

Page 7

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

ROGOBO

515253

DISPLAY

BL B

CONTR/BRIGHTN

COR

SYNC

+3.3 V

I/O PORTS (4x)

ADC IN (4x) VST OUT

SDASCL

LED OUT (2x)

54 56

1+62-64

5-8

C-BUS

10/11

10 PAGE

MEMORY

I/O PORTS

TRANSCEIVER

VST PWM-DAC

TELETEXT/OSD

TELETEXT

ACQUISITION

CVBS

TDA935X/6X/8X PS/N2 series

BLKIN

BCLIN

45 484746

CCC

OSD/TEXT INSERT

GB R

WHITE-P. ADJ.

RGB/YUV INSERT

SATURATION

RGB/YUV MATRIX

YUV/RGB MATRIX

(20)

EW GEOMETRY

G/Y B/U BL R/V

EWD

EHTO

TRAP

SOUND

VPE

60 55 59 58 57

RESET

AMOUT

(35) 44

QSSOUT/AMOUT

SIFIN

28 29

AUDEXT

(35)

27 37 38

TUNERAGC

ENHANCED

(32)

(20)

QSS SOUND IF

VISION IF

ALIGNMENT-FREE

80C51 CPU

AGC

QSS MIXER

AM DEMODULTOR

AGC/AFC

VIDEO AMP.

PLL DEMOD.

IFIN

ROM/RAM

PEAKING

LUMA DELAY

REF

VIDEO IDENT.

VIDEO SWITCH

CVBS/Y

BLACK STRETCH

VIDEO FILTERS

CHROMA

BASE-BAND

REF

PAL/SECAM/NTSC

DELAY LINE

DECODER

(32)

V-DRIVE +

LOOP

H-DRIVE

H/V SYNC SEP.

+8V

222625

GEOMETRY

3334

H-SHIFT

H-OSC. + PLL

HOUT V-DRIVE

Fig. 2 Block diagram TDA 935X/6X/8X PS/N2 with QSS IF sound channel

2001 Jan 18 7

Page 8

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

PINNING

SYMBOL PIN DESCRIPTION

P1.3/T1 1 port 1.3 or Counter/Timer 1 input

P1.6/SCL 2 port 1.6 or I P1.7/SDA 3 port 1.7 or I2C-bus data line P2.0/TPWM 4 port 2.0 or Tuning PWM output P3.0/ADC0 5 port 3.0 or ADC0 input P3.1/ADC1 6 port 3.1 or ADC1 input P3.2/ADC2 7 port 3.2 or ADC2 input P3.3/ADC3 8 port 3.3 or ADC3 input VSSC/P 9 digital ground for µ-Controller core and periphery P0.5 10 port 0.5 (8 mA current sinking capability for direct drive of LEDs) P0.6 11 port 0.6 (8 mA current sinking capability for direct drive of LEDs) VSSA 12 analog ground of Teletext decoder and digital ground of TV-processor SECPLL 13 SECAM PLL decoupling VP2 14 2nd supply voltage TV-processor (+8V) DECDIG 15 decoupling digital supply of TV-processor PH2LF 16 phase-2 ﬁlter PH1LF 17 phase-1 ﬁlter GND3 18 ground 3 for TV-processor DECBG 19 bandgap decoupling AVL/EWD

(1)

20 Automatic Volume Levelling /East-West drive output VDRB 21 vertical drive B output VDRA 22 vertical drive A output IFIN1 23 IF input 1 IFIN2 24 IF input 2 IREF 25 reference current input VSC 26 vertical sawtooth capacitor TUNERAGC 27 tuner AGC output AUDEEM/SIFIN1 DECSDEM/SIFIN2

(1)

28 audio deemphasis or SIF input 1

(1)

29 decoupling sound demodulator or SIF input 2 GND2 30 ground 2 for TV processor SNDPLL/SIFAGC AVL/SNDIF/REF0/

AMOUT

(1)

31 narrow band PLL ﬁlter /AGC sound IF

32 Automatic Volume Levelling / sound IF input / subcarrier reference output /AM output

(non controlled) HOUT 33 horizontal output FBISO 34 ﬂyback input/sandcastle output AUDEXT/

QSSO/AMOUT

(1)

35 external audio input /QSS intercarrier out /AM audio output (non controlled)

EHTO 36 EHT/overvoltage protection input PLLIF 37 IF-PLL loop ﬁlter IFVO/SVO 38 IF video output / selected CVBS output VP1 39 main supply voltage TV-processor (+8 V) CVBSINT 40 internal CVBS input GND1 41 ground 1 for TV-processor CVBS/Y 42 external CVBS/Y input CHROMA 43 chrominance input (SVHS) AUDOUT /AMOUT

(1)

44 audio output /AM audio output (volume controlled)

C-bus clock line

2001 Jan 18 8

Page 9

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

SYMBOL PIN DESCRIPTION

INSSW2 45 2nd RGB / YUV insertion input R2/VIN 46 2nd R input / V (R-Y) input G2/YIN 47 2nd G input / Y input B2/UIN 48 2nd B input / U (B-Y) input BCLIN 49 beam current limiter input / (V-guard input, note 2) BLKIN 50 black current input / (V-guard input, note 2) RO 51 Red output GO 52 Green output BO 53 Blue output VDDA 54 analog supply of Teletext decoder and digital supply of TV-processor (3.3 V) VPE 55 OTP Programming Voltage VDDC 56 digital supply to core (3.3 V) OSCGND 57 oscillator ground supply XTALIN 58 crystal oscillator input XTALOUT 59 crystal oscillator output RESET 60 reset VDDP 61 digital supply to periphery (+3.3 V) P1.0/INT1 62 port 1.0 or external interrupt 1 input P1.1/T0 63 port 1.1 or Counter/Timer 0 input P1.2/INT0 64 port 1.2 or external interrupt 0 input

Note

1. The function of pin 20, 28, 29, 31, 32, 35 and 44 is dependent on the IC version (mono intercarrier FM demodulator / QSS IF amplifier and East-West output or not) and on some software control bits. The valid combinations are given in table 1.

2. The vertical guard function can be controlled via pin 49 or pin 50. The selction is made by means of the IVG bit in subaddress 2BH.

Table 1 Pin functions for various versions

IC version FM-PLL version QSS version

East-West Y/N N Y N Y CMB1/CMB0 bits 00 01/10/11 00 01/10/11 00 01/10/11 00 01/10/11 AM bit −− − −−01 −01 Pin 20 AVL EWD AVL EWD Pin 28 AUDEEM SIFIN1 Pin 29 DECSDEM SIFIN2 Pin 31 SNDPLL SIFAGC Pin 32 SNDIF

(1)

REFO

(2)

AVL/SNDIF

(1)

REFO

(2)

AMOUT REFO

(2)

AMOUT REFO

(2)

Pin 35 AUDEXT AUDEXT QSSO AMOUT AUDEXT QSSO AMOUT Pin 44 AUDOUT controlled AM or audio out

Note

1. When additional (external) selectivity is required for FM-PLL system pin 32 can be used as sound IF input. This function is selected by means of SIF bit in subaddress 28H.

2. The reference output signal is only available for the CMB1/CMB0 setting of 0/1. For the other settings this pin is a switch output (see also table 67).

2001 Jan 18 9

Page 10

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

handbook, halfpage

P1.3/T1 P1.6/SCL P1.7/SDA

P2.0/TPMW P3.0/ADC0

P3.1/ADC1 P3.2/ADC2

P3.3/ADC3 VSSC/P P0.5 P0.6

VSSA SECPLL

VP2 DECDIG

PH2LF PH1LF GND3 DECBG

AVL/EWD VDRB

VDRA IFIN1 IFIN2 IREF

VSC TUNERAGC

AUDEEM/SIFIN1 DECSDEM/SIFIN2

GND2

SNDPLL/SIFAGC

AVL/SNDIF/ REFO/AMOUT

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

XXX

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

TDA935X/6X/8X PS/N2

MXXxxx

TDA935X/6X/8X PS/N2 series

P1.2/INT0

P1.1/T0

P1.0/INT1

VDDP

RESET

XTALOUT

XTALIN OSCGND

57 56

VDDC

VPE

VDDA

BLKIN

BCLIN

B2/UIN

G2/YIN

R2/VIN

INSSW2

AUDOUT/AMOUT

CHROMA

CVBS/Y

GND1

CVBSINT

VP1

IFVO/SVO

PLLIF

EHTO

AUDEXT/QSSO/

AMOUT

FBISO

HOUT

Fig. 3 Pin configuration (SDIP 64)

2001 Jan 18 10

Page 11

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

FUNCTIONAL DESCRIPTION OF THE 80C51

The functionality of the micro-controller used on this device is described here with reference to the industry standard 80C51 micro-controller. A full description of its functionality can be found in the 80C51 based 8-bit micro-controllers - Philips Semiconductors (ref. IC20).

Features of the 80c51

• 80C51micro-controllercore standardinstructionset and timing.

• 1µs machine cycle.

• Maximum 128K x 8-bit Program ROM.

• Maximum of 12K x 8-bit Auxiliary RAM.

• 2K (OSD only version) Auxiliary RAM, maximum

of 1.25K required for Display

• 3K (1 page teletext version) Auxiliary RAM, maximum of 2K required for Display

• 12K (10 page teletext version) Auxiliary RAM, maximum of 10K required for Display

• 8-Level Interrupt Controller for individual enable/disable with two level priority.

• Two 16-bit Timer/Counters.

• Additional 16-bit Timer with 8-bit Pre-scaler.

• WatchDog Timer.

• Auxiliary RAM Page Pointer.

• 16-bit Data pointer

• Idle, Stand-by and Power-Down modes.

• 13 General I/O.

• Four 6-bit Pulse Width Modulator (PWM) outputs for

control of TV analogue signals.

• One 14-bit PWM for Voltage Synthesis tuner control.

• 8-bit ADC with 4 multiplexed inputs.

• 2 high current outputs for directly driving LED’s etc.

• I2C Byte Level bus interface.

TDA935X/6X/8X PS/N2 series

the 32K banks is common and is always addressable.The other three banks (Bank0, Bank1, Bank2) can be accessed by selecting the right bank via the SFR ROMBK bits 1/0.

FFFFH

Bank0

32K

8000H

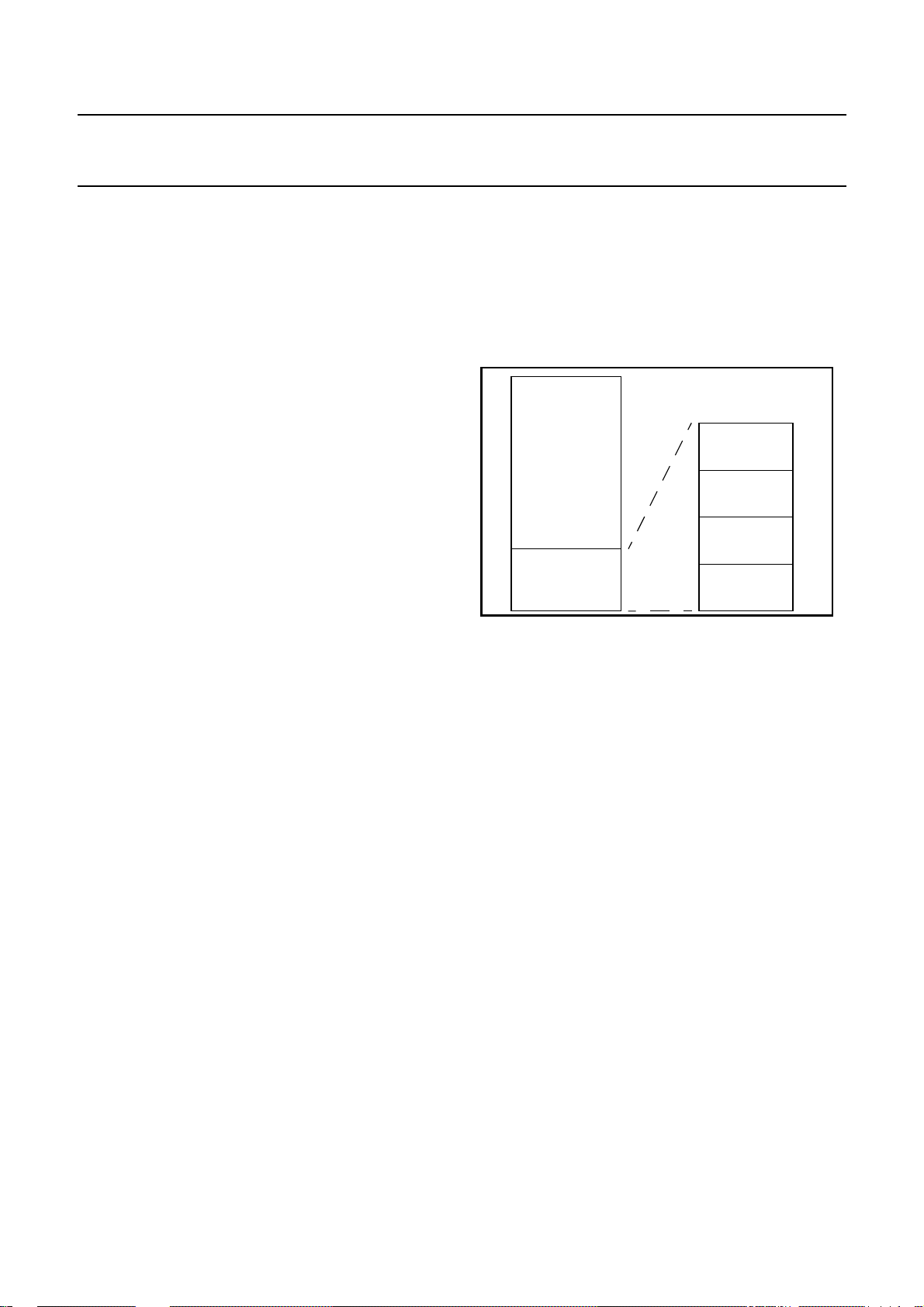

Fig.4 ROM Bank Switching memory map

RAM Organisation

The Internal Data RAM is organised into two areas, Data Memory and Special Function Registers (SFRs) as shown in Fig.5.

FFH

Upper

128

80H 7FH

Lower

128

FFFFH

Bank1

8000H

7FFFH

Common

0000H

Accessible by Indirect

Addressing

only

Accessible

by Direct and Indirect Addressing

32K

FFFFH

Bank2

32K

8000H

Accessible

by Direct

Addressing

only

Memory Organisation

Thedevice has thecapability of a maximum of128K Bytes of PROGRAM ROM and 12K Bytes of DATA RAM. The OSD (& Closed Caption) only version has a 2K RAM and a maximum of 64K ROM, the 1 page teletext version has a 3K RAM and also a maximum of 64K ROM whilst the 10 page teletext version has a 12K RAM and a maximum of 128K ROM.

ROM Organisation

The 64K device has a continuous address space from 0 to 64K. The 128K is arranged in four banks of 32K. One of

2001 Jan 18 11

00H

Data Memory Special Function Registers

Fig.5 Internal Data Memory

DATA MEMORY TheData memoryis 256 x 8-bits andoccupies theaddress range00 to FF Hex when using Indirectaddressing and00 to7F Hexwhen using directaddressing. TheSFRs occupy the address range 80 Hex to FF Hex and are accessible using Direct addressing only. The lower 128 Bytes of Data memory are mapped as shown in Fig.6. The lowest 32

Page 12

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

bytes are grouped into 4 banks of 8 registers, the next 16 bytes above the register banks form a block of bit addressable memory space. The upper 128 bytes are not allocated for any special area or functions.

7FH

Bank Select Bits in PSW

11 = BANK3

10 = BANK2

01 = BANK1

00 = BANK0

Fig.6 Lower 128 Bytes of Internal RAM

2FH

20H 1FH

18H 17H

10H 0FH

08H 07H

00H

(Bit Addresses 0-7F)

Bit Addressable Space

R0 - R7

4 Banks of 8 Registers

SFR MEMORY TheSpecial Function Register(SFR) space is used forport latches, counters/timers, peripheral control, data capture and display. These registers can only be accessed by direct addressing. Sixteen of the addresses in the SFR space are both bit and byte addressable. The bit addressable SFRs are those whose address ends in 0H or 8H. A summary of the SFR map in address order is shown in Table 2.

ADD R/W Names BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

80H R/W P0 Reserved P0<6> P0<5> Reserved Reserved Reserved Reserved Reserved

81H R/W SP SP<7> SP<6> SP<5> SP<4> SP<3> SP<2> SP<1> SP<0>

82H R/W DPL DPL<7> DPL<6> DPL<5> DPL<4> DPL<3> DPL<2> DPL<1> DPL<0>

83H R/W DPH DPH<7> DPH<6> DPH<5> DPH<4> DPH<3> DPH<2> DPH<1> DPH<0>

84H R/W IEN1 -------ET2

85H R/W IP1 -------PT2

87H R/W PCON 0 ARD RFI WLE GF1 GF0 PD IDL

88H R/W TCON TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0

89H R/W TMOD GATE C/TM1M0GATEC/TM1M0

8AH R/W TL0 TL0<7> TL0<6> TL0<5> TL0<4> TL0<3> TL0<2> TL0<1> TL0<0>

8BH R/W TL1 TL1<7> TL1<6> TL1<5> TL1<4> TL1<3> TL1<2> TL1<1> TL1<0>

8CH R/W TH0 TH0<7> TH0<6> TH0<5> TH0<4> TH0<3> TH0<2> TH0<1> TH0<0>

8DH R/W TH1 TH1<7> TH1<6> TH1<5> TH1<4> TH1<3> TH1<2> TH1<1> TH1<0>

90H R/W P1 P1<7> P1<6> Reserved Reserved P1<3> P1<2> P1<1> P1<0>

91H R/W TP2L TP2L<7> TP2L<6> TP2L<5> TP2L<4> TP2L<3> TP2L<2> TP2L<1> TP2L<0>

Table 2 SFR Map

2001 Jan 18 12

Page 13

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

ADD R/W Names BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

92H R/W TP2H TP2H<15> TP2H<14> TP2H<13> TP2H<12> TP2H<11> TP2H<10> TP2H<9> TP2H<8>

93H R/W TP2PR TP2PR<7> TP2PR<6> TP2PR<5> TP2PR<4> TP2PR<3> TP2PR<2> TP2PR<1> TP2PR<0>

94H R/W TP2CRL ------TP2CRL<1> TP2CRL<0>

96H R/W P0CFGA Reserved

97H R/W P0CFGB Reserved P0CFGB<6> P0CFGB<5> Reserved Reserved Reserved Reserved Reserved

98H R/W SADB - - - DC_COMP SAD<3> SAD<2> SAD<1> SAD<0>

9CH R TP2CL TP2CL<7> TP2CL<6> TP2CL<5> TP2CL<4> TP2CL<3> TP2CL<2> TP2CL<1> TP2CL<0>

9DH R TP2CH TP2CH<7> TP2CH<6> TP2CH<5> TP2CH<4> TP2CH<3> TP2CH<2> TP2CH<1> TP2CH<0>

9EH R/W P1CFGA

9FH R/W P1CFGB P1CFGB<7> P1CFGB<6> Reserved Reserved P1CFGB<3> P1CFGB<2> P1CFGB<1> P1CFGB<0>

A0H R/W P2 Reserved ------P2<0>

A6H R/W P2CFGA Reserved

A7H R/W P2CFGB Reserved P2CFGB<6> P2CFGB<5> P2CFGB<4> P2CFGB<3> P2CFGB<2> P2CFGB<1> P2CFGB<0>

P1CFGA<7> P1CFGA<6>

P0CFGA<6> P0CFGA<5>

Reserved Reserved

P2CFGA<6> P2CFGA<5> P2CFGA<4> P2CFGA<3> P2CFGA<2> P2CFGA<1> P2CFGA<0>

Reserved Reserved Reserved Reserved Reserved

P1CFGA<3> P1CFGA<2> P1CFGA<1> P1CFGA<0>

A8H R/W IE EA EBUSY ES2 ECC ET1 EX1 ET0 EX0

B0H R/W P3 Reserved Reserved Reserved Reserved P3<3> P3<2> P3<1> P3<0>

B2H R/W TXT18 NOT<3> NOT<2> NOT<1> NOT<0> 0 0 BS<1> BS<0>

B3H R/W TXT19 TEN TC<2> TC<1> TC<0> 0 0 TS<1> TS<0>

B4H R/W TXT20 DRCS

B5H R/W TXT21 DISP

B6H R TXT22 GPF1<7> GPF1<6> GPF1<5> GPF1<4> GPF1<3> GPF1<2> GPF1<1> GPF1<0>

B7H R/W CCLIN 0 0 0 CS<4> CS<3> CS<2> CS<1> CS<0>

B8H R/W IP 0 PBUSY PES2 PCC PT1 PX1 PT0 PX0

B9H R/W TXT17 0 FORCE

BAH R WSS1 0 0 0 WSS<3:0>

BBH R WSS2 0 0 0 WSS<7:4>

BCH R WSS3

BEH R/W P3CFGA Reserved Reserved Reserved Reserved

ENABLE

LINE<1>

WSS<13:11>

ERROR

OSD

PLANES

DISP

LINES<0>

ACQ<1>

WSS<13> WSS<12> WSS<11> WSS<10:8>

0 0 OSDLANG

CHAR

SIZE<1>

FORCE

ACQ<0>

CHAR

SIZE<0>

FORCE

DISP<1>

ERROR

P3CFGA<3> P3CFGA<2> P3CFGA<1> P3CFGA<0>

ENABLE

Reserved CC ON I2C PORT0 CC/TXT

FORCE

DISP<0>

WSS<3> WSS<2> WSS<1> WSS<0>

WSS<7> WSS<6> WSS<5> WSS<4>

ERROR

OSD

LAN<2>

SCREEN

COL<2>

WSS<10> WSS<9> WSS<8>

OSD

LAN<1>

SCREEN COL<1>

OSD

LAN<0>

SCREEN COL<0>

BFH R/W P3CFGB Reserved Reserved Reserved Reserved P3CFGB<3> P3CFGB<2> P3CFGB<1> P3CFGB<0>

C0H R/W TXT0 X24 POSN DISPLAY

X24

AUTO

FRAME

DISABLE HEADER

ROLL

DISPLAY

STATUS

ROW ONLY

DISABLE

FRAME

VPS ON INV ON

Table 2 SFR Map

2001 Jan 18 13

Page 14

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

ADD R/W Names BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

C1H R/W TXT1 EXT PKT

OFF

C2H R/W TXT2 ACQ BANK REQ<3> REQ<2> REQ<1> REQ<0> SC<2> SC<1> SC<0>

C3H W TXT3 - - - PRD<4> PRD<3> PRD<2> PRD<1> PRD<0>

C4H R/W TXT4 OSDBANK

ENABLE

C5H R/W TXT5 BKGND

OUT

C6H R/W TXT6 BKGND

OUT

C7H R/W TXT7 STATUS

ROW TOP

C8H R/W TXT8 (Reserved)

C9H R/W TXT9 CURSOR

FREEZE

8 BIT ACQ OFF X26 OFF FULL

QUAD

WIDTH

ENABLE

BKGND IN CORB OUT CORB IN TEXT OUT TEXT IN PICTURE

CURSOR

FLICKER STOP ON

CLEAR

MEMORY

WES

EAST/

REVEAL BOTTOM/

HUNT DISABLE

A0 R<4> R<3> R<2> R<1> R<0>

DISABLE DOUBLE

HEIGHT

TOP

SPANISH

FIELD

B MESH

ENABLE

DOUBLE

HEIGHT

PKT 26

RECEIVED

FIELD

POLARITYHPOLARITYVPOLARITY

C MESH

ENABLE

BOX ON 24 BOX ON

WSS

RECEIVED

TRANS

ENABLE

ON OUT

1-23

WSS ON CVBS1/

SHADOW

ENABLE


ON IN


ON IN

BOX ON 0

CVBS0

CAH R/W TXT10 0 0 C<5> C<4> C<3> C<2> C<1> C<0>

CBH R/W TXT11 D<7> D<6> D<5> D<4> D<3> D<2> D<1> D<0>

CCH R TXT12 525/

CDH R/W TXT14 0 0 0 DISPLAY

CEH R/W TXT15 0 0 0 MICRO

D0H R/W PSW C AC F0 RS1 RS0 OV - P

D2H R/W TDACL TD<7> TD<6> TD<5> TD<4> TD<3> TD<2> TD<1> TD<0>

D3H R/W TDACH TPWE 1 TD<13> TD<12> TD<11> TD<10> TD<9> TD<8>

D5H R/W PWM0 PW0E 1 PW0V<5> PW0V<4> PW0V<3> PW0V<2> PW0V<1> PW0V<0>

D6H R/W PWM1 PW1E 1 PW1V<5> PW1V<4> PW1V<3> PW1V<2> PW1V<1> PW1V<0>

D7H R CCDAT1 CCD1<7> CCD1<6> CCD1<5> CCD1<4> CCD1<3> CCD1<2> CCD1<1> CCD1<0>

D8H R/W S1CON CR<2> ENSI STA STO SI AA CR<1> CR<0>

D9H R S1STA STAT<4> STAT<3> STAT<2> STAT<1> STAT<0> 0 0 0

DAH R/W S1DAT DAT<7> DAT<6> DAT<5> DAT<4> DAT<3> DAT<2> DAT<1> DAT<0>

DBH R/W S1ADR ADR<6> ADR<5> ADR<4> ADR<3> ADR<2> ADR<1> ADR<0> GC

625

SYNC

ROM

VER<4>

ROM

VER<3>

ROM

VER<2>

BANK

ROM

VER<1>

PAGE<3> PAGE<2> PAGE<1> PAGE<0>

BLOCK<3> BLOCK<2> BLOCK<1> BLOCK<0>

ROM

VER<0>

1 VIDEO

SIGNAL

QUALITY

DCH R/W PWM3 PW3E 1 PW3V<5> PW3V<4> PW3V<3> PW3V<2> PW3V<1> PW3V<0>

E0H R/W ACC ACC<7> ACC<6> ACC<5> ACC<4> ACC<3> ACC<2> ACC<1> ACC<0>

E4H R/W PWM2 PW2E 1 PW2V<5> PW2V<4> PW2V<3> PW2V<2> PW2V<1> PW2V<0>

Table 2 SFR Map

2001 Jan 18 14

Page 15

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

ADD R/W Names BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

E7H R CCDAT2 CCD2<7> CCD2<6> CCD2<5> CCD2<4> CCD2<3> CCD2<2> CCD2<1> CCD2<0>

E8H R/W SAD VHI CH<1> CH<0> ST SAD<7> SAD<6> SAD<5> SAD<4>

F0H R/W B B<7> B<6> B<5> B<4> B<3> B<2> B<1> B<0>

F8H R/W TXT13 VPS

RECEIVED

FAH R/W XRAMP XRAMP<7> XRAMP<6> XRAMP<5> XRAMP<4> XRAMP<3> XRAMP<2> XRAMP<1> XRAMP<0>

FBH R/W ROMBK STANDBY

FDH R TEST TEST<7> TEST<6> TEST<5> TEST<4> TEST<3> TEST<2> TEST<1> TEST<0>

FEH W WDTKEY WKEY<7> WKEY<6> WKEY<5> WKEY<4> WKEY<3> WKEY<2> WKEY<1> WKEY<0>

FFH R/W WDT WDV<7> WDV<6> WDV<5> WDV<4> WDV<3> WDV<2> WDV<1> WDV<0>

Table 2 SFR Map

A description of each of the SFR bits is shown in Table 3, The SFRs are in alphabetical order.

PAGE

CLEARING

IIC_LUT<1> IIC_LUT<0>

525

DISPLAY

525 TEXT 625 TEXT PKT 8/30 FASTEXT 0

0 0 0 ROMBK<1> ROMBK<0>

Names ADD BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 RESET

ACC E0H ACC<7> ACC<6> ACC<5> ACC<4> ACC<3> ACC<2> ACC<1> ACC<0> 00H

ACC<7:0> Accumulator value.

B F0H B<7> B<6> B<5> B<4> B<3> B<2> B<1> B<0> 00H

B<7:0> B Register value.

CCDAT1 D7H CCD1<7> CCD1<6> CCD1<5> CCD1<4> CCD1<3> CCD1<2> CCD1<1> CCD1<0> 00H

CCD1<7:0> Closed Caption ﬁrst data byte.

CCDAT2 E7H CCD2<7> CCD2<6> CCD2<5> CCD2<4> CCD2<3> CCD2<2> CCD2<1> CCD2<0> 00H

CCD2<7:0> Closed Caption second data byte.

CCLIN B7H 0 0 0 CS<4> CS<3> CS<2> CS<1> CS<0> 15H

CS<4:0> Closed Caption Slice line using 525 line number.

DPH 83H DPH<7> DPH<6> DPH<5> DPH<4> DPH<3> DPH<2> DPH<1> DPH<0> 00H

DPH<7:0> Data Pointer High byte, used with DPL to address display and auxiliary memory.

DPL 82H DPL<7> DPL<6> DPL<5> DPL<4> DPL<3> DPL<2> DPL<1> DPL<0> 00H

DPL<7:0> Data pointer low byte, used with DPH to address display and auxiliary memory.

IE A8H EA EBUSY ES2 ECC ET1 EX1 ET0 EX0 00H

EA Disable all interrupts (0), or use individual interrupt enable bits (1).

EBUSY Enable BUSY Interrupt.

ES2 Enable I

ECC Enable Closed Caption Interrupt.

C Interrupt.

Table 3 SFR Bit description

2001 Jan 18 15

Page 16

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

Names ADD BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 RESET

ET1 Enable Timer 1 Interrupt.

EX1 Enable External Interrupt 1.

ET0 Enable Timer 0 Interrupt.

EX0 Enable External Interrupt 0.

IEN1 84H-------ET200H

ET2 Enable Timer 2 Interrupt.

IP B8H 0 PBUSY PES2 PCC PT1 PX1 PT0 PX0 00H

PBUSY Priority EBUSY Interrupt.

PES2 Priority ES2 Interrupt.

PCC Priority ECC Interrupt.

PT1 Priority Timer 1 Interrupt.

PX1 Priority External Interrupt 1.

PT0 Priority Timer 0 Interrupt.

PX0 Priority External Interrupt 0.

IP1 85H-------PT200H

PT2 Priority Timer 2 Interrupt.

P0 80H Reserved P0<6> P0<5> Reserved Reserved Reserved Reserved Reserved FFH

P0<6:5> Port 0 I/O register connected to external pins.

P1 90H P1<7> P1<6> Reserved Reserved P1<3> P1<2> P1<1> P1<0> FFH

P1<7:6> Port 1 I/O register connected to external pins.

P1<3:0> Port 1 I/O register connected to external pins.

P2 A0H Reserved P2<6> P2<5> P2<4> P2<3> P2<2> P2<1> P2<0> FFH

P2<6:0> Port 2 I/O register connected to external pins.

P3 B0H Reserved Reserved Reserved Reserved P3<3> P3<2> P3<1> P3<0> FFH

P3<3:0> Port 3 I/O register connected to external pins.

P0CFGA 96H Reserved

P0CFGB 97H Reserved

P0CFGB<x>/P0CFGA<x> = 00 MODE 0 Open Drain.

P0CFGB<x>/P0CFGA<x> = 01 MODE 1 Quasi Bi-Directional.

P0CFGB<x>/P0CFGA<x> = 10 MODE2 High Impedance.

P0CFGA<6> P0CFGA<5>

P0CFGB<6> P0CFGB<5>

Reserved Reserved Reserved Reserved Reserved FFH

Reserved Reserved Reserved Reserved Reserved 00H

P0CFGB<x>/P0CFGA<x> = 11 MODE3 Push Pull.

P1CFGA

P1CFGB

9EH P1CFGA<7> P1CFGA<6>

9FH P1CFGB<7> P1CFGB<6>

Reserved Reserved

Table 3 SFR Bit description

2001 Jan 18 16

P1CFGA<3> P1CFGA<2> P1CFGA<1> P1CFGA<0>

P1CFGB<3> P1CFGB<2> P1CFGB<1> P1CFGB<0>

FFH

00H

Page 17

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

Names ADD BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 RESET

P1CFGB<x>/P1CFGA<x> = 00 MODE 0 Open Drain.

P1CFGB<x>/P1CFGA<x> = 01 MODE 1 Quasi Bi-Directional.

P1CFGB<x>/P1CFGA<x> = 10 MODE2 High Impedance.

P1CFGB<x>/P1CFGA<x> = 11 MODE3 Push Pull.

P2CFGA A6H Reserved

P2CFGB A7H Reserved

P2CFGB<x>/P2CFGA<x> = 00 MODE 0 Open Drain.

P2CFGB<x>/P2CFGA<x> = 01 MODE 1 Quasi Bi-Directional.

P2CFGB<x>/P2CFGA<x> = 10 MODE2 High Impedance.

P2CFGB<x>/P2CFGA<x> = 11 MODE3 Push Pull.

P3CFGA BEH Reserved Reserved Reserved Reserved

P3CFGB BFH Reserved Reserved Reserved Reserved

P3CFGB<x>/P3CFGA<x> = 00 MODE 0 Open Drain.

P2CFGA<6> P2CFGA<5> P2CFGA<4> P2CFGA<3> P2CFGA<2> P2CFGA<1> P2CFGA<0>

P2CFGB<6> P2CFGB<5> P2CFGB<4> P2CFGB<3> P2CFGB<2> P2CFGB<1> P2CFGB<0>

P3CFGA<3> P3CFGA<2> P3CFGA<1> P3CFGA<0>

P3CFGB<3> P3CFGB<2> P3CFGB<1> P3CFGB<0>

FFH

00H

FFH

00H

P3CFGB<x>/P3CFGA<x> = 01 MODE 1 Quasi Bi-directional.

P3CFGB<x>/P3CFGA<x> = 10 MODE2 High Impedance.

P3CFGB<x>/P3CFGA<x> = 11 MODE3 Push Pull.

PCON 87H SMOD ARD RFI WLE GF1 GF0 PD IDL 00H

SMOD UART Baud Rate Double Control.

ARD Auxiliary RAM Disable, All MOVX instructions access the external data memory.

RFI Disable ALE during internal access to reduce Radio Frequency Interference.

WLE Watch Dog Timer enable.

GF1 General purpose ﬂag.

GF0 General purpose ﬂag.

PD Power-down activation bit.

IDL Idle mode activation bit.

PSW D0H C AC F0 RS<1> RS<0> OV - P 00H

C Carry Bit.

AC Auxiliary Carry bit.

F0 Flag 0, General purpose ﬂag.

RS<1:0> Register Bank selector bits.

RS<1:0> = 00, Bank0 (00H - 07H). RS<1:0> = 01, Bank1 (08H - 0FH). RS<1:0> = 10, Bank2 (10H - 17H). RS<1:0> = 11, Bank3 (18H - 1FH).

OV Overﬂow ﬂag.

Table 3 SFR Bit description

2001 Jan 18 17

Page 18

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

Names ADD BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 RESET

P Parity bit.

PWM0 D5H PW0E 1 PW0V<5> PW0V<4> PW0V<3> PW0V<2> PW0V<1> PW0V<0> 40H

PW0E 0 - Disable Pulse Width Modulator 0.

1 - Enable Pulse Width Modulator 0.

PW0V<5:0> Pulse Width Modulator high time.

PWM1 D6H PW1E 1 PW1V<5> PW1V<4> PW1V<3> PW1V<2> PW1V<1> PW1V<0> 40H

PW1E 0 - Disable Pulse Width Modulator 1.

1 - Enable Pulse Width Modulator 1.

PW1V<5:0> Pulse Width Modulator high time.

PWM2 E4H PW2E 1 PW2V<5> PW2V<4> PW2V<3> PW2V<2> PW2V<1> PW2V<0> 40H

PW2E 0 - Disable Pulse Width Modulator 2.

1 - Enable Pulse Width Modulator 2.

PW2V<5:0> Pulse Width Modulator high time.

PWM3 DCH PW3E 1 PW3V<5> PW3V<4> PW3V<3> PW3V<2> PW3V<1> PW3V<0> 40H

PW3E 0 - Disable Pulse Width Modulator 3.

1 - Enable Pulse Width Modulator 3.

PW3V<5:0> Pulse Width Modulator high time.

ROMBK FBH STANDBY

STANDBY 0 - Disable Stand-by Mode

1 - Enable Stand-by Mode

IIC_LUT<1:0>IIC Lookup table selection:

IIC_LUT<1:0>=00, 558 Normal Mode. IIC_LUT<1:0>=01, 558 Fast Mode. IIC_LUT<1:0>=10, 558 Slow Mode. IIC_LUT<1:0>=11, Reserved.

ROMBK<1:0>ROM Bank selection

ROMBK<1:0>=00, Bank0 ROMBK<1:0>=01, Bank1 ROMBK<1:0>=10, Bank2 ROMBK<1:0>=11, Reserved

S1ADR DBH ADR<6> ADR<5> ADR<4> ADR<3> ADR<2> ADR<1> ADR<0> GC 00H

ADR<6:0> I2C Slave Address.

GC 0 - Disable I2C general call address.

1 - Enable I2C general call address.

S1CON D8H CR<2> ENSI STA STO SI AA CR<1> CR<0> 00H

IIC_LUT<1> IIC_LUT<0>

000

ROMBK<1> ROMBK<0>

00H

CR<2:0> Clock rate bits.

IIC rates are selectable (three tables)

ENSI 0 - Disable I2C interface.

1 - Enable I2C interface.

Table 3 SFR Bit description

2001 Jan 18 18

Page 19

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

Names ADD BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 RESET

STA START ﬂag. When this bit is set in slave mode, the hardware checks the I2C bus and generates a START condition if the bus is free or after the bus

becomes free. If the device operates in master mode it will generate a repeated START condition.

STO STOP ﬂag. If this bit is set in a master mode a STOP condition is generated. A STOP condition detected on the I2C bus clears this bit. This bit may also

be set in slave mode in order to recover from an error condition. In this case no STOP condition is generated to the I2C bus, but the hardware releases the SDA and SCL lines and switches to the not selected receiver mode. The STOP ﬂag is cleared by the hardware.

SI Serial Interrupt ﬂag. This ﬂag is set and an interrupt request is generated, after any of the following events occur:

-A START condition is generated in master mode.

-The own slave address has been received during AA=1.

-The general call address has been received while S1ADR.GC and AA=1.

-A data byte has been received or transmitted in master mode (even if arbitration is lost).

-A data byte has been received or transmitted as selected slave. A STOP or START condition is received as selected slave receiver or transmitter While the SI ﬂag is set, SCL remains LOW and the serial transfer is suspened.SI must be reset by software.

AA Assert Acknowledge ﬂag. When this bit is set, an acknowledge is returned after any one of the following conditions

-Own slave address is received.

-General call address is received(S1ADR.GC=1).

-A data byte is received, while the device is programmed to be a master receiver.

-A data byte is received, while the device is selected slave receiver. When the bit is reset, no acknowledge is returned. Consequently, no interrupt is requested when the own address or general call address is received.

S1DAT DAH DAT<7> DAT<6> DAT<5> DAT<4> DAT<3> DAT<2> DAT<1> DAT<0> 00H

DAT<7:0> I

S1STA D9H STAT<4> STAT<3> STAT<2> STAT<1> STAT<0> 0 0 0 F8H

STAT<4:0> I2C Interface Status.

SAD E8H VHI CH<1> CH<0> ST SAD<7> SAD<6> SAD<5> SAD<4> 00H

CH<1:0> ADC Input channel select.

SAD<7:4> Most Signiﬁcant nibble of DAC input word

SADB 98H 0 0 0 DC_COMP SAD<3> SAD<2> SAD<1> SAD<0> 00H

DC_COMP 0 - Disable DC Comparator mode.

SAD<3:0> 4-bit SAD value.

SP 81H SP<7> SP<6> SP<5> SP<4> SP<3> SP<2> SP<1> SP<0> 07H

C Data.

VHI 0 - Analogue input voltage less than or equal to DAC voltage.

1 - Analogue input voltage greater then DAC voltage.

CH<1:0> = 00,ADC3. CH<1:0> = 01,ADC0. CH<1:0> = 10,ADC1. CH<1:0> = 11,ADC2.

ST Initiate voltage comparison between ADC input Channel and SADB<3:0> value.

Note: Set by Software and reset by Hardware.

1 - Enable DC Comparator mode.

SP<7> Stack Pointer.

TCON 88H TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0 00H

TF1 Timer 1 overﬂow Flag. Set by hardware on Timer/Counter overﬂow.Cleared by hardware when processor vectors to interrupt routine.

Table 3 SFR Bit description

2001 Jan 18 19

Page 20

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

Names ADD BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 RESET

TR1 Timer 1 Run control bit. Set/Cleared by software to turn Timer/Counter on/off.

TF0 Timer 0 overﬂow Flag. Set by hardware on Timer/Counter overﬂow.Cleared by hardware when processor vectors to interrupt routine.

TR0 Timer 0 Run control bit. Set/Cleared by software to turn Timer/Counter on/off.

IE1 Interrupt 1 Edge ﬂag (both edges generate ﬂag). Set by hardware when external interrupt edge detected.Cleared by hardware when interrupt processed.

IT1 Interrupt 1 Type control bit. Set/Cleared by Software to specify edge/low level triggered external interrupts.

IE0 Interrupt 0 Edge l ﬂag. Set by hardware when external interrupt edge detected.Cleared by hardware when interrupt processed.

IT0 Interrupt 0 Type ﬂag.Set/Cleared by Software to specify falling edge/low level triggered external interrupts.

TDACH D3H TPWE 1 TD<13> TD<12> TD<11> TD<10> TD<9> TD<8> 40H

TPWE 0 - Disable Tuning Pulse Width Modulator.

1 - Enable Tuning Pulse Width Modulator.

TD<13:8> Tuning Pulse Width Modulator High Byte.

TDACL D2H TD<7> TD<6> TD<5> TD<4> TD<3> TD<2> TD<1> TD<0> 00H

TD<7:0> Tuning Pulse Width Modulator Low Byte.

TH0 8CH TH0<7> TH0<6> TH0<5> TH0<4> TH0<3> TH0<2> TH0<1> TH0<0> 00H

TH0<7:0> Timer 0 high byte.

TH1 8DH TH1<7> TH1<6> TH1<5> TH1<4> TH1<3> TH1<2> TH1<1> TH1<0> 00H

TH1<7:0> Timer 1 high byte.

TL0 8AH TL0<7> TL0<6> TL0<5> TL0<4> TL0<3> TL0<2> TL0<1> TL0<0> 00H

TL0<7:0> Timer 0 low byte.

TL1 8BH TL1<7> TL1<6> TL1<5> TL1<4> TL1<3> TL1<2> TL1<1> TL1<0> 00H

TL1<7:0> Timer 1 low byte.

TMOD 89H GATE C/T M1 M0 GATE C/T M1 M0 00H

Timer / Counter 1 Timer / Counter 0

GATE Gating Control Timer /Counter 1.

C/T Counter/Timer 1 selector.

M1,M0 Mode control bits Timer/Counter 1.

M1,M0 = 00, 8 bit timer or 8 bit counter with divide by 32 pre-scaler. M1,M0 = 01, 16 bit time interval or event counter. M1,M0 = 10, 8 bit time interval or event counter with automatic reload upon overﬂow. Reload value stored in TH1. M1,M0 = 11, stopped.

GATE Gating control Timer/Counter 0.

C/T Counter/Timer 0 selector.

Table 3 SFR Bit description

2001 Jan 18 20

Page 21

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

Names ADD BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 RESET

M1,M0 Mode Control bits Timer/Counter 0.

TP2CL 9CH TP2CL<7> TP2CL<6> TP2CL<5> TP2CL<4> TP2CL<3> TP2CL<2> TP2CL<1> TP2CL<0> 00H

TP2CL<7:0> Indicate the low byte of the Time 2 current value.

TP2CH 9DH TP2CH<7> TP2CH<6> TP2CH<5> TP2CH<4> TP2CH<3> TP2CH<2> TP2CH<1> TP2CH<0> 00H

TP2CH<7:0> Indicate the high byte of the Time 2 current value.

TP2H 92H TP2H<7> TP2H<6> TP2H<5> TP2H<4> TP2H<3> TP2H<2> TP2H<1> TP2H<0> 00H

TP2H<7:0> Timer 2 high byte, never change unless updated by the software.

TP2L 91H TP2L<7> TP2L<6> TP2L<5> TP2L<4> TP2L<3> TP2L<2> TP2L<1> TP2L<0> 00H

TP2L<7:0> Timer 2 low byte, never change unless updated by the software.

TP2PR 93H TP2PR<7> TP2PR<6> TP2PR<5> TP2PR<4> TP2PR<3> TP2PR<2> TP2PR<1> TP2PR<0> 00H

TP2H<7:0> Timer 2 Pre-scaler, never change unless updated by the software.

TP2CRL 94H------

TP2CRL<0> Timer 2 Control.

0 - Timer 2 disabled. 1 - Timer 2 enabled.

TP2CRL<1> Timer 2 Status.

0 - No Overﬂow. 1 - Overﬂow.

TEST FDH TEST<7> TEST<6> TEST<5> TEST<4> TEST<3> TEST<2> TEST<1> TEST<0> 00H

TEST<2:0> Program Type bit SEL<2:0>.

011 - Display Dram test. 001 - Acquisition1 test. 010 - Acquisition2 test

TEST<4:3> Functional test mode bits, set via mode select logic.

TEST<7:5> Dram Size.

000 - 1.5K x 16. 001 - 2K x 16. 010 - 6K x 16. 011 - 7K x 16. 100 - 12K x 16. 101 - 14K x 16. 110 - 1K x 16. 111 - 11K x 16.

TP2CRL<1> TP2CRL<0>

00H

TXT0 C0H X24 POSN DISPLAY

X24

X24 POSN 0 - Store X/24 in extension memory

1 - Store X/24 in basic page memory with packets 0 to 23

AUTO

FRAME

DISABLE HEADER

ROLL

Table 3 SFR Bit description

2001 Jan 18 21

DISPLAY

STATUS

ROW

ONLY

DISABLE

FRAME

VPS ON INV ON 00H

Page 22

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

Names ADD BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 RESET

DISLAY X24 0 - Display row 24 from basic page memory

1 - Display row 24 from appropriate location in extension memory

AUTO

FRAME

DISABLE

HEADER

ROLL

DISPLAY

STATUS

ROW ONLY

DISABLE

FRAME

VPS ON 0 - VPS acquisition off

INV ON 0 - Inventory page off

TXT1 C1H EXT PKT

0 - Normal Frame output 1 - Frame output is switched off automatically if any video displayed

0 - Write rolling headers and time to current display page 1 - Disable writing of rolling headers and time to into memory

0 - Display normal page rows 0 to 24 1- Display only row 24

0 - Normal Frame output 1 - Force Frame output to be low (0)

1 - VPS acquisition on

1 - Inventory page on

8 BIT ACQ OFF ACQ OFF FULL

OFF

FIELD

POLARITYHPOLARITYVPOLARITY

00H

EXT PKT

ACQ OFF 0 - Write requested data into display memory

X26 OFF 0 - Enable automatic processing of X/26 data

FULL FIELD 0 - Acquire CC data only on selected line.

FIELD

POLARIY

H POLARITY 0 - Hsync reference edge is positive going

V POLARITY 0 - Vsync reference edge is positive going

TXT2 C2H ACQ

ACQ_BANK 0 - Select Acquisition bank 0

REQ<3:0> Page request

0 - Acquire extension packets X/24,X/27,8/30/X

OFF

1 - Disable acquisition of extension packets

8 BIT 0 - Error check and/or correct packets 0 to 24

1 - Disable checking of packets 0 to 24 written into memory

1 - Disable writing of data into Display memory

1 - Disable automatic processing of X/26 data

1 - Acquire CC data on any TV line (for test purposes).

0 - Vsync pulse in ﬁrst half of line during even ﬁeld. 1 - Vsync pulse in second half of line during even ﬁeld.

1 - Hsync reference edge is negative going

1 - Vsync reference edge is negative going

BANK

1 - Select Acquisition bank 1

REQ<3> REQ<2> REQ<1> REQ<0> SC<2> SC<1> SC<0> 00H

SC<2:0> Start column of page request

TXT3 C3H PRD<4> PRD<3> PRD<2> PRD<1> PRD<0> 00H

PRD<4:0> Page Request data

Table 3 SFR Bit description

2001 Jan 18 22

Page 23

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

Names ADD BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 RESET

TXT4 C4H OSD

OSD BANK

ENABLE

QUAD

WIDTH

ENABLE

WEST 0 - Western language selection of character codes A0 to FF

EAST/

DISABLE

DOUBLE

HEIGHT

B MESH

ENABLE

C MESH

ENABLE

TRANS

ENABLE

0 - Only alpha numeric OSD characters available, 32 locations 1 - Alternate OSD location available via graphic attribute, additional 32 location

0 - Disable display of Quadruple width characters 1 - Enable display of Quadruple width characters

1 - Eastern character selection of character codes A0 to FF

0 - Allow normal decoding of double height characters 1 - Disable normal decoding of double height characters

0 - Normal display of black background 1 - Enable meshing of black background

0 - normal display of coloured background 1 - Enable meshing of coloured background

0 - Display black background as normal 1 - Display black background as video

BANK

ENABLE

QUAD

WIDTH

ENABLE

EAST/WEST

DISABLE

DBL

HEIGHT

B MESH ENABLE

C MESH ENABLE

TRANS

ENABLE

SHADOW

ENABLE

00H

SHADOW

ENABLE

TXT5 C5H BKGND

BKGND OUT 0 - Background colour not displayed outside teletext boxes

BKGND IN 0 - Background colour not displayed inside teletext boxes

COR OUT 0 - COR not active outside teletext and OSD boxes

COR IN 0 - COR not active inside teletext and OSD boxes

TEXT OUT 0 - TEXT not displayed outside teletext boxes

TEXT IN 0 - TEXT not displayed inside teletext boxes

PICTURE ON

PICTURE ONIN0 - VIDEO not displayed inside teletext boxes

TXT6 C6H BKGND

0 - Disable display of shadow/fringing 1 - Display shadow/ fringe (default SE black)

OUT

1 - Background colour displayed outside teletext boxes

1 - Background colour displayed inside teletext boxes

1 - COR active outside teletext and OSD boxes

1 - COR active inside teletext and OSD boxes

1 - TEXT displayed outside teletext boxes

1 - TEXT displayed inside teletext boxes

0 - VIDEO not displayed outside teletext boxes

OUT

1 - VIDEO displayed outside teletext boxes

1 - VIDEO displayed inside teletext boxes

OUT

BKGND IN COR OUT COR IN TEXT OUT TEXT IN PICTURE

ON OUT


ON IN


ON IN

03H

BKGND OUT 0 - Background colour not displayed outside teletext boxes

1 - Background colour displayed outside teletext boxes

Table 3 SFR Bit description

2001 Jan 18 23

Page 24

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

Names ADD BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 RESET

BKGND IN 0 - Background colour not displayed inside teletext boxes

1 - Background colour displayed inside teletext boxes

COR OUT 0 - COR not active outside teletext and OSD boxes

1 - COR active outside teletext and OSD boxes

COR IN 0 - COR not active inside teletext and OSD boxes

1 - COR active inside teletext and OSD boxes

TEXT OUT 0 - TEXT not displayed outside teletext boxes

1 - TEXT displayed outside teletext boxes

TEXT IN 0 - TEXT not displayed inside teletext boxes

1 - TEXT displayed inside teletext boxes

PICTURE ON

PICTURE ONIN0 - VIDEO not displayed inside teletext boxes

TXT7 C7H STATUS

0 - VIDEO not displayed outside teletext boxes

OUT

1 - VIDEO displayed outside teletext boxes

1 - VIDEO displayed inside teletext boxes

ROW TOP

CURSORONREVEAL BOTTOM/

TOP

DOUBLE

HEIGHT

BOX ON 24 BOX ON

1-23

BOX ON 0 00H

STATUS

ROW TOP

CURSOR ON 0 - Disable display of cursor

REVEAL 0 - Display as spaces characters in area with conceal attribute set

BOTTOM/TO

DOUBLE

HEIGHT

BOX ON 24 0 - Disable display of teletext boxes in memory row 24

BOX ON 1-23 0 - Disable display of teletext boxes in memory row 1 to 23

BOX ON 0 0 - Disable display of teletext boxes in memory row 0

TXT8 C8H (Reserved)

FLICKER STOP ON

HUNT 0 - Allow automatic hunting for amplitude of data to be acquired

0 - Display memory row 24 information below teletext page (on display row 24) 1 - Display memory row 24 information above teletext page (on display row 0)

1 - Display cursor at position given by TXT9 and TXT10

1 - Display characters in area with conceal attribute set

0 - Display memory rows 0 to 11 when double height bit is set

1 - Display memory rows 12 to 23 when double height bit is set

0 - Display each characters with normal height 1 - Display each character as twice normal height.

1 - Enable display of teletext boxes in memory row 24

1 - Enable display of teletext boxes in memory row 1 to 23

1 - Enable display of teletext boxes in memory row 0

FLICKER

0 - Enable ‘Flicker Stopper’ circuitry 1 - Disable ‘Flicker Stopper’ circuitry

1 - Disable automatic hunting for amplitude

STOP ON

HUNT DISABLE

SPANISH

PKT 26

RECEIVED

WSS

RECEIVED

WSS ON (Reserved)000H

DISABLE

SPANISH

0 - Enable special treatment of Spanish packet 26 characters 1 - Disable special treatment of Spanish packet 26 characters

Table 3 SFR Bit description

2001 Jan 18 24

Page 25

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

Names ADD BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 RESET

PKT 26

RECEIVED

WSS ON 0 - Disable acquisition of WSS data.

TXT9 C9H CURSOR

CURSOR

FREEZE

CLEAR

MEMORY

0 - No packet 26 data has been processed 1 - Packet 26 data has been processed. Note: This ﬂag is set by Hardware and must be reset by Software

WSS

0 - No Wide Screen Signalling data has been processed 1 - Wide Screen signalling data has been processed Note: This ﬂag is set by Hardware and must be reset by Software.

1 - Enable acquisition of WSS data.

FREEZE

0 - Use current TXT9 and TXT10 values for cursor position. 1 - Lock cursor at current position

0 1 - Clear memory block pointed to by TXT15 Note: This ﬂag is set by Software and reset by Hardware

A0 0 - Access memory block pointed to by TXT15

1 - Access extension packet memory

CLEAR

MEMORY

A0 R<4> R<3> R<2> R<1> R<0> 00H

R<4:0> Current memory ROW value.

Note: Valid range TXT mode 0 to 24, CC mode 0 to 15

TXT10 CAH 0 0 C<5> C<4> C<3> C<2> C<1> C<0> 00H

C<5:0> Current memory COLUMN value.

Note: Valid range TXT mode 0 to 39, CC mode 0 to 47

TXT11 CBH D<7> D<6> D<5> D<4> D<3> D<2> D<1> D<0> 00H

D<7:0> Data value written or read from memory location deﬁned by TXT9, TXT10 and TXT15

TXT12 CCH 625/525

625/525

SYNC

VER<4:0>

VIDEO

SIGNAL

QUALITY

TXT13 F8H VPS

0 - 625 line CVBS signal is being received 1 - 525 line CVBS signal is being received

ROM

Mask programmable identiﬁcation for character set Rom Version <4> : 0 - Spanish Flicker Stopper Disabled. 1 - Spanish Flicker Stopper Enabled (Controlled by TXT8 Bit-6).

1 Reserved

0 - Acquisition can not be synchronised to CVBS input. 1 - Acquisition can be synchronised to CVBS

SYNC

RECEIVED

ROM

VER<4>

PAGE

CLEARING

ROM

VER<3>

525

DISPLAY

ROM

VER<2>

525 TEXT 625 TEXT PKT 8/30 FASTEXT 0 xxxxx

ROM

VER<1>

ROM

VER<0>

1 VIDEO

SIGNAL

QUALITY

xxxxx

x1xB

xx0B

VPS

RECEIVED

CLEARING

0 1 - VPS data

PAGE

0 - No page clearing active 1 - Software or Power On page clear in progress

Table 3 SFR Bit description

2001 Jan 18 25

Page 26

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

Names ADD BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 RESET

525 DISPLAY 0 - 625 Line synchronisation for Display.

1 - 525 Line synchronisation for Display.

525 TEXT 0 - 525 Line WST not being received

1 - 525 line WST being received

625 TEXT 0 - 625 Line WST not being received

1 - 625 line WST being received

PKT 8/30 0 - No Packet 8/30/x(625) or Packet 4/30/x(525) data detected

1 - Packet 8/30/x(625) or Packet 4/30/x(525) data detected

FASTEXT 0 - No Packet x/27 data detected

1 - Packet x/27 data detected

0 Reserved

TXT14 CDH 0 0 0 DISPLAY

DISPLAY

BANK

PAGE<3:0> Current Display page

0 - Select lower bank for Display 1 - Select upper bank for Display

BANK

PAGE<3> PAGE<2> PAGE<1> PAGE<0> 00H

TXT15 CEH 0 0 0 MICRO

MICRO

BANK

BLOCK<3:0> Current Micro block to be accessed by TXT9, TXT10 and TXT11

TXT17 B9H 0 FORCE

FORCE

ACQ<1:0>

FORCE

DISP<1:0>

SCREEN

COL<2:0>

0 - Select lower bank for Micro 1 - Select upper bank for Micro

ACQ<1>

00 - Automatic Selection 01 - Force 525 timing, Force 525 Teletext Standard 10 - Force 625 timing, Force 625 Teletext Standard 11 - Force 625 timing, Force 525 Teletext Standard

00 - Automatic Selection 01 - Force Display to 525 mode (9 lines per row) 10 - Force Display to 625 mode (10 lines per row) 11 - Not Valid (default to 625)

Deﬁnes colour to be displayed instead of TV picture and black background. The bits <2:0> are equivalent to the RGB components 000 - Transparent 001 - CLUT entry 9 010 - CLUT entry 10 011- CLUT entry 11 100 - CLUT entry 12 101 - CLUT entry 13 110- CLUT entry 14 111 - CLUT entry 15

FORCE ACQ<0>

BANK

FORCE DISP<1>

BLOCK<3>BLOCK<2>BLOCK<1>BLOCK<0>00H

FORCE DISP<0>

SCREEN COL2

SCREEN COL1

SCREEN COL0

00H

TXT18 B2H NOT<3> NOT<2> NOT<1> NOT<0> 0 0 BS<1> BS<0> 00H

NOT<3:0> National Option table selection, maximum of 32 when used with East/West bit

BS<1:0> Basic Character set selection

Table 3 SFR Bit description

2001 Jan 18 26

Page 27

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

Names ADD BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 RESET

TXT19 B3H TEN TC<2> TC<1> TC<0> 0 0 TS<1> TS<0> 00H

TEN 0 - Disable Twist function

1- Enable Twist character set

TC<2:0> Language control bits (C12/C13/C14) that has Twisted character set

TS<1:0> Twist Character set selection

TXT20 B4H DRCS

DRCS

ENABLE

OSD

PLANES

OSD LANG

ENABLE

OSD

LAN<2:0>

ENABLE

0 - Normal OSD characters used 1 - Re-map column 9 to DRCS (TXT and CC modes),

0 - Character code columns 8 and 9 deﬁned as single plane characters 1- Character code columns 8 and 9 deﬁned as double plane characters

Enable use of OSD LAN<2:0> to deﬁne language option for display, instead of C12/C13/C14

Alternative C12/C13/C14 bits for use with OSD menus

OSD

PLANES

0 0 OSD

LANG ENABLE

OSD LAN<2>

OSD LAN<1>

OSD LAN<0>

00H

TXT21 B5H DISP

DISP

LINES<1:0>

CHAR

SIZE<1:0>

CCON 0 - Closed Caption acquisition off

I2C PORT0 0 - Disable I2C PORT0

CC/TXT 0 - Display conﬁgured for TXT mode

TXT22 B6H GPF<7> GPF<6> GPF<5> GPF<4> GPF<3> GPF<2> GPF<1> GPF<0> XXH

GPF<7:6> General purpose register, bits deﬁned by mask programmable bits

GPF<5> 0 - Standard Painter device

LINES<1>

The number of display lines per character row. 00 - 10 lines per character (defaults to 9 lines in 525 mode) 01 - 13 lines per character 10 - 16 lines per character 11 - reserved

Character matrix size. 00 - 10 lines per character (matrix 12x10) 01 - 13 lines per character (matrix 12x13) 10 - 16lines per character (matrix 12x16) 11 - reserved

1 - Closed Caption acquisition on

1 - Enable I2C PORT0 selection (P1.7/SDA0, P1.6/SCL0)

1 - Display conﬁgured for CC mode

1 - Enhanced Painter device

DISP

LINES<0>

CHAR

SIZE<1>

CHAR

SIZE<0>

Reserved CC ON I2C PORT0 CC/TXT 02H

GPF<4>

(Used for

software only)

GPF<3> 0 - PWM0, PWM1, PWM2 & PWM3 output on Port 3.0 to Port 3.3 respectively

0 - Choose 6 page teletext device 1 - Choose 10 page teletext device

1 - PWM0, PWM1, PWM2 & PWM3 output on Port 2.1 to Port 2.4 respectively

Table 3 SFR Bit description

2001 Jan 18 27

Page 28

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

Names ADD BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 RESET

GPF<2> 0 - Disable Closed Caption acquisition

1 - Enable Closed Caption acquisition

GPF<1> 0 - Disable Text acquisition

1 - Enable Text acquisition

GPF<0> (Polarity

reversed in

Painter1_Plus

standalone)

WDT FFH WDV<7> WDV<6> WDV<5> WDV<4> WDV<3> WDV<2> WDV<1> WDV<0> 00H

WDv<7:0> Watch Dog Timer period

WDTKEY FEH WKEY<7> WKEY<6> WKEY<5> WKEY<4> WKEY<3> WKEY<2> WKEY<1> WKEY<0> 00H

WKEY<7:0> Watch Dog Timer Key.

WSS1 BAH 0 0 0 WSS<3:0>

WSS<3:0>

ERROR

0 - Standalone (Painter1_Plus) mode 1 - UOC mode

Note: Must be set to 55H to disable Watch dog timer when active.

WSS<3> WSS<2> WSS<1> WSS<0> 00H

ERROR

0 - No error in WSS<3:0> 1 - Error in WSS<3:0>

WSS<3:0> Signalling bits to deﬁne aspect ratio (group 1)

WSS2 BBH 0 0 0 WSS<7:4>

WSS<7:4> ERROR

WSS<7:4> Signalling bits to deﬁne enhanced services (group 2)

WSS3 BCH WSS<13:11

WSS<13:11>

ERROR

WSS<13:11> Signalling bits to deﬁne reserved elements (group 4)

WSS<10:8>

ERROR

WSS<10:8> Signalling bits to deﬁne subtitles (group 3)

XRAMP

XRAMP<7:0> Internal RAM access upper byte address.

0 - No errors in WSS<7:4> 1 - Error in WSS<7:4>

WSS<13> WSS<12> WSS<11> WSS<10:8>

< ERROR

0 - No error in WSS<13:11> 1 - Error in WSS<13:11>

0 - No error in WSS<10:8> 1 - Error in WS<10:8>

FAH XRAMP<7> XRAMP<6> XRAMP<5> XRAMP<4> XRAMP<3> XRAMP<2> XRAMP<1> XRAMP<0>

ERROR

Table 3 SFR Bit description

WSS<7> WSS<6> WSS<5> WSS<4> 00H

WSS<10> WSS<9> WSS<8> 00H

ERROR

00H

2001 Jan 18 28

Page 29

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

External (Auxiliary + Display) Memory

The normal 80C51 external memory area has been mappedinternally tothe device, thismeans thatthe MOVX instruction accesses data memory internal to the device. The movx memory map is shown in Fig.7.

7FFFH

4800H 47FFH

Display RAM

for

Data RAM

(2)

(1)

TEXT PAGES

2000H

07FFH

0000H

Lower 32K bytes

(1) Amount of Data RAM depends on device, PainterOSD 64K has 0.75K,

Painter1.1 has 1K and Painter1.10 has 2K

(2) Amount of Display RAM depends on the device, PainterOSD 64K has

1.25K, Painter1.1 has 2K and Painter1.10 has 10K

(3) Display RAM for Closed Caption and Text is shared

Fig.7 Movx Address Map

Auxiliary RAM Page Selection

The Auxiliary RAM page pointer is used to select one of the 256 pages within the auxiliary RAM, not all pages are allocated, refer to Fig.8. A page consists of 256

FFFFH

8C00H 8BFFH

Dynamically Re-definable Characters

8800H 87FFH

Display Registers

87F0H

871FH

8700H

845FH

Display RAM

Closed Caption

8000H

Upper 32K bytes

CLUT

for

(3)

TDA935X/6X/8X PS/N2 series

consecutive bytes. XRAMP only works on internal MOVX memory.

FFH

(XRAMP)=FFH

00H FFH

(XRAMP)=FEH

MOVX @Ri, A MOVX A, @Ri

00H

FFH

00H FFH

00H

(XRAMP)=01H

(XRAMP)=00H

Fig.8 Indirect addressing

(Movx address space)

Power-on Reset

Power on reset is generated internally to the TDA935X/6x/8xdevice, henceno external resetcircuitry is required. The TV processor die shall generate the master reset in the system, which in turn will reset the microcontroller die

A external reset pin is still present and is logically ORed with the internal Power on reset. This pin will only be used fortest modes andOTP/ISP programming.The active high reset pin incorporates an internal pull-down, thus it can be left unconnected in application.

Power Saving modes of Operation

There are three Power Saving modes, Idle, Stand-by and Power Down, incorporated into the Painter1_Plus die. When utilizing either mode, the 3.3v power to the device (Vddp, Vddc & Vdda) should be maintained, since Power Saving is achieved by clock gating on a section by section basis.

STAND-BY MODE During Stand-by mode, the Acquisition and Display sections of the device are disabled. The following functions remain active:-

• 80c51 CPU Core

• Memory Interface

• I2C

• Timer/Counters

• WatchDog Timer

• SAD and PWMs

FFFFH

FF00H FEFFH

FE00H

01FFH

0100H 00FFH

0000H

MOVX @DPTR,A MOVX A,@DPTR

2001 Jan 18 29

Page 30

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

To enter Stand-by mode, the STAND-BY bit in the ROMBANK register must be set. Once in Stand-By, the XTAL oscillator continues to run, but the internal clock to Acquisitionand Display aregated out.However, the clocks to the 80c51 CPU Core, Memory Interface, I2C, Timer/Counters, WatchDog Timer and Pulse Width Modulators are maintained. Since the output values on RGB and VDS are maintained the display output must be disabled before entering this mode. This mode may be used in conjunction with both Idle and Power-Downmodes. Hence, prior to enteringeither Idle or Power-Down,the STAND-BY bit may beset, thus allowing wake-up of the 80c51 CPU core without fully waking the entire device (This enables detection of a Remote Control source in a power saving mode).

IDLE MODE During Idle mode, Acquisition, Display and the CPU sections of the device are disabled. The following functions remain active:-

• Memory Interface

• I2C

• Timer/Counters

• WatchDog Timer

• SAD & PWMs

To enter Idle mode the IDL bit in the PCON register must be set. The WatchDog timer must be disabled prior to enteringIdle to preventthe devicebeing reset. Oncein Idle mode,the XTALoscillator continuesto run,but the internal clock to the CPU, Acquisition and Display are gated out. However, the clocks to the Memory Interface, I2C, Timer/Counters, WatchDog Timer and Pulse Width Modulators are maintained. The CPU state is frozen along with the status of all SFRs, internal RAM contents are maintained, as are the device output pin values. Since the output values on RGB and VDS are maintained the Display output must be disabled before entering this mode. There are three methods available to recover from Idle:-

• Assertionof an enabled interrupt will cause theIDL bitto be cleared by hardware, thus terminating Idle mode. The interrupt is serviced, and following the instruction RETI, the next instruction to be executed will be the one after the instruction that put the device into Idle mode.

• A second method of exiting Idle is via an Interrupt generated by the SAD DC Compare circuit. When Painter is configured in this mode, detection of an analogue threshold at the input to the SAD may be used to trigger wake-up of the device i.e. TV Front Panel Key-press. As above, the interrupt is serviced, and following the instruction RETI, the next instruction to be

TDA935X/6X/8X PS/N2 series

executedwill bethe onefollowing theinstruction that put the device into Idle.

• The third method of terminating Idle mode is with an external hardware reset. Since the oscillator is running, the hardware reset need only be active for two machine cycles (24 clocks at 12MHz) to complete the reset operation. Reset defines all SFRs and Display memory to a pre-defined state, but maintains all other RAM values. Code execution commences with the Program Counter set to ’0000’.

POWER DOWN MODE In Power Down mode the XTAL oscillator still runs, and differential clock transmitter is active. The contents of all SFRs and Data memory are maintained, however, the contentsof theAuxiliary/Display memoryare lost. The port pinsmaintain thevalues defined by their associatedSFRs. Since the output values on RGB and VDS are maintained the Display output must be made inactive before entering Power Down mode. The power down mode is activated by setting the PD bit in the PCON register. It is advised to disable the WatchDog timer prior to entering Power down. Recovery from Power-Down takes several milli-seconds as the oscillator must be given time to stabilise. There are three methods of exiting power down:-

• An External interrupt provides the first mechanism for waking from Power-Down. Since the clock is stopped, externalinterrupts needsto beset levelsensitive prior to entering Power-Down. The interrupt is serviced, and following the instruction RETI, the next instruction to be executed will be the one after the instruction that put the device into Power-Down mode.

• A second method of exiting Power-Down is via an Interrupt generated by the SAD DC Compare circuit. When Painter is configured in this mode, detection of a certain analogue threshold at the input to the SAD may be used to trigger wake-up of the device i.e. TV Front Panel Key-press. As above, the interrupt is serviced, andfollowing theinstruction RETI, the next instructionto be executed will be the one following the instruction that put the device into Power-Down.

• The third method of terminating the Power-Down mode is with an external hardware reset. Reset defines all SFRs and Display memory, but maintains all other RAM values. Code execution commences with the Program Counter set to ’0000’.

2001 Jan 18 30

Page 31

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

I/O Facility

I/O PORTS The IC has 13 I/O lines, each is individually addressable, or form part of 4 parallel addressable ports which are port0, port1, port2 and port3.

PORT TYPE All individual ports can be programmed to function in one of four modes, the mode is defined by two Port ConfigurationSFRs. Themodes available areOpen Drain, Quasi-bidirectional, High Impedance and Push-Pull.

Open Drain

The Open drain mode can be used for bi-directional operation of a port. It requires an external pull-up resistor, the pull-up voltage has a maximum value of 5.5V, to allow connection of the device into a 5V environment.

Quasi bi-directional

The quasi-bidirectional mode is a combination of open drain and push pull. It requires an external pull-up resistor to VDDp (nominally 3.3V). When a signal transition from 0->1 is output fromthe device, thepad is putinto push-pull mode for one clock cycle (166ns) after which thepad goes into open drain mode. This mode is used to speed up the edges of signal transitions. This is the default mode of operation of the pads after reset.

TDA935X/6X/8X PS/N2 series

In addition to the conventional 80c51, two application specific interrupts are incorporated internal to the device which have the following functionality:CC (Closed Caption Data Ready Interrupt) - This interrupt is generated when the device is configured for Closed Caption acquisition. The interrupt is activated at the end of the currently selected Slice Line as defined in the CCLIN SFR. BUSY (Display Busy Interrupt) - An interrupt is generated when the Display enters either a Horizontal or Vertical Blanking Period. i.e. Indicates when the micro-controller can update the Display RAM without causingundesired effectson the screen. This interruptcan be configured in one of two modes using the MMR Configuration Register (Address 87FF, Bit-3 [TXT/V]):-

• TeXT Display Busy: An interrupt is generated on each active horizontal display line when the Horizontal Blanking Period is entered.

• Vertical Display Busy: An interrupt is generated on each verticaldisplay fieldwhen theVertical Blanking Period is entered.

INTERRUPT ENABLE STRUCTURE Each of the individual interrupts can be enabled or disabled by setting or clearing the relevant bit in the interrupt enable SFRs (IE and IEN1). All interrupt sources can also be globally disabled by clearing the EA bit (IE.7).

High Impedance

The high impedance mode can be used for Input only operationof the port.When using thisconfiguration the two output transistors are turned off.

Push-Pull

The push pull mode can be used for output only. In this mode the signal is driven to either 0V or VDDp, which is nominally 3.3V.

Interrupt System

The device has 8 interrupt sources, each of which can be enabled or disabled. When enabled, each interrupt can be assigned one of two priority levels. There are four interrupts that are common to the 80C51, two of these are external interrupts (EX0 and EX1) and the other two are timer interrupts (ET0 and ET1). There is also one interrupt (ES2) connected to the 80c51 micro-controller IIC peripheral for Transmit and Receive operation. The TDA935X/6x/8x family of devices have an additional 16-bit Timer (with 8-bit Pre-scaler). To accommodate this, another interrupt ET2PR has been added to indicate timer overflow.

EX0

ET0

EX1

ET1

ECC

ES2

EBUSY

ET2PR

Interrupt Source

IE.0:6

IE1.0 IP1.0

Source Enable

IE.7

Global Enable

IP.0:6

Priority Control

Highest Priority Level1

Highest Priority Level0

Lowest Priority Level1

Lowest Priority Level0

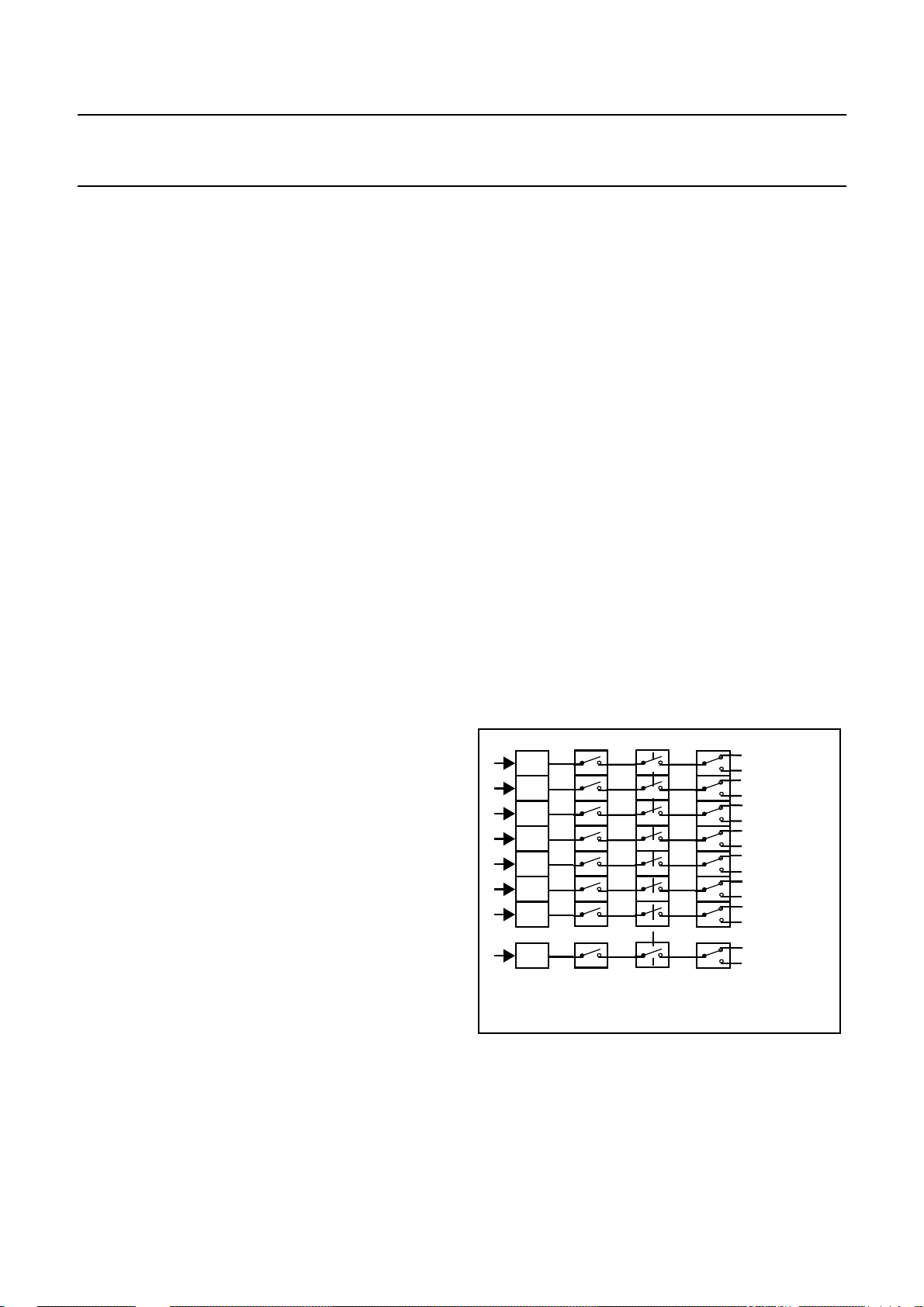

Fig.9 Interrupt Structure

INTERRUPT ENABLE PRIORITY Each interrupt source can be assigned one of two priority levels. The interrupt priorities are defined by the interrupt priority SFRs (IP and IP1). A low priority interrupt can be interrupted by a high priority interrupt, but not by another low priority interrupt. A high priority interrupt can not be interruptedby anyother interrupt source. If two requests of

2001 Jan 18 31

Page 32

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

different priority level are received simultaneously, the request with the highest priority level is serviced. If requests of the same priority level are received simultaneously, an internal polling sequence determines which request is serviced. Thus, within each priority level there is a second priority structure determined by the polling sequence as defined in Table 4.

Source Priority within level Interrupt Vector

EX0 Highest 0003H

ET0 000BH

EX1 0013H

ET1 001BH

ECC 0023H

ES2 002BH

EBUSY 0033H

ET2PR Lowest 003BH

Table 4 Interrupt Priority (within same level)

INTERRUPT VECTOR ADDRESS The processor acknowledges an interrupt request by executinga hardware generated LCALL tothe appropriate servicing routine. The interrupt vector addresses are shown in Table 4.

LEVEL/EDGE INTERRUPT The external interrupt can be programmed to be either level-activated or transition activated by setting or clearing the IT0/1 bits in the Timer Control SFR(TCON).

ITx Level Edge

0 Active low

1 INT0 = Negative Edge

Table 5 External Interrupt Activation

The external interrupt INT1 differs from the standard 80C51 in that it is activated on both edges when in edge sensitive mode. This is to allow software pulse width measurement for handling remote control inputs.

INT1 = Positive and Negative Edge

TDA935X/6X/8X PS/N2 series

In Counter mode, the register is incremented in response to a negative transition at its corresponding external pin T0/1. Since the pins T0/1 are sampled once per machine cycle it takes two machine cycles to recognise a transition, this gives a maximum count rate of 1/24 Fosc = 0.5MHz. There are six special function registers used to control the timers/counters as defined in Table 6.

SFR Address

TCON 88H

TMOD 89H

TL0 8AH

TH0 8BH

TL1 8CH

TH1 8DH

Table 6 Timer/Counter Registers

TF1 TR TF0 TR IE1 IT1 IE0 IT0

Symbol Position Name and Signiﬁcance

TF1 TCON.7 Timer 1 overﬂow ﬂag. Set by hard-

TR1 TCON.6 Timer 1 Run control bit. Set/cleared

TF0 TCON.5 Timer 0 overﬂow ﬂag. Set by hard-

TR0 TCON.4 Timer 0 Run control bit. Set/cleared

Symbol Position Name and Signiﬁcance

IE1 TCON.3 Interrupt1 Edge ﬂag. Set by hardware

IT1 TCON.2 Interrupt 1 Type control bit.

IE0 TCON.1 Interrupt0 Edge ﬂag. Set by hardware

IT0 TCON.0 Interrupt 0 Type control bit.

Fig.10 Timer/Counter Control (TCON) register

ware on timer/counter overﬂow. Cleared by hardware when processor vectors to interrupt routine.

by software to turn timer.counter on/off.

ware on timer/counter overﬂow. Cleared by hardware when processor vectors to interrupt routine.

by software to turn timer.counter on/off.

when external interrupt edge detected. Cleared when interrupt processed.

Set/cleared by software to specify falling edge/low level triggered external interrupts.

when external interrupt edge detected. Cleared when interrupt processed.

Set/cleared by software to specify falling edge/low level triggered external interrupts.

Timer/Counter

Two 16 bit timers/counters are incorporated Timer0 and Timer1. Both can be configured to operate as either timers or event counters. In Timer mode, the register is incremented on every machine cycle. It is therefore counting machine cycles. Since the machine cycle consists of 12 oscillator periods, the count rate is 1/12 Fosc = 1MHz.

2001 Jan 18 32

Page 33

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

Gat C/T M1 M0 Gat C/T M1 M0

Timer 1 Timer 0

Gate Gating control when set. Timer/counter is enabled only

C/T Timer or Counter selector. Cleared for timer operation

M1 M0 Operating

Fig.11 Timer/Counter Mode control (TMOD)

The Timer/Counter function is selected by control bits C/T in the Timer Mode SFR (TMOD). These two Timer/Counter have four operating modes, which are selected by bit-pairs (M1.M0) in the TMOD. Refer to the 80C51 based 8-bit micro-controllers - Philips Semiconductors (ref. IC20) for detail of the modes and operation. TL0/TL1 and TH0/TH1 are the actual timer/counter registers for timer0 / timer1. TL0/TL1 is the low byte and TH0/TH1 is the high byte.

TIMER WITH PRE-SCALER An additional 16-bit timer with 8-bit pre-scaler is provided to allow timer periods up to 16.777 seconds. This timer remains active during IDLE mode. TP2L sets the lower value of the period for timer 2 and TP2H is the upper timer value. TP2PR provides an 8-bit pre-scaler for timer 2. The value on TP2PR, TP2H and TP2L shall never change unless updated by the software. If the micro reads TP2R, TP2H orTP2L at any stage, this should return the value written and not the current timer 2 value. The timer 2 should continue after overflow by re-loadingthe timerwith thevalues ofSFRs TP2PR, TP2H and TP2L. TP2CL and TP2CH indicate the current timer 2 value. These should be readable both when the timer 2 is active and inactive. Once the timer 2 is disable, the timer 2 value at the time of disabling should be maintained on the SFRs TP2CL and TP2CH. At a count of zero (on TP2CL and TP2CH),the overflowflag shouldbe set:-TP2CRL<1> - ’0’ = no timer 2 overflow, ’1’= timer 2 overflow. TP2CRL is the control and status for timer 2. TP2CRL.0 is the timer enable and TP2CRL.1 is the timer overflow status. The overflow flag will need to be reset by software. Hence, if required, software may poll flag rather than use

while px_int_n is high and TR control bit is set. When cleared timer/counter is enabled whenever TR control bit is set.

(input from system clock). Set for counter operation (input from T input pin.

0 0 8048 Timer, TL serves as 5-bit prescaler. 0 1 16-bit Timer/Counter, TL and TH are cascaded. 1 0 8-bit auto-reload Timer/Counter, TH holds a value

1 1 timer 0: two 8-bit Timers/Counters. TL0 is controlled by

which is to be loaded into TL. timer 0 control bits. TH0 is controlled by timer 1 control

bits. timer 1: stopped.

TDA935X/6X/8X PS/N2 series

interrupt. Upon overflow an interrupt should also be generated. Reset values of all registers should be 00 hex. In Timer mode, Timer 2 should count down from the value set on SFRs TP2PR, TP2H and TP2L. It is therefore counting machine cycles. Since the machine cycle consists of 12 oscillator periods, the count rate is 1/12 fosc (1MHz).

Timer2 interval = (TP2H * 256 + TP2L) * (TP2PR + 1) * 1 us

WatchDog Timer

The WatchDog timer is a counter thatonce in an overflow stateforces the micro-controller in toa resetcondition. The purpose of the WatchDog timer is to reset the micro-controller if it enters an erroneous processor state (possibly caused by electrical noise or RFI) within a reasonable period of time. When enabled, the WatchDog circuitry will generate a system reset if the user program failsto reload the WatchDog timer within a specified length of time known as the WatchDog interval. The WatchDog timer consists of an 8-bit counter with an 16-bit pre-scaler. The pre-scaler is fed with a signal whose frequency is 1/12 fosc (1MHz). The 8 bit timer is incremented every ‘t’ seconds where:

t=12x65536x1/fosc=12x65536x1/12x106 = 65.536ms

WATCHDOG TIMER OPERATION The WatchDog operation is activated when the WLE bit in the Power Control SFR (PCON) is set. The WatchDog can be disabled by Software by loading the value 55H into the WatchDog Key SFR (WDTKEY). This must be performed before entering Idle/Power Down mode to prevent exiting the mode prematurely. Once activated the WatchDog timer SFR (WDT) must be reloaded before the timer overflows. The WLE bit must be set to enable loading of the WDT SFR, once loaded the WLE bit is reset by hardware, this is to prevent erroneous Software from loading the WDT SFR. The value loaded into the WDT defines the WatchDog interval.

WatchDog interval = (256 - WDT) * t = (256 -WDT) * 65.536ms.

The range of intervals is from WDT=00H which gives

16.777s to WDT=FFH which gives 65.536ms.

PORT Alternate Functions

The Ports 1,2 and 3 are shared with alternate functions to enable control of external devices and circuitry. The alternate functions are enabled by setting the appropriate

2001 Jan 18 33

Page 34

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

SFR and also writing a ‘1’ to the Port bit that the function occupies.

PWM PULSE WIDTH MODULATORS The device has four 6-bit Pulse Width Modulated (PWM) outputs for analogue control of e.g. volume, balance, bass andtreble. The PWM outputs generatepulse patterns with a repetition rate of 21.33us, with the high time equal to the PWMSFR value multiplied by 0.33us.The analogue value is determined by the ratio of the high timeto the repetition time, a D.C. voltage proportional to the PWM setting is obtained by means of an external integration network (low pass filter).

PWM Control

The relevant PWM is enabled by setting the PWM enable bit PWxE in the PWMx Control register. The high time is defined by the value PWxV<5:0>

TPWM TUNING PULSE WIDTH MODULATOR The device has a single 14-bit PWM that can be used for Voltage Synthesis Tuning. The method of operation is similar to the normal PWM except the repetition period is

42.66us.

TPWM Control

TwoSFRs are usedto control the TPWM, theyare TDACL and TDACH. The TPWM is enabled by setting the TPWE bit in the TDACH SFR. The most significant bitsTD<13:7> alter the high period between 0 and 42.33us. The 7 least significant bits TD<6:0> extend certain pulses by a further

0.33us. e.g. if TD<6:0> = 01H then 1 in 128 periods will be extendedby 0.33us,if TD<6:0>=02Hthen 2in 128periods will be extended. TheTPWM willnot start tooutput anew value untilTDACH has been written to. Therefore, if the value is to be changed, TACL should be written before TDACH.

SAD SOFTWARE A/D Four successive approximation Analogue to Digital Converterscan be implementedin softwareby making use of the on board 8-bit Digital to Analogue Converter and Analogue Comparator.

SAD Control

The control of the required analogue input is done using the channel select bits CH<1:0> in the SAD SFR, this selects the required analogue input to be passed to one of theinputs of thecomparator. Thesecondcomparator input is generated by the DAC whose value is set by the bits SAD<7:0> in the SAD and SADB SFRs. A comparison betweenthe twoinputs ismade whenthe startcompare bit ST in the SAD SFR is set, this must be at least one

TDA935X/6X/8X PS/N2 series

instruction cycle after the SAD<7:0> value has been set. The result of the comparison is given on VHI one instruction cycle after the setting of ST.

DDP

ADC0

ADC1 ADC2

ADC3

CH<1:0>

SAD<7:0>

SAD Input Voltage

The external analogue voltage that is used for comparison with the internally generated DAC voltage, does not have thesame voltage rangedue to the 5 V tolerance ofthe pin. It is limited to V For further details refer to the SAA55XX and SAA56XX Software Analogue to Digital Converter Application Note: SPG/AN99022.

SAD DC Comparator Mode

The SAD module incorporates a DC Comparator mode which is selected using the ’DC_COMP’ control bit in the SADB SFR. This mode enables the micro-controller to detect a threshold crossing at the input to the selected analogue input pin (P3.0, P3.1, P3.2 or P3.3) of the Software A/D Converter. A level sensitive interrupt is generatedwhen the analogue input voltagelevel at the pin falls below the analogue output level of the SAD D/A converter. This mode is intended to provide the device with a wake-up mechanism from Power-Down or Idle when a key-press on the front panel of the TV is detected. The following software sequence should be used when utilizing this mode for Power-Down or Idle:-

1. Disable INT1 using the IE SFR.

2. Set INT1 to level sensitive using the TCON SFR.

3. Set the D/A Converter digital input level to the desired

threshold level using the SAD/SADB SFRs and select the required input pin (P3.0, P3.1, P3.2 or P3,3) using CH1, CH0 in the SAD SFR.

4. Enter DC Compare mode by setting the ’DC_COMP’

enable bit in the SADB SFR.

MUX

4-1

8-bit DAC

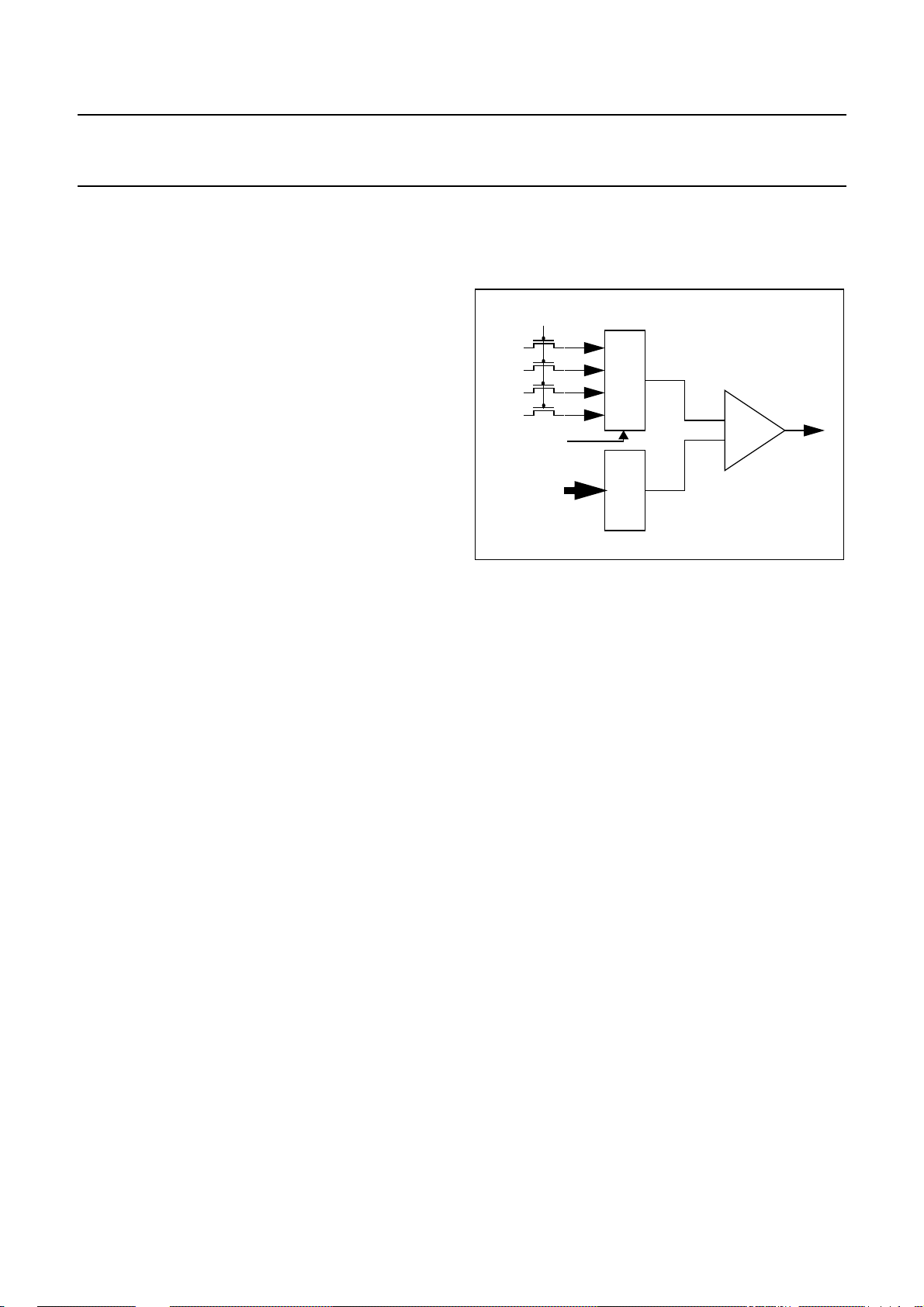

Fig.12 SAD Block Diagram

DDP-Vtn

where Vtnis a maximum of 0.75 V.

VHI

2001 Jan 18 34

Page 35

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

5. Enable INT1 using the IE SFR.

6. Enter Power-Down/Idle. Upon wake-up the SAD should be restored to its conventional operating mode by disabling the ’DC_COMP’ control bit.

I2C Serial I/O Bus

TheI2Cbus consistsof a serialdata line(SDA) and aserial clock line (SCL). The definition of the I2C protocol can be found in the 80C51 based 8-bit micro-controllers - Philips Semiconductors (ref. IC20). The device operates in four modes: -

• Master Transmitter

• Master Receiver

• Slave Transmitter

• Slave Receiver

The micro-controller peripheral is controlled by the Serial Control SFR (S1CON) and its Status is indicated by the status SFR (S1STA). Information is transmitted/received to/from the I2C bus using the Data SFR (S1DAT) and the Slave Address SFR (S1ADR) is used to configure the slave address of the peripheral. The byte level I2C serial port is identical to the I2C serial port on the 8xC558, except for the clock rate selection bits CR<2:0>. The operation of the subsystem is described in detail in the 8xC558 data sheet and can be found in the 80C51 based 8-bit micro-controllers - Philips Semiconductors (ref. IC20). Three different IIC selection tables for CR<2:0> can be configured using the ROMBANK SFR (IIC_LUT<1:0>) as follows: -

‘558 nominal mode’ (iic_lut=”00”)

Thisoption accommodates the 558 I2C.The various serial rates are shown below: -

TDA935X/6X/8X PS/N2 series

‘558 fast mode’ (iic_lut=”01”)

This option accommodates the 558 I2C doubled rates as shown below: -

(6MHz)

clk

CR2 CR1 CR0

0 0 0 30 200 0 0 1 800 7.5 0 1 0 20 300 011 15 400 1 0 0 120 50 1 0 1 1600 3.75 1 1 0 80 75 111 60 100

divided by

Table 8 IIC Serial Rates ‘558 fast mode’

‘558 slow mode’ (iic_lut=”10”)

This option accommodates the 558 I2C rates divided by 2 as shown below: -

(6MHz)

clk

CR2 CR1 CR0

0 0 0 120 50 0 0 1 3200 1.875 0 1 0 80 75 011 60 100 1 0 0 480 12.5 1 0 1 6400 0.9375 1 1 0 320 18.75 1 1 1 240 25

divided by

Table 9 IIC Serial Rates ‘558 slow mode’

I2C Bit Frequency

(KHz) at f

I2C Bit Frequency

(KHz) at f

clk

(6MHz)

clk

CR2 CR1 CR0

000 60 100 0 0 1 1600 3.75 0 1 0 40 150 0 1 1 30 200 1 0 0 240 25 1 0 1 3200 1.875 1 1 0 160 37.5 1 1 1 120 50

divided by

I2C Bit Frequency

(KHz) at f

clk

Table 7 IIC Serial Rates ‘558 nominal mode’

2001 Jan 18 35

Note: In the above tablesthe f

relates to the clock rateof

clk

the 80c51 IIC module (6MHz).

I2C Port Enable

One external I2C port is available. This port is enabled using TXT21.I2C PORT0. Any information transmitted to the device can only be acted upon if the port is enabled. Internal communication between the 80c51 micro-controller and the TV Signal Processor will continue regardless of the value written to TXT21.I2C PORT0.

LED Support

Port pins P0.5 and P0.6 have a 8mA current sinking capability to enable LEDs in series with current limiting resistors to be driven directly, without the need for additional buffering circuitry.

Page 36

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

MEMORY INTERFACE

The memory interface controls the access to the embedded DRAM, refreshing of the DRAM and page clearing. The DRAM is shared between Data Capture, Display and Microcontroller sections. The Data Capture section uses the DRAM to store acquired information that has been requested. The Display reads the DRAM information and converts it to RGB output values. The Microcontroller uses the DRAM as embedded auxiliary RAM.

DATA CAPTURE

The Data Capture section takes in the analogue Composite Video and Blanking Signal (CVBS) from One Chip, and from this extracts the required data, which is then decoded and stored in SFR memory. The extraction of the data is performed in the digital domain. The first stage is to convert the analogue CVBS signal into a digital form. This is done using an ADC sampling at 12MHz. The data and clock recovery is then performed by a Multi-Rate Video Input Processor (MulVIP). From the recovered data and clock the following data types are extracted WST Teletext (625/525),Closed Caption, VPS, WSS. The extracted data is stored in either memory (DRAM) via the Memory Interface or in SFR locations.

TDA935X/6X/8X PS/N2 series

Data Capture Features

• Video Signal Quality detector.

• Data Capture for 625 line WST

• Data Capture for 525 line WST

• Data Capture for US Closed Caption

• Data Capture for VPS data (PDC system A)

• Data Capture for Wide Screen Signalling (WSS) bit

decoding

• Automatic selection between 525 WST/625WST

• Automaticselection between 625WST/VPS on line16 of

VBI

• Real-time capture and decoding for WST Teletext in Hardware, to enable optimised microprocessor throughput

• Up to 10 pages stored On-Chip

• Inventory of transmitted Teletext pages stored in the

Transmitted Page Table (TPT) and Subtitle Page Table (SPT)

• Automatic detection of FASTEXT transmission

• Real-time packet 26 engine in Hardware for processing

accented, G2 and G3 characters

• Signal quality detector for WST/VPS data types

• Comprehensive Teletext language coverage

• Full Field and Vertical Blanking Interval (VBI) data

capture of WST data

2001 Jan 18 36

Analogue to Digital Converter

The CVBS input is passed through a differential to single ended converter (DIVIS), although in this device it is used in single ended configuration with a reference.The analogue output of DIVIS is converted into a digital representation by a full flash ADC with a sampling rate of 12MHz.

Multi Rate Video Input Processor

The multi rate video input processor is a Digital Signal Processor designed to extract the data and recover the clock from the digital CVBS signal.

Page 37

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

Data Standards

The data and clock standards that can be recovered are shown in Table 10 below:-

Data Standard Clock Rate

625WST 6.9375 MHz

525WST 5.7272 MHz

VPS 5.0 MHz

WSS 5.0 MHz

Closed Caption 500 KHz

Table 10 Data Slicing Standards

Data Capture Timing

TheData Capture timing section usesthe Synchronisation information extracted from the CVBS signal to generate the required Horizontal and Vertical reference timings. The timing section automatically recognises and selects the appropriate timings for either 625 (50Hz) synchronisation or 525 (60Hz) synchronisation. A flag TXT12.Video Signal Quality is set when the timing section is locked correctly to the incoming CVBS signal. When TXT12.Video Signal Quality is set another flag TXT12.625/525 SYNC can be used to identify the standard.

Acquisition

The acquisition sections extracts the relevant information from the serial stream of data from the MulVIP and stores it in memory.

625 WST ACQUISITION The family is capable of acquiring 625-line and 525-line World System Teletext. Teletext pages are identified by seven numbers: magazine (page hundreds), page tens, page units, hours tens, hours units, minutes tens and minutes units. The last four digits, hours and minutes, are known as the subcode, and were originally intended to be time related, hence their names.

Making a page request

A page is requested by writing a series of bytes into the TXT3.PRD<4:0> SFR which correspond to the number of the page required. The bytes written into TXT3 are stored in a RAM with an auto-incrementing address. The start address for the RAM is set using the TXT2.SC<2:0> to define which part of the page request is being written, and TXT2.REQ<3:0> is used to define which of the 10 page requests is being modified. If TXT2.REQ<3:0> is greater

TDA935X/6X/8X PS/N2 series

than09h, thendata beingwritten toTXT3 isignored. Table 11 shows the contents of the page request RAM. Up to 10 pages of teletext can be acquired on the 10 page device, when TXT1.EXT PKT OFF is set to logic 1, and up to 9 pages can be acquired when this bit is set to logic 0. f the 'Do Care' bit for part of the page number is set to 0 then that part of the page number is ignored when the teletext decoder is deciding whether a page being received off air should be stored or not. Forexample, if the Do Care bits for the 4 subcode digits are all set to 0 then every subcode version of the page will be captured.

Start

Column

0 Magazine DO CARE HOLD MAG2 MAG1 MAG0 1 Page Tens DO CARE PT3 PT2 PT1 PT0 2 Page Units DO CARE PU3 PU2 PU1 PU0 3 Hours Tens DO CARE x x HT1 HT0 4 Hours Units DO CARE HU3 HU2 HU1 HU0 5 Minutes Tens DO CARE x MT2 MT1 MT0 6 Minutes Units DO CARE MU3 MU2 MU1 MU0 7 Error Mode x x x E1 E0

Table 11 The contents of the Page request RAM Note: MAG = Magazine PT = Page Tens PU = Page Units

HT = Hours Tens HU = Hours Units MT = Minutes Tens MU = Minutes Units E = Error check mode When the Hold bit is set to 0 the teletext decoder will not recognise any page as having the correct page number and no pages will be captured. In addition to providing the user requested hold function this bit should be used to prevent the inadvertent capture of an unwanted page when a new page request is being made. For example, if the previous page request was for page 100 and this was beingchanged topage 234, itwould bepossible tocapture page 200 if this arrived after only the requested magazine number had been changed. TheE1 andE0 bits control the errorchecking whichshould be carried out on packets 1 to 23 when the page being requested is captured. This is described in more detailin a later section (‘Error Checking’). For a multi page device, each packet can only be written into one place in the teletext RAM so if a page matches more than one of the page requests the data is written into thearea ofmemory corresponding to the lowestnumbered matching page request. At power-up each page request defaults to any page, hold on and error check mode 0.

Rolling Headers and Time

When a new page has been requested it is conventional for the decoder to turn the header row of the display green

Byte

Identiﬁcation

PRD<4> PRD<3> PRD<2> PRD<1> PRD<0>

2001 Jan 18 37

Page 38

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

and to display each page header as it arrives until the correct page has been found. When a page request is changed (i.e.: when the TXT3 SFR is written to) a flag (PBLF) is writteninto bit 5, column 9, row 25 of the corresponding block of the page memory. The state of the flag for each block is updated every TV line, if it is set for the current display block, the acquisition section writes all valid page headers which arrive into the display block and automatically writes an alpha-numerics green character into column 7 of row 0 of the display block every TV line. When a requested page header is acquired for the first time, rows 1 to 23 of the relevant memory block are cleared to space, i.e.: have 20h written into every column, before the rest of the page arrives. Row 24 is also cleared ifthe TXT0.X24POSN bit isset. Ifthe TXT1.EXT PKTOFF bit is set the extension packets corresponding to the page are also cleared. The last 8 characters of the page header are used to providea timedisplay and arealways extractedfrom every valid page header as it arrives andwritten into the display block The TXT0. DISABLE HEADER ROLL bit prevents any data being written into row 0 of the page memory except when a page is acquired off air i.e.: rolling headers and time are not written into the memory. The TXT1.ACQ OFF bit prevents any data being written into the memory by the teletext acquisition section. When a parallel magazine mode transmission is being received only headers in the magazine of the page requested are considered valid for the purposes of rolling headersand time. Only one magazineis used even if don't care magazine is requested. When a serial magazine mode transmission is being received all page headers are considered to be valid.

Error Checking

Before teletext packets are written into the page memory they are error checked. The error checking carried out dependson the packet number, thebyte number, the error check mode bits in the page request data and the TXT1.8 BIT bit. If an incorrectable error occurs in one of the Hamming checked addressing and control bytes in the page header or in the Hamming checked bytes in packet 8/30, bit 4 of the byte written into the memory is set, to act as an error flag to the software. If incorrectable errors are detected in any other Hamming checked data the byte is not written into the memory.

Teletext Memory Organisation

The teletext memory is divided into 2 banks of 10 blocks. Normally, when the TXT1.EXT PKT OFF bit is logic 0,

TDA935X/6X/8X PS/N2 series

each of blocks 0 to 8 contains a teletext page arranged in the same way as the basic page memory of the page device and block 9 contains extension packets. When the TXT1.EXT PKT OFF bit is logic 1, no extension packets are captured and block 9 of the memory is used to store another page. The number of the memory block into which a page is written corresponds to the page request number which resulted in the capture of the page. Packet 0, the page header, is split into 2 parts when it is writteninto thetext memory.The first 8 bytes of the header contain control and addressing information. They are Hamming decoded and written into columns 0 to 7 of row

25. Row 25 also contains the magazine number of the

acquired page and the PBLF flag but the last 14 bytes are unused and may be used by the software, if necessary.

Row 25 Data Contents

The Hamming error flags are set if the on-board 8/4 Hamming checker detects that there has been an incorrectable (2 bit) error in the associated byte. It is possible for the page to still be acquired if some of the page address information contains incorrectable errors if thatpart of thepage request was a 'don't care'. Thereis no error flag for the magazine number as an incorrectable error in this information prevents the page being acquired. The interrupted sequence (C9) bit is automatically dealt with by the acquisition section so that rolling headers do not contain a discontinuity in the page number sequence. The magazine serial (C11) bit indicates whether the transmission is a serial or a parallel magazine transmission. This affects the way the acquisition section operates and is dealt with automatically. The newsflash (C5), subtitle (C6), suppress header (C7), inhibit display (C10) and language control (C12 to 14) bits are dealt with automatically by the display section, described below. The update (C8) bit has no effect on the hardware. The remaining 32 bytes of the page header are parity checked andwritten intocolumns 8 to39 ofrow 0. Byteswhich pass the parity check have the MSB set to 0 and are written into the page memory. Bytes with parity errors are not written into the memory.

Inventory Page

If the TXT0.INV on bit is 1, memory block 8 is used as an inventory page. The inventory page consists of two tables,

- the Transmitted Page Table (TPT) and the subtitle page

table (SPT). In each table, every possible combination of the page tens and units digit, 00 to FFh, is represented by a byte. Each bit of these bytes corresponds to a magazine number so each page number, from 100 to 8FF, is represented by a bitin the table.The bit for a particularpage inthe TPTis set

2001 Jan 18 38

Page 39

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

when a page header is received for that page. The bit in theSPT isset when apage headerfor thepage is received which has the ‘subtitle’ page header control bit (C6) set.The bit for a particular page in the TPT is set when a page header is received for that page. The bit in the SPT is set when a page header for the page is received which has the ‘subtitle’ page header control bit (C6) set.

Packet 26 Processing

One of the uses of packet 26 is to transmit characters whichare not in the basic teletext characterset. Thefamily automatically decodes packet 26 data and, if a character corresponding to that being transmitted is available in the character set, automatically writes the appropriate character code into the correct location in the teletext memory. This is not a full implementation of the packet 26 specification allowed for in level 2 teletext, and so is often referred to as level 1.5. By convention, the packets 26 for a page are transmitted before the normal packets. To prevent the default character data over writing the packet 26 data the device incorporates a mechanism which prevents packet 26 data from being overwritten. This mechanism is disabled when the Spanish national option is detected as the Spanish transmission system sends even parity (i.e. incorrect) characters in the basic page locations corresponding to the characters sent via packet 26 and these will not over write the packet 26 characters anyway. The special treatment of Spanish national option is prevented if TXT12. ROM VER R4 is logic 0 or if the TXT8.DISABLE SPANISH is set. Packet 26 data is processed regardless of the TXT1. EXT PKT OFF bit, but setting theTXT1.X26 OFF disables packet 26 processing. The TXT8. Packet 26 received bit is set by the hardware whenever a character is written into the page memory by thepacket 26decoding hardware.The flagcan bereset by writing a 0 into the SFR bit.

525 WST The 525 line format is similar to the 625 line format but the data rate is lower and there are less data bytes per packet (32 rather than 40). There are still 40 characters per display row so extra packets are sent each of which containsthe last 8 characters forfour rows. These packets can be identified by looking at the ‘tabulation bit’ (T), which replaces one of the magazine bits in 525 line teletext. When an ordinary packet with T = 1 is received, the decoder puts the data into the four rows starting with that corresponding to the packet number, but with the 2 LSBs set to 0. For example, a packet 9 withT=1(packet X/1/9) contains data for rows 8, 9, 10 and 11. The error checking carriedout on data from packets with T= 1depends on the

TDA935X/6X/8X PS/N2 series

settingof theTXT1. 8 BITbit andthe error checkingcontrol bits in the page request data and is the same as that applied to the data written into the same memory location in the 625 line format. The rolling time display (the last 8 characters in row 0) is taken from any packets X/1/1, 2 or 3 received. In parallel magazine mode only packets in the correct magazine are used for rolling time. Packet number X/1/0 is ignored. The tabulation bit is also used with extension packets. The first 8 data bytes of packet X/1/24 are used to extend the Fastextprompt row to40 characters.These characters are written into whichever part of the memory the packet 24 is being written into (determined by the ‘X24 Posn’ bit). Packets X/0/27/0 contain 5 Fastext page links and the link control byte and are captured, Hamming checked and stored by in the same way as are packets X/27/0 in 625 line text. Packets X/1/27/0 are not captured. Because there are only 2 magazine bits in 525 line text, packets with the magazine bits all set to 0 are referred to as being in magazine 4. Therefore, the broadcast service data packet is packet 4/30, rather than packet 8/30. As in 625 line text, the first 20 bytes of packet 4/30 contain encoded data which is decoded in the same way as thatin packet 8/30. The last 12 bytes of the packet contains half of the parity encoded status message. Packet 4/0/30 contains the first half of the message and packet 4/1/30 contains the second half. The last 4 bytes of the message are not written into memory. The first 20 bytes of the each version of the packet are the same so they are stored whenever either version of the packet is acquired. In 525 line text each packet 26 only contains ten 24/18 Hamming encoded data triplets, rather than the 13 found in 625 line text. The tabulation bit is used as an extra bit (the MSB) of the designation code, allowing 32 packet 26s to be transmitted for each page. The last byte of each packet 26 is ignored.

FASTEXT DETECTION When a packet 27, designation code 0 is detected, whether or not it is acquired, the TXT13. FASTEXT bit is set. If the device is receiving 525 line teletext, a packet X/0/27/0 is required to set the flag. The flag can be reset by writing a 0 into the SFR bit.

BROADCAST SERVICE DATA DETECTION Whena packet 8/30 is detected,or apacket 4/30 when the device is receiving a 525 line transmission, the TXT13. Packet 8/30. The flag can be reset by writing a 0 into the SFR bit.

VPS ACQUISITION When the TXT0. VPS ON bit is set, any VPS data present on line 16, field 0 of the CVBS signal at the input of the

2001 Jan 18 39

Page 40

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

teletext decoder is error checked and stored in row 25, block 9 of the basic page memory. The device automatically detects whether teletext or VPS is being transmitted on this line and decodes the data appropriately.

column

Teletext page

row 25

header data

Each VPS byte in the memory consists of 4 bi-phase decoded data bits (bits 0-3), a bi-phase error flag (bit 4) andthree 0s (bits5-7). The TXT13. VPS Receivedbit isset by the hardware whenever VPS data is acquired. The flag can be reset by writing a 0 into the SFR bit.

WSS ACQUISITION The Wide Screen Signalling data transmitted on line 23 gives information on the aspect ratio and display position of the transmitted picture, the position of subtitles and on the camera/film mode. Some additional bits are reserved for future use. A total of 14 data bits are transmitted. Allof the available data bits transmitted by the Wide Screen Signalling signal are captured and stored in SFRs WSS1, WSS2 and WSS3. The bits are stored as groups of related bits and an error flag is provided for each group to indicate when a transmission error has been detected in one or more of the bits in the group. Wide screen signalling data is only acquired when the TXT8.WSS ON bit is set. The TXT8.WSS RECEIVED bit is set by the hardware wheneverwide screensignalling datais acquired.The flag can be reset by writing a 0 into the SFR bit.

CLOSED CAPTION ACQUISITION The US Closed Caption data is transmitted on line21 (525 line timings) and is used for Captioning information, Text information and Extended Data Services. Closed Caption data is only acquired when TXT21.CC ON bit is set. Two bytes of dataare stored per field in SFRs, the firstbye is stored in CCDAT1 and the second byte is stored in CCDAT2. The value in the CCDAT registers are reset to 00h at the start of the Closed Caption line defined by CCLIN.CS<4:0>. At the end of the Closed Caption line an interrupt is generated if IE.ECC is active. The processing of the Closed Caption data to convert into a displayable format is performed by Software.

91011 121314 15161718192021 2223

VPS

byte 11

byte 12

byte 13

byte 14

byte 15

byte 4

byte 5

Fig.13 VPS Data Storage

TDA935X/6X/8X PS/N2 series

DISPLAY

The display section is based on the requirements for a Level1.5 WSTTeletext andUS ClosedCaption. Thereare some enhancements for use with locally generated On-Screen Displays. The display section reads the contents of the Display memory and interprets the control/character codes. Using this information and other global settings, the display produces the required RGB signals and Video/Data (Fast Blanking) signal for the TV signal processing. Thedisplay is synchronised to the TV signal processing by way of Horizontal and Vertical sync signals generated within TDA935X/6x/8x. From these signals all display timings are derived.

Display Features

• Teletext and Enhanced OSD modes

• Level 1.5 WST features

• US Closed Caption Features

• Serial and Parallel Display Attributes

• Single/Double/Quadruple Width and Height for

characters

• Scrolling of display region.

• Variable flash rate controlled by software.

• Globally selectable scan lines per row 9/10/13/16.

• Globally selectable character matrix(HxV) 12x9, 12x10,

12x13, 12x16.

• Italics, Underline and Overline.

• Soft Colours using CLUT with 4096 colour palette.

• Fringing (Shadow) selectable from N-S-E-W direction.

• Fringe colour selectable.

• Meshing of defined area.

• Contrast reduction of defined area.

• Cursor.

• Special Graphics characters with two planes, allowing

four colours per character.

• 32 Software re-definable On-Screen Display characters.

• 4 WST Character sets(G0/G2) in single device (e.g.

Latin,Cyrillic,Greek,Arabic).

• G1 Mosaic graphics, Limited G3 Line drawing characters.

• WST Character sets and Closed Caption Character set in single device.

Display Modes

The display section has two distinct modes with different features available in each. The two modes are:

2001 Jan 18 40

Page 41

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

• TXT:This is the display configured as the WST mode with additional serial and global attributes to enable the same functionality as the SAA5497 (ETT) device.The display is configured as a fixed 25 rows with 40 characters per row.

• CC:This is the display configured as the US Closed Caption mode with the same functionality as the PC83C771 device. The display is configured as a maximum of 16 rows with a maximum of 48 characters per row.

In both of the above modes the Character matrix, and TV lines per row can be defined. There is an option of 9, 10, 13 & 16 TV lines per display row, and a Character matrix (HxV) of 12x9, 12x10, 12x13, or 12x16. Not all combinations of TV lines per row and maximum display rows give a sensible OSD display, since there is limited number of TV scan lines available. Special Function Register, TXT21 is used to control the character matrix and lines per row.

TDA935X/6X/8X PS/N2 series

Display Features available in each mode

The following is a list of features available in each mode. Each setting can either be a serial or parallelattribute, and some have a global effect on the display.

Feature TXT CC

Flash serial serial

Boxes Txt/OSD (Serial) serial

Horizontal Size x1/x2/x4 (serial) x1/x2 (serial)

Vertical Size x1/x2 (serial)

x4 (global)

Italic N/A serial

Foreground

colours

Background

colours

8 (serial) 8+8 (parallel)

8 (serial) 16 (serial)

x1/x2 (serial)

Soft Colours

(CLUT)

Underline N/A serial

Overline N/A serial

Fringe N+S+E+W N+S+E+W

Fringe Colour 16 (Global) 16 (Serial)

Meshing of

Background

Fast Blanking

Polarity

Screen Colour 16 (Global) 16 (Global)

DRCS 32 (Global) 32 (Global)

Character Matrix

(HxV)

No. of Rows 25 16

No. of Columns 40 48

No of Characters

displayable

Cursor YES YES

16 from 4096 16 from 4096

Black or Colour

(Global)

YES YES

12x9/10/13/16 12x9/10/13/16

1000 768

All (Global)

2001 Jan 18 41

Special Graphics

(2 planes per

character)

Scroll NO YES

16 16

Table 12 Display Features

Page 42

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

Display Feature Descriptions

FLASH Flashing causes the foreground colour pixel to be displayed as the background pixels.The flash frequency is controlled by software setting and resetting display register REG0: Status at the appropriate interval. CC: This attribute is valid from the time set (see Table 18) until the end of the row or until otherwise modified. TXT: This attribute is set by the control character ‘flash’ (08h) and remains valid until the end of the row or until reset by the control character ‘steady’ (09h).

BOXES CC: This attribute is valid from the time set until endof row or otherwise modified if set with Serial Mode 0. If set with Serial Mode 1, then it is set from the next character onwards. In CC text mode the background colour is displayed regardlessof thesetting ofthe boxattribute bit.Boxes take affect only during mixed mode, where boxes are set in this mode the background colour is displayed. Character locations where boxes are not set show video/screen colour (depending on the setting in the display control register. REG0: Display Control) in stead of the background colour. TXT: Two types of boxes exist the Teletext box and the OSD box. The Teletext box is activated by the ‘start box’ control character (0Bh), Two start box characters are required begin a Teletext box, with box starting between the 2 characters. The box ends at the end of the line or after a ‘end box’ control character. TXTmode canalso use OSD boxes, theyare startedusing size implying OSD control chracters(BCh/BDh/BEh/BFh). The box starts after the control character (‘set after’) and ends either at the end of the row or at the next size implying OSD character (‘set at’). The attributes flash, teletext box, conceal, separate graphics, twist and hold graphics are all reset at the start of an OSD box, as they are at the start of the row. OSD Boxes are only valid in TV mode which is defined by TXT5=03h and TXT6=03h.

TDA935X/6X/8X PS/N2 series

the ‘double width’ or double size (0Eh/BEh/0Fh/BFh) enables double width characters. Any two consecutive combination of ‘double width’ or ‘double size’ (0Eh/BEh/0Fh/Bfh) activates quadruple width characters, provided quadruple width characters are enabled by TXT4.Quad Width Enable. Three vertical sizes are available normal(x1),double(x2),quadruple(x4). The control characters ‘normal size’ (0Ch/BCh) enable normal size, the ‘double height’ or ‘double size’ (0Dh/BDh/0Fh/BFh) enable double height characters. Quadruple height character are achieved by using double height characters and setting the global attributes TXT7.Double Height (expand) and TXT7.Bottom/Top. If double height characters are used in teletext mode, single height characters in the lower row of the double height character are automatically disabled.

ITALIC CC: This attribute is valid from the time set until the end of the row or otherwise modified. The attribute causes the character foreground pixels to be offset horizontally by 1 pixel per 4 scan lines (interlaced mode). The base is the bottom left character matrix pixel. The pattern of the character is indented as shown in Fig.14.

SIZE The size of the characters can be modified in both the horizontal and vertical directions. CC: Two sizes are available in both the horizontal and vertical directions. The sizes available are normal (x1), double (x2) height/width and any combination of these. The attribute setting is always valid for the whole row. Mixing of sizes within a row is not possible. TXT: Three horizontal sizes are available normal(x1),double(x2),quadruple(x4). The control characters ‘normal size’ (0Ch/BCh) enables normal size,

2001 Jan 18 42

Page 43

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

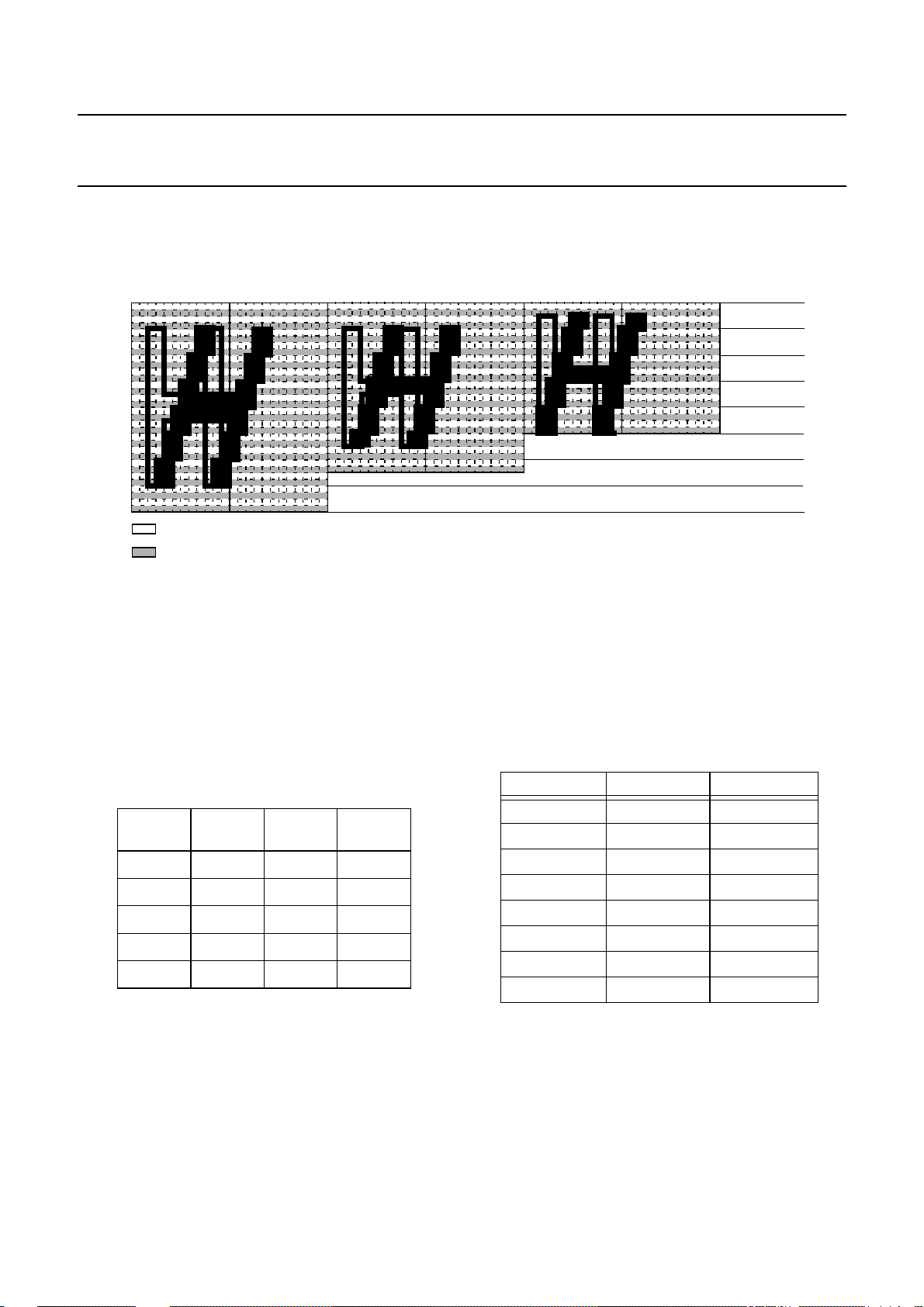

TXT: The Italic attribute is not available.

12x16 character matrix

0 2468 10

0 1 2

4 5 6 7

9 10 11 12 13 14 15

Field 1 Field 2

0 2468 10

12x13 character matrix

0 2468 100 2468 100 2468 100 2468 10

Fig.14 Italic Characters (12x10, 12x13 & 12x16).

TDA935X/6X/8X PS/N2 series

12x10 character matrix

Indented by 7/6/4 Indented by 6/5/3 Indented by 5/4/2 Indented by 4/3/1 Indented by 3/2/0

Indented by 2/1 Indented by 1/0

Indented by 0

COLOURS

CLUT (Colour Look Up Table)

A CLUT (Colour Look Up Table) with 16 colour entries is provided. The colours are programmable out of a palette of 4096(4 bits per R, G and B). The CLUT is defined by writing data to a RAM that resides in the MOVX address space of the 80C51.

RED3-0

b11. . .b4

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1

... ... ... ...

1 1 1 1 1 1 1 1 0 0 0 0 14 1 1 1 1 1 1 1 1 1 1 1 1 15

GRN3-0

b7. . .b4

BLU3-0 b3. . .b0

Colour entry

Table 13 CLUT Colour values

Foreground Colour

CC: The foreground colour can be chosen from 8 colours on a character by character basis. Two sets of 8 colours are provided. A serial attribute switches between the banks (see Table 18 Serial Mode 1, bit 7). The colours are the CLUT entries 0 to 7 or 8 to 15.

TXT: The foreground colour is selected via a control character.The colour control characters takeseffect at the start of the next character (“Set-After”) and remain valid until the end of the row, or until modified by a control character. Only 8 foreground colours are available. The TEXT foreground control characters map to the CLUT entries as shown below:

Control Code Deﬁned Colour CLUT Entry

00h Black 0

01h Red 1

02h Green 2

03h Yellow 3

04h Blue 4

05h Magenta 5

06h Cyan 6

07h White 7

Table 14 Foreground CLUT mapping

Background Colour

CC: This attribute is valid from the time set until endof row or otherwise modified if set with Serial Mode 0. If set with Serial Mode 1, then the colour is set from the next character onwards. The background colour can be chosen from all 16 CLUT entries.

2001 Jan 18 43

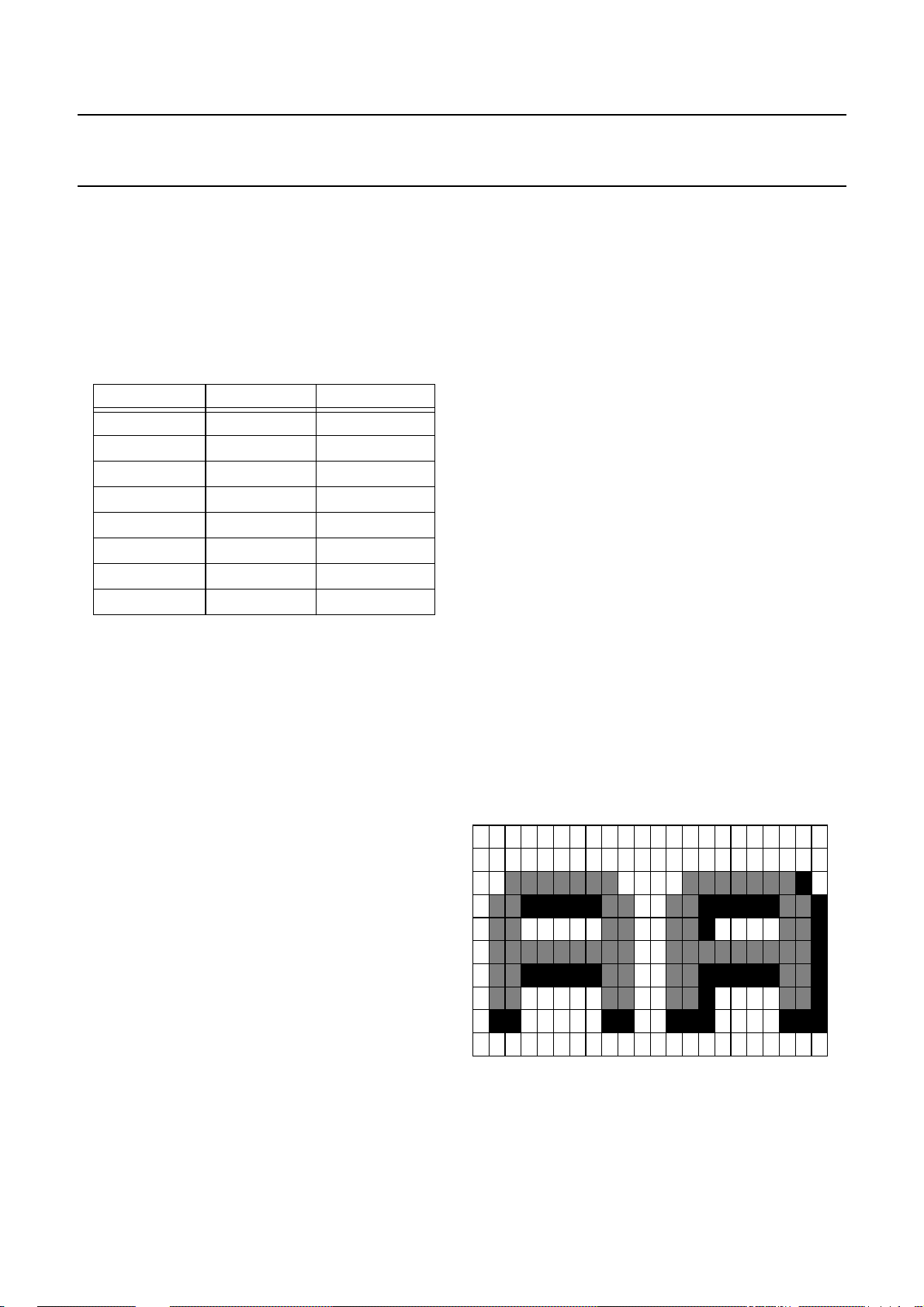

Page 44

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

TXT: The control character “New background” (“1Dh”) is used to change the background colour to the current foreground colour. The selection is immediate (“Set at”) andremains valid until the endof therow or until otherwise modified. The TEXT background control characters map to the CLUT entries as shown below:

Control Code Deﬁned Colour CLUT Entry

00h+1Dh Black 8

01h+1Dh Red 9

02h+1Dh Green 10

03h+1Dh Yellow 11

04h+1Dh Blue 12

05h+1Dh Magenta 13

06h+1Dh Cyan 14

07h+1Dh White 15

Table 15 Background CLUT mapping

BACKGROUND DURATION The attribute when set takes effect from the current position until to the end of the text display defined in REG4:Text Area End. CC: The background duration attribute (see Table 18, Serial Mode 1, bit 8) in combination with the End Of Row attribute (see Table 18, Serial Mode 1, bit 9) forces the background colour to be display on the row untilthe end of the text area is reached. TXT: This attribute is not available.

TDA935X/6X/8X PS/N2 series

CC: The overline attribute (see Table 18, Serial Mode 0/1, bit 5) is valid from the time setuntil end ofrow or otherwise modified. Overlining of Italic characters is not possible. TXT: This attribute is not available.

END OF ROW CC: The number of characters in a row is flexible and can determined by the end of row attribute (see Table 18, Serial Mode 1, bit 9). However the maximum number of character positions displayed is determined by the setting ofthe REG2:Text Position Horizontal andREG4:Text Area End. NOTE: When using the end of row attribute the next character location after the attribute should always be occupied by a ’space’. TXT: This attribute is not available, Row length is fixed at 40 characters.

FRINGING A fringe (shadow) can be defined around characters. The fringe direction is individually selectable in any of the North, South, East and West direction using REG3:Fringing Control. The colour of the fringe can also be defined as one of the entries in the CLUT, again using REG3:Fringing Control. CC: The fringe attribute (see Table 18, Serial Mode 0, bit

9) is valid from the time set until the end of the row or otherwise modified. TXT: The display of fringing in TXT mode is controlled by the TXT4.SHADOW bit. When set all the alphanumeric characters being displayed are shadowed, graphics characters are not shadowed.

UNDERLINE The underline attribute causes the characters to have the bottom scan line of the character cell forced to foreground colour, including spaces. If background duration is set, then underline is set until the end of the text area. CC: The underline attribute (see Table 18, Serial Mode 0/1, bit 4) is valid from the time set until end of row or otherwise modified. TXT: This attribute is not available.

OVERLINE The overline attribute causes the characters to have the top scan line of the character cell forced to foreground colour, including spaces. If background duration is set, then overline is set until the end of the text area.

2001 Jan 18 44

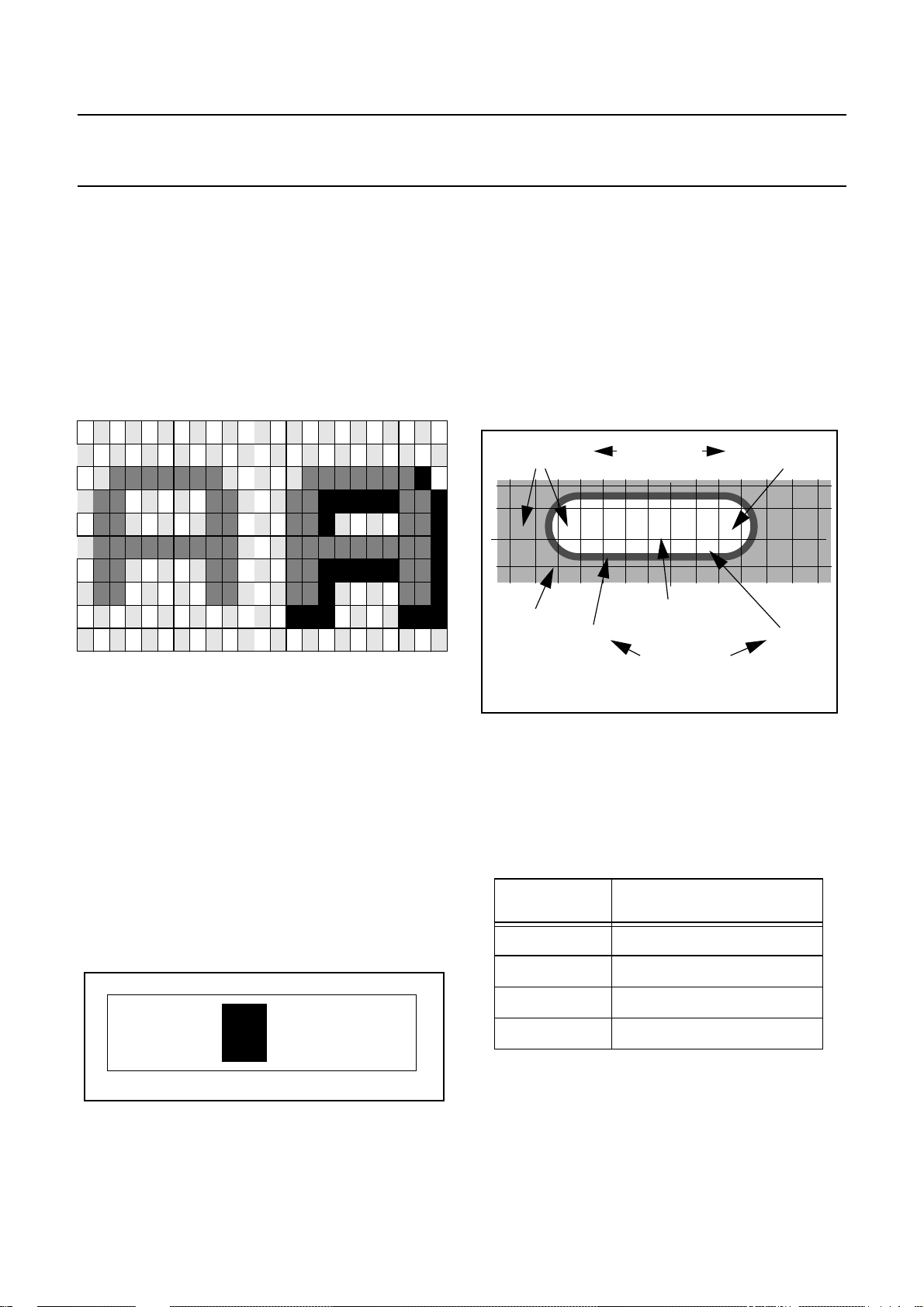

Fig.15 South and Southwest Fringing

MESHING The attribute effects the background colour being displayed. Alternate pixels are displayed as the background colour or video.The structure is offset by 1

Page 45

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

pixel from scan line to scan line,thus achieving a checker board display of the background colour and video. TXT: There are two meshing attributes one that only affects black background colours TXT4.BMESH and a second that only affects backgrounds other than black TXT4.CMESH. A black background is defined as CLUT entry8, anone blackbackground isdefined asCLUT entry 9-15.

CC: The setting of the Mesh bit in REG0:Display Control has the effect of meshing any background colour.

TDA935X/6X/8X PS/N2 series

SPECIAL GRAPHICS CHARACTERS CC/TXT: Several special characters are provided for improved OSD effects. These characters provide a choice of 4 colours within a character cell. The total number of special graphics characters is limited to 16. They are storedin the charactercodes 8Xhand 9Xh ofthe character table (32 ROM characters), or in the DRCs which overlay character codes 8Xh and 9Xh. Each special graphics character uses two consecutive normal characters. Fringing, underline and overline is not possible for special graphics characters. Special graphics characters are activated when TXT21.OSD_PLANE = 1.

Background Colour Serial Attribute “set at” (Mode 0)

Background Colour “set after” (Mode 1)

VOLUME

Fig.16 Meshing and Meshing / Fringing (South+West)

CURSOR The cursor operates by reversing the background and foreground colours in the character position pointed to by the active cursor position. The cursor is enabled using TXT7.CURSOR ON. When active, the row the cursor appears on is defined by TXT9.R<4:0> and the column is defined by TXT10.C<5:0>. The position of the cursor can be fixed using TXT9.CURSOR FREEZE. CC: The valid range for row is 0 to 15. The valid range for column is 0 to 47. The cursor remains rectangular at all times, it’s shape is not affected by italic attribute, therefore it is not advised to use the cursor with italic characters. TXT: The valid range for row positioning is 0 to 24.The valid range for column is 0 to 39.

A B C D E F

Fig.17 Cursor Display

Background Colour

Foreground Colour 7

Fig.18 Special Character Example

Theexample in Fig.18 can be done with8 specialgraphics characters. If the screen colour is transparent (implicit in mixed mode) and inside the object the box attribute is set, then the object is surrounded by video. If the box attribute is notset the background colour inside the object will also be displayed as transparent.

Plane

0 0 Background Colour

0 1 Foreground Colour

1 0 CLUT entry 6

1 1 CLUT entry 7

Table 16 Special Character Colour allocation

Foreground Colour Normal Character

Special Character

Colour Allocation

Foreground Colour 6

2001 Jan 18 45

Page 46

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

Character and Attribute Coding

CC MODE Character coding is split into character oriented attributes (parallel) and character group coding (serial). The serial attributes take effect either at the position of the attribute (Set At), or at the following location (Set After) and remain effective until either modified by a new serial attribute or until the end of the row. A serial attribute is represented as a space (the space character itself however is not used for this purpose), the attributes that are still active, e.g. overline and underline will be visible during the display of the space. The default setting at the start of a row is:

• 1x size, flash and italics OFF

• overline and underline OFF

• Display mode = superimpose

• fringing OFF

• background colour duration = 0

• end of row = 0

The coding is done in 12 bit words. The codes are stored sequentially in the display memory. A maximum of 768 character positions can be defined for a single display.

ARALLEL CHARACTER CODING

Bits Description

0-7 8 bit character code

8-10 3 bits for 8 foreground colours

11 Mode bit:

0 = Parallel code

Table 17 Parallel Character Coding

2001 Jan 18 46

Page 47

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

SERIAL CHARACTER CODING

Bits Description

Serial Mode 0

(“set at”)

0-3 4 bits for 16 Background

colours

4 0 = Underline OFF

1 = Underline ON

5 0 = Overline OFF

1 = Overline ON

6 Display mode:

0 = Superimpose 1 = Boxing

Char.Pos. 1 (“set at”) Char.Pos. >1 (“set after”)

4 bits for 16 Background colours 4 bits for 16 Background colours

Horizontal Size: 0 = normal 1=x2

Vertical Size: 0 = normal 1=x2

Display mode: 0 = Superimpose 1 = Boxing

TDA935X/6X/8X PS/N2 series

Serial Mode 1

0 = Underline OFF 1 = Underline ON

0 = Overline OFF 1 = Overline ON

Display mode: 0 = Superimpose 1 = Boxing

7 0 = Flash OFF

1 = Flash ON

Foreground colour switch 0 = Bank 0 (colours 0-7) 1 = Bank 1 (colours 8-15)

8 0 = Italics OFF

1 = Italics ON

Background colour duration: 0 = stop BGC 1 = set BGC to end of row

9 0 = Fringing OFF

1 = Fringing ON

End of Row 0 = Continue Row 1 = End Row

10 Switch for Serial coding

mode 0 and 1: 0 = mode 0

11 Mode bit:

1 = Serial code

Table 18 Serial Character Coding

TXT MODE Character coding is in a serial format, with only one attributes being changed at any single location. The serial attributes take effect either at the position of the attribute

Switch for Serial coding mode 0 and 1:

1 = mode 1 Mode bit:

1 = Serial code

Foreground colour switch 0 = Bank 0 (colours 0-7) 1 = Bank 1 (colours 8-15)

Background colour duration (set at): 0 = stop BGC 1 = set BGC to end of row

End of Row (set at): 0 = Continue Row 1 = End Row

Switch for Serial coding mode 0 and 1:

1 = mode 1 Mode bit:

1 = Serial code

(Set At), or at the following location (Set After). The attribute remainseffective until either modified by new serial attributes or until the end of the row.The default settings at the start of a row is:

• foreground colour white (CLUT Address 7)

• background colour black (CLUT Address 8)

2001 Jan 18 47

Page 48

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

• Horizontal size x1, Vertical size x1 (normal size)

• Alphanumeric ON

• Contiguous Mosaic Graphics

• Release Mosaics

• Flash, Box, Conceal and Twist OFF

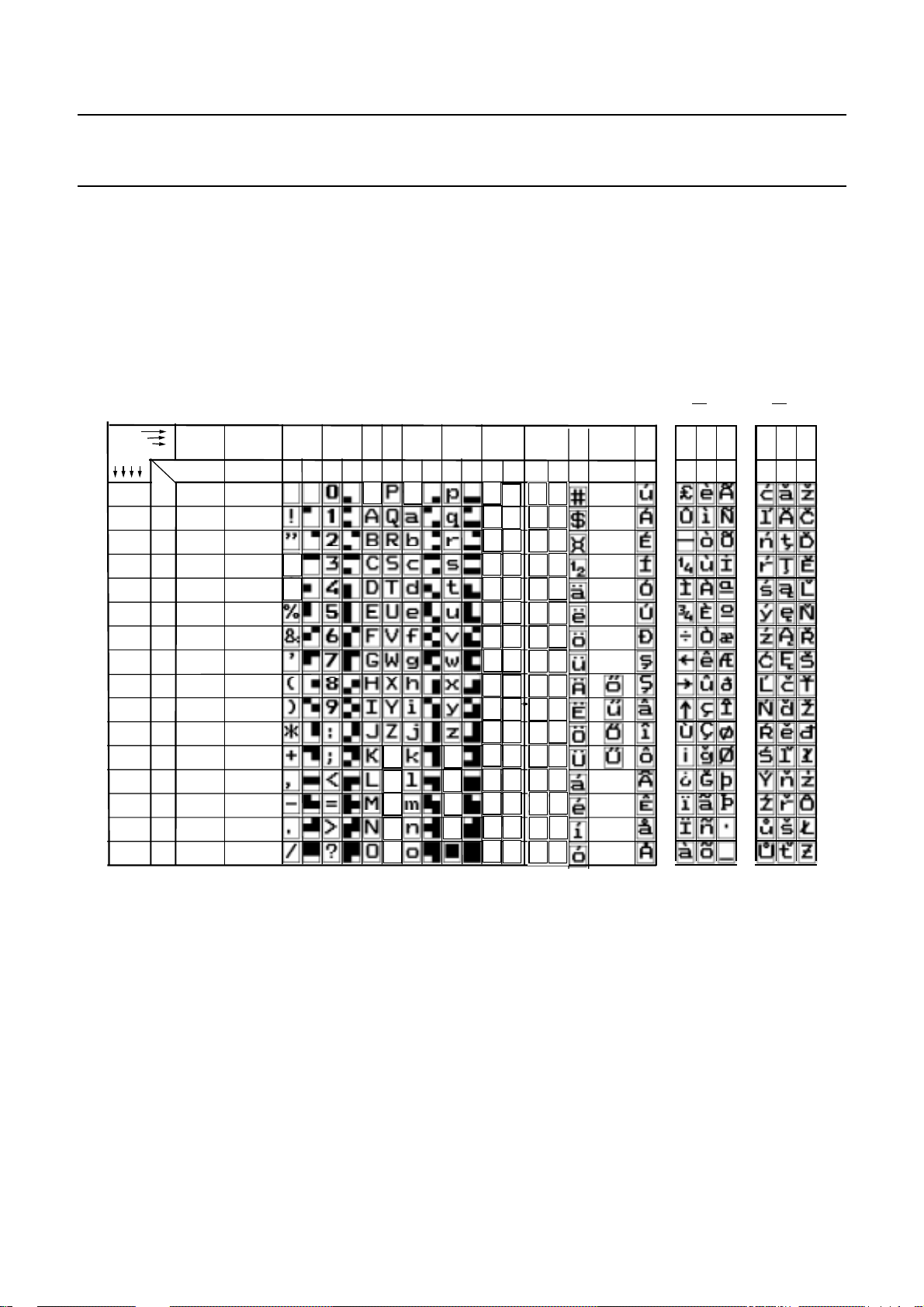

The attributes have individual codes which are defined in the basic character table below:

bits

b3b2b1b0

0 0 0 0 0 0 0 1 0 0 1 0 0 0 1 1 0 1 0 0 0 1 0 1 0 1 1 0 0 1 1 1 1 0 0 0 1 0 0 1 1 0 1 0 1 0 1 1 1 1 0 0 1 1 0 1 1 1 1 0 1 1 1 1

column

row

0 1 2 3 4 5 6 7 8 9 A B C D E F

alpha black

alpha red

alpha green

alpha yellow

alpha blue

alpha magenta

alpha cyan

alpha white

ﬂash steady

end box

start box

normal height

double height

double width

double size

0 123456 7a88a

graphics black

graphics red

graphics green

graphics yellow

graphics blue

graphics magenta

graphics cyan

graphics white

conceal display

contiguous graphics

separated graphics

twist

black bkgnd

new bkgnd

hold graphics

release graphics

2a 3a 6a 7

Nat Opt

bkgnd black

bkgnd red

bkgnd green

bkgnd yellow

bkgnd blue

bkgnd magenta

bkgnd cyan

bkgnd white

norm sz OSD

dbl ht OSD

dbl wd OSD

dbl sz OSD

E/W = 0 E/W = 1

DEF

Fig.19 TXT Basic Character Set (Pan-European)

2001 Jan 18 48

Page 49

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

Screen and Global Controls

A number of attributes are available that affect the whole display region, and cannot be applied selectively to regions of the display.

TV SCAN LINES PER ROW The number of TV scan lines per field used for each displayrow can be defined, the value isindependent ofthe character size being used. The number of lines can be either 10/13/16 per display row. The number of TV scan lines per row is defined TXT21.DISP_LINES<1:0>. A value of 9 lines per row can be achieved if the display is forced into 525 line display mode by TXT17.DISP_FORCE<1:0>, or if the device is in 10 line mode and the automatic detection circuitry within display finds 525 line display syncs.

CHARACTER MATRIX (HXV) Thereare four differentcharacter matrices available,these are12x10, 12x13, and 12x16. Theselection is made using TXT21.CHAR_SIZE<1:0> and is independent of the number of display lines per row. If the character matrix is less than the number of TV scan lines per row then the matrix is padded with blank lines. If the character matrix is greater than the number of TV scan lines then the character is truncated.

TDA935X/6X/8X PS/N2 series

DISPLAY MODES CC: When attributes superimpose or when boxing (see Table18, SerialMode 0/1, bit6) isset, the resultingdisplay depends on the setting of the following screen control mode bits in REG0:Display Control.

Display Mode MOD10Description

Video 0 0 Video mode disables all display

Full Text 0 1 Full Text mode displays screen

Mixed Screen Colour

Mixed Video 1 1 Mixed Video mode displays video at

1 0 Mixed Screen mode displays screen

Table 19 Display Modes TXT:The displaymode is controlledby thebits in theTXT5

and TXT6. There are 3 control functions - Text on, Background on and Picture on. Separate sets of bits are used inside and outside Teletext boxes so that different display modes can be invoked. TXT6 is used if the newsflash (C5) or subtitle (C6) bits in row 25 of the basic page memory are set otherwise TXT5 is used. This allows the software to set up the type of display required on newsflash and subtitle pages (e.g. text inside boxes, TV picture outside) this will be invoked without any further software intervention when such a page is acquired.

activities and sets the RGB to true black and VDS to video.

colour at all locations not coveredby character foreground or background colour. The box attribute has no effect.

colour at all locations not coveredby character foreground, within boxed areas or, background colour.

all locations not covered by character foreground, within boxed areas or, background colour.

2001 Jan 18 49

Picture On Text On

0 0 x Text mode, black screen

0 1 0 Text mode, background always black

0 1 1 Text mode

1 0 x Video mode

1 1 0 Mixed text and TV mode

1 1 1 Text mode, TV picture outside text area

Background

Effect

Table 20 TXT Display Control Bits

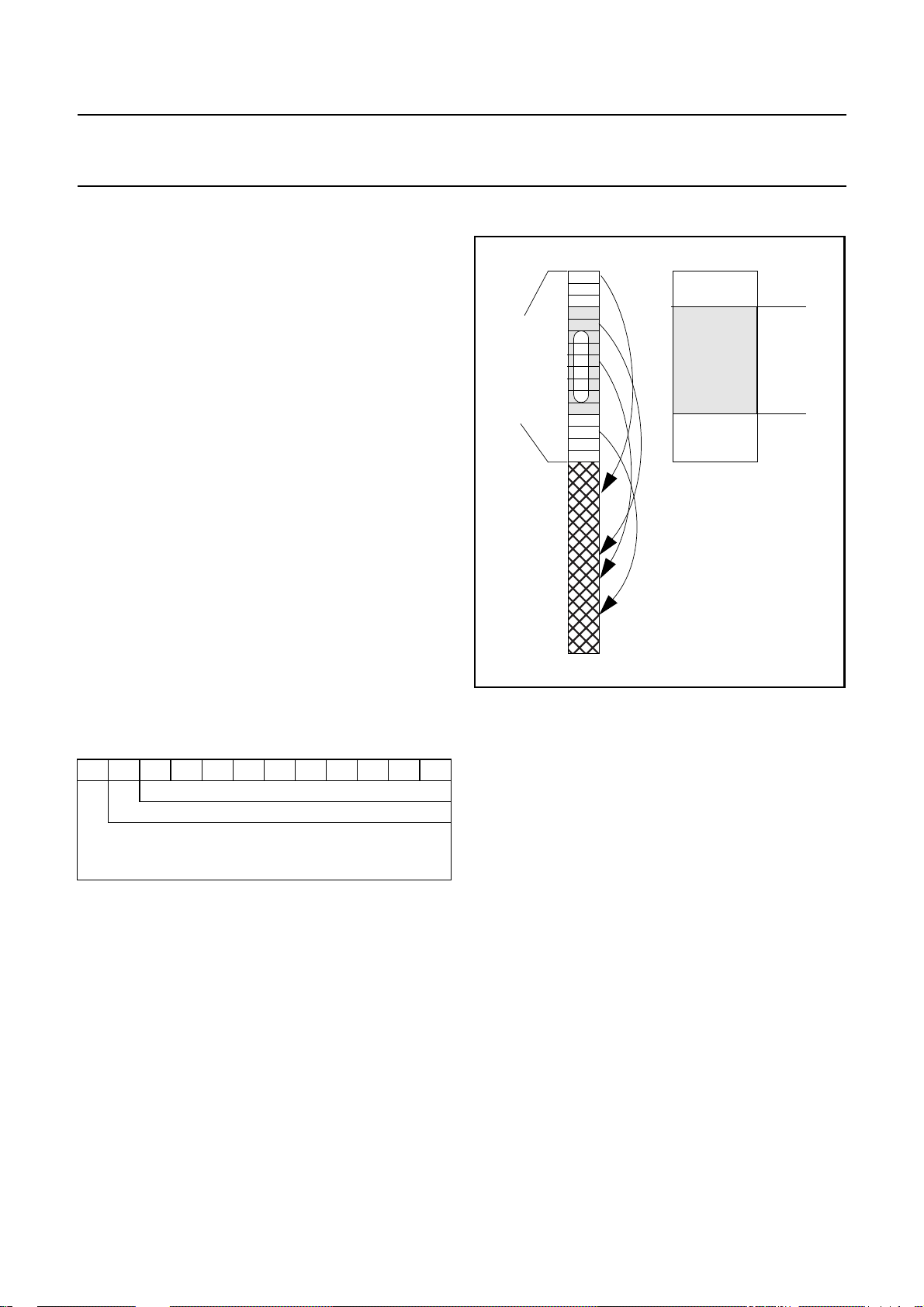

Page 50

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

Screen Colour Screen colour is displayed from 10.5 ms to 62.5 ms after the active edge of the HSync input and on TV lines 23 to 310 inclusive, for a 625 line display, and lines 17 to 260 inclusive for a 525 line display. Thescreen colouris definedby REG0:DisplayControl and points to a location in the CLUT table. The screen colour covers the full video width. It is visible when the Full Text or Mixed Screen Colour mode is set and no foreground or background pixels are being displayed.

Text Display Controls

TEXT DISPLAY CONFIGURATION Two types of area are possible. The one area is static and the other is dynamic. The dynamic area allows scrolling of a region to take place. The areas cannot crosseach other. Only one scroll region is possible.

Display Map

The display map allows a flexible allocation of data in the memory to individual rows. Sixteen words are provided in the display memory for this purpose. The lower 10 bits address the first word in the memory where the row data starts. This value is an offset in terms of 16-bit words from the start of Display Memory (8000 Hex). The most significant bit enables the display when not within the scroll (dynamic) area. The display map memory is fixed at the first 16 words in the closed caption display memory.

b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

Pointer to Row Data

Reserved, should be set to 0

Text Display Enable, valid outside Soft Scroll Area 0 = Disable 1 = Enable

Table 21 Display map Bit Allocation

TDA935X/6X/8X PS/N2 series

Display Memory Text Area

1 2

3 4 5 6

7 8 9

Enable bit = 0

Display Map Entries

12 13 14 15

Display Data

Display possible

Soft Scrolling display possible

Display possible

Fig.20 Display Map and Data Pointers

SOFT SCROLL ACTION The dynamic scroll region is defined by the REG5:Scroll Area, REG6:Scroll Range, REG14:Top Scroll line and the REG8:Status Register. The scroll area is enabled when the SCON bit is set in REG8: Status. The position of the soft scroll area window isdefined using the Soft Scroll Position (SSP<3:0), and the height of the window is defined usingthe Soft ScrollHeight (SSH<3:0>) both are in REG6:Scroll Range. The rows that arescrolled through the window are defined using the Start Scroll Row (STS<3:0>) and the Stop Scroll Row (SPS<3:0>) both are in REG5:Scroll Area. The soft scrolling function is done by modifying the Scroll Line (SCL<3:0>) in REG14: Top Scroll Line. and the first scroll row value SCR<3:0> in REG8:Status. If the number of rows allocated to the scroll counter is larger than the defined visible scroll area, this allows parts of rows at the top and bottom to be displayed during the scroll function. The registers can be written throughout the field and the values are updated for display with the next field sync. Care should be taken that the register pairs are written to by the software in the same field. Only a region that contains only single height rows or only double height rows can be scrolled.

ROW

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

2001 Jan 18 50

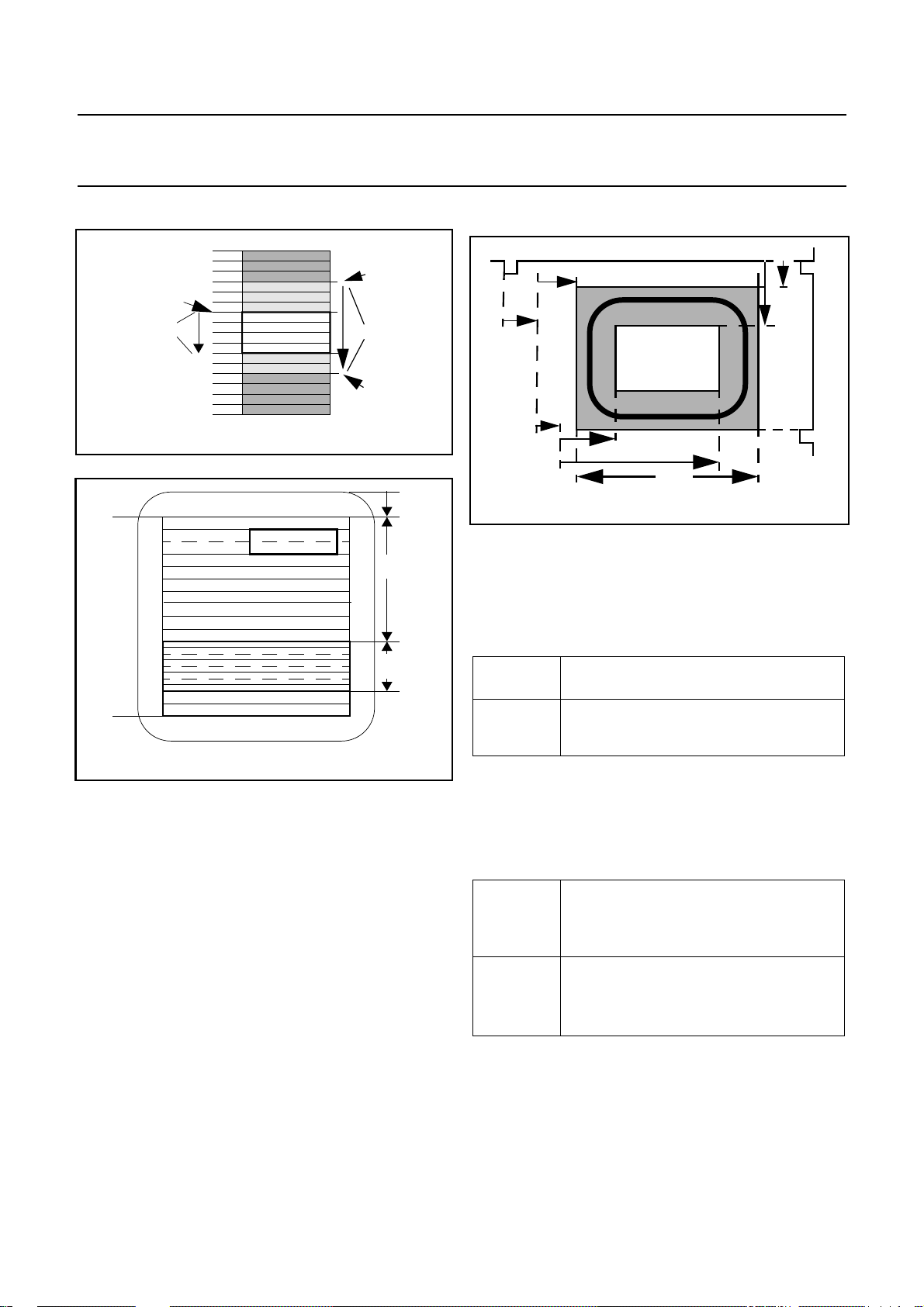

Page 51

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

ROW

Soft Scroll Position Pointer SSP<3:0> e.g. 6

Soft Scroll Height

SSH<3:0> e.g.4

ROW

1 2 3 4 5 6 7 8 9

11 12 13 14 15

Usable for OSD Display

1 2

Should not be used for

OSD Display

4 5 6 7 8 9

Should not be used for

OSD Display

11 12

Usable for OSD Display

14 15

Fig.21 Soft Scroll Area

row0

row1

row2 row3 row4

row5

row6 row7 row8

Closed Captioning data row n

Closed Captioning data row n+1

Closed Captioning data row n+2

Closed Captioning data row n+3

Closed Captioning data row n+4

row13 row14

P01 NBC

Start Scroll Row STS<3:0> e.g. 3

Soft Scrolling Area

Stop Scroll Row SPS<3:0> e.g. 11

0-63 lines

Scroll Area Offset

Visible area for scrolling

H-Sync delay

0.25 char. offset

SCREEN COLOUR DISPLAY AREA This area is covered by the screen colour. The screen colour display area starts with a fixed offset of 8 us from the leading edge of the horizontal sync pulse in the horizontal direction. A vertical offset is not necessary.

TDA935X/6X/8X PS/N2 series

Horizontal Sync.

Screen Colour Offset = 8µs

Screen Colour Area

Text Area

Text Area Start

Text Area End

56µs

Fig.23 Display Area Positioning

Horizontal starts 8 us after the leading edge of H-Sync for 56

Vertical line 9, ﬁeld 1 (321, ﬁeld 2) with respect to leading

us.

edge of vertical sync (line numbering using 625 Standard).

6 Lines Offset

Text Vertical Offset

Vertical

Sync.

Fig.22 CC Text Areas

Display Positioning

The display consists of the Screen Colour covering the whole screen and the Text Area that is placed within the visible screen area. The screen colour extends over a large vertical and horizontal range so that no offset is needed.The text areais offset in both directionsrelative to the vertical and horizontal sync pulses.

2001 Jan 18 51

Table 22 Screen Colour Display Area

TEXT DISPLAY AREA The text area can be defined to start with an offset in both the horizontal and vertical direction.

Horizontal Up to 48 full sized characters per row.

Start position setting from 3 to 64 characters from the leading edge of H-Sync. Fine adjustment in quarter characters.

Vertical 256 lines (nominal 41- 297).

Start position setting from leading edge of vertical sync legal values are 4 to 64 lines.

(line numbering using 625 Standard)

Table 23 Text Display Area

The horizontal offset is set in REG2: Text Area Start. The offset is done in full width characters using TAS<5:0> and quarter characters using HOP<1:0> for fine setting. The

Page 52

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

values 00h to 03h for TAS<5:0> will result in a corrupted display. The width of the text area is defined in REG4:Text Area End by setting the end character value TAE<5:0>. This number determines where the background colour of the Text Area will end if set to extend to the end of the row. It will also terminate the character fetch process thus eliminating the necessity of a row end attribute. This entails however writing to all positions. The vertical offset is set in REG1:Text Position Vertical Register. The offset value VOL<5:0> is done in number of TV scan lines. NOTE: REG1:Text Position Vertical Register should not be set to 00 Hex as the Display Busy interrupt is not generated in these circumstances.

Character Set

To facilitate the global nature of the device the character set has the ability to accommodate a large number of characters, which can be stored in different matrices.

CHARACTER MATRICES The character matrices that can be accommodated are: (HxVxPlanes) 12x9x1, 12x10x1, 12x13x1, 12x16x1. These modes allow two colours per character position. In CC mode two additional character matrices are available to allow four colours per character: (HxVxPlanes) 12x13x2, 12x16x2. The characters are stored physically in ROM in a matrix of size either 12x10 or 12x16.

TDA935X/6X/8X PS/N2 series

ROM ADDRESSING Three ROM’s are used to generate the correct pixel information. The first contains the National Option look-up table, the second contains the Basic Character look-up table and the third contains the Character Pixel information. Although these are individual ROM, since they do not need to be accessed simultaneously they are all combined into a single ROM unit.

2400H

CHAR PIXEL DATA

71680 x 12 bits

Approx. 710 Text

430Text +176CC

0800H

LOOK-UP Basic + Nat Opt

2048 location

0000H

Fig.24 ROM Organisation

Look-Up Set3

Look-Up Set2

Look-Up Set1

Look-Up Set 0

0800

0600

0400

0200

0000

CHARACTER SET SELECTION Four character sets are available in the device. A set can consist of alphanumeric characters as required by the WST Teletext or FCC Closed Captioning, Customer definable On-Screen Display characters, and Special Graphic characters. CC:- Only a single character set can be used for display and this is selected using the Basic Set selection TXT18.BS<1:0>. When selecting a character set in CC mode the Twist Set selection TXT18.TS<1:0> should be set to the same value as TXT18.BS<1:0> for correct operation. TXT:-Two character sets can be displayed at once.These are the basic G0 set or the alternative G0 set (Twist Set). The basic set is selected using TXT18.BS<1:0>, The alternative/twist character set is defined by TXT19.TS<1:0>. Since the alternative character set is an option it can be enabled or disabled using TXT19.TEN, and the language code that is defined for the alternative set is defined by TXT19.TC<2:0>.

2001 Jan 18 52

Page 53

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

CHARACTER TABLE The character table is shown in Table 24:-

Character code columns (Bits 4-7)

0123456789ABCDEF 0 ® SP 0 @ P ú p 1˚!1AQaq 2 1/2 " 2 B R b r 3 ¿#3CScs 4™$4DTdt 5 ¢%5EUe u 6£&6FVfv 7´7GWgw 8à(8HXhx 9_)9IYiy

Aèá:JZjz Bâ+;K[kç

Character code rows (Bits 0-3)

Cê,<Lél Dî-=M]mÑ Eô.>Nínñ F û / ?Oóon

Table 24 Closed Caption Character Table

TDA935X/6X/8X PS/N2 series

Special Characters are in column 8.

Additional table locations for normal characters

Table locations for normal characters

Re-deﬁnable Characters

A number of Dynamically Re-definable Characters (DRC) are available. These are mapped onto the normal character codes, and replace the pre-defined OTP character Rom value. There are 32 DRCs which occupy character codes 80H to 9FH. Alternatively, These locations can be utilized as 16 special graphics characters. The remapping of the standard OSD to the DRCs is activated when the TXT21.DRCS ENABLE bit is set. The selection of Normal or Special OSD symbols is defined by the TXT21.OSD PLANES. Each character is stored in a matrix of 16x16x1 (V x H x planes), this allows for all possible character matrices to be defined within a single location.

2001 Jan 18 53

Page 54

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

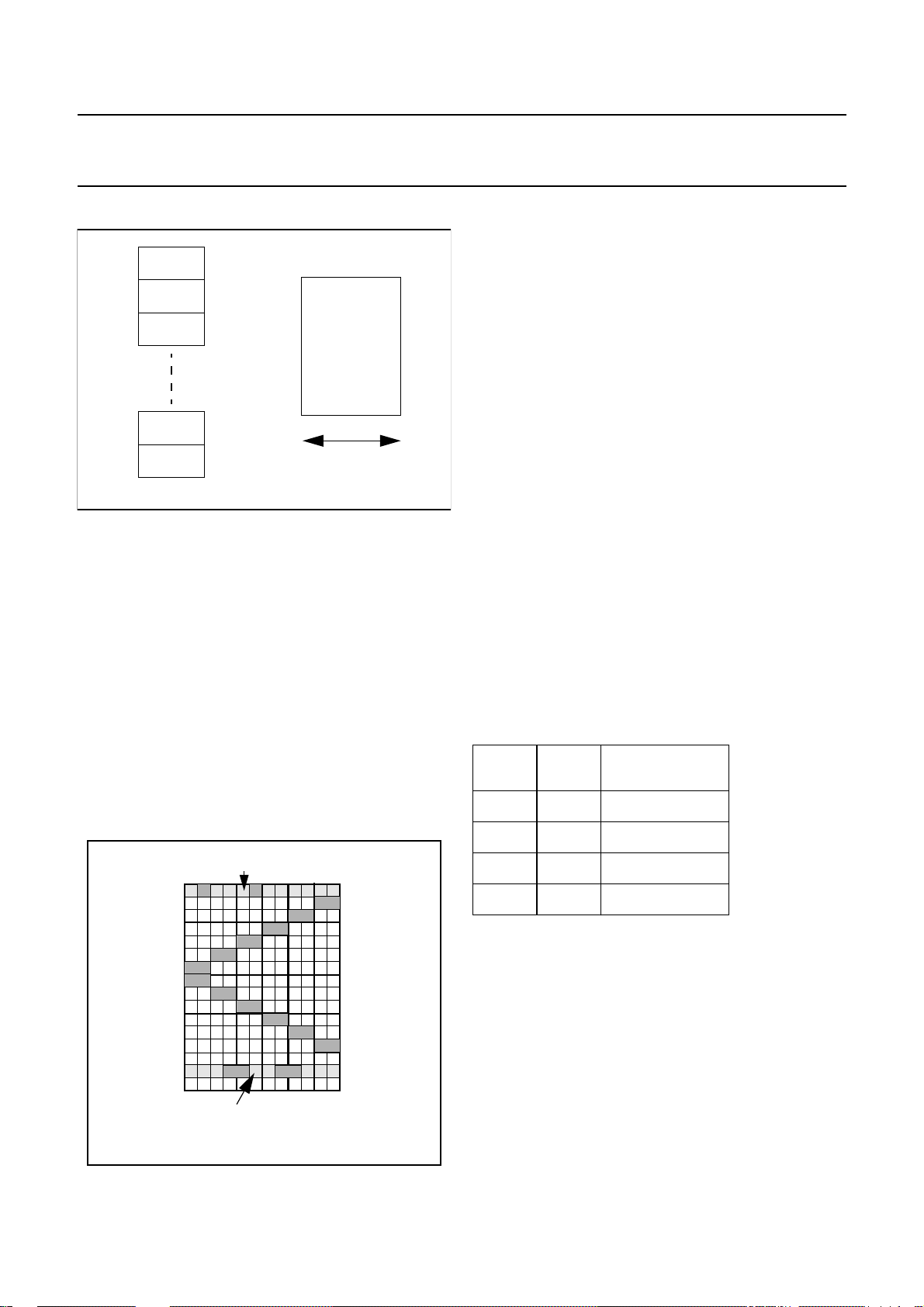

Micro Address

8800

881F 8820

883F 8840

885F

8BC0

8BDF 8BE0

8BFF

CHAR 0

CHAR 1

CHAR 2

CHAR 30

CHAR 31

Fig.25 Organisation of DRC RAM

DEFINING CHARACTERS The DRC RAM is mapped on to the 80C51 RAM address space and starts at location 8800H. The character matrix is 12 bits wide and therefore requires two bytes to be written for each word, the first byte (even addresses), addresses the lower 8 bits and the second byte (odd addresses) addresses the upper 4 bits. For characters of 9, 10 or 16 lines high the pixel information starts in the first address and continues sequentially for the required number of addresses. Characters of 13 lines high are defined with an initial offset of 1 address, this is to allow for correct generation of fringing across boundaries of clustered characters (see Fig.26). The characters continue sequentially for 13 lines after which a further line can again be used for generation of correct fringing across boundaries of clustered characters.

Line

Hex

No.

440

003

00C

030

0C0

300

C00

300

C00

030

00C

003

000

1A8

000

Char Code

80h

81h

82h

9Eh

9Fh

Top Left

Line 13 from

Pixel

character above

MSB LSB

Line 1 from character below

Bottom Right

CHAR 0

12 bits

Fringing

Top Line

Bottom Line Fringing

Line not used

Pixel

Address

00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F

TDA935X/6X/8X PS/N2 series

DRCs are defined by writing data to the DRC RAM using the 80C51 MOVX command. Setting bits 3 to 9 of the first line of a 12 wide by 16 line character would require setting the high byte of the 80C51 data pointer to 88H, the low byte of the 80C51 data pointer to 00H, using the MOVX command to load address 8800H with data F8H, incrementing the data pointer, and finally using the MOVX command to load address 8801H with data 03H.

Display Synchronization

The horizontal and vertical synchronizing signals from the TV deflection are used as inputs. Both signals can be inverted before being delivered to the Phase Selector section. CC: The polarity is controlled using either VPOL or HPOL in REG2:Text position Vertical. TXT: SFRs bits TXT1.HPOL & TXT1.VPOL control the polarity. A line locked 12 MHz clock is derived fromthe 12MHz free running oscillator by the Phase Selector. This line locked clock is used to clock the whole of the Display block. The H & V Sync signals are synchronized with the 12 MHz clock before being used in the display section.

Video/Data Switch (Fast Blanking) Polarity

The polarity of the Video/Data (Fast Blanking) signal can be inverted. The polarity is set with the VDSPOL in REG7: RGB Brightness register.

VDSP

0 1 RGB display

0 0 Video Display

1 0 RGB display

1 1 Video Display

Table 25 Fast Blanking Signal Polarity

Video/Data Switch Adjustment

To take into account the delay between the RGB values and the VDS signal due to external buffering, the VDS signal can be moved in relation to the RGB signals. The VDS signal can be set to be either a clock cycle before or after the RGB signal, or coincident with the RGB signal. This is done using VDEL<2:0> in REG15:Configuration.

VDS Condition

Fig.26 13 Line High DRC’s Character Format

2001 Jan 18 54

Page 55

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

RGB Brightness Control

A brightness control is provided to allow the RGB upper output voltage level to be modified. The RGB amplitude may be varied between 60% and 100%. The brightness is set in the RGB Brightness register as follows: -

BRI3-0 RGB Brightness

0000 Lowest value

... ...

1111 Highest value

Table 26 RGB Brightness

Contrast Reduction

TXT: The COR bits in SFRs TXT5 & TXT6 control when the COR output of the device is activated (i.e. Pulled-low).

TDA935X/6X/8X PS/N2 series

This output is intendedto act on the TV’sdisplay circuits to reduce contrast of the video when it is active. The result of contrast reduction is to improve the readability of the text in a mixed teletext and video display. The bits in the TXT5 & TXT6 SFRs allow the display tobe set up so that, for example, the areas insideteletext boxes will be contrast reduced when a subtitle is being displayed but that the rest of the screen will be displayed as normal video. CC: This feature is not available in CC mode.

Memory Mapped Registers

The memory mapped registers are used to control the display. The registers are mapped into the Microcontroller MOVX address space, starting at address 87F0h and extending to 87FF.

MMR MAP

ADD R/W Names BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

87F0

R/W Display Control SRC<3> SRC<2> SRC<1> SRC<0> - MSH MOD<1> MOD<0>

87F1

R/W Text Position

Vertical

87F2

R/W Text Area Start HOP<1> HOP<0> TAS<5> TAS<4> TAS<3> TAS<2> TAS<1> TAS<0>

87F3

R/W Fringing Control FRC<3> FRC<2> FRC<1> FRC<0> FRDN FRDE FRDS FRDW

87F4

R/W Text Area End - - TAE<5> TAE<4> TAE<3> TAE<2> TAE<1> TAE<0>

87F5

R/W Scroll Area SSH<3> SSH<2> SSH<1> SSH<0> SSP<3> SSP<2> SSP<1> SSP<0>

87F6

R/W Scroll Range SPS<3> SPS<2> SPS<1> SPS<0> STS<3> STS<2> STS<1> STS<0>

87F7

87F8

87FC

87FD

87FE

87FF

RGB Bright.ness

R/W

Status read

Status write

H-Sync. Delay

R/W

V-Sync. Delay

R/W

Top Scroll Line ----SCL<3> SCL<2> SCL<1> SCL<0>

R/W

Conﬁguration

R/W

VPOL HPOL VOL<5> VOL<4> VOL<3> VOL<2> VOL<1> VOL<0>

VDSPOL - - - BRI<3> BRI<2> BRI<1> BRI<0>

BUSY FIELD SCON FLR SCR<3> SCR<2> SCR<1> SCR<0>

- - SCON FLR SCR<3> SCR<2> SCR<1> SCR<0>

- HSD<6> HSD<5> HSD<4> HSD<3> HSD<3> HSD<1> HSD<0>

- VSD<6> VSD<5> VSD<4> VSD<3> VSD<2> VSD<1> VSD<0>

CC VDEL<2> VDEL<1> VDEL<0> TXT/V - - -

Table 27 MMR Memory Map

2001 Jan 18 55

Page 56

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

MMR BIT DEFINITION

Names ADD BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 RESET

Display Control.

SRC<3:0> Screen Colour deﬁnition

MOD<1:0> 00 - Video

Text Position Vertical

VPOL 0 - Input polarity

HPOL 0 - Input Polarity

87F0 SRC<3> SRC<2> SRC<1> SRC<0> - MSH MOD<1> MOD<0> 00H

MSH 0 - No meshing of background

1 - Meshing all background colours

01 - Full Text 10 - Mixed Screen Colour 11 - Mixed Video

87F1 VPOL HPOL VOL<5> VOL<4> VOL<3> VOL<2> VOL<1> VOL<0> 00H

1 - Inverted input polarity

VOL<5:0> Display start Vertical Offset from V-Sync. (lines)

Text Area Start

HOP<1:0> Fine Horizontal Offset in quarter of characters

TAS<5:0> Text area start

Fringing Control.

FRC<3:0> Fringing colour, value address of CLUT

FRDN 0 - No fringe in North direction

FRDE 0 - No fringe in East direction

FRDS 0 - No fringe in South direction

FRDW 0 - No fringe in West direction

Text Area End

TAE<5:0> Text Area End, in full characters

Scroll Area

SSH<3:0> Soft Scroll Height

87F2 HOP<1> HOP<0> TAS<5> TAS<4> TAS<3> TAS<2> TAS<1> TAS<0> 00H

87F3 FRC<3> FRC<2> FRC<1> FRC<0> FRDN FRDE FRDS FRDW 00H

1 - Fringe in North direction

1 - Fringe in East direction

1 - Fringe in South direction

1 - Fringe in West direction

87F4 - - TAE<5> TAE<4> TAE<3> TAE<2> TAE<1> TAE<0> 00H

87F5 SSH<3> SSH<2> SSH<1> SSH<0> SSP<3> SSP<2> SSP<1> SSP<0> 00H

SSP<3:0> Soft Scroll Position

Scroll Range

SPS<3:0> Stop Scroll row

STS<3:0> Start Scroll row

RGB Brightness

87F6 SPS<3> SPS<2> SPS<1> SPS<0> STS<3> STS<2> STS<1> STS<0> 00H

87F7 VDSPOL - - - BRI<3> BRI<2> BRI<1> BRI<0> 00H

2001 Jan 18 56

Page 57

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

VDSPOL VDS Polarity

0 - RGB (1), Video (0) 1 - RGB (0), Video (1)

BRI<3:0> RGB Brightness control

Status read

BUSY 0 - Access to display memory will not cause display problems

FIELD 0 - Odd Field

SCR<3:0> First scroll row

Status write

SCON 0 - Scroll area disabled

87F8 BUSY FIELD SCON FLR SCR<3> SCR<2> SCR<1> SCR<0> 00H

1 - Access to display memory could cause display problems.

1 - Even Field

FLR 0 - Active ﬂash region foreground and background displayed

1 - Active ﬂash region background only displayed

87F8 - - SCON FLR SCR<3> SCR<2> SCR<1> SCR<0> 00H

1 - Scroll area enabled

FLR 0 - Active ﬂash region foreground and background colour displayed

1 - Active ﬂash region background colour only displayed

TDA935X/6X/8X PS/N2 series

SCR<3:0> First Scroll Row

H-Sync. delay

HSD<6:0> H-Sync delay, in full size characters

V-Sync Delay

VSD<6:0> V-Sync delay in number of TV lines

Top Scroll Line 87FE - - - - SCL<3> SCL<2> SCL<1> SCL<0>

SCL<3:0> Top line for scroll

Conﬁguration

VDEL<2:0> Pixel delay between VDS and RGB output

TXT/V BUSY Signal switch

87FC - HSD<6> HSD<5> HSD<4> HSD<3> HSD<3> HSD<1> HSD<0> 00H

87FD - VSD<6> VSD<5> VSD<4> VSD<3> VSD<2> VSD<1> VSD<0> 00H

87FF CC VDEL<2> VDEL<1> VDEL<0> TXT/V - - - 00H

CC 0 - OSD mode

1 - Closed Caption mode

000 - VDS switched to video, not active 001 - VDS active one pixel earlier then RGB 010 - VDS synchronous to RGB 100 - VDS active one pixel after RGB

1 - Horizontal 0 - Vertical

Table 28 MMR Descriptions

00H

2001 Jan 18 57

Page 58

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

OTP MEMORY

These may be programmed either using the Parallel Programming Interface or via the ISP Programming Interface.

Parallel Programming

The following pins form the parallel programming interface:-

Pin Name Function

P0.5 IO(0) Bit 0:- Address/Data/Mode

P0.6 IO(1) Bit 1:- Address/Data/Mode

P1.0 IO(2) Bit 2:- Address/Data/Mode

P1.1 IO(3) Bit 3:- Address/Data/Mode

P1.2 IO(4) Bit 4:- Address/Data/Mode

P1.3 IO(5) Bit 5:- Address/Data/Mode

TDA935X/6X/8X PS/N2 series

security bits are one-timeprogrammable and CANNOTbe erased.

P3.1 IO(6) Bit 6:- Address/Data/Mode

P3.2 IO(7) Bit 7:- Address/Data/Mode

P2.0 OEB Output Enable

0 = IO is output 1 = IO is input

P3.0 WEB Write Enable, programming pulse

P1.6 MODE 0 = IO(7:0) deﬁned by A/DB

P1.7 A/DB 0 = IO(7:0) contains Data

P3.3 Unused

VPE VPE 9V Programming Voltage

RESET RESET Device reset/ mode selection

XTALIN CLK Clock 4 MHz

>100us 0 = Program

1 = IO(7:0) contains mode information

1 = IO(7:0) contains Address Information

Table 29 Parallel Programming Interface

ISecurity Bits

The family of devices have a set of security bits for the combined OTP Program ROM, Character ROM and Packet 26 ROM. The security bits are used to prevent the ROM from being overwritten once programmed, and also the contents being verified once programmed. The

2001 Jan 18 58

Page 59

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

The memory and security bits are structured as follows:-

MEMORY SECURITY BITS INTERACTION

PROGRAM

ROM

CHARACTER

ROM

PACKET 26

ROM

USER ROM

(i.e. 128k x 8 bits)

TEST ROM RESERVED (1k x 8 bits)

USER ROM

(9k x 12 bits)

TEST ROM RESERVED

(0.5k x 12 bits)

USER ROM (4k x 8 bits)

= Yes No Yes

= No Yes Yes

= Yes No Yes

= No Yes Yes

= Yes No Yes

USER ROM Programming

(Enable/Disable)

USER ROM Programming

(Enable/Disable)

USER ROM Programming

(Enable/Disable)

TDA935X/6X/8X PS/N2 series

TEST ROM Programming

(Enable/Disable)

TEST ROM Programming

(Enable/Disable)

TEST ROM Programming

(Enable/Disable)

Verify

(Enable/Disable)

Verify

(Enable/Disable)

Verify

(Enable/Disable)

Table 30 Security bit structure The security bits are set as follows for production programmed devices (i.e. programmed by Philips):-

MEMORY SECURITY BITS SET

USER ROM Programming

(Enable/Disable)

PROGRAM ROM = DISABLED DISABLED ENABLED

CHARACTER ROM = DISABLED DISABLED ENABLED

PACKET 26 ROM = DISABLED DISABLED ENABLED

TEST ROM Programming

(Enable/Disable)

Verify

(Enable/Disable)

Table 31 Security bits for production devices

The security bits are set as follows for production un-programmed (blank) devices:-

MEMORY SECURITY BITS SET

USER ROM Programming

(Enable/Disable)

PROGRAM ROM = ENABLED DISABLED ENABLED

CHARACTER ROM = ENABLED DISABLED ENABLED

PACKET 26 ROM = ENABLED DISABLED ENABLED

TEST ROM Programming

(Enable/Disable)

Verify

(Enable/Disable)

Table 32 Security bits for Blank devices

2001 Jan 18 59

Page 60

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

TDA935X/6X/8X PS/N2 series

2001 Jan 18 60

Page 61

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

FUNCTIONAL DESCRIPTION OF VIDEO PROCESSOR Vision IF ampliﬁer

The vision IF amplifier can demodulate signals with positive and negative modulation.The PLL demodulatoris completely alignment-free.

The VCO of the PLL circuit is internal and the frequency is fixed to the required value by using the clock frequency of the µ-Controller/Teletext decoder as a reference. The setting of the various frequencies (38, 38.9, 45.75 and

58.75 MHz) can be made via the control bits IFA-IFC in subaddress 27H. Because of the internal VCO the IF circuit has a high immunity to EMC interferences.

QSS Sound circuit

The sound IF amplifier is similar to the vision IF amplifier and has an external AGC decoupling capacitor.

The single reference QSS mixer is realised by a multiplier. In this multiplier the SIF signal is converted to the intercarrier frequency by mixing it with the regenerated picture carrier from the VCO. The mixer output signal is supplied to the output via a high-pass filter for attenuation of the residual video signals. With this system a high performance hi-fi stereo sound processing can be achieved.

The AM sound demodulator is realised by a multiplier. The modulated sound IF signal is multiplied in phase with the limited SIF signal. The demodulator output signal is supplied to the output via a low-pass filter for attenuation of the carrier harmonics. The AM signal is supplied to the output (AUDOUT/AMOUT) via the volume control.

TDA935X/6X/8X PS/N2 series

FM demodulator

The FM demodulator is realised as narrow-band PLL with external loop filter, which provides the necessary selectivity without using an external band-pass filter. To obtain a good selectivity a linear phase detector and a constant input signal amplitude are required. For this reason the intercarrier signal is internally supplied to the demodulator via a gain controlled amplifier and AGC circuit. To improve the selectivity an internal bandpass filter is connected in front of the PLL circuit.

The nominal frequency of the demodulator is tuned to the required frequency (4.5/5.5/6.0/6.5 MHz) by means of a calibration circuit which uses the clock frequency of the µ-Controller/Teletext decoder as a reference. The setting tothe wantedfrequency is realised by meansof thecontrol bits FMA/FMB in the control bit 29H.

From the output status bytes it can be read whether the PLLfrequency isinside or outsidethe windowand whether the PLL is in lock or not. With this information it is possible to make an automatic search system for the incoming sound frequency. This can be realised by means of a software loop which switches the demodulator to the various frequencies and then select the frequency on which a lock condition has been found.

Thedeemphasis outputsignal amplitudeis independentof the TV standard and has the same value for a frequency deviation of ±25 kHz at the 4.5 MHz standard and for a deviation of ±50 Khz for the other standards.

Switchingbetween theQSS outputand AMoutput is made by means of the AM bit in subaddress 29H (see also Table 1).

2001 Jan 18 61

Page 62

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

Audio circuit and input signal selection

The audio control circuit contains an audio switch with 1 external input and a volume control circuit. The selection of the various inputs is made by means of the ADX bit. In various versions the Automatic Volume Levelling (AVL) function can be activated. The pin to which the external capacitor has to be connected depends on the IC version. For the 90° types the capacitor is connected to the EW output pin. For the 110° types a choice must be made between the AVL function and a sub-carrier output for comb filter applications. This choice is made via the CBM0/1 bits (in subaddress 22H). When the AVL is active it automatically stabilises the audio output signal to a certain level.

Itis possibleto usethe deemphasispin asadditional audio input. In that case the internal signal must, of course, be switched off. This can be realised by means of the sound mute bit (SM in subaddress 29H). When the IF circuit is switched to positive modulation the internal signal on the deemphasis pin is automatically muted.

TDA935X/6X/8X PS/N2 series

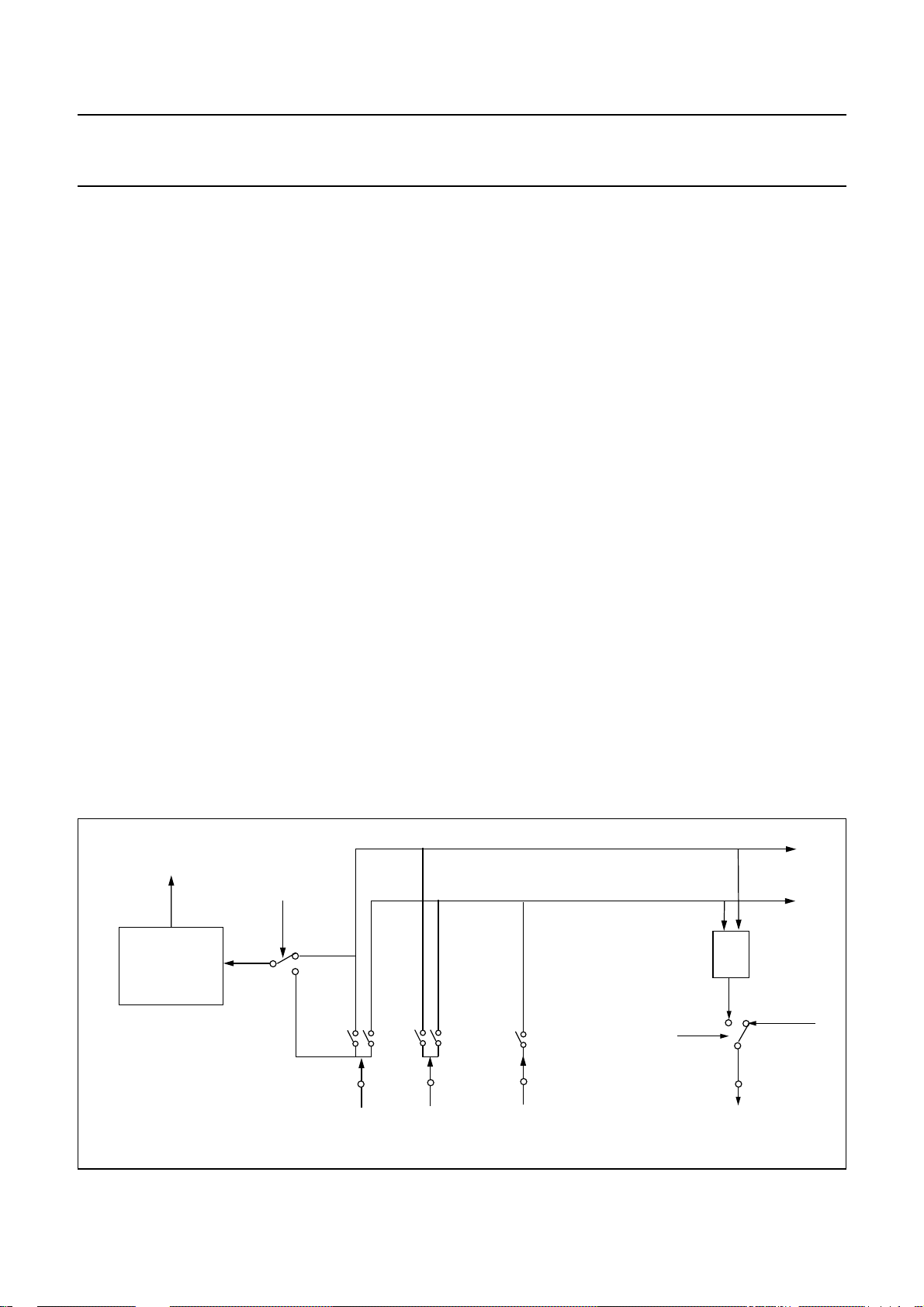

CVBS and Y/C input signal selection

Thecircuit has 2 inputs for external CVBS signals and one input can also be used as one Y/C input (see Fig. 27).

It is possible to supply the selected CVBS signal to the demodulated IF video output pin. This mode is selected by means of the SVO bit in subaddress 22H. The vision IF amplifier is switched off in this mode.

The video ident circuit can be connected to the incoming ‘internal’ video signal or to the selected signal. This ident circuit is independent of the synchronisation and can be used to switch the time-constant of the horizontal PLL depending on the presence of a video signal (via the VID bit). In this way a very stable OSD can be realised.

The subcarrier output is combined with a 3-level output switch (0 V, 2.3 V and 4.5 V). The output level and the availability of the subcarrier signal is controlled by the CMB1 and CMB0 bits. The output can be used to switch sound traps etc. It is also possible to use this pin for the connection of the AVL capacitor or as AM output.

IDENT

VIM

VIDEO IDENT

CVBS1

CVBS2/Y

Fig.27 CVBS switch and interfacing of video ident

2001 Jan 18 62

TO LUMA/SYNC PROCESSING

TO CHROMA PROCESSING

(+)

IFVO

SVO

IFVO/SVO

Page 63

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

Synchronisation circuit

The IC contains separator circuits for the horizontal and vertical sync pulses and a data-slicing circuit which extracts the digital teletext data from the analog signal.

The horizontal drive signal is obtained from an internal VCO which is running at a frequency of 25 MHz. This oscillator is stabilised to this frequency by using a 12 MHz signal coming from the reference oscillator of the µ-Controller.

The horizontal drive is switched on and off via the soft start/stop procedure. This function is realised by means of variation of the TON of the horizontal drive pulses. In addition the horizontal drive circuit has a ‘low-power start-up’ function.

The vertical synchronisation is realised by means of a divider circuit. The vertical ramp generator needs an external resistor and capacitor. For the vertical drive a differentialoutput currentis available. The outputs mustbe DC coupled to the vertical output stage.

TDA935X/6X/8X PS/N2 series

Chroma, luminance and feature processing

The chroma band-pass and trap circuits (including the SECAM cloche filter) are realised by means of gyrators and are tuned to the right frequency by comparing the tuning frequency with the reference frequency of the colour decoder. The luminance delay line and the delay cells for the peaking circuit are also realised with gyrators.

The circuit contains the following picture improvement features:

• Peaking control circuit. The ratio of the positive and negative overshoots of the peaking can be adjusted by means of the bits RPO1/RPO0 in subaddress 2EH.

• Black stretch. This function corrects the black level for incoming signals which have a difference between the black level and the blanking level.

In the types which are intended for 90° picture tubes the following geometry parameters can be adjusted:

• Horizontal shift

• Vertical amplitude

• Vertical slope

• S-correction

• Vertical shift

The types which are intended to be used in combination with 110° picture tubes have an East-West control circuit in stead of the AVL function. The additional controls for these types are:

• EW width

• EW parabola width

• EW upper and lower corner parabola correction

• EW trapezium correction

• Vertical zoom

• horizontal parallelogram and bow correction.

When the vertical amplitude is compressed (zoom factor <1) it is still possible to display the black current measuring lines in the overscan. This function is activated by means of the bit OSVE in subaddress 26H.

2001 Jan 18 63

Page 64

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

Colour decoder

The ICs can decode PAL, SECAM and NTSC signals. The PAL/NTSC decoder does not need external reference crystals but has an internal clock generator which is stabilised to the required frequency by using the 12 MHz clock signal from the reference oscillator of the µ-Controller.

Underbad-signal conditions(e.g. VCR-playback in feature mode), it may occur that the colour killer is activated although the colour PLL is still in lock. When this killing action is not wanted it is possible to overrule the colour killerby forcing thecolour decoder tothe required standard and to activate the FCO-bit (Forced Colour On) in subaddress 21H.

The Automatic Colour Limiting (ACL) circuit (switchable via the ACL bit in subaddress 20H) prevents that oversaturationoccurs whenPAL/NTSC signalswith ahigh chroma-to-burst ratio are received. The ACL circuit is designed such that it only reduces the chroma signal and notthe burst signal. This has the advantagethat thecolour sensitivity is not affected by this function.

The SECAM decoder contains an auto-calibrating PLL demodulator which has two references, viz: the divided 12 MHz reference frequency (obtained from the µ-Controller) which is used to tune the PLL to the desired free-running frequency and the bandgapreference to obtainthe correct absolute value of the output signal. The VCO of the PLL is calibrated during each vertical blanking period, when the IC is in search or SECAM mode.

The base-band delay line (TDA 4665 function) is integrated. This delay line is also active during NTSC to obtain a good suppression of cross colour effects. The demodulated colour difference signals are internally supplied to the delay line.

RGB output circuit and black-current stabilization

In the RGB control circuit the signal is controlled on contrast, brightness and saturation. The ICs have a linear input for external RGB/YUV signals. Switching between RGB and the YUV mode can be realised via the YUV bit in subaddress 2BH. The signals for OSD and text are internally supplied to the control circuit. The output signal has an amplitude of about 2 V black-to-white at nominal input signals and nominal settings of the various controls.

TDA935X/6X/8X PS/N2 series

is realised by means of the OPC bit in subaddress 2BH. When used as one-point control loop the system will control the black level of the RGB output signals to the ‘low’ reference current and not on the cut off point of the cathode. In this way spreads in the picture tube characteristics will no take into account. A further consequence is that the RGB output signals have a fixed amplitude (2 V ‘cathode drive level’ bits (CL3-CL0) have no effect on these amplitudes. For this reason the gain of the RGB output stages has to be adapted to the required drive level of the cathodes.

A black level off-set can be made with respect to the level which is generated by the black current stabilization system. In this way different colour temperatures can be obtained for the bright and the dark part of the picture. In the Vg2 adjustment mode (AVG = 1) the black current stabilization system checks the output level of the 3 channels and indicates whether the black level of the highestoutput is ina certain window (WBC-bit) orbelow or above this window (HBC-bit). This indication can be read from the status byte 01 and can be used for automatic adjustment of the V TV receiver. During this test the vertical scan remains active so that the indication of the 2 bits can be made visible on the TV screen.

The control circuit contains a beam current limiting circuit and a peak white limiting circuit. To prevent that the peak white limiting circuit reacts on the high frequency content ofthe videosignal alow-pass filteris insertedin frontof the peak detector.

During switch-off of the TV receiver a fixed beam current is generated by the black current control circuit. This current ensures that the picture tube capacitance is discharged. During the switch-off period the vertical deflection can be placed in an overscan position so that the discharge is not visible on the screen.

Awide blanking pulsecan be activated in theRGB outputs by means of the HBL bit in subaddress 2BH. The timing of this blanking can be adjusted by means of the bits WBF/R bits in subaddress 03H.

under nominal conditions) and that the

P-P

voltage during the production of the

To obtain an accurate biasing of the picture tube the ‘Continuous Cathode Calibration’ (CCC) system has been included in these ICs. When required the operation of the CCC system can be changed into a one-point black current system. The switching between the 2 possibilities

2001 Jan 18 64

Page 65

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

SOFTWARE CONTROL

The CPU communicates with the peripheral functions using Special function Registers (SFRs) which are addressed as RAM locations. The registers for the Teletext decoder appear as normal SFRs in the µ-Controller memory map and are written to these functions by using a serial bus. This bus is controlled by dedicated hardware which uses a simple handshake system for software synchronisation.

For compatibility reasons and possible re-use of software blocks, the I2C-bus control for the TV processor is organisedas in the stand-alone TVsignal processors. The TV processor registers cannot be read, so when the contentof theseregisters is needed in thesoftware, acopy should be stored in Auxiliary RAM or Non Volatile RAM. The slave address of the TV signal processor is given in Fig.28.

TDA935X/6X/8X PS/N2 series

handbook, halfpage

Valid subaddresses: 05H to 2EH, subaddress FE and FF are reserved for test purposes. Auto-increment mode available for subaddresses.

A6 A5 A4 A3 A2 A1 A0

10001011/0

R/W

MLA743

Fig.28 Slave address (8A)

2001 Jan 18 65

Page 66

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

DESCRIPTION OF THE I2C-BUS SUBADDRESSES Table 33 Inputs TV-processor

DATA BYTE POR

(1)

(3)

SM0 0 FMB FMA 00

(2)

0000

HCO

(1)

SUBADDR

(HEX)

D7 D6 D5 D4 D3 D2 D1 D0 Value

06 0 0 A5 A4 A3 A2 A1 A0 20 07 0 0 A5 A4 A3 A2 A1 A0 20

FUNCTION

Off-set IF demodulator 05 0 0 A5 A4 A3 A2 A1 A0 20 Horizontal parallelogram Horizontal bow

(1)

Hue 08 0 0 A5 A4 A3 A2 A1 A0 00 Horizontal shift (HS) 09 0 0 A5 A4 A3 A2 A1 A0 20 EW width (EW) EW parabola/width (PW) EW upper corner parabola EW lower corner parabola EW trapezium (TC)

(1)

0A 0 0 A5 A4 A3 A2 A1 A0 20

0B 0 0 A5 A4 A3 A2 A1 A0 20 0C 0 0 A5 A4 A3 A2 A1 A0 20 0D 0 0 A5 A4 A3 A2 A1 A0 20

0E 0 0 A5 A4 A3 A2 A1 A0 20

Vertical slope (VS) 0F 0 0 A5 A4 A3 A2 A1 A0 20 Vertical amplitude (VA) 10 0 0 A5 A4 A3 A2 A1 A0 20 S-correction (SC) 11 0 0 A5 A4 A3 A2 A1 A0 20 Vertical shift (VSH) 12 0 0 A5 A4 A3 A2 A1 A0 20 Vertical zoom (VX)

(1)

13 0 0 A5 A4 A3 A2 A1 A0 20

Black level offset R 14 0 0 A5 A4 A3 A2 A1 A0 20 Black level offset G 15 0 0 A5 A4 A3 A2 A1 A0 20 White point R 16 0 0 A5 A4 A3 A2 A1 A0 20 White point G 17 0 0 A5 A4 A3 A2 A1 A0 20 White point B 18 0 0 A5 A4 A3 A2 A1 A0 20 Peaking 19 PF1 PF0 A5 A4 A3 A2 A1 A0 20 Luminance delay time 1A 0 0 0 0 YD3 YD2 YD1 YD0 00 Brightness 1B 0 0 A5 A4 A3 A2 A1 A0 20 Saturation 1C 0 0 A5 A4 A3 A2 A1 A0 20 Contrast 1D 0 0 A5 A4 A3 A2 A1 A0 20 AGC take-over 1E 0 0 A5 A4 A3 A2 A1 A0 20 Volume control 1F 0 0 A5 A4 A3 A2 A1 A0 20 Colour decoder 0 20 CM3 CM2 CM1 CM0 MAT MUS ACL CB 00 Colour decoder 1 21 0 0 0 0 0 0 BPS FCO 00 AV-switch 0 22 0 SVO CMB1 CMB0 INA INB 0 00 AV-switch 1 23 0 0 0 0 0 0 0 RGBL 00 Synchronisation 0 24 0 HP2 FOA FOB POC STB VIM VID 00 Synchronisation 1 25 0 0 FSL OSO FORF FORS DL NCIN 00 Deﬂection 26 0 AFN DFL XDT SBL AVG EVG Vision IF 0 27 IFA IFB IFC VSW MOD AFW IFS STM 00 Vision IF 1 28 SIF 0 0 IFLH 0 AGC1 AGC0 FFI 00 Sound 0 29 AGN SM1 FMWS AM Control 0 2A 0 IE2 RBL AKB CL3 CL2 CL1 CL0 00 Control 1 2B 0 IVG 0 0 0 YUV 0 HBL Sound 1 2C 0 0 ADX 0 0 AVL Features 0 2D 0 0 0 0 0 0 0 BKS 00 Features 1 2E 0 0 RPO1 RPO0 000000

Note

1. These functions are only available in versions which have the East-West drive output.

2. The AVL function is only available in versions which have no East-West output or when the subcarrier output is used for the connection of the AVL capacitor (via the bits CMB1 and CMB0 in subaddress 22H).

3. Only available in types with QSS sound IF circuit and AM demodulator.

2001 Jan 18 66

Page 67

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

Table 34 Outputs TV-processor

FUNCTION SUBADDR

Output status bytes 00 POR IFI LOCK SL CD3 CD2 CD1 CD0

01 XPR NDF FSI IVW WBC HBC BCF IN2 02 SUP X X QSS AFA AFB FMW FML 03 ID7 ID6 ID5 ID4 ID3 ID2 ID1 ID0 04SN1SN0XXXXXX

Explanation input control data TV-processor

Table 35 Off-set IF demodulator

DAC SETTING CONTROL

0 negative correction

20 no correction

3F positive correction

D7 D6 D5 D4 D3 D2 D1 D0

Table 39 Horizontal shift

DAC SETTING CONTROL

Table 40 EW width

DATA BYTE

0 −2 µs 20 0 3F +2 µs

Table 36 Horizontal parallelogram

DAC SETTING CONTROL

0 screen top 0.5 µs delayed and screen

bottom 0.5 µs advanced with respect to centre

20 no correction

3F screen top 0.5 µs advanced and

screen bottom 0.5 µs delayed with respect to centre

Table 37 Horizontal bow

DAC SETTING CONTROL

0 screen topand bottom 0.5 µs delayed

with respect to centre

20 no correction

3F screen top and bottom 0.5 µs

advanced with respect to centre

Table 38 Hue control

DAC SETTING CONTROL

0 −45°

20 0°

3F +45°

DAC SETTING CONTROL

0 output current 700 µA 3F output current 0 µA

Table 41 EW parabola/width

DAC SETTING CONTROL

0 output current 0 µA 3F output current 440 µA at top and

bottom of screen

Table 42 EW upper/lower corner parabola

DAC SETTING CONTROL

0 output current +76 µA 11 output current 0 µA 3F output current −207 µA

Table 43 EW trapezium

DAC SETTING CONTROL

0 output current at top of screen 100 µA

lower that at bottom 20 no correction 3F output current at top of screen 100 µA

higher than at bottom

2001 Jan 18 67

Page 68

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

Table 44 Vertical slope

DAC SETTING CONTROL

0 correction −20% 20 no correction 3F correction +20%

Table 45 Vertical amplitude

DAC SETTING CONTROL

0 amplitude 80% 20 amplitude 100%

3F amplitude 120%

Table 46 S-correction

DAC SETTING CONTROL

0 correction −10%

0E no correction

3F correction 25%

Table 47 Vertical shift

TDA935X/6X/8X PS/N2 series

Table 51 Peaking centre frequency

PF1 PF0 CENTRE FREQUENCY

0 0 2.7 MHz 0 1 3.1 MHz 1 0 3.5 MHz 1 1 spare

Table 52 Peaking control (overshoot in direction ‘black’)

DAC SETTING CONTROL

0 depeaking (overshoot −22%) 10 no peaking 3F overshoot 80%

Table 53 Y-delay adjustment; note 1

YD0 to YD3 Y-DELAY

YD3 YD3 × 160 ns + YD2 YD2 × 80 ns + YD1 YD1 × 80 ns + YD0 YD0 × 40 ns

DAC SETTING CONTROL

0 shift −5%

20 no correction

3F shift +5%

Table 48 Vertical zoom

DAC SETTING CONTROL

0 amplitude 75%

20 amplitude 100%

3F amplitude 138%

Table 49 Black level off-set R/G

DAC SETTING CONTROL

0 off-set of −160 mV

20 no off-set

3F off-set of +160 mV

Table 50 White point R/G/B

DAC SETTING CONTROL

0 gain −3 dB

20 no correction

3F gain +3 dB

Note

1. For an equal delay of the luminance and chrominance signal the delay must be set at a value of 160 ns. This is only valid for a CVBS signal without group delay distortions.

Table 54 Brightness control

DAC SETTING CONTROL

0 correction −0.7V 20 no correction 3F correction +0.7V

Table 55 Saturation control

DAC SETTING CONTROL

0 colour off (−52 dB) 17 saturation nominal 3F saturation +300%

Table 56 Contrast control

DAC SETTING CONTROL

0 RGB amplitude −14 dB 20 RGB amplitude nominal 3F RGB amplitude +6 dB

2001 Jan 18 68

Page 69

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

Table 57 AGC take-over

DAC SETTING CONTROL

0 tuner take-over at IF input signal of

0.4 mV

3F tuner take-overat IF input signal of 80

Table 58 Volume control

DAC SETTING CONTROL

0 attenuation 80 dB

3F no attenuation

Table 59 Colour decoder mode, note 1

CM3 CM2 CM1 CM0 DECODER MODE FREQ

0 0 0 0 PAL/NTSC/SECAM A 0 0 0 1 PAL/SECAM A 0010PAL A 0 0 1 1 NTSC A 0 1 0 0 SECAM 0 1 0 1 PAL/NTSC B 0110PAL B 0 1 1 1 NTSC B 1 0 0 0 PAL/NTSC/SECAM ABCD 1 0 0 1 PAL/NTSC C 1010PAL C 1 0 1 1 NTSC C 1 1 0 0 PAL/NTSC

(Tri-Norma) 1 1 0 1 PAL/NTSC D 1110PAL D 1 1 1 1 NTSC D

Note

1. The decoder frequencies for the various standards are obtained from an internal clock generator which is synchronised by a 12 MHz reference signal which is obtained from the µ-Controller clock generator.

These frequencies are: a) A: 4.433619 MHz b) B: 3.582056 MHz (PAL-N) c) C: 3.575611 MHz (PAL-M) d) D: 3.579545 MHz (NTSC-M)

BCD

TDA935X/6X/8X PS/N2 series

Table 60 PAL-SECAM/NTSC matrix

MAT MATRIX POSITION

0 adapted to standard 1 PAL matrix

Table 61 NTSC matrix

MUS MATRIX POSITION

0 Japanese matrix 1 USA matrix

Table 62 Automatic colour limiting

ACL COLOUR LIMITING

0 not active 1 active

Table 63 Chroma bandpass centre frequency

CB CENTRE FREQUENCY

0F 1 1.1 × F

Table 64 Bypass of chroma base-band delay line

BPS DELAY LINE MODE

0 active 1 bypassed

Table 65 Forced Colour-On

FCO CONDITION

Table 66 Selected video out

SVO CONDITION

Table 67 Condition AVL/SNDIF/REFO

CMB1 CMB0 CONDITION

0 0 AVL/SNDIF active (depends on SIF bit) 0 1 output voltage 2.3 V + subcarrier; 1 0 output voltage low (<0.8 V) 1 1 output voltage high (>4.5V)

0 off 1on

0 IF video available at output 1 selected CVBS available at output

2001 Jan 18 69

Page 70

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

Table 68 Source select

INA INB INC SELECTED SIGNALS

0 0 0 CVBS1 0 1 0 CVBS2 100Y/C

Table 69 Blanking of RGB outputs

RGBL CONDITION

0 normal operation 1 RGB outputs blanked continuously

Table 70 Synchronization of OSD/TEXT display

HP2 µ-CONTROLLER COUPLED TO

0 ϕ1 loop 1 ϕ2 loop

Table 71 Phase 1 (ϕ

FOA FOB MODE

0 0 normal 0 1 slow 1 0 slow/fast 1 1 fast

Table 72 Synchronization mode

POC MODE

0 active 1 not active

Table 73 Stand-by

STB MODE

0 stand-by 1 normal

Table 74 Video ident mode

VIM MODE

0 ident coupled to internal CVBS (pin 40) 1 ident coupled to selected CVBS

) time constant

TDA935X/6X/8X PS/N2 series

Table 76 Forced slicing level for vertical sync

FSL SLICING LEVEL

0 slicing level dependent on noise detector 1 ﬁxed slicing level of 60%

Table 77 Switch-off in vertical overscan

OSO MODE

0 Switch-off undeﬁned 1 Switch-off in vertical overscan

Table 78 Forced ﬁeld frequency

FORF FORS FIELD FREQUENCY

0 0 auto (60 Hz when line not in sync) 0 1 60 Hz 1 0 keep last detected ﬁeld frequency 1 1 auto (50 Hz when line not in sync)

Table 79 Interlace

DL STATUS

0 interlace 1 de-interlace

Table 80 Vertical divider mode

NCIN VERTICAL DIVIDER MODE

0 normal operation 1 switched to search window

Table 81 AFC switch

AFN MODE

0 normal operation 1 AFC not active

Table 82 Disable ﬂash protection

DFL MODE

0 ﬂash protection active 1 ﬂash protection disabled

Table 75 Video ident mode

VID VIDEO IDENT MODE

0 ϕ1 loop switched on and off 1 not active

2001 Jan 18 70

Page 71

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

Table 83 X-ray detection

XDT MODE

0 protection mode, when a too high EHT is

detected the receiver is switched to stand-by and the XPR-bit is set to 1

1 detection mode, the receiver is not switched

to stand-by and only the XPR-bit is set to 1

Table 84 Service blanking

SBL SERVICE BLANKING MODE

0 off 1on

Table 85 Adjustment Vg2 voltage

AVG MODE

0 normal operation 1V

Table 86 Enable vertical guard (RGB blanking)

adjustment (WBC and HBC bits in output

byte 01 can be read)

TDA935X/6X/8X PS/N2 series

Table 90 Modulation standard

MOD MODULATION

0 negative 1 positive

Table 91 AFC window

AFW AFC WINDOW

0 normal 1 enlarged

Table 92 IF sensitivity

IFS IF SENSITIVITY

0 normal 1 reduced

Table 93 Search tuning mode

STM MODE

0 normal operation 1 reduced sensitivity of video indent circuit

EVG VERTICAL GUARD MODE

0 not active 1 active

Table 87 EHT tracking mode

HCO TRACKING MODE

0 EHT tracking only on vertical 1 EHT tracking on vertical and EW

Table 88 PLL demodulator frequency adjust

IFA IFB IFC IF FREQUENCY

0 0 0 58.75 MHz 0 0 1 45.75 MHz 0 1 0 38.90 MHz 0 1 1 38.00 MHz 1 0 0 33.40 MHz 1 1 0 33.90 MHz

Table 89 Video mute

VSW STATE

0 normal operation 1 IF-video signal switched off

Table 94 Selection external input for sound IF circuit

SIF MODE

0 IF input not selected 1 IF input selected (see also table 1)

Table 95 Calibration of IF PLL demodulator

IFLH MODE

0 calibration system active 1 calibration system not active

Table 96 IF AGC speed

AGC1 AGC0 AGC SPEED

0 0 0.7 × norm 0 1 norm 103×norm 116×norm

Table 97 Fast ﬁlter IF-PLL

FFI CONDITION

0 normal time constant 1 increased time constant

2001 Jan 18 71

Page 72

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

Table 98 Gain FM demodulator

AGN MODE

0 normal operation 1 gain +6 dB, tobe used forthe demodulation of

mono signals in the NTSC system

Table 99 Sound mute

SM1 SM0 CONDITION

0 1 see note 1 1 0 mute on 1 1 mute off

Note

1. The mute is activated when the digital acquisition help is out-of-window.

Table 100Window selection of Narrow-band sound PLL

FMWS FUNCTION

0 small window 1 large window

Table 101 Selection QSS out or AM out

TDA935X/6X/8X PS/N2 series

Table 105 Black current stabilization

AKB MODE

0 active 1 not active

Table 106 Cathode drive level (15 steps; 3.5 V/step)

SETTING CATHODE

CL3 CL2 CL1 CL0

000050 V 011175 V 111195 V

Note

1. The given values arevalid for the followingconditions: a) - Nominal CVBS input signal b) - Nominal settings for contrast, WPA and peaking c) - Black- and blue-stretch switched-off d) - Gain of output stage such that no clipping occurs e) - Beam current limiting not active f) The tolerance on these values is about ± 3 V.

DRIVE AMPLITUDE;

NOTE 1

BL-WH BL-WH BL-WH

AM MODE

0 QSS output selected 1 AM output selected

Table 102Nominal frequency FM demodulator

FMB FMA FREQUENCY

0 0 5.5 MHz 0 1 6.0 MHz 1 0 4.5 MHz 1 1 6.5 MHz

Table 103Enable fast blanking ext.RGB/YUV

IE2 FAST BLANKING

0 not active 1 active

Table 104 RGB blanking

RBL RGB BLANKING

0 not active 1 active

Table 107Activation vertical guard

IVG MODE

0 vertical guard connected to black current

input

1 vertical guard connected to BCL input and

“Peak-White-Limiting” disabled

Table 108 RGB / YUV switch

YUV STATUS

0 RGB input activated 1 YUV input activated

Table 109RGB blanking mode (110° types)

HBL MODE

0 normal blanking (horizontal ﬂyback) 1 wide blanking

2001 Jan 18 72

Page 73

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

Table 110Audio signal selection

ADX SELECTED SIGNAL

0 internal audio signal 1 external audio signal

Table 111Auto Volume Levelling

AVL MODE

0 not active 1 active

Table 112Black stretch

BKS BLACK STRETCH MODE

0 off 1on

Table 113 Ratio pre- and overshoot

TDA935X/6X/8X PS/N2 series

Explanation output control data TV-processor Table 114 Power-on-reset

POR MODE

0 normal 1 power-down

Table 115 Output video identiﬁcation

IFI VIDEO SIGNAL

0 no video signal identiﬁed 1 video signal identiﬁed

Table 116 IF-PLL lock indication

LOCK INDICATION

0 not locked 1 locked

RPO1 RPO0 RATIO PRE-/OVERSHOOT

0 0 1:1 0 1 1 : 1.25 1 0 1 : 1.5 1 1 1 : 1.8

Table 117 Phase 1 (ϕ1) lock indication

SL INDICATION

0 not locked 1 locked

Table 118 Colour decoder mode, note 1

CD3 CD2 CD1 CD0 STANDARD

0000no colour standard identiﬁed 0001NTSC with freq. A 0010PAL with freq. A 0011NTSC with freq. B 0100PAL with freq. B 0101NTSC with freq. C 0110PAL with freq. C 0111NTSC with freq. D 1000PAL with freq. D 1010SECAM

Note

1. The values for the various frequencies can be found in the note of table 59.

2001 Jan 18 73

Table 119 X-ray protection

XPR OVERVOLTAGE

0 no overvoltage detected 1 overvoltage detected

Page 74

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with embedded µ-Controller

Table 120 Output vertical guard

NDF VERTICAL OUTPUT STAGE

0OK 1 failure

Table 121 Field frequency indication

FSI FREQUENCY

050Hz 160Hz

Table 122 Condition vertical divider

IVW STANDARD VIDEO SIGNAL

0 no standard video signal 1 standard video signal (525 or 625 lines)

Table 123 Indication output black level in/out window

WBC CONDITION

0 black current stabilisation outside window 1 black current stabilisation inside window

Table 124 Indication output black level

HBC CONDITION

0 black current stabilisation below window 1 black current stabilisation above window

Table 125 Condition black current loop

BCF CONDITION

0 black current loop is stabilised 1 black current loop is not stabilised

TDA935X/6X/8X PS/N2 series

Table 127 Supply voltage indication

SUP CONDITION

0 supply voltage (8 Volt) not present 1 supply voltage (8 Volt) present

Table 128 Version indication

QSS IC VERSION

0 version with intercarrier mono sound circuit 1 version with QSS-IF circuit

Table 129 AFC output

AFA AFB CONDITION

0 0 outside window; RF too low 0 1 outside window; RF too high 1 0 in window; below reference 1 1 in window; above reference

Table 130 Indication FM-PLL in/out window

FMW CONDITION

0 FM-PLL in window 1 FM-PLL out of window

Table 131Indication FM-PLL in/out lock

FML CONDITION

0 FM-PLL out of lock 1 FM-PLL locked

Table 126 Indication RGB-2 input condition

IN2 RGB INSERTION

0no 1yes

2001 Jan 18 74

Page 75

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

IOK

stg

amb

sol

supply voltage − 9V supply voltage (all digital

−0.5 5.0 V

supplies) digital inputs note 1 −0.5 VDD+ 0.5 V digital outputs note 1 −0.5 VDD+ 0.5 V output current (each output) −±10 mA DC input or output diode current −±20 mA storage temperature −25 +150 °C operating ambient temperature 0 70 °C soldering temperature for 5 s − 260 °C operating junction temperature − 150 °C electrostatic handling HBM; all pins; notes 2 and 3 −2000 +2000 V

MM; all pins; notes 2 and 4 −300 +300 V

Notes

1. This maximum value has an absolute maximum of 5.5 V independent of V

2. All pins are protected against ESD by means of internal clamping diodes.

3. Human Body Model (HBM): R = 1.5 kΩ; C = 100 pF.

4. Machine Model (MM): R = 0 Ω; C = 200 pF.

THERMAL CHARACTERISTICS

SYMBOL PARAMETER VALUE UNIT

th j-a

thermal resistance from junction to ambient in free air 35 K/W

QUALITY SPECIFICATION

In accordance with

“SNW-FQ-611E”

Latch-up

At an ambient temperature of 70 °C all pins meet the following specification:

• I

≥ 100 mA or ≥1.5V

trigger

≤−100 mA or ≤−0.5V

trigger

DD(max)

2001 Jan 18 75

Page 76

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

CHARACTERISTICS OF MICRO-COMPUTER AND TEXT DECODER

VDD = 3.3 V ± 10%; VSS = 0 V; T

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supplies

VM.1.1 supply voltage (V VM.1.2 periphery supply current (I VM.1.3 core supply current (I VM.1.4 analog supply current (I

Digital inputs

RESET

I.1.1 low level input voltage −−0.8 V I.1.2 high level input voltage 2.0 − 5.5 V I.1.3 hysteresis of Schmitt Trigger

input

I.1.4 input leakage current V I.1.5 equivalent pull down resistance V = V I.1.6 capacitance of input pin −−10 pF

Digital input/outputs

= −20 to +70 °C; unless otherwise speciﬁed

amb

) 3.0 3.3 3.6 V

DDA/P/C

) note 1 1 −−mA

DDP

) − 15 tbf mA

DDC

) − 45 tbf mA

DDA

0.4 − 0.7 V

= 0 −−1µA

− 33 − kΩ

P1.0

TO P1.3, P2.0 TO P2.6 AND P3.0 TO P3.3

IO.1.1 low level input voltage −−0.8 V IO.1.2 high level input voltage 2.0 − 5.5 V IO.1.3 hysteresis of Schmitt Trigger

0.4 − 0.7 V

input

IO.1.4 low level output voltage I

= 4 mA −−0.4 V

IO.1.5 high level output voltage open drain −−5.5 V IO.1.6 high level output voltage IOH = 4 mA 2.4 −−V IO.1.7 output rise time (push-pull only)

load 100 pF − 16 − ns

10% to 90%

IO.1.8 output fall time 10% to 90% load 100pF − 14 − ns IO.1.9 load capacitance −−100 pF IO.1.10 capacitance of input pin −−10 pF

2001 Jan 18 76

Page 77

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

AND P0.6

P0.5

IO.2.1 low level input voltage −−0.8 V IO.2.2 high level input voltage 2.0 − 5.5 V IO.2.3 hysteresis of Schmitt Trigger

input

IO.2.4 low level output voltage I

= 8mA −−0.4 V

IO.2.5 high level output voltage open drain −−5.5 V IO.2.6 high level output voltage IOH = 8mA 2.4 −−V IO.2.7 output rise time (push-pull only)

load 100 pF − 16 − ns

10% to 90%

IO.2.8 output fall time 10% to 90% load 100pF − 14 − ns IO.2.9 load capacitance −−100 pF IO.2.10 capacitance of input pin −−10 pF

P1.6 AND P1.7

IO.3.1 low level input voltage (V IO.3.2 high level input voltage (V

) −−1.5 V

) 3.0 − 5.5 V

IO.3.3 hysteresis of Schmitt-trigger

input

IO.3.4 low level output voltage sink current 8mA 0 − 0.4 V IO.3.5 high level output voltage open drain −−5.5 V IO.3.6 output fall time (V

to VILfor CL) 20+0.1×

IO.3.7 bus load capacitance 10 − 400 pF IO.3.8 capacitance of IO pin −−10 pF

Crystal oscillator

0.4 − 0.7 V

0.2 −−V

− 250 ns

OSCIN; NOTE 2

X.1.1 resonator frequency − 12 − MHz X.1.2 input capacitance (Ci) − 4.0 − pF X.1.3 output capacitance (C X.1.4 C X.1.5 R

x1=Cx2

(crystal) −−100 Ω

) − 5.0 − pF

12 − 56 pF

Note

1. Peripheral current is dependent on external components and voltage levels on I/Os

2. The simplified circuit diagram of the oscillator is given in Fig.29. A suitable crystal for this oscillator is the Saronix type 9922 520 00169. The nominal tuning of the crystal is important

to obtain a symmetrical catching range for the PLL in the colour decoder. This tuning can be adapted by means of the values of the capacitors Cx1 and Cx2 in Fig.29. Good results were obtained with capacitor values of 39 pF, however, for a new application the optimum value should be determined by checking the symmetry of the catching range of the colour decoder.

2001 Jan 18 77

Page 78

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

CHARACTERISTICS OF TV-PROCESSORS

VP=5V; T

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supplies

AIN SUPPLY; NOTE 1

V.1.1 supply voltage 7.2 8.0 8.4 V V.1.2 total supply current − 135 − mA V.1.4 total power dissipation − 1085 − mW

IF circuit

ISION IF AMPLIFIER INPUTS

M.1.1 f M.1.2 f M.1.3 f M.1.4 input resistance (differential) note 3 − 2 − kΩ M.1.5 input capacitance (differential) note 3 − 3 − pF M.1.6 gain control range 64 −−dB M.1.7 maximum input signal

PLL

DEMODULATOR; NOTES 4 AND 5

M.2.1 Free-running frequency of VCO PLL not locked, deviation

M.2.2 Catching range PLL without SAW ﬁlter −±1−MHz M.2.3 delay time of identiﬁcation via LOCK bit −−20 ms

IDEO AMPLIFIER OUTPUT; NOTES 7 AND 8

M.3.1 zero signal output level negative modulation; note 9 − 4.7 − V M.3.2 positive modulation; note 9 − 2.0 − V M.3.3 top sync level negative modulation 1.9 2.1 2.3 V M.3.4 white level positive modulation − 4.5 − V M.3.5 difference in amplitude between

M.3.6 video output impedance − 50 −Ω M.3.7 internal bias current of NPN

M.3.8 maximum source current −−5mA M.3.9 bandwidth of demodulated

M.3.10 differential gain note 10 − 25% M.3.11 differential phase notes 10 and 6 −−5 deg

=25°C; unless otherwise speciﬁed.

amb

input sensitivity (RMS value) note 2

(RMS value)

negative and positive modulation

emitter follower output transistor

output signal

= 38.90 MHz − 75 150 µV

= 45.75 MHz − 75 150 µV

= 58.75 MHz − 75 150 µV

150 −−mV

−500 − +500 kHz

from nominal setting

− 015%

1.0 −−mA

at −3dB 6 7 − MHz

2001 Jan 18 78

Page 79

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

VIDEO AMPLIFIER (CONTINUED)

M.3.12 video non-linearity note 11 −−5% M.3.13 white spot clamp level − 5.3 − V M.3.14 noise inverter clamping level note 12 − 1.5 − V M.3.15 noise inverter insertion level

(identical to black level)

intermodulation notes 6 and 13

M.3.16 blue V M.3.17 V M.3.18 yellow V M.3.19 V

signal-to-noise ratio notes 6 and 14

M.3.20 weighted 56 60 − dB M.3.21 unweighted 49 53 − dB M.3.22 residual carrier signal note 6 − 5.5 − mV M.3.23 residual 2nd harmonic of carrier

signal IF

AND TUNER AGC; NOTE 15

note 12 − 2.8 − V

= 0.92 or 1.1 MHz 60 66 − dB

= 2.66 or 3.3 MHz 60 66 − dB

= 0.92 or 1.1 MHz 56 62 − dB

= 2.66 or 3.3 MHz 60 66 − dB

note 6 − 2.5 − mV

Timing of IF-AGC

M.4.1 modulated video interference 30% AM for 1 mV to 100 mV;

0 to 200 Hz (system B/G)

M.4.2 response time to IF input signal

amplitude increase of 52 dB

M.4.3 response to an IF input signal M.4.4 positive modulation − 100 − ms

amplitude decrease of 52 dB

positive and negative modulation

negative modulation − 50 − ms

−−10 %

− 2 − ms

Tuner take-over adjustment (via I2C-bus)

M.5.1 minimum starting level for tuner

take-over (RMS value)

M.5.2 maximum starting level for tuner

take-over (RMS value)

− 0.4 0.8 mV

80 150 − mV

Tuner control output

M.6.1 maximum tuner AGC output

voltage

M.6.2 output saturation voltage minimum tuner gain;

M.6.3 maximum tuner AGC output

swing

M.6.4 leakage current RF AGC −−1µA M.6.5 input signal variation for

complete tuner control

maximum tuner gain; note 3 −−8V

−−300 mV

=2mA

5 −−mA

0.5 2 4 dB

2001 Jan 18 79

Page 80

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

AFC OUTPUT (VIA I2C-BUS); NOTE 16

M.7.1 AFC resolution − 2 − bits M.7.2 window sensitivity − 125 − kHz M.7.3 window sensitivity in large

window mode V

IDEO IDENTIFICATION OUTPUT (VIA IFI BIT IN OUTPUT BYTE 00)

M.8.1 delay time of identiﬁcation after

the AGC has stabilizedon a new

transmitter

− 275 − kHz

−−10 ms

2001 Jan 18 80

Page 81

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

QSS Sound IF circuit

SOUND IF AMPLIFIER

input sensitivity (RMS value)

Q.1.1 FM mode (−3 dB) − 30 70 µV Q.1.2 AM mode (−3 dB) − 60 100 µV

maximum input signal

Q.1.3 FM mode 50 70 − mV Q.1.4 AM mode 80 140 − mV Q.1.5 input resistance (differential) note 3 − 2 − kΩ Q.1.6 input capacitance (differential) note 3 − 3 − pF Q.1.7 gain control range 64 −−dB Q.1.8 crosstalk attenuation between

OUND IF INTERCARRIER OUTPUT; WITH AM=0

Q.2.1 output signal amplitude (RMS

Q.2.2 bandwidth (-3 dB) 7.5 10 − MHz Q.2.3 residual IF sound carrier (RMS

Q.2.4 output resistance − 300 −Ω Q.2.5 DC output voltage − 2.5 − V Q.2.6 internal bias current of emitter

Q.2.7 maximum AC and DC sink

Q.2.8 maximum AC and DC source

Q.2.9 weighted S/N ratio (SC1/SC2). Q.2.10 white picture 52/47 55/53 − dB Q.2.11 6 kHz sinewave

Q.2.12 250 kHz sine wave

Q.2.13 sound carrier subharmonics

Q.2.14 sound carrier subharmonics

(RMS value)

SIF and VIF input

value)

follower

current

Ratio of PC/SC1 at vision IF

input of 40 dB or higher, note 17

50 −−dB

SC-1; sound carrier 2 off 75 100 125 mV

− 2 − mV

− 1.0 − mA

black picture 53/48 58/55 − dB

44/42 48/46 − dB

(black-to-white modulation)

44/25 48/30 − dB

(black-to-white modulation)

45/44 51/50 − dB

(f=2.75 MHz ± 3 kHz)

46/45 52/51 − dB

(f=2.87 MHz ± 3 kHz)

2001 Jan 18 81

Page 82

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

AM SOUND OUTPUT; DEPENDING ON SETTING OF CMB0/CMB1 AND AM BITS

Q.3.1 AF output signal amplitude

(RMS value)

Q.3.2 total harmonic distortion 54% modulation − 0.5 1.0 % Q.3.21 total harmonic distortion 80% modulation − 2.0 5.0 % Q.3.3 AF bandwidth −3 dB 100 125 − kHz Q.3.4 weighted signal-to-noise ratio 47 53 − dB Q.3.5 DC output voltage − 2.5 − V Q.3.6 power supply ripple rejection − 40 − dB

FM demodulator and audio ampliﬁer

FM-PLL D

G.1.2 gain control range AGC ampliﬁer 26 30 − dB G.1.3 catching range PLL note 19 −±225 − kHz G.1.4 maximum phase detector output

G.1.5 VCO steepness ∆f G.1.6 phase detector steepness

G.1.7 AM rejection note 20 40 46 − dB

XTERNAL SOUND IF INPUT (SNDIF, WHEN SELECTED)

G.1.8 input limiting for lock-in of PLL

G.1.9 input resistance note 3 − 50 − kΩ G.1.10 input capacitance note 3 −−1.0 pF

E-EMPHASIS OUTPUT; NOTE 22

G.2.1 output signal amplitude (RMS

G.2.2 output resistance − 15 − kΩ G.2.3 DC output voltage − 3.2 − V G.2.31 signal-to-noise ratio (RMS value) note 23 − 50 − dB

AUDIO INPUT VIA DEEMPHASIS OUTPUT; NOTE 22

G.2.4 input signal amplitude (RMS

G.2.5 input resistance − 15 − kΩ G.2.6 voltage gain between input and

EMODULATOR; NOTE 18

current

∆I

/∆ϕ

VFM(KD

(RMS value)

value)

output

)

/∆VC(K0) − 3.3 − MHz/V

54% modulation 400 500 600 mV

−±100 −µA

− 9 −µA/rad

− 12mV

notes 19 and 21 − 500 − mV

− 500 − mV

maximum volume − 9 − dB

2001 Jan 18 82

Page 83

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Audio Ampliﬁer

AUDIO OUTPUT OR VOLUME CONTROLLED AM-OUT

A.1.1 controlled output signal

amplitude (RMS value)

A.1.2 output resistance − 500 −Ω A.1.3 DC output voltage − 3.6 − V A.1.4 total harmonic distortion note 24 −−0.5 % A.1.6 power supply rejection note 6 − 2.5 − dB A.1.7 internal signal-to-noise ratio note 6 + 23 + 26 − 50 − dB A.1.8 external signal-to-noise ratio note 6 + 26 − 60 − dB A.1.10 control range see also Fig.30 − 80 − dB A.1.11 suppression of output signal

when mute is active

A.1.12 DC shift of the output when mute

is active E

XTERNAL AUDIO INPUT

A.2.1 input signal amplitude (RMS

value)

A.2.2 input resistance − 25 − kΩ A.2.3 voltage gain between input and

output

A.2.4 crosstalk between internal and

external audio signals A

UTOMATIC VOLUME LEVELLING; NOTE 28

A.3.1 gain at maximum boost − 6 − dB A.3.2 gain at minimum boost − -14 − dB A.3.3 charge (attack) current − 1 − mA A.3.4 discharge (decay) current − 200 − nA A.3.5 control voltage at maximum

boost

A.3.6 control voltage at minimum boost − 5 − V

−6 dB; nominal audio input signal

maximum volume − 9 − dB

500 700 900 mV

− 80 − dB

− 10 50 mV

− 500 2000 mV

60 −−dB

− 1 − V

2001 Jan 18 83

Page 84

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

CVBS, Y/C and RGB/YUV INPUTS

CVBS-Y/C SWITCH

S.1.1 CVBS or Y input voltage

(peak-to-peak value)

S.1.2 CVBS or Y input current − 4 −µA S.1.3 suppression of non-selected

CVBS input signal

S.1.4 chrominance input voltage (burst

amplitude)

S.1.5 chrominance input impedance − 50 − kΩ

CVBS OUTPUT ON IFVO2

S.1.9 output signal amplitude

(peak-to-peak value)

S.1.10 top sync level − 1.8 − V S.1.11 output impedance −−50 Ω

XTERNAL RGB / YUV INPUT

S.2.1 RGB input signal amplitude for

an output signal of 2 V

(black-to-white) (peak-to-peak

value)

S.2.2 RGB input signal amplitude

before clipping occurs

(peak-to-peak value)

S.2.3 Y input signal amplitude

(peak-to-peak value)

S.2.4 U/P

S.2.5 V/P

S.2.6 difference between black levelof

S.2.7 input currents no clamping; note 3 − 0.1 1 µA S.2.8 delay difference for the three

input signal amplitude

(peak-to-peak value)

input signal amplitude

(peak-to-peak value)

internal and external signals at

the outputs

channels

note 29 − 1.0 1.4 V

notes 6 and 30 50 −−dB

note 3 and 31 − 0.3 1.0 V

− 2.0 − V

note 32 − 0.7 0.8 V

note 6 1.0 −−V

input signal amplitude for an output signal of 2 V (black-to-white); when activated via the YUV1/YUV0 bits; note 33

note 6 − 020ns

− 1.4/1.0 2.0 V

−−1.33/

+0.7

−−1.05/ +0.7

−−20 mV

2.0 V

1.5 V

2001 Jan 18 84

Page 85

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

FAST INSERTION

S.3.1 input voltage no data insertion −−0.4 V S.3.2 data insertion 0.9 −−V S.3.3 maximum input pulse insertion −−3.0 V S.3.4 delay time from RGB in to

RGB out

S.3.5 delay difference between

insertion to RGB out and RGB in

to RGB out

S.3.6 input current −−0.2 mA S.3.7 suppression of internal RGB

signals

S.3.8 suppression of external RGB

signals

Chrominance and Luminance ﬁlters

CHROMINANCE TRAP CIRCUIT; NOTE 34

F.1.1 trap frequency − f F.1.2 Bandwidth at f F.1.3 Bandwidth at f

= 3.58 MHz −3 dB − 2.8 − MHz

= 4.43 MHz −3 dB − 3.4 − MHz

F.1.4 colour subcarrier rejection 24 26 − dB F.1.5 trap frequency during SECAM

reception C

HROMINANCE BANDPASS CIRCUIT

F.2.1 centre frequency (CB = 0) − f F.2.2 centre frequency (CB = 1) − 1.1×f F.2.3 bandpass quality factor − 3 −

LOCHE FILTER

F.3.1 centre frequency 4.26 4.29 4.31 MHz F.3.2 Bandwidth 241 268 295 kHz

DELAY LINE

F.4.1 delay time note 6 − 480 − ns F.4.2 tuning range delay time 8 steps −160 − +160 ns F.4.3 bandwidth of internal delay line note 6 8 −−MHz

data insertion; note 6 −−20 ns

notes 6 and 30; insertion; f

=0to5MHz

notes 6 and 30; no insertion; f

=0to5MHz

− 55 − dB

osc

− MHz

− 4.3 − MHz

osc

− MHz

osc

2001 Jan 18 85

Page 86

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Picture Improvement Features

PEAKING CONTROL; NOTE 35

P.1.1 width of preshoot or overshoot note 3 − 160 − ns P.1.2 peaking signal compression

threshold

P.1.3 overshoot at maximum peaking positive − 45 − % P.1.4 negative − 80 − % P.1.5 Ratio negative/positive

overshoot; note 36

P.1.6 peaking control curve 63 steps see Fig.31 P.1.7 peaking centre frequency setting PF1/PF0 = 0/0 − 2.7 − MHz P.1.8 setting PF1/PF0 = 0/1 − 3.1 − MHz P.1.9 setting PF1/PF0 = 1/0 − 3.5 − MHz

LACK LEVEL STRETCHER; NOTE 37

P.2.1 Maximum black level shift 15 21 27 IRE P.2.2 level shift at 100% peak white −1 0 1 IRE P.2.3 level shift at 50% peak white −1 − 3 IRE P.2.4 level shift at 15% peak white 6 8 10 IRE

− 50 − IRE

− 1.8 −

2001 Jan 18 86

Page 87

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Horizontal and vertical synchronization and drive circuits

SYNC VIDEO INPUT

H.1.1 sync pulse amplitude note 3 50 300 350 mV H.1.2 slicing level for horizontal sync note 38 − 50 − % H.1.3 slicing level for vertical sync note 38 − 35 − %

ORIZONTAL OSCILLATOR

H.2.1 free running frequency − 15625 − Hz H.2.2 spread on free running

frequency

H.2.3 frequency variation with respect

to the supply voltage

H.2.4 frequency variation with

temperature FIRST CONTROL LOOP; NOTE 39

H.3.1 holding range PLL −±0.9 ±1.2 kHz H.3.2 catching range PLL note 6 ±0.6 ±0.9 − kHz H.3.3 signal-to-noise ratio of the video

input signal at which the time

constant is switched

H.3.4 hysteresis at the switching point − 3 − dB

ECOND CONTROL LOOP

H.4.1 control sensitivity − 150 −µs/µs H.4.2 control range from start of

horizontal output to ﬂyback at

nominal shift position

H.4.3 horizontal shift range 63 steps ±2 −−µs H.4.4 control sensitivity for dynamic

compensation

H.4.5 Voltage to switch-on the ‘ﬂash’

protection

H.4.6 Input current during protection −−1mA H.4.7 control range of the

parallelogram correction

H.4.8 control range of the bow

correction

VP= 8.0 V ±10%; note 6 − 0.2 0.5 %

=0to70°C; note 6 −−80 Hz

amb

note 40 6.0 −−V

note 41 −±0.5 −µs

−−±2%

− 24 − dB

− 19 −µs

− 7.6 −µs/V

2001 Jan 18 87

Page 88

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

HORIZONTAL OUTPUT; NOTE 42

H.5.1 LOW level output voltage I H.5.2 maximum allowed output current 10 −−mA H.5.3 maximum allowed output voltage −−V H.5.4 duty factor V H.5.5 switch-ontime of horizontal drive

pulse

H.5.6 switch-offtime of horizontal drive

pulse FLYBACK PULSE INPUT AND SANDCASTLE OUTPUT

H.6.1 required input current during

ﬂyback pulse

H.6.2 output voltage during burst key 4.8 5.3 5.8 V

H.6.3 clamped input voltage during

ﬂyback

H.6.4 pulse width burst key pulse 3.3 3.5 3.7 µs H.6.5 vertical blanking, note 43 − 14/9.5 − lines H.6.6 delay of start of burst key to start

of sync V

ERTICAL OSCILLATOR; NOTE 44

H.7.1 free running frequency − 50/60 − Hz H.7.2 locking range 45 − 64.5/72 Hz H.7.3 divider value not locked − 625/525 − lines H.7.4 locking range 434/488 − 722 lines/

ERTICAL RAMP GENERATOR

H.8.1 sawtooth amplitude

(peak-to-peak value)

H.8.2 discharge current − 1 − mA H.8.3 charge current set by external

resistor

H.8.4 vertical slope 63 steps; see Fig. 47 −20 − +20 % H.8.5 charge current increase f = 60 Hz − 19 − % H.8.6 LOW level of ramp − 2.3 − V

ERTICAL DRIVE OUTPUTS

H.9.1 differential output current

(peak-to-peak value)

H.9.2 common mode current − 400 −µA H.9.3 output voltage range 0 − 4.0 V

=10mA −−0.3 V

= LOW (TON) − 55 − %

OUT

− 1175 − ms

− 43 − ms

note 3 100 − 300 µA

during blanking 2.3 2.5 2.7 V

2.6 3.0 3.4 V

4.6 4.8 5.0 µs

VS = 1FH; C = 100 nF; R = 39 kΩ

note 45 − 16 −µA

VA = 1FH − 0.95 − mA

− 3.0 − V

frame

2001 Jan 18 88

Page 89

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

EHT TRACKING/OVERVOLTAGE PROTECTION

H.10.1 input voltage 1.2 − 2.8 V H.10.2 scan modulation range −5 − +5 % H.10.3 vertical sensitivity − 6.3 − %/V H.10.4 EW sensitivity when switched-on −−6.3 − %/V H.10.5 EW equivalent output current +100 −−100 µA H.10.6 overvoltage detection level note 40 − 3.9 − V

E-INTERLACE

H.11.1 ﬁrst ﬁeld delay − 0.5H −

EW WIDTH; NOTE 46

H.12.1 control range 63 steps; see Fig. 50 100 − 65 % H.12.2 equivalent output current 0 − 700 µA H.12.3 EW output voltage range 1.0 − 5.0 V H.12.4 EW output current range 0 − 1200 µA

PARABOLA/WIDTH

H.13.1 control range 63 steps; see Fig. 51 0 − 23 % H.13.2 equivalent output current EW=3FH; CP=11H; TC=1FH 0 − 450 µA

UPPER/LOWER CORNER/PARABOLA

H.14.1 control range 63 steps; see Fig. 52 −46 − +17 % H.14.2 equivalent output current PW=3FH; EW=3FH; TC=1FH −207 − +76 µA

TRAPEZIUM

H.15.1 control range 63 steps; see Fig. 53 −5 − +5 % H.15.2 equivalent output current EW=1FH; CP=11H; PW=1FH −100 − +100 µA

ERTICAL AMPLITUDE

H.16.1 control range 63 steps; see Fig. 46 80 − 120 % H.16.2 equivalent differential vertical

drive output current

(peak-to-peak value)

ERTICAL SHIFT

H.17.1 control range 63 steps; see Fig. 48 −5 − +5 % H.17.2 equivalent differential vertical

drive output current

(peak-to-peak value) S-

CORRECTION

H.18.1 control range 63 steps; see Fig. 49 −10 − 25 %

VERTICAL ZOOM MODE (OUTPUT CURRENT VARIATION WITH RESPECT TO NOMINAL SCAN); NOTE 47

H.19.1 vertical expand factor 0.75 − 1.38 H.19.2 output current limiting and RGB

blanking

SC = 0EH 760 − 1140 µA

−50 − +50 µA

− 1.05 −

2001 Jan 18 89

Page 90

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Colour demodulation part

CHROMINANCE AMPLIFIER

D.1.1 ACC control range note 48 26 −−dB D.1.2 change in amplitude of the

output signals over the ACC

range

D.1.3 threshold colour killer ON −30 −−dB D.1.4 hysteresis colour killer OFF strong signal conditions;

S/N ≥ 40 dB; note 6

D.1.5 noisy input signals; note 6 − +1 − dB

ACL CIRCUIT; NOTE 49

D.2.1 chrominance burst ratio at which

the ACL starts to operate R

EFERENCE PART

Phase-locked loop

D.3.1 catching range ±500 −−Hz D.3.2 phase shift for a ±400 Hz

deviation of the oscillator

frequency H

UE CONTROL

D.5.1 hue control range 63 steps; see Fig.32 ±35 ±40 − deg D.5.2 hue variation for ±10% V D.5.3 hue variation with temperature T

DEMODULATORS

note 6 −−2 deg

note 6 − 0 − deg

=0to70°C; note 6 − 0 − deg

amb

−−2dB

− +3 − dB

− 3.0 −

General

D.6.3 spread of signal amplitude ratio

between standards

D.6.5 bandwidth of demodulators −3 dB; note 50 − 650 − kHz

note 6 −1 − +1 dB

PAL/NTSC demodulator

D.6.6 gain between both demodulators

G(B−Y) and G(R−Y)

D.6.12 change of output signal

amplitude with temperature

D.6.13 change of output signal

amplitude with supply voltage

D.6.14 phase error in the demodulated

signals

2001 Jan 18 90

note 6 − 0.1 − %/K

note 6 −−±0.1 dB

note 6 −−±5 deg

1.60 1.78 1.96

Page 91

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

SECAM demodulator

D.7.1 black level off-set −−7 kHz D.7.2 pole frequency of deemphasis 77 85 93 kHz D.7.3 ratio pole and zero frequency − 3 − D.7.4 non linearity −−3% D.7.5 calibration voltage 1.8 2.3 2.8 V

Base-band delay line

D.8.1 variation of output signal for

adjacent time samples at

constant input signals

D.8.2 residual clock signal

(peak-to-peak value)

D.8.3 delay of delayed signal 63.94 64.0 64.06 µs D.8.4 delay of non-delayed signal 40 60 80 ns D.8.5 difference in output amplitude

with delay on or off C

OLOUR DIFFERENCE MATRICES (IN CONTROL CIRCUIT)

−0.1 − 0.1 dB

−−5mV

−−5%

PAL/SECAM mode; (R−Y) and (B−Y) not affected

D.9.1 ratio of demodulated signals

(G−Y)/(R−Y)

D.9.2 ratio of demodulated signals

(G−Y)/(B−Y)

−−0.51 ±10%

−−0.19 ±25%

−

NTSC mode; the matrix results in the following signals (nominal hue setting)

MUS-bit = 0

D.9.6 (B−Y) signal: 2.03/0° 2.03U D.9.7 (R−Y) signal: 1.59/95°−0.14UR + 1.58V D.9.8 (G−Y) signal: 0.61/240°−0.31UR− 0.53V

R R

MUS-bit = 1

D.9.9 (B−Y) signal: 2.20/−1° 2.20U D.9.10 (R−Y) signal: 1.53/99°−0.24UR + 1.51V D.9.11 (G−Y) signal: 0.70/223°−0.51UR− 0.48V

− 0.04V

R R

REFERENCE SIGNAL OUTPUT/SWITCH OUTPUT; NOTE 51

D.10.1 reference frequency CMB1/CMB0 = 01 3.58/4.43 MHz D.10.2 output signal amplitude

CMB1/CMB0 = 01 0.2 0.25 0.3 V

(peak-to-peak value)

D.10.3 output level (mid position) CMB1/CMB0 = 01 2.3 2.5 2.7 V D.10.4 output level LOW CMB1/CMB0 = 10 −−0.8 V D.10.5 output level HIGH CMB1/CMB0 = 11 4.5 −−V

2001 Jan 18 91

Page 92

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Control part

SATURATION CONTROL; NOTE 32

C.1.1 saturation control range 63 steps; see Fig.33 52 −−dB

ONTRAST CONTROL; NOTE 32

C.2.1 contrast control range 63 steps; see Fig.34 − 20 − dB C.2.2 tracking between the three

channels over a control range of

10 dB

C.2.6 contrast reduction − 10 − dB

RIGHTNESS CONTROL

C.3.1 brightness control range 63 steps; see Fig.35 −±0.7 − V

RGB AMPLIFIERS

C.4.1 output signal amplitude

(peak-to-peak value)

C.4.2 maximum signal amplitude

(black-to-white)

C.4.3 maximum peak white level − 5.5 − V C.4.4 output signal amplitude for the

‘red’ channel (peak-to-peak

value)

C.4.5 nominal black level voltage − 2.5 − V C.4.6 black level voltage when black level stabilisation

C.4.61 black level voltage control range AVG bit active; note 53 1.8 2.5 3.2 V C.4.7 width of video blanking with HBL

bit active

C.4.71 timing of video blanking with C.4.72 end of blanking; note 54 7.8 − 10.2 µs C.4.8 controlrange ofthe black-current

C.4.81 RGB output level when RGBL=1 − 0.8 − V C.4.9 blanking level difference with black level, C.4.10 level during leakage

C.4.11 level during ‘low’ measuring

C.4.12 level during ‘high’ measuring

respect to mid sync (HBL = 1)

stabilisation

measurement

pulse

pulse; note 55

at nominal luminance input signal, nominal settings for contrast, white-point adjustment and cathode drive level(CL3-CL0 = 0111)

note 52 − 5.5 − V

at nominal settings for contrast and saturation control and no luminance signal to the input (R−Y, PAL)

is switched-off (via AKB bit)

note 54 13.4 13.7 14.0 µs

start of blanking; note 54 3.5 − 5.9 µs

note 52

−−0.5 dB

− 2.0 − V

− 2.1 − V

− 2.5 − V

−±1−V

−−0.5 − V

−−0.1 − V

− 0.25 − V

− 0.5 − V

2001 Jan 18 92

Page 93

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

C.4.13 adjustment range of the cathode

drive level

C.4.131 gain control range to

compensate spreads in picture

tube characteristics for the

2-point black -current

stabilization system; note 55

C.4.14 variation of black level with

temperature

C.4.141 black level off-set adjustment on

the Red and Green channel

C.4.21 signal-to-noiseratio ofthe output C.4.22 CVBS input; note 56 50 −−dB C.4.23 residual voltage at the RGB C.4.24 at 2f C.4.25 bandwidth of output signals RGB input; at −3dB − 15 − MHz C.4.26 CVBS input; at −3 dB;

C.4.27 CVBS input; at −3 dB;

C.4.28 S-VHS input; at −3dB 5 −−MHz

HITE-POINT ADJUSTMENT

C.5.1 I2C-bus setting for nominal gain HEX code − 20H − C.5.2 adjustment range of the relative

POINT BLACK-CURRENT STABILIZATION, NOTES 57

C.6.1 amplitude of ‘low’ reference

C.6.2 amplitude of ‘high’ reference

C.6.3 acceptable leakage current −±75 −µA C.6.4 maximum current during scan − 2 − mA C.6.5 input impedance − 500 −Ω C.6.7 minimum input current to

BEAM CURRENT LIMITING

C.7.1 contrast reduction starting

C.7.2 voltagedifferenceforfull contrast

C.7.3 brightness reduction starting

C.7.4 voltage difference for full

signals

outputs (peak-to-peak value)

R, G and B drive levels

current

current; note 55

activate the guard circuit

voltage

reduction

voltage

brightness reduction

note 52 −±3−dB

−±6−dB

note 6 − 1.0 − mV/K

63 steps −±160 − mV

RGB input; note 56 60 −−dB

at f

osc

plus higher harmonics −−15 mV

osc

= 3.58 MHz

osc

= 4.43 MHz

osc

IVG bit = “0”, note 58 − 0.1 − mA

−−15 mV

− 2.8 − MHz

− 3.4 − MHz

−±3−dB

− 8 −µA

− 40 −µA

− 2.8 − V

− 1.8 − V

− 1.7 − V

− 0.9 − V

2001 Jan 18 93

Page 94

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

NUMBER PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

C.7.5 internal bias voltage − 3.3 − V C.7.6 detection level vertical guard IVG bit = “1”; note 58 − 3.45 − V C.7.7 minimum input current to

activate the guard circuit

C.7.8 maximum allowable current − 1 − mA

IXED BEAM CURRENT SWITCH-OFF; NOTE 59

C.8.1 discharge current during

switch-off

C.8.2 discharge time of picture tube − 38 − ms

Notes

1. When the 3.3 Vsupply is present andthe µ-Controller is activea ‘low-power start-up’ mode can be activated. When all sub-address bytes have been sent and the POR and XPR flags have been cleared the horizontal output can be switched-on via the STB-bit (subaddress 24H). In this condition the horizontal drive signal has the nominal T theTONgrowsgradually from zero to the nominal value. As soonas the8 Vsupply ispresent the switch-on procedure (e.g. closing of the second loop) is continued.

2. On set AGC.

3. This parameter is not tested during production and is just given as application information for the designer of the television receiver.

4. Loop bandwidth BL = 60 kHz (natural frequencyfN = 15 kHz; damping factor d = 2;calculated with top sync level as FPLL input signal level).

5. The IF-PLL demodulator uses an internal VCO (no external LC-circuit required) which is calibrated by means of a digital control circuit which uses the clock frequency of the µ-Controller as a reference. The required IF frequency for the various standards is set via the IFA-IFC bits in subaddress 27H. When the system is locked the resulting IF frequency is very accurate with a deviation from the nominal value of less than 25 kHz.

6. This parameter is not tested during production but is guaranteed by the design and qualified by means of matrix batches which are made in the pilot production period.

7. Measured at 10 mV (RMS) top sync input signal.

8. Via this pin both the demodulated IF signal and the selected CVBS (or Y+C) signal can be supplied to the output. The selection between both signals is realised by means of the SVO bit in subaddress 22H.

9. So called projected zero point, i.e. with switched demodulator.

10. Measured in accordance with the test line given in Fig.36. For the differential phase test the peak white setting is reduced to 87%.

The differential gain is expressed as a percentage of the difference in peak amplitudes between the largest and smallest value relative to the subcarrier amplitude at blanking level.

The phase difference is defined as the difference in degrees between the largest and smallest phase angle.

11. This figure is valid for the complete video signal amplitude (peak white-to-black), see Fig.37.

12. The noise inverter is only active in the ‘strong signal mode’ (no noise detected in the incoming signal)

13. The test set-up and input conditions are given in Fig.38. The figures are measured with an input signal of 10 mV RMS. This test can only be carried out in a test set-up in which the test options of the IC can be activated. This because the IF-AGC control input is not available in this IC.

IVG bit = “1”; note 58 − 100 −µA

0.85 1.0 1.15 mA

and

OFF

2001 Jan 18 94

Page 95

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

14. Measured at an input signal of 10 mV voltage (RMS value). B = 5 MHz. Weighted in accordance with CCIR 567.

15. The time-constant of the IF-AGC is internal and the speed of the AGC can be set via the bits AGC1 and AGC0 in subaddress 28H. The AGC response time is also dependent on the acquisition time of the PLL demodulator. The values given are valid for the ‘norm’ setting (AGC1-AGC0 = 0-1) and when the PLL is in lock.

16. The AFC control voltage is generated by the digital tuning system of the PLL demodulator. This system uses the clock frequency of the µ-Controller/Teletext decoder as a reference and is therefore very accurate. For this reason no maximum and minimum values are given for the window sensitivity figures (parameters M.7.2 and M.7.3). The tuning information is supplied to the tuning system via the AFA and AFB bits in output byte 02H. The AFC value is valid only when the LOCK-bit is 1.

17. The weighted S/N ratio is measured under the following conditions: a) The vision IF modulator must meet the following specifications:

Incidental phase modulation for black-to-white jumps less than 0.5 degrees. QSS AF performance, measured with the television-demodulator AMF2 (audio output, weighted S/N ratio) better

than 60 dB (deviation 27 kHz) for 6 kHz sine wave black-to-white modulation. Picture-to-sound carrier ratio: PC/SC1 = 13 dB (transmitter).

b) The measurements must be carried out with the Siemens SAW filters G3962 for vision IF and G9350 for sound

IF. Input level for sound IF 10 mV

c) The PC/SC ratio at the vision IF input is calculated as the addition of the TV transmitter ratio and the SAW filter

PC/SC ratio. This PC/SC ratio is necessary to achieve the S/N(W) values as indicated.

18. Calculation of the FM-PLL filter can be done approximately by use of the following equations:

0KD

------ 2π

--------------= C

. The S/N is the ratio of black-to-white amplitude to the black level noise

RMS

with 27 kHz deviation.

RMS

----------------------------------2R K

0KDCP

= f0(1.55 − υ2)

−3dB

These equations are only valid under the conditions that υ ≤ 1 and CS>5CP. Definitions: K0 = VCO steepness in rad/V KD = phase detector steepness µA/rad R = loop filter resistor CS = series capacitor CP = parallel capacitor f0 = natural frequency of PLL BL

= loop bandwidth for −3dB

−3dB

υ = damping factor

Some examples for these values are given in table 132

19. Modulation frequency: 1 kHz, ∆f = ± 50 kHz.

20. f = 4.5/5.5 MHz; FM: 70 Hz, ± 50 kHz deviation; AM: 1.0 kHz, 30% modulation.

21. This figure is independent of the TV standard and valid for a frequency deviation of ±25 kHz at a carrier frequency of 4.5 MHz or a deviation of ±50 kHz at a carrier frequency of 5.5/6.0/6.5 MHz.

2001 Jan 18 95

Page 96

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

22. The deemphasis pin can also be used as additional audio input. In that case the internal (demodulated FM signal) must be switched off. This can be realised by means of the SM (sound mute) bit. When the vision IF amplifier is switched to positive modulationthe signal fromthe FM demodulator is automatically switched off. Theexternal signal must be switched off when the internal signal is selected.

23. The signal-to-noise ratio is measured under the following conditions: a) Inputsignal to the SNDIF pin (activated via SIF bit) with an amplitude of 100mV

RMS,fMOD

b) Output signal measured at the AUDEEM pin. The noise (RMS value) is measured according to the CCIR 468

definition.

24. Audio input signal 200 mV

25. Audio input signal 1 V

RMS

26. Unweighted RMS value, audio input signal 500 mV

. Measured with a bandwidth of 15 kHz and the audio attenuator at −6 dB.

RMS

and the volume control setting such that no clipping occurs in the audio output.

, audio attenuator at −6 dB.

RMS

27. Audio attenuator at −20 dB; temperature range 10 to 50 °C.

28. In various versions the Automatic Volume Levelling (AVL) function can be activated. The pin to which the external capacitor has to be connected depends on the IC version. For the 90° types the capacitor is connected to the EW output pin. For the 110° types a choice can be made between the AVL function and a sub-carrier output / general purpose switch output. The selection must be made by means of the CMB0 and CMB1 bit in subaddress 22H. More details about the sub-carrier output are given in the parameters D.10.

The Automatic Volume Levelling (AVL) circuit stabilises automatically the audio output signal to a certain level which can be set by means of the volume control. This AVL function prevents big audio output fluctuations due to variation of the modulation depth of the transmitter. The AVL can be switched on and off via the AVL bit in subaddress 29H.

The AVL is active over an input voltage range (measured at the deemphasis output) of 150 to 1500 mV control curve is given in Fig.39. The control range of +6 dB to −14 dB is valid for input signals with 50% of the maximum frequency deviation.

29. Signal with negative-going sync. Amplitude includes sync pulse amplitude.

30. This parameter is measured at nominal settings of the various controls.

31. Indicated is a signal for a colour bar with 75% saturation (chroma : burst ratio = 2.2 : 1).

32. The contrast and saturation control is active on the internal signal (YUV) and on the external RGB/YUV input. The Text/OSD input can be controlled on brightness only. Nominal contrast is specified with the DAC in position 20 HEX. Nominal saturation as maximum −10 dB.

33. The YUV input signal amplitudes are based on a colour bar signal with 75/100% saturation.

34. When the decoder is forced to a fixed subcarrier frequency (via the CM-bits) the chroma trap is always switched-on, also when no colour signal is identified. In the automatic mode the chroma trap is switched-off when no colour signal is identified.

35. Valid for a signal amplitude on the Y-input of 0.7 V black-to-white (100 IRE) with a rise time (10% to 90%) of 70 ns and the video switch in the Y/C mode. During production the peaking function is not tested by measuring the overshoots but by measuring the frequency response of the Y output.

36. The ratio between the positive and negative peaks can be varied by means of the bits RPO1 and RPO0 in subaddress 2EH. For ratios which are smaller than 1.8 the positive peak is not affected and the negative peak is reduced.

37. For video signals with a black level which deviates from the back-porch blanking level the signal is “stretched” to the blanking level. The amount of correction depends on the IRE value of the signal (see Fig.40). The black level is detected by means of an internal capacitor. The black level stretcher can be switched on and off via the BKS bit in subaddress 2DH. The values given in the specification are valid only when the luminance input signal has an amplitude of 1 V

p-p

= 1 kHz and ∆f = 27 kHz

. The AVL

RMS

2001 Jan 18 96

Page 97

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

38. The slicing level is independent of sync pulse amplitude. The given percentage is the distance between the slicing level and the black level (back porch). When the amplitude of the sync pulse exceeds the value of 350 mV the sync separator will slice the sync pulse at a level of 175 mV above top sync. The maximum sync pulse amplitude is 4 V

The vertical slicing level is dependent on the S/N ratio of the incoming video signal. For a S/N ≤ 24 dB the slicing level is 35%, for a S/N ≥ 24 dB the slicing level is 60%. With the bit FSL (Forced Slicing Level) the vertical slicing level can be forced to 60%.

39. To obtain a good performance for both weak signal and VCR playback the time constant of the first control loop is switched depending on the input signal condition and the condition of the POC, FOA, FOB and VID bits in subaddress 24H. The circuit contains a noise detector and the time constant is switched to ‘slow’ when too much noiseis presentin thesignal. Inthe ‘fast’mode duringthe verticalretrace timethe phasedetector currentis increased 50% so that phase errors due to head-switching of the VCR are corrected as soon as possible. Switching of the time constant can be automatically or can be set by means of the control bits.

The circuit contains a video identification circuit which is independent of the first loop. This identification circuit can be used to close or open the first control loop when a video signal is present ornot present on theinput. This enables a stable On Screen Display (OSD) when just noise is present at the input.

To prevent that the horizontal synchronisation is disturbed by anti copy signals like Macrovision the phase detector is gated during the vertical retrace period so that pulses during scan have no effect on the output voltage.The width of the gate pulse is about 22 µs. During weak signal conditions (noise detector active) the gating is active during the complete scan period and the width of the gate pulse is reduced to 5.7 µs so that the effect of noise is reduced to a minimum.

The output current of the phase detector in the various conditions are shown in Table 133.

40. The ICs have 2 protection inputs. The protection on the second phase detector pin is intended to be used as ‘flash’ protection. When this protection is activated the horizontal drive is switched-off immediately and then switched-on again via the slow start procedure.

The protection on the EHT input is intended for overvoltage (X-ray) protection. When this protection is activated the horizontal drive is directly switched-off (via the slow stop procedure).

The EHT protection input can also be used to switch-off the TV receiver in a correct way when it is switched off via the mains power switch or when the power supply is interrupted by pulling the mains plug. This can be realised by means of a detection circuit which monitors the main supply voltage of the receiver. When this voltage suddenly decreases the EHT protection input must be pulled HIGH and then the horizontal drive is switched off via the slow stopprocedure. Whether the EHT capacitoris dischargedin the overscan or notduring theswitch-off period depends on the setting of the OSO bit (subaddress 25H, D4). See also note 59.

41. The control range indicates the maximum phase difference at the top and the bottom of the screen. Compared with the phase position at the centre of the screen the maximum phase difference at the top and the bottom of the screen is ±0.5 µs for both the parallelogram and the bow correction.

42. During switch-on the horizontal drive starts-up in a soft-start mode. The horizontal drive starts with a very short T time of the horizontal output transistor, the ‘off time’ of the transistor is identical to the ‘off time’ in normal operation. The starting frequency during switch-on is therefore about 2 times higher than the normal value. The ‘on time’ is slowly increased to the nominal value in a time of about 1175 ms (see Fig.43). The rather slow rise of the T between 75% and 100% of TON is introduced to obtain a sufficiently slow rise of the EHT for picture tubes with Dynamic Astigmatic Focus (DAF) guns. When the nominal frequency is reached the PLL is closed in such a way that only very small phase corrections are necessary. This ensures a safe operation of the output stage.

During switch-off the soft-stop function is active. This is realised by decreasing the TON of the output transistor complimentary to the start-up behaviour. The switch-off time is about 43 ms (see Fig.43). When the ‘switch off command’ is received the soft-stop procedure is started after a delay of about 2 ms. During the switch-off time the EHT capacitor of the picture tube is discharged with a fixed beam current which is forced by the black current loop (see also note 59). The discharge time is about 38 ms.

The horizontal output is gated with the flyback pulse so that the horizontal output transistor cannot be switched-on during the flyback time.

p-p

2001 Jan 18 97

Page 98

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

43. The vertical blanking pulse in the RGB outputs has a width of 27 or 22 lines (50 or 60 Hz system). The vertical pulse in the sandcastle pulse has a width of 14 or 9.5 lines (50or 60 Hz system).This to prevent a phasedistortion on top of the picture due to a timing modulation of the incoming flyback pulse.

44. The timing pulses for the vertical ramp generator are obtained from the horizontal oscillator via a divider circuit. During TV reception this divider circuit has 3 modes of operation:

a) Search mode ‘large window’.

This mode is switched on when the circuit is not synchronized or when a non-standard signal (number of lines per frame outside the range between 311 and 314(50 Hz mode) or between 261 and 264 (60 Hz mode) is received). In the search mode the divider can be triggered between line 244 and line 361 (approximately 45 to 64.5 Hz).

b) Standard mode ‘narrow window’.

This mode is switchedon when morethan 15 succeeding vertical sync pulses are detected in the narrow window. When the circuit is in the standard mode and a vertical sync pulse is missing the retrace of the vertical ramp generator is started at the end of the window. Consequently, the disturbance of the picture is very small. The circuit will switch back to the search window when, for 6 successive vertical periods, no sync pulses are found within the window.

c) Standard TV-norm (divider ratio 525 (60 Hz) or 625 (50 Hz).

When the system is switched to the narrow window it is checked whether the incoming vertical sync pulses are in accordance with the TV-norm. When 15 standard TV-norm pulses are counted the divider system is switched tothe standard divider ratio mode. In this mode thedivider isalways resetat the standard value even if thevertical sync pulse is missing.

When 3 vertical sync pulses are missed the system switches back to the narrow window and when also in this window no sync pulses are found (condition 3 missing pulses) the system switches over to the search window.

The vertical divider needs some waiting time during channel-switching of the tuner. When a fast reaction of the divider is required duringchannel-switching the system can beforced to the search windowby means of the NCIN bit in subaddress 25H.

When RGB signals are inserted the maximum vertical frequency is increased to 72 Hz. This has the consequence that the circuit can also be synchronised by signals with a higher vertical frequency like VGA.

45. Conditions: frequency is 50 Hz; normal mode; VS = 1F.

46. The output range percentages mentioned for E-W control parameters are based on the assumption that 400 µA variation in E-W output current is equivalent to 20% variation in picture width.

47. The ICs have a zoom adjustment possibility for the horizontal and vertical deflection. For this reason an extra DAC has been added in the vertical amplitude control which controls the vertical scan amplitude between 0.75 and 1.38 of the nominal scan. At an amplitude of 1.06 of the nominal scan the output current is limited andthe blanking of the RGB outputs is activated. This is illustrated in Fig. 42.

a) The nominal scan height must be adjusted at a position of 19 HEX of the vertical ‘zoom’ DAC.

48. At a chrominance input voltage of 660 mV (p-p) (colour bar with 75% saturation i.e. burst signal amplitude 300 mV (p-p)) the dynamic range of the ACC is +6 and −20 dB.

49. The ACL function can be activated by via the ACL bit in the subaddress 20H. The ACL circuit reduces the gain of the chroma amplifier for input signals with a chroma-to-burst ratio which exceeds a value of 3.0.

50. This parameter indicates the bandwidth of the complete chrominance circuit including the chrominance bandpass filter. The bandwidth of the low-pass filter of the demodulator is approximately 1 MHz.

51. The subcarrier output is combined with a 3-level switch output which can be used to switch external circuits like sound traps etc. This output is controlled by the CMB1 and CMB0 bits in control byte 22H. The subcarrier signal is available when CMB1/0 are set to 0/1. During the demodulation of SECAM signals the subcarrier signal is only available during the vertical retrace period. The frequency is 4.43 MHz in this condition. When CMB1/0 are set to 00 in versions for 90° picture tubes (no EW output) the output is high ohmic.

2001 Jan 18 98

Page 99

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

52. Because of the 2-point black current stabilization circuit both the black level and the amplitude of the RGB output signals depend on the drive characteristic of the picture tube. The system checks whether the returning measuring currents meet the requirement and adapts the output level and gain of the circuit when necessary. Therefore the typical value of the black level and amplitude at the output are just given as an indication for the design of the RGB output stage.

The 2-point black level systemadapts the drive voltage for each cathodein such a way that the 2measuring currents have the right value. This has the consequence that a change in the gain of the output stage will be compensated by a gain change of the RGB control circuit. Because different picture tubes may require different drive voltage amplitudes the ratio between the output signal amplitude and the inserted measuring pulses can beadapted via the I2C-bus. This is indicated in the parameter ‘Adjustment range of the cathode drive level’.

Because of the dependence of the output signal amplitude on the application the soft clipping limiting has been related to the input signal amplitude.

53. The alignment system for the Vg2 voltage of the picture tube can be activated by means of the AVG bit. In that condition a certain black level is inserted at the RGB outputs during a few lines. The value of this level can be adjusted by means of the brightness control DAC. An automatic adjustment of the Vg2 of the picture tube can be realised by using the WBC and HBC bits in output byte 01. For a black level feedback current between 12 and 20 µA the WBC = 1, for a higher or lower current WBC = 0. Whether the current is too high or too low can be found from the HBC bit. The indication of these bits can be made visible on the screen via OSD so that this alignment procedure can also be used for service purposes.

54. When the reproduction of 4 : 3 pictures on a 16 : 9 picture tube is realised by means of a reduction of the horizontal scan amplitude the edges of the picture may slightly be disturbed. This effect can be prevented by adding an additional blanking to the RGB signals. The blanking pulse is derived form the horizontal oscillator and is directly related to the incoming video signal (independent of the flyback pulse). This blanking is activated with the HBL bit.

55. This parameter is valid only when the CCC loop is active.

56. Signal-to-noise ratio (S/N) is specified as peak-to-peak signal with respect to RMS noise (bandwidth 5 MHz).

57. This is a current input. The timing of the measuring pulses and the vertical blanking for the 50/60 Hz standard are given in Fig.44

The start-up procedure is as follows. When the TV receiver is switched-on the RGB outputs are blanked and the black-current loop will try to adjust the

picture tube to the right bias levels. The RGB drive signals are switched-on as soon as the black current loop is stabilised. This results in the shortest switch-on time.

Whenthis switch-onsystem results in a visible disturbance of the pictureit ispossible toadd afurther switch-on delay via a software routine. In that case the RGB outputs must be blanked by means of the RBL bit. As soon as the black current loop is stabilised the BCF-bit is set to 0 (output byte 01). This information can then be used to switch-on the RGB outputs with some additional delay.

58. Theinput of the vertical guardfunction can be connected tothe black current measuring input(BLKIN) or to the beam current limiting input (BCLIN). Theswitching between these modes is realised bymeans of the IVG bit in subaddress 2BH. When the black current input is chosen itshould be notedthat for a reliable operation of the protection system and the black current stabilization system the end of the protection pulse during normal operation should not overlap the measuring pulses (see also Fig.44). Therefore this pulse must end before line 14.

2001 Jan 18 99

Page 100

Philips Semiconductors Tentative Device Speciﬁcation

TV signal processor-Teletext decoder with

TDA935X/6X/8X PS/N2 series

embedded µ-Controller

59. During switch-off the magnitude of the discharge current of the picture tube is controlled by the black current loop. Dependent on the setting of the OSO bit the vertical scan can be stopped in an overscan position during that time so that the discharge is not visible on the screen. The switch-off procedure is as follows:

a) When the switch-off command is received the RGB outputs are blanked for a time of about 2 ms. b) If OSO = 1 the vertical scan is placed in an overscan position c) If OSO = 0 the vertical deflection will keep running during the switch-off time d) The soft-stop procedure is started with a reduction of the TON of the output stage from nominal to zero e) The fixed beam current is forced via the black current loop f) The soft-stop time has a value of 43 ms, the fixed beam current is flowing during a time of 38 ms.

Table 132 Some examples for the FM-PLL ﬁlter

Table 133 Output current of the phase detector in the various conditions

(kHz) CS (nF) CP (nF) R (kΩ) ν

−3dB

100 4.7 820 2.7 0.5 160 4.7 330 3.9 0.5

I2C-BUS COMMANDS IC CONDITIONS ϕ-1 CURRENT/MODE

VID POC FOA FOB IFI SL NOISE SCAN V-RETR GATING MODE

(1)

(2)

normal normal

− 0 0 0 yes yes no 200 300 yes

− 0 0 0 yes yes yes 30 30 yes

− 000yesno−200 300 no normal

− 001yesyes−30 30 yes

(2)

slow

− 001yesno−200 300 no slow

− 0 1 0 yes yes no 200 300 yes

− 0 1 0 yes yes yes 30 30 yes

−−11−−−200 300 yes

(2) (2) (1)

slow/fast

fast

00−−no −−6 6 no OSD

− 1 −−−−−−−−off

Note

1. Gating is active during vertical retrace, the width is 22 µs. This gating prevents disturbance due to Macro Vision Anti Copy signals.

2. Gating is continuously active and is 5.7 µs wide

2001 Jan 18 100

Datasheet TDA935X, TDA936X, TDA938X Datasheet (Philips)

Specifications and Main Features

Frequently Asked Questions

User Manual
