DATA SH EET

Product specification
Supersedes data of November 1992
File under Integrated Circuits, IC02

October 1994

INTEGRATED CIRCUITS

Philips Semiconductors

TDA8740; TDA8740H

Satellite sound circuit with noise
reduction

October 1994 2

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

FEATURES

• Demodulation of main audio signal using wide band PLL
(lock range selectable)

• Demodulation of secondary audio signals using wide
band PLL

• HF input selection: two-out-of-eight secondary audio
signals can be selected

• Noise reduction of the secondary audio signals

• Output selection: stereo, language 1, language 2, main

audio and external

• Mute control

• Line outputs (SCART level).

APPLICATIONS

• Satellite receivers

• TV sets

• Video recorders.

GENERAL DESCRIPTION

The TDA8740; TDA8740H is a multi-function sound IC for
use in satellite receivers, television sets and video
recorders. The pin numbers given in parenthesis
throughout this document refer to the QFP44 package.

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply

V

P

supply voltage 8 12 13.2 V

Main channel

V

IN3(rms)

input sensitivity pin 18 (14) (RMS value) S/N(A) = 40 dB − 1.0 2.0 mV

∆f

OM

lock range PLL demodulator

either 5.5 − 7.5 MHz
or 10.0 − 11.5 MHz

V

OM

output voltage pin 23 (19) −9 −6 −4 dBV

S/N(A) signal-to-noise ratio A-weighted 62 70 − dB

Secondary channels

V

IN1,IN2

input sensitivity pins 2, 4, 6, 8, 10, 12, 14 and 16
(1, 3, 5, 7, 9, 11, 40 and 42) (RMS value)

S/N(A) = 40 dB − 0.8 1.5 mV

∆f

OS1,2

lock range PLL demodulators 6.0 − 8.5 MHz

V

OR,OL

output voltage pins 24 and 25 (20 and 21) −8 −6 −4 dBV

S/N(A) signal-to-noise ratio A-weighted 72 80 − dB

Crosstalk

α

S/M

crosstalk from secondary to main channel − 74 − dB

α

M/S

crosstalk from main to secondary channel − 74 − dB

α

S/S

crosstalk between secondary channels − 74 − dB

October 1994 3

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

ORDERING INFORMATION

Note

1. When using IR reflow soldering it is recommended that the Drypack instructions in the

“Quality Reference Handbook”

(order number 9398 510 63011) are followed.

BLOCK DIAGRAM

TYPE NUMBER

PACKAGE

NAME DESCRIPTION VERSION

TDA8740 SDIP42 plastic shrink dual in-line package; 42 leads (600 mil) SOT270-1

TDA8740H QFP44

(1)

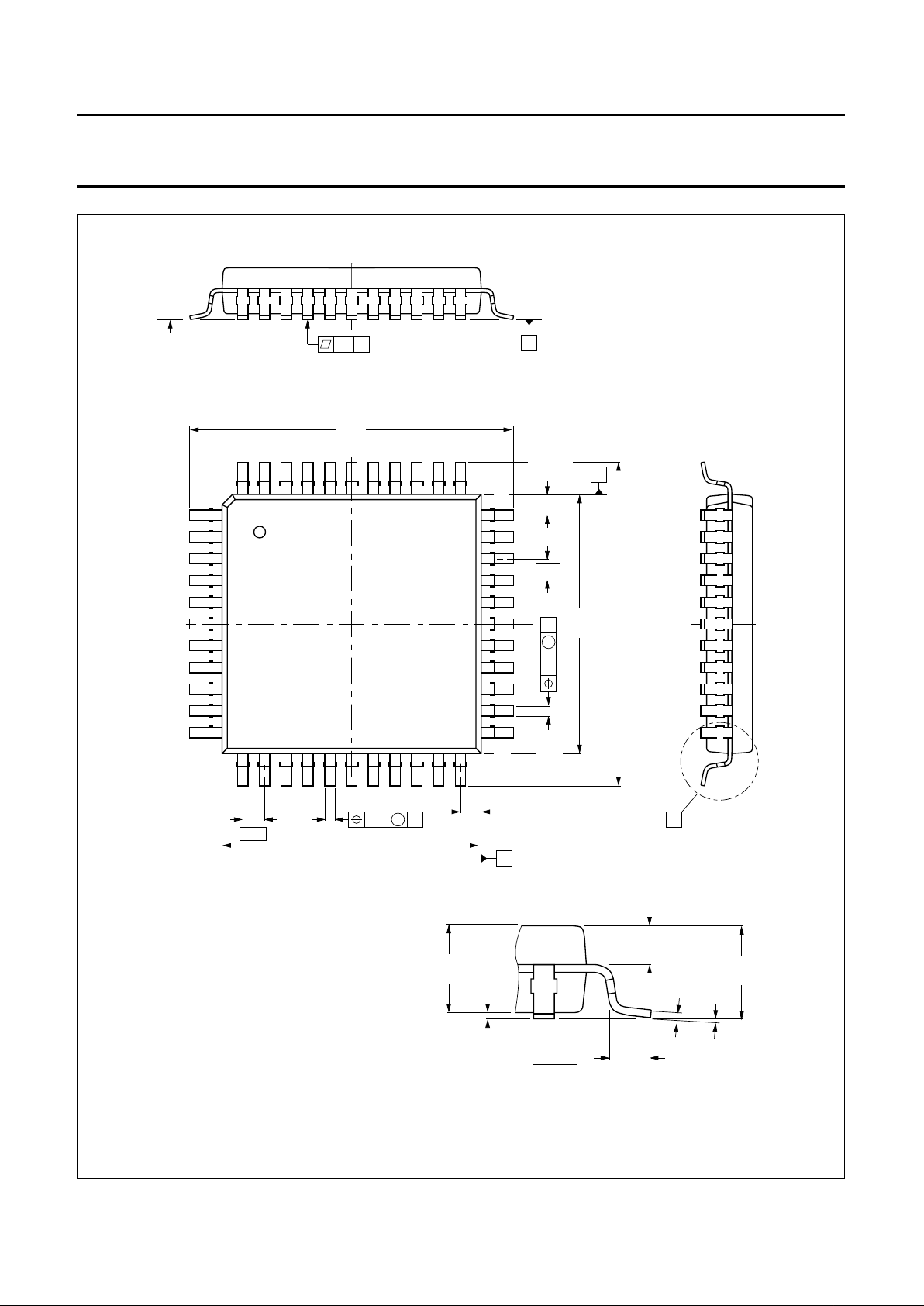

plastic quad flat package; 44 leads (lead length 1.3 mm);
body 10 × 10 × 1.75 mm

SOT307-2

Fig.1 Block diagram.

The pin numbers in parenthesis refer to the QFP44 package.

October 1994 4

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

PINNING

SYMBOL

PIN

SDIP42

PIN

QFP44

DESCRIPTION

n.c. 1 39 not connected
IN-1A 2 40 intercarrier input A for Channel 1 (left)
I

sel 1

3 41 input select switch bit 1
IN-1B 4 42 intercarrier input B for Channel 1 (left)
I

sel 2

5 43 input select switch bit 2
IN-1C 6 1 intercarrier input C for Channel 1 (left)
MCS 7 2 main channel PLL lock-in range select/disable
IN-1D 8 3 intercarrier input D for Channel 1 (left)
HFGND 9 4 ground for HF section
IN-2A 10 5 intercarrier input A for Channel 2 (right)
SCD 11 6 secondary channels PLLs disable
IN-2B 12 7 intercarrier input B for Channel 2 (right)
MUTE 13 8 mute switch
IN-2C 14 9 intercarrier input C for Channel 2 (right)
O

sel L

15 10 output select switch bit 1 (left)
IN-2D 16 11 intercarrier input D for Channel 2 (right)
O

sel R

17 13 output select switch bit 2 (right)
IN-3 18 14 intercarrier input for main channel
V

REF

19 15 decoupling capacitor for reference voltage
C

D M

20 16 de-emphasis capacitor for main channel
C

C M

21 17 audio pass-through capacitor input for main channel
V

P

22 18 positive supply voltage
O

M

23 19 main channel output
O

R

24 20 right channel output
O

L

25 21 left channel output
EXT/

INT 26 22 output switch bit 3 (external/internal)

EXT

R

27 23 external audio input (right)
EXT

L

28 24 external audio input (left)
C

ATT/REC R

29 25 attack/recovery capacitor (right)
RECT

R

30 26 rectifier DC decoupling (right)
C

NR D R

31 27 noise reduction de-emphasis capacitor (right)
C

D R

32 28 fixed de-emphasis capacitor (right)
C

C R

33 29 audio pass-through capacitor input for right channel
AFGND 34 30 ground for AF section
C

C L

35 31 audio pass-through capacitor input for left channel
C

D L

36 32 fixed de-emphasis capacitor (left)
C

NR D L

37 33 noise reduction de-emphasis capacitor (left)
RECT

L

38 34 rectifier DC decoupling (left)
C

ATT/REC L

39 35 attack/recovery capacitor (left)

October 1994 5

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

C

DC L

40 36 DC decoupling capacitor (left)
C

DC M

41 37 DC decoupling capacitor (main)
C

DC R

42 38 DC decoupling capacitor (right)
n.c. − 12 not connected
n.c. − 44 not connected

SYMBOL

PIN

SDIP42

PIN

QFP44

DESCRIPTION

Fig.2 Pin configuration (SDIP42).

October 1994 6

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

Fig.3 Pin configuration (QFP44).

October 1994 7

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

FUNCTIONAL DESCRIPTION
Satellite sound

The baseband signal coming from a satellite tuner
contains the demodulated video signal plus a number of
sound carriers to facilitate reception of a
PAL/NTSC/SECAM satellite signal.

Nearest to the video signal is the main sound carrier which
carries the single channel sound related to the video. This
is an FM modulated carrier with a fixed pre-emphasis. The
carrier frequency can be in the range of 5.8 to 6.8 MHz.

Additionally, a number of optional secondary sound
carriers may be present which can be used for stereo or
multi-language sound related to the video, or for unrelated
radio sound. These carriers are also FM modulated, but for
better sound quality (improved signal-to-noise
performance) broadcast satellites (e.g. ‘ASTRA’) use a
noise reduction system (adaptive pre-emphasis circuit,
combined with a fixed pre-emphasis).

These secondary carrier frequencies can be in the range
of 6.30 to 8.28 MHz. The TDA8740; H contains all circuitry
for processing the main channel and for two secondary
channels, from baseband signal to line (SCART) output
drivers. The desired frequencies can be routed to the
TDA8740; H via bandpass filters.

Main channel (see Fig.1)
The lock-in range of the main channel PLL can be

switched between 5.5 to 7.5 MHz, PLL off and 10.0 to

11.5 MHz using the MCS signal at pin 7 (2) [when pin 7 (2)
is at logic 0, being a voltage from 0 to 1.2 V, the lock-in
range = 5.5 to 7.5 MHz; when pin 7 (2) is at logic 1, being
a voltage from 3.5 V until V

P

, the lock-in range = 10.0 to

11.5 MHz; when pin 7 (2) is in the mid voltage position,
being a voltage from 1.8 to 2.8 V, the main channel PLL is
switched off]. The mid voltage position of the MCS pin can
also be obtained by a floating MCS pin if the circuit supply
voltage Vp is 10.8 to 13.2 V. The voltage on the MCS pin
is then determined by the resistor divider at this pin
between VP and ground.

If only one fixed carrier frequency for the main channel is
to be demodulated (e.g. 6.5 MHz), the lock-in range of the
PLL should be switched to 5.5 to 7.5 MHz. The baseband
signal is applied to the main channel input, pin 18 (14) via
a 6.5 MHz ceramic bandpass filter. Alternatively, if there is
a requirement to demodulate different main channel
frequencies, these frequencies can be transferred to a
fixed intermediate frequency (e.g. 10.7 MHz) using an
external mixer and oscillator-frequency synthesizer. In this
event the lock-in range of the PLL should be switched to

10.0 to 11.5 MHz. The IF signal is applied to the main
channel input, pin 18 (14) via a 10.7 MHz ceramic
bandpass filter.

The filtered signal is AC-coupled to a limiter/amplifier and
then to a PLL demodulator. The PLL FM demodulator
ensures that the demodulator is alignment-free. High gain
and DC error signals from the PLL, which are
superimposed on the demodulator output, require DC
decoupling. A buffer amplifier is used to amplify the signal
to the same level as the secondary channels and
decouples DC using an electrolytic capacitor connected to
pin 41 (37). The demodulator output signal is fed to pin 20
(16) via an internal resistor. The output signal can be
de-emphasized by means of this resistor and an external
capacitor connected to ground.

Capacitor value = de-emphasis time constant per 1500
(for 50 µs: 33 nF).

From here the signal is fed to the output selectors. The
signal is amplified to 500 mV(RMS) (i.e. −6 dBV) in the
output amplifiers.

Secondary channels

Up to eight secondary channel inputs are available at pins
2, 4, 6, 8, 10, 12, 14 and 16 (1, 3, 5, 7, 9, 11, 40 and 42).
External ceramic bandpass filters tuned to the required
secondary sound carrier frequencies route these signals to
the inputs.

For stereo applications the TDA8740; TDA8740H contains
two identical secondary sound processing channels. For
each channel it is possible to select from four inputs (IN-A,
IN-B, IN-C and IN-D) using the input selector (see Logic
Table 1). With the input switch several stereo signals or
languages can be selected for demodulation. It should be
noted that the inputs are identical and can be freely
interchanged. Secondary Channel 1 will also be referred
to as ‘LEFT’ or ‘LANGUAGE 1’ and secondary Channel 2
will also be referred to as ‘RIGHT’ or ‘LANGUAGE 2’.

From the input selector switch the signals are coupled to
limiter/amplifiers and then to the PLL demodulators.
Processing is similar to the main channel. The
demodulator output signal is amplified in a buffer amplifier
and DC decoupled using electrolytic capacitors connected
to pins 40 (36) (left) and 42 (38) (right). The output level is
set with a 220 Ω resistor connected in series with the
capacitor.

High frequency components in the amplified PLL output
signal are filtered out in the audio LPF block (4th order
Butterworth low-pass filter) to prevent unwanted influence
on the noise reduction.

October 1994 8

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

NOISE REDUCTION (NR)
The noise reduction can be regarded as an input

level-dependent low-pass filter (adaptive de-emphasis
system) followed by a fixed de-emphasis. With maximum
input level (0 dB) the frequency response of the first part
(i.e. without the fixed de-emphasis) is virtually flat. As the
input level is lowered by x-dB, the higher output
frequencies will be reduced an extra x-dB with respect to
the lower frequencies (1 : 2 expansion).

The NR output signal is fed to pin 36 (32) (left) and pin 32
(28) (right) via internal resistors.

Fixed de-emphasis is achieved by these resistors and
external capacitors connected to ground. The signals are
DC decoupled via pins 36/35 (32/31) and 32/33 (28/29)
and then routed to the output selectors.

O

UTPUT SELECTION

With the output selector (see Table 2) the outputs at
pins 25 and 24 (21 and 20) can be switched to the different
channels. Both outputs can be switched to both secondary
channels, to the main channel and to the external inputs at
pin 28 and 27 (24 and 23) for IC chaining purposes.

Pin 23 (19) is a separate output which delivers the main
channel only, thereby creating the possibility of having
three different output channels simultaneously e.g. for use
in hi-fi VCRs.

The outputs at pins 25 and 24 (21 and 20) can be muted
by setting the MUTE signal at pin 13 (8) to logic 1 (switch
positions 6 and 7).

The output at pin 23 (19) can be muted by setting the
MUTE signal and the EXT/INT signal at pin 26 (22) both
logic 1 (switch position 7).

All outputs at pins 23, 24 and 25 (19, 20 and 21) are line
drivers with SCART level capability and are short-circuit
protected by 125 Ω output resistors.

Output level of all channels = −6 dBV typical when
frequency deviation of FM signal is 54% of maximum
frequency deviation (i.e. 0.54 × 85 kHz = 46 kHz for the
main channel and 0.54 × 50 kHz = 27 kHz for the
secondary channels) at 1 kHz modulation frequency
(reference level).

ABBREVIATIONS

f

MOD

= modulating frequency.

∆fM = frequency deviation of the main Channel.
∆fS1 = frequency deviation of secondary Channel 1 (left).
∆fS2 = frequency deviation of secondary Channel 2 (right).

fOM = carrier frequency of main Channel.
f

OS1

= carrier frequency of secondary Channel 1.

f

OS2

= carrier frequency of secondary Channel 2.
LPF = Low-Pass Filter.
NR = Noise Reduction.
PLL = Phase-Locked-Loop

October 1994 9

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

Notes

1. All voltages referenced to ground pins 9 and 34 (4 and 30).

2. All voltages referenced to ground pins 9 and 34 (4 and 30). These voltages must not exceed V

P

or maximum value

at any time.

THERMAL CHARACTERISTICS

DC CHARACTERISTICS

All voltages referenced to ground at pins 9 and 34 (4 and 30). Measured in test circuit Fig.4; V

P

=12V; T

amb

=25°C;

∆fM= ∆fS1= ∆fS2= 0 kHz (no modulation); fOM= 6.5 MHz; f

OS1

= 7.02 MHz; f

OS2

= 7.20 MHz; HF level at pin 18 (14):
40 mV (RMS); HF level at selected secondary inputs: 20 mV (RMS); MCS = logic 0 [V7(V2)=0V];
SCD = logic 0 [V11(V6) = 0 V]; unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

P

supply voltage note 1 0 13.2 V

V

n

voltage on pins 2, 4, 6, 8, 10, 12, 14 and 16
(1, 3, 5, 7, 9, 11, 40 and 42)

note 2 0 1 V

V

n

voltage on pins 3, 5, 1 1, 13, 15, 17, 20, 21, 23 to 26, 31, 33,
35, 37, 40, 41, and 42 (6, 8, 10, 13, 16, 17, 19, 20 to 22, 27,
29, 31, 33, 36, 37, 38, 41 and 43)

note 2 0 9 V

V

n

voltage on pins 7, 18, 19, 27 to 30, 32, 36, 38 and 39
(2, 14, 15, 23 to 26, 28, 32, 34 and 35)

note 1 0 V

P

V

T

stg

storage temperature −55 +150 °C

T

amb

operating ambient temperature −20 +70 °C

SYMBOL PARAMETER VALUE UNIT

R

th j-a

thermal resistance from junction to ambient in free air

SDIP42 53 K/W
QFP44 69 K/W

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

V

P

supply voltage 8.0 12 13.2 V

I

P

supply current − 38 45 mA

P

tot

total power dissipation −−600 mW

V

n

voltage on pins 20, 21, 23, 24, 25, 27, 28, 30, 32, 33, 35, 36
and 38 (16, 17, 19, 20, 21, 23, 24, 26, 28, 29, 31, 32 and 34)

− 3.8 − V

V

REF

input reference voltage on pin 19 (15) 3.7 3.8 3.9 V

V

n

voltage on pins 2, 4, 6, 8, 10, 12, 14 and 16
(1, 3, 5, 7, 9, 11, 40 and 42)

− 0 − V

V

CDCL,CDCR

voltage on pins 40 and 42 (36 and 38) − 2.7 − V

V

CDCM

voltage on pin 41 (37) − 2.8 − V

I

IN3

input current at pin 18 (14) −−1µA

October 1994 10

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

AC CHARACTERISTICS

All voltages referenced to ground at pins 9 and 34 (4 and 30). Measured in test circuit Fig.4; VP= 12 V; T

amb

=25°C;

f

MOD

= 1 kHz; fOM= 6.5 MHz; ∆fM= 46 kHz; ∆fS1= ∆fS2= 27 kHz (reference levels); f

OS1

= 7.02 MHz; f

OS2

= 7.20 MHz;
HF level at pin 18 (14): 40 mV (RMS); HF level at selected secondary inputs: 20 mV (RMS); MCS = logic 0
[V7(V2) = 0 V]; SCD = logic 0 [V11(V6) = 0 V]; unless otherwise specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Main channel - HF input pin 18 (14) and limiter

V

IN3(rms)

input sensitivity (RMS value) S/N(A) = 40 dB − 1.0 2.0 mV

V

IN3(rms)

input signal level (RMS value) −−200 mV

R

IN3

input resistance − 15 − kΩ

Main channel - PLL FM demodulator and DC decoupling amplifier

f

CCO

free-running frequency − 6.5 − MHz

MCS = logic 1 − 10.7 − MHz

∆f

OM

lock range of PLL note 1 5.5 − 7.5 MHz

MCS = logic 1; note 1 10.0 − 11.5 MHz

R

CDM

output resistance for 50 µs
de-emphasis pin 20 (16)

1.24 1.5 1.7 kΩ

V

CDM

output voltage pin 20 (16) −18.5 −16.0 −14.5 dBV

∆V

CDM

spread of PLL output voltage
over lock range pin 20 (16)

−−±1dB

R

CCM

input resistance of output
amplifier pin 21 (17)

95 150 200 kΩ

Main channel - overall performance (output selector in position 4)

V

OM,OR,OL

output voltage pins 23, 24 and
25 (19, 20 and 21)

all PLLs locked −9 −6 −4 dBV

UBM output voltage unbalance pins

23, 24, 25 (19, 20, 21)

output selector in
position 4

−0.5 − +0.5 dB

THD total harmonic distortion all PLLs locked − 0.1 0.5 %
S/N(A) signal-to-noise ratio A-weighted; all PLLs

locked

62 70 − dB

15 kHz frequency response
with respect to 1 kHz pin 23
(19)

no de-emphasis
connected

−0.5 0 +0.5 dB

R

OM,OR,OL

output resistance pins 23, 24
and 25 (19, 20 and 21)

92 125 150 Ω

α

S/M

crosstalk attenuation from
secondary channels to main

note 2 − 74 − dB

MUTE

att

mute attenuation output selector in

position 7

74 −−dB

SVRR supply voltage ripple rejection V

RR

= 100 mV; fi=70Hz − 35 − dB

V

OM 15 kHz()

V

OM 1 kHz()

-------------------------------

October 1994 11

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

Secondary channels 1 and 2 - HF inputs pins 2, 4, 6, 8, 10, 12, 14 and 16 (1, 3, 5, 7, 9, 11, 40 and 42) and
limiters

V

IN1,IN2

input sensitivity (RMS value) S/N(A) = 40 dB − 0.8 1.5 mV

V

I(rms)

input signal level (RMS value) −−200 mV

R

i

input resistance 260 330 380 Ω

Secondary channels 1 and 2 - PLL FM demodulators (input selector in position 1)

f

CCO1

free running frequency PLL1 − 7.0 − MHz

f

CCO2

free running frequency PLL2 − 7.2 − MHz

∆f

OS1/2

lock range of PLLs note 3 6.0 − 8.5 MHz

R

S1,S2

series resistance for optimum
frequency response
adjustment

0 0.22 1.0 kΩ

V

CDCL,CDCR (rms

) PLL output voltage pins 40

and 42 (36 and 38) (RMS
value)

pins to be left open-circuit − 7 − mV

∆V

CDCL,CDCR

spread of PLL output voltage
over lock range

−−±1dB

Secondary channels - overall performance of LPF and NR (input and output selectors in position 1)

R

o

output resistance for 75 µs
de-emphasis pins 36 and 32
(32 and 28)

1.9 2.3 2.6 kΩ

R

i

input resistance of output
amplifiers pins 35 and 33
(31 and 29)

95 150 200 kΩ

V

OL,OR

output voltage level
pins 25 and 24 (21 and 20)

note 4 −8 −6 −4 dBV

UBS unbalance voltage outputs

pins 25 and 24 (21 and 20)

note 4 −1 − +1 dBV

THD total harmonic distortion note 4 − 0.1 0.5 %
S/N(A) signal-to-noise ratio A-weighted; note 4 72 80 − dB
R

o

output resistance pins 25 and
24 (21 and 20)

note 4 92 125 150 Ω

MUTE

att

mute attenuation output selector in

position 6; note 4

74 −−dB

α

S/S

crosstalk attenuation between
secondary channels

note 5 − 74 − dB

α

M/S

crosstalk attenuation from
main channel to secondary

note 6 − 74 − dB

V

offset(DC)

DC offset voltage on
attack/recovery capacitors
pins 29, 39 (25, 35)

all PLLs locked; ∆f = 0 14 16 20 mV

SVRR supply voltage ripple rejection V

RR

= 100 mV; fi=70Hz − 25 − dB

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

October 1994 12

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

Secondary channels - low-pass filter pins 38 and 30 (34 and 26)

50 kHz frequency response
with respect to 1 kHz

note 7 −25 −16 −9dB

Secondary channels - noise reduction pins 25 and 24 (21 and 20); note 4
V

OL,OR

output voltage at 0 dB noise
reduction input level

∆fS1= ∆fS2= 50 kHz;
no fixed de-emphasis
connected

−1+1+3dBV

15 kHz frequency response
with respect to 1 kHz at 0 dB
noise reduction input level

∆f

S1

= ∆fS2= 50 kHz;
no fixed de-emphasis
connected

−2 0 +2 dB

V

OL,OR

output voltage at −20 dB noise
reduction input level

∆fS1= ∆fS2= 5 kHz;
no fixed de-emphasis
connected

−29 −26 −23 dBV

15 kHz frequency response
with respect to 1 kHz at

−20 dB noise reduction input
level

∆f

S1

= ∆fS2= 5 kHz;
no fixed de-emphasis
connected

−13 −11.5 −10 dB

External inputs - pin 28 (24) (left) and pin 27 (23) (right) - overall performance (output selector in position 5)

V

EXTR,EXTL

input signal level −−6 dBV

R

i

input resistance 95 150 200 kΩ

V

OL,OR

output level pins 25 and 24 (21
and 20)

V

EXTR, EXTL

= −6 dBV −6.5 −6.0 −5.5 dBV

THD total harmonic distortion V

EXTR, EXTL

= −6 dBV;

fi= 1 kHz

−−0.1 %

S/N(A) signal-to-noise ratio A-weighted;

V

EXTR, EXTL

= −6 dBV

80 −−dB

α

L/R,αR/L

crosstalk fi= 1 kHz − 80 − dB

Input selector control circuit pins 3 and 5 (41 and 43) (see also T able 1) and secondary channels PLLs disable
[SCD pin 11 (6)]; pins 3, 5 and 11 (41, 43 and 6) left open-circuit = logic HIGH

V

IL

LOW level input voltage 0 − 1.2 V

V

IH

HIGH level input voltage 3.5 − 9V

R

i

input resistance connected to V

P

65 100 130 kΩ

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

RECTL RECTR 50 kHz(),

V

RECTL RECTR 1 kHz(),

---------------------------------------------------------- -

V

OL OR 15 kHz(),

V

OL OR 1 kHz(),

---------------------------------------

V

OL OR 15 kHz(),

V

OL OR 1 kHz(),

---------------------------------------

October 1994 13

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

Notes

1. At pin 20 (16) the demodulated 1 kHz signal should be present with a typical level of 158 mV (RMS) (−16 dBV), and
THD of maximum 0.5%; VP= 8 to 13.2 V; T

amb

= −20 to +70 °C.

2. Modulation of main channel is OFF; modulation of secondary channels is ON.

3. The electrolytic capacitors at pins 40 and 42 (36 and 38) are removed and 1500 pF capacitors between pin 40 (36)
and ground and between pin 42 (38) and ground are connected. At pins 40 and 42 (36 and 38) the demodulated
1 kHz signals should be present with typical levels of 7 mV (RMS) and THD of maximum 0.5%; VP= 8 to 13.2 V;
T

amb

= −20 to +70 °C.

4. All PLLs locked; RS1=RS2= 220 kΩ.

5. Modulation of secondary channel being measured and main channel is OFF; modulation of other secondary channel
is ON.

6. Modulation of main channel is ON; modulation of secondary channels is OFF.

7. Measured at pins 38 (34) (left) and 30 (26) (right) and no electrolytic capacitors connected to these pins.

Output selector control circuit (see also T able 2) and main channel PLL lock-in select [MCS pin 7 (2)]; pins 15,
17, 26 and 13 (10, 13, 22 and 8) are MOS inputs and should not be left open-circuit

V

IL

LOW level input voltage limits 0 − 1.2 V

V

IM

MID level input voltage limits
for MCS pin only

1.8 − 2.8 V

V

IMF

MID level input voltage on
MCS pin if MCS pin is floating

VP must be 10.8 to 13.2 V 17 19 21 %V

P

V

IH

HIGH level input voltage limits 3.5 − V

P

V

R

IL

low input resistance MCS pin
to ground

12 19 26 kΩ

R

IH

high input resistance MCS pin
to V

P

52 80 108 kΩ

I

IL

LOW level input current
(not MCS pin)

VIL=0V −<−1−µA

I

IH

HIGH level input current
(not MCS pin)

VIH=5V −<1−µA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

October 1994 14

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

Table 1 Truth table for input selection.

Table 2 Truth table for output selection (note 1).

Note

1. X = don’t care.

SWITCH POSITION STATE PIN 15 (10) PIN 17 (13)

1 pins 2 and 10 (IN-A) (40 and 5) 0 0
2 pins 4 and 12 (IN-B) (42 and 7) 0 1
3 pins 6 and 14 (IN-C) (1 and 9) 1 0
4 pins 8 and 16 (N-D) (3 and 12) 1 1

SWITCH

POSITION

STATE

PIN 15 (10) PIN 17 (13) PIN 26 (22) PIN 13 (8)

OUTSEL L OUTSEL R EXT/

INT MUTE

1 stereo 1 1 0 0
2 left 1 0 0 0
3 right 0 1 0 0
4 main 0 0 0 0
5 external X X 1 0
6 mute secondary X X 0 1
7 mute all X X 1 1

October 1994 15

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

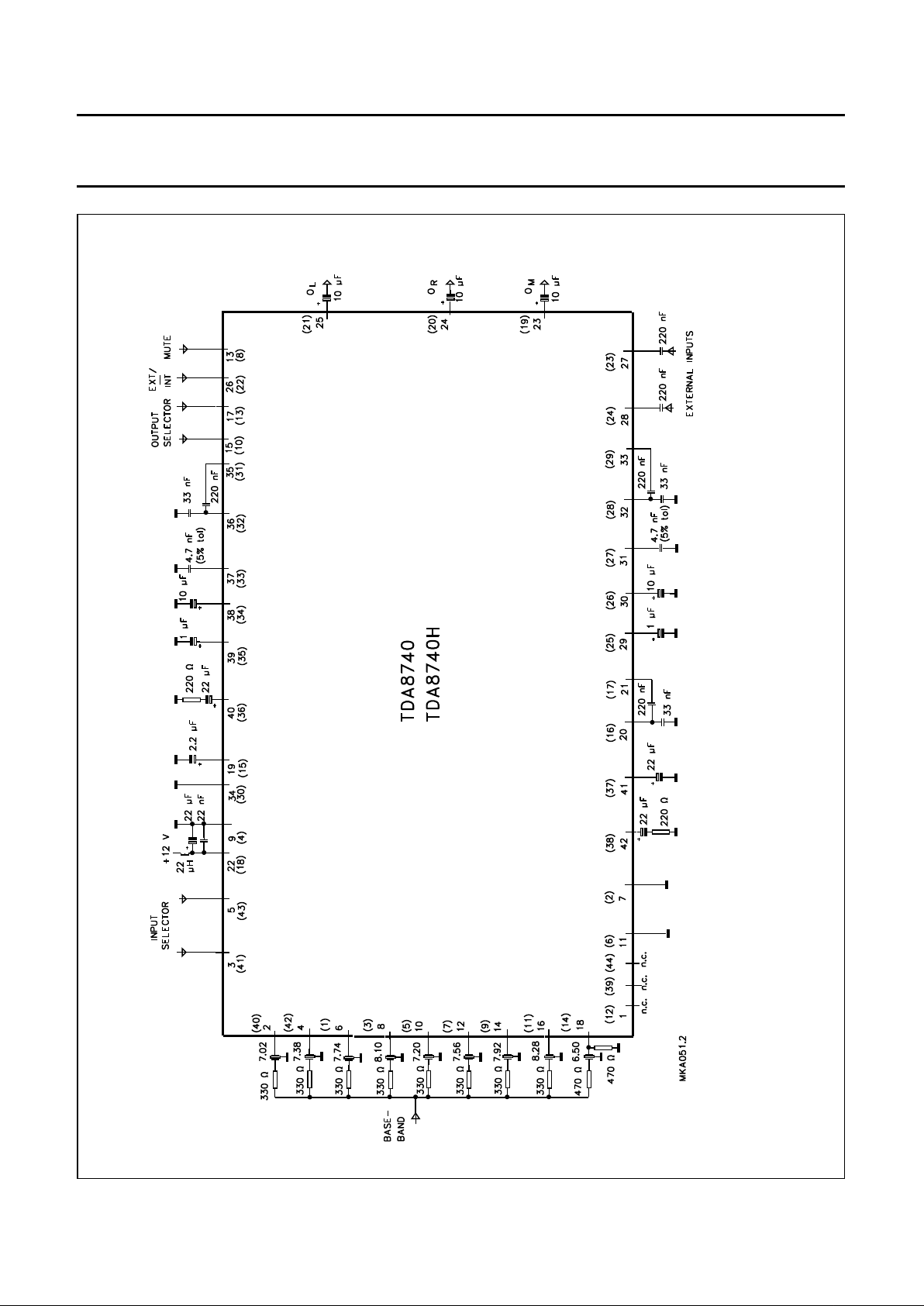

Fig.4 Test circuit.

The pin numbers in parenthesis refer to the QFP44 package.

October 1994 16

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

APPLICATION INFORMATION
MCS pin 7 (2) = logic 0; (see Fig.5)

The lock-in range of the main channel PLL is 5.5 to

7.5 MHz. The satellite baseband signal is routed to nine

bandpass filters, eight for the secondary channels and one
for the main channel. For the secondary channels the
bandpass filter terminating resistors are integrated on-chip
(330 Ω typically) so no external resistors are required. For
the main channel this is not the case therefore filters with
different characteristics can be used.

MCS pin 7 (2) = logic 1; (see Fig.6)
The lock-in range of the main channel PLL is now 10.0 to

11.5 MHz. The carrier frequency for the main channel is

transposed to 10.7 MHz by an external frequency
synthesizer and mixer; e.g., if a 6.65 MHz carrier is to be
demodulated this frequency is mixed to 10.7 MHz by
tuning the frequency synthesizer to 17.35 MHz. If the
synthesizer is tuned 17.20 MHz a 6.5 MHz carrier can be
demodulated. In this event the audio output level should
be adjusted to −6 dBV by inserting a 470 Ω resistor in
series with the electrolytic capacitor to pin 41 (37).

MCS pin 7 (2) = MID position

The main channel PLL is off if the voltage is between 1.8
and 2.8 V on pin 7 (2). This situation can be obtained by a
floating MCS pin if V

P

is between 10.8 and 13.2 V or by
forcing this MCS pin to the desired voltage by an external
voltage source. In that event VP can be in the full range of
8 to 13.2 V. This feature can be used to slightly improve
the signal-to-noise ratio of the secondary channels if the
main channel is not used.

For the main channel the baseband signal is routed to the
mixer, and to eight ceramic bandpass filters for the
secondary channels. For high-end applications the input
level of the NR can be adjusted to give optimal
performance. 0 dB is the maximum input level which
corresponds to the maximum frequency deviation of the
incoming FM signal (50 kHz for secondary channels). If
the NR input signal is too low (HIGH) the NR will attenuate
(favour) the higher audio frequencies too much due to the
expansion character. In general a 1 dB error in the NR
input level will give a 1 dB difference between
LOW (50 Hz) and HIGH (15 kHz) audio frequencies. With
RS1 (RS2) the input level and so the frequency response of
the NR can be adjusted: at 0 dB input level (which
corresponds to a frequency deviation of 50 kHz) the output
level of a 15 kHz modulated signal should be 0.25 dB
lower than that of a 50 Hz modulated signal.

If the main channel only is to be demodulated the PLLs of
the secondary channels can be disabled by setting SCD
pin 11 (6) to logic 1.

October 1994 17

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

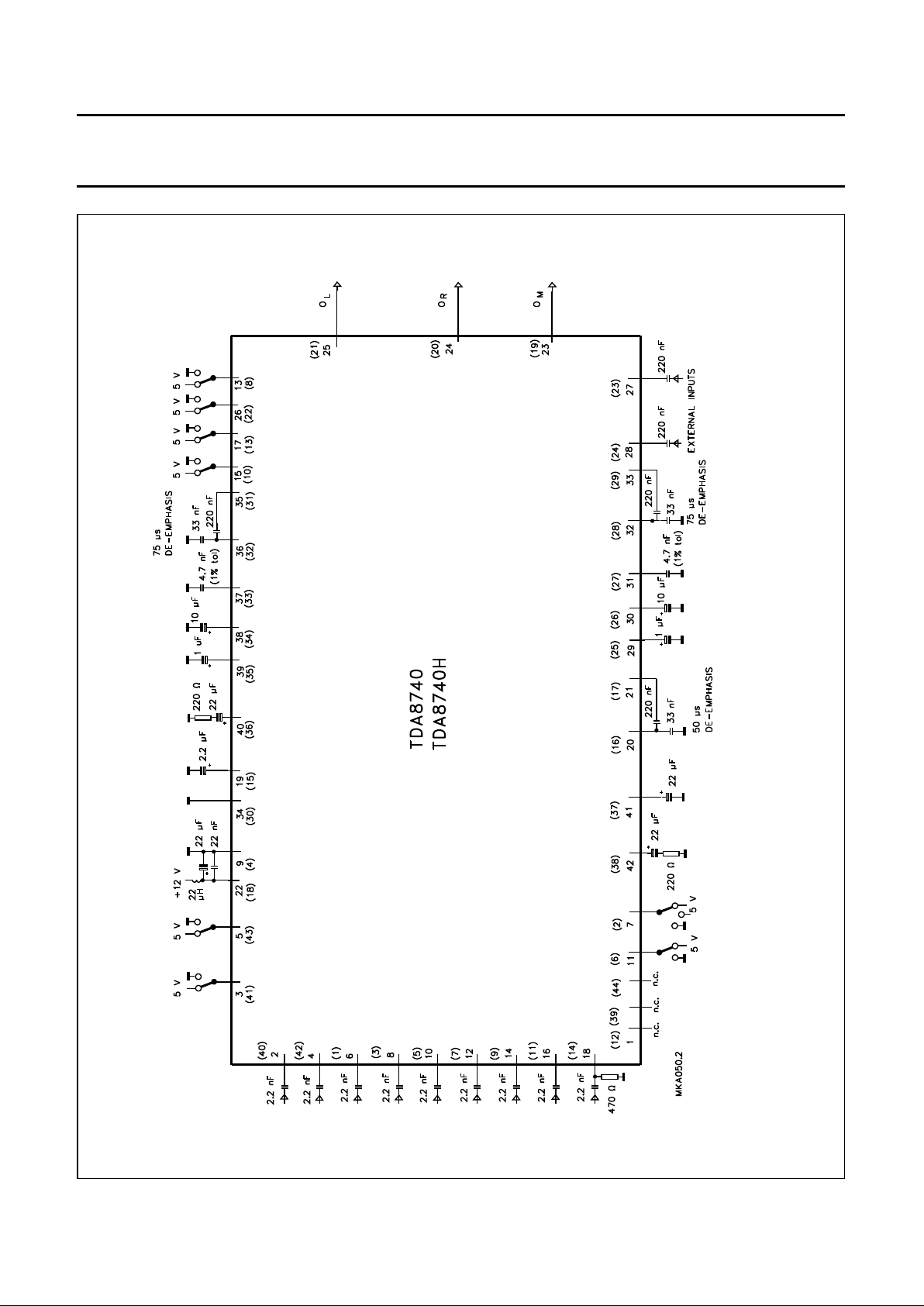

Fig.5 Application diagram; MCS = logic 0.

The pin numbers in parenthesis refer to the QFP44 package.

October 1994 18

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

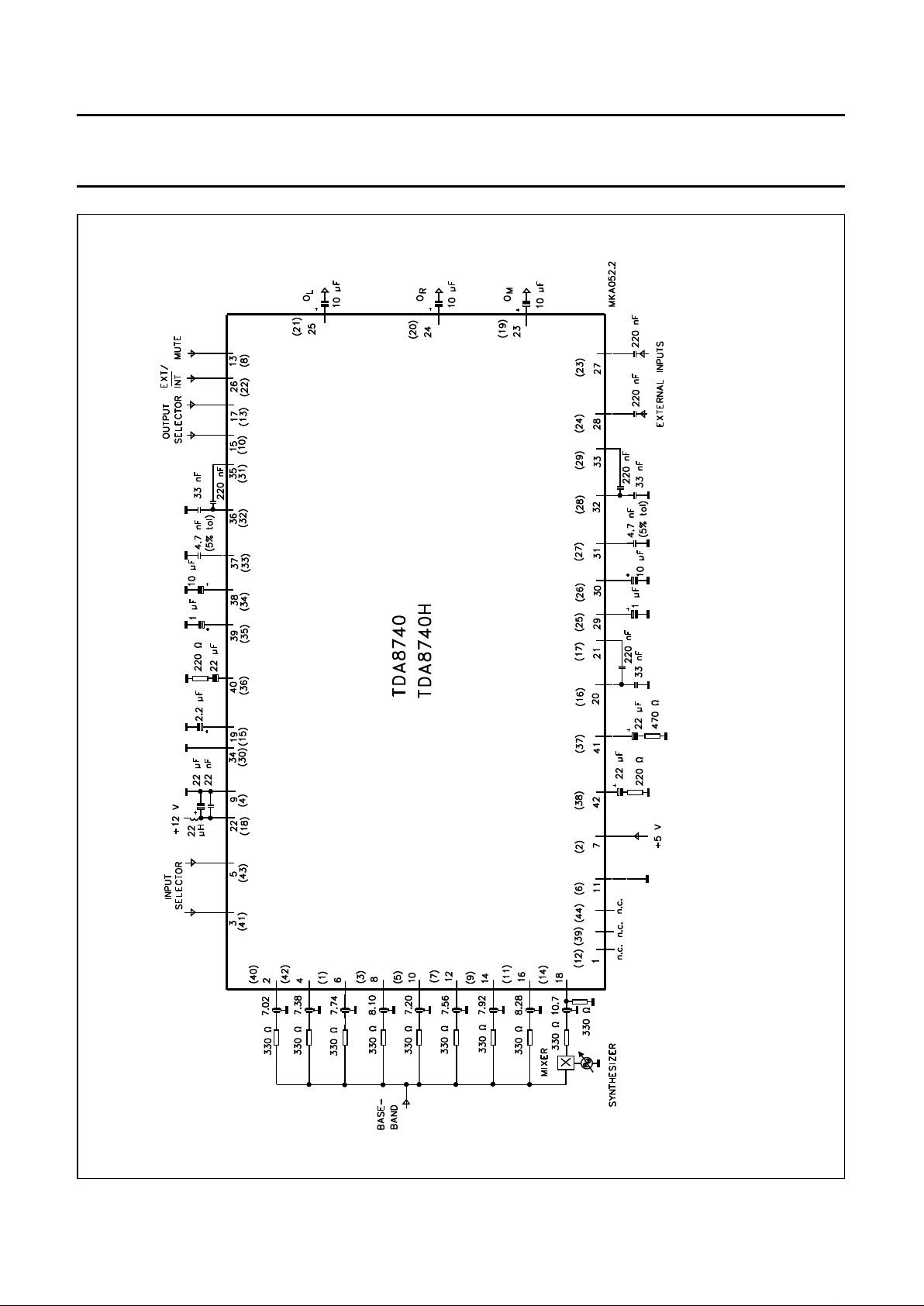

Fig.6 Application diagram; MCS = logic 1.

The pin numbers in parenthesis refer to the QFP44 package.

October 1994 19

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

PACKAGE OUTLINES

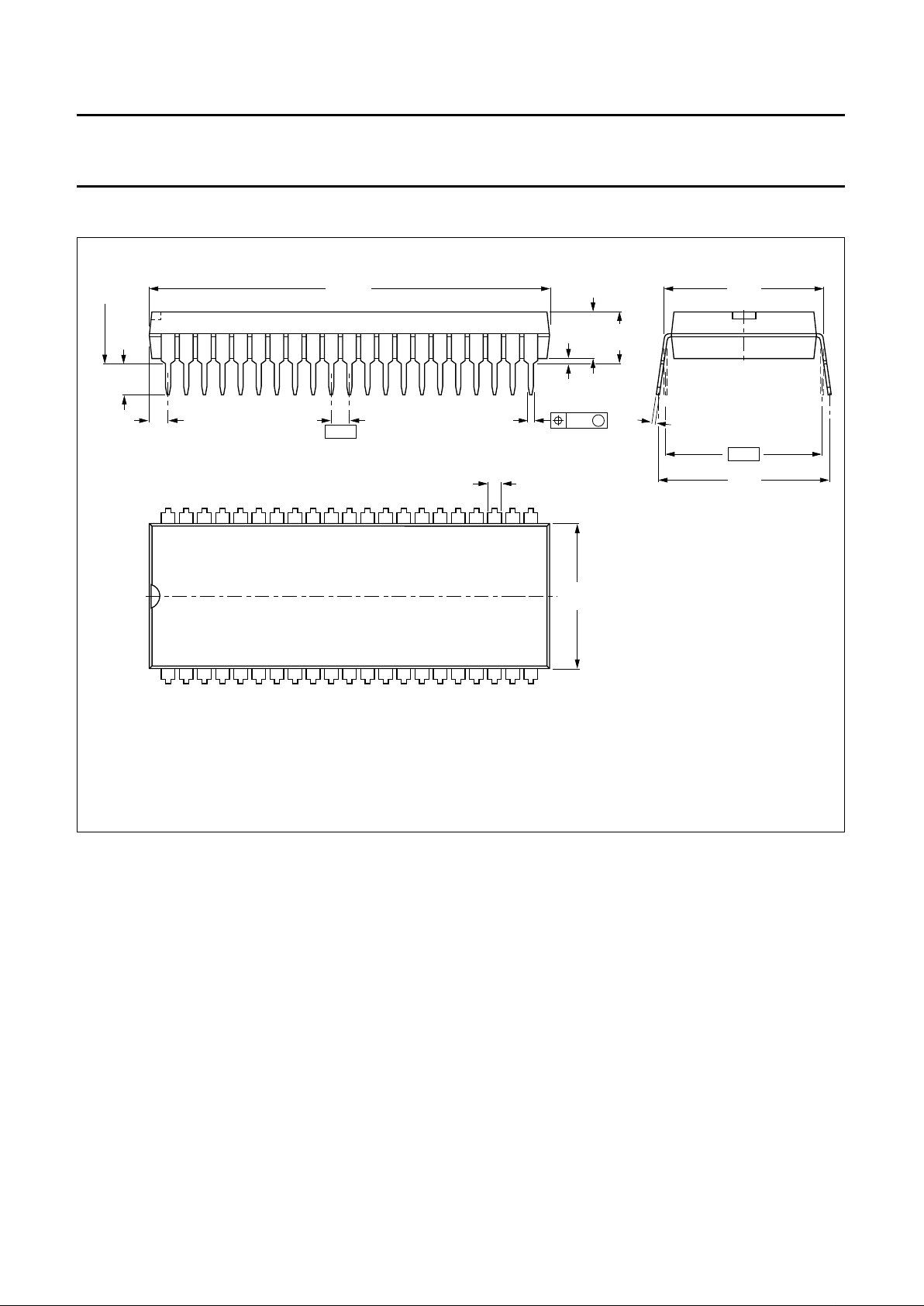

Fig.7 Plastic shrink dual in-line package; 42 leads (600 mil); SDIP42; SOT270-1.

Dimensions in mm.

handbook, full pagewidth

1

22

21

1.3 max

14.1

13.7

4.57
max

5.08
max

0.51
min

3.2

2.9

seating plane

0.18

M

0.53
max

1.778
(40x)

1.73
max

15.80

15.24

0.32 max

15.24

17.15

15.90

MSA268 - 1

42

39.0

38.4

October 1994 20

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

Fig.8 Plastic quad flat package; 44 leads (lead length 1.3 mm); body 10 × 10 × 1.75 mm (QFP44; SOT307-2).

Dimensions in mm.

handbook, full pagewidth

X

A

B

10.1

9.9

12.9

12.3

0.15 M

B

0.40

0.20

pin 1 index

1

44

34

33

23

22

11

0.40

0.20

0.15 M A

0.8

12

0.8

10.1

9.9

12.9

12.3

S

0.1 S

seating

plane

1.2

0.8

(4x)

1.2

0.8

(4x)

0.95

0.55

MBB944 - 2

detail X

0.85

0.75

0.25

0.14

2.10

1.70

0 to 10

o

1.85

1.65

0.25

0.05

October 1994 21

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

BY SOLDER PASTE REFLOW
Reflow soldering requires the solder paste (a suspension

of fine solder particles, flux and binding agent) to be
applied to the substrate by screen printing, stencilling or
pressure-syringe dispensing before device placement.

Several techniques exist for reflowing; for example,
thermal conduction by heated belt, infrared, and
vapour-phase reflow. Dwell times vary between 50 and
300 s according to method. Typical reflow temperatures
range from 215 to 250 °C.

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 min. at 45 °C.

R

EPAIRING SOLDERED JOINTS (BY HAND-HELD SOLDERING

IRON OR PULSE

-HEATED SOLDER TOOL)

Fix the component by first soldering two, diagonally
opposite, end pins. Apply the heating tool to the flat part of
the pin only. Contact time must be limited to 10 s at up to
300 °C. When using proper tools, all other pins can be
soldered in one operation within 2 to 5 s at between 270
and 320 °C. (Pulse-heated soldering is not recommended
for SO packages.)

For pulse-heated solder tool (resistance) soldering of VSO
packages, solder is applied to the substrate by dipping or
by an extra thick tin/lead plating before package
placement.

SOLDERING
Plastic dual in-line packages

BY DIP OR WAVE
The maximum permissible temperature of the solder is

260 °C; this temperature must not be in contact with the
joint for more than 5 s. The total contact time of successive
solder waves must not exceed 5 s.

The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified storage maximum. If the printed-circuit board has
been pre-heated, forced cooling may be necessary
immediately after soldering to keep the temperature within
the permissible limit.

R

EPAIRING SOLDERED JOINTS

Apply the soldering iron below the seating plane (or not
more than 2 mm above it). If its temperature is below
300 °C, it must not be in contact for more than 10 s; if
between 300 and 400 °C, for not more than 5 s.

Quad flat-packs

B

YWAVE

During placement and before soldering, the component
must be fixed with a droplet of adhesive. After curing the
adhesive, the component can be soldered. The adhesive
can be applied by screen printing, pin transfer or syringe
dispensing.

Maximum permissible solder temperature is 260° C and
maximum duration of package immersion in solder bath is
10 s, if allowed to cool to less than 150 °C within 6 s.
Typical dwell time is 4 s at 250 °C.

A modified wave soldering technique is recommended
using two solder waves (dual-wave), in which, in a
turbulent wave with high-upward pressure is followed by a
smooth laminar wave. Using a mildly-activated flux
eliminates the need for removal of corrosive residues in
most applications.

October 1994 22

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

DEFINITIONS

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

October 1994 23

Philips Semiconductors Product specification

Satellite sound circuit with noise reduction TDA8740; TDA8740H

NOTES

Philips Semiconductors

Philips Semiconductors – a worldwide company

Argentina: IEROD, Av. Juramento 1992 - 14.b, (1428)

BUENOS AIRES, Tel. [phone], Fax. [phone]

Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]

Austria: Triester Str. 64, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]

Belgium: Postbus 90050, 5600 PB EINDHOVEN, The Netherlands,

Tel. [phone], Fax. [phone]

Brazil: Rua do Rocio 220 - 5

th

floor, Suite 51,
CEP: 04552-903-SÃO PAULO-SP, Brazil.
P.O. Box 7383 (01064-970).
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS:

Tel. [phone], Fax. [phone]

Chile: Av. Santa Maria 0760, SANTIAGO,

Tel. [phone], Fax. [phone]

Colombia: IPRELENSO LTDA, Carrera 21 No. 56-17,

77621 BOGOTA, Tel. [phone],
Fax. [phone]

Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,

Tel. [phone], Fax. [phone]

Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]

France: 4 Rue du Port-aux-Vins, BP317,

92156 SURESNES Cedex,
Tel. [phone], Fax. [phone]

Germany: P.O. Box 10 63 23, 20043 HAMBURG,

Tel. [phone], Fax. [phone].

Greece: No. 15, 25th March Street, GR 17778 TAVROS,

Tel. [phone] 911, Fax. [phone]

Hong Kong: PHILIPS HONG KONG Ltd., 6/F Philips Ind. Bldg.,

24-28 Kung Yip St., KWAI CHUNG, N.T.,
Tel. [phone], Fax. [phone]

India: Philips INDIA Ltd, Shivsagar Estate, A Block ,

Dr. Annie Besant Rd. Worli, Bombay 400 018
Tel. [phone], Fax. [phone]

Indonesia: Philips House, Jalan H.R. Rasuna Said Kav. 3-4,

P.O. Box 4252, JAKARTA 12950,
Tel. [phone], Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS S.r.l.,

Piazza IV Novembre 3, 20124 MILANO,
Tel. [phone], Fax. [phone]

Japan: Philips Bldg13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]

Korea: (Republic of) Philips House, 260-199 Itaewon-dong,

Yongsan-ku, SEOUL, Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA,

SELANGOR, Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TX 79905,

Tel. [phone], Fax. [phone]

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB

Tel. [phone], Fax. [phone]

New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]

Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: Philips Electrical Industries of Pakistan Ltd.,

Exchange Bldg. ST-2/A, Block 9, KDA Scheme 5, Clifton,
KARACHI 75600, Tel. [phone],
Fax. [phone].

Philippines: PHILIPS SEMICONDUCTORS PHILIPPINES Inc,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Portugal: PHILIPS PORTUGUESA, S.A.,

Rua dr. António Loureiro Borges 5, Arquiparque - Miraflores,
Apartado 300, 2795 LINDA-A-VELHA,
Tel. [phone], Fax. [phone].

Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

South Africa: S.A. PHILIPS Pty Ltd.,

195-215 Main Road Martindale, 2092 JOHANNESBURG,
P.O. Box 7430 Johannesburg 2000,
Tel. [phone], Fax. [phone].

Spain: Balmes 22, 08007 BARCELONA,

Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla. S-164 85 STOCKHOLM,

Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,

Tel. [phone], Fax. [phone]

Taiwan: PHILIPS TAIWAN Ltd., 23-30F, 66, Chung Hsiao West

Road, Sec. 1. Taipeh, Taiwan ROC, P.O. Box 22978,
TAIPEI 100, Tel. [phone], Fax. [phone].

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,

209/2 Sanpavuth-Bangna Road Prakanong,
Bangkok 10260, THAILAND,
Tel. [phone], Fax. [phone].

Turkey:Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,

Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors LTD.,

276 Bath road, Hayes, MIDDLESEX UB3 5BX,
Tel. [phone], Fax. [phone]

United States:811 East Arques Avenue, SUNNYVALE,

CA 94088-3409, Tel. [phone], Fax. [phone]

Uruguay: Coronel Mora 433, MONTEVIDEO,

Tel. [phone], Fax. [phone]

For all other countries apply to: Philips Semiconductors,
International Marketing and Sales, Building BE-p,
P.O. Box 218, 5600 MD, EINDHOVEN, The Netherlands,
Telex 35000 phtcnl, Fax. [phone]

SCD35 © Philips Electronics N.V. 1994

All rights are reserved. Reproduction in whole or in part is prohibited without the
prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation
or contract, is believed to be accurate and reliable and may be changed without
notice. No liability will be accepted by the publisher for any consequence of its
use. Publication thereof does not convey nor imply any license under patent- or
other industrial or intellectual property rights.

Printed in The Netherlands

533061/1500/02/pp24 Date of release: October 1994
Document order number: 9397 740 60011
