TDA8588J; TDA8588xJ
2
I
C-bus controlled 4 × 50 Watt
power amplifier and multiple
voltage regulator
Product specification 2004 Feb 24
Page 2
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
FEATURES
Amplifiers
• I2C-bus control
• Can drivea 2 Ω load with a battery voltage of up to 16 V
and a 4 Ω load with a battery voltage of up to 18 V
• DC load detection, open, short and present
• AC load (tweeter) detection
• Programmable clip detect; 1 % or 4 %
• Programmable thermal protection pre-warning
• Independent short-circuit protection per channel
• Low gain line driver mode (20 dB)
• Loss-of-ground and open VPsafe
• All outputs protected from short-circuit to ground, to V
or across the load
• All pins protected from short-circuit to ground
• Soft thermal-clipping to prevent audio holes
• Low battery detection.
Voltage regulators
GENERAL
• I2C-bus control
• Good stability for any regulator with almost any output
capacitor value
• Five voltage regulators (microcontroller, display,
mechanical digital, mechanical drive and audio)
• Choice of non-adjustable 3.3 or 5 V microcontroller
supply (REG2) versions reducing risk of overvoltage
damage
• Choice of non-adjustable 3.3 or 5 V digital signal
processor supply (REG3) versions reducing risk of
overvoltage damage
• Selectable output voltages for regulators 1, 4 and 5
• Low dropout voltage PNP output stages
• High supply voltage ripple rejection
• Low noise for all regulators
• Two power switches (antenna switch and amplifier
switch)
• Regulator 2 (microcontroller supply) operational during
load-dump and thermal shut-down
• Low quiescent current (only regulator 2 is operational)
• Reset output (push-pull output stage)
• Adjustable reset delay time
• Backup functionality.
P
TDA8588J; TDA8588xJ
PROTECTION
• If connection to the battery voltage is reversed, all
regulator voltages will be zero
• Able to withstand voltages at the output of up to 18 V
(supply line may be short-circuited)
• Thermal protection to avoid thermal breakdown
• Load-dump protection
• Regulator outputs protected from DC short-circuit to
ground or to supply voltage
• All regulators protected by foldback current limiting
• Power switches protected from loss-of-ground.
APPLICATIONS
• Boost amplifier and voltage regulator for car radios and
CD/MD players.
GENERAL DESCRIPTION
Amplifiers
The TDA8588 has a complementary quad audio power
amplifier that uses BCDMOS technology. It contains four
amplifiers configured in Bridge Tied Load (BTL) to drive
speakers for front and rear left and right channels. The
2
C-busallowsdiagnosticinformationofeach amplifier and
I
its speaker to be read separately. Both front and both rear
channel amplifiers canbe configuredindependently in line
driver mode with a gain of 20 dB (differential output).
Voltage regulators
The TDA8588 has a multiple output voltage regulator with
two power switches.
The voltage regulator contains the following:
• Four switchable regulators and one permanently active
regulator (microcontroller supply)
• Two power switches with loss-of-ground protection
• A reset output that can be used to communicate with a
microcontroller.
The quiescent current has a very low level of 150 µA with
only regulator 2 active.
2004 Feb 24 2
Page 3
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
QUICK REFERENCE DATA
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
Amplifiers
VP1, V
I
q(tot)
P
o(max)
THD total harmonic distortion − 0.01 0.1 %
V
n(o)(amp)
V
n(o)(LN)
Voltage regulators
SUPPLY
V
P
I
q(tot)
VOLTAGE REGULATORS
V
O(REG1)
V
O(REG2)
V
O(REG3)
V
O(REG4)
operating supply voltage 8 14.4 18 V
P2
total quiescent current − 270 400 mA
maximum output power RL=4Ω;VP= 14.4 V;VIN=2V
44 46 − W
RMS square wave
RL=4Ω;VP= 15.2 V;VIN=2V
49 52 − W
RMS square wave
RL=2Ω;VP= 14.4 V;VIN=2V
83 87 − W
RMS square wave
noise output voltage in amplifier mode − 50 70 µV
noise output voltage in line driver mode − 25 35 µV
supply voltage regulator 1, 3, 4 and 5 on 10 14.4 18 V
regulator 2 on 4 −−V
jump starts for t ≤ 10 minutes −−30 V
load dump protection for
−−50 V
t ≤ 50 ms and tr≤ 2.5 ms
overvoltage for shut-down 20 −−V
total quiescent supply current standby mode; VP= 14.4 V − 150 190 µA
output voltage of regulator 1 0.5 mA ≤ IO≤ 400 mA;
selectable via I2C-bus
IB2[D3:D2] = 01 − 8.3 − V
IB2[D3:D2] = 10 − 8.5 − V
IB2[D3:D2] = 11 − 8.7 − V
output voltage of regulator 2 0.5 mA ≤ IO≤ 350 mA
TDA8588J; TDA8588AJ − 5.0 − V
TDA8588BJ − 3.3 − V
output voltage of regulator 3 0.5 mA ≤ IO≤ 300 mA
TDA8588J − 5.0 − V
TDA8588AJ; TDA8588BJ − 3.3 − V
output voltage of regulator 4 maximum current ≥ 1.6 A;
0.5 mA ≤ IO≤ 800 mA;
selectable via I2C-bus
IB2[D7:D5] = 001 − 5.0 − V
IB2[D7:D5] = 010 − 6.0 − V
IB2[D7:D5] = 011 − 7.0 − V
IB2[D7:D5] = 100 − 8.6 − V
2004 Feb 24 3
Page 4
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
V
O(REG5)
POWER SWITCHES
V
drop(SW1)
V
drop(SW2)
output voltage of regulator 5 0.5 mA ≤ IO≤ 400 mA;
selectable via I2C-bus
IB1[D7:D4] = 0001 − 6.0 − V
IB1[D7:D4] = 0010 − 7.0 − V
IB1[D7:D4] = 0011 − 8.2 − V
IB1[D7:D4] = 0100 − 9.0 − V
IB1[D7:D4] = 0101 − 9.5 − V
IB1[D7:D4] = 0110 − 10.0 − V
IB1[D7:D4] = 0111 − 10.4 − V
IB1[D7:D4] = 1000 − 12.5 − V
IB1[D7:D4] = 1001 − VP−1− V
dropout voltage of switch 1 IO= 400 mA − 0.6 1.1 V
dropout voltage of switch 2 IO= 400 mA − 0.6 1.1 V
ORDERING INFORMATION
TYPE NUMBER
TDA8588J DBS37P plastic DIL-bent-SIL power package;
TDA8588AJ 5 V 3.3 V
TDA8588BJ 3.3 V 3.3 V
Note
1. Permanent output voltage of regulator 2 and output voltage of regulator 3, respectively.
NAME DESCRIPTION VERSION REGULATOR 2 REGULATOR 3
37 leads (lead length 6.8 mm)
PACKAGE OUTPUT VOLTAGE
SOT725-1 5 V 5 V
(1)
2004 Feb 24 4
Page 5
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
BLOCK DIAGRAM
BUCAP
36
BACKUP
SWITCH
35
V
P
TDA8588
ENABLE
LOGIC
V
reg2
REFERENCE
VOLTAGE
REGULATOR 2
TEMPERATURE &
LOAD DUMP
PROTECTION VOLTAGE
REGULATOR
REGULATOR 1
REGULATOR 3
REGULATOR 4
REGULATOR 5
SWITCH 1
TDA8588J; TDA8588xJ
37
REG2
30
REG1
31
REG3
33
REG4
34
REG5
29
SW1
RESCAP
SDA
SCL
STB
IN1
IN2
IN3
IN4
28
2
4
22
STANDBY/ MUTE
11
15
12
14
V
P
40 µs
I2C-BUS
INTERFACE
MUTE
MUTE
MUTE
MUTE
10
13
SGNDSVR
16 8
ACGND
SWITCH 2
CLIP DETECT/ DIAGNOSTIC
26 dB/
20 dB
PROTECTION/
DIAGNOSTIC
26 dB/
20 dB
PROTECTION/
DIAGNOSTIC
26 dB/
20 dB
PROTECTION/
DIAGNOSTIC
26 dB/
20 dB
PROTECTION/
DIAGNOSTIC
TEMPERATURE & LOAD
DUMP PROTECTION
AMPLIFIER
1 18 24
PGND1 PGND3
PGND2/TAB
PGND4
27
SW2
26
RST
32
GND
20
V
P1
6
V
P2
25
DIAG
9
OUT1+
7
OUT1−
17
OUT2+
19
OUT2−
5
OUT3+
3
OUT3−
21
OUT4+
23
OUT4−
mdb586
Fig.1 Block diagram.
2004 Feb 24 5
Page 6
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
PINNING
SYMBOL PIN DESCRIPTION
PGND2/TAB 1 power ground 2 and connection for heatsink
SDA 2 I2C-bus data input and output
OUT3− 3 channel 3 negative output
SCL 4 I2C-bus clock input
OUT3+ 5 channel 3 positive output
V
P2
OUT1− 7 channel 1 negative output
PGND1 8 power ground 1
OUT1+ 9 channel 1 positive output
SVR 10 half supply voltage filter capacitor
IN1 11 channel 1 input
IN3 12 channel 3 input
SGND 13 signal ground
IN4 14 channel 4 input
IN2 15 channel 2 input
ACGND 16 AC ground
OUT2+ 17 channel 2 positive output
PGND3 18 power ground 3
OUT2− 19 channel 2 negative output
V
P1
OUT4+ 21 channel 4 positive output
STB 22 standby or operating or mute mode select input
OUT4− 23 channel 4 negative output
PGND4 24 power ground 4
DIAG 25 diagnostic and clip detection output, active LOW
RST 26 reset output
SW2 27 antenna switch; supplies unregulated power to car aerial motor
RESCAP 28 reset delay capacitor
SW1 29 amplifier switch; supplies unregulated power to amplifier(s)
REG1 30 regulator 1 output; supply for audio part of radio and CD player
REG3 31 regulator 3 output; supply for signal processor part (mechanical digital) of CD player
GND 32 combined voltage regulator, power and signal ground
REG4 33 regulator 4 output; supply for mechanical part (mechanical drive) of CD player
REG5 34 regulator 5 output; supply for display part of radio and CD player
V
P
BUCAP 36 connection for backup capacitor
REG2 37 regulator 2 output; supply voltage to microcontroller
6 power supply voltage 2 to amplifier
20 power supply voltage 1 to amplifier
35 power supply to voltage regulator
2004 Feb 24 6
Page 7
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
PGND2/TAB
ACGND
RESCAP
SDA
OUT3−
SCL
OUT3+
V
P2
OUT1−
PGND1
OUT1+
SVR
IN1
IN3
SGND
IN4
IN2
OUT2+
PGND3
OUT2−
V
P1
OUT4+
STB
OUT4−
PGND4
DIAG
RST
SW2
SW1
REG1
REG3
GND
REG4
REG5
V
BUCAP
REG2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
P
36
37
TDA8588J; TDA8588xJ
TDA8588
001aaa258
Fig.2 Pin configuration.
2004 Feb 24 7
Page 8
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
FUNCTIONAL DESCRIPTION
The TDA8588 is a multiple voltage regulator combined
withfour independent audiopoweramplifiers configured in
bridge tied load with diagnostic capability. The output
voltages of all regulators except regulators 2 and 3 can be
controlledvia the I2C-bus.However, regulator 3 canbeset
to 0 V via the I2C-bus. The output voltage of regulator 2
(microcontroller supply) and the maximum output voltage
of regulator 3 (mechanical digital and microcontroller
supplies) can bothbe either5 V or 3.3 V depending on the
type number. The maximum output voltages of both
regulators are fixed to avoid any risk of damaging the
microcontroller that may occur during a disturbance of the
I2C-bus.
The amplifier diagnostic functions give information about
output offset, load, or short-circuit. Diagnostic functions
are controlled via the I2C-bus. The TDA8588 is protected
against short-circuit, over-temperature, open ground and
open VP connections. If a short-circuit occurs at the input
or output of a single amplifier, that channel shuts down,
and the other channels continue to operate normally. The
channel that has a short-circuit can be disabled by the
microcontroller via the appropriate enable bit of the
I2C-bus to prevent any noise generated by the fault
condition from being heard.
TDA8588J; TDA8588xJ
Power-on reset and supply voltage spikes (see Fig.13
and Fig.14)
If the supply voltage drops too low to guarantee the
integrity of the data in the I2C-bus latches, the power-on
reset cycle will start. All latches will be setto a pre-defined
state, pin DIAG will be pulled LOW to indicate that a
power-on reset has occurred, and bit D7 of data byte 2 is
also set for the same reason. When D0 of instruction
byte 1 is set, the power-on flag resets, pin DIAG is
released and the amplifier will then enter its start-up cycle.
Diagnostic output
Pin DIAG indicates clipping, thermal protection
pre-warning of amplifier and voltage regulator sections,
short-circuit protection, low and high battery voltage.
Pin DIAGisan open-drain output, isactiveLOW, and must
beconnected to anexternal voltage via an external pull-up
resistor. If a failure occurs, pin DIAG remains LOW during
the failure and no clipping information is available. The
microcontroller can read the failure information via the
I2C-bus.
AMPLIFIERS
Muting
Start-up
At power on, regulator 2 will reach its final voltage when
thebackupcapacitor voltage exceeds 5.5 V independently
of the voltageon pin STB. When pin STB isLOW, the total
quiescent current is low, and the I2C-bus lines are high
impedance.
When pin STB is HIGH, the I2C-bus is biased on and then
the TDA8588 performs a power-on reset. When bit D0 of
instruction byte IB1 is set, the amplifier is activated, bit D7
of data byte 2 (power-on reset occurred) is reset, and
DIAG is no longer held LOW.
pin
Start-up and shut-down timing (see Fig.12)
Acapacitorconnectedto pin SVR enables smooth start-up
and shut-down, preventing the amplifier from producing
audible clicks at switch-on or switch-off. The start-up and
shut-down times can be extended by increasing the
capacitor value.
If the amplifier is shut down using pin STB, the amplifier is
muted, the regulators and switches are switched off, and
the capacitor connected to pin SVR discharges. The low
currentstandbymode is activated 2 secondsafterpin STB
goes LOW.
Ahard mute anda soft mute canboth be performedviathe
I2C-bus. A hard mute mutes the amplifier within 0.5 ms. A
soft mute mutes the amplifier within 20 ms and is less
audible. A hard mute is also activated if a voltage of 8 V is
applied to pin STB.
Temperature protection
If the average junction temperature rises to a temperature
value that has been set via the I2C-bus, a thermal
protectionpre-warningisactivatedmakingpin DIAGLOW.
If the temperature continues to rise, all four channels will
be muted to reduce the output power (soft thermal
clipping). The valueat whichthe temperature mute control
activates is fixed; only the temperature at which the
thermal protection pre-warning signal occurs can be
specified by bit D4 in instruction byte 3. If implementing
thetemperature mute controldoes not reducethe average
junction temperature, allthe power stageswill beswitched
off (muted) at the absolute maximum temperature T
Offset detection
Offset detection can only be performed when there is no
input signal to the amplifiers, for instance when the
external digital signal processor is muted after a start-up.
The output voltage of each channel is measured and
j(max)
.
2004 Feb 24 8
Page 9
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
compared with areference voltage.If the output voltage of
a channel is greater than the reference voltage, bit D2 of
the associated data byte is set and read by the
microcontroller during a read instruction. Note that the
value of this bit is only meaningful when there is no input
signal and the amplifier is not muted. Offset detection is
always enabled.
Speaker protection
If one side of a speaker is connected to ground, a missing
current protection is implemented to prevent damage to
the speaker. A fault condition is detected in a channel
whenthereis a mismatch betweenthepowercurrent in the
high side and the power current in the low side; during a
fault condition the channel will be switched off.
The load status of each channel can be read via the
2
I
C-bus: short to ground (one side of the speaker
connected to ground), short to VP(one side of the speaker
connected to VP), and shorted load.
Line driver mode
TDA8588J; TDA8588xJ
AC-LOAD DETECTION
AC-load detection can be used to detect that AC-coupled
speakers are connected correctly during assembly. This
requires at least 3 periods of a 19 kHz sine wave to be
applied to the amplifier inputs. The amplifier produces a
peak output voltage which also generates a peak output
current through the AC-coupledspeaker. The 19 kHz sine
wave is alsoaudible during the test. Ifthe amplifier detects
three current peaks that are greater than 550 mA, the
AC-load detection bit D1 of instruction byte IB1 is set to
logic 1. Three current peaks are counted to avoid false
AC-load detection which can occur if the input signal is
switchedon and off. Thepeakcurrent counter can bereset
by setting bit D1 of instruction byte IB1 to logic 0.
To guarantee AC-load detection, an amplifier current of
more than 550 mA is required. AC-load detection will
never occur with a current of less than 150 mA. Figure 3
shows which AC loads are detected at different output
voltages. For example, if a load is detected at an output
voltage of 2.5 V peak, the load is less than 4 Ω. If no load
is detected, the output impedance is more than 14 Ω.
An amplifier can be used as a line driver by switching it to
low gain mode. In normal mode, the gain between
single-endedinput and differentialoutput (across theload)
is 26 dB. In low gain mode the gain between single-ended
input and differential output is 20 dB.
Input and AC ground capacitor values
The negative inputs to all four amplifier channels are
combined at pin ACGND. To obtain the best performance
for supply voltage ripple rejection and unwanted audible
noise, the value ofthe capacitor connected to pin ACGND
must be as close as possible to 4 times the value of the
input capacitor connected to the positive input of each
channel.
Load detection
DC-LOAD DETECTION
When DC-load detection is enabled, during the start-up
cycle,aDC-offset is appliedslowlytothe amplifier outputs,
andthe output currentsare measured. If theoutput current
of an amplifier rises above a certain level, it is assumed
that there is a load of less than 6 Ω and bit D5 is reset in
the associated data byte register to indicate that a load is
detected.
V
o(peak)
mrc331
2
10
Z
o(load)
(Ω)
10
1
0107.52.5 5
(1) I
(2) I
O(peak)
O(peak)
= < 150 mA.
= > 550 mA.
no load present
undefined
(1)
(2)
load present
Fig.3 Tolerance of AC-load detection as a
function of output voltage.
(V)
Because the offset is measured during the amplifier
start-upcycle, detection isinaudibleand can beperformed
every time the amplifier is switched on.
2004 Feb 24 9
LOAD DETECTION PROCEDURE
1. At start-up, enable the AC- or DC-load detection by
setting D1 of instruction byte 1 to logic 1.
Page 10
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
2. After 250 ms the DC load is detected and the mute is
released. This is inaudible and can be implemented
each time the IC is powered on.
3. When the amplifier start-up cycle is completed (after
1.5 s), apply an AC signal to the input, and DC-load
bits D5of each databyte should be readand stored by
the microcontroller.
4. After at least 3 periods of the input signal, the load
statuscan be checkedby reading AC-detectbits D4 of
each data byte.
The AC-load peak current counter can be reset by
settingbit D1 of instructionbyte IB1to logic 0 and then
to logic 1. Note that this will also reset the DC-load
detection bits D5 in each data byte.
Low headroom protection
The normal DC output voltage ofthe amplifieris set to half
the supply voltage and is related to the voltage on
pin SVR. An external capacitor is connected to pin SVR to
suppress power supply ripple. If the supply voltage drops
(at vehicle engine start), the DC output voltage will follow
slowly due to the affect of the SVR capacitor.
TDA8588J; TDA8588xJ
The headroom voltage is the voltage required for correct
operation of the amplifier and is defined as the voltage
difference between the level of the DC output voltage
before the VP voltage drop and the level of VP after the
voltage drop (see Fig.4).
Ata certain supplyvoltage drop, the headroom voltagewill
be insufficient for correct operation of the amplifier. To
prevent unwanted audible noises at the output, the
headroom protection mode will be activated (see Fig.4).
This protection discharges the capacitors connected to
pins SVR and ACGND to increase the headroom voltage.
V
(V)
14
8.4
7
V
P
SVR voltage
vehicle engine start
headroom voltage
amplifier
DC output voltage
t (sec)
mdb515
Fig.4 Amplifier output during supply voltage.
2004 Feb 24 10
Page 11
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
VOLTAGE REGULATORS
The voltage regulator section contains:
• Four switchable regulators and one permanent active
regulator
• Two power switches with loss-of-ground protection
• Reset push-pull output
• Backup functionality.
The quiescent current condition has a very low current
level of 150 µA typical with only regulator 2 active. The
TDA8588 uses low dropout voltage regulators for use in
low voltage applications.
All of the voltage regulators except for the standby
regulator can be controlled via the I
regulator section of this device has two power switches
which are capable of delivering unregulated 400 mA
continuous current, and has several fail-safe protection
modes. It conforms to peak transient tests and protects
against continuous high voltage (24 V), short-circuits and
thermal stress. A reset warning signal is asserted if
regulator 2 is out of regulation. Regulator 2 will try to
maintain output for as long as possible even if a thermal
shut-down or any other fault condition occurs. During
overvoltage stress conditions, all outputs except
regulator 2 will switch off and the device will be able to
supply a minimum current for an indefinite amount of time
sufficient for powering the memory of a microcontroller.
Provision is made for an external reserve supply capacitor
to be connected to pin BUCAP which can store enough
energy to allow regulator 2 to supply a microcontroller for
a period long enough for it to prepare for a loss-of-voltage.
2
C-bus. The voltage
TDA8588J; TDA8588xJ
Backup capacitor
The backup capacitor is used as a backup supply for the
regulator 2 output when the battery supply voltage (VP)
cannot support the regulator 2 voltage.
Backup function
The backup function is implemented by a switch function,
which behaves like an ideal diode between pins V
and BUCAP; the forward voltage of this ideal diode
depends on the current flowing through it. The backup
function supplies regulator 2 during brief periods when no
supply voltage is present on pin VP. It requires an external
capacitor to be connected to pin BUCAP and ground.
When the supply voltage is present on pin VP this
capacitorwill be charged toalevel of VP− 0.3 V.When the
supply voltage is absent from pin VP, this charge can then
be used to supply regulator 2 for a brief period (t
calculated using the formula:
t
backup
C
backupRL
Example: VP= 14.4 V, V
C
= 100 µF provides a t
backup
VPV
××=
---------------------------------------------------------
O(REG2)
OREG2()
V
O REG2()
= 5 V, RL=1kΩ and
of 177 ms.
backup
When an overvoltage condition occurs, the voltage on
pin BUCAP is limited to approximately 24 V; see Fig.5.
P
)
backup
0.5–()–
Regulator 2
Regulator 2 is intended to supply the microcontroller and
has a low quiescent current. This supply cannot be shut
down in response to overvoltage stress conditions, and is
notI2C-buscontrollableto prevent the microcontroller from
being damaged byovervoltage which couldoccur during a
disturbance of the I2C-bus. This supply will not shut down
during load dump transients or during a high
thermal-protection condition.
2004 Feb 24 11
Page 12
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
V
t
backupCbackup
(V)
VPV
– 0.5–
OREG2()
×=
----------------------------------------------------
I
L
V
P
V
BUCAP
V
O(REG2)
t
backup

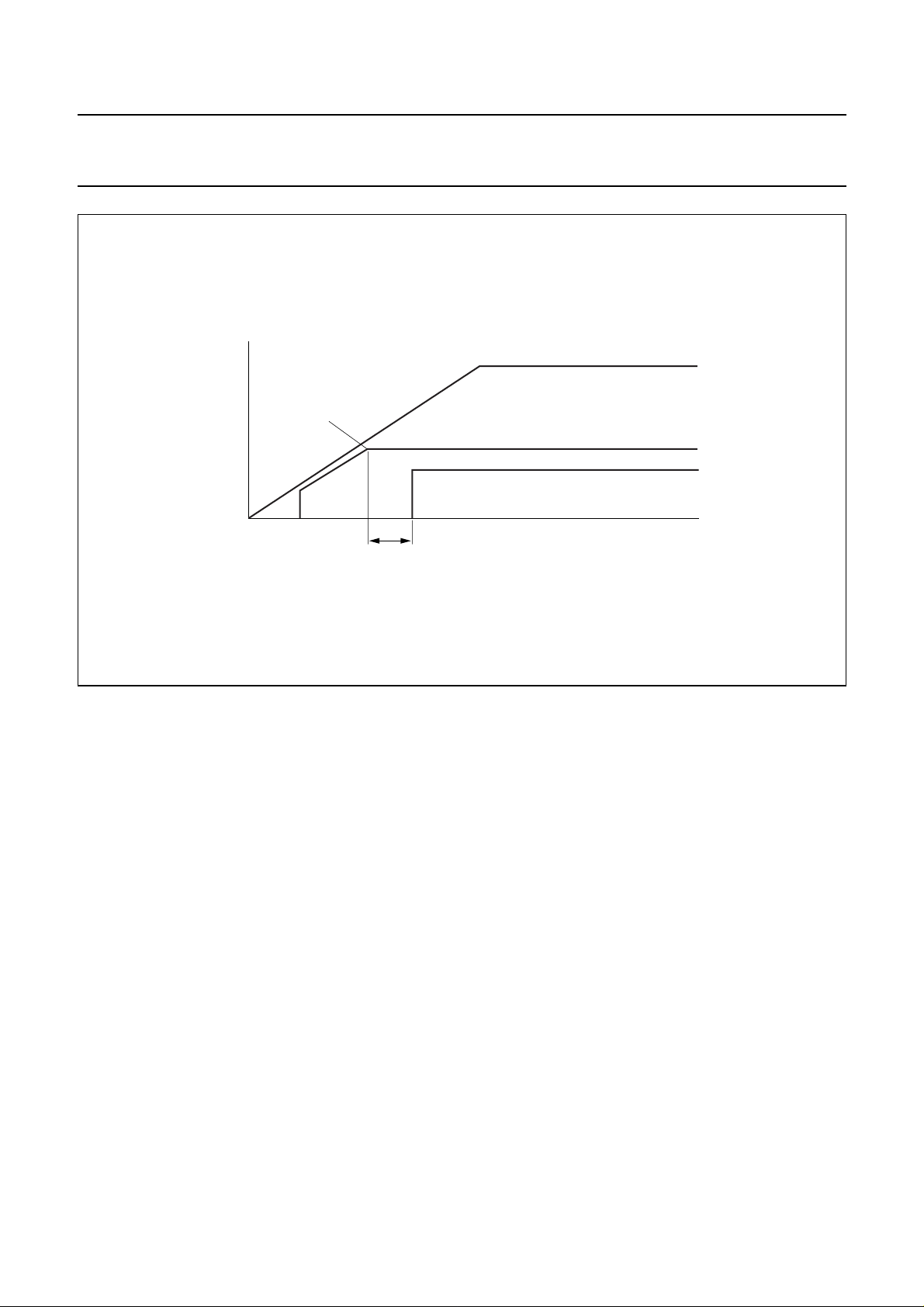

Fig.5 Backup capacitor function.
TDA8588J; TDA8588xJ
out of regulation
t (sec)
mdb512
Reset output
A reset pulse is generated at pin RST when the output
voltage of regulator 2 rises above the reset threshold
value. The reset output is a push-pull output that both
sources and sinks current. The output voltage can switch
between ground and V
regulator 2voltageor V
, and operates at a low
O(REG2)
.TheRSTsignal is controlled
BUCAP
by a low-voltage detection circuit which, when activated,
pulls pin RST LOW (reset active) when V
≤ V
th(rst)
. If V
O(REG2)
≥ V
, pin RST goes HIGH. The
th(rst)
O(REG2)
is
reset pulse is delayed by 40 µs internally. To extend the
delay and toprevent oscillations occurringat thethreshold
voltage, an external capacitor can be connected to
pin RESCAP. Note that a reset pulse is not generated
when V
falls below the reset threshold value.
O(REG2)
Reset delay capacitor
A Reset Delay Capacitor (RDC) connected to
pin RESCAPcan be usedto extend thedelay period of the
reset pulse and to ensure that a clean reset signal is sent
to the microcontroller. The RDC is charged by a current
source. The reset output (pin RST) will be released
(pin RST goes HIGH) when the RDC voltage crosses the
RDC threshold value.
Power switches
There are twopower switchesthat provide an unregulated
DC voltage output for amplifiers and an aerial motor
respectively. The switches have internal protection for
over-temperature conditions and are activated by setting
bits D2 and D3 of instruction byte IB1 to logic 1. The
regulated outputs will supply pulsed current loads that can
contaminate the line with high frequency noise, so it is
important to prevent any cross-coupling between the
regulated outputs, particularly with the 8.3 V audio supply,
and the unregulated outputs.
In the ON state, the switcheshave alow impedance to the
battery voltage. When the battery voltage is higher than
22 V, the switches are switched off. When the battery
voltage is below 22 V the switches are set to their original
condition.
2004 Feb 24 12
Page 13
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
Protection
All regulator and switch outputs are fully protected by
foldback current limiting against load dumps and
short-circuits; see Fig.6. During a load dump all regulator
outputs, except the output of regulator 2, will go low.
The power switches can withstand ‘loss-of-ground’. This
means that if pin GND becomes disconnected, the switch
is protected by automatically connecting its outputs to
ground.
handbook, full pagewidth
V
O(REGn)
TDA8588J; TDA8588xJ
Temperature protection
If the junction temperature of a regulator becomes too
high, the amplifier(s) are switched off to prevent unwanted
noise signals being audible. A regulator junction
temperature that istoo high is indicated bypin
LOW and is also indicated by setting bit D6 in data byte 2.
If the junction temperature of the regulator continues to
rise and reaches the maximum temperature protection
level, all regulators and switches will be disabled except
regulator 2.
DIAG going
I
sc
I
limit
Fig.6 Foldback current protection.
I
O(REGn)
MDB513
2004 Feb 24 13
Page 14
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
I2C-BUS SPECIFICATION
handbook, halfpage
MSB
1
1 0 1 1 0 0 R/W
Fig.7 Address byte.
If address byte bit R/W = 0, the TDA8588 expects 3 instruction bytes: IB1, IB2 and IB3; see Table 1 to Table 6.
After a power-on, all instruction bits are set to zero.
If address byte bit R/W = 1, the TDA8588 will send 4 data bytes to the microcontroller: DB1, DB2, DB3 and DB4; see
Table 7 to Table 10.
0 = write
1 = read
LSB
MDB516
SDA
SCL
S
START condition
Fig.8 Definition of start and stop conditions.
SDA
SCL
data line
stable;
data valid
change
of data
allowed
P
STOP condition
MBA607
SDA
SCL
MBA608
Fig.9 Bit transfer.
2004 Feb 24 14
Page 15
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
I2C-WRITE
SCL
SDA
SCL
SDA
SAAAP
2
I
C-READ
12 78912 789
MSB − 1
MSB
ADDRESS WRITE DATA
12 78912 789
MSB MSB − 1 MSB MSB − 1 LSB + 1 LSBLSB + 1
LSB + 1
ACK
W
ACK
TDA8588J; TDA8588xJ
MSB MSB − 1 LSB + 1 LSB
To stop the transfer, after the last acknowledge (A)
a stop condition (P) must be generated
ACK
ACK
S
: generated by master (microcontroller)
: generated by slave (TDA8588)
: start
S
: stop
P
: acknowledge
A
: read / write
R/W
ADDRESS
R
READ DATA
To stop the transfer, the last byte must not be acknowledged
Fig.10 I2C-bus read and write modes.
AP
and a stop condition (P) must be generated
mce641
2004 Feb 24 15
Page 16
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
Table 1 Instruction byte IB1
BIT DESCRIPTION
D7 regulator 5 output voltage control
D6
D5
D4
D3 SW2 control
D2 SW1 control
D1 AC- or DC-load detection switch
D0 amplifier start enable (clear power-on reset
Table 2 Regulator 5 (display) output voltage control
D7 D6 D5 D4
(see Table 2)
0 = SW2 off
1 = SW2 on
0 = SW1 off
1 = SW1 on
0 = AC- or DC-load detection off; resets
DC-load detection bits and AC-load
detection peak current counter
1 = AC- or DC-load detection on
flag; D7 of DB2)
0 = amplifier OFF; pin
1 = amplifier ON; when power-on occurs,
bit D7 of DB2 is reset and pin DIAG is
released
BIT
00000 (off)
00016.0
00107.0
00118.2
01009.0
01019.5
011010.0
011110.4
100012.5
1001≤ VP− 1
DIAG remains LOW
OUTPUT (V)
(switch)
TDA8588J; TDA8588xJ
Table 3 Instruction byte IB2
BIT DESCRIPTION
D7 regulator 4 output voltage control (see
D6
D5
D4 regulator 3 (mechanical digital) control
D3 regulator 1 output voltage control (see
D2
D1 soft mute all amplifier channels (mute delay
D0 hard mute all amplifier channels (mute delay
Table 4 Regulator 4 (mechanical drive) output voltage
D7 D6 D5
Table 5 Regulator 1 (audio) output voltage control
D3 D2
Table 4)
0 = regulator 3 off
1 = regulator 3 on
Table 5)
20 ms)
0 = mute off
1 = mute on
0.4 ms)
0 = mute off
1 = mute on
control
BIT
OUTPUT (V)
0 0 0 0 (off)
0015
0106
0117
1008.6
BIT
OUTPUT (V)
0 0 0 (off)
0 1 8.3
1 0 8.5
1 1 8.7
2004 Feb 24 16
Page 17
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
Table 6 Instruction byte IB3 Table 7 Data byte DB1
BIT DESCRIPTION
D7 clip detection level
0 = 4 % detection level
1 = 1 % detection level
D6 amplifier channels 1 and 2 gain select
0 = 26 dB gain (normal mode)
1 = 20 dB gain (line driver mode)
D5 amplifier channels 3 and 4 gain select
0 = 26 dB gain (normal mode)
1 = 20 dB gain (line driver mode)
D4 amplifier thermal protection pre-warning
0 = warning at 145 °C
1 = warning at 122 °C
D3 disable channel 1
0 = enable channel 1
1 = disable channel 1
D2 disable channel 2
0 = enable channel 2
1 = disable channel 2
D1 disable channel 3
0 = enable channel 3
1 = disable channel 3
D0 disable channel 4
0 = enable channel 4
1 = disable channel 4
BIT DESCRIPTION
D7 amplifier thermal protection pre-warning
0 = no warning
1 = junctiontemperatureabovepre-warning
level
D6 amplifier maximum thermal protection
0 = junction temperature below 175 °C
1 = junction temperature above 175 °C
D5 channel 4 DC load detection
0 = DC load detected
1 = no DC load detected
D4 channel 4 AC load detection
0 = no AC load detected
1 = AC load detected
D3 channel 4 load short-circuit
0 = normal load
1 = short-circuit load
D2 channel 4 output offset
0 = no output offset
1 = output offset
D1 channel 4 VP short-circuit
0 = no short-circuit to V
1 = short-circuit to V
D0 channel 4 ground short-circuit
0 = no short-circuit to ground
1 = short-circuit to ground
P
P
2004 Feb 24 17
Page 18
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
Table 8 Data byte DB2 Table 9 Data byte DB3
BIT DESCRIPTION
D7 Power-on reset occurred or amplifier status
0 = amplifier on
1 = POR has occurred; amplifier off
D6 regulator thermal protection pre-warning
0 = no warning
1 = regulatortemperaturetoohigh;amplifier
off
D5 channel 3 DC load detection
0 = DC load detected
1 = no DC load detected
D4 channel 3 AC load detection
0 = no AC load detected
1 = AC load detected
D3 channel 3 load short-circuit
0 = normal load
1 = short-circuit load
D2 channel 3 output offset
0 = no output offset
1 = output offset
D1 channel 3 VP short-circuit
0 = no short-circuit to V
1 = short-circuit to V
D0 channel 3 ground short-circuit
0 = no short-circuit to ground
1 = short-circuit to ground
P
P
BIT DESCRIPTION
D7 −
D6 −
D5 channel 2 DC load detection
0 = DC load detected
1 = no DC load detected
D4 channel 2 AC load detection
0 = no AC load detected
1 = AC load detected
D3 channel 2 load short-circuit
0 = normal load
1 = short-circuit load
D2 channel 2 output offset
0 = no output offset
1 = output offset
D1 channel 2 VP short-circuit
0 = no short-circuit to V
1 = short-circuit to V
D0 channel 2 ground short-circuit
0 = no short-circuit to ground
1 = short-circuit to ground
P
P
2004 Feb 24 18
Page 19
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
Table 10 Data byte DB4
BIT DESCRIPTION
D7 −
D6 −
D5 channel 1 DC load detection
0 = DC load detected
1 = no DC load detected
D4 channel 1 AC load detection
0 = no AC load detected
1 = AC load detected
D3 channel 1 load short-circuit
0 = normal load
1 = short-circuit load
D2 channel 1 output offset
0 = no output offset
1 = output offset
D1 channel 1 VP short-circuit
0 = no short-circuit to V
1 = short-circuit to V
D0 channel 1 ground short-circuit
0 = no short-circuit to ground
1 = short-circuit to ground
P
P
TDA8588J; TDA8588xJ
2004 Feb 24 19
Page 20
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITION MIN. MAX. UNIT
V
P
V
SDA
VIN, V
V
ACGND
V
DIAG
V
STB
I
OSM
I
ORM
V
sc
V
rp
P
tot
T
j
T
stg
T
amb
V
esd
, V
supply voltage operating − 18 V
not operating −1 +50 V
with load dump protection 0 50 V
voltage on pins SDA and SCL operating 0 7 V
SCL
,
voltage on pins INn, SVR, ACGND and
SVR
DIAG operating 0 13 V
,
voltage on pin STB operating 0 24 V
non-repetitive peak output current − 10 A
repetitive peak output current − 6A
AC and DC short-circuit voltage short-circuit of output pins across
− 18 V
loads and to ground or supply
reverse polarity voltage voltage regulator only −−18 V
total power dissipation T
=70°C − 80 W
case
junction temperature − 150 °C
storage temperature −55 +150 °C
ambient temperature −40 +85 °C
electrostatic discharge voltage note 1 − 2000 V
note 2 − 200 V
Notes
1. Human body model: Rs= 1.5 kΩ; C = 100 pF; all pins have passed all tests to 2500 V to guarantee 2000 V,
according to class II.
2. Machine model: Rs=10Ω; C = 200 pF; L = 0.75 mH; all pins have passed all tests to 250 V to guarantee 200 V,
according to class II.
2004 Feb 24 20
Page 21
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
THERMAL CHARACTERISTICS
SYMBOL PARAMETER CONDITIONS VALUE UNIT
R
th(j-a)
R
th(j-c)
QUALITY SPECIFICATION
thermal resistance from junction to ambient in free air 40 K/W
thermal resistance from junction to case see Fig.11 0.75 K/W
Virtual junction
handbook, halfpage
Amplifier
0.5 K/W
Voltage regulator
0.2 K/W
Case
1 K/W
MDB514
Fig.11 Equivalent thermal resistance network.
In accordance with
“General Quality Specification for Integrated Circuits SNW-FQ-611D”
.
2004 Feb 24 21
Page 22
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
CHARACTERISTICS
Amplifier section
T
=25°C; VP= 14.4 V; RL=4Ω; measured in the test circuit Fig.26; unless otherwise specified.
amb
SYMBOL PARAMETER CONDITION MIN. TYP. MAX. UNIT
Supply voltage behaviour
V
, V
P1
P2
I
q(tot)
I
stb
V
O
V
P(mute)
V
hr
V
POR
V
OO
Mode select (pin STB)
V
stb
V
oper
V
mute
I
I
Start-up, shut-down and mute timing
t
wake
t
mute(off)
t
d(mute-on)
t
d(on-mute)
2
C-bus interface
I
V
IL
V
IH
V
OL
operating supply voltage RL=4Ω 8 14.4 18 V
R
=2Ω 8 14.4 16 V
L
total quiescent current no load − 280 400 mA
standby current − 10 50 µA
DC output voltage − 7.2 − V
low supply voltage mute 6.5 7 8 V
headroom voltage when headroom protection is
− 1.4 − V
activated; see Fig.4
power-on reset voltage see Fig.13 − 5.5 − V
output offset voltage mute mode and power on −100 0 +100 mV
standby mode voltage −−1.3 V
operating mode voltage 2.5 − 5.5 V
mute mode voltage 8 − V
input current V
wake-up time from standby
before first I
2
C-bus transmission
=5V − 425µA
STB
via pin STB; see Fig.12 − 300 500 µs
P
is recognised
time from amplifier switch-on to
mute release
delay from mute to on soft mute; via I2C-bus
via I2C-bus (IB1 bit D0);
C
=22µF; see Fig.12
SVR
− 250 − ms
10 25 40 ms
(IB2 bit D1 = 1 to 0)
hard mute; via I
2
C-bus
10 25 40 ms
(IB2 bit D0 = 1 to 0)
via pin STB; V
delay from on to mute soft mute; via I2C-bus
= 4 to 8 V 10 25 40 ms
STB
10 25 40 ms
(IB2 bit D1 = 0 to 1)
hard mute; via I2C-bus
− 0.4 1 ms
(IB2 bit D0 = 0 to 1)
via pin STB; V
LOW-level input voltage on pins
=4to8V − 0.4 1 ms
STB
−−1.5 V
SCL and SDA
HIGH-level input voltage on pins
2.3 − 5.5 V
SCL and SDA
LOW-level output voltage on
IL=3mA −−0.4 V
pin SDA
V
2004 Feb 24 22
Page 23
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
SYMBOL PARAMETER CONDITION MIN. TYP. MAX. UNIT
f
SCL
Diagnostic
V
DIAG
V
o(offset)
THD
clip
T
j(warn)
T
j(mute)
T
j(off)
Z
o(load)
Z
o(open)
I
o(load)
I
o(open)
Amplifier
P
o
THD total harmonic distortion Po= 1 W to 12 W; f = 1 kHz;
SCL clock frequency −−400 kHz
diagnostic pin LOW output
fault condition; I
= 200 µA −−0.8 V
DIAG
voltage
output voltage when offset is
± 1.5 ± 2 ± 2.5 V
detected
THD clip detection level IB3 bit D7 = 0 − 4 − %
IB3 bit D7 = 1 − 1 − %
average junction temperature for
pre-warning
average junction temperature for
IB3 bit D4 = 0 135 145 155 °C
IB3 bit D4 = 1 112 122 132 °C
VIN= 0.05 V 150 160 170 °C
3 dB muting
average junction temperature
165 175 185 °C
when all outputs are switched off
impedance when a DC load is
−−6 Ω
detected
impedance when an open DC
500 −− Ω
load is detected
amplifiercurrent when anACload
550 −− mA
is detected
amplifier current when an open
−−150 mA
AC load is detected
output power RL=4Ω; VP= 14.4 V; THD = 0.5 % 20 21 − W
RL=4Ω; VP= 14.4 V; THD = 10 % 27 28 − W
RL=4Ω; VP= 14.4 V;
44 46 − W
VIN= 2 V RMS square wave
(maximum power)
RL=4Ω; VP= 15.2 V;
49 52 − W
VIN= 2 V RMS square wave
(maximum power)
RL=2Ω; VP= 14.4 V; THD = 0.5 % 37 41 − W
RL=2Ω; VP= 14.4 V; THD = 10 % 51 55 − W
RL=2Ω; VP= 14.4 V;
83 87 − W
VIN= 2 V RMS square wave
(maximum power)
− 0.01 0.1 %
RL=4Ω
Po= 1 W to 12 W; f = 10 kHz − 0.2 0.5 %
Po= 4 W; f = 1 kHz − 0.01 0.03 %
line driver mode; Vo= 2 V (RMS);
− 0.01 0.03 %
f = 1 kHz; RL= 600 Ω
2004 Feb 24 23
Page 24
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
SYMBOL PARAMETER CONDITION MIN. TYP. MAX. UNIT
α
cs
SVRR supply voltage ripple rejection f = 100 Hz to 10 kHz;
CMRR common mode ripple rejection amplifier mode;
V
cm(max)(rms)
V
n(o)(LN)
V
n(o)(amp)
G
v(amp)
G
v(LN)
Z
i
α
mute
V
o(mute)
B
p
channel separation (crosstalk) f=1Hzto10kHz; R
= 600 Ω 50 60 − dB
source
Po= 4 W; f = 1 kHz − 80 − dB
55 70 − dB
R
source
= 600 Ω
40 70 − dB
maximum common mode voltage
V
f = 1 kHz to 3 kHz; R
f=1kHz −−0.6 V
common
= 0.3 V (p-p);
source
=0Ω
level (rms value)
noise output voltage in line driver
mode
noise output voltage in amplifier
mode
filter 20 Hz to 22 kHz;
R
source
= 600 Ω
filter 20 Hz to 22 kHz;
R
source
= 600 Ω
− 25 35 µV
− 50 70 µV
voltage gain in amplifier mode single-ended in to differential out 25 26 27 dB
voltage gain in line driver mode single-ended in to differential out 19 20 21 dB
input impedance CIN= 220 nF 55 70 − kΩ
mute attenuation V
O(on)/VO(mute)
80 90 − dB
output voltage mute VIN= 1 V (RMS) − 70 −µV
power bandwidth −1dB; THD=1% − 20 − kHz
Voltage regulator section
T
=25°C; VP= 14.4 V; measured in the test circuit Fig.26; unless otherwise specified.
amb
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
Supply
V
P
supply voltage regulator 1, 3, 4 and 5 on 10.0 14.4 18 V
regulator 2
switched on 4 −−V
in regulation 6.3 − 50 V
overvoltage for shut-down 18.1 22 − V
I
q(tot)
total quiescent supply
standby mode; note 1 − 150 190 µA
current
Reset output (push-pull stage, pin RST)
V
REG2(th)(r)
V
REG2(th)(f)
I
sink(L)
I
source(H)
t
r
t
f
rising threshold voltage
of regulator 2
falling threshold voltage
of regulator 2
LOW-level sink current V
HIGH-level source
current
VP is rising;
I
O(REG2)
=50mA
VP is falling;
I
O(REG2)
V
=50mA
≤ 0.8 V 1 −−mA
RST
RST=VO(REG2)
− 0.5 V;
V
O(REG2)
− 0.2
V
O(REG2)
− 0.25
V
O(REG2)
− 0.1
V
O(REG2)
− 0.15
V
O(REG2)
− 0.04
V
O(REG2)
− 0.1
200 600 −µA
VP= 14.4 V
V
V
rise time note 2 − 250µs
fall time note 2 − 10 50 µs
2004 Feb 24 24
Page 25
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
Reset delay (pin RESCAP)
I
ch
I
dch
V
th(rst)
t
d(rst)
Regulator 1: REG1 (audio; IO= 5 mA)
V
O(REG1)
V
O(LN)
V
O(load)
SVRR supply voltage ripple
V
drop
I
limit
I
sc
Regulator 2: REG2 (microprocessor; IO= 5 mA)
charge current V
discharge current V
reset signal threshold
voltage
RESCAP
RESCAP
TDA8588AJ and
TDA8588J
=0V 1 4 8 µA
=3V; VP≥ 4.3 V 1 7 − mA
2.5 3 3.5 V
TDA8588BJ 1.6 2.1 2.6 V
reset signal delay without C
C
RESCAP
= 47 nF; note 3;
; note 3 − 40 −µs
RESCAP
15 35 100 ms
see Fig.15
output voltage 0.5 mA ≤ IO≤ 400 mA;
12V<VP<18V;
IB2[D3:D2] = 01 7.9 8.3 8.7 V
IB2[D3:D2] = 10 8.1 8.5 8.9 V
IB2[D3:D2] = 11 8.3 8.7 9.1 V
line regulation voltage 12 V ≤ VP≤ 18 V −−50 mV
load regulation voltage 5 mA ≤ IO≤ 400 mA −−100 mV
f
rejection
ripple
V
ripple
= 120 Hz;
= 2 V (p-p)
50 60 − dB
dropout voltage VP= 7.5 V; note 4
IO= 200 mA − 0.4 0.8 V
IO= 400 mA − 0.6 2.5 V
current limit VO≥ 7 V; note 5 400 700 − mA
short-circuit current RL≤ 0.5 Ω; note 6 70 190 − mA
V
O(REG2)
output voltage 0.5 mA ≤ IO≤ 350 mA;
10 V ≤ V
≤ 18 V
P
TDA8588AJ and
TDA8588J
TDA8588BJ 3.1 3.3 3.5 V
V
O(LN)
V
O(load)
SVRR supply voltage ripple
line regulation voltage 10 V ≤ VP≤ 18 V − 350mV
load regulation voltage 0.5 mA ≤ IO≤ 300 mA −−100 mV
f
= 120 Hz;
ripple
rejection
V
ripple
= 2 V (p-p)
2004 Feb 24 25
4.75 5.0 5.25 V
40 50 − dB
Page 26
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
V
drop
I
limit
I
sc
Regulator 3: REG3 (mechanical digital; IO= 5 mA)
V
O(REG3)
V
O(LN)
V
O(load)
SVRR supply voltage ripple
V
drop
I
limit
I
sc
Regulator 4: REG4 (mechanical drive; IO= 5 mA)
dropout voltage IO= 200 mA
V
= 4.75 V; note 7
BUCAP
TDA8588AJ and
− 0.5 0.8 V
TDA8588J
TDA8588BJ − 1.75 2 V
IO= 350 mA;
V
= 4.75 V; note 7
BUCAP
TDA8588AJ and
− 0.5 1.3 V
TDA8588J
TDA8588BJ − 1.75 2.7 V
current limit VO≥ 2.8 V; note 5 400 1000 − mA
short-circuit current RL≤ 0.5 Ω; note 6 160 300 − mA
output voltage 0.5 mA ≤ IO≤ 300 mA;
10 V ≤ VP≤ 18 V
TDA8588AJ and
3.1 3.3 3.5 V
TDA8588BJ
TDA8588J 4.75 5.0 5.25 V
line regulation voltage 10 V ≤ VP≤ 18 V − 350mV
load regulation voltage 0.5 mA ≤ IO≤ 300 mA −−100 mV
f
rejection
ripple
V
ripple
= 120 Hz;
= 2 V (p-p)
50 65 − dB
dropout voltage VP= 4.75 V; IO= 200 mA;
note 4
TDA8588AJ and
− 1.45 1.65 V
TDA8588BJ
TDA8588J − 0.4 0.8 V
VP= 4.75 V; IO= 300 mA;
note 4
TDA8588AJ and
− 1.45 1.65 V
TDA8588BJ
TDA8588J − 0.4 1.5 V
current limit VO≥ 2.8 V; note 5 400 700 − mA
short-circuit current RL≤ 0.5 Ω; note 6 135 210 − mA
V
O(REG4)
output voltage 0.5 mA ≤ IO≤ 800 mA;
10 V ≤ VP≤ 18 V
IB2[D7:D5] = 001 4.75 5.0 5.25 V
IB2[D7:D5] = 010 5.7 6.0 6.3 V
IB2[D7:D5] = 011 6.6 7.0 7.4 V
IB2[D7:D5] = 100 8.1 8.6 9.1 V
V
O(LN)
line regulation voltage 10 V ≤ VP≤ 18 V − 350mV
2004 Feb 24 26
Page 27
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
V
O(load)
SVRR supply voltage ripple
V
drop
I
O(peak)
I
limit
I
sc
Regulator 5: REG5 (display; IO= 5 mA)
V
O(REG5)
V
O(LN)
V
O(load)
SVRR supply voltage ripple
V
drop
I
limit
I
sc
Power switch 1: SW1 (antenna)
V
drop(SW1)
I
limit
load regulation voltage 0.5 mA ≤ IO≤ 400 mA −−100 mV
f
ripple
rejection
V
ripple
dropout voltage VP=V
= 120 Hz;
= 2 V (p-p)
O(REG4)
− 0.5 V;
50 65 − dB
− 0.6 1 V
IO= 800 mA; note 4
peak output current t ≤ 3 s; VO= 4 V 1 1.5 − A
limit current VO≥ 4 V; t ≤ 100 ms;
1.5 2 − A
VP≥ 11.5 V; note 5
short-circuit current RL≤ 0.5 Ω ; note 6 240 400 − mA
output voltage 0.5 mA ≤ IO≤ 400 mA
10 V ≤ VP≤ 18 V;
5.7 6.0 6.3 V
IB1[D7:D4] = 0001
10 V ≤ VP≤ 18 V;
6.65 7.0 7.37 V
IB1[D7:D4] = 0010
10 V ≤ VP≤ 18 V;
7.8 8.2 8.6 V
IB1[D7:D4] = 0011
10.5 V ≤ VP≤ 18 V;
8.55 9.0 9.45 V
IB1[D7:D4] = 0100
11 V ≤ VP≤ 18 V;
9.0 9.5 10.0 V
IB1[D7:D4] = 0101
11.5 V ≤ VP≤ 18 V;
9.5 10.0 10.5 V
IB1[D7:D4] = 0110
13 V ≤ VP≤ 18 V;
9.9 10.4 10.9 V
IB1[D7:D4] = 0111
14.2 V ≤ VP≤ 18 V;
11.8 12.5 13.2 V
IB1[D7:D4] = 1000
12.5 V ≤ VP≤ 18 V;
VP− 1 −−V
IB1[D7:D4] = 1001
line regulation voltage 10 V ≤ VP≤ 18 V − 350mV
load regulation voltage 0.5 mA ≤ IO≤ 400 mA −−100 mV
f
ripple
rejection
V
ripple
dropout voltage VP=V
= 120 Hz;
= 2 V (p-p)
O(REG5)
− 0.5 V;
50 60 − dB
note 4
IO= 300 mA − 0.4 0.8 V
IO= 400 mA − 0.5 2.3 V
limit current VO≥ 5.5 V; note 5 400 950 − mA
short-circuit current RL≤ 0.5 Ω; note 6 100 200 − mA
dropout voltage IO= 300 mA − 0.6 0.8 V
IO= 400 mA − 0.6 1.1 V
limit current V ≥ 8.5 V 0.5 1 − A
2004 Feb 24 27
Page 28
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
Power switch 2: SW2 (amplifier)
V
drop(SW2)
I
limit
Backup switch
I
DC(BU)
V
clamp(BU)
V
drop
Notes
1. The quiescent current is measured in standby mode when R
2. The rise and fall times are measured with a 50 pF load capacitor.
3. The reset delay time depends on the value of the reset delay capacitor:
t
d rst()
4. The dropout voltage of a regulator is the voltage difference between VP and V
5. At current limit, V
6. The foldback current protection limits the dissipation power at short-circuit (see Fig.6).
7. The dropout voltage of regulator 2 is the voltage difference between V
dropout voltage IO= 300 mA − 0.6 0.8 V
IO= 400 mA − 0.6 1.1 V
limit current VO≥ 8.5 V 0.5 1 − A
continuous current V
clamping voltage VP=30V;
I
O(REG2)
dropout voltage IO= 500 mA;
(VP− V
C
RESCAP
-----------------------I
ch
V
×= C
th rst()
O(REGn)
is held constant (see Fig.6).
RESCAP
≥ 6 V 0.4 1.5 − A
BUCAP
− 24 28 V
= 100 mA
− 0.6 0.8 V
)
BUCAP
= ∞.
L
750 103×()× s[]=
.
O(REGn)
BUCAP
and V
O(REG2)
.
2004 Feb 24 28
Page 29
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
V
p
DIAG
V
O(REG3)
Amplifier status
DB2 bit D7
IB1 bit D0
IB2 bit D4
t
wake
STB
SVR
TDA8588J; TDA8588xJ
Regulator switched off
when amplifier is
completely muted
Amplifier
output
t
mute(off)
Soft
mute
Fig.12 Start-up and shut-down timing.
Soft
mute
mrc350
2004 Feb 24 29
Page 30
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
handbook, full pagewidth
V
(V)
14.4
8.8
8.6
7.2
3.5
O
V
p
Headroom protection activated:
1) fast mute
2) discharge of SVR
Low Vp mute activated
Headroom voltage
SVR voltage
TDA8588J; TDA8588xJ
Output
voltage
Low Vp mute released
DIAG
DB2 bit D7
V
O(REG3)
MRC348
Fig.13 Low VP behaviour at VP> 5.5 V.
2004 Feb 24 30
Page 31
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
V
O
(V)
14.4
8.8
8.6
7.2
5.5
3.5
V
p
Low Vp mute activated
POR activated
TDA8588J; TDA8588xJ
SVR voltage
DIAG
DB2 bit D7
V
O(REG3)
POR has occured
mrc349
Fig.14 Low VP behaviour at VP< 5.5 V.
2004 Feb 24 31
Page 32
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
V
(V)
V
th(rst)
t
d(rst)
TDA8588J; TDA8588xJ
V
P
V
O(REG2)
V
RST
t (sec)
mdb511
Fig.15 Reset delay function.
2004 Feb 24 32
Page 33
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
Performance diagrams
THD AS A FUNCTION OF OUTPUT POWER P
2
10
handbook, full pagewidth
THD
(%)
10
1
−1
10
−2
10
AT DIFFERENT FREQUENCIES
o
TDA8588J; TDA8588xJ
MRC345
(1)
(2)
(3)
−3
10
−2
10
(1) f = 10 kHz.
(2) f = 1 kHz.
(3) f = 100 Hz.
VP= 14.4 V.
RL=4Ω.
−1
10
11010
Po (W)
2
Fig.16 THD as a function of Po.
2004 Feb 24 33
Page 34
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
THD AS A FUNCTION OF FREQUENCY AT DIFFERENT OUTPUT POWERS
10
handbook, full pagewidth
THD
(%)
1
−1
10
−2
10
(1)
(2)
TDA8588J; TDA8588xJ
MRC344
−3
10
−2
10
(1) Po=1W.
(2) Po=10W.
VP= 14.4 V.
RL=4Ω.
−1
10
11010
Fig.17 THD as a function of frequency.
f (kHz)
2
2004 Feb 24 34
Page 35
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
LINE DRIVER MODE
THD
(%)
1
−1
10
−2
10
handbook, full pagewidth
TDA8588J; TDA8588xJ
MRC329
−3
10
−11
10
VP= 14.4 V.
RL= 600 Ω.
f = 1 kHz.
Fig.18 THD as a function of Vo in balanced line driver mode.
10
V
o(rms)
(V)
2
10
2004 Feb 24 35
Page 36
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
OUTPUT POWER AS A FUNCTION OF FREQUENCY AT DIFFERENT THD LEVELS
30
handbook, full pagewidth
P
o
(W)
28
26
24
22
TDA8588J; TDA8588xJ
MRC330
(1)
(2)
20
−2
10
(1) THD = 10 %.
(2) THD = 5 %.
(3) THD = 0.5 %.
VP= 14.4 V.
−1
10
11010
Fig.19 Po as a function of frequency; RL=4Ω.
(3)
f (kHz)
2
2004 Feb 24 36
Page 37
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
60
handbook, full pagewidth
P
o
(W)
55
50
45
40
35
−2
10
−1
10
TDA8588J; TDA8588xJ
MRC335
(1)
(2)
(3)
11010
f (kHz)
2
(1) THD = 10 %.
(2) THD = 5 %.
(3) THD = 0.5 %.
VP= 14.4 V.
Fig.20 Po as a function of frequency; RL=2Ω.
2004 Feb 24 37
Page 38
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
OUTPUT POWER (PO) AS A FUNCTION OF SUPPLY VOLTAGE (VP)
100
P
o
(W)
80
60
40
20
0
8 20161210 1814
TDA8588J; TDA8588xJ
001aaa283
(1)
(2)
(3)
VP (V)
(1) Maximum power.
(2) THD = 10 %.
(3) THD = 0.5 %. f = 1 kHz.
Fig.21 Po as a function of supply voltage; RL=4Ω.
2004 Feb 24 38
Page 39
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
100
handbook, full pagewidth
P
o
(W)
80
60
40
20
0
81216
TDA8588J; TDA8588xJ
MRC332
(1)
(2)
(3)
Vp (V)
20
(1) Maximum power.
(2) THD = 10 %.
(3) THD = 0.5 %. f = 1 kHz.
Fig.22 Po as a function of supply voltage; RL=2Ω.
2004 Feb 24 39
Page 40
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
SUPPLY VOLTAGE RIPPLE REJECTION IN OPERATING AND MUTE MODES
80
handbook, full pagewidth
SVRR
(dB)
76
72
68
64
TDA8588J; TDA8588xJ
MRC333
(1)
(2)
60
10−11 10
VP= 14.4 V.
RL=4Ω.
V
R
ripple
source
= 2 V (p-p).
= 600 Ω.
(1) Operating mode.
(2) Mute mode.
f (kHz)
Fig.23 SVRR as a function of frequency.
2004 Feb 24 40
Page 41
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
CHANNEL SEPARATION AS A FUNCTION OF FREQUENCY
100
handbook, full pagewidth
α
cs
(dB)
90
80
70
60
TDA8588J; TDA8588xJ
MRC351
50
−2
10
VP= 14.4 V.
RL=4Ω.
Po=4W.
R
= 600 Ω.
source
−1
10
110
f (kHz)
2
10
Fig.24 Channel separation.
2004 Feb 24 41
Page 42
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
POWER DISSIPATION AND EFFICIENCY
50
handbook, full pagewidth
P
tot
(W)
40
30
20
10
TDA8588J; TDA8588xJ
MRC342
0
01020
VP= 14.4 V.
RL=4Ω.
f = 1 kHz.
Po (W)
Fig.25 Amplifier dissipation as a function of output power; all channels driven.
30
2004 Feb 24 42
Page 43
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
100
handbook, full pagewidth
η
(%)
80
60
40
20
TDA8588J; TDA8588xJ
MRC343
0
0 8 16 24 32
VP= 14.4 V.
RL=4Ω.
f = 1 kHz.
Fig.26 Amplifier efficiency as a function of output power; all channels driven.
Po (W)
40
2004 Feb 24 43
Page 44
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
APPLICATION AND TEST INFORMATION
BUCAP
RESCAP
SDA
SCL
STB
IN1
IN2
IN3
IN4
V
P
36
BACKUP
SWITCH
35
28
2
4
22
STANDBY/ MUTE
11
15
12
14
V
P
22 µF
10
TDA8588
ENABLE
LOGIC
40 µs
13
SGNDSVR
V
reg2
I2C-BUS
INTERFACE
MUTE
MUTE
MUTE
MUTE
2.2 µF
(4 × 470 nF)
REFERENCE
VOLTAGE
16 8
ACGND PGND1 PGND2/TAB PGND3 PGND4
14.4 V
1000 µF
(16 V)
220 µF
(16 V)
47 nF
220 nF
220 nF
R
S
470 nF
R
S
470 nF
R
S
470 nF
R
S
470 nF
REGULATOR 2
TEMPERATURE &
LOAD DUMP
PROTECTION VOLTAGE
REGULATOR
REGULATOR 1
REGULATOR 3
REGULATOR 4
REGULATOR 5
SWITCH 1
SWITCH 2
CLIP DETECT/ DIAGNOSTIC
26 dB/
20 dB
PROTECTION/
DIAGNOSTIC
26 dB/
20 dB
PROTECTION/
DIAGNOSTIC
26 dB/
20 dB
PROTECTION/
DIAGNOSTIC
26 dB/
20 dB
PROTECTION/
DIAGNOSTIC
TEMPERATURE & LOAD
DUMP PROTECTION
AMPLIFIER
1 18 24
TDA8588J; TDA8588xJ
37 REG2
30
31
33
34
29
27
26
32
20
6
25
9
7
17
19
5
3
21
23
mdb587
10 µF
(50 V)
REG1
REG3
REG4
REG5
SW1
SW2
RST
GND
V
P1
V
P2
DIAG
OUT1+
OUT1−
OUT2+
OUT2−
OUT3+
OUT3−
OUT4+
OUT4−
10 µF
(50 V)
10 µF
(50 V)
10 µF
(50 V)
10 µF
(50 V)
10 µF
(50 V)
10 µF
(50 V)
10 kΩ
220
100 nF
100 nF
100 nF
100 nF
100 nF
100 nF
100 nF
nF
(1)
220
nF
microcontroller
audio
mechanical
digital
mechanical
drive
display
amplifiers
aerial
motor
microcontroller
14.4 V
2200 µF
(16 V)
microcontroller
ACGND capacitor value must be close to 4 × input capacitor value.
For EMC reasons, a capacitor of 10 nF can be connected between each amplifier output and ground.
Fig.26 Test and application diagram.
2004 Feb 24 44
(1) See “Supply decoupling”.
Page 45
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
Supply decoupling
(see Fig.26)
The high frequency 220 nF decoupling capacitors connected to power supply voltage pins 6 and 20 should be located
as close as possible to these pins.
It is important to use good quality capacitors. These capacitors should be able to suppress high voltage peaks that can
occur on the power supply if several audio channels are accidentally shorted to the powersupply simultaneously, due to
the activation of current protection. Good results have been achieved using 0805 case-size capacitors (X7R material,
220 nF) located close to power supply voltage pins 6 and 20.
2004 Feb 24 45
Page 46
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
PCB layout
handbook, full pagewidth
TDA8588J; TDA8588xJ
Fig.27 Top of printed-circuit board layout of test and application circuit showing copper layer viewed from top.
handbook, full pagewidth
MDB533
MDB534
Fig.28 Bottom of printed-circuit board layout of test and application circuit showing copper layer viewed from top.
2004 Feb 24 46
Page 47
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
on
off
I2C supply
Sense
V
P
DIAG
GND
2200 µF
TDA8588J
22 µF
2.2 µF
470 nF
470 nF
OUT OUT
SGND
IN
GND
SDA
+ 5 V
GND
SCL
Mode
4.7 kΩ
V
P
DZ 5.6 V
10 µF
10 µF (50 V)
RESCAP
TDA8588J; TDA8588xJ
47 nF
on
off
1000 µF
10 µF (50 V) 10 µF (50 V)
CBU
RGND
REG2
REG5
REG4
REG3
REG1
SW1
SW2
220 µF
10 µF (50 V)
10 µF (50 V)
RST RESCAP
Fig.29 Top of printed-circuit board layout of test and application circuit showing components viewed from top.
handbook, full pagewidth
100 nF
100 nF
100 nF
100 nF
220 nF 220 nF 220 nF
10 kΩ
47 kΩ
mdb588
Fig.30 Bottom of printed-circuit board layout of test and application circuit showing components viewed from
bottom.
2004 Feb 24 47
MDB536
Page 48
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
Beep input circuit
Beep input circuit to amplify the beep signal from the microcontroller to all 4 amplifiers (gain = 0 dB). Note that this circuit
will not affect amplifier performance.
TDA8588
ACGND
2.2 µF
0.22 µF
From
microcontroller
1.7 kΩ
100 Ω
47 pF
mdb589
Fig.31 Application diagram for beep input.
Noise
Theoutputs of regulators 1 to 5aredesigned to givevery low noise withgood stability. The noiseoutputvoltage depends
on output capacitor Co. Table 11 shows the affect of the output capacitor on the noise figure.
Table 11 Regulator noise figures
REGULATOR
NOISE FIGURE (µV) at I
Co=10µFC
=47µFC
o
= 10 mA; note 1
REG
= 100 µF
o
1 225 195 185
2 750 550 530
3 120 100 95
4 225 195 185
5 320 285 270
Note
1. Measured in the frequency range 20 Hz to 80 kHz.
Stability
The regulators are made stable by connecting capacitors to the regulator outputs. The stability can be guaranteed with
almost any output capacitor if its Electric Series Resistance (ESR) stays below the ESR curve shown in Fig.32. If an
electrolytic capacitor is used, its behaviour with temperature can cause oscillations at extremely low temperature.
Oscillation problems can be avoided by adding a 47 nF capacitor in parallel with the electrolytic capacitor. The following
example describes how to select the value of output capacitor.
2004 Feb 24 48
Page 49
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
EXAMPLE REGULATOR 2
Regulator 2 is stabilized with an electrolytic output capacitor of 10 µF which has an ESR of 4 Ω. At T
capacitor value decreases to 3 µF and its ESR increases to 28 Ω which is above the maximum allowed as shown
in Fig.32, and which will make the regulator unstable. To avoid problems with stability at low temperatures, the
recommendedsolution is touse tantalum capacitors.Eitheruse a tantalumcapacitor of 10 µF, oran electrolytic capacitor
with a higher value.
handbook, halfpage
ESR
(Ω)
20
15
10
maximum ESR
5
stable region
MGL912
= −30 °C the
amb
0
0.1
1
10
C (µF)
100
Fig.32 Curve for selecting the value of output capacitors for regulators 1 to 5.
2004 Feb 24 49
Page 50
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
PACKAGE OUTLINE
DBS37P: plastic DIL-bent-SIL power package; 37 leads (lead length 6.8 mm)
non-concave
x
D
E
h
d
TDA8588J; TDA8588xJ
SOT725-1
D
h
view B: mounting base side
A
2
j
1
Z
DIMENSIONS (mm are the original dimensions)
UNIT A D
mm
19
Note
1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.
OUTLINE
VERSION
SOT725-1 - - - - - - - - -
A
4.65
4.35
b
2
0.60
0.45
e
1
e
(1)
c Z
p
0.5
0.3
IEC JEDEC JEITA
dee
42.2
37.8
41.7
37.4
b
p
(1)
E
D
h
15.9
12 2
15.5
37
w
M
0 10 20 mm
scale
1e2
14
REFERENCES
B
E
A
L
L
3
L
c
Q
e
2
m
E
h
8
Lm
3.4
6.8
3.1
L
3.9
3.1
L
L
3
1.15
0.85
4
22.9
4
22.1
EUROPEAN
PROJECTION
2.1
1.8
2
4
L
2
v
M
Qj
v
0.6
w
0.25
ISSUE DATE
01-11-14
02-11-22
x
0.03
(1)
3.30
2.65
2004 Feb 24 50
Page 51
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
SOLDERING
Introduction to soldering through-hole mount
packages
This text gives a brief insight to wave, dip and manual
soldering.A more in-depth accountof soldering ICs canbe
found in our
Packages”
Wave soldering is the preferred method for mounting of
through-hole mount IC packages on a printed-circuit
board.
Soldering by dipping or by solder wave
Driven by legislation and environmental forces the
worldwide use of lead-free solder pastes is increasing.
Typical dwell time of the leads in the wave ranges from
3 to 4 seconds at 250 °C or 265 °C, depending on solder
material applied, SnPb or Pb-free respectively.
Suitability of through-hole mount IC packages for dipping and wave soldering methods
“Data Handbook IC26; Integrated Circuit
(document order number 9398 652 90011).
Thetotalcontact time ofsuccessivesolderwaves must not
exceed 5 seconds.
The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (T
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.
Manual soldering
Apply the soldering iron (24 V or less) to the lead(s) of the
package, either below the seating plane or not more than
2 mm above it. If the temperature of the soldering iron bit
is less than 300 °C it may remain in contact for up to
10 seconds. If the bit temperature is between
300 and 400 °C, contact may be up to 5 seconds.
stg(max)
). If the
PACKAGE
DBS, DIP, HDIP, RDBS, SDIP, SIL suitable suitable
(2)
PMFP
Notes
1. For SDIP packages, the longitudinal axis must be parallel to the transport direction of the printed-circuit board.
2. For PMFP packages hot bar soldering or manual soldering is suitable.
− not suitable
DIPPING WAVE
SOLDERING METHOD
(1)
2004 Feb 24 51
Page 52
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
TDA8588J; TDA8588xJ
amplifier and multiple voltage regulator
DATA SHEET STATUS
LEVEL
I Objective data Development This data sheet contains data from the objective specification for product
II Preliminary data Qualification This data sheet contains data from the preliminary specification.
III Product data Production This data sheet contains data from the product specification. Philips
Notes
1. Please consult the most recently issued data sheet before initiating or completing a design.
2. The product status of the device(s) described in this data sheet may have changed since this data sheet was
published. The latest information is available on the Internet at URL http://www.semiconductors.philips.com.
3. For data sheets describing multiple type numbers, the highest-level product status determines the data sheet status.
DATA SHEET
STATUS
(1)
PRODUCT
STATUS
(2)(3)
development. Philips Semiconductors reserves the right to change the
specification in any manner without notice.
Supplementary data will be published at a later date. Philips
Semiconductors reserves the right to change the specification without
notice, in order to improve the design and supply the best possible
product.
Semiconductors reserves the right to make changes at any time in order
to improve the design, manufacturing and supply. Relevant changes will
be communicated via a Customer Product/Process Change Notification
(CPCN).
DEFINITION
DEFINITIONS
Short-form specification The data in a short-form
specification is extracted from a full data sheet with the
same type number and title. For detailed information see
the relevant data sheet or data handbook.
Limiting values definition Limiting values given are in
accordance with the Absolute Maximum Rating System
(IEC 60134). Stress above one or more of the limiting
values may cause permanent damage to the device.
These are stress ratings only and operation of the device
atthese or at anyotherconditions above thosegivenin the
Characteristics sections of the specification is not implied.
Exposure to limiting values for extended periods may
affect device reliability.
Application information Applications that are
described herein for any of these products are for
illustrative purposes only. Philips Semiconductors make
norepresentationor warranty that suchapplicationswillbe
suitable for the specified use without further testing or
modification.
DISCLAIMERS
Life support applications These products are not
designed for use in life support appliances, devices, or
systems where malfunction of these products can
reasonably be expectedto result inpersonal injury.Philips
Semiconductorscustomersusing or selling these products
for use in such applications do so at their own risk and
agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.
Right to make changes Philips Semiconductors
reserves the right to make changes in the products including circuits, standard cells, and/or software described or contained herein in order to improve design
and/or performance. Whenthe productis in full production
(status ‘Production’), relevant changes will be
communicated via a Customer Product/Process Change
Notification (CPCN). Philips Semiconductors assumes no
responsibility or liability for the use of any of these
products, conveys no licence or title under any patent,
copyright, or mask work right to these products, and
makes no representations or warranties that these
products are free from patent, copyright, or mask work
right infringement, unless otherwise specified.
2004 Feb 24 52
Page 53
Philips Semiconductors Product specification
I2C-bus controlled 4 × 50 Watt power
amplifier and multiple voltage regulator
PURCHASE OF PHILIPS I2C COMPONENTS
2
Purchase of Philips I
components in the I2C system provided the system conforms to the I2C specification defined by
Philips. This specification can be ordered using the code 9398 393 40011.
C components conveys a license under the Philips’ I2C patent to use the
TDA8588J; TDA8588xJ
2004 Feb 24 53
Page 54
Philips Semiconductors – a w orldwide compan y
Contact information
For additional information please visit http://www.semiconductors.philips.com. Fax: +31 40 27 24825
For sales offices addresses send e-mail to: sales.addresses@www.semiconductors.philips.com.
© Koninklijke Philips Electronics N.V. 2004
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
Printed in The Netherlands R32/01/pp54 Date of release: 2004 Feb 24 Document order number: 9397 750 11401
SCA76
Page 55
Loading...
