DATA SH EET

Product specification
File under Integrated Circuits, IC02

1999 Dec 22

INTEGRATED CIRCUITS

TDA8358J

Fullbridgeverticaldeflectionoutput
circuit in LVDMOS with east-west
amplifier

1999 Dec 22 2

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

FEATURES

• Few external components required

• High efficiency fully DC coupled vertical bridge output

circuit

• Vertical flyback switch with short rise and fall times

• Built-in guard circuit

• Thermal protection circuit

• Improved EMC performance due to differential inputs

• East-west output stage.

GENERAL DESCRIPTION

The TDA8358J is a power circuit for use in 90° and 110°
colour deflection systems for 25 to 200 Hz field
frequencies, and for 4 : 3 and 16 : 9picturetubes. The IC
contains a vertical deflection output circuit, operating as a
high efficiency class G system. The full bridge output
circuit allows DC coupling of the deflection coil in
combination with single positive supply voltages.

The east-west output stage is able to supply the sink
current for a diode modulator circuit.

The IC is constructed in a Low Voltage DMOS (LVDMOS)
process that combines bipolar, CMOS and DMOS
devices. DMOS transistors are used in the output stage
because of absence of second breakdown.

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supplies

V

P

supply voltage 7.5 12 18 V

V

FB

flyback supply voltage 2V

P

45 66 V

I

q(P)(av)

average quiescent supply current during scan − 10 15 mA

I

q(FB)(av)

average quiescent flyback supply current during scan −−10 mA

P

EW

east-west power dissipation −−4W

P

tot

total power dissipation −−15 W

Inputs and outputs

V

i(dif)(p-p)

differential input voltage (peak-to-peak value) − 1000 1500 mV

I

o(p-p)

output current (peak-to-peak value) −−3.2 A

Flyback switch

I

o(peak)

maximum (peak) output current t ≤ 1.5 ms −−±1.8 A

East-west amplifier

V

o

output voltage −−68 V

V

I(bias)

input bias voltage 2 − 3.2 V

I

o

output current −−750 mA

Thermal data; in accordance with IEC 747-1

T

stg

storage temperature −55 − +150 °C

T

amb

ambient temperature −25 − +75 °C

T

j

junction temperature −−150 °C

1999 Dec 22 3

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

ORDERING INFORMATION

BLOCK DIAGRAM

TYPE

NUMBER

PACKAGE

NAME DESCRIPTION VERSION

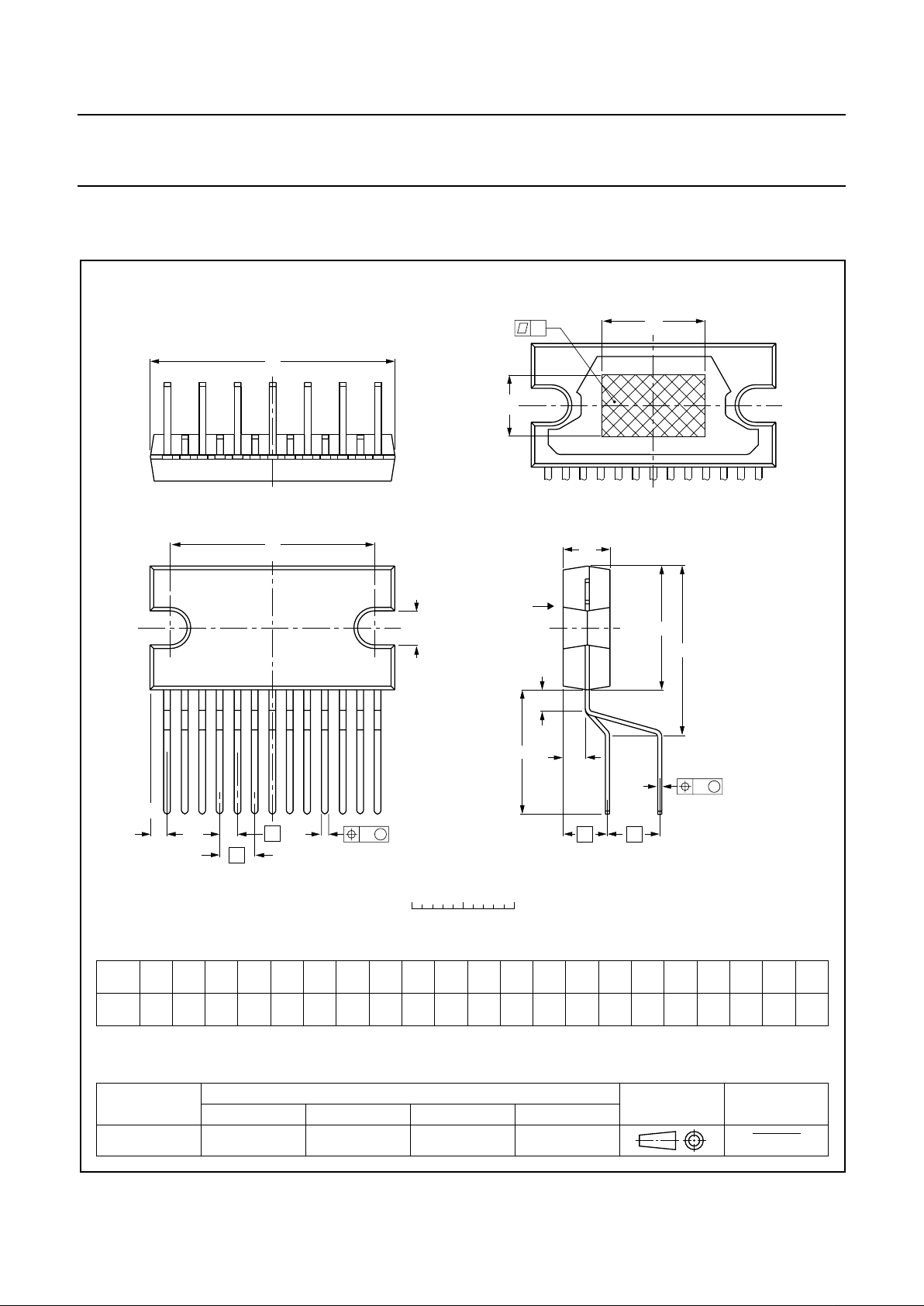

TDA8358J DBS13P plastic DIL-bent-SIL power package; 13 leads (lead length 12 mm) SOT141-6

handbook, full pagewidth

MGL866

INPUT

AND

FEEDBACK

CIRCUIT

GUARD

CIRCUIT

TDA8358J

12

10

4

67

2

85

1

11 93

INA

INB

INEW

VGND EWGND

GUARD

V

P

V

FB

V

I(bias)

V

i(p-p)

V

I(bias)

0

V

i(p-p)

0

OUTB

OUTEW

OUTA

FEEDB

COMP.

CIRCUIT

13

COMP

I

I(av)

I

i(p-p)

0

M5

M2

M4

M1

M3

M6

D2

D3

D1

Fig.1 Block diagram.

1999 Dec 22 4

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

PINNING FUNCTIONAL DESCRIPTION

Vertical output stage

The vertical driver circuit has a bridge configuration.
The deflection coil is connected between the
complimentary driven output amplifiers. The differential
input circuit is voltage driven. The input circuit is specially
designed for direct connection to driver circuits delivering
a differential signal but it is also suitable for single-ended
applications. The output currents of the driver device are
converted to voltages by the conversion resistors
R

CV1

and R

CV2

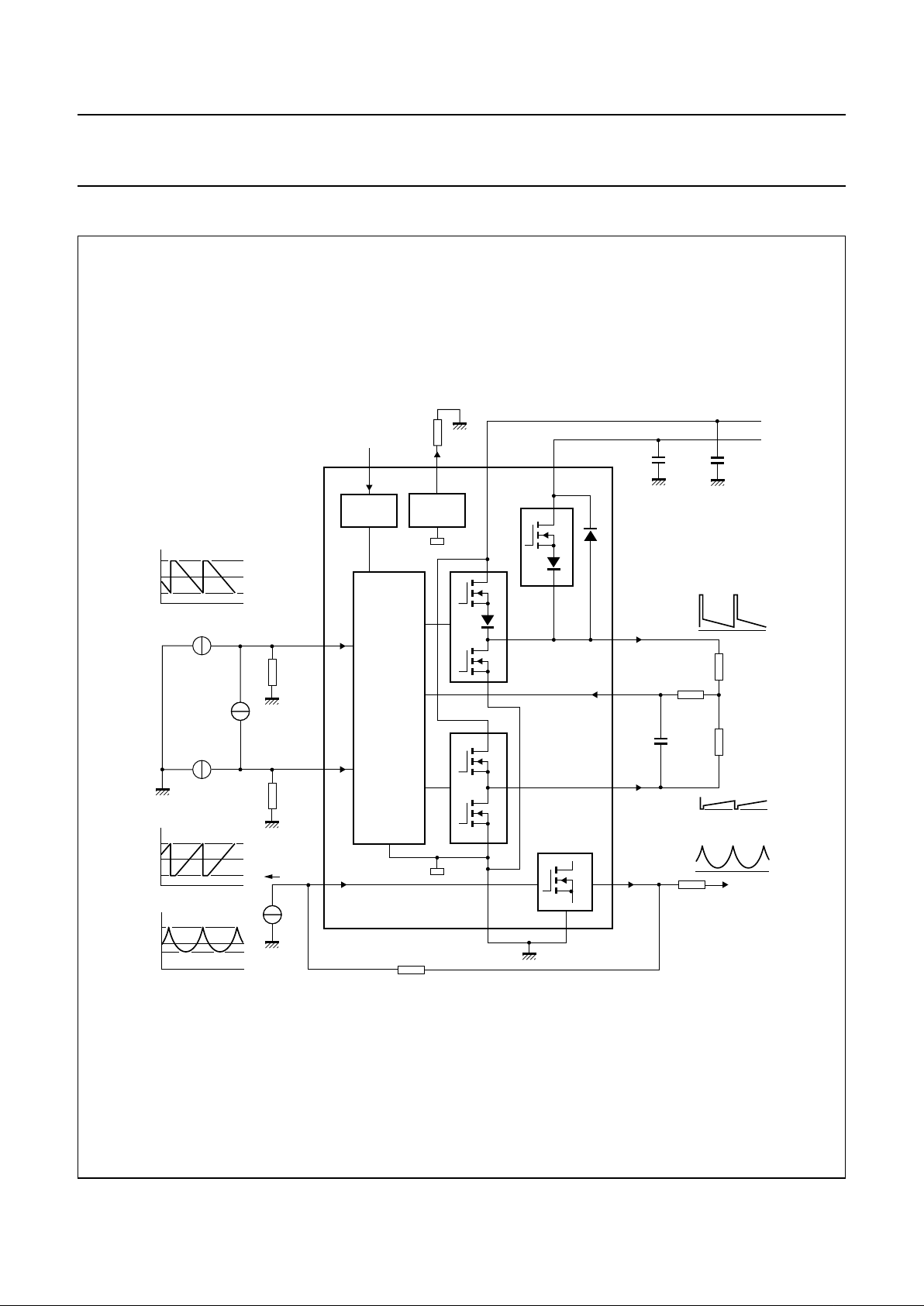

(see Fig.3) connected to pins INA
and INB. The differential input voltage is compared with
the voltage across the measuring resistor RM, providing
internal feedback information. The voltage across RM is
proportional with the output current. The relationship
between the differential input current and the output
current is defined by:

2 × I

i(dif)(p-p)

× RCV=I

o(p-p)

× R

M

The output current should measure 0.5 to 3.2 A (p-p) and
is determined by the value of RMand RCV. The allowable
input voltage range is 100 mV to 1.6 V for each input. The
formula given does not include internal bondwire
resistances.DependingonthevalueofRMandtheinternal
bondwireresistance (typical value 50 mΩ) the actualvalue
of the current in the deflection coil will be about 5% lower
than calculated.

Flyback supply

The flyback voltage is determined by the flyback supply
voltage VFB.The principle of two supply voltages (class G)
allows to use an optimum supply voltage VP for scan and
an optimum flyback supply voltage VFB for flyback, thus
very high efficiency is achieved. The available flyback
output voltage across the coil is almost equal to VFB, due
to the absence of a coupling capacitor which is not
required in a bridge configuration. The very short
rise and fall times of the flyback switch are determined
mainly by the slew-rate value of more than 300 V/µs.

Protection

The output circuit contains protection circuits for:

• Too high die temperature

• Overvoltage of output A.

SYMBOL PIN DESCRIPTION

INA 1 input A
INB 2 input B
V

P

3 supply voltage
OUTB 4 output B
INEW 5 east-west input
VGND 6 vertical ground
EWGND 7 east-west ground
OUTEW 8 east-west output
V

FB

9 flyback supply voltage
OUTA 10 output A
GUARD 11 guard output
FEEDB 12 feedback input
COMP 13 compensation input

handbook, halfpage

TDA8358J

MGL867

1
2
3
4
5
6
7
8

9
10
11
12
13

INA
INB

V

P

OUTB

INEW

VGND

EWGND

OUTEW

V

FB

OUTA

GUARD

FEEDB

COMP

Fig.2 Pin configuration.

Thedie hasbeen glued to the metal block ofthe package.If the metal
block is not insulated from the heatsink, the heatsink shall only be
connected directly to pin VGND.

1999 Dec 22 5

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

Guard circuit

A guard circuit with output pin GUARD is provided.
The guard circuit generates a HIGH-level during the

flyback period. The guard circuit is also activated for one
of the following conditions:

• During thermal protection (Tj≈ 170 °C)

• During an open-loop condition.

The guard signal can be used for blanking the picture tube
and signalling fault conditions. The vertical
synchronization pulses of the guard signal can be used by
an On Screen Display (OSD) microcontroller.

Damping resistor compensation

HF loop stability is achieved by connecting a damping

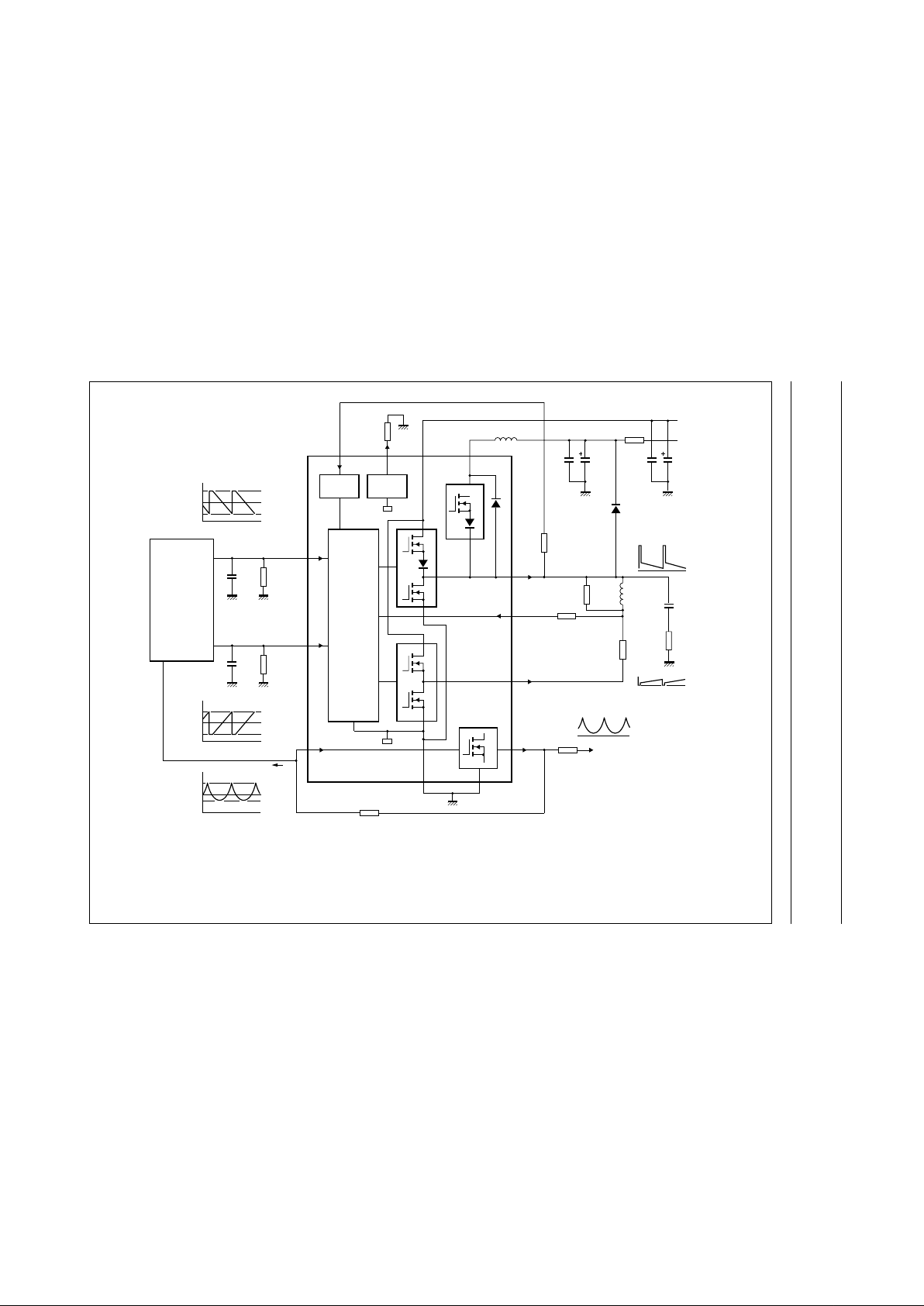

resistor RD1 (see Fig.4) across the deflection coil.
The current values in RD1 during scan and flyback are
significantly different. Both the resistor current and the
deflection coil current flow into measuring resistor RM,
resulting in a too low deflection coil current at the start of
the scan.

The difference in the damping resistor current values
during scan and flyback have to be externally
compensated in order to achieve a short settling time.

For that purpose a compensation resistor R

CMP

is
connected between pins OUTA and COMP. The value of
R

CMP

is calculated by:

where:

• R

coil

is the coil resistance

• V

loss(FB)

isthe voltage loss between pins VFBand OUTA

at flyback.

East-west amplifier

The east-west amplifier is a current driver sinking the
current of a diode modulator circuit. A feedback
resistor R

EWF

(see Fig.4) has to be connected between
the input and output of the inverting east-west amplifier in
order to convert the east-west correction input current into
an output voltage. The output voltage of the east-west
circuit at pin OUTEW is given by:

Vo≈ Ii× R

EWF+Vi

The maximum output voltage is V

o(max)

= 68 V, while the

maximum output current of the circuit is I

o(max)

= 750 mA.

R

CMP

VFBV

loss FB()

– V

P

–()R

D1

× RS300+()×

V

FBVloss FB()

– I

coil peak()

R

coil

×–()R

M

×

-------------------------------------------------------------------------------------------------------------

=

1999 Dec 22 6

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

Notes

1. When the voltage at pin OUTA supersedes 70 V the circuit will limit the voltage.

2. Equivalent to 200 pF capacitance discharge through a 0 Ω resistor.

3. Equivalent to 100 pF capacitance discharge through a 1.5 kΩ resistor.

4. For repetitive time durations of t < 0.1 ms or a non repetitive time duration of t < 5 ms the maximum (peak) east-west
power dissipation P

EW(peak)

=15W.

5. Internally limited by thermal protection at Tj≈ 170 °C.

THERMAL CHARACTERISTICS

In accordance with IEC 747-1.

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

P

supply voltage − 18 V

V

FB

flyback supply voltage − 68 V

∆V

VGND-EWGND

voltage difference between
pins VGND and EWGND

− 0.3 V

V

n

DC voltage

pins OUTA and OUTEW note 1 − 68 V
pin OUTB − V

P

V

pins INA, INB, INEW, GUARD,
FEEDB, and COMP

−0.5 V

P

V

I

n

DC current

pins OUTA and OUTB during scan (p-p) − 3.2 A
pins OUTA and OUTB at flyback (peak); t ≤ 1.5 ms −±1.8 A
pins INA, INB, INEW, GUARD,

FEEDB, and COMP

−20 +20 mA

pin OUTEW − 750 mA

I

lu

latch-up current input current into any pin;

pin voltage is 1.5 × VP; Tj= 150 °C

− +200 mA

input current out of any pin;
pin voltage is −1.5 × V

P

; Tj= 150 °C

−200 − mA

V

es

electrostatic handling voltage machine model; note 2 −300 +300 V

human body model; note 3 −2000 +2000 V

P

EW

east-west power dissipation note 4 − 4W

P

tot

total power dissipation − 15 W

T

stg

storage temperature −55 +150 °C

T

amb

ambient temperature −25 +75 °C

T

j

junction temperature note 5 − 150 °C

SYMBOL PARAMETER CONDITIONS VALUE UNIT

R

th(j-c)

thermal resistance from junction to case 4 K/W

R

th(j-a)

thermal resistance from junction to ambient in free air 40 K/W

1999 Dec 22 7

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

CHARACTERISTICS

VP= 12 V; VFB= 45 V; f

vert

= 50 Hz; V

I(bias)

= 880 mV; T

amb

=25°C; measured in test circuit of Fig.3; unless otherwise

specified.

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supplies

V

P

operating supply voltage 7.5 12 18 V

V

FB

flyback supply voltage note 1 2V

P

45 66 V

I

q(P)(av)

average quiescent supply current during scan − 10 15 mA

I

q(P)

quiescent supply current no signal; no load − 55 75 mA

I

q(FB)(av)

average quiescent flyback supply
current

during scan −−10 mA

Inputs A and B

V

i(dif)(p-p)

differential input voltage
(peak-to-peak value)

note 2 − 1000 1500 mV

V

I(bias)

input bias voltage note 2 100 880 1600 mV

I

I(bias)

input bias current − 25 35 µA

Outputs A and B

V

loss(1)

voltage loss first scan part note 3

I

o

= 1.1 A −−4.5 V

I

o

= 1.6 A −−6.6 V

V

loss(2)

voltage loss second scan part note 4

I

o

= −1.1 A −−3.3 V

I

o

= −1.6 A −−4.8 V

I

o(p-p)

output current (peak-to-peak value) −−3.2 A

LE linearity error I

o(p-p)

= 3.2 A; notes 5 and 6
adjacent blocks − 12%
non adjacent blocks − 13%

V

offset

offset voltage across RM; V

i(dif)

=0V

V

I(bias)

= 200 mV −−±15 mV

V

I(bias)

=1V −−±20 mV

∆V

offset(T)

offset voltage variation with
temperature

across RM; V

i(dif)

=0V −−40 µV/K

V

O

DC output voltage V

i(dif)

=0V − 0.5VP− V

G

v(ol)

open-loop voltage gain notes 7 and 8 − 60 − dB

f

−3dB(h)

high −3 dB cut-off frequency open-loop − 1 − kHz

G

v

voltage gain note 9 − 1 −

∆G

v(T)

voltage gain variation with
temperature

−−10

−4

K

−1

PSRR power supply rejection ratio note 10 80 90 − dB

1999 Dec 22 8

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

Notes

1. To limit V

OUTA

to 68 V, VFB must be 66 V due to the voltage drop of the internal flyback diode between pins OUTA

and VFB at the first part of the flyback.

2. Allowable input range for both inputs: V

I(bias)+Vi(dif)(peak)

< 1600 mV and V

I(bias)

− V

i(dif)(peak)

> 100 mV.

3. This value specifies the sum of the voltage losses of the internal current paths between pins VP and OUTA, and
between pins OUTB and GND. Specified for Tj= 125 °C. The temperature coefficient for V

loss(1)

is a positive value.

4. This value specifies the sum of the voltage losses of the internal current paths between pins VP and OUTB, and
between pins OUTA and GND. Specified for Tj= 125 °C. The temperature coefficient for V

loss(2)

is a positive value.

5. The linearity error is measured for a linear input signal without S-correction and is based on the ‘on screen’
measurement principle. This method is defined as follows. The output signal is divided in 22 successive equal time
parts. The 1st and 22nd parts are ignored, and the remaining 20 parts form 10 successive blocks k. A block consists
of two successive parts. The voltage amplitudes are measured across RM, starting at k = 1 and ending at k = 10,
where Vk and V

k+1

are the measured voltages of two successive blocks. V

min

, V

max

and V

avg

are the minimum,

maximum and average voltages respectively. The linearity errors are defined as:

a) (adjacent blocks)

b) (non adjacent blocks)

Flyback switch

I

o(peak)

maximum (peak) output current t ≤ 1.5 ms −−±1.8 A

V

loss(FB)

voltage loss at flyback note 11

I

o

= 1.1 A − 7.5 8.5 V

I

o

= 1.6 A − 89V

Guard circuit

V

O(grd)

guard output voltage I

O(grd)

= 100 µA 567V

V

O(grd)(max)

allowable guard voltage maximum leakage current

I

L(max)

=10µA

−−18 V

I

O(grd)

output current V

O(grd)

= 0 V; not active −−10 µA

V

O(grd)

= 4.5 V; active 1 − 2.5 mA

East-west amplifier

V

o

output voltage at pin OUTEW −−68 V

V

loss

voltage loss Io= 750 mA; note 12 −−5V

V

I(bias)

input bias voltage 2 2.5 3.2 V

I

I(bias)

input bias current into pin INEW; note 13

I

o

= 100 mA − 2.5 −µA

I

o

= 500 mA − 11.5 −µA

G

v(ol)

open-loop voltage gain −−30 dB
THD harmonic distortion − 0.5 1 %
f

−3dB(h)

high −3 dB cut-off frequency −−1 MHz

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

LE

V

kVk1+

–

V

avg

------------------------- -

100%×=

LE

V

maxVmin

–

V

avg

-------------------------------

100%×=

1999 Dec 22 9

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

6. The linearity errors are specified for a minimum input voltage of 300 mV single-ended. Lower input voltages lead to
voltage dependent S-distortion in the input stage.

7.

8. Pin FEEDB not connected.

9.

10. V

P(ripple)

= 500 mV (RMS value); 50 Hz < f

P(ripple)

< 1 kHz; measured across RM.

11. This value specifies the internal voltage loss of the current path between pins VFB and OUTA.

12. This value specifies the internal voltage loss of the current path between pins OUTEW and EWGND.

13. Measured for R

EWF

=10kΩ; R

EWL

=30Ω; Vo=6V.

a) For Io= 100 mA and a voltage of 9 V at R

EWL

connected to the line output transformer, the east-west amplifier

input current (see Fig.4) is Ii= 300 µA.

b) For Io= 500 mA and a voltage of 21 V at R

EWL

connected to the line output transformer, the east-west amplifier

input current (see Fig.4) is Ii= 350 µA.

G

vol()

V

OUTAVOUTB

–

V

FEEDBVOUTB

–

--------------------------------------------

=

G

V

V

FEEDBVOUTB

–

V

INAVINB

–

--------------------------------------------

=

1999 Dec 22 10

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

APPLICATION INFORMATION

handbook, full pagewidth

2

1

INA

INB

V

P

V

FB

FEEDB

C1
100 nFC2100 nF

C

M

10 nF

GUARD

R

GRD

4.7 kΩ

R

CV1

2.2 kΩ
(1%)

R

CV2

2.2 kΩ
(1%)

R

EWL

30 Ω

R

EWF

10 kΩ

R

M

0.5 Ω

R

L

3.2 Ω

R

S

2.7 kΩ

I

I(bias)

I

I(bias)

I

i(dif)

MGL873

INPUT

AND

FEEDBACK

CIRCUIT

GUARD

CIRCUIT

TDA8358J

4

6

I

i

I

i

11 93

VGND EWGND

V

P

V

FB

OUTB

OUTA

V

I(bias)

0

V

I(bias)

0

12

10

7

85

INEW

OUTEW

to line output
transformer

COMP.

CIRCUIT

13

COMP

I

I(av)

I

i(p-p)

0

V

i(p-p)

V

i(p-p)

M5

M2

M4

M1

M3

M6

D2

D3

D1

Fig.3 Test diagram.

1999 Dec 22 11

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit

in LVDMOS with east-west amplifier

TDA8358J

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

u

ll pagewidth

VP = 14 V
V

fb

= 30 V

deflection
coil
5 mH
6 Ω
(W66ESF)

R

M

0.5 Ω

R

D1

270 Ω

R

CMP

820 kΩ

C

D

(1)

47 nF

C3
100

nF

D1

(2)

C1

47 µF

(100 V)

2.7 µH

(3)

C4

100 nF

C2
220 µF
(25 V)

R

FB

10 Ω

R

D2

(1)

22 Ω

FEEDB

GUARD

R

GRD

5.6 kΩ

R

S

2.7 kΩ

INPUT

AND

FEEDBACK

CIRCUIT

GUARD

CIRCUIT

TDA8358J

4

11 3

V

P

V

FB

OUTB

OUTA

DEFLECTION

CONTROLLER

C6

2.2 nF

C7

2.2 nF

2

1

INA

INB

R

CV1

2.2 kΩ
(1%)

R

CV2

2.2 kΩ
(1%)

V

I(bias)

0

V

I(bias)

0

R

EWL

12 Ω

R

EWF

82 kΩ

MGL874

6

I

i

9

VGND EWGND

12

10

7

85

INEW

OUTEW

to line output
transformer

COMP.

CIRCUIT

13

COMP

I

I(av)

I

i(p-p)

0

V

i(p-p)

V

i(p-p)

M5

M2

M4

M1

M3

M6

D2

D3

D1

Fig.4 Application diagram.

Deflection circuit: f

vert

= 50 Hz; tFB= 640 µs; I

I(bias)

= 400 µA; I

i(dif)(peak)

= 290 µA; I

o(p-p)

= 2.4 A.

East-west amplifier: I

i(B)

= 290 µA; I

i(T)

= 510 µA.
(1) Optional, component values depend on the deflection coil impedance.
(2) Extended flash over protection; BYD33D or equivalent.
(3) Optional, extended flash over protection.

1999 Dec 22 12

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

Supply voltage calculation

For calculating the minimum required supply voltage,
several specific application parameter values have to be
known. These parameters are the required
maximum (peak) deflection coil current I

coil(peak)

, the coil

parameters R

coil

and L

coil

, and the measuring resistance
of RM. The required maximum (peak) deflection coil
current should also include the overscan.

The deflection coil resistance has to be multiplied with 1.2
in order to take account of hot conditions.

Chapter “Characteristics” supplies values for the voltage
losses of the vertical output stage. For the first part of the
scan the voltage loss is given by V

loss(1)

. For the second

part of the scan the voltage loss is given by V

loss(2)

.

The voltage drop across the deflection coil during scan is
determined by the coil impedance. For the first part of the
scan the inductive contribution and the ohmic contribution
to the total coil voltage drop are of opposite sign, while for
the second part of the scan the inductive part and the
ohmic part have the same sign.

For the vertical frequency the maximum frequency
occurring must be applied to the calculations.

The required power supply voltage VP for the first part of
the scan is given by:

The required power supply voltage VPfor the second part
of the scan is given by:

The minimum required supply voltage VP shall be the
highest of the two values V

P(1)

and V

P(2)

. Spread in supply
voltage and component values also has to be taken into
account.

Flyback supply voltage calculation

If the flyback time is known, the required flyback supply
voltage can be calculated by the simplified formula:

where:

The flyback supply voltage calculated this way is about
5% to 10% higher than required.

Calculation of the power dissipation of the vertical
output stage

The power dissipation of the vertical output stage is given
by the formula:

PV=P

sup

− P

L

The power to be supplied is given by the formula:

In this formula 0.3 [W] represents the average value of the
losses in the flyback supply.

The average external load power dissipation in the
deflection coil and the measuring resistor is given by the
formula:

Example
Table 1 Application values

Table 2 Calculated values

V

P1()Icoil peak()

R

coilRM

+()

L

coil2Icoil peak()

f

vert max()

V

loss 1()

+××–

×=

V

P2()Icoil peak()

R

coilRM

+()×=

L

coil2Icoil peak()

f

vert max()

V

loss 2()

+××+

V

FBIcoil p p–()

R

coilRM

+

1e

t–FBx⁄

–

-------------------------- -

×=

x

L

coil

R

coilRM

+

-------------------------- -

=

SYMBOL VALUE UNIT

I

coil(peak)

1.2 A

I

coil(p-p)

2.4 A

L

coil

5mH

R

coil

6 Ω

R

M

0.6 Ω

f

vert

50 Hz

t

FB

640 µs

SYMBOL VALUE UNIT

V

P

14 V

RM+R

coil

(hot) 7.8 Ω

t

vert

0.02 s
x 0.000641
V

FB

30 V

P

sup

8.91 W
P

L

3.74 W
P

V

5.17 W

P

supVP

I

coil peak()

2

------------------------

V

P

0.015 [A] 0.3 [W]+×+×=

P

L

I

coil peak()

()

2

3

------------------------------- -

R

coilRM

+()×=

1999 Dec 22 13

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

Power dissipation calculation for the east-west stage

In general the shape of the east-west output wave form is
a parabola. The output voltage will be higher at the
beginning and end of the vertical scan compared to the
voltage at the scan middle, while the output current will be
higheratthescanmiddle.Thisresultsin an almost uniform
power dissipation distribution during scan. Therefore the
power dissipation can be calculated by multiplying the
average values of the output voltage and the output
current of pin OUTEW.

When verifying the dissipation also the start-up and stop
dissipation should be taken into account. Power
dissipation during start-up can be 3 to 5 times higher than
during normal operation.

Heatsink calculation

The value of the heatsink can be calculated in a standard
way with a method based on average temperatures.
The required thermal resistance of the heatsink is
determined by the maximum die temperature of 150 °C.

In general we recommend to design for an average die
temperature not exceeding 130 °C. It should be noted

that the heatsink thermal resistance R

th(h-a)

found by
performing a standard calculation will be lower then
normally found for a vertical deflection stand alone device,
due to the contribution of the EW power dissipation to this
value.

EXAMPLE
Measured or known values:
PEW= 3 W; PV= 6 W; T

amb

=40°C; Tj= 130 °C;

R

th(j-c)

= 4 K/W; R

th(c-h)

= 1 K/W.

The required heatsink thermal resistance is given by:

When we use the values known we find:

The heatsink temperature will be:
Th=T

amb+Rth(h-a)

× P

tot

=40+5×9=85°C

Equivalent thermal resistance network

The TDA8358J has two independent power dissipating
systems, the vertical output circuit and the east-west
circuit.

Itisrecommended to verify the individual maximum (peak)
junction temperatures of both circuits. Therefore the
maximum (peak) power dissipations of the circuits and
also the heatsink temperature should be measured.
The maximum (peak) junction temperatures can be
calculated by using an equivalent thermal network
(see Fig.5).

The network does only consist the contribution of the
maximum (peak) power dissipation P

TRv(peak)

, being the
dissipation of the most critical transistor internally
connected to pins OUTB and VGND. The model assumes
equivalent maximum (peak) power dissipations during the
different vertical scan stages for all the functionally paired
transistors. The calculated maximum (peak) junction
temperatures should not exceed Tj= 150 °C.

R

th h a–()

TjT

amb

–

P

EWPV

+

-------------------------

R(

th j c–()

– R

th c h–()

)+=

R

th h a–()

130 40–

36+

----------------------

4(– 1 )+ 5 K/W==

1999 Dec 22 14

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

EXAMPLE
Measured or known values:

• The east-west power dissipation: PEW=3W

• The vertical power dissipation: PV=6W

• The maximum (peak) power dissipation of the most

critical transistor: P

TRv(peak)

=5W

• The case temperature: Tc=85°C.
The IC total power dissipation is:
P

tot=PEW+PV

=6+3=9W

It should be noted that the allowed IC total power
dissipation is P

tot

= 15 W (maximum value).

The maximum (peak) temperature T

P1(peak)

is given by:

• T

P1(peak)=Tc

+(PEW+P

TRv(peak)

) × R

th(P1-c)

=85+(3+5)×2.2 = 102.6 °C

The maximum (peak) junction temperatures for the output
circuits are given by:

• T

j(EW)(peak)=TP1(peak)+Rth(EW-P1)

× P

EW

= 102.6 + 10.5 × 3 = 134.1 °C

• T

j(TRv)(peak)=TP1(peak)+Rth(TRv-P1)

× P

TRv(peak)

= 102.6 + 5.2 × 5 = 128.6 °C

handbook, halfpage

MGL872

T

EW(M)

P

EW

T

TRv(M)

T

c

T

P1(M)

P

TRv(M)

P

tot

R

th(TRv-P1)

5.2 K/W

R

th(P1-c)

2.2 K/W

R

th(EW-P1)

10.5 K/W

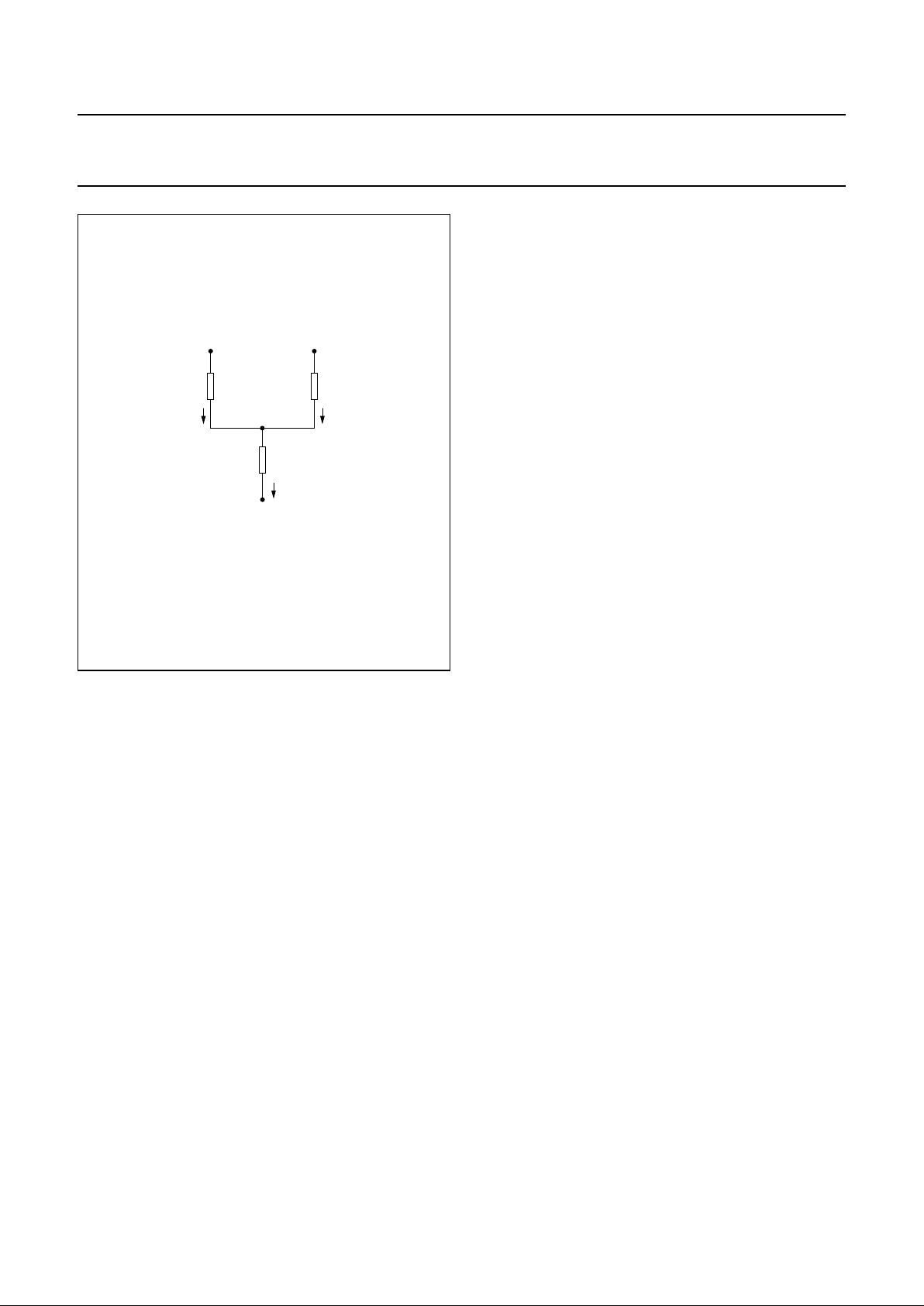

Fig.5 Equivalent thermal resistance network.

1999 Dec 22 15

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

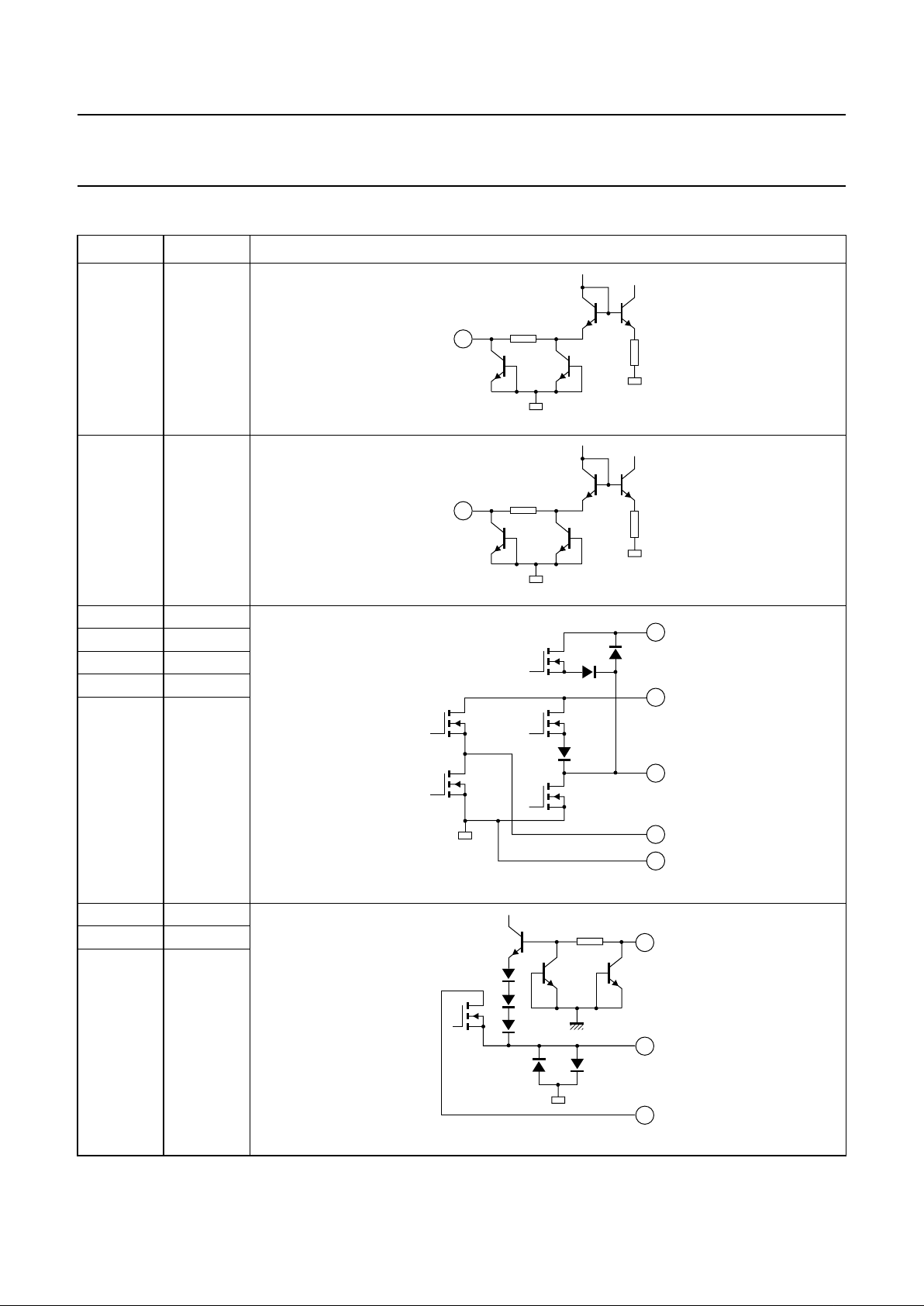

INTERNAL PIN CONFIGURATION

PIN SYMBOL EQUIVALENT CIRCUIT

1 INA

2 INB

3V

P

4 OUTB
6 VGND
9V

FB

10 OUTA

5 INEW
7 EWGND
8 OUTEW

1

300 Ω

MBL100

2

300 Ω

MBL102

MGL869

9

3

10

4
6

MGL868

5

7

8

300 Ω

1999 Dec 22 16

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

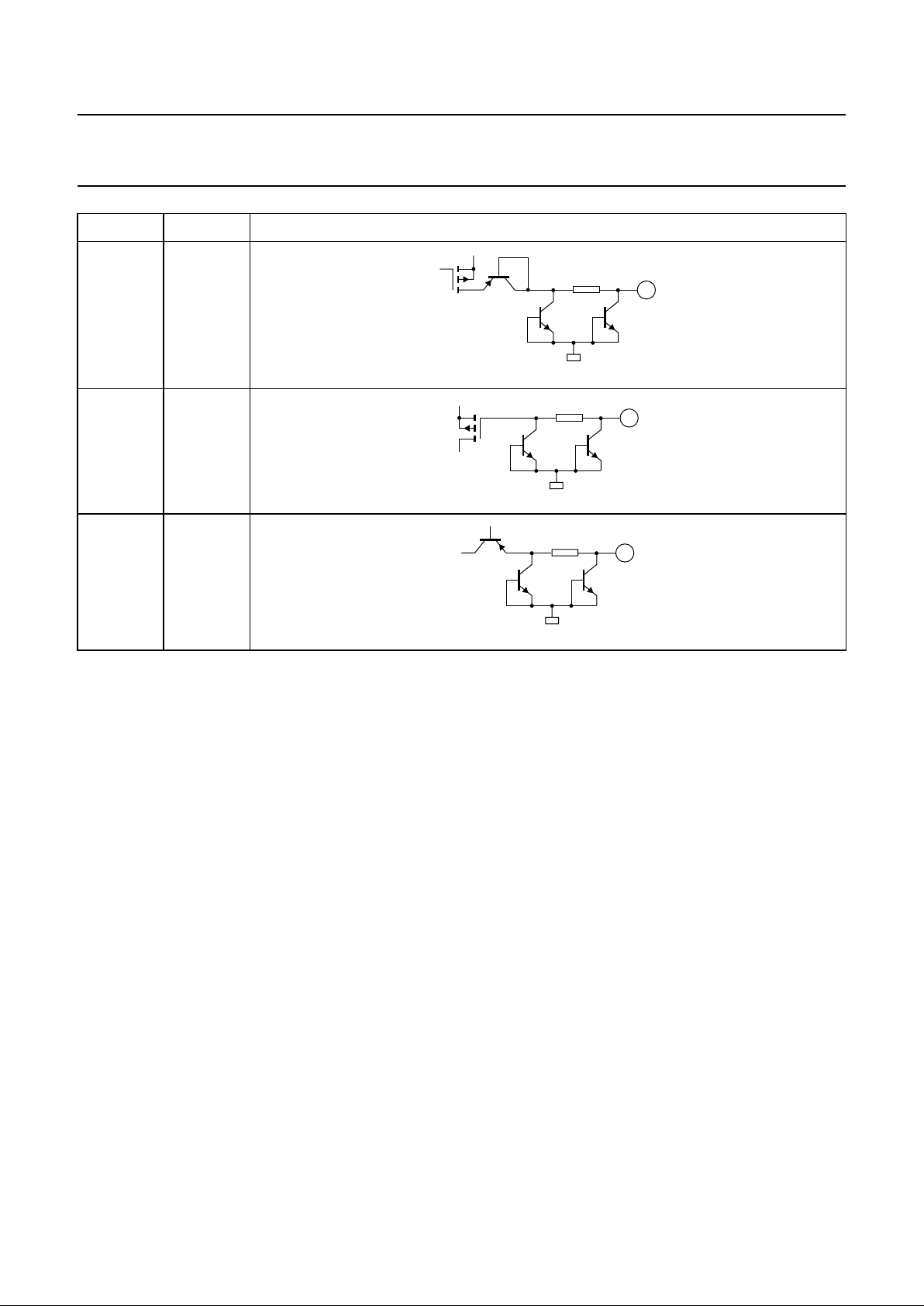

11 GUARD

12 FEEDB

13 COMP

PIN SYMBOL EQUIVALENT CIRCUIT

MGL870

11

300 Ω

MGL871

12

300 Ω

MGL875

13

300 Ω

1999 Dec 22 17

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

PACKAGE OUTLINE

UNIT A e

1

A2bpcD

(1)

E

(1)

Z

(1)

deD

h

LL3m

REFERENCES

OUTLINE
VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

mm

17.0

15.5

4.6

4.4

0.75

0.60

0.48

0.38

24.0

23.6

20.0

19.6

10 3.4

v

0.8

12.2

11.8

1.7

e

2

5.08

2.4

1.6

E

h

6

2.00

1.45

2.1

1.8

3.4

3.1

4.3

DIMENSIONS (mm are the original dimensions)

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

12.4

11.0

SOT141-6

0 5 10 mm

scale

Qj

0.25w0.03

x

D

L

E

A

c

A

2

m

L

3

Q

w M

b

p

1

d

D

Z

e

2

e

e

x

h

113

j

E

h

non-concave

view B: mounting base side

97-12-16
99-12-17

DBS13P: plastic DIL-bent-SIL power package; 13 leads (lead length 12 mm)

SOT141-6

v M

B

1999 Dec 22 18

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

SOLDERING
Introduction to soldering through-hole mount

packages

This text gives a brief insight to wave, dip and manual
soldering.Amorein-depth account of soldering ICs can be
found in our

“Data Handbook IC26; Integrated Circuit

Packages”

(document order number 9398 652 90011).

Wave soldering is the preferred method for mounting of
through-hole mount IC packages on a printed-circuit
board.

Soldering by dipping or by solder wave

The maximum permissible temperature of the solder is
260 °C; solder at this temperature must not be in contact
with the joints for more than 5 seconds.

Thetotalcontacttimeofsuccessivesolderwavesmustnot
exceed 5 seconds.

The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (T

stg(max)

). If the
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.

Manual soldering

Apply the soldering iron (24 V or less) to the lead(s) of the
package, either below the seating plane or not more than
2 mm above it. If the temperature of the soldering iron bit
is less than 300 °C it may remain in contact for up to
10 seconds. If the bit temperature is between
300 and 400 °C, contact may be up to 5 seconds.

Suitability of through-hole mount IC packages for dipping and wave soldering methods

Note

1. For SDIP packages, the longitudinal axis must be parallel to the transport direction of the printed-circuit board.

DEFINITIONS

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

PACKAGE

SOLDERING METHOD

DIPPING WAVE

DBS, DIP, HDIP, SDIP, SIL suitable suitable

(1)

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of this specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

1999 Dec 22 19

Philips Semiconductors Product specification

Full bridge vertical deflection output circuit
in LVDMOS with east-west amplifier

TDA8358J

NOTES

© Philips Electronics N.V. SCA
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.

Internet: http://www.semiconductors.philips.com

1999

68

Philips Semiconductors – a w orldwide compan y

For all other countries apply to: Philips Semiconductors,

International Marketing & Sales Communications, Building BE-p, P.O. Box 218,
5600 MD EINDHOVEN, The Netherlands, Fax. [phone]

Argentina: see South America
Australia: 3 Figtree Drive, HOMEBUSH, NSW 2140,

Tel. [phone], Fax. [phone]
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,

220050 MINSK, Tel. [phone], Fax. [phone]

Belgium: see The Netherlands
Brazil: see South America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor,

51 James Bourchier Blvd., 1407 SOFIA,
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: see South America
Czech Republic: see Austria
Denmark: Sydhavnsgade 23, 1780 COPENHAGEN V,

Tel. [phone], Fax. [phone]
Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]
France: 51 Rue Carnot, BP317, 92156 SURESNES Cedex,

Tel. [phone], Fax. [phone]
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,

Tel. [phone], Fax. [phone]

Hungary: see Austria
India: Philips INDIA Ltd, Band Box Building, 2nd floor,

254-D, Dr. Annie Besant Road, Worli, MUMBAI 400 025,
Tel. [phone], Fax. [phone]

Indonesia: PT PhilipsDevelopment Corporation,Semiconductors Division,
Gedung Philips, Jl. Buncit Raya Kav.99-100, JAKARTA 12510,
Tel. [phone] ext. 2501, Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. [phone], Fax. [phone]

Israel: RAPAC Electronics, 7 Kehilat Saloniki St, PO Box 18053,
TEL AVIV 61180, Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS, Via Casati, 23 - 20052 MONZA (MI),
Tel. [phone], Fax [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku,
TOKYO 108-8507, Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. [phone], Fax [phone]

Middle East: see Italy

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]
Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: see Singapore
Philippines: Philips Semiconductors Philippines Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Poland: Al.Jerozolimskie 195 B, 02-222 WARSAW,
Tel. [phone], Fax. [phone]

Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,

Tel. [phone], Fax. [phone]
Singapore: Lorong 1, Toa Payoh, SINGAPORE 319762,

Tel. [phone], Fax. [phone]

Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,

2092 JOHANNESBURG, P.O. Box 58088 Newville 2114,
Tel. [phone], Fax. [phone]

South America: Al. Vicente Pinzon, 173, 6th floor,
04547-130 SÃO PAULO, SP, Brazil,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,
Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. [phone] Fax. [phone]

Taiwan: Philips Semiconductors, 6F, No. 96, Chien Kuo N. Rd., Sec. 1,
TAIPEI, Taiwan Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. [phone], Fax. [phone]

Turkey: Yukari Dudullu, Org. San. Blg., 2.Cad. Nr. 28 81260 Umraniye,
ISTANBUL, Tel. [phone], Fax. [phone]

Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. [phone], Fax. [phone]

United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. [phone], Fax. [phone]

United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. [phone], Fax. [phone]

Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,

Tel. [phone], Fax.[phone]

Printed in The Netherlands 545004/100/01/pp20 Date of release: 1999 Dec 22 Document order number: 9397 750 06197
