INTEGRATED CIRCUITS

DATA SH EET

TDA8310A

PAL/NTSC colour processor
for PIP applications

Product specification
Supersedes data of 1995 Nov 29
File under Integrated Circuits, IC02

1996 Jan 25

Philips Semiconductors Product specification

PAL/NTSC colour processor
for PIP applications

FEATURES

• Video switch with 2 CVBS inputs. One input can be
switched between CVBS and Y/C and the circuit can
automatically detect whether the incoming signal is
CVBS or Y/C

• Integrated chrominance trap and bandpass filters
(automatically calibrated)

• Integrated luminance delay line

• Automatic PAL/NTSC decoder which can decode all

standards available in the world

• Easy interfacing with the TDA8395 (SECAM decoder)
for multistandard applications

• Horizontal PLL with an alignment-free horizontal
oscillator

• Vertical count-down circuit

• RGB/YUV and fast blanking switch with 3-state output

and active clamping

• Low dissipation (560 mW)

• Small amount of peripheral components compared with

competition ICs.

TDA8310A

GENERAL DESCRIPTION

The TDA8310A is an alignment-free PAL/NTSC colour
processor for Picture-in-Picture (PIP) applications.
The main difference between the TDA8310 and the
TDA8310A is that the vision IF amplifier has been omitted
in the TDA8310A. Therefore, the circuit contains an input
signal selector, a PAL/NTSC colour decoder, horizontal
and vertical synchronization and an RGB/YUV switch.

The input signal selector has 2 CVBS inputs. One of the
inputs can be switched between CVBS and Y/C and the
circuit can automatically detect whether the incoming
signal is CVBS or Y/C. The output signals for the PIP
processor are;

Luminance signal
Colour difference signals (U and V)
Horizontal and vertical synchronization pulses.

The RGB/YUV switch can select between two RGB or
YUV sources, e.g. between the PIP processor and the
SCART input signal.

The supply voltage for the IC is 8 V. It is available in a
52-pin SDIP package.

ORDERING INFORMATION

TYPE NUMBER

NAME DESCRIPTION VERSION

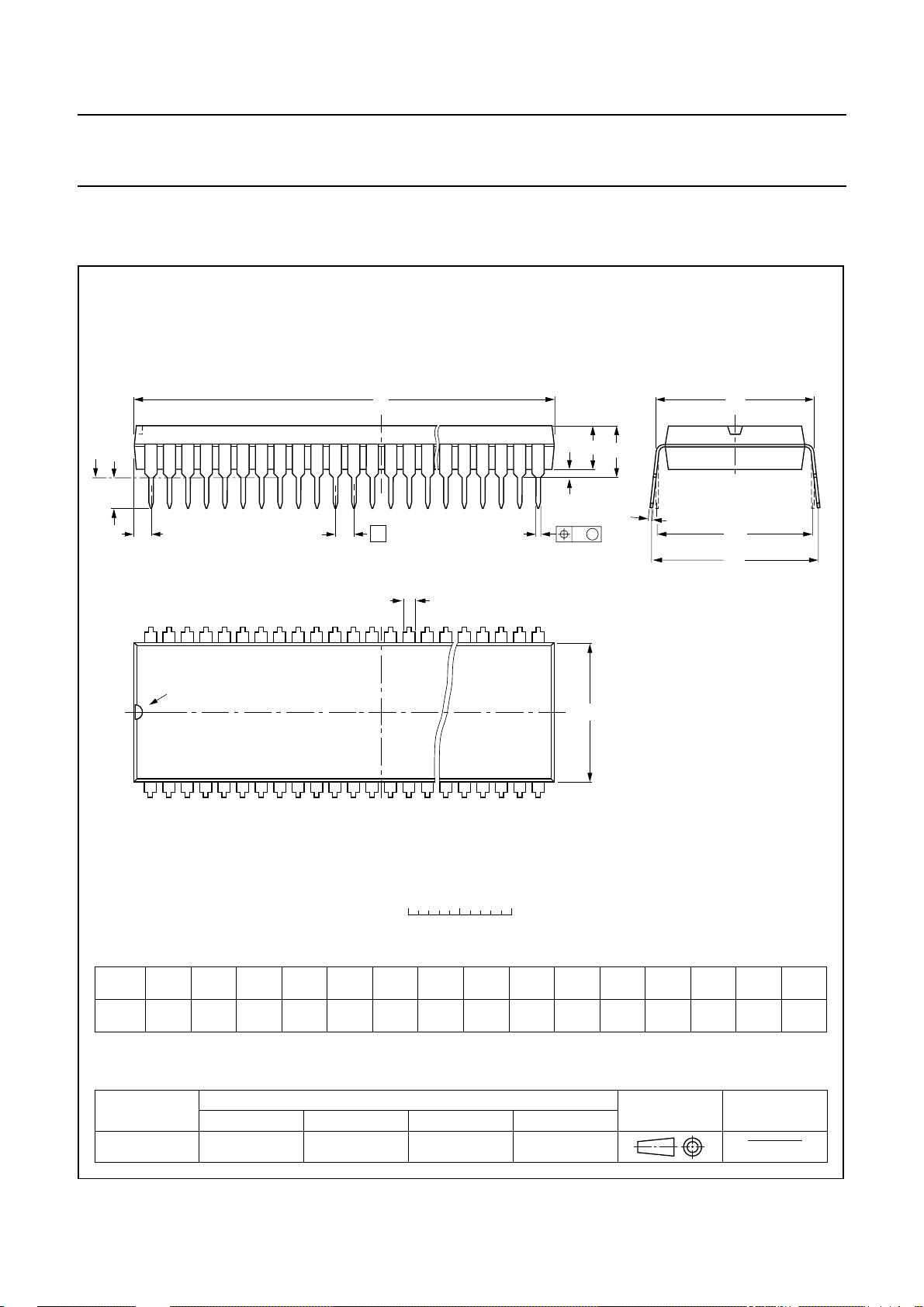

TDA8310A SDIP52 plastic shrink dual in-line package; 52 leads (600 mil) SOT247-1

PACKAGE

1996 Jan 25 2

Philips Semiconductors Product specification

PAL/NTSC colour processor

TDA8310A

for PIP applications

QUICK REFERENCE DATA

SYMBOL PARAMETER MIN. TYP. MAX. UNIT

V

P

I

P

Input voltages

V

17,20(p-p)

V

16(p-p)

V

i(p-p)

Output signals

V

o(p-p)

V

50(p-p)

V

51(p-p)

V

39

V

36

G

v

Control voltage

V

control

supply voltage (pins 19 and 41) 7.2 8.0 8.8 V
supply current − 70 1.4 mA

CVBS/Y input voltage (peak-to-peak value) − 1.0 − V
chrominance input voltage (peak-to-peak value) − 0.3 − V
RGB/YUV input signal voltage amplitude

−−1.3 V

(peak-to-peak value)

luminance output voltage (peak-to-peak value) − 1.4 − V
(B−Y) output voltage (peak-to-peak value) 1.06 1.33 1.6 V
(R−Y) output voltage (peak-to-peak value) 0.84 1.05 1.26 V
horizontal sync pulse output voltage − 4.0 − V
vertical sync pulse output voltage − 4.0 − V
voltage gain of the RGB switches −0.5 0 +0.5 dB

control voltage for HUE 0 − 5.0 V

1996 Jan 25 3

This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in

_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in

white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...

1996 Jan 25 4

INTB

V

PH1LF

37

DEC

35

BG

DEC

21

DIG

V

P1

P2

41

19

30

HOUT36VOUT

39

SAND

40

BLOCK DIAGRAM

PAL/NTSC colour processor

for PIP applications

Philips Semiconductors Product specification

CVBS

DEC

SW

n.c.

COINCIDENCE/

NOISE

DETECTOR

22, 29

i.c.

33, 34

FT

15

CHROMINANCE

BANDPASS

32

AUTOMATIC

DETECTOR

31

GND2

Y/C

CVBS

20

CVBS

INT

INPUT

SELECTOR

EXT

SYST

917

CHROMA

SW

PHASE

DETECTOR

SYNC

SEPARATOR

CHROMINANCE

4716

I

CHROMA

TRAP

48

SECAM

O

46 45

PLL XTAL4

VCO

+

CONTROL

VERTICAL

SYNC

SEPARATOR

FILTER

TUNING

REF

PAL/NTSC
DECODER

44

XTAL343XTAL242XTAL1

PULSE

SHAPER

HORIZONTAL/

VERTICAL

DIVIDER

TDA8310A

27 26

R/W

COLOUR2

COLOUR1

25

LOGIC1

SANDCASTLE

GENERATOR

24

23

LOGIC2

B Y

50 51

R Y

RGB/YUV

SWITCH

LUMINANCE
DELAY LINE

18 38

GND1 GND3

10

R1

11

G1

12

B1

13

BLANK1

14

CLAMP

8

R

7

G

6

B

5

BLANK

1

R2

2

G2

3

B2

52

BLANK2

4

IDENT
HUE

28

49

Y

MGD128

TDA8310A

Fig.1 Block diagram.

handbook, full pagewidth

Philips Semiconductors Product specification

PAL/NTSC colour processor
for PIP applications

PINNING

SYMBOL PIN DESCRIPTION

R2 1 RED input 2 (PIP)
G2 2 GREEN input 2 (PIP)
B2 3 BLUE input 2 (PIP)
IDENT 4 colour standard identification output
BLANK 5 blanking output
B 6 BLUE output
G 7 GREEN output
R 8 RED output
SYST

SW

R1 10 RED input 1
G1 11 GREEN input 1
B1 12 BLUE input 1
BLANK1 13 blanking input 1
CLAMP 14 clamping pulse input
DEC

FT

CHROMA
CVBS

EXT

GND1 18 ground 1 (0 V)
V

P1

CVBS

INT

DEC

DIG

i.c. 22 internally connected (test purposes)
LOGIC2 23 crystal logic 2 input/output
LOGIC1 24 crystal logic 1 input/output
COLOUR2 25 colour system logic 2 input/output
COLOUR1 26 colour system logic 1 input/output
R/

W 27 read/write selection input

9 CVBS/system switch

15 decoupling filter tuning
16 chrominance input

I

17 external CVBS/Y input

19 supply voltage 1 (+8 V)
20 internal CVBS input
21 decoupling digital supply rail

TDA8310A

SYMBOL PIN DESCRIPTION

HUE 28 HUE control input
i.c. 29 internally connected (test purposes)
INTB 30 internal bias
GND2 31 ground 2 (0 V)
CVBS

SW

n.c. 33 not connected
n.c. 34 not connected
DEC

BG

VOUT 36 vertical sync output pulse
PH1LF 37 phase 1 loop filter
GND3 38 ground 3 (0 V)
HOUT 39 horizontal sync output pulse
SAND 40 sandcastle pulse output
V

P2

XTAL1 42 4.4336 MHz crystal
XTAL2 43 3.5820 MHz crystal for PAL-N
XTAL3 44 3.5756 MHz crystal for PAL-M
XTAL4 45 3.5795 MHz crystal for NTSC
PLL 46 PLL colour filter
CHROMA
SECAM 48 SECAM reference output
Y 49 Y output
B−Y50B−Y output
R−Y51R−Y output
BLANK2 52 blanking/insertion input 2 (PIP)

32 CVBS positive/negative modulation

control switch input

35 bandgap decoupling

41 supply voltage 2 (+8 V)

47 chrominance output for TDA8395

O

1996 Jan 25 5

Philips Semiconductors Product specification

PAL/NTSC colour processor
for PIP applications

handbook, halfpage

SYST

BLANK1

CHROMA
CVBS

CVBS

DEC

COLOUR2
COLOUR1

R2
G2
B2

IDENT

BLANK

SW

R1
G1
B1

CLAMP

DEC

FT

EXT

GND1

V

P1

INT

DIG

i.c.
LOGIC2
LOGIC1

B
G
R

I

1
2
3
4
5
6
7
8

9
10
11
12
13

TDA8310A

14
15
16
17
18
19
20
21
22
23
24
25
26

MGD127

52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27

BLANK2
R−Y
B−Y
Y
SECAM
CHROMA
PLL
XTAL4
XTAL3
XTAL2
XTAL1
V

P2

SAND
HOUT
GND3
PH1LF
VOUT
DEC

BG

n.c.
n.c.
CVBS

SW

GND2
INTB
i.c.
HUE
R/W

TDA8310A

O

Fig.2 Pin configuration.

1996 Jan 25 6

Philips Semiconductors Product specification

PAL/NTSC colour processor
for PIP applications

FUNCTIONAL DESCRIPTION
CVBS switch

The circuit contains a 2 input CVBS switch and one of
the inputs can be switched between CVBS and Y/C.
The circuit contains an identification circuit which can
automatically switch between the CVBS and Y/C signals.
It is also possible to force the switch to CVBS or Y/C.

Synchronization circuit

The sync separator is preceded by a voltage controlled
amplifier which adjusts the sync pulse amplitude to a fixed
level. The sync pulses are fed to the slicing stage
(separator) which operates at 50% of the amplitude.

The separated sync pulses are fed to the first phase
detector and to the coincidence detector. The coincidence
detector is used to detect whether the line oscillator is
synchronized and for transmitter identification. The first
PLL has a very high static steepness this ensures that the
phase of the picture is independent of the line frequency.
The line oscillator operates at twice the line frequency.

The oscillator network is internal. Because of the spread of
internal components an automatic adjustment circuit has
been added to the IC.

The circuit compares the oscillator frequency with that of
the crystal oscillator in the colour decoder. This results in
a free-running frequency which deviates less than 2%
from the typical value.

TDA8310A

Integrated video filters

The circuit contains a chrominance bandpass and trap
circuit. The filters are realised by gyrator circuits that are
automatically tuned by comparing the tuning frequency
with the crystal frequency of the decoder. When a Y/C
signal is supplied to the input the chrominance trap is
automatically switched off by the Y/C detection circuit
however, it is also possible to force the filters in the CVBS
or Y/C position.

The luminance delay line is also realised by gyrator
circuits.

Colour decoder

The colour decoder contains an alignment-free crystal
oscillator, a colour killer circuit and colour difference
demodulators. The 90° phase shift for the reference signal
is achieved internally.

The colour decoder is very flexible. Together with the
SECAM decoder (TDA8395) an automatic multistandard
decoder can be designed but it is also possible to use it for
one standard when only one crystal is connected to the IC.
The decoder can be forced to one of the standards via the
‘forced mode’ pins. The crystal pins which are not used
must be connected to the positive supply line via a 8.2 kΩ
resistor. It is also possible to connect the non-used pins
with one resistor to the positive supply line. In this event
the resistor must have a value of 8.2 kΩ divided by the
number of pins.

The horizontal output pulse is derived from the horizontal
oscillator via a pulse shaper. The pulse width of the output
pulse is 5.4 µs, the front edge of this pulse coincides with
the front edge of the sync pulse at the input.

The vertical output pulse is generated by a count-down
circuit. The pulse width is approximately 380 µs. Both the
horizontal and vertical output pulses will always be
available at the outputs even when no input signal is
available.

In addition to the horizontal and vertical sync pulse outputs
the IC has a sandcastle pulse output which contains burst
key and blanking pulses.

1996 Jan 25 7

The chrominance output signal of the video switch is
externally available and must be used as an input signal
for the SECAM decoder.

RGB/YUV switch

The RGB/YUV switch is for switching between two RGB or
YUV video sources. The outputs of the switch can be set
to high-impedance state so that other switches can be
used in parallel.

The switch is controlled via pins 13 and 52. The details of
switch control are shown in Table 4.

Philips Semiconductors Product specification

PAL/NTSC colour processor

TDA8310A

for PIP applications

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC134).

SYMBOL PARAMETER MIN. MAX. UNIT

V

P

T

stg

T

amb

T

sld

T

j

THERMAL CHARACTERISTICS

SYMBOL PARAMETER VALUE UNIT

R

th j-a

CHARACTERISTICS

=8V; T

V

P

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

supply voltage − 9.0 V
storage temperature −25 +150 °C
operating ambient temperature −25 +70 °C
soldering temperature for 5 s − 260 °C
maximum operating junction temperature − 150 °C

thermal resistance from junction to ambient in free air ≤40 K/W

=25°C; unless otherwise specified.

amb

Supplies

V

P

I

P1

I

P2

P

tot

R

bias

supply voltage (pins 19 and 41) 7.2 8.0 8.8 V
supply current (pin 19) 45 65 80 mA
supply current (pin 41) 3 5 10 mA
total power dissipation − 560 − mW
value of resistor to be connected

between pin 30 and the positive
supply line

CVBS and Y/C switch

NTERNAL CVBS AND EXTERNAL CVBS/Y INPUTS (PINS 20 AND 17)

I
V

20,17(p-p)

CVBS/Y input voltage

notes 1 and 3 − 1 1.4 V

(peak-to-peak value)

I

20,17

V

clamp

I

clamp

input current − 46µA
top sync clamping voltage level − 3.3 − V

clamping input current 80 100 −µA
CHROMINANCE INPUT (PIN 16)
V

16(p-p)

chrominance input voltage

notes 1, 4 and 11 − 0.3 − V

(peak-to-peak value)
V

16(p-p)

input signal amplitude before clipping

note 2 1.0 −−V

occurs (peak-to-peak value)
R

I

C

I

chrominance input resistance 14 20 26 kΩ

chrominance input capacitance note 1 −−5pF

− 10 − kΩ

1996 Jan 25 8

Philips Semiconductors Product specification

PAL/NTSC colour processor

TDA8310A

for PIP applications

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

CHROMINANCE OUTPUT (PIN 47)
V

47(p-p)

output signal voltage amplitude

(peak-to-peak value)
Z

O

V

O

output impedance 200 250 300 Ω

DC output voltage open-circuit output 1.2 1.4 1.6 V
SWITCH CONTROL INPUT FOR INTERNAL/EXTERNAL POSITIVE/NEGATIVE MODULATION (PIN 32); note 5
V

32

V

32

Z

I

ISS suppression of non-selected video

internal CVBS signal selected −−1.0 V

external CVBS or Y/C signal selected 3.9 − V

input impedance 25 −−kΩ

note 2 50 −−dB

input signal
S

WITCH CONTROL INPUT FOR EXTERNAL CVBS OR Y/C SELECTION (PIN 9)

V

9

V

9

V

9

Z

I

filters switched to CVBS condition −−1.0 V

filters switched to Y/C condition note 6 2.0 − 3.0 V

automatic selection of CVBS or Y/C 3.9 − V

input impedance 25 −−kΩ

Chrominance filters, luminance delay line and luminance output

0.18 0.20 0.22 V

P

P

V

V

C

HROMINANCE TRAP CIRCUIT

f

trap

trap frequency − f

osc

− MHz
QF trap quality factor notes 2 and 7 − 2 −
SR colour subcarrier rejection 20 −−dB

C

HROMINANCE BANDPASS CIRCUIT

f

c

centre frequency − f

osc

− MHz
QBP bandpass quality factor note 2 − 3 −

DELAY LINE

Y
∆t

d

difference in delay time between the

note 2 0 50 100 ns
luminance and the demodulated
chrominance signals

B bandwidth of internal delay line note 2 8 −−MHz

OUTPUT (PIN 49)

Y
V

49(b-w)

output signal voltage amplitude

note 23 0.8 1.0 1.2 V
(black-to-white value)

Z

O

V

49(DC)

I

bias

output impedance 80 100 120 Ω
DC output voltage level (top sync) 2.7 2.9 3.1 V
internal bias current of NPN emitter

0.4 0.5 − mA

follower output transistor

I

source

maximum source current −−2mA

1996 Jan 25 9

Philips Semiconductors Product specification

PAL/NTSC colour processor

TDA8310A

for PIP applications

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Horizontal and vertical synchronization circuits

SYNC VIDEO INPUT (PINS 17 AND 20)
V

17,20

SL slicing level note 8 − 50 − %

VERTICAL SYNC

t

W

HORIZONTAL OSCILLATOR
f

fr

∆f

fr

∆f

/∆V

osc

∆f

osc

∆f

osc(max)

HORIZONTAL PLL (FILTER CONNECTED TO PIN 37); note 18
f

HR

f

CR

S/N signal-to-noise ratio of the video

HYS hysteresis at the switching point 1 3 6 dB
H

ORIZONTAL OUTPUT (PIN 39)

V

OH

V

OL

I

sink

I

source

t

W

t

d

sync pulse voltage amplitude note 1 50 300 − mV

width of the vertical sync pulse

note 9 22 −−µs
without sync instability

free running frequency − 15625 − Hz
spread on free running frequency −−±2%
frequency variation with respect to

P

VP=8V±10%; note 2 − 0.2 0.5 %
the supply voltage

frequency variation with temperature T
maximum frequency deviation at the

=0to70°C; note 2 −−80 Hz

amb

no calibration −−75 %
start of the horizontal output

holding range PLL −±0.9 ±1.2 kHz
catching range PLL note 2 ±0.6 ±0.9 − kHz

14 20 26 dB
input signal at which the time
constant is switched

HIGH level output voltage IO= 2 mA 2.4 4.0 − V
LOW level output voltage IO=2mA − 0.3 0.6 V
sink current −−2mA
source current −−2mA
pulse width − 5.4 −µs
delay between the positive edge of

− 0 −µs
the horizontal output pulse and the
start of the horizontal sync pulse at
the input

1996 Jan 25 10

Philips Semiconductors Product specification

PAL/NTSC colour processor

TDA8310A

for PIP applications

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

VERTICAL OUTPUT (PIN 36); note 10
f

fr

f

lock

V

OH

V

OL

I

sink

I

source

t

W

t

d

SANDCASTLE PULSE OUTPUT (PIN 40); note 16
V

O

V

O

Z

O

t

W

t

d

free running frequency − 50/60 − Hz
locking range 45 − 64.5 Hz
divider value not locked − 625/525 − lines
locking range 488 − 722 lines/

frame
HIGH level output voltage IOL= 2 mA 2.4 4.0 − V
LOW level output voltage IOL=2mA − 0.3 0.6 V
sink current −−2mA
source current −−2mA
pulse width − 380 −µs
delay between the start of the vertical

− 37.5 −µs
sync pulse at the input and the
positive edge of the output pulse

output voltage during scan IO= 1 mA; note 24 −−0.9 V
output voltage during burst key IO= 1 mA; note 24 4.1 − 5.2 V
output impedance during blanking 1.0 −−MΩ
pulse width

burst key 3.3 3.5 3.7 µs
line blanking 8.4 8.7 9.0 µs
vertical blanking − 14 − lines

delay of start of burst key to start of

5.2 5.4 5.6 µs
sync

Colour demodulation part

C

HROMINANCE AMPLIFIER

ACC

cr

ACC control range note 11 26 −−dB

∆V change in amplitude of the output

signals over the ACC range

THR
HYS

on
off

threshold colour killer ON −38 −41 −44 dB
hysteresis colour killer OFF note 2

strong input signal S/N ≥ 40 dB 0 +3 +6 dB
noisy input signal 0 +1 +8 dB

ACL

CIRCUIT

chrominance burst ratio at which the
ACL starts to operate

1996 Jan 25 11

−−2dB

2.3 − 2.7

Philips Semiconductors Product specification

PAL/NTSC colour processor

TDA8310A

for PIP applications

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

REFERENCE PART

Phase-locked loop;

f

CR

∆ϕ phase shift for a±300 Hz deviation of

Oscillator

TC

osc

∆f

osc

R

I

R

I

C

I

R required resistance to V

HUE CONTROL INPUT (PIN 28); note 21
HUE

cr

V

control

R

I

DEMODULATOR OUTPUTS (PINS 50 AND 51)
V

50(p-p)

V

51(p-p)

Z

O

B bandwidth of demodulators −3 dB; note 19 − 650 − kHz
V

50(p-p)

V

51(p-p)

V

51(p-p)

∆V

/∆T change of output signal amplitude

O

/∆V

∆V

O

P

I

bias

I

source

note 12

catching range 300 500 − Hz

note 2 −−2 deg

the oscillator frequency

temperature coefficient of f
f

deviation with respect to V

osc

osc

P

note 2 − 2.0 2.5 Hz/K

VP=8V±10%; note 2 −−250 Hz
input resistance (pins 43 to 45) fi= 3.58 MHz; note 1 − 1.5 − kΩ
input resistance (pin 42) fi= 4.43 MHz; note 1 − 1 − kΩ
input capacitance (pins 42 to 45) note 1 −−10 pF

for a crystal

P

note 20 7.8 8.2 8.6 kΩ
pin which is not used

HUE control range see also Fig.3 ±35 ±40 − deg
control voltage to switch the colour

note 12 VP− 1 −−V
PLL in the free-running mode

input resistance 45 −−kΩ

−(B−Y) output signal voltage

note 25 1.06 1.33 1.60 V
amplitude (peak-to-peak value)

−(R−Y) output signal voltage

note 25 0.84 1.05 1.26 V
amplitude (peak-to-peak value)

spread of signal amplitude ratio

note 2 −1 − +1 dB
PAL/NTSC

output impedance (R−Y)/(B−Y)

−−500 Ω

output

(B−Y) residual carrier output voltage
(peak-to-peak value)

(R−Y) residual carrier output voltage
(peak-to-peak value)

H/2 ripple at (R−Y) output

f=f

f=2f

f=f

f=2f

osc

osc

osc

osc

−−1mV

−−5mV

−−1mV

−−5mV

only burst fed to input −−25 mV
(peak-to-peak value)

note 2 − 0.1 − %/K
with temperature

change of output signal amplitude

note 2 −−±0.1 dB
with supply voltage

internal bias current of NPN emitter

0.16 0.20 − mA

follower output transistor
maximum source current −−1mA

1996 Jan 25 12

Philips Semiconductors Product specification

PAL/NTSC colour processor

TDA8310A

for PIP applications

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

DEMODULATION ANGLE AND GAIN RATIO

demodulation angle 85 90 95 deg

G gain ratio of both demodulators

G(B−Y) to G(R−Y)

R

EFERENCE SIGNAL OUTPUT FOR TDA8395 (PIN 48)

f

ref

V

48(p-p)

reference frequency note 13 − 4.43 − MHz
output signal amplitude

(peak-to-peak value)

V

O

V

O

output voltage level PAL/NTSC identified 1.5 1.6 1.7 V
output voltage level no PAL/NTSC; SECAM

(by TDA8395) identified

I

48

required current to force the decoder
in SECAM mode

STANDARD IDENTIFICATION AND FORCED SYSTEM SWITCHING (PINS 4 AND 23 TO 27); note 14
V

I/O

input/output voltage

in ‘low’ condition −−1.0 V
in ‘high’ condition 4.0 − 5.3 V

V

I(max)

I

load

I

I

maximum input voltage note 22 −−V
maximum load current (pins 23 to 26) −−1mA
input current (pins 23 to 26)

in ‘low’ or ‘high’ condition −−1µA

R

I

V

O

when connected to V

P

input resistance (pin 27) 80 −−kΩ
output voltage (pin 4) IO= 0.5 mA;

during PAL −−0.9 V

note 22 −−10 µA

notes 17 and 24

during SECAM 4.1 − 5.5 V

Z

O

output impedance (pin 4)

note 17 1 −−MΩ
during NTSC

I

load

maximum load current (pin 4) −−0.5 mA

RGB switch

1.60 1.78 1.96

0.2 0.25 0.3 V

4.3 4.5 4.7 V

120 −−µA

P

V

RGB

INPUTS (PINS 1 TO 3 AND 10 TO 12)

V

i(p-p)

signal voltage amplitude
(peak-to-peak value)

Z

I

V

clamp

I

LI

I

clamp

input impedance 100 −−kΩ
active clamping voltage level 2.6 2.8 3.0 V
input leakage current note 2 −−3µA
active clamping current −200 − +200 µA

1996 Jan 25 13

−−1.3 V

Philips Semiconductors Product specification

PAL/NTSC colour processor

TDA8310A

for PIP applications

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

FAST BLANKING/SWITCH INPUTS (PINS 13 AND 52); note 15
I

I

V

IH

V

IL

t

d

t

d

V

13

CLAMPING PULSE INPUT (PIN 14)
V

IH

V

IL

Z

I

RGB OUTPUTS (PINS 6 TO 8)
G

v

G

diff

Z

O

Z

O(off)

V

O

V

os

I

source(max)

I

bias

ISS input signal suppression when RGB

α

ct

B bandwidth of the RGB channels C

t

d

input current −−0.2 −0.3 mA
HIGH level input voltage 0.9 − 3.0 V
LOW level input voltage 0 − 0.5 V
delay between input and output pulse −−50 ns
delay between switch input and RGB

−−70 ns

output
input voltage on pin 13 to make RGB

4 − V

P

V
outputs and the fast blanking output
high-ohmic

HIGH level input voltage 4.0 4.5 V

P

V
LOW level input voltage −−1V
input impedance 1 −−MΩ

voltage gain of the switches f=1MHz −0.5 0 +0.5 dB
gain difference of the three channels −−0.5 dB
output impedance −−150 Ω
output impedance in the ‘off’ state f = 10 MHz 100 −−kΩ
output voltage during blanking open-circuit output 1.2 1.4 1.6 V
blanking off-set voltage of the two

−−5mV

sources
maximum source current −−1mA
internal bias current of NPN emitter

0.16 0.2 − mA

follower output transistor

f = 5 MHz; note 2 60 −−dB

outputs are high-ohmic

f = 10 MHz; note 2 50 −−dB
f = 22 MHz; note 2 40 −−dB

crosstalk between the two RGB
channels

f = 5 MHz; note 2 −60 −−dB
f = 10 MHz; note 2 −50 −−dB
f = 22 MHz; note 2 −40 −−dB

= 20 pF; note 2

L

gain reduction −0.5 dB 5 −−MHz
gain reduction −1dB 10 −−MHz
gain reduction −3dB 22 −−MHz

delay from RGB input to output note 2 −−20 ns

1996 Jan 25 14

Philips Semiconductors Product specification

PAL/NTSC colour processor

TDA8310A

for PIP applications

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

FAST BLANKING OUTPUT (PIN 5)
V

OH

V

OL

Z

O

Z

O(off)

t

r

t

f

t

d

I

load

Notes

1. This parameter is not tested during production and is just given as application information for the designer of the
television receiver.

2. This parameter is not tested during production but is guaranteed by the design and qualified by means of matrix
batches which are made in the pilot production period.

3. Signal with negative-going sync. Amplitude includes sync pulse amplitude.

4. Burst amplitude; for a colour bar with 75% saturation the chrominance signal amplitude is 660 mV (p-p).

5. The IC has two 3-level switch control inputs for the selection of the video signal for the decoder and synchronization
circuits. The video source for internal or external signal is selected via pin 32, also the polarity of the demodulation
for the internal signal. When the video switch is in the external position the voltage level of pin 9 determines whether
the video filters are switched to CVBS or Y/C. It is also possible via pin 9 to select an automatic detection of the
Y/C signal.

6. This value is internally generated when the pin is left open-circuit (the minimum value of the series resistor is 25 kΩ).

7. The −3 dB bandwidth of the circuit can be calculated by means of the following equation:

f

3dB–

8. The slicing level is independent of the sync pulse amplitude.

9. The horizontal and vertical sync are stable while processing Copy Guard signals and signals with phase shifted sync
pulses (stretched tapes). Trick mode conditions of the VCR will also not disturb the synchronization. The value given
is the delay caused by the vertical sync pulse integrator. The integrator has been designed such that the vertical sync
is not disturbed for special anti-copy tapes with vertical sync pulses with an on/off time of 10/22 µs.

10. The timing pulses for the vertical ramp generator are obtained from the horizontal oscillator via a divider circuit.
This divider circuit has 2 search modes of operation:

a) The ‘large window’ mode is switched on when the circuit is not synchronized or, when a non-standard signal is

b) The ‘narrow window’ mode is switched on when more than 15 successive vertical sync pulses are detected in the

HIGH level output voltage 2 − 3V
LOW level output voltage 0 − 0.3 V
output impedance −−300 Ω
output impedance in the ‘off’ state 100 −−kΩ
rise time of the output pulse −−30 ns
fall time of the output pulse −−30 ns
delay difference between fast

−−30 ns

blanking and RGB at the outputs
maximum load current −−1mA

1



f

1

=

–

osc

--------



2Q

received (the number of lines per frame in the 50 Hz mode is between 311 and 314 and in the 60 Hz mode
between 261 and 264). In the search mode the divider can be triggered between line 244 and line 361
(approximately 45 to 64.5 Hz).

narrow window. When the circuit is in the standard mode and a vertical sync pulse is missing the retrace of the
vertical ramp generator is started at the end of the window. Consequently, the disturbance of the picture is very
small. The circuit will switch back to the search window when, for 6 successive vertical periods, no sync pulses
are found within the window.

1996 Jan 25 15

Philips Semiconductors Product specification

PAL/NTSC colour processor

TDA8310A

for PIP applications

11. At a chrominance input voltage of 660 mV (p-p) (colour bar with 75% saturation i.e. burst signal amplitude
300 mV (p-p)) as given in Characteristics first parameter of Section “Chrominance input (pin 16)” the dynamic range
of the ACC is +6 and −20 dB.

12. All frequency variations are referenced to 3.58/4.43 MHz carrier frequency. All oscillator specifications are measured
with the Philips crystal series 9922 520. If the spurious response of the 4.43 MHz crystal is lower than −3 dB with
respect to the fundamental frequency for a damping resistance of 1 kΩ, oscillation at the fundamental frequency is
guaranteed. The spurious response of the 3.58 MHz crystal must be lower than −3 dB with respect to the
fundamental frequency for a damping resistance of 1.5 kΩ. The catching and detuning range are measured for
nominal crystal parameters. These are:

a) Load resonance frequency f0 (CL= 20 pF) = 4.433619 or 3.579545 MHz
b) Motional capacitance CM= 20.6 fF (4.43 MHz crystal) or 14.7 fF (3.58 MHz crystal)
c) Parallel capacitance C0= 5.5 pF (4.43 MHz crystal) or 4.5 pF (3.58 MHz crystal).
The actual load capacitance in the application should be CL= 18 pF to account for parasitic capacitances on and

off chip.
The free-running frequency of the oscillator can be checked by the HUE control pin to the positive supply rail. In that

condition the colour killer is not active so that the frequency offset is visible on the screen. When two or more crystals
are connected to the IC the circuit must be forced to one of the crystals during this test to prevent the oscillator
continuously switching between the various frequencies.

13. The reference signal for the TDA8395 is available only when the crystal oscillator is operating at a frequency of

4.43 MHz. When a SECAM signal is identified this signal is only available during the vertical retrace period thus
avoiding crosstalk with the incoming SECAM signal during scan.

14. The identified colour standard can be read from the IC in two ways:
a) From the voltage level of pin 4. The voltage during the demodulation of the various standards is given in the last

three parameters of this section.
b) From the pins 23 to 26 when pin 27 is in the ‘read’ mode.
When pin 27 is in the ‘write’ mode the colour decoder can be forced to one of the colour standards. The levels for the

various standards are given in Tables 1, 2 and 3.

15. The control possibilities of the RGB switch via pins 13 and 52 are shown in Table 4.

16. To obtain a simple interface between the TDA8310A and the PIP processor the sandcastle output has been designed
such that the output is pulled down during scan and pulled up during the burst key pulse. During blanking the output
is high-ohmic and therefore the output voltage is determined by the load.

17. The output of pin 4 is designed similar to the sandcastle output. The output is pulled down during PAL and pulled up
during SECAM. During NTSC the pin is floating so that the output level is determined by the load.

18. To obtain a good performance for both weak signal and VCR playback the time constant of the first control loop is
switched depending on the input signal condition. Therefore the circuit contains a noise detector and the time
constant is switched to ‘slow’ when excessive noise is present in the signal. This occurs when the internal video
signal is selected or for an external CVBS signal when the chrominance input (pin 16) is left open-circuit. The time
constant is always ‘fast’ when the chrominance input pin is connected to ground and the input is switched to the Y/C
mode. In the ‘fast’ mode during the vertical retrace time the phase detector current is increased 50% so that phase
errors due to head-switching of the VCR are corrected as soon as possible.

During weak signal conditions (noise detector active) the phase detector is gated and the width of the gate pulse has
a value of 5.7 µs so that the effect of the noise is reduced to a minimum.

The output current of the phase detector for the various conditions is shown in Table 5.

19. This value indicates the bandwidth of the complete chrominance circuit including the chrominance bandpass filter.
The bandwidth of the demodulator low-pass filter is approximately 1 MHz.

1996 Jan 25 16

Philips Semiconductors Product specification

PAL/NTSC colour processor

TDA8310A

for PIP applications

20. The crystal pins which are not used must be connected to the positive supply line via an 8.2 kΩ resistor. It is also
possible to connect the non-used pins together and use a resistor with a value of 8.2 kΩ divided by the number of
pins which are not used.

21. When this pin is left open-circuit the HUE control is set to the nominal value.

22. When one or more pins have to be connected to the positive supply line the total current must be limited to 40 µA.
This can be achieved by connecting these pins together and connecting them to a positive supply line via a 100 kΩ
resistor. When separate resistors are used a resistor with a higher value must be used so that the total current is
limited to the required level.

23. This output signal value is obtained when the CVBS or Y input signal at pins 17 and/or 20 has an amplitude of 0.7 V
(black-to-white value).

24. The output buffer consists of a combination of a PMOS and an NMOS. The maximum output impedance in the low
state can be calculated by dividing the maximum output voltage (for this parameter 0.9 V) by the specified current.
For the high state this resistance can be calculated by dividing the difference between the maximum and minimum
output voltage by the specified current. The output impedance is independent of the value of the output current.

25. These output signal values are obtained for a colour bar input signal with 75% saturation.

1996 Jan 25 17

Philips Semiconductors Product specification

PAL/NTSC colour processor
for PIP applications

Table 1 Read/write pin input (pin 27)

MODE LEVEL

Decoder automatic LOW
Forced decoder mode HIGH

Table 2 Colour system logic (pins 25 and 26)

PIN 25 PIN 26 STANDARD

LOW LOW auto/no colour

LOW HIGH PAL
HIGH LOW NTSC
HIGH HIGH SECAM

Table 3 Crystal logic (pins 23 and 24)

PIN 23 PIN 24

LOW LOW 4.43

LOW HIGH 3.579 (NTSC)
HIGH LOW 3.575 (PAL-M)
HIGH HIGH 3.582 (PAL-N)

SELECTED CRYSTAL

(MHz)

TDA8310A

Table 5 Output current of phase detector

CURRENT PHASE

DETECTOR

DURING

Weak signal and

SCAN

(µA)

30 30 YES

synchronized
Strong signal and

180 270 NO

synchronized
Not synchronized 180 270 NO

andbook, halfpage

40

(deg)

20

0

VERTICAL

RETRACE

(µA)

GATED

YES/NO

(5.7 µs)

MBE018

Table 4 Control logic RGB switch (pins 13 and 52)

FAST

BLANKING

OUTPUT

PIN 13 PIN 52

RGB

OUTPUT

LOW LOW black LOW

LOW HIGH RGB 2 HIGH
HIGH LOW RGB 1 HIGH
HIGH HIGH RGB 2 HIGH

20

40

012345

(V)

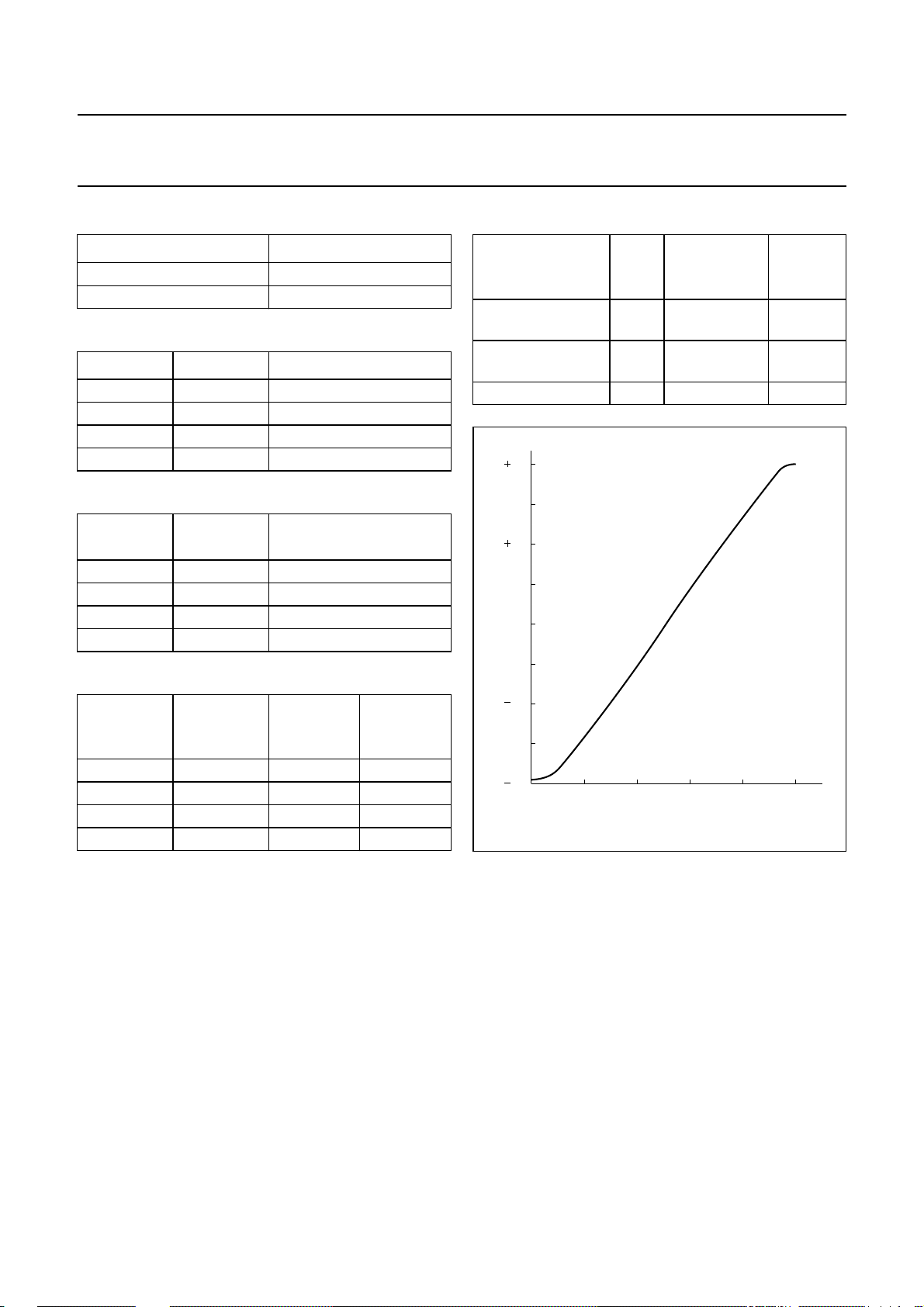

Fig.3 HUE control curve.

1996 Jan 25 18

Philips Semiconductors Product specification

PAL/NTSC colour processor
for PIP applications

PACKAGE OUTLINE

SDIP52: plastic shrink dual in-line package; 52 leads (600 mil)

D

seating plane

L

Z

e

TDA8310A

SOT247-1

M

E

A

2

A

A

1

w M

b

1

c

(e )

M

1

H

52

pin 1 index

1

DIMENSIONS (mm are the original dimensions)

A

A

A

UNIT b

max.

mm

5.08 0.51 4.0

12

min.

max.

b

1.3

0.8

0.53

0.40

b

27

E

26

0 5 10 mm

scale

cEe M

1

0.32

0.23

(1) (1)

D

47.9

47.1

14.0

13.7

1

L

M

E

3.2

15.80

2.8

15.24

17.15

15.90

e

w

H

0.181.778 15.24

Z

max.

1.73

(1)

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

OUTLINE
VERSION

SOT247-1

IEC JEDEC EIAJ

REFERENCES

1996 Jan 25 19

EUROPEAN

PROJECTION

ISSUE DATE

90-01-22
95-03-11

Philips Semiconductors Product specification

PAL/NTSC colour processor
for PIP applications

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
our

“IC Package Databook”

Soldering by dipping or by wave

The maximum permissible temperature of the solder is
260 °C; solder at this temperature must not be in contact
with the joint for more than 5 seconds. The total contact
time of successive solder waves must not exceed
5 seconds.

(order code 9398 652 90011).

TDA8310A

The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (T
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.

Repairing soldered joints

Apply a low voltage soldering iron (less than 24 V) to the
lead(s) of the package, below the seating plane or not
more than 2 mm above it. If the temperature of the
soldering iron bit is less than 300 °C it may remain in
contact for up to 10 seconds. If the bit temperature is
between 300 and 400 °C, contact may be up to 5 seconds.

stg max

). If the

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

1996 Jan 25 20

Philips Semiconductors Product specification

PAL/NTSC colour processor
for PIP applications

TDA8310A

NOTES

1996 Jan 25 21

Philips Semiconductors Product specification

PAL/NTSC colour processor
for PIP applications

TDA8310A

NOTES

1996 Jan 25 22

Philips Semiconductors Product specification

PAL/NTSC colour processor
for PIP applications

TDA8310A

NOTES

1996 Jan 25 23

Philips Semiconductors – a worldwide company

Argentina: IEROD, Av. Juramento 1992 - 14.b, (1428)

BUENOS AIRES, Tel. [phone], Fax. [phone]

Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]

Austria: Triester Str. 64, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]

Belgium: Postbus 90050, 5600 PB EINDHOVEN, The Netherlands,

Tel. [phone], Fax. [phone]

Brazil: Rua do Rocio 220 - 5

CEP: 04552-903-SÃO PAULO-SP, Brazil,
P.O. Box 7383 (01064-970),
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS:

Tel. [phone], Fax. [phone]

Chile: Av. Santa Maria 0760, SANTIAGO,

Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,

72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: IPRELENSO LTDA, Carrera 21 No. 56-17,

77621 BOGOTA, Tel. [phone],
Fax. [phone]

Denmark: Prags Boulevard 80, PB 1919, DK-2300

COPENHAGEN S, Tel. [phone], Fax. [phone]

Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]

France: 4 Rue du Port-aux-Vins, BP317,

92156 SURESNES Cedex,
Tel. [phone], Fax. [phone]

Germany: P.O. Box 10 51 40, 20035 HAMBURG,

Tel. [phone], Fax. [phone]

Greece: No. 15, 25th March Street, GR 17778 TAVROS,

Tel. [phone] 911, Fax. [phone]

India: Philips INDIA Ltd, Shivsagar Estate, A Block,

Dr. Annie Besant Rd. Worli, Bombay 400 018
Tel. [phone], Fax. [phone]

Indonesia: Philips House, Jalan H.R. Rasuna Said Kav. 3-4,

P.O. Box 4252, JAKARTA 12950,
Tel. [phone], Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS S.r.l.,

Piazza IV Novembre 3, 20124 MILANO,
Tel. [phone], Fax. [phone]

Japan: Philips Bldg 13-37 , Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong,

Yongsan-ku, SEOUL, Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA,

SELANGOR, Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TX 79905,

Tel. [phone], Fax. [phone]

th

floor, Suite 51,

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]

New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]

Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: Philips Electrical Industries of Pakistan Ltd.,

Exchange Bldg. ST-2/A, Block 9, KDA Scheme 5, Clifton,
KARACHI 75600, Tel. [phone],
Fax. [phone]

Philippines: PHILIPS SEMICONDUCTORS PHILIPPINES Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Portugal: PHILIPS PORTUGUESA, S.A.,

Rua dr. António Loureiro Borges 5, Arquiparque - Miraflores,
Apartado 300, 2795 LINDA-A-VELHA,
Tel. [phone], Fax. [phone]

Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

South Africa: S.A. PHILIPS Pty Ltd.,

195-215 Main Road Martindale, 2092 JOHANNESBURG,
P.O. Box 7430, Johannesburg 2000,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,

Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla. S-164 85 STOCKHOLM,

Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,

Tel. [phone], Fax. [phone]

Taiwan: PHILIPS TAIWAN Ltd., 23-30F, 66, Chung Hsiao West

Road, Sec. 1. Taipeh, Taiwan ROC, P.O. Box 22978,
TAIPEI 100, Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,

209/2 Sanpavuth-Bangna Road Prakanong,
Bangkok 10260, THAILAND,
Tel. [phone], Fax. [phone]

Turkey:Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,

Tel. [phone], Fax. [phone]

Ukraine: Philips UKRAINE, 2A Akademika Koroleva str., Office 165,

252148 KIEV, Tel.[phone], Fax. [phone]

United Kingdom: Philips Semiconductors LTD.,

276 Bath Road, Hayes, MIDDLESEX UB3 5BX,
Tel. [phone], Fax. [phone]

United States:811 East Arques Avenue, SUNNYVALE,

CA 94088-3409, Tel. [phone], Fax. [phone]

Uruguay: Coronel Mora 433, MONTEVIDEO,

Tel. [phone], Fax. [phone]

Internet: http://www.semiconductors.philips.com/ps/
For all other countries apply to: Philips Semiconductors,

International Marketing and Sales, Building BE-p,
P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands,
Telex 35000 phtcnl, Fax. [phone]

SCDS47 © Philips Electronics N.V. 1996

All rights are reserved. Reproduction in whole or in part is prohibited without the
prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation
or contract, is believed to be accurate and reliable and may be changed without
notice. No liability will be accepted by the publisher for any consequence of its
use. Publication thereof does not convey nor imply any license under patent- or
other industrial or intellectual property rights.

Printed in The Netherlands

537021/1100/02/pp24 Date of release: 1996 Jan 25
Document order number: 9397 750 00589
