Page 1

INTEGRATED CIRCUITS

DATA SH EET

TDA5636; TDA5637

9 V VHF, hyperband and UHF mixers- oscillators for TV and VCR 3-band tuners

Product speciﬁcation Supersedes data of 1995 Mar 21 File under Integrated Circuits, IC02

1996 Jun 10

Page 2

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixersoscillators for TV and VCR 3-band tuners

FEATURES

• Balanced mixer with a common emitter input for band A (single input)

• 2-pin oscillator for bands A and B

• Balanced mixer with a common base input for

bands B and C (balanced input)

• 4-pin oscillator for band C

• Local oscillator buffer output for external prescaler

• SAW filter preamplifier with a low output impedance to drive a 75 Ω load

• Band gap voltage stabilizer for oscillator stability

• Electronic band switch

• External IF filter between the mixer output and the IF

amplifier input

• Pin to pin compatible with TDA5636B; TDA5637B family (same function with symmetrical IF output).

GENERAL DESCRIPTION

The TDA5636 and TDA5637 are monolithic integrated circuits that perform the mixer/oscillator functions for bands A, B and C in TV and VCR tuners. These low-power mixer/oscillators require a power supply of 9 V and are available in a very small package.

The devices give the designer the capability to design an economical and physically small 3-band tuner.

They are suitable for European standards, as illustrated in Fig.17, with the following RF bands:

• 48.25 to 168.25 MHz

• 175.25 to 447.25 MHz

• 455.25 to 855.25 MHz.

With an appropriate tuned circuit, they are also suitable for NTSC all-channel tuners (USA and Japan). The tuner development time can be drastically reduced by using these devices.

TDA5636; TDA5637

APPLICATIONS

• 3-band all-channel TV and VCR tuners

• Any standard.

These circuits belong to the TDA5636B/TDA5637B family which has exactly the same function with an IF amplifier having a symmetrical IF output to drive a SAW filter directly. It is possible to build tuners with either an asymmetrical or a symmetrical IF output with one main tuner lay-out.

1996 Jun 10 2

Page 3

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixers-

TDA5636; TDA5637

oscillators for TV and VCR 3-band tuners

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

NF noise ﬁgure band A; R

supply voltage − 9.0 − V supply current band A − 45 − mA

band B − 41 − mA band C − 44 − mA

frequency range RF input; band A; note 1 45 − 180 MHz

RF input; band B; note 1 160 − 470 MHz RF input; band C; note 1 430 − 860 MHz

voltage gain band A; RL=75Ω−20 − dB

=75Ω−31 − dB

=75Ω−7.5 − dB

=75Ω−6−dB

=75Ω−7−dB

=75Ω−110 − dBµV

output voltage to get 1% cross modulation in channel

band B; R band C; R

band B; R band C; R band A; RL=75Ω−110 − dBµV band B; R band C; R

Note

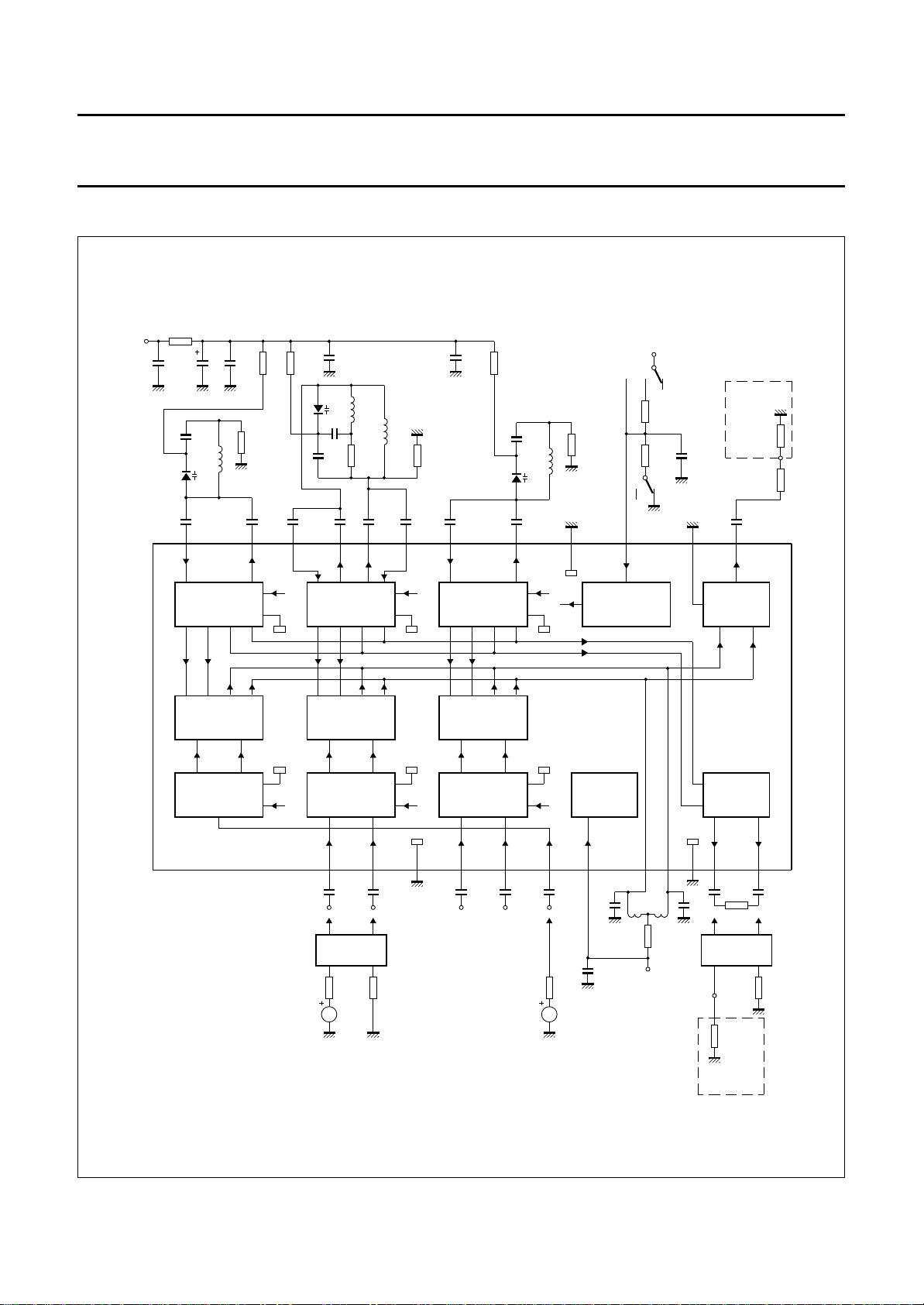

1. The limits are related to the tank circuits used in Fig.17 and the intermediate frequency.

Frequency bands may be adjusted by the choice of external components.

ORDERING INFORMATION

PACKAGE

TYPE NUMBER

NAME DESCRIPTION VERSION

TDA5636T SO24 TDA5636M SSOP24 TDA5637T SO24 TDA5637M SSOP24

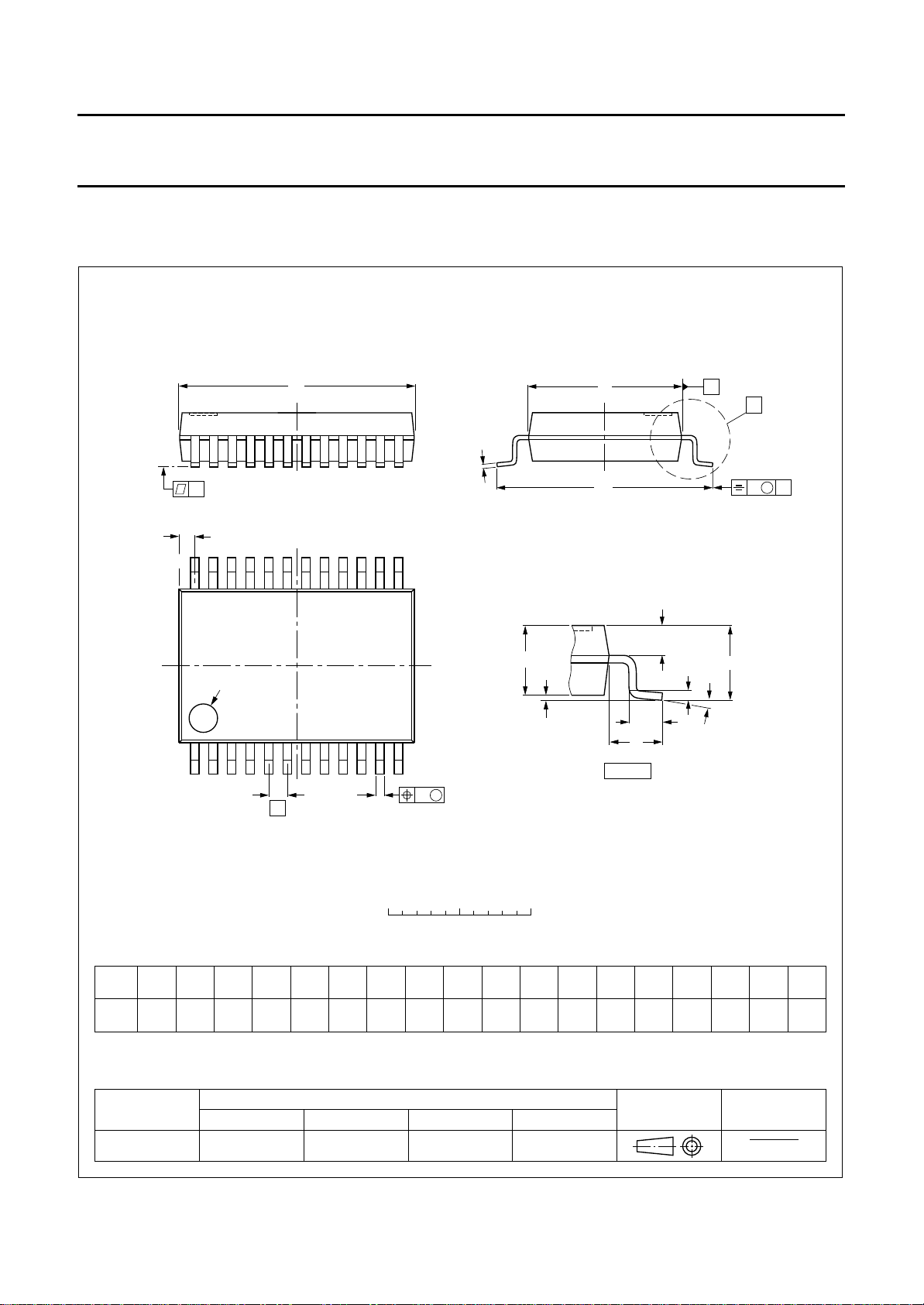

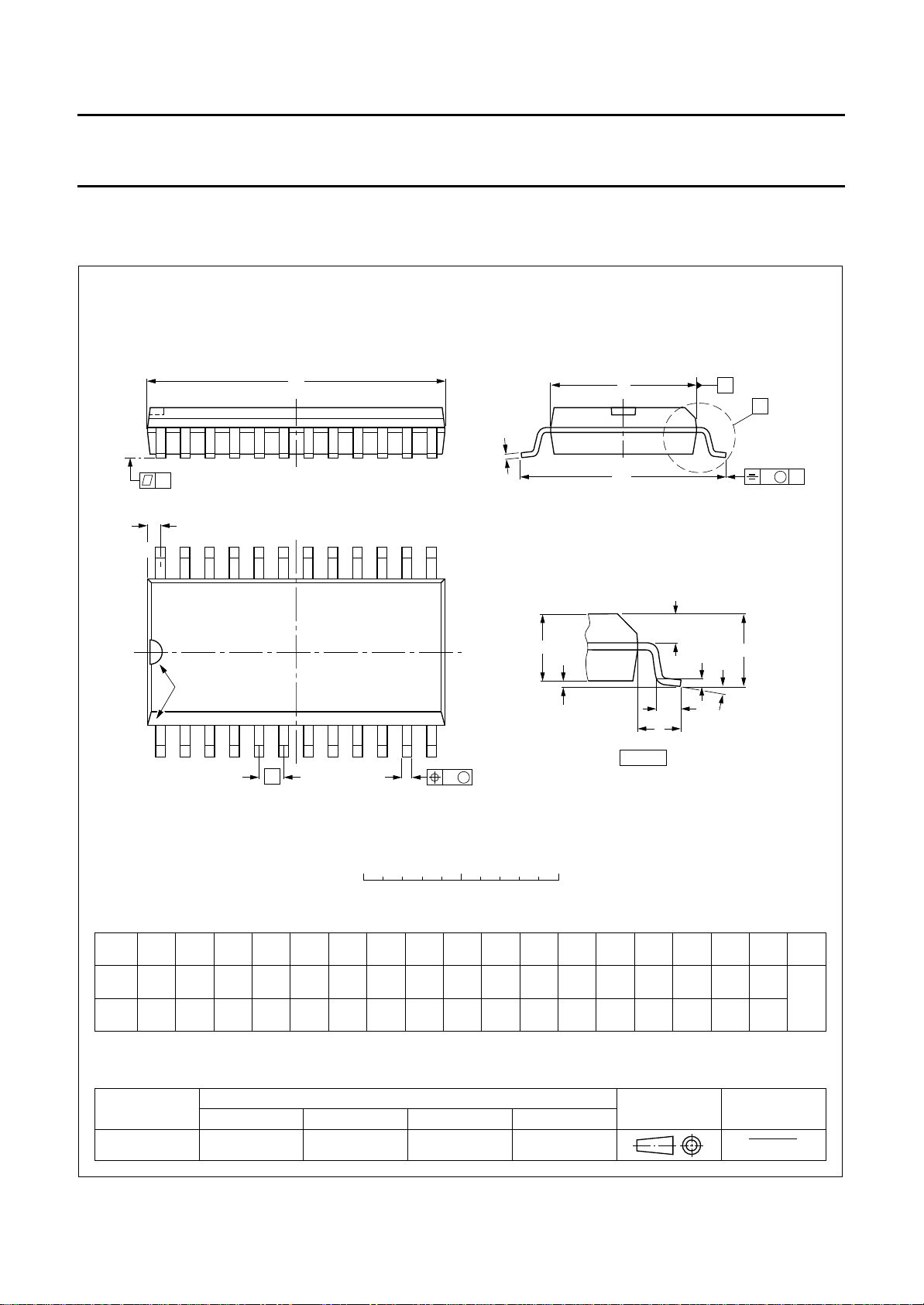

plastic small outline package; 24 leads; body width 7.5 mm plastic shrink small outline package; 24 leads; body width 5.3 mm plastic small outline package; 24 leads; body width 7.5 mm plastic shrink small outline package; 24 leads; body width 5.3 mm

SOT137-1 SOT340-1 SOT137-1 SOT340-1

1996 Jun 10 3

Page 4

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixersoscillators for TV and VCR 3-band tuners

BLOCK DIAGRAM

13

output

ground

input

GND2

(12)

(11)

(10)

(9)

(8)

(6)

IF

AMPLIFIER

ELECTRONIC

BAND SWITCH

BAND B

OSCILLATOR

14

15

16

17

19

IF

band switch

tuned circuit

band B oscillator

TDA5636

TDA5637

MIXERMIXERMIXER

LOCAL

AMPLIFIER

OSCILLATOR

DC 

STABILIZER

STAGE

BAND B

TDA5636; TDA5637

MBH465

12

(13)

11

(14)

local oscillator

10

(15)

9

(16)

8

(17)

7

(18)

5

(20)

4

(21)

amplifier output

GND1

mixers output

band B input

handbook, full pagewidth

tuned circuit

band B oscillator

tuned circuit

band C oscillator

band C

oscillator

tuned circuit

band C oscillator

tuned circuit

band A oscillator

tuned circuit

band A oscillator

3

(22)

RF

GND

18

(7)

20

(5)

21

(4)

BAND C

23

(2)

22

(3)

24

(1)

OSCILLATOR

BAND A

OSCILLATOR

STAGE

BAND C

STAGE

BAND A

2

(23)

1

(24)

band C input

6

(19)

band A input V

The numbers given in parenthesis represent the TDA5637.

Fig.1 Block diagram.

The TDA5636 and TDA5637 are pin to pin compatible with the TDA5636B and TDA5637B respectively.

1996 Jun 10 4

Page 5

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixers-

TDA5636; TDA5637

oscillators for TV and VCR 3-band tuners

PINNING

SYMBOL

CIN1 1 24 band C input 1 CIN2 2 23 band C input 2 RFGND 3 22 ground for RF inputs BIN1 4 21 band B input 1 BIN2 5 20 band B input 2 AIN 6 19 band A input V

MIXOUT1 8 17 mixers output 1 MIXOUT2 9 16 mixers output 2 GND1 10 15 ground 1 (0 V) LOOUT1 11 14 local oscillator ampliﬁer output 1 LOOUT2 12 13 local oscillator ampliﬁer output2 IFOUT 13 12 IF ampliﬁer output IFGND 14 11 IF ampliﬁer ground BS 15 10 electronic band switch input GND2 16 9 ground 2 (0 V) BOSCOC 17 8 band B oscillator output collector COSCIB1 18 7 band C oscillator input base 1 BOSCIB 19 6 band B oscillator input base COSCOC1 20 5 band C oscillator output collector 1 COSCOC2 21 4 band C oscillator output collector 2 AOSCOC 22 3 band A oscillator output collector COSCIB2 23 2 band C oscillator input base 2 AOSCIB 24 1 band A oscillator input base

TDA5636 TDA5637

DESCRIPTION

7 18 supply voltage

1996 Jun 10 5

Page 6

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixersoscillators for TV and VCR 3-band tuners

handbook, halfpage

RFGND

MIXOUT1 MIXOUT2

LOOUT1 LOOUT2

CIN1 AOSCIB

CIN2

3 4

BIN1

BIN2

AIN

GND1

TDA5636

9 10 11 12

MBH463

24 23 22 21 20 19 18 17 16 15 14 13

COSCIB2 AOSCOC COSCOC2 COSCOC1 BOSCIB COSCIB1 BOSCOC GND2 BS IFGND IFOUT

handbook, halfpage

TDA5636; TDA5637

AOSCIB CIN1 COSCIB2 AOSCOC

COSCOC2 COSCOC1

BOSCIB

1 2 3 4 5 6

TDA5637

GND2

IFOUT

7 8

9 10 11 12

COSCIB1 BOSCOC

IFGND

24 23 22 21 20 19 18 17 16 15 14 13

MBH464

CIN2 RFGND BIN1 BIN2 AIN V

MIXOUT1 MIXOUT2 GND1 LOOUT1 LOOUT2

Fig.2 Pin configuration (TDA5636).

1996 Jun 10 6

Fig.3 Pin configuration (TDA5637).

Page 7

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixers-

TDA5636; TDA5637

oscillators for TV and VCR 3-band tuners

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL PARAMETER MIN. MAX. UNIT

sc(max)

stg

amb

THERMAL CHARACTERISTICS

SYMBOL PARAMETER TYPICAL VALUE UNIT

th j-a

supply voltage −0.3 +10.5 V switching voltage 0 10.5 V output current of each pin to ground −−10 mA maximum short-circuit time (all pins) − 10 s IC storage temperature −55 +150 °C operating ambient temperature −10 +80 °C junction temperature − +150 °C

thermal resistance from junction to ambient in free air

SSOP 120 K/W SO 75 K/W

HANDLING Human Body Model

For TDA5636 GND (10, 16), RFGND (3), IFGND (14) and V

(7) are separate.

For TDA5637 GND (9, 15), RFGND (22), IFGND (11) and VP(18) are separate. All pins withstand 2000 V in accordance with the

“UZW-BO/FQ-A302”

specification equivalent to the

category B (2000 V).

Machine Model

All pins withstand 200 V in accordance with the

“UZW-BO/FQ-B302 (issue date: Nov 6th, 1990)”

“MIL-STD-883C”

specification.

1996 Jun 10 7

Page 8

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixers-

TDA5636; TDA5637

oscillators for TV and VCR 3-band tuners

CHARACTERISTICS

=9V; T

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply

Band A mixer (including IF ampliﬁer)

NF noise ﬁgure R

Band A oscillator

OSC

shift

drift

=25°C; measured in circuit of Fig.17; unless otherwise speciﬁed.

amb

supply voltage 8.1 9.0 9.9 V supply current band A − 45 50.5 mA

band B − 41 46 mA band C − 44 49 mA

switching voltage band A 0 − 1.1 V

band B 1.6 − 2.4 V band C 3.0 − V

switching current band A −−2µA

band B −−5µA band C; V

=5V −−10 µA

SW(C)

frequency range note 1 45 − 180 MHz voltage gain RL=75Ω; f

=75Ω; f

=75Ω; fRF= 50 MHz;

50 MHz; see Fig.4 17.5 20.0 22.5 dB

RF =

180 MHz; see Fig.4 17.5 20.0 22.5 dB

RF =

− 7.5 9.5 dB

see Figs 5 and 6.

=75Ω; fRF= 180 MHz;

− 7.5 9.5 dB

see Figs 5 and 6.

output voltage 1% cross-modulation in channel;

107 110 − dBµV

RL=75Ω; fRF= 50 MHz; see Fig.7 1% cross-modulation in channel;

=75Ω; fRF= 180 MHz; see Fig.7

input voltage 10 kHz pulling in channel;

107 110 − dBµV

− 100 − dBµV

fRF= 180 MHz; note 6

optimum source conductance

fRF= 50 MHz − 0.5 − mS

= 180 MHz − 1 − mS

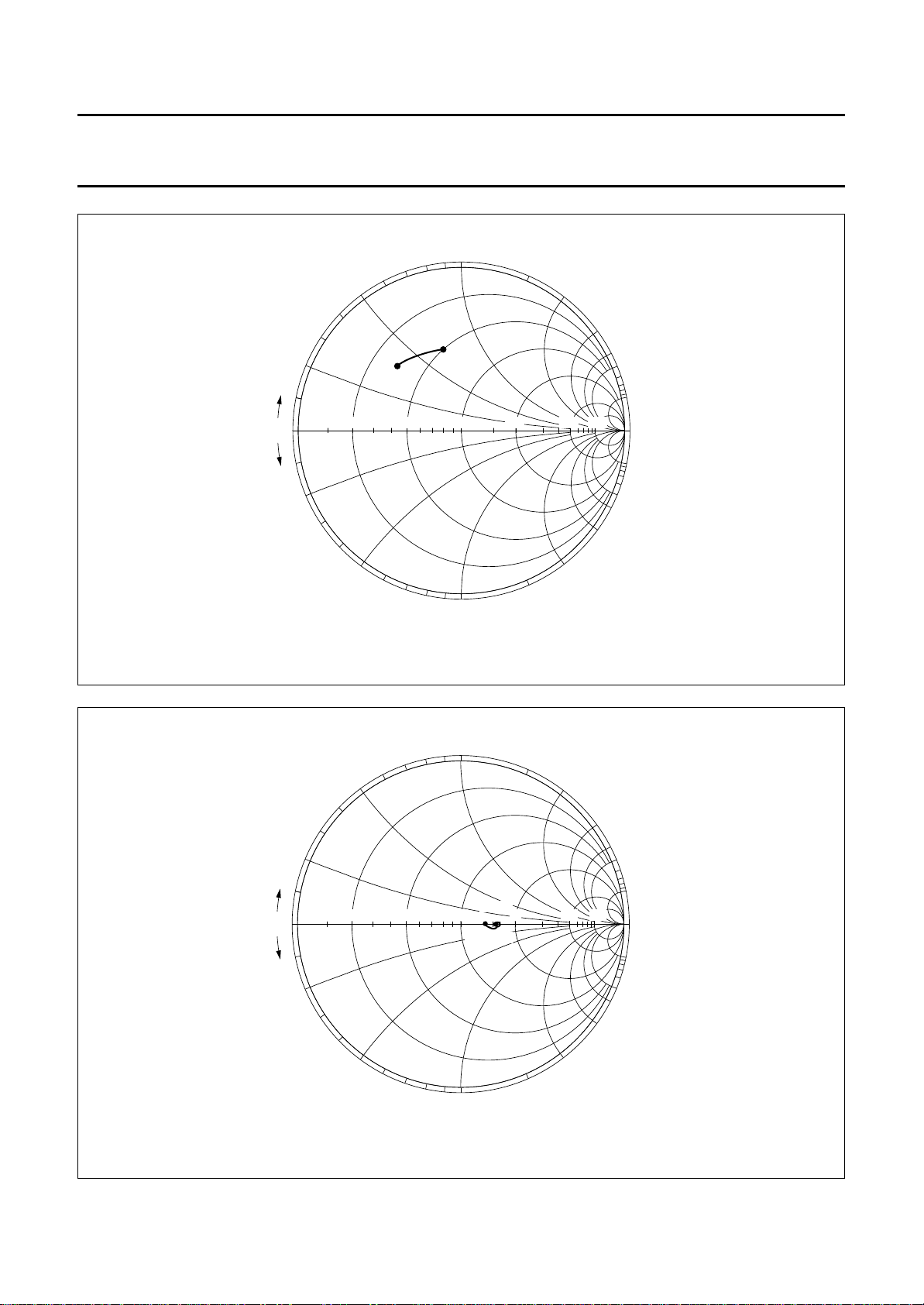

input admittance see Fig.12 −−−mS input capacitance fRF= 50 to 180 MHz; see Fig.12 − 2 − pF

frequency range note 2 80 − 216 MHz frequency shift ∆Vp= 10%; note 3 −−200 kHz frequency drift ∆T=25°C with no compensation;

−−600 kHz

NP0 capacitors; note 4 5 s to 15 min after switching on; note 5 −−200 kHz

1996 Jun 10 8

Page 9

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixers-

TDA5636; TDA5637

oscillators for TV and VCR 3-band tuners

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Band B mixer (including IF ampliﬁer)

NF noise ﬁgure

Band B oscillator

OSC

shift

drift

frequency range note 1 160 − 470 MHz voltage gain RL=75Ω; fRF= 170 MHz; see Fig.8 28 31 34 dB

=75Ω; fRF= 470 MHz; see Fig.8 28 31 34 dB

=75Ω; fRF= 170 MHz; see Fig.9 − 6.0 8.0 dB

(not corrected for image)

output voltage 1% cross-modulation in channel;

=75Ω; fRF= 470 MHz; see Fig.9 − 7.0 9.0 dB

107 110 − dBµV

RL=75Ω; fRF= 170 MHz; see Fig.10 1% cross-modulation in channel;

=75Ω; fRF= 470 MHz; see Fig.10

input voltage 10 kHz pulling in channel;

107 110 − dBµV

− 91 − dBµV

fRF= 470 MHz; note 6

input voltage N + 5 − 1 MHz pulling;

= 430 MHz; see Fig.11

input impedance (Rs+jLsω)

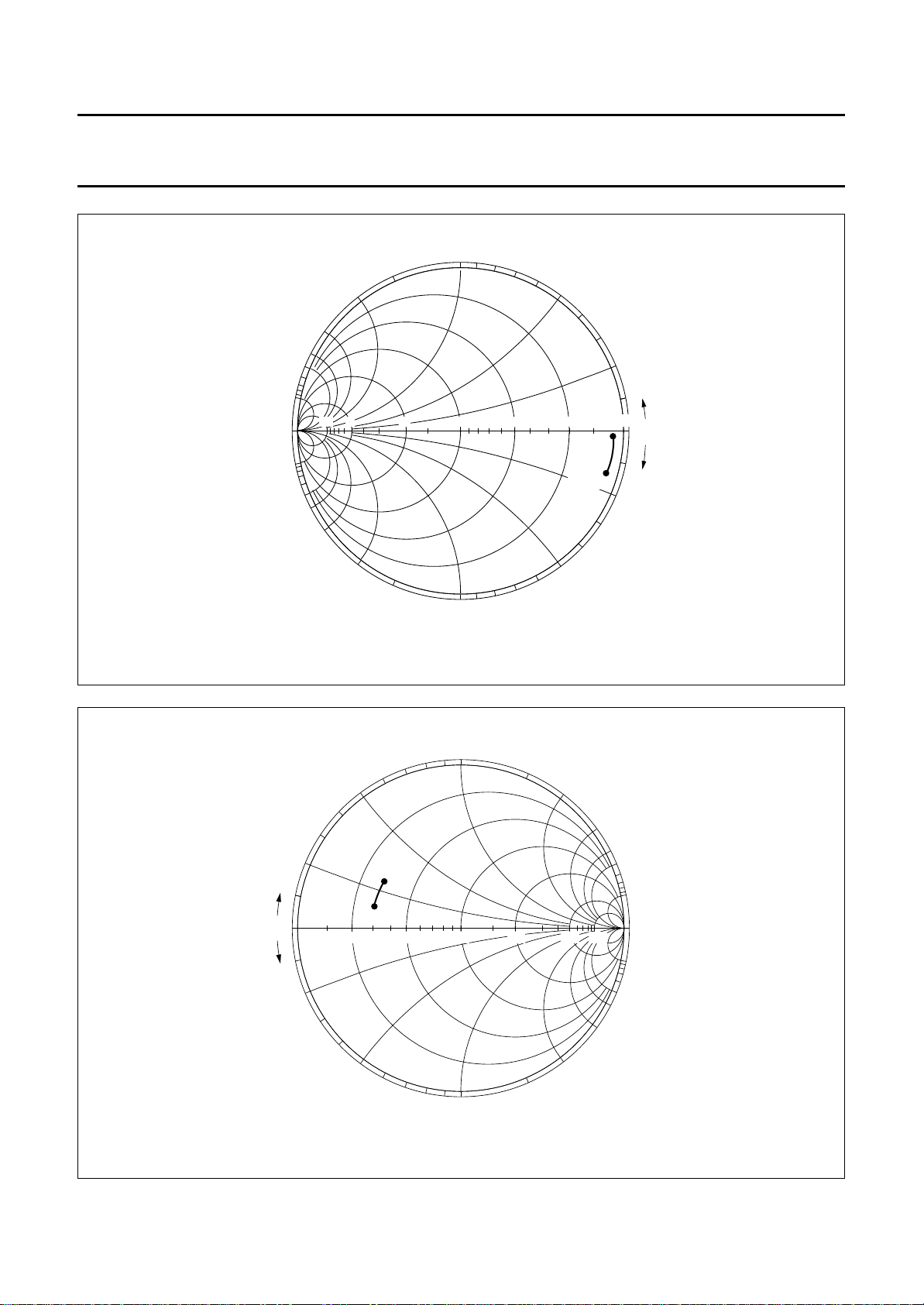

fRF= 170 to 470 MHz; see Fig.13 − 30 −Ω

= 170 to 470 MHz; see Fig.13 − 10 − nH

− 77 − dBµV

frequency range note 2 200 − 500 MHz frequency shift ∆VP= 10%; note 3 −−400 kHz frequency drift ∆T=25°C with no compensation;

−−2 MHz

NP0 capacitors; note 4 5 s to 15 min after switching on; note 5 −−300 kHz

Band C mixer (including IF ampliﬁer)

NF noise ﬁgure

frequency range note 1 430 − 860 MHz voltage gain RL=75Ω; fRF= 430 MHz; see Fig.8 28 31 34 dB

=75Ω; fRF= 860 MHz; see Fig.8 28 31 34 dB

=75Ω; fRF= 430 MHz; see Fig.9 − 7.0 9.0 dB

(not corrected for image)

=75Ω; fRF= 860 MHz; see Fig.9 − 8.0 10.0 dB

output voltage 1% cross-modulation in channel;

RL=75Ω; fRF= 430 MHz; see Fig.10 1% cross-modulation in channel;

=75Ω; fRF= 860 MHz; see Fig.10

input voltage 10 kHz pulling in channel;

fRF= 860 MHz; note 6

input voltage N + 5 − 1 MHz pulling;

= 820 MHz; see Fig.11

input impedance (Rs+jLsω)

fRF= 430 to 860 MHz; see Fig.14 − 40 −Ω

= 430 to 860 MHz; see Fig.14 − 10 − nH

1996 Jun 10 9

107 110 − dBµV

− 93 − dBµV

− 79 − dBµV

Page 10

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixers-

TDA5636; TDA5637

oscillators for TV and VCR 3-band tuners

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Band C oscillator

OSC

shift

drift

LO output

SRF spurious signal on

HLO LO signal harmonics

frequency range note 2 470 − 900 MHz frequency shift ∆VP= 10%; note 3 −−500 kHz frequency drift ∆T=25°C with compensation; note 4 −−1400 kHz

5 s to 15 min after switching on; note 5 −−400 kHz

output reﬂection

see Fig.16 −−−

coefﬁcient output admittance

(Yp+jωCp)

see Fig.16 − 400 −Ω see Fig.16 − 0.7 − pF

output voltage RL=50Ω 83 91 100 dBµV

=50Ω; note 7 −−−10 dBc

LO output with respect to LO output signal

=50Ω −−−10 dBc

with respect to LO signal

IF ampliﬁer

output reﬂection coefﬁcient

output impedance (Rs+jωLs)

magnitude; through 1 nF; see Fig.15 −−14.5 − dB phase; through 1 nF; see Fig.15 − 5.5 − deg. RS; through 1 nF − 73 −Ω

; through 1 nF − 12 − nH

Notes

1. The RF frequency range is defined by the oscillator frequency range and the intermediate frequency.

2. Limits are related to the tank circuits used in Fig.17; frequency bands may be adjusted by the choice of external components.

3. The frequency shift is defined as the change in oscillator frequency when the supply voltage varies from VP= 9 to 8.1 V or from VP= 9 to 9.9 V.

4. The frequency drift is defined as the change in oscillator frequency when the ambient temperature varies from T

=25to0°C or from T

amb

=25to50°C.

amb

5. Switching on drift is defined as the change in oscillator frequency between 5 s and 15 min after switching on.

6. The input level causing 10 kHz frequency detuning at the LO output; f

OSC=fRF

+ 38.9 MHz.

7. SRF: spurious signal on LO with respect to LO output signal:

RF level = 120 dBµV at fRF< 180 MHz RF level = 107.5 dBµV at fRF= 180 to 225 MHz RF level = 97 dBµV at fRF= 225 to 860 MHz.

1996 Jun 10 10

Page 11

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixersoscillators for TV and VCR 3-band tuners

handbook, full pagewidth

Zi(AIN) >>50 Ω⇒Vi=2×V

50 27+

=V’

= 20log .



× .

-------------------

meas



-----V

signal source

50 Ω

meas

50 Ω

RMS

voltmeter

AIN

GND

D.U.T.

IFOUT

TDA5636; TDA5637

27 Ω

meas

spectrum

analyzer

50 Ω

MBH466

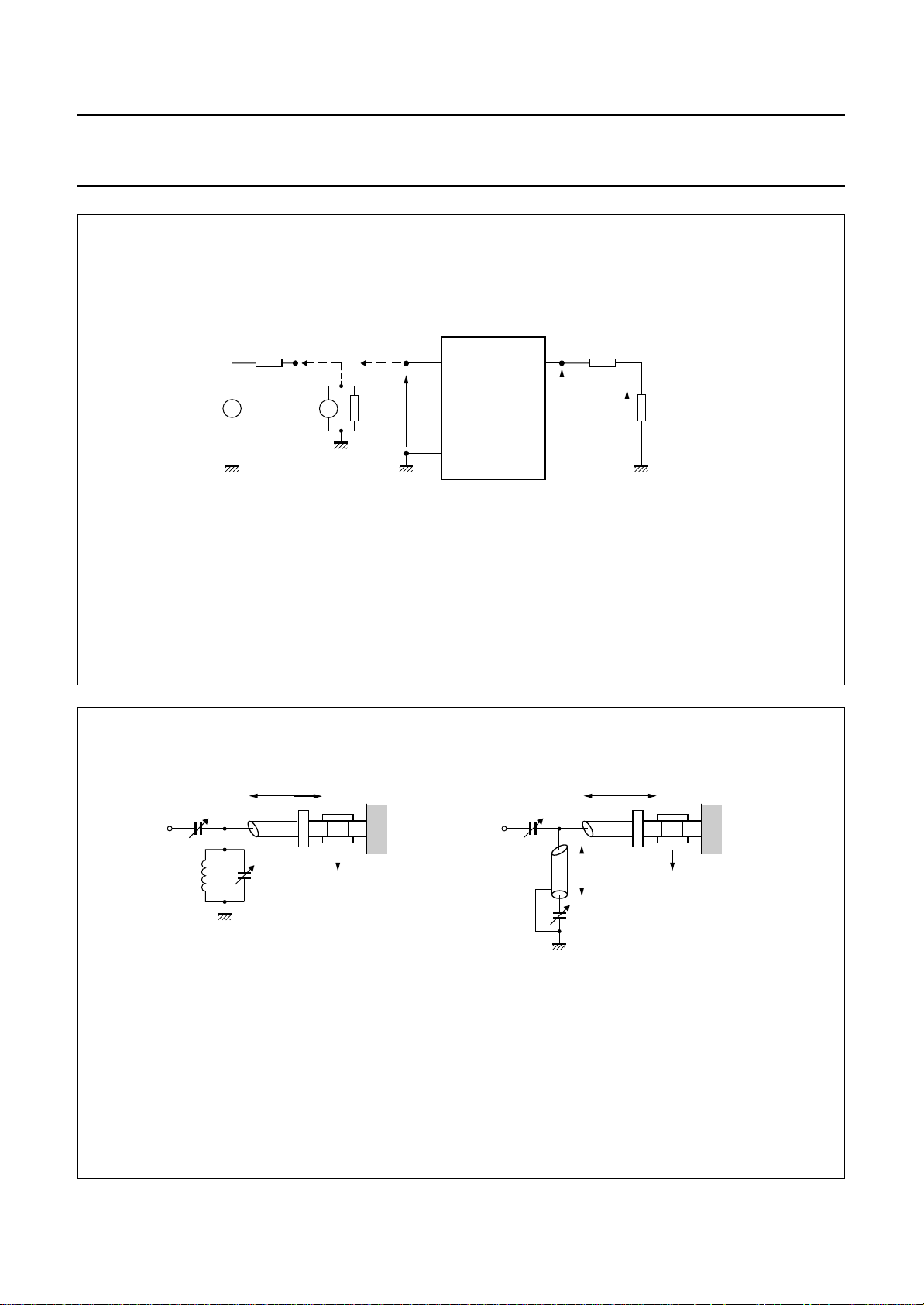

Fig.4 Band A gain measurement.

handbook, full pagewidth

BNC BNC

L1 C2

(a) For fRF= 50MHz:

mixer A frequency response measured= 57 MHz, loss = 0 dB. image suppression = 16 dB. C1 = 9 pF. C2 = 15 pF. L1 = 7 turns (diameter. = 5.5 mm, wire diameter. = 0.5 mm). l1 = semi rigid cable (RIM): 5 cm long

(semi rigid cable (RIM); 33 dB/100 m; 50 Ω; 96 pF/m).

RIM-RIM

(a) (b)

RIM-RIM

PCB

MBE286 - 1

PCB

plug plug

(b) For fRF= 150 MHz:

mixer A frequency response measured = 150.3 MHz, loss = 1.3 dB. image suppression = 13 dB. C3 = 5 pF. C4 = 25 pF. l2 = semi rigid cable (RIM): 30 cm long. l3 = semi rigid cable (RIM): 5 cm long

(semi rigid cable (RIM); 33 dB/100 m; 50 Ω; 96 pF/m).

1996 Jun 10 11

Fig.5 Input circuit for optimum noise figure in band A.

Page 12

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixersoscillators for TV and VCR 3-band tuners

handbook, full pagewidth

NOISE

SOURCE

BNC RIM

INPUT

CIRCUIT

AIN

GND

IFOUT

D.U.T.

27 Ω

MBH467

TDA5636; TDA5637

NOISE

METER

Input circuit as shown in Fig.5. NF = NF

handbook, full pagewidth

Wanted output signal at f We measure the level of the unwanted signal V f

RFW

Filter characteristics: fc= 38.9 MHz, f

− loss

meas

= 50 MHz, f = 180 MHz, f

(input circuit)

50 Ω

= 55.5 MHz, f

RFU

= 185.5 MHz, f

RFU

dB.

unwanted

signal

source

AM = 30%

wanted

signal

source

; Vow= 100 dBµV.

RFW

OSC

−3dBBW

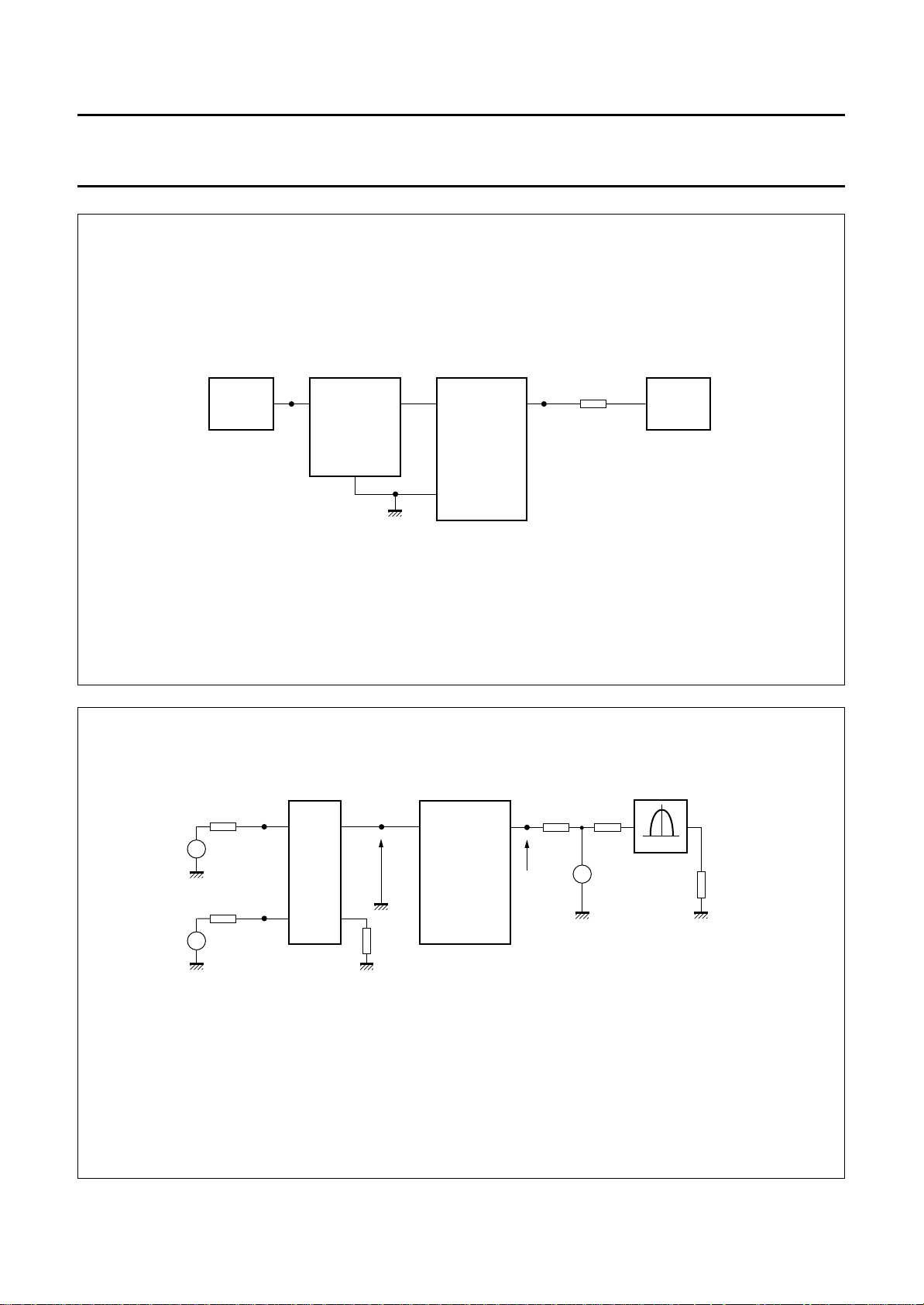

Fig.6 Noise figure measurement in band A.

IMN

RFA IFOUT

D.U.T.

= 2.64 MHz.

HYBRID

causing 0.3 % AM modulation in the wanted output signal; Vou=V’

= 88.9 MHz.

= 218.9 MHz.

= 1.2 MHz, f

50 Ω

−30dBBW

o V'

27 Ω

meas

attenuator

RMS

voltmeter

9 dB

FILTER

38.9 MHz

modulation

analyzer

meas

50 Ω

MBH468

50 27+



× .

-------------------



1996 Jun 10 12

Fig.7 Cross modulation measurement in band A.

Page 13

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixersoscillators for TV and VCR 3-band tuners

handbook, full pagewidth

loss

(hybrid)

Vi=V

meas

= V’

meas

Voltage gain for band B and C = 20 log .

signal source

= 1 dB.

− loss

(hybrid)

50 27+



× .

-------------------



50 Ω

meas

RMS

voltmeter

-----V

50 Ω

HYBRID

50 Ω

BIN1

(CIN1)

BIN2

(CIN2)

D.U.T.

IFOUT

MBH469

TDA5636; TDA5637

27 Ω

meas

50 Ω

spectrum

analyzer

handbook, full pagewidth

loss NF = NF

(hybrid)

= 1 dB.

meas

− loss

(hybrid)

SOURCE

dB.

NOISE

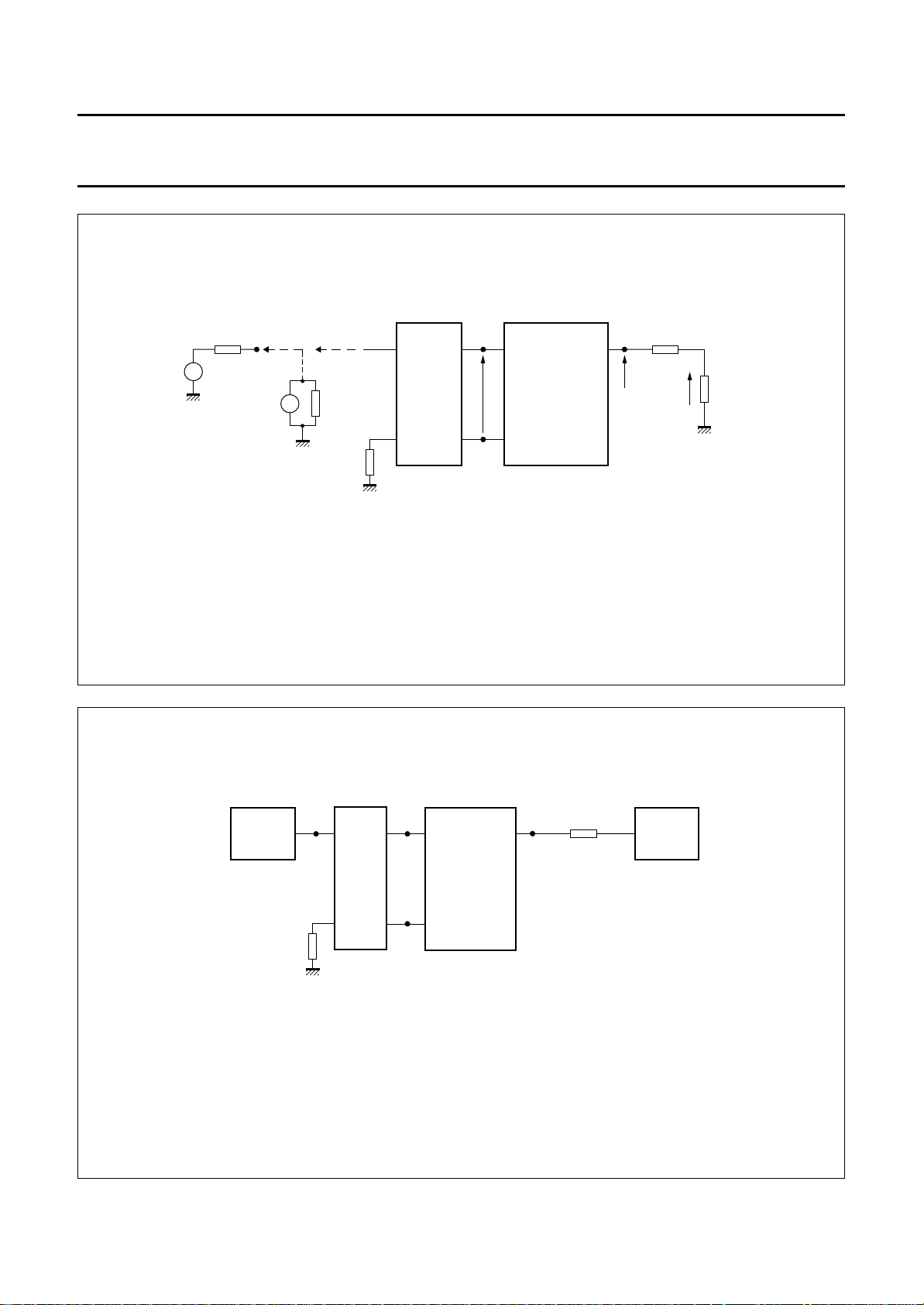

Fig.8 Gain measurement in bands B and C.

HYBRID

50 Ω

BIN1 (CIN1)

D.U.T.

BIN2 (CIN2)

IFOUT

27 Ω

NOISE

METER

MBH470

1996 Jun 10 13

Fig.9 Noise figure measurement in bands B and C.

Page 14

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixers-

TDA5636; TDA5637

oscillators for TV and VCR 3-band tuners

handbook, full pagewidth

wanted

input signal

50 Ω

source

unwanted

input signal

50 Ω

source

Wanted input signal = 70 dBµV; unwanted input signal modulated with 30% AM at 100 kHz; Vou= unwanted output signal V output signal is modulated with 0.3% AM.

UNWANTED=fWANTED

+ 5.5 MHz; f

HYBRID

OSC=fWANTED

+ 38.9 MHz.

50 Ω

wanted

input

signal

50 Ω

HYBRID

50 Ω

RMS

voltmeter

BIN1

(CIN1)

BIN2

(CIN2)

IFOUT

D.U.T.

MBH471

27 Ω

50 Ω

modulation analyzer (unwanted AM on the output wanted frequency)

when the wanted

out

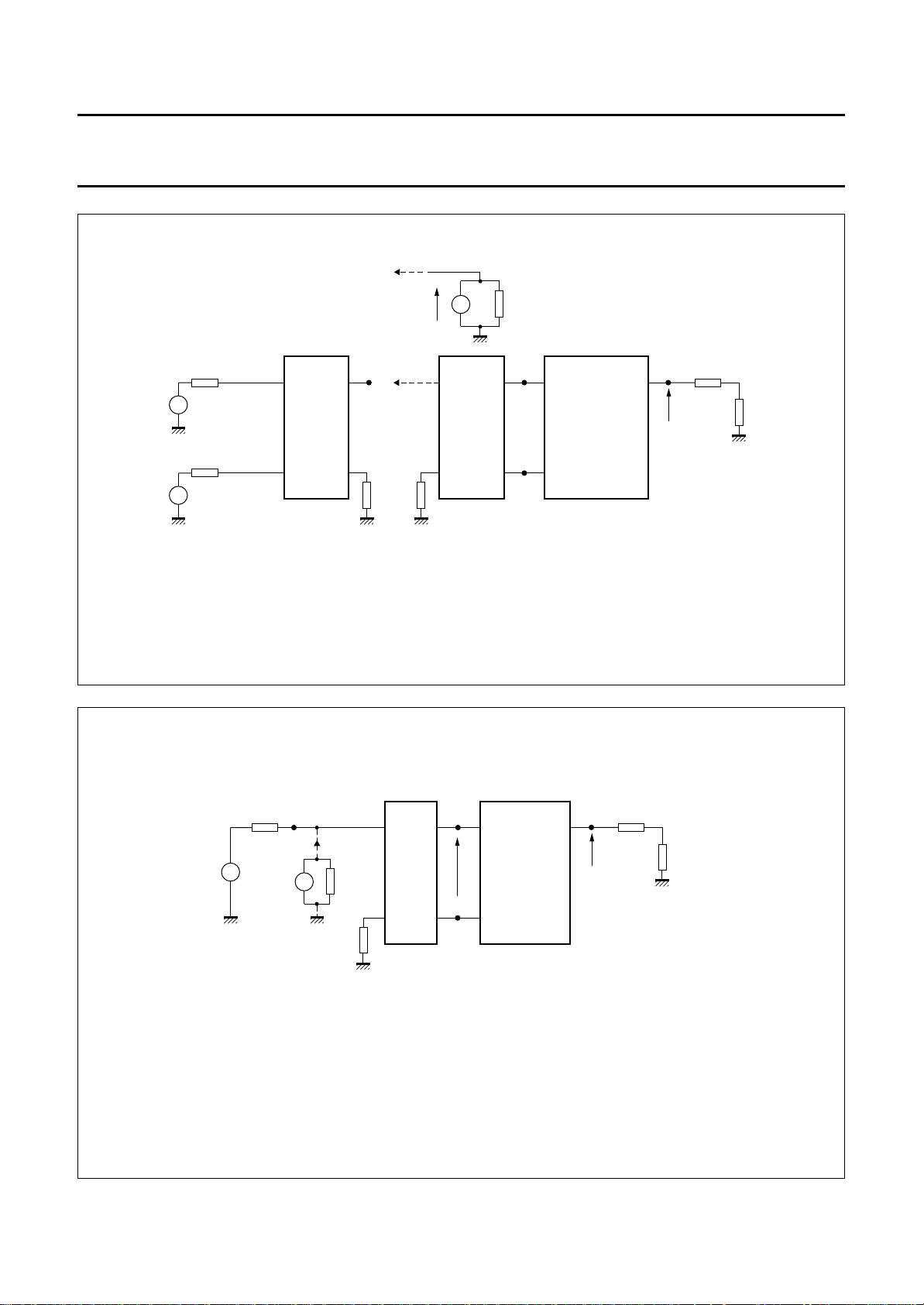

Fig.10 Cross modulation measurement in bands B and C.

handbook, full pagewidth

loss In band B: f In band B: f In band B: f We measure the level of the unwanted signal Viu causing fm sidebands 30 dB below the oscillator carrier at the LO output. Viu=V

(hybrid)

meas

= 1 dB.

RFW OSC RFU

− loss

unwanted signal

50 Ω

source

meas

= 391 MHz (in band C: f = 429.9 MHz (in band C: f

= 430 MHz = f

(hybrid)

+5×8 MHz − 1 MHz. (in band C: f

RFW

50 Ω

= 781 MHz). These wanted signals are not used during the measurement.

RFW

= 819.9 MHz).

OSC

HYBRID

RFU

BIN1 (CIN1)

BIN2 (CIN2)

= 820 MHz = f

IFOUT

D.U.T.

+5×8 MHz − 1 MHz).

RFW

modulation analyzer (unwanted AM on the output wanted frequency)

27 Ω

50 Ω

MBH472

1996 Jun 10 14

Fig.11 N + 5 −1 MHz pulling measurement in bands B and C.

Page 15

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixersoscillators for TV and VCR 3-band tuners

handbook, full pagewidth

∞

TDA5636; TDA5637

0.5

0.2

0.20.512510

200 MHz

0.5

40 MHz

– j

+ j

0.2

handbook, full pagewidth

MBH055

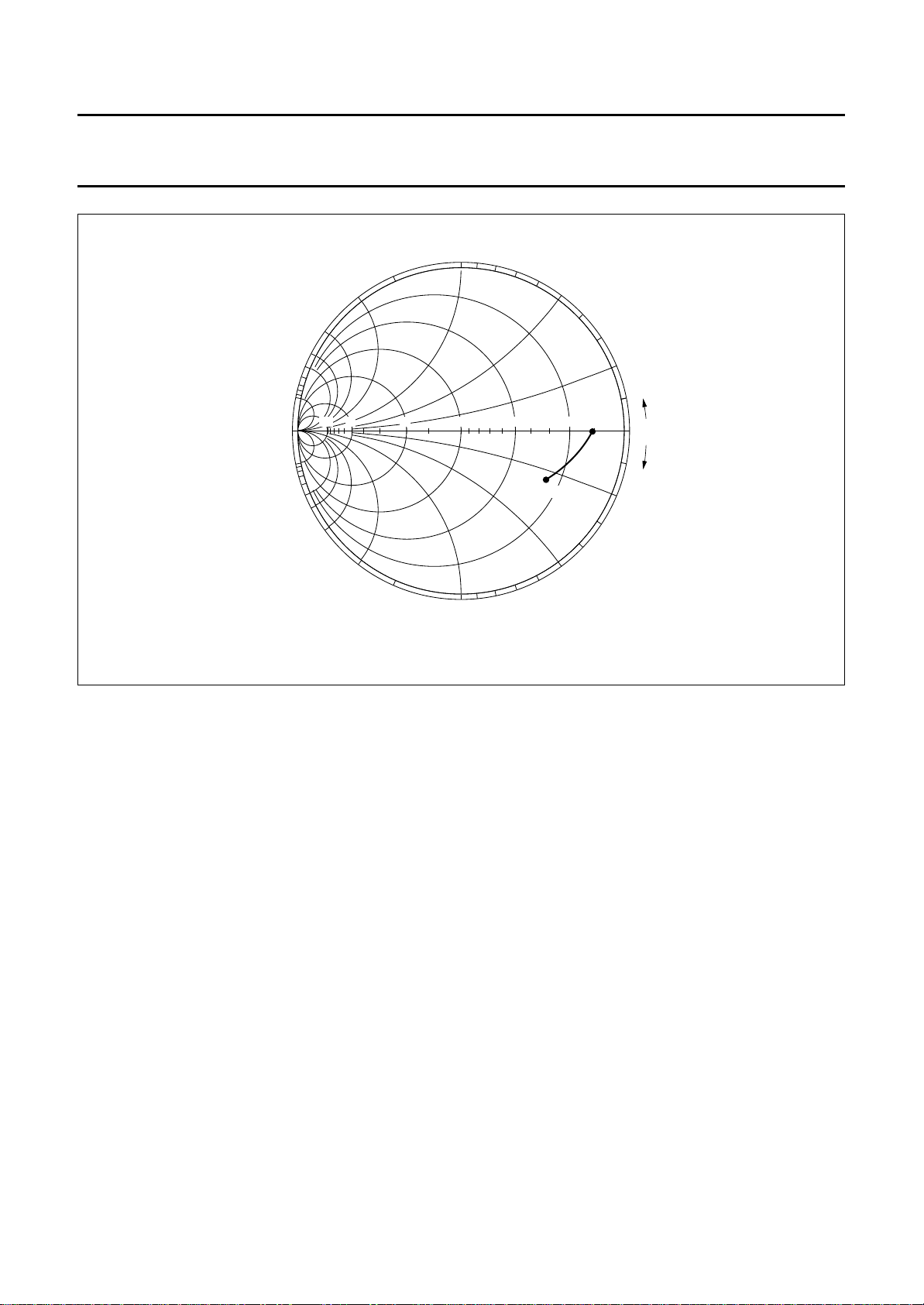

Fig.12 Input admittance (S11) of the band A mixer input (40 to 200 MHz); Yo= 20 mS.

0.5

0.2

+ j

– j

0.2

480 MHz

150 MHz

0.5 10.2 1052

∞

Fig.13 Input impedance (S11) of the band B mixer input (150 to 480 MHz); Zo= 100 Ω.

1996 Jun 10 15

0.5

MBH473

Page 16

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixersoscillators for TV and VCR 3-band tuners

handbook, full pagewidth

0.5

0.2 420 MHz

+ j

– j

0.2

0.5

880 MHz

0.5 10.2 1052

TDA5636; TDA5637

∞

handbook, full pagewidth

MBH499

Fig.14 Input impedance (S11) of the band C mixer input (420 to 880 MHz); Zo= 100 Ω.

0.5

0.2

+ j

– j

0.2

0.5 10.2 1052

5 MHz

100 MHz

∞

1996 Jun 10 16

0.5

MBH475

Fig.15 Output impedance (S22) of the IF amplifier (20 to 60 MHz); Zo=50Ω.

Page 17

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixersoscillators for TV and VCR 3-band tuners

handbook, full pagewidth

∞

TDA5636; TDA5637

0.5

0.2

– j

+ j

0.2

910 MHz

0.20.512510

0.5

50 MHz

MBH474

Fig.16 Output admittance (S22) of the LO amplifier (50 to 910 MHz); Yo=20mS.

1996 Jun 10 17

Page 18

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixersoscillators for TV and VCR 3-band tuners

APPLICATION INFORMATION

handbook, full pagewidth

R14

C29C28

C1 C5C2 C6

24 (1)

22 (3)

C11

C10

23 (2)

R4C9

20

21

(5)

(4)

C12

18 (7)

TDA5636; TDA5637

K only open for switch current measurement

15 (10)

5 V

R10

spectrum

analyzer

50 Ω

C16R9

R11

C17

14

13

(11)

(12)

C15

C14

C13

19 (6)

17 (8)

16 (9)

BAND A

OSCILLATOR

BAND A STAGE

BAND C

OSCILLATOR

BAND C

STAGE

(24) 1

C27 C26 C25 C24 C23

HYBRID

ANZAC-183-4

50 Ω 50 Ω 50 Ω

The numbers in parenthesis represent the TDA5637.

(23) 2

(22) 3

BAND B

OSCILLATOR

MIXERMIXERMIXER

BAND B

STAGE

(21) 4

(20) 5

ELECTRONIC

BAND SWITCH

TDA5636 TDA5637

DC 

STABILIZER

(19)

(18)

C21

AMPLIFIER

OSCILLATOR

AMPLIFIER

(17)8(16)9(15)10(14)11(13)

C20

R13

ANZAC-183-4

C22

9 V

spectrum

MBH477

analyzer

IF

LOCAL

C19 C18

R12

HYBRID

50 Ω

output

1996 Jun 10 18

Fig.17 Measurement circuit.

Page 19

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixersoscillators for TV and VCR 3-band tuners

Application diagram component values Table 1 Capacitors

(all SMD and NP0 except C5 to C9 and C29)

NUMBER VALUE

C1 2 pF C2 2 pF C3 82 pF C4 2.2 nF C5 1 pF (N750) C6 1 pF (N750) C7 1 pF (N750) C8 1 pF (N750) C9 6 pF (N470) C10 100 pF C11 2.2 nF C12 2 pF C13 4 pF C14 150 pF C15 2.2 nF C16 1.2 nF C17 1 nF C18 1 nF C19 1 nF C20 12 pF C21 12 pF C22 22 nF C23 1 nF C24 1 nF C25 1 nF C26 1 nF C27 1 nF C28 2.2 nF C29 1 µF (40 V electrolytic

capacitor)

TDA5636; TDA5637

Table 2 Resistors (all SMD)

NUMBER VALUE

R2 22 Ω R3 47 kΩ R4 2.2 kΩ R5 22 kΩ R6 47 kΩ R7 47 kΩ R8 12 Ω R9 15 kΩ R10 33 kΩ R11 27 Ω R12 100 Ω R13 150 Ω R14 47 kΩ

Table 3 Diodes, coils and transformers

NUMBER VALUE

Diodes

D1 BB132 D2 BB134 D3 BB146

(1)

Coils

L1 8 turns (∅ 3 mm) L2 2 turns (∅ 2.5 mm) L3 3 turns (∅ 2.5 mm) L4 2 turns (∅ 4 mm)

Transformer

L5 2 × 6 turns

Notes

1. Wire size for L1 to L4 is 0.4 mm.

2. Coil type: TOKO 7KN; material: 113 KN, screw core: 03-0093, pot core: 04-0026.

(2)

1996 Jun 10 19

Page 20

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixers-

TDA5636; TDA5637

oscillators for TV and VCR 3-band tuners

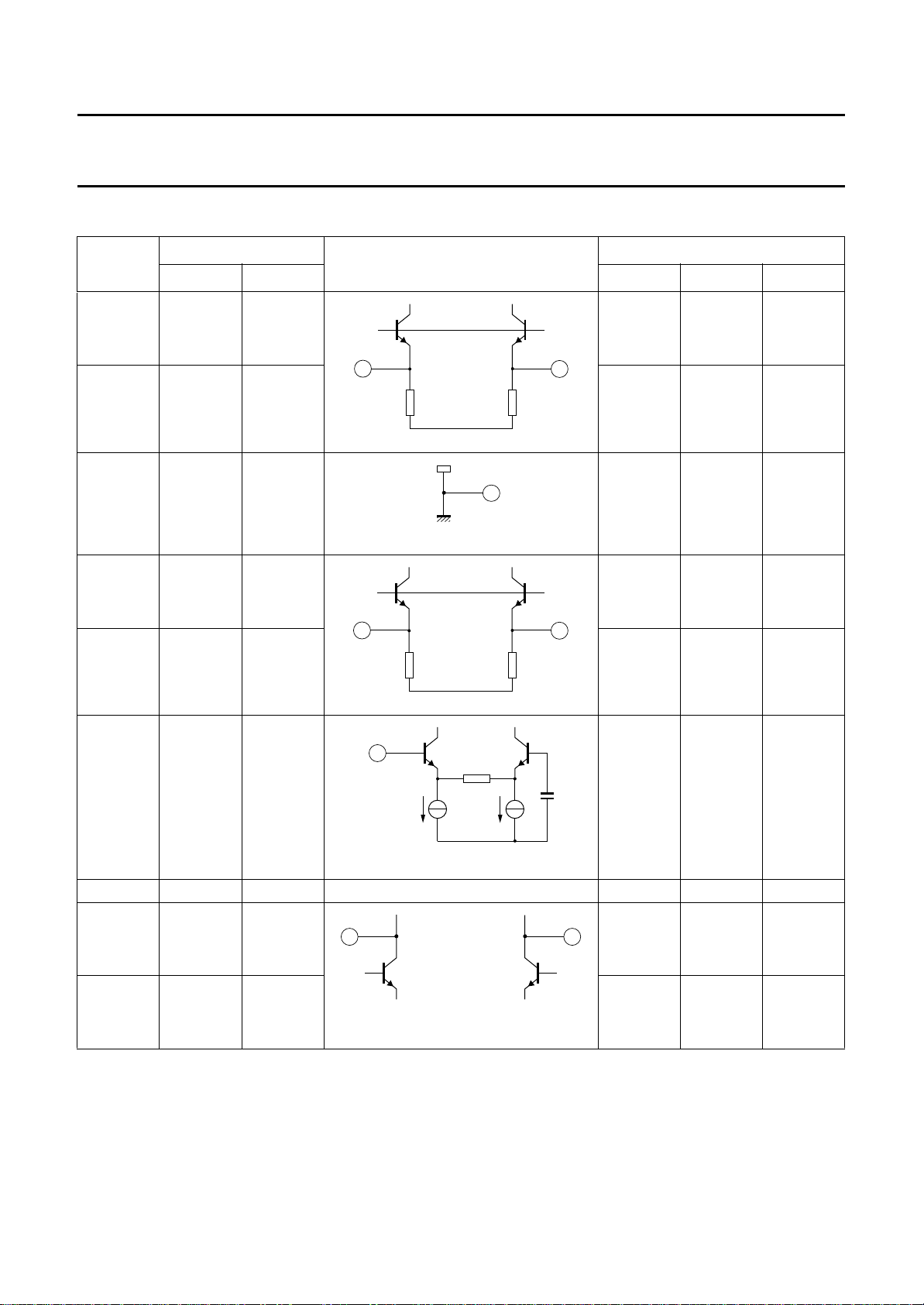

INTERNAL PIN CONFIGURATION

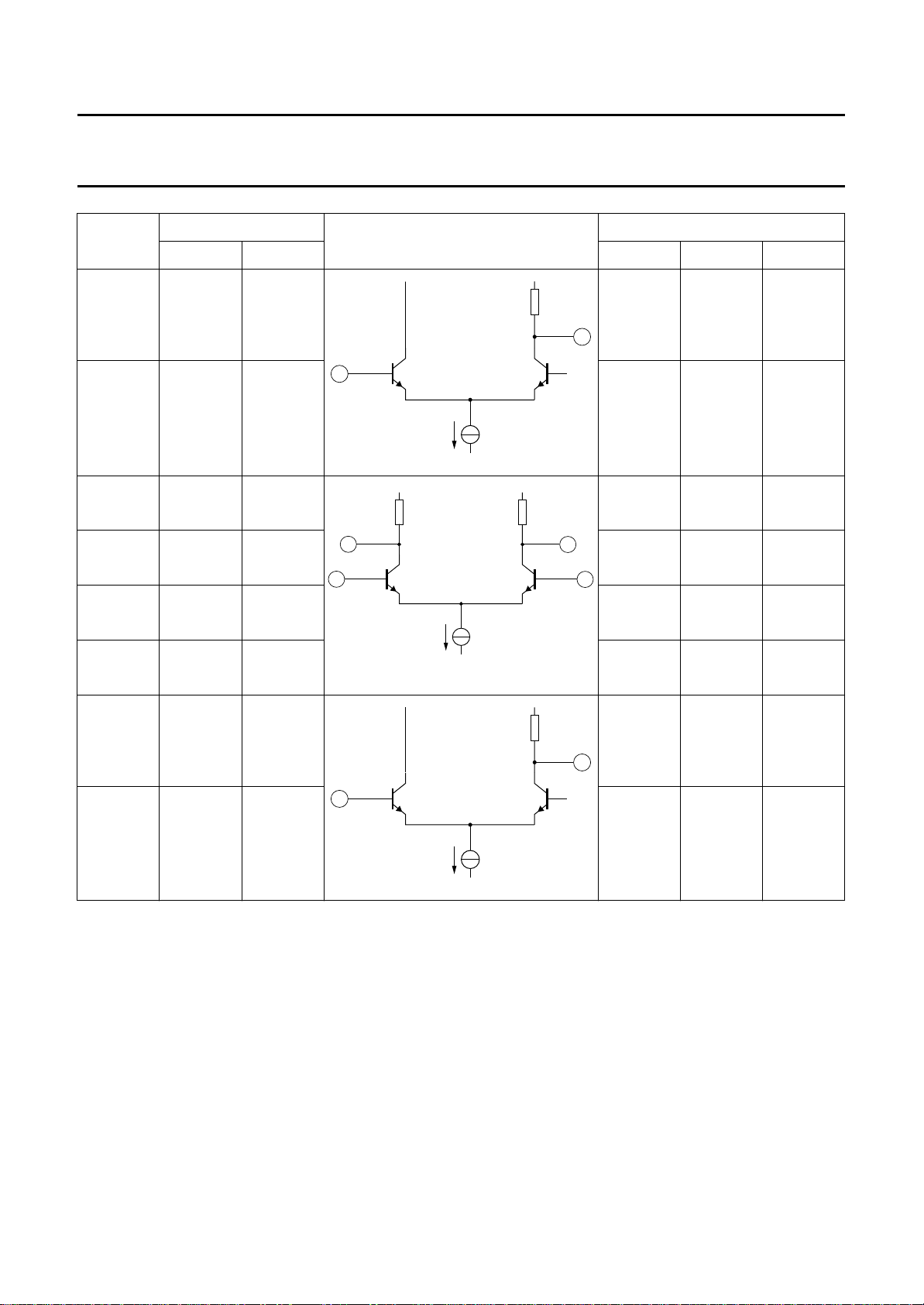

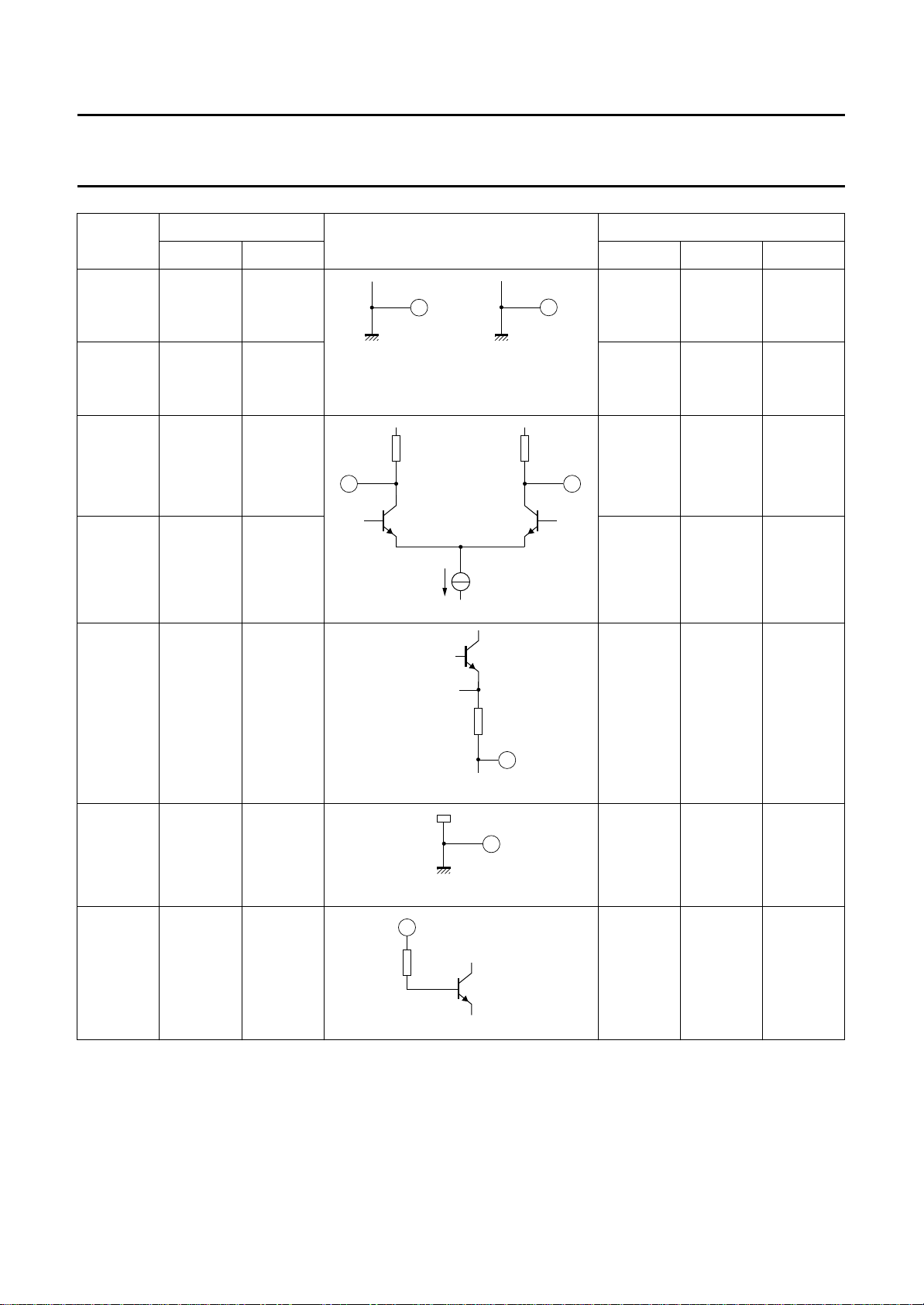

SYMBOL

DESCRIPTION

TDA5636B TDA5637B BAND A BAND B BAND C

CIN1 1 24 0 0 2.2

CIN2 2 23 0 0 2.2

RFGND 3 22 0 0 0

(24) (23)

lfpage

(22)

MLD109

MLD104

BIN1 4 21 0 2.2 0

AVERAGE DC VOLTAGE

(1)

IN (V)

BIN2 5 20 0 2.2 0

(21) (20)

MLD103

AIN 6 19 2.2 1.2 1.2

(19)

MLD099

7 18 supply voltage 9.0 9.0 9.0

MIXOUT1 8 17 8.4 8.4 8.4

(17) (16)

MIXOUT2 9 16 8.4 8.4 8.4

MLD107

1996 Jun 10 20

Page 21

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixers-

TDA5636; TDA5637

oscillators for TV and VCR 3-band tuners

SYMBOL

DESCRIPTION

TDA5636B TDA5637B BAND A BAND B BAND C

GND1 10 15 0 0 0

(15) (9)

GND2 16 9 0 0 0

MLD106

LOOUT1 11 14 5.6 5.6 5.6

(14) (13)

LOOUT2 12 13 5.6 5.6 5.6

AVERAGE DC VOLTAGE

(1)

IN (V)

MLD110

IFOUT 13 12 4.4 4.4 4.4

IFGND 14 11 0.0 0.0 0.0

BS 15 10 V

alfpage

lfpage

(11)

MBH476

(12)

MLD105

SW(A)

SW(B)

MGD570

(10)

SW(C)

1996 Jun 10 21

Page 22

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixers-

TDA5636; TDA5637

oscillators for TV and VCR 3-band tuners

SYMBOL

DESCRIPTION

TDA5636B TDA5637B BAND A BAND B BAND C

BOSCOC 17 8 5.8 3.4 5.8

BOSCIB 19 6 1.2 2.3 1.2

19 (6)

MLD113

COSCIB1 18 7 1.4 1.4 2.3

COSCOC1 20 5 5.8 5.8 4.2

(5) (4)

COSCOC2 21 4 5.8 5.8 4.2

AVERAGE DC VOLTAGE

17 (8)

18



(7)(2)

(1)

IN (V)

COSCIB2 23 2 1.4 1.4 2.3

MLD112

AOSCOC 22 3 3.8 5.8 5.8

(3)

AOSCIB 24 1 2.1 1.0 1.0

(1)

MLD111

Note

1. Average DC voltage measured in circuit of Fig.17.

1996 Jun 10 22

Page 23

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixersoscillators for TV and VCR 3-band tuners

PACKAGE OUTLINES

SO24: plastic small outline package; 24 leads; body width 7.5 mm

TDA5636; TDA5637

SOT137-1

v M

pin 1 index

0 5 10 mm

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

UNIT

inches

Note

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

max.

2.65

0.10

A1A2A

0.30

2.45

0.10

2.25

0.012

0.096

0.004

0.089

0.25

0.01

0.49

0.32

0.36

0.23

0.019

0.013

0.014

0.009

(1)E(1) (1)

15.6

15.2

0.61

0.60

w M

scale

eHELLpQ

7.6

1.27

7.4

0.30

0.050

0.29

10.65

10.00

0.42

0.39

1.4

0.055

detail X

1.1

0.4

0.043

0.016

1.0

0.043

0.039

0.25

0.01

(A )

0.25 0.1

0.01

ywv θ

0.9

0.4

0.035

0.004

0.016

OUTLINE VERSION

SOT137-1

1996 Jun 10 23

REFERENCES

IEC JEDEC EIAJ

075E05 MS-013AD

EUROPEAN

PROJECTION

ISSUE DATE

92-11-17

95-01-24

Page 24

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixersoscillators for TV and VCR 3-band tuners

SSOP24: plastic shrink small outline package; 24 leads; body width 5.3 mm

24 13

TDA5636; TDA5637

SOT340-1

v M

pin 1 index

112

w M

DIMENSIONS (mm are the original dimensions)

UNIT A1A2A

Note

1. Plastic or metal protrusions of 0.20 mm maximum per side are not included.

max.

2.0

0.21

0.05

1.80

1.65

0.25

0.38

0.25

0.20

8.4

0.09

8.0

0 2.5 5 mm

scale

(1)E(1) (1)

eHELLpQZywv θ

5.4

0.65 1.25

5.2

7.9

7.6

detail X

0.9

1.03

0.7

0.63

(A )

0.13 0.10.2

0.8

0.4

OUTLINE VERSION

SOT340-1 MO-150AG

1996 Jun 10 24

REFERENCES

IEC JEDEC EIAJ

EUROPEAN

PROJECTION

ISSUE DATE

93-09-08 95-02-04

Page 25

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixersoscillators for TV and VCR 3-band tuners

SOLDERING Introduction

There is no soldering method that is ideal for all IC packages. Wave soldering is often preferred when through-hole and surface mounted components are mixed on one printed-circuit board. However, wave soldering is not always suitable for surface mounted ICs, or for printed-circuits with high population densities. In these situations reflow soldering is often used.

This text gives a very brief insight to a complex technology. A more in-depth account of soldering ICs can be found in

“IC Package Databook”

our

Reﬂow soldering

Reflow soldering techniques are suitable for all SO and SSOP packages.

Reflow soldering requires solder paste (a suspension of fine solder particles, flux and binding agent) to be applied to the printed-circuit board by screen printing, stencilling or pressure-syringe dispensing before package placement.

Several techniques exist for reflowing; for example, thermal conduction by heated belt. Dwell times vary between 50 and 300 seconds depending on heating method. Typical reflow temperatures range from 215 to 250 °C.

Preheating is necessary to dry the paste and evaporate the binding agent. Preheating duration: 45 minutes at 45 °C.

Wave soldering

(order code 9398 652 90011).

TDA5636; TDA5637

SSOP Wave soldering isnot recommended for SSOP packages.

This is because of the likelihood of solder bridging due to closely-spaced leads and the possibility of incomplete solder penetration in multi-lead devices.

If wave soldering cannot be avoided, the following conditions must be observed:

• A double-wave (a turbulent wave with high upward

pressure followed by a smooth laminar wave) soldering technique should be used.

• The longitudinal axis of the package footprint must

be parallel to the solder flow and must incorporate solder thieves at the downstream end.

Even with these conditions, only consider wave soldering SSOP packages that have a body width of

4.4 mm, that is SSOP16 (SOT369-1) or

SSOP20 (SOT266-1).

ETHOD (SO AND SSOP)

M During placement and before soldering, the package must

be fixed with a droplet of adhesive. The adhesive can be applied by screen printing, pin transfer or syringe dispensing. The package can be soldered after the adhesive is cured.

Maximum permissible solder temperature is 260 °C, and maximum duration of package immersion in solder is 10 seconds, if cooled to less than 150 °C within 6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal

of corrosive residues in most applications. SO Wave soldering techniques can be used for all SO

packages if the following conditions are observed:

• A double-wave (a turbulent wave with high upward

pressure followed by a smooth laminar wave) soldering technique should be used.

• The longitudinal axis of the package footprint must be

parallel to the solder flow.

• The package footprint must incorporate solder thieves at

the downstream end.

1996 Jun 10 25

Repairing soldered joints

Fix the component by first soldering two diagonally-

opposite end leads. Use only a low voltage soldering iron

(less than 24 V) applied to the flat part of the lead. Contact

time must be limited to 10 seconds at up to 300 °C. When

using a dedicated tool, all other leads can be soldered in

one operation within 2 to 5 seconds between

270 and 320 °C.

Page 26

Philips Semiconductors Product speciﬁcation

9 V VHF, hyperband and UHF mixers-

TDA5636; TDA5637

oscillators for TV and VCR 3-band tuners

DEFINITIONS

Data sheet status

Objective speciﬁcation This data sheet contains target or goal speciﬁcations for product development. Preliminary speciﬁcation This data sheet contains preliminary data; supplementary data may be published later. Product speciﬁcation This data sheet contains ﬁnal product speciﬁcations.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the speciﬁcation is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the speciﬁcation.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.

1996 Jun 10 26
