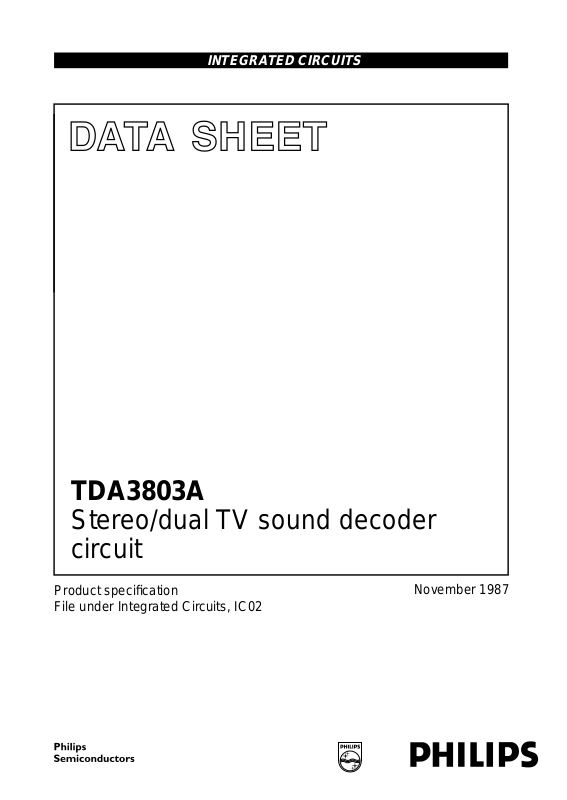

INTEGRATED CIRCUITS

DATA SH EET

TDA3803A

Stereo/dual TV sound decoder circuit

Product speciﬁcation File under Integrated Circuits, IC02

November 1987

Page 2

Philips Semiconductors Product speciﬁcation

Stereo/dual TV sound decoder circuit TDA3803A

GENERAL DESCRIPTION

The TDA3803A is a stereo/dual TV sound decoder circuit with static switching for processing two AF signals in TV and VCR equipment. The LOW/HIGH static switching signals control the AF output selector. Two operational amplifiers perform bandpass filtering of the identification signals.

Features

• Amplification of the two AF input signals by integrated operational amplifiers

• Low distortion stereo de-matrix

• All operational amplifiers offset compensated

• De-emphasis with operational amplifiers, preferably applied to the output terminals

• Two output ports each with two channels for headphones and loudspeakers

• Dual sound information at one port, each port individually switchable from sound I to sound II and sound II to sound I

• Mute function; while mute is active, it is possible to connect an external mono AF input signal to pin 10 appearing at

pins 20 to 23.

• Identification without additional signals (horizontal etc.)

QUICK REFERENCE DATA

Supply voltage (pin 13) V Supply current (pin 13) I

P=I13

Pilot carrier ampliﬁer gain control range ∆G A.F. input signals; at G

=0dB

(r.m.s. value) V

LED output current I

LED

P=V13-12

i(rms)

typ. 12 V typ. 28 mA > 40 dB

=1V typ. 12 mA

Weighted signal-to-noise ratio

of the a.f. signal switches (CCIR468/2) (S+N)/N ≥ 60 dB Crosstalk in stereo mode α Crosstalk in dual sound mode α

S DS

> 40 dB > 60 dB

PACKAGE OUTLINE

28-lead DIL; plastic (SOT117); SOT117-1; 1996 November 25.

November 1987 2

Page 3

Philips Semiconductors Product speciﬁcation

Stereo/dual TV sound decoder circuit TDA3803A

November 1987 3

Fig.1 Block diagram.

Page 4

Philips Semiconductors Product speciﬁcation

Stereo/dual TV sound decoder circuit TDA3803A

RATINGS

Limiting values in accordance with the Absolute Maximum System (IEC 134)

Supply voltage (pin 13) V Voltages with respect to pin 12 (ground)

pins 25; 27 and 28 V Voltages

pin 1 to pin 10 V

pin 14 to pin 19 V Currents

pin 11 I

pins 20; 21; 22; 23 I

pin 28 −I Total power dissipation P Storage temperature range T Operating ambient temperature range T

P=V13-12

25; 27; 28-12

n-12 n-12

11 20;21;22;23

tot stg amb

max. 14 V

max. V

max. V max. V

P P

max. 3 mA max. 10 mA max. 3 mA max. 1,5 W

−25 to + 125 °C 0 to + 70 °C

November 1987 4

Page 5

Philips Semiconductors Product speciﬁcation

Stereo/dual TV sound decoder circuit TDA3803A

CHARACTERISTICS

= 12 V; T

AF input AF2 = AF1 = 0,5 V, pilot carrier input signal V unless otherwise speciﬁed

Supply (pin 13) Supply voltage range V

Supply current (without LED current) I Reference voltage (pin 11) V Input resistance (dynamic) R

AF part

Ampliﬁcation G Input signal at G Mono AF input signal (pin 10); note 1 Input signal V DC input voltage level V Input resistance R Stereo mode AF output port I

pin 22: right pin 23: left

AF output port II

pin 20: right pin 21: left

Output signal (THD ≤ 0,5%)

port I (V port II (V

Weighted signal-to-noise ratio

of the AF signal switches

(in accordance with CCIR468/2) Unweighted signal-to-noise (S+N)/N 60 −−dB Total harmonic distortion

20;21;22;23-12

Crosstalk attenuation (selective)

stereo mode (f

dual sound mode (f = 250 Hz to 12,5 kHz) α

=25°C; overall voltage gain (Gv) = 1; (RS=RR); measured in Fig.2 with a 1 kHz signal.

amb

2-12(rms)

= 16 mV, m = 0,5 and with adjusted de-matrix circuit;

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

10,8 12 13,2 V

− 28 35 mA

− 6 − V

− 4 − kΩ

−40 − 18 dB

−−1V

−−2V

− 6 − V 16 − kΩ

−−2V

=1 V

23-12=V22-12

21-12=V20-12

P=V13-12

P=I13

ref 11-12

AF1

10-12 10-12 10-12

ol oII

AF2

(S+N)/N 65 − dB

= 0,5 V; Gv= 1) THD − 0,05 − %

= 1 kHz; f2= 400 Hz) α

S DS

40 −− dB 60 −− dB

November 1987 5

Page 6

Philips Semiconductors Product speciﬁcation

Stereo/dual TV sound decoder circuit TDA3803A

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

DC input voltage level

at pins 25 and 27 V

DC output voltage level

at pins 20; 21; 22 and 23 V

Output resistance

at pins 20; 21; 22 and 23 V

Identiﬁcation part

Pilot carrier ampliﬁer

input signal (pin 2) V gain control range ∆G controlled output signal (pin 1)

(peak-to-peak value) V Input resistance (pin 2) R Output resistance (pin 1) R DC input voltage level (pin 2)

applied externally (see Fig.2) V DC output voltage level (pin 28)

without gain control V

with gain control V Identiﬁcation signal (pin 28)

(peak-to-peak value) V Filter operational ampliﬁers

open loop gain G Identiﬁcation frequency evaluation No identiﬁcation signal (lower threshold) V Identiﬁcation signal (upper threshold) V Stereo transmission (lower threshold) V Dual sound transmission (upper threshold) V

Control logic part

Mute input voltage (pin 18)

mute OFF V

mute ON (see the remarks to pin 10) V Switching stereo/mono and sound I/sound II Stereo transmission

switching voltage to pin 19 (pin 17 and 16

not affected)

output ports I and II mono V

output ports I and II stereo V

25; 27-12

n-12

2-12

1-12(p-p) 2-12 1-12

2-12

28-12 28-12

28-12(p-p)

4-12 4-12 9-12 9-12

18-12 18-12

19-12 19-12

− 6 − V

− 200 −Ω

5 −− mV 40 −− dB

− 300 − mV

− 60 − kΩ 1 −− MΩ

− 6 − V

− 7,9 − V

− 2,0 − V

78 −− dB

−−2,5 V 4,7 −− V

−−0,8 V 2 −− V

−−0,8 V

2 −− V

November 1987 6

Page 7

Philips Semiconductors Product speciﬁcation

Stereo/dual TV sound decoder circuit TDA3803A

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Mono transmission both output ports I and II mono Dual sound transmission

switching voltage to pin 16 (pin 19 and 17

not affected)

output port II sound I V

output port II sound II V

switching voltage to pin 17 (pin 16 and 19

not affected)

output port I sound I v

output port I sound II v Mode indication (pins 14 and 15;

see also Table 1) Output current −I Output voltage (note 3) V Stereo/mono transmission:

LED indication is valid for the transmission mode Dual sound transmission:

LED indication is valid for port I

16-12 16-12

17-12 17-12

14; 15

14; 15-12

2 −− V

−−0,8 V

2 −− V

91215mA 0 − 8V

Table 1 Mode indication (note 2)

TRANSMISSION MODE

LED

PIN 15

LED

PIN 14

mono OFF OFF

stereo:

stereo selection; V

mono selection; V

≥ 2 V ON ON

19-12

≤ 0,8 V ON ON

19-12

dual sound

sound I selection; V

sound II selection; V

≤ 0,8 V ON OFF

17-12

≥ 2 V OFF ON

17-12

Notes to the characteristics

1. An input signal at pin 10 appears at pins 20 to 23 if the mute input (pin 18) is activated (V

2. With mute (pin 18) ON both LEDs (pin 14 and 15) are switched OFF.

3. Pin 14 and 15 are also suitable as output switches to control TDA3810. At LED OFF and I

≤ 100 µA, then V

14, 15

14, 15-12

≤ 200 mV.

18-12

≥ 2 V).

November 1987 7

Page 8

Philips Semiconductors Product speciﬁcation

Stereo/dual TV sound decoder circuit TDA3803A

November 1987 8

Fig.2 Application diagram and test circuit; external components.

Page 9

Philips Semiconductors Product speciﬁcation

Stereo/dual TV sound decoder circuit TDA3803A

November 1987 9

Fig.3 Application diagram and test circuit; part of internal circuitry.

Page 10

Philips Semiconductors Product speciﬁcation

Stereo/dual TV sound decoder circuit TDA3803A

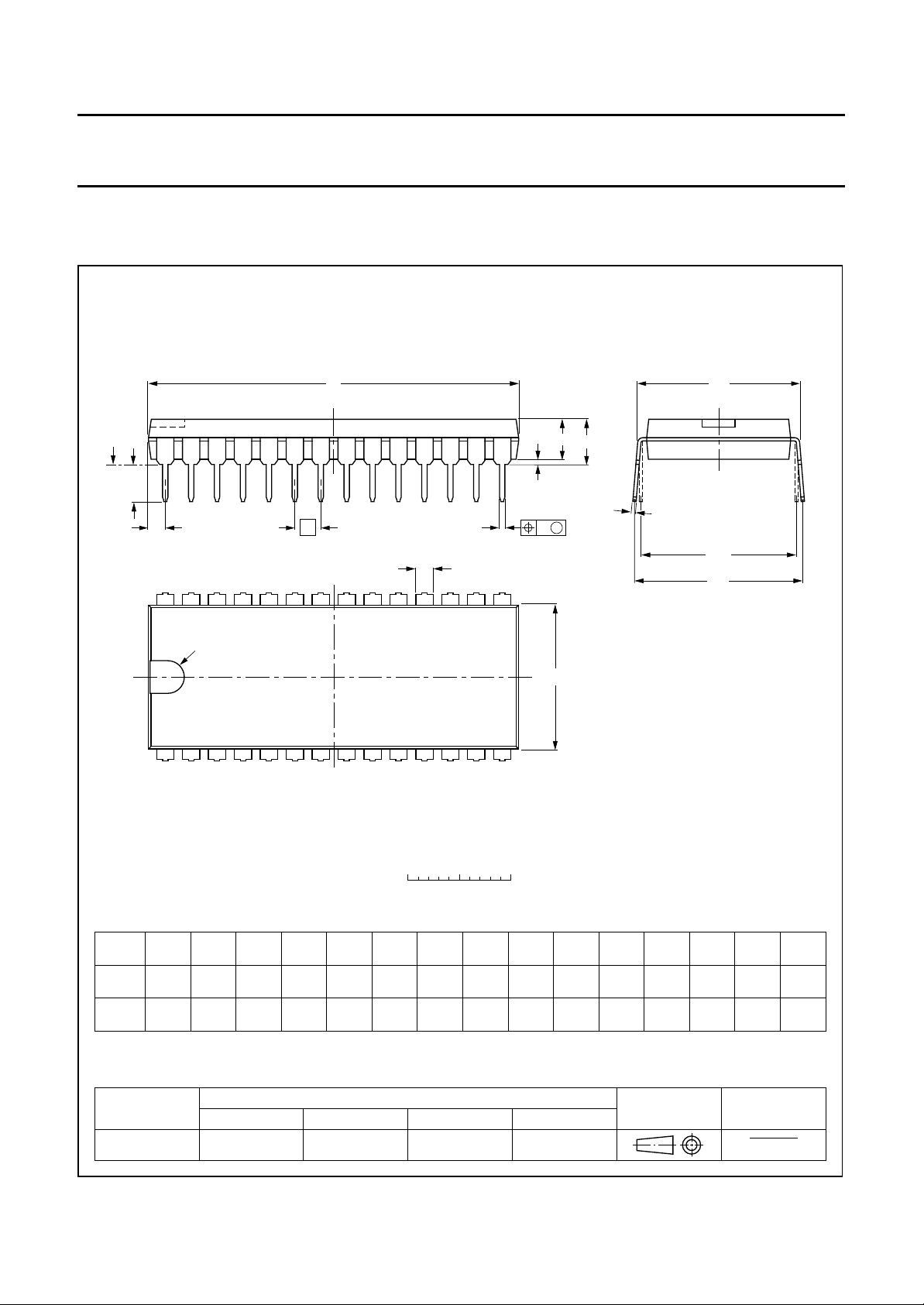

PACKAGE OUTLINE

handbook, full pagewidth

DIP28: plastic dual in-line package; 28 leads (600 mil)

SOT117-1

seating plane

pin 1 index

w M

(e )

0 5 10 mm

scale

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

UNIT

inches

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

max.

OUTLINE VERSION

SOT117-1

1 2

min.

max.

1.7

1.3

0.066

0.051

IEC JEDEC EIAJ

051G05 MO-015AH

0.53

0.38

0.020

0.014

0.013

0.009

REFERENCES

cD E weM

0.32

0.23

(1) (1)

36.0

35.0

1.41

1.34

November 1987 10

14.1

13.7

0.56

0.54

(1)

92-11-17 95-01-14

max.

1.75.1 0.51 4.0

0.0670.20 0.020 0.16

3.9

3.4

EUROPEAN

PROJECTION

15.80

15.24

0.62

0.60

17.15

15.90

0.68

0.63

0.252.54 15.24

0.010.10 0.60

ISSUE DATE

0.15

0.13

Page 11

Philips Semiconductors Product speciﬁcation

Stereo/dual TV sound decoder circuit TDA3803A

SOLDERING Introduction

There is no soldering method that is ideal for all IC packages. Wave soldering is often preferred when through-hole and surface mounted components are mixed on one printed-circuit board. However, wave soldering is not always suitable for surface mounted ICs, or for printed-circuits with high population densities. In these situations reflow soldering is often used.

This text gives a very brief insight to a complex technology. A more in-depth account of soldering ICs can be found in

“IC Package Databook”

our

Soldering by dipping or by wave

The maximum permissible temperature of the solder is 260 °C; solder at this temperature must not be in contact

DEFINITIONS

Data sheet status

Objective speciﬁcation This data sheet contains target or goal speciﬁcations for product development. Preliminary speciﬁcation This data sheet contains preliminary data; supplementary data may be published later. Product speciﬁcation This data sheet contains ﬁnal product speciﬁcations.

(order code 9398 652 90011).

with the joint for more than 5 seconds. The total contact time of successive solder waves must not exceed 5 seconds.

The device may be mounted up to the seating plane, but the temperature of the plastic body must not exceed the specified maximum storage temperature (T printed-circuit board has been pre-heated, forced cooling may be necessary immediately after soldering to keep the temperature within the permissible limit.

Repairing soldered joints

Apply a low voltage soldering iron (less than 24 V) to the lead(s) of the package, below the seating plane or not more than 2 mm above it. If the temperature of the soldering iron bit is less than 300 °C it may remain in contact for up to 10 seconds. If the bit temperature is between 300 and 400 °C, contact may be up to 5 seconds.

stg max

). If the

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the speciﬁcation is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the speciﬁcation.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.
