TDA1309H
Low-voltage low-power stereo
bitstream ADC/DAC
Product specification
Supersedes data of 1996 Jun 04
File under Integrated Circuits, IC01
1996 Oct 21
Page 2
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
ADC/DAC
FEA TURES
• Low power
• Low supply voltage (2.7 V)
• Integrated high-pass filter to cancel DC offset (ADC)
• Analog loop-through function
• Multiple digital input/output formats possible
• 256fs system clock frequency
• Several power-down modes
• Digital de-emphasis (DAC)
• Overload detector to enable automatic recording level
adjustment (ADC)
• Input pads suitable for 5.5 V; low supply voltage
interfacing
• High dynamic range
• DAC requires only one capacitor for post-filtering
• Small 44-pin quad flat pack with 0.8 mm pitch
• 256fs system clock frequency in Analog-to-Digital (AD)
and Digital-to-Analog (DA) mode
• Choice of three system clock frequencies
(192fs, 256fs or 384fs) in DA mode.
TDA1309H
APPLICATION
• Portable digital audio equipment.
GENERAL DESCRIPTION
The TDA1309H is a single chip stereo analog-to-digital
and digital-to-analog converter employing bitstream
conversion techniques. The low voltage requirement
makes the device eminently suitable for use in low-voltage
low-power portable digital audio equipment which
incorporates recording and playback functions.
ORDERING INFORMATION
PACKAGE
TYPE NUMBER
NAME DESCRIPTION VERSION

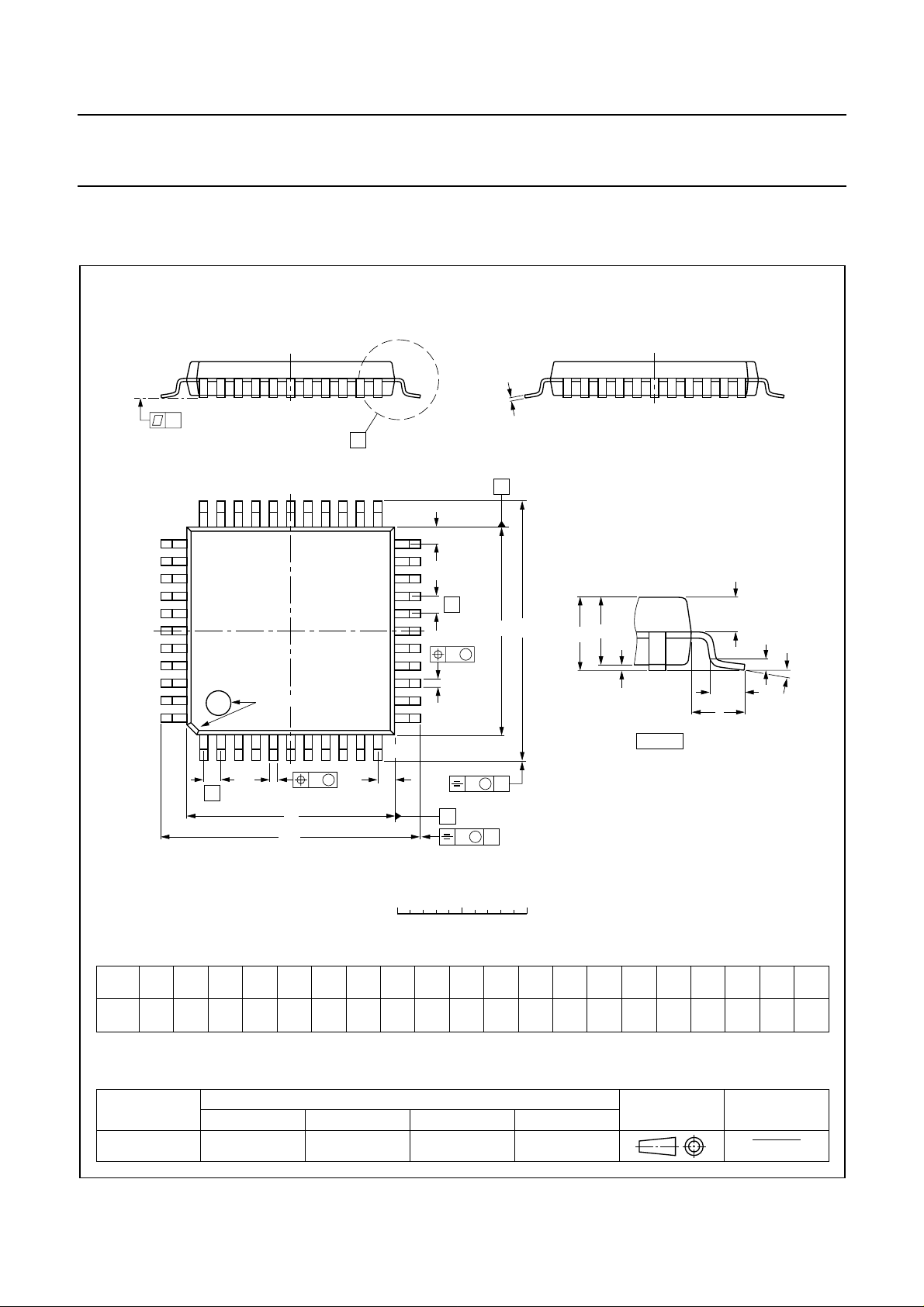

TDA1309H QFP44 plastic quad flat package; 44 leads (lead length 1.3 mm);
body 10 × 10 × 1.75 mm
SOT307-2
1996 Oct 21 2
Page 3
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
TDA1309H
ADC/DAC
QUICK REFERENCE DATA
V
DDD=VDDA=VDDO=VDDD(F)
mode 1; fi= 1 kHz; 16-bit input data; conversion rate = 44.1 kHz; measurement bandwidth = 10 Hz to 20 kHz; unless
otherwise specified.
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
Supply
V
DDA(AD)
V
DDA(DA)
V
DDO
ADC analog supply voltage (pin 8) 2.7 3.0 4.0 V
DAC analog supply voltage (pin 25) 2.7 3.0 4.0 V
operational amplifiers supply voltage
(pin 19)
V
DDD
ADC and DAC digital supply voltage
(pin 28)
V
DDD(F)
I
DDA(AD)
I
DDA(DA)
I
DDO
digital filters supply voltage (pin 34) 2.7 3.0 4.0 V
ADC analog supply current (pin 8) − 8 12.5 mA
DAC analog supply current (pin 25) − 3.5 7 mA
operational amplifiers supply current
(pin 19)
I
DDD
ADC and DAC digital supply current
(pin 28)
I
DDD(F)
I
PD(DA)
I
PD(AD)
T
amb
digital filters supply current (pin 34) − 20 30 mA
DAC power-down current − 15 20 mA
ADC power-down current − 710mA
operating ambient temperature −20 − +75 °C
Analog-to-digital converter
V
I(rms)
input voltage (RMS value) note 1 − 0.5 0.54 V
(THD + N)/S total harmonic distortion plus
noise-to-signal ratio
S/N idle channel signal-to-noise ratio V
α
cs
channel separation − 90 − dB
Digital-to-analog converter
V
O(rms)
output voltage (RMS value) note 2 0.43 0.5 0.57 V
(THD + N)/S total harmonic distortion plus
noise-to-signal ratio
S/N idle channel signal-to-noise ratio code 0000H; A-weighted − 104 − dB
α
cs
channel separation 90 100 − dB
=3V; V
SSD=VSSA=VSSO=VSSD(F)
at 0 dB −−85 −80 dB
at −60 dB; A-weighted −−35 −30 dB
= 0 V; A-weighted 90 95 − dB
I
at 0 dB −−90 −82 dB
at −60 dB; A-weighted −−38 −34 dB
at −60 dB; A-weighted; note 3 −−44 − dB
=0V; T
=25°C; full scale sine wave input;
amb
2.7 3.0 4.0 V
2.7 3.0 4.0 V
− 12 18 mA
− 0.2 0.5 mA
Notes
1. The input voltage for full scale digital output is a function of V
2. At full scale digital input; no de-emphasis; V
is a function of V
O(rms)
3. 18-bit input data.
1996 Oct 21 3
DDA(AD)
.
DDA(DA)
.
Page 4
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
ADC/DAC
BLOCK DIAGRAM
ref
DA
ok, full pagewidth
OL
V
analog output
V
SSA(DA)
V
DDA(DA)
V
SSD(F)
V
DADEM
MODE2
CLKEDGE
TEST0
2.2 nF
SSO
V
DDO
DDD(F)
V
MODE0
MODE1
TEST1
SYSCLK
OLDACL
21
V
22
20
19
26
25
33
34
30
3
42
43
44373840
ref(neg)
V
9
750 Ω
1.5 kΩ
1.5 kΩ
DAC
MODE SELECT
18
Vm
DIGITAL
DIGITAL
DIGITAL
10
µF
µF
0.22
FILTER
INTERFACE
INTERFACE
1.5 kΩ
DAC
V
24
750 Ω
DACR
23
1.5 kΩ
V
27
V
28
TDA1309H
V
39
35 29
31
32
36
6
41
1
42
5
OR
2.2 nF
SSD
DDD
SS(I/O)
DAPON
ADENB
analog output
DASDA
DABCK
DAWS
ADSDA
ADBCK
ADWS
OVLOAD
TDA1309H
MGE766
OR
V
ANLPTR
ADPON
Fig.1 Block diagram.
DDA(AD)
V
47 µF
IL
V
analog input
4.7 kΩ
0.22 µF
330 pF
7
SSA(AD)
V
ADC
8
DDA(AD)
V
ref(pos)
1112
V
BAOL
4.7 kΩ
BAIL
13
ref
V
10
0.22 µF
DIGITAL
DAC
I
CURRENT
REFERENCE
17
ref
I
27
FILTER
kΩ
1996 Oct 21 4
ADC
Vm
BAOR
15
4.7 kΩ
330 pF
14
BAIR
16
ref
AD
0.22 µF
47 µF
4.7 kΩ
IR
V
analog input
Supply decoupling on pins 19, 25, 28 and 34; 0.22 µF (ceramic), 47µF (electrolytic).
Capacitance at pin 11 should be close to pins 11 and 9.
Page 5
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
ADC/DAC
PINNING
SYMBOL PIN DESCRIPTION
ADBCK 1 ADC input bit clock; 32f
ADWS 2 ADC word select input at f
MODE0 3 ADC/DAC mode select input
ADENB 4 ADC serial data enable input (active HIGH)
OVLOAD 5 ADC output overload flag (active LOW)
ADPON 6 ADC power-on-mode input (active HIGH)
V
SSA(AD)
V
DDA(AD)
V
ref(neg)
V
ref
V
ref(pos)
7 ADC analog ground supply voltage
8 ADC analog supply voltage
9 ADC negative reference voltage input (ground)
10 ADC decoupling capacitor
11 ADC positive reference voltage decoupling capacitor
BAOL 12 ADC input amplifier output left
BAIL 13 ADC input amplifier virtual ground left
BAIR 14 ADC input amplifier virtual ground right
BAOR 15 ADC input amplifier output right
AD
I
ref
DA
V
V
V
ref
ref
DDO
SSO
OL
16 ADC decoupling capacitor
17 ADC/DAC reference current resistor input
18 DAC decoupling capacitor
19 ADC/DAC operational amplifier supply voltage
20 ADC/DAC operational amplifier ground supply voltage
21 DAC output voltage left
DACL 22 DAC output current left
DACR 23 DAC output current right
V
OR
V
DDA(DA)
V
SSA(DA)
V
SSD
V
DDD
24 DAC output voltage right
25 DAC analog supply voltage
26 DAC analog ground supply voltage
27 ADC/DAC digital ground supply voltage
28 ADC/DAC digital supply voltage
DAPON 29 DAC power-on-mode input (active HIGH)
DADEM 30 DAC digital de-emphasis input (active HIGH)
DABCK 31 DAC input bit clock; 32f
DAWS 32 DAC word select input at f
V
SSD(F)
V
DDD(F)
33 ADC/DAC digital filters ground supply voltage
34 ADC/DAC digital filters supply voltage
DASDA 35 DAC serial data input
ANLPTR 36 ADC/DAC analog loop-through input (active HIGH)
TEST0 37 ADC/DAC enable test mode 0 input (LOW is normal mode)
TEST1 38 ADC/DAC enable test mode 1 input (LOW is normal mode)
V
SS(I/O)
39 ADC/DAC digital input/output ground supply voltage
SYSCLK 40 ADC/DAC system clock input (f
or 64f
s
s
s
, 48fs or 64f
s
s
sys
s
= 256fs; DAC also 192fs and 384fs)
TDA1309H
1996 Oct 21 5
Page 6
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
ADC/DAC
SYMBOL PIN DESCRIPTION
ADSDA 41 ADC serial data output
MODE1 42 ADC/DAC mode 1 select input
MODE2 43 ADC/DAC mode 2 select input
CLKEDGE 44 ADC/DAC input bit clock rising/falling edge
handbook, full pagewidth
SS(I/O)
SYSCLK
V
40
39
TDA1309H
TEST1
38
TEST0
37
ANLPTR
36
ADBCK
ADWS
MODE0
ADENB
OVLOAD
ADPON
V
SSA(AD)
V
DDA(AD)
V
ref(neg)
V
ref(pos)
MODE1
MODE2
43
42
ADSDA
41
CLKEDGE
44
1
2
3
4
5
6
7
8
9
V
10
ref
11
DDD(F)
V
DASDA
35
34
33
32
31
30
29
28
27
26
25
24
23
V
SSD(F)
DAWS
DABCK
DADEM
DAPON
V
DDD
V
SSD
V
SSA(DA)
V
DDA(DA)
V
OR
DACR
TDA1309H
12
13
14
15
16
BAIR
BAOR
ref
AD
BAOL
BAIL
Fig.2 Pin configuration.
1996 Oct 21 6
21
17
18
19
ref
ref
I
DA
DDO
V
20
SSO
V
22
OL
V
DACL
MGE765
Page 7
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
ADC/DAC
FUNCTIONAL DESCRIPTION
Figure 1 illustrates the various components of the
TDA1309H.
The analog-to-digital converter is a bitstream type
converter, both channels are sampled simultaneously.
The digital-to-analog converter is a BCC (Bitstream
Continuous Calibration) type converter. The digital filter for
the ADC is a bit serial IIR filter that produces a fairly linear
phase response up to 15 kHz. A high-pass filter is
incorporated in the down-sampling path to remove DC
offsets. An overload detection circuit is incorporated to
facilitate automatic recording level adjustment.
The digital up-sample filter for the DAC is partly IIR, with
virtual linear phase response up to 15 kHz, and partly FIR.
A switchable digital de-emphasis circuit is also
incorporated. Due to the BCC principle used, the DAC
needs only single pole post-filtering (one external
capacitor) to meet the out-of-band suppression
requirement.
TDA1309H
The digital interfaces accommodates, 16 and 18-bit,
2
I
S-bus and LSB justified formats. The ADC digital output
can be made 3-state by means of the ADENB signal, this
enables the use of a digital bus.
The TDA1309H interface accommodates slave mode only,
therefore, the system ICs must provide the system clock,
bit clock and word clock signals. For the DAC, the
TDA1309H accepts the data together with these clocks,
for the ADC it delivers the data in response to these clocks.
Within one stereo frame, the first sample always
represents the left channel. When sending data the
unused bit positions are set to zero, when receiving data
these bit positions are don't cares.
To accommodate the various interface formats and
system clock frequencies four control pins are provided,
MODE0 to MODE2 for mode selection and CLKEDGE
which selects the active edge of the BCK signal. Table 1

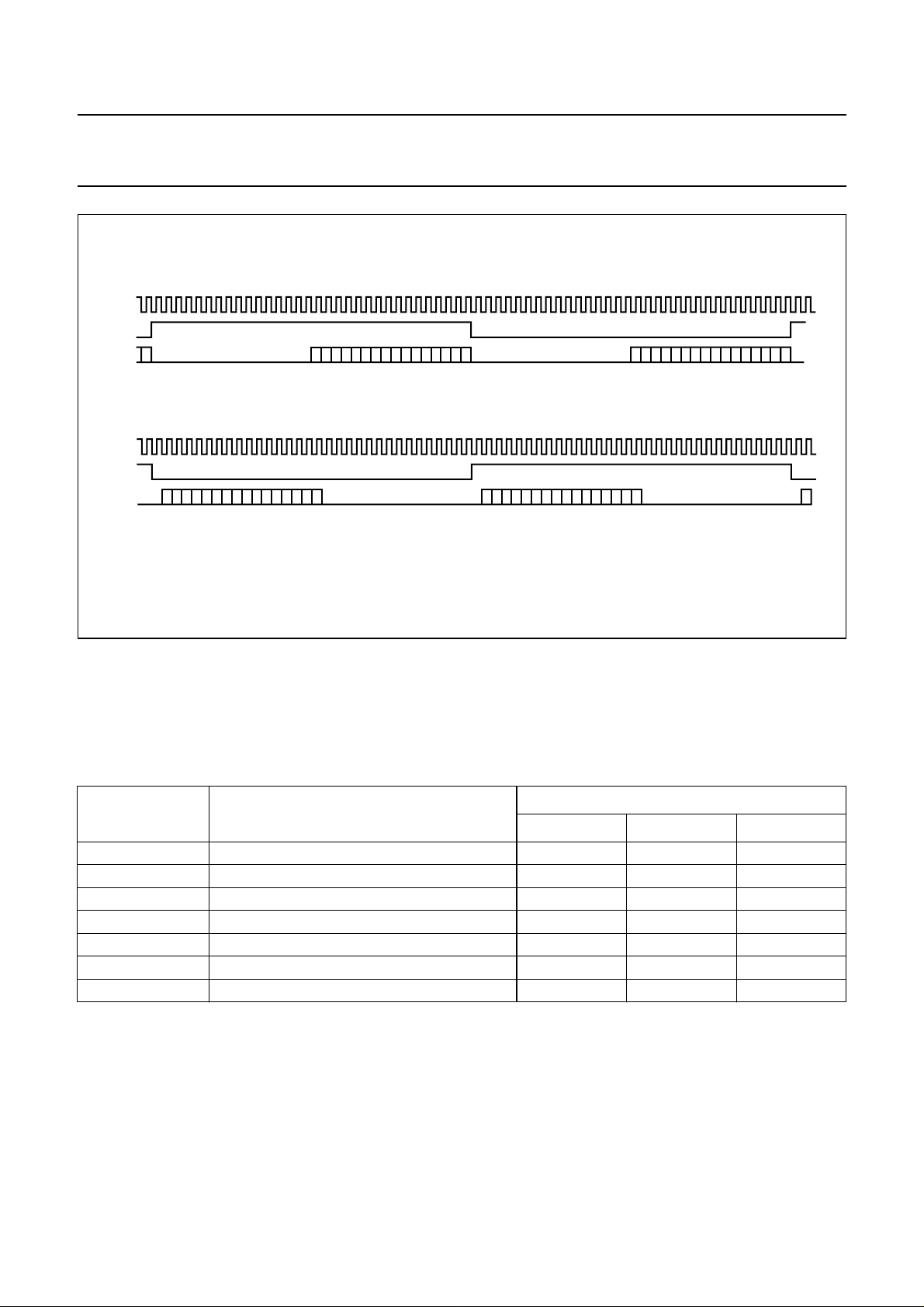

gives the interface mode selection, Fig.3 illustrates the

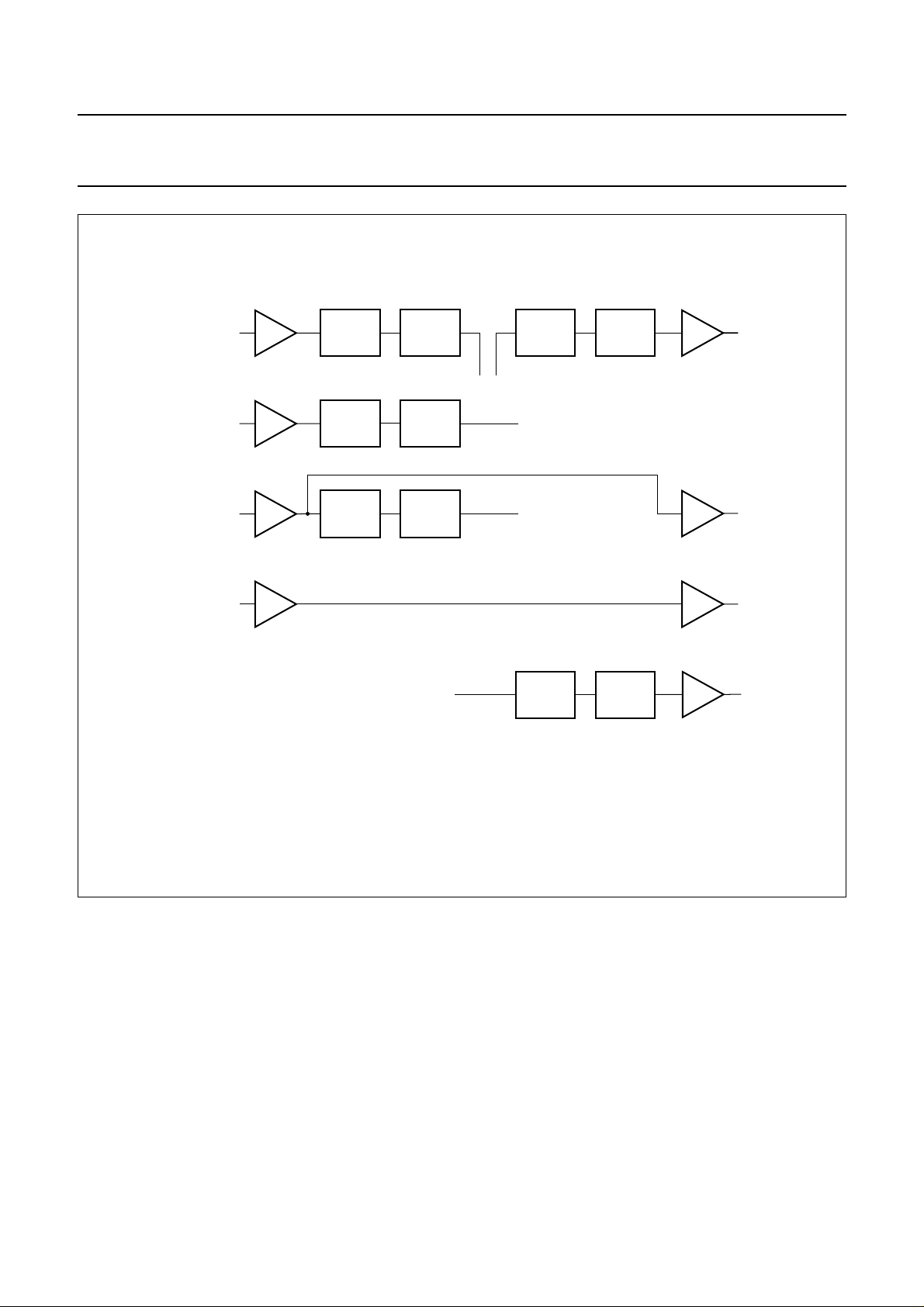

ADC/DAC data formats and Fig.5 the operating modes.
The ADC and DAC channels have separate power-down
modes, to reduce power if one of them is not in use.
An analog loop-through function enables analog-input
analog-output mode without using the ADC and DAC
converters or filters, thereby switching them off to reduce
power consumption.
The section of the TDA1309H is designed to
accommodate two main modes:
1. The 256fs mode in which analog-to-digital and
digital-to-analog can be used
2. The 192fs or 384fs mode (digital-to-analog only).
Table 1 Interface mode selection
DEVICE PIN ADC/DAC FORMATS
MODE 2 MODE 1 MODE 0 TYPE BITS BCK SYS; f
0 0 0 LSB justified 16 32f
0 0 1 LSB justified 16 64f
0 1 0 LSB justified 16 48f
0 1 1 LSB justified 18 64f
100I
101I
110I
111I
2
S-bus 16 32f
2
S-bus 16 64f
2
S-bus 16 48f
2
S-bus 18 64f
s
s
s
s
s
s
s
s
Note
1. Only digital-to-analog.
256f
256f
192f
256f
256f
256f
384f
256f
sys
s
s
(1)
s
s
s
s
(1)
s
s
FIGURE
3(a)
3(b)
4(a)
3(c)
3(d)
3(e)
4(b)
3(f)
Table 2 Clock edge mode
CLKEDGE
ADC DAC
0 falling rising
1 rising falling
1996 Oct 21 7
VALID EDGE OF BCK
Page 8
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
ADC/DAC
handbook, full pagewidth
BCK
WS
SDA
LSB MSB
BCK
WS
SDA
LSB
BCK
WS
SDA
LSB
LEFT
LEFT
MSB
LEFT
MSB
LSB JUSTIFIED 32fs 16-BIT
LSB JUSTIFIED 64fs 16-BIT
LSB JUSTIFIED 64fs 18-BIT
LSB MSB
(a)
LSB
(b)
LSB
(c)
TDA1309H
RIGHT
RIGHT
MSB LSB
RIGHT
MSB
LSB
LSB
MSB
BCK
WS
SDA
BCK
WS
SDA
BCK
WS
SDA
LEFT
LSB MSB
LEFT
MSB
MSB LSB
LSB
LEFT
2
I
S 32fs 16-BIT
RIGHT
LSB MSB
(d)
2
S 64fs 16-BIT
I
RIGHT
MSB LSB MSB
(e)
2
S 64fs 18-BIT
I
RIGHT
MSB
(f)
LSB MSB
LSB
MGE767
Fig.3 DAC and ADC data formats (continued in Fig.4).
1996 Oct 21 8
Page 9
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
ADC/DAC
handbook, full pagewidth
BCK
WS
SDA
LSB MSB LSB MSB LSB
BCK
WS
SDA
LEFT
LEFT
LSB JUSTIFIED 48fs 16-BIT
2
I
S 48
(a)
fs
(b)
TDA1309H
RIGHT
16-BIT
RIGHT
MSBLSBMSBLSBMSB
MGE768
Fig.4 DAC and ADC data formats (continued from Fig.3).
There are different modes in which the TDA1309H can operate. These modes can be selected as shown in Table 3 and
Fig.5. In mode a, the digital filters clock is switched off. Switching over to one of the ADC active modes (b, c or d) initiates
a reset sequence of the digital filters. This mode should be activated immediately after power-on for at least 2 clock
periods.
Table 3 Operating mode selection
DEVICE PIN LOGIC
MODE DESCRIPTION
ANLPTR ADPON DAPON
a not used 0 0 0
b record and playback 0 1 1
c record only 0 1 0
d record and analog loop-through 1 1 0
e analog loop-through 1 0 0
f playback only 0 0 1
g and h reserved 1 X
(1)
1
Note
1. X = don’t care.
1996 Oct 21 9
Page 10
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
ADC/DAC
handbook, full pagewidth
MODE b
MODE c
MODE d
analog
input
analog
input
analog
input
ADC
ANALOG
ADC
ANALOG
ADC
ANALOG
ADC
DIGITAL
FILTER
ADC
DIGITAL
FILTER
ADC
DIGITAL
FILTER
digital
output
digital
input
DAC
DIGITAL
FILTER
digital
output
digital
output
DAC
ANALOG
TDA1309H
analog
output
analog
output
MODE e
MODE f
analog
input
digital
input
DAC
DIGITAL
FILTER
Fig.5 Schematic diagram of operating modes.
DAC
ANALOG
analog
output
analog
output
MGE771
1996 Oct 21 10
Page 11
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
TDA1309H
ADC/DAC
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V
DDA(AD)
V
DDA(DA)
V
DDO
V
DDD
V
DDD(F)
∆V
DD
∆V
SS
V
I
I
IK
I
OK
T
stg
T
amb
V
es
analog supply voltage (pin 8) − 4.5 V
analog supply voltage (pin 25) − 4.5 V
operational amplifiers supply voltage
− 4.5 V
(pin 19)
digital supply voltage (pin 28) − 4.5 V
digital filters supply voltage (pin 34) − 4.5 V
maximum supply voltage difference − 100 mV
maximum ground supply voltage
− 100 mV
difference
maximum input voltage −0.5 VDD+ 0.5 V
DC clamp input diode current VI< −0.5 V or
−±10 mA
VI>VDD+ 0.5 V
DC output clamp diode current;
(output type 2 mA)
VO< −0.5 V or
VO>VDD+ 0.5 V
−±10 mA
storage temperature −65 +150 °C
operating ambient temperature −20 +75 °C
electrostatic handling note 1 −1500 +1500 V
note 2 −300 +300 V
Notes
1. Human body model: C = 100 pF; R = 1.5 kΩ; 3 zaps positive and 3 zaps negative.
2. Machine model: C = 200 pF; L = 0.5 µH; R = 10 Ω; 3 zaps positive and 3 zaps negative.
THERMAL CHARACTERISTICS
SYMBOL PARAMETER VALUE UNIT
R
th j-a
thermal resistance from junction to ambient in free air 60 K/W
QUALITY SPECIFICATION
In accordance with
Handbook”
. The handbook can be ordered using the code 9397 750 00192.
“SNW-FQ-611E”
. The number of this quality specification can be found in the
“Quality Reference
1996 Oct 21 11
Page 12
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
TDA1309H
ADC/DAC
CHARACTERISTICS
V
DDD=VDDA=VDDO=VDDD(F)
mode 1; fi= 1 kHz; 16-bit input data; conversion rate = 44.1 kHz; measurement bandwidth = 10 Hz to 20 kHz; unless
otherwise specified.
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
Supply
V
DDA(AD)
ADC analog supply
voltage (pin 8)
V
DDA(DA)
DAC analog supply
voltage (pin 25)
V
DDO
operational amplifiers
supply voltage (pin 19)
V
DDD
ADC/DAC digital supply
voltage (pin 28)
V
DDD(F)
digital filters supply voltage
(pin 34)
I
DDA(AD)
ADC analog supply current
(pin 8)
I
DDA(DA)
DAC analog supply current
(pin 25)
I
DDO
operational amplifiers
supply current (pin 19)
I
DDD
ADC/DAC digital supply
current (pin 28)
I
DDD(F)
digital filters supply current
(pin 34)
I
DDD(F)q
digital filters quiescent
current
=3V; V
SSD=VSSA=VSSO=VSSD(F)
=0V; T
=25°C; full scale sine wave input;
amb
2.7 3.0 4.0 V
2.7 3.0 4.0 V
2.7 3.0 4.0 V
2.7 3.0 4.0 V
2.7 3.0 4.0 V
− 8 12.5 mA
ADC power-down − 0.3 1 mA
− 3.5 7 mA
DAC power-down − 1.4 2 mA
− 12 18 mA
DAC power-down − 5.5 9 mA
ADC power-down − 711 mA
ADC/DAC power-down − 0 − mA
− 0.2 0.5 mA
− 20 30 mA
DAC power-down − 15 20 mA
ADC power-down − 710 mA
−−100 µA
1996 Oct 21 12
Page 13
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
TDA1309H
ADC/DAC
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
Analog-to-digital converter
V
I(rms)
I
I
∆V
O
RES resolution 16-bit format − 16 − bits
(THD + N)/S total harmonic distortion
S/N idle channel
α
cs
PSRR power supply rejection ratio note 2 −−30 − dB
input voltage (RMS value) note 1 − 0.5 0.54 V
input current
−−10 nA
(pins 13 and 14)
unbalance between
−−0.3 dB
channels
18-bit format − 18 − bits
at 0 dB −−85 −80 dB
plus noise-to-signal ratio
at −20 dB −−75 − dB
at −60 dB; A-weighted −−35 −30 dB
V
= 0 V; A-weighted 90 95 − dB
i
signal-to-noise ratio
channel separation − 90 − dB
Digital-to-analog converter
V
O(rms)
output voltage
note 3 0.43 0.5 0.57 V
(RMS value)
∆V
O
unbalance between
− 0.1 − dB
channels
R
L
C
L
load resistance 5 −− kΩ
load capacitance note 4 −−200 pF
RES resolution 16-bit format − 16 − bits
18-bit format − 18 − bits
(THD + N)/S total harmonic distortion
plus noise-to-signal ratio
at 0 dB −−90 −82 dB
at −20 dB −−75 − dB
at −60 dB; A-weighted −−38 −34 dB
at −60 dB; A-weighted;
−−44 − dB
note 5
S/N idle channel
code 0000H; A-weighted − 104 − dB
signal-to-noise ratio
α
cs
channel separation 90 100 − dB
PSRR power supply rejection ratio note 2 −−30 − dB
Analog loop-through (mode e)
(THD + N)/S total harmonic distortion
at 0 dB −−85 − dB
plus noise-to-signal ratio
S/N idle channel
VI= 0 V; A-weighted − 95 − dB
signal-to-noise ratio
G
ltr
E
os
loop-through gain note 1 −−1.1 − dB
DC offset error − 1.0 − mV
1996 Oct 21 13
Page 14
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
TDA1309H
ADC/DAC
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
Analog-to-digital decimation filter
f
s(o)
f
s(i)
f
sys
B signal bandwidth f
A
sup
α frequency response f
OL
det
Digital-to-analog interpolation filter
f
s(o)
f
s(i)
f
sys
B signal bandwidth f
α frequency response f
SUP out-of-band suppression 40 50 − dB
output sample frequency 28 44.1 54 kHz
input sample frequency − 128f
system clock frequency 256f
= 44.1 kHz 0.02 − 20 kHz
s(o)
aliasing suppression f
− B<fi<2f
s(o)
s(o)
− B;
60 −− dB
s
− 256f
−
s
s
note 6
f
>2f
i
=20Hzto20kHz −0.2 − +0.2 dB
i
− B; note 6 80 −− dB
s(o)
overload detection level note 7 − 0.11 − dB
output sample frequency − 64f
s
−
input sample frequency 28 44.1 54 kHz
system clock frequency 256f
= 44.1 kHz 0.02 − 20 kHz
s(i)
=20Hzto20kHz −0.2 − +0.2 dB
i
s
− 256f
s
Digital part; note 8
I
NPUTS (PINS 1 TO 4, 6, 29 TO 32, 35 TO 38, 40 AND 42 TO 44)
V
IL
I
LOW level input current VI=V
IL
I
HIGH level input current VI=V
IH
C
I(max)
LOW level input voltage −0.5 − 0.3V
SSD
DDD
maximum input
capacitance
INPUTS (PINS 1 TO 4, 6, 29 TO 32, 35 TO 38, 40 AND 42)
V
IH
HIGH level input voltage 0.7V
INPUTS (PINS 43 AND 44)
V
IH
HIGH level input voltage 0.7V
OUTPUTS (PINS 5 AND 41)
V
OL
V
OH
I
3-state leakage current VO=V
OZ
LOW level output voltage IOL= 2 mA −−0.5 V
HIGH level output voltage IOH= −2 mA V
or V
DDD
SSD
DDD
V
−−10 µA
−−10 µA
−−10 pF
DDD
DDD
− 0.5 −− V
DDD
− 5.5 V
− V
DDD
+ 0.5 V
−−10 µA
1996 Oct 21 14
Page 15
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
TDA1309H
ADC/DAC
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
Timing
BIT CLOCK (BCK) RELATED SIGNALS (see Fig.6); CLKEDGE = 0
T
cy
t
HC
t
LC
t
r
t
f
t
suWS
t
hWS
t
suDA
t
hDA
t
hAD
t
dAD
SYSTEM CLOCK (SYSCLK) RELATED SIGNALS (see Fig.7)
T
cy
t
HC
t
LC
t
r
t
f
Notes
1. VI for full scale digital output is a function of V
−1.1 dB in the digital domain).
2. V
ripple
3. At full scale digital input; no de-emphasis; V
4. For a load capacitance greater than 33 pF a series resistor of 200 Ω is recommended.
5. 18 bits input data.
6. The aliasing suppression frequency is mirrored around 128fs.
7. V
DDA
8. All digital voltages = 2.7 to 4.0 V; all ground supply voltages = 0 V; T
clock period 300 −− ns
clock HIGH time 100 −− ns
clock LOW time 100 −− ns
rise time −−20 ns
fall time −−20 ns
set-up time WS to rising
20 −− ns
edge of BCK
hold time WS to rising edge
0 −− ns
of BCK
set-up time SDA (DAC) to
20 −− ns
rising edge of BCK
hold time SDA (DAC) to
0 −− ns
rising edge of BCK
hold time SDA (ADC) to
0 −− ns
falling edge of BCK
delay time SDA (ADC) to
−−80 ns
falling edge of BCK
clock period 72 −− ns
clock HIGH time 22 −− ns
clock LOW time 22 −− ns
rise time −−10 ns
fall time −−10 ns
, 0.5 V (RMS) (at 3 V the digital voltages are equivalent to
DDA(AD)
= 1% of the supply voltage and f
ripple
= 100 Hz.
is a function of V
O(rms)
DDA(DA)
.
= 3 V; indicated digital level is with respect to −1.1 dB (no overload).
= −20 to +75 °C.
amb
1996 Oct 21 15
Page 16
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
ADC/DAC
handbook, full pagewidth
CLKEDGE = 1
CLKEDGE = 0
BCK
WS (LRCK)
SDA (DAC)
t
HC
t
r
T
TDA1309H
cy
t
f
t
LC
V
H
V
L
t
suWS
t
suDA
t
hWS
t
hDA
SDA (ADC)
t
t
hAD
dAD

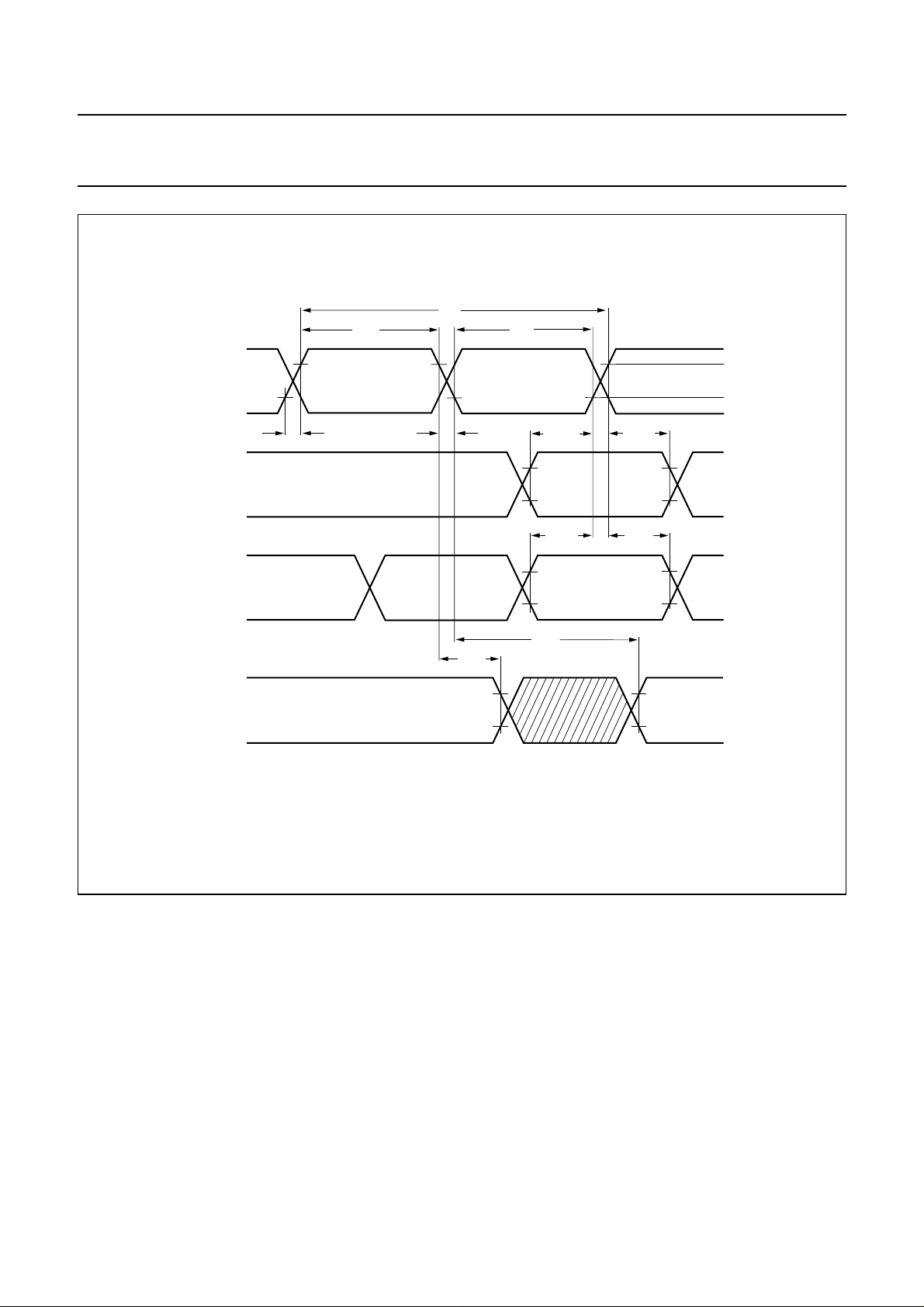

Fig.6 Serial timing of BCK related signals.
MGE769
1996 Oct 21 16
Page 17
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
ADC/DAC
handbook, full pagewidth
SYSCLK
t
HC
t
r
T
cy
t
f
TDA1309H
t
LC
MGE770

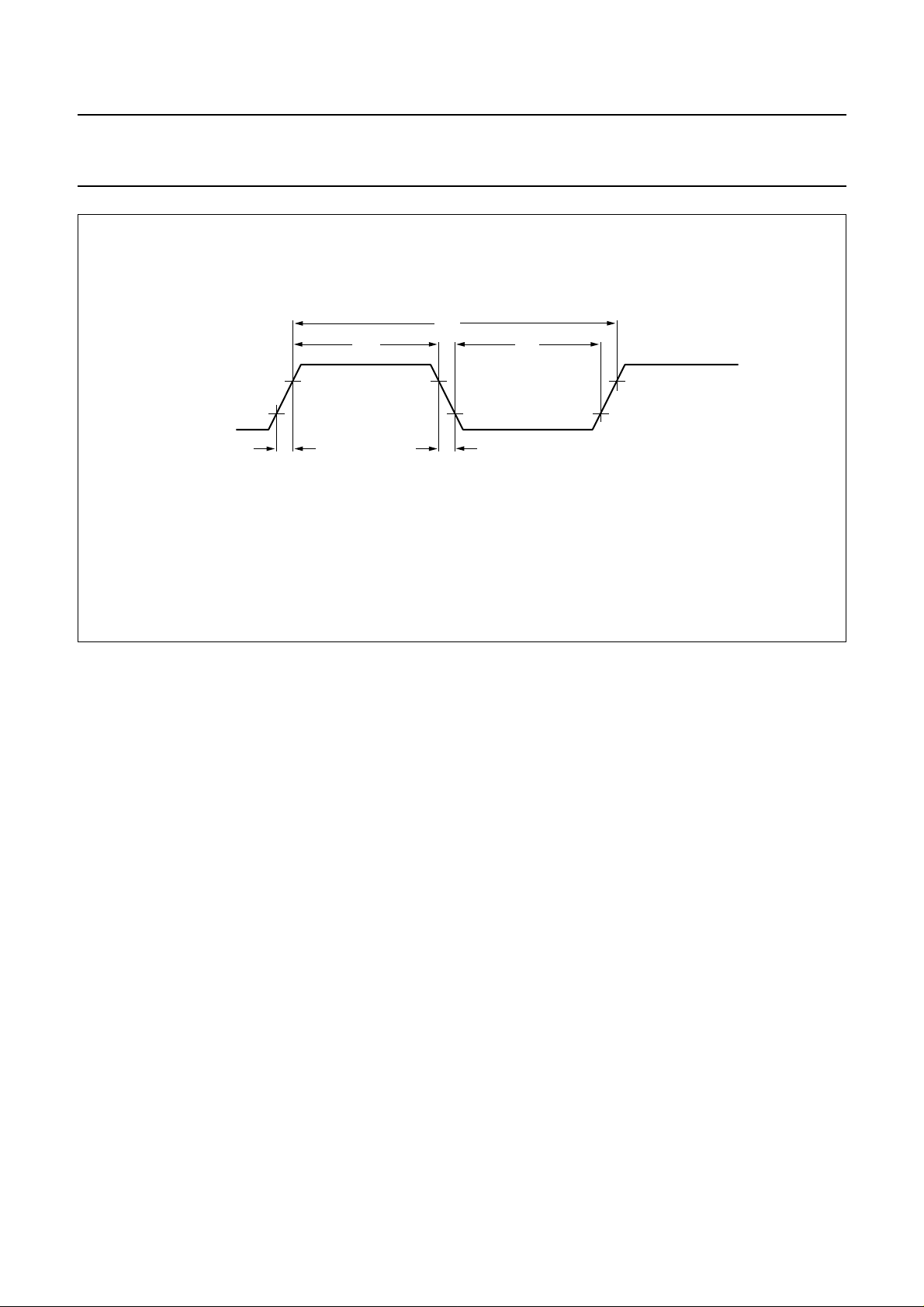

Fig.7 Serial timing of SYSCLK related signals.
1996 Oct 21 17
Page 18
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
ADC/DAC
PACKAGE OUTLINE
QFP44: plastic quad flat package; 44 leads (lead length 1.3 mm); body 10 x 10 x 1.75 mm
c
y
X
A
33 23
34
22
Z
E
TDA1309H
SOT307-2
e
w M
b
p
pin 1 index
44
1
w M
b
0.25
p
H
0.40
0.20
D
D
D
0.25
10.1
0.14
9.9
e
DIMENSIONS (mm are the original dimensions)
mm
A
max.
2.10
0.25
0.05
1.85
1.65
UNIT A1A2A3bpcE
Note
1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.
12
11
Z
D
B
v M
0 2.5 5 mm
scale
(1)
(1) (1)(1)
eH
H
10.1
9.9
12.9
0.8 1.3
12.3
v M
D
H
E
E
A
B
LLpQZywv θ
E
12.9
12.3
0.95
0.55
A
2
A
A
1
detail X
0.85
0.75
0.15 0.10.15
Q
(A )
3
θ
L
p
L
Z
E
D
1.2
0.8
1.2
0.8
o
10
o
0
OUTLINE
VERSION
SOT307-2
IEC JEDEC EIAJ
REFERENCES
1996 Oct 21 18
EUROPEAN
PROJECTION
ISSUE DATE
92-11-17
95-02-04
Page 19
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
ADC/DAC
SOLDERING
Introduction
There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.
This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in
“IC Package Databook”
our
Reflow soldering
Reflow soldering techniques are suitable for all QFP
packages.
The choice of heating method may be influenced by larger
plastic QFP packages (44 leads, or more). If infrared or
vapour phase heating is used and the large packages are
not absolutely dry (less than 0.1% moisture content by
weight), vaporization of the small amount of moisture in
them can cause cracking of the plastic body. For more
information, refer to the Drypack chapter in our
Reference Handbook”
Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.
Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.
Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.
(order code 9398 652 90011).
“Quality
(order code 9398 510 63011).
TDA1309H
Wave soldering
Wave soldering is not recommended for QFP packages.
This is because of the likelihood of solder bridging due to
closely-spaced leads and the possibility of incomplete
solder penetration in multi-lead devices.
If wave soldering cannot be avoided, the following
conditions must be observed:
• A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave)
soldering technique should be used.
• The footprint must be at an angle of 45° to the
board direction and must incorporate solder
thieves downstream and at the side corners.
Even with these conditions, do not consider wave
soldering the following packages:
QFP52 (SOT379-1), QFP100 (SOT317-1),
QFP100 (SOT317-2), QFP100 (SOT382-1) or
QFP160 (SOT322-1).
During placement and before soldering, the package
must be fixed with a droplet of adhesive. The adhesive
can be applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.
Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.
A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.
Repairing soldered joints
Fix the component by first soldering two diagonallyopposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead.
Contact time must be limited to 10 seconds at up to
300 °C. When using a dedicated tool, all other leads can
be soldered in one operation within 2 to 5 seconds
between 270 and 320 °C.
1996 Oct 21 19
Page 20
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
TDA1309H
ADC/DAC
DEFINITIONS
Data sheet status
Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.
Limiting values
Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.2
1996 Oct 21 20
Page 21
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
ADC/DAC
NOTES
TDA1309H
1996 Oct 21 21
Page 22
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
ADC/DAC
NOTES
TDA1309H
1996 Oct 21 22
Page 23
Philips Semiconductors Product specification
Low-voltage low-power stereo bitstream
ADC/DAC
NOTES
TDA1309H
1996 Oct 21 23
Page 24
Philips Semiconductors – a worldwide company
Argentina: see South America
Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,
Tel. +61 2 9805 4455, Fax. +61 2 9805 4466
Austria: Computerstr. 6, A-1101 WIEN, P.O. Box 213,
Tel. +43 1 60 101, Fax. +43 1 60 101 1210
Belarus: Hotel Minsk Business Center, Bld. 3, r. 1211, Volodarski Str. 6,
220050 MINSK, Tel. +375 172 200 733, Fax. +375 172 200 773
Belgium: see The Netherlands
Brazil: seeSouth America
Bulgaria: Philips Bulgaria Ltd., Energoproject, 15thfloor,
51 James Bourchier Blvd., 1407 SOFIA,
Tel. +359 2 689 211, Fax. +359 2 689 102
Canada: PHILIPS SEMICONDUCTORS/COMPONENTS,
Tel. +1 800 234 7381
China/Hong Kong: 501 Hong Kong Industrial Technology Centre,
72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. +852 2319 7888, Fax. +852 2319 7700
Colombia: see South America
Czech Republic: see Austria
Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S,
Tel. +45 32 88 2636, Fax. +45 31 57 1949
Finland: Sinikalliontie 3, FIN-02630 ESPOO,
Tel. +358 9 615800, Fax. +358 9 61580/xxx
France: 4 Rue du Port-aux-Vins, BP317, 92156 SURESNES Cedex,
Tel. +33 1 40 99 6161, Fax. +33 1 40 99 6427
Germany: Hammerbrookstraße 69, D-20097 HAMBURG,
Tel. +49 40 23 53 60, Fax. +49 40 23 536 300
Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS,
Tel. +30 1 4894 339/239, Fax. +30 1 4814 240
Hungary: seeAustria
India: Philips INDIA Ltd, Shivsagar Estate, A Block, Dr. Annie Besant Rd.
Worli, MUMBAI 400 018, Tel. +91 22 4938 541, Fax. +91 22 4938 722
Indonesia: see Singapore
Ireland: Newstead, Clonskeagh, DUBLIN 14,
Tel. +353 1 7640 000, Fax. +353 1 7640 200
Israel: RAPAC Electronics, 7 Kehilat Saloniki St, TEL AVIV 61180,
Tel. +972 3 645 0444, Fax. +972 3 649 1007
Italy: PHILIPS SEMICONDUCTORS, Piazza IV Novembre 3,
20124 MILANO, Tel. +39 2 6752 2531, Fax. +39 2 6752 2557
Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,
Tel. +81 3 3740 5130, Fax. +81 3 3740 5077
Korea: Philips House, 260-199 Itaewon-dong, Yongsan-ku, SEOUL,
Tel. +82 2 709 1412, Fax. +82 2 709 1415
Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, SELANGOR,
Tel. +60 3 750 5214, Fax. +60 3 757 4880
Mexico: 5900 Gateway East, Suite 200, EL PASO, TEXAS 79905,
Tel. +9-5 800 234 7381
Middle East: see Italy
Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,
Tel. +31 40 27 82785, Fax. +31 40 27 88399
New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,
Tel. +64 9 849 4160, Fax. +64 9 849 7811
Norway: Box 1, Manglerud 0612, OSLO,
Tel. +47 22 74 8000, Fax. +47 22 74 8341
Philippines: Philips Semiconductors Philippines Inc.,
106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. +63 2 816 6380, Fax. +63 2 817 3474
Poland: Ul. Lukiska 10, PL 04-123 WARSZAWA,
Tel. +48 22 612 2831, Fax. +48 22 612 2327
Portugal: see Spain
Romania: see Italy
Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW,
Tel. +7 095 247 9145, Fax. +7 095 247 9144
Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,
Tel. +65 350 2538, Fax. +65 251 6500
Slovakia: see Austria
Slovenia: see Italy
South Africa: S.A. PHILIPS Pty Ltd., 195-215 Main Road Martindale,
2092 JOHANNESBURG, P.O. Box 7430 Johannesburg 2000,
Tel. +27 11 470 5911, Fax. +27 11 470 5494
South America: Rua do Rocio 220, 5th floor, Suite 51,
04552-903 São Paulo, SÃO PAULO - SP, Brazil,
Tel. +55 11 821 2333, Fax. +55 11 829 1849
Spain: Balmes 22, 08007 BARCELONA,
Tel. +34 3 301 6312, Fax. +34 3 301 4107
Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM,
Tel. +46 8 632 2000, Fax. +46 8 632 2745
Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,
Tel. +41 1 488 2686, Fax. +41 1 481 7730
Taiwan: PHILIPS TAIWAN Ltd., 23-30F, 66,
Chung Hsiao West Road, Sec. 1, P.O. Box 22978,
TAIPEI 100, Tel. +886 2 382 4443, Fax. +886 2 382 4444
Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,
209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260,
Tel. +66 2 745 4090, Fax. +66 2 398 0793
Turkey: Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,
Tel. +90 212 279 2770, Fax. +90 212 282 6707
Ukraine: PHILIPS UKRAINE, 4 Patrice Lumumba str., Building B, Floor 7,
252042 KIEV, Tel. +380 44 264 2776, Fax. +380 44 268 0461
United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes,
MIDDLESEX UB3 5BX, Tel. +44 181 730 5000, Fax. +44 181 754 8421
United States: 811 East Arques Avenue, SUNNYVALE, CA 94088-3409,
Tel. +1 800 234 7381
Uruguay: see South America
Vietnam: see Singapore
Yugoslavia: PHILIPS, Trg N. Pasica 5/v, 11000 BEOGRAD,
Tel. +381 11 625 344, Fax.+381 11 635 777
For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications,
Building BE-p, P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax. +31 40 27 24825
© Philips Electronics N.V. 1996 SCA52
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
Internet: http://www.semiconductors.philips.com
Printed in The Netherlands 517021/1200/05/pp24 Date of release: 1996 Oct 21 Document order number: 9397 750 01359
Loading...
