TDA1015

1 to 4 W audio power amplifier

November 1982 2

Philips Semiconductors Product specification

1 to 4 W audio power amplifier TDA1015

The TDA1015 is a monolithic integrated audio amplifier circuit in a 9-lead single in-line (SIL) plastic package. The device
is especially designed for portable radio and recorder applications and delivers up to 4 W in a 4 Ω load impedance. The
very low applicable supply voltage of 3,6 V permits 6 V applications.

Special features are:

• single in-line (SIL) construction for easy mounting

• separated preamplifier and power amplifier

• high output power

• thermal protection

• high input impedance

• low current drain

• limited noise behaviour at radio frequencies

QUICK REFERENCE DATA

PACKAGE OUTLINE

9-lead SIL; plastic (SOT110B); SOT110-1; 1996 August 13.

Supply voltage range V

P

3,6 to 18 V

Peak output current I

OM

max. 2,5 A

Output power at d

tot

= 10%

V

P

= 12 V; RL = 4 Ω P

o

typ. 4,2 W

V

P

= 9 V; RL = 4 Ω P

o

typ. 2,3 W

V

P

= 6 V; RL = 4 Ω P

o

typ. 1,0 W

Total harmonic distortion at P

o

= 1 W; RL = 4 Ω d

tot

typ. 0,3 %

Input impedance

preamplifier (pin 8) |Zi| > 100 kΩ
power amplifier (pin 6) |Z

i

| typ. 20 kΩ

Total quiescent current I

tot

typ. 14 mA

Operating ambient temperature T

amb

−25 to + 150 °C

Storage temperature T

stg

−55 to + 150 °C

November 1982 3

Philips Semiconductors Product specification

1 to 4 W audio power amplifier TDA1015

Fig.1 Circuit diagram.

November 1982 4

Philips Semiconductors Product specification

1 to 4 W audio power amplifier TDA1015

RATINGS

Limiting values in accordance with Absolute Maximum System (IEC 134)

HEATSINK DESIGN

Assume V

P

= 12 V; RL = 4 Ω; T

amb

= 45 °C maximum.
The maximum sine-wave dissipation is 1,8 W.
R

th j-a=Rth j-tab+Rth tab-h+Rth h-a

= = 58 K/W.

Where R

th j-a

of the package is 45 K/W, so no external heatsink is required.

Supply voltage V

P

max. 18 V

Peak output current I

OM

max. 2,5 A
Total power dissipation see derating curve Fig.2
Storage temperature T

stg

−55 to + 150 °C

Operating ambient temperature T

amb

−25 to + 150 °C

A.C. short-circuit duration of load

during sine-wave drive; VP = 12 V t

sc

max. 100 hours

Fig.2 Power derating curve.

150 45–

18,

----------------------

November 1982 5

Philips Semiconductors Product specification

1 to 4 W audio power amplifier TDA1015

D.C. CHARACTERISTICS

A.C. CHARACTERISTICS

T

amb

= 25 °C; VP = 12 V; RL = 4 Ω; f = 1 kHz unless otherwise specified; see also Fig.3.

Supply voltage range V

P

3,6 to 18 V

Repetitive peak output current I

ORM

<2A

Total quiescent current at V

P

= 12 V I

tot

typ. 14 mA
<25mA

A.F. output power at d

tot

= 10% (note 1)
with bootstrap:
V

P

= 12 V; RL = 4 Ω P

o

typ. 4,2 W

V

P

= 9 V; RL = 4 Ω P

o

typ. 2,3 W

V

P

= 6 V; RL = 4 Ω P

o

typ. 1,0 W
without bootstrap:
V

P

= 12 V; RL = 4 Ω P

o

typ. 3,0 W

Voltage gain:

preamplifier (note 2) G

v1

typ. 23 dB
power amplifier G

v2

typ. 29 dB
total amplifier G

v tot

typ. 52 dB

49 to 55 dB

Total harmonic distortion at P

o

= 1,5 W d

tot

typ. 0,3 %

< 1,0 %

Frequency response; −3 dB (note 3) B 60 Hz to 15 kHz
Input impedance:

preamplifier (note 4) |Z

i1

|

> 100 kΩ

typ. 200 kΩ
power amplifier |Z

i2

| typ. 20 kΩ

Output impedance preamplifier |Z

o1

| typ. 1 kΩ

Output voltage preamplifier (r.m.s. value); d

tot

< 1% (note 2) V

o(rms)

typ. 0,8 V

Noise output voltage (r.m.s. value; note 5)

RS = 0 Ω V

n(rms)

typ. 0,2 mV
R

S

= 10 kΩ V

n(rms)

typ. 0,5 mV

Noise output voltage at f = 500 kHz (r.m.s. value); B = 5 kHz; R

S

= 0 Ω V

n(rms)

typ. 8 µV

Ripple rejection (note 6); f = 100 Hz RR typ. 38 dB

November 1982 6

Philips Semiconductors Product specification

1 to 4 W audio power amplifier TDA1015

Notes

1. Measured with an ideal coupling capacitor to the speaker load.

2. Measured with a load resistor of 20 kΩ.

3. Measured at Po = 1 W; the frequency response is mainly determined by C1 and C3 for the low frequencies and by
C4 for the high frequencies.

4. Independent of load impedance of preamplifier.

5. Unweighted r.m.s. noise voltage measured at a bandwidth of 60 Hz to 15 kHz (12 dB/octave).

6. Ripple rejection measured with a source impedance between 0 and 2 kΩ (maximum ripple amplitude: 2 V).

7. The tab must be electrically floating or connected to the substrate (pin 9).

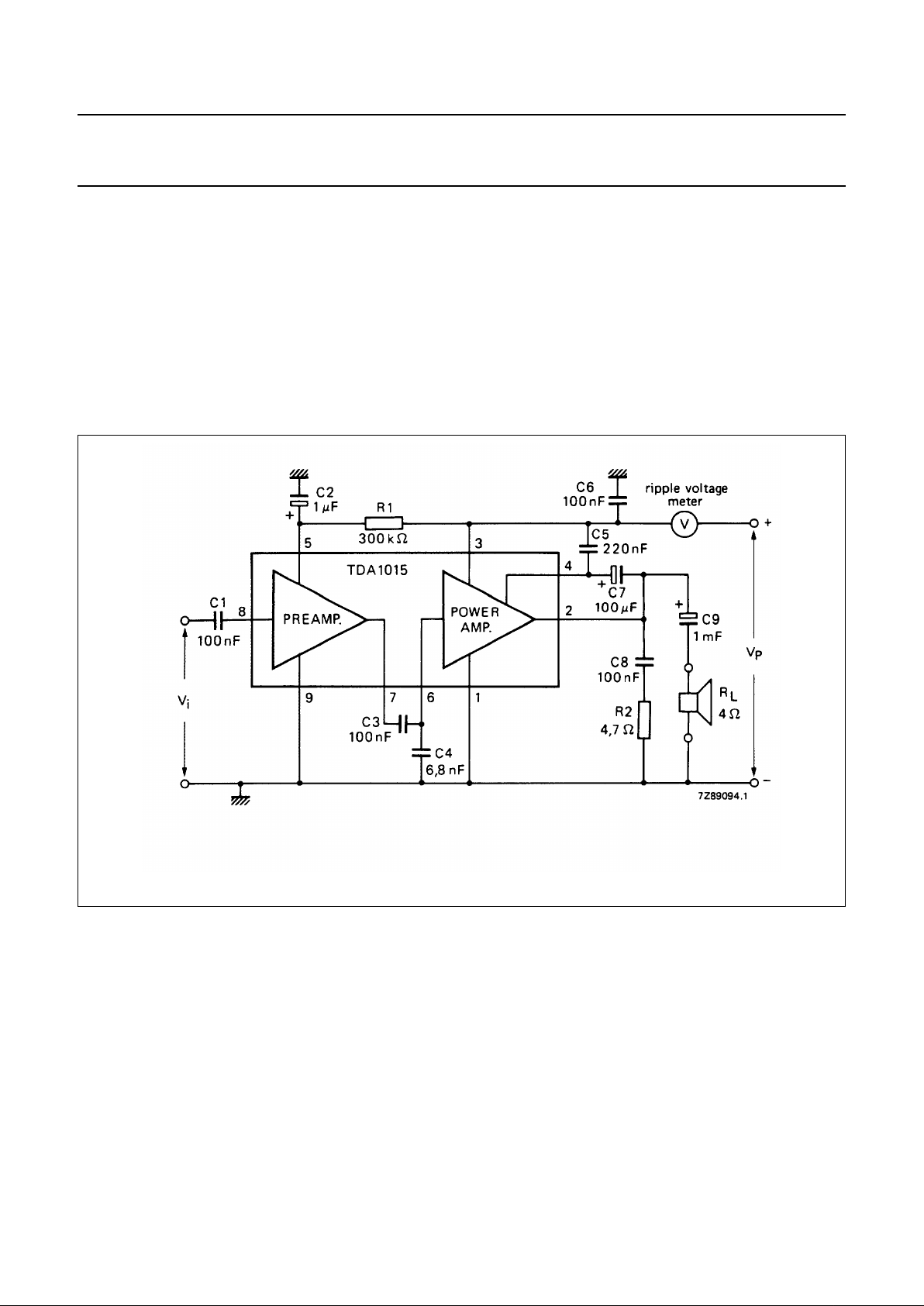

Fig.3 Test circuit.

November 1982 7

Philips Semiconductors Product specification

1 to 4 W audio power amplifier TDA1015

APPLICATION INFORMATION

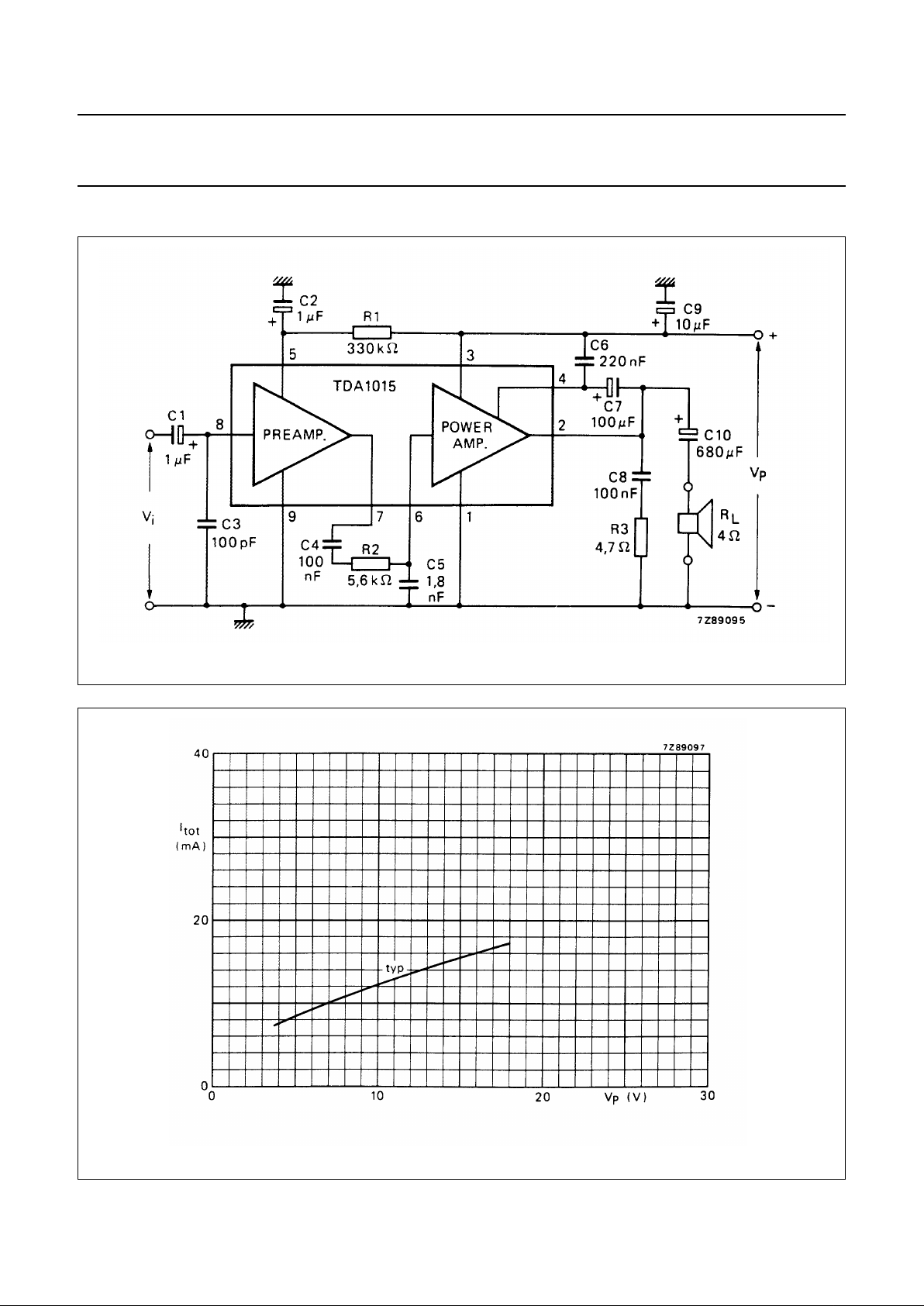

Fig.4 Circuit diagram of a 1 to 4 W amplifier.

Fig.5 Total quiescent current as a function of supply voltage.

November 1982 8

Philips Semiconductors Product specification

1 to 4 W audio power amplifier TDA1015

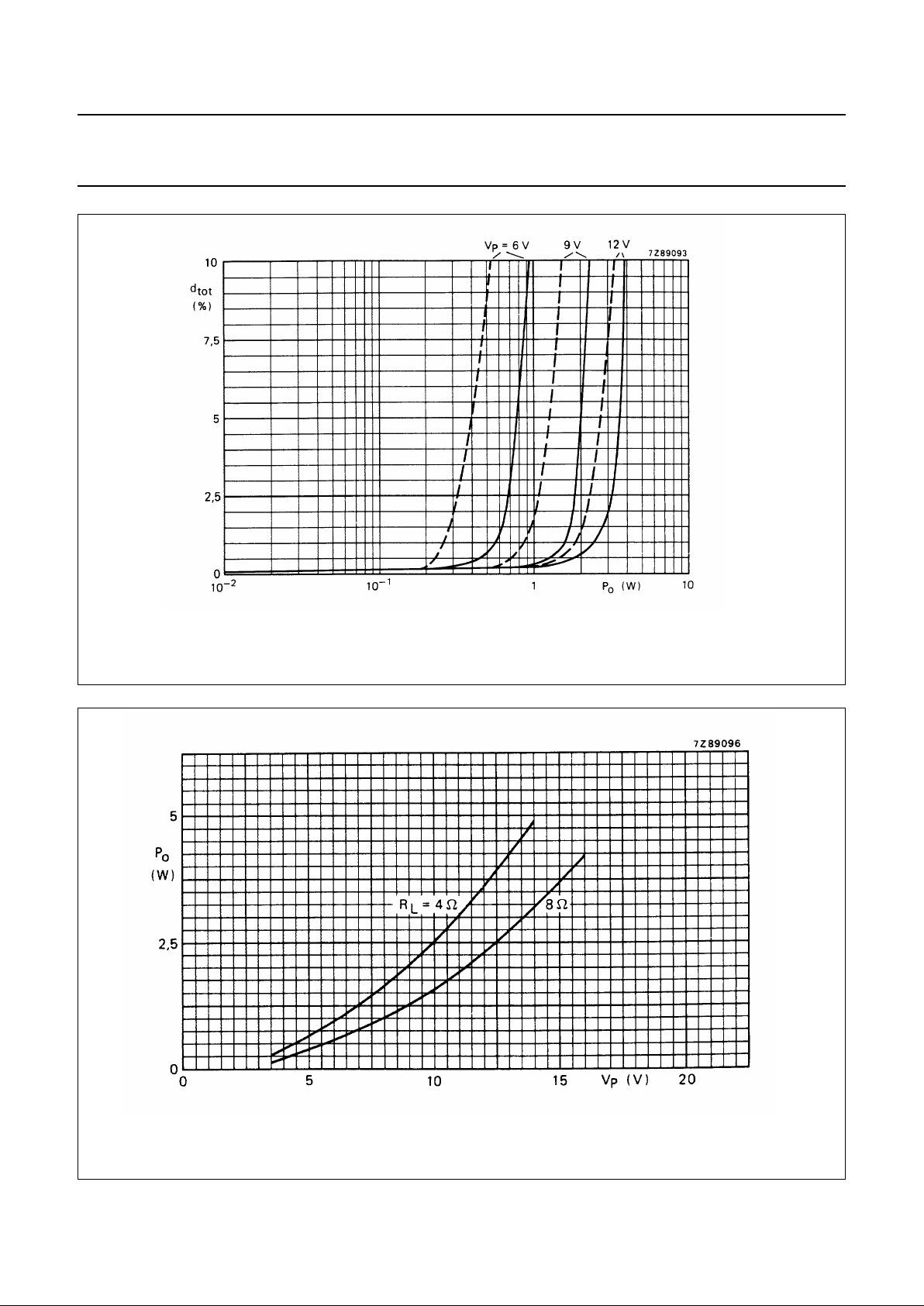

Fig.6 Total harmonic distortion as a function of output power across RL;  with bootstrap; −−− without

bootstrap; f = 1 kHz; typical values. The available output power is 5% higher when measured at pin 2
(due to series resistance of C10).

Fig.7 Output power across RLas a function of supply voltage with bootstrap; d

tot

= 10%; typical values.

The available output power is 5% higher when measured at pin 2 (due to series resistance of C10).

November 1982 9

Philips Semiconductors Product specification

1 to 4 W audio power amplifier TDA1015

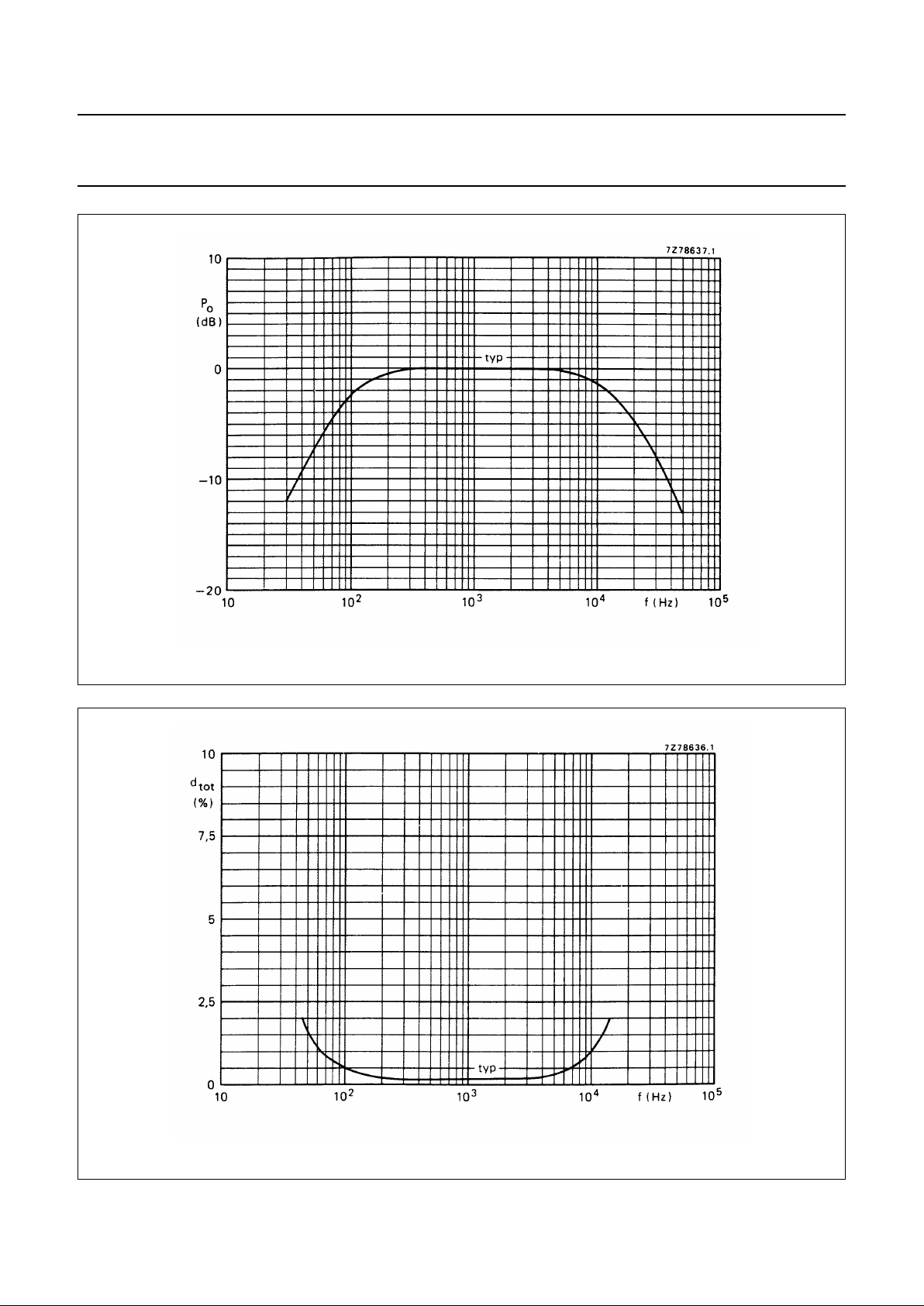

Fig.8 Voltage gain as a function of frequency; Porelative to 0 dB = 1 W; VP= 12 V; RL= 4 Ω.

Fig.9 Total harmonic distortion as a function of frequency; P = 1 W; VP= 12 V; RL= 4 Ω.

November 1982 10

Philips Semiconductors Product specification

1 to 4 W audio power amplifier TDA1015

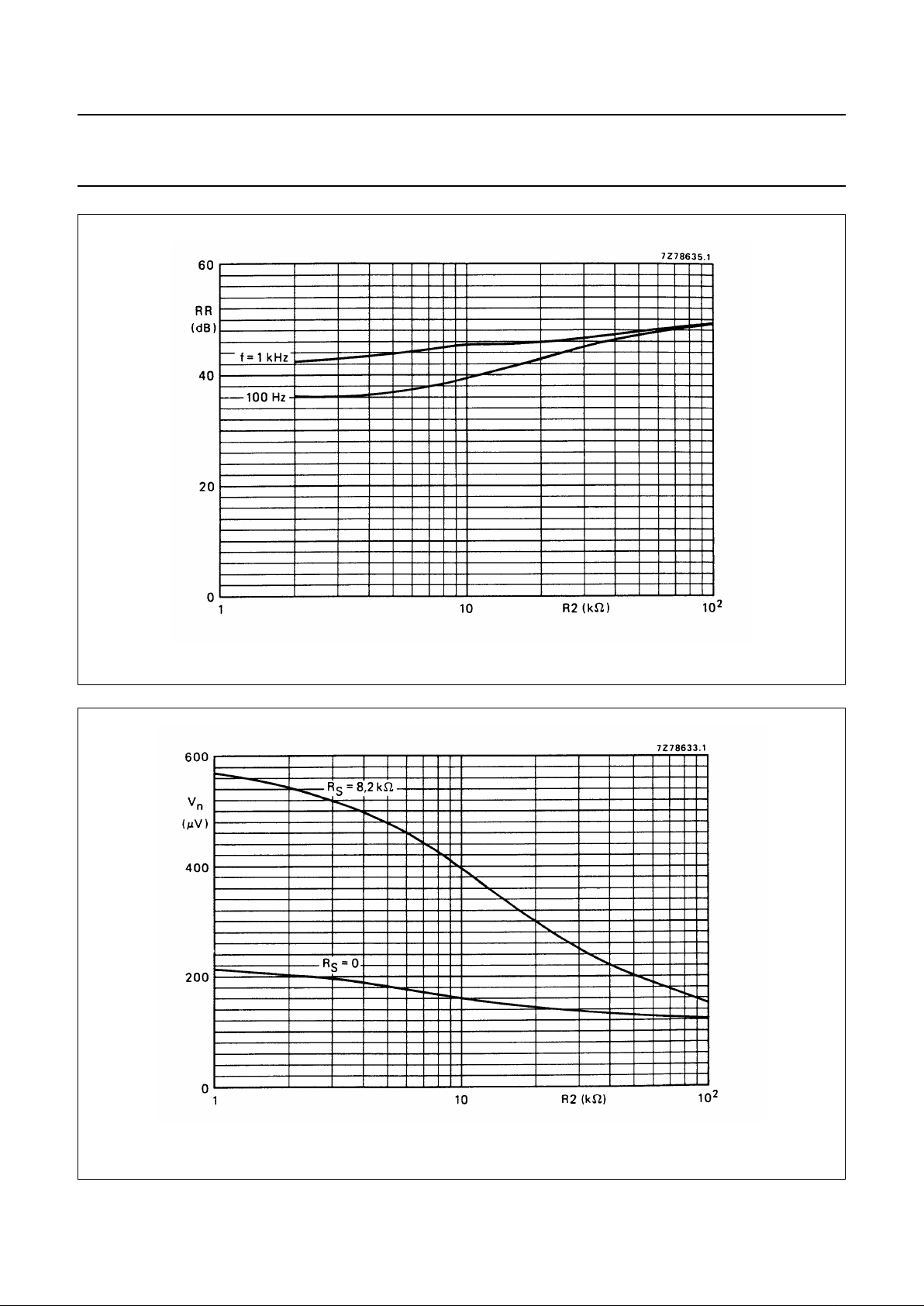

Fig.10 Ripple rejection as a function of R2 (see Fig.4); RS= 0; typical values.

Fig.11 Noise output voltage as a function of R2 (see Fig.4); measured according to A-curve; capacitor C5 is

adapted for obtaining a constant bandwidth.

November 1982 11

Philips Semiconductors Product specification

1 to 4 W audio power amplifier TDA1015

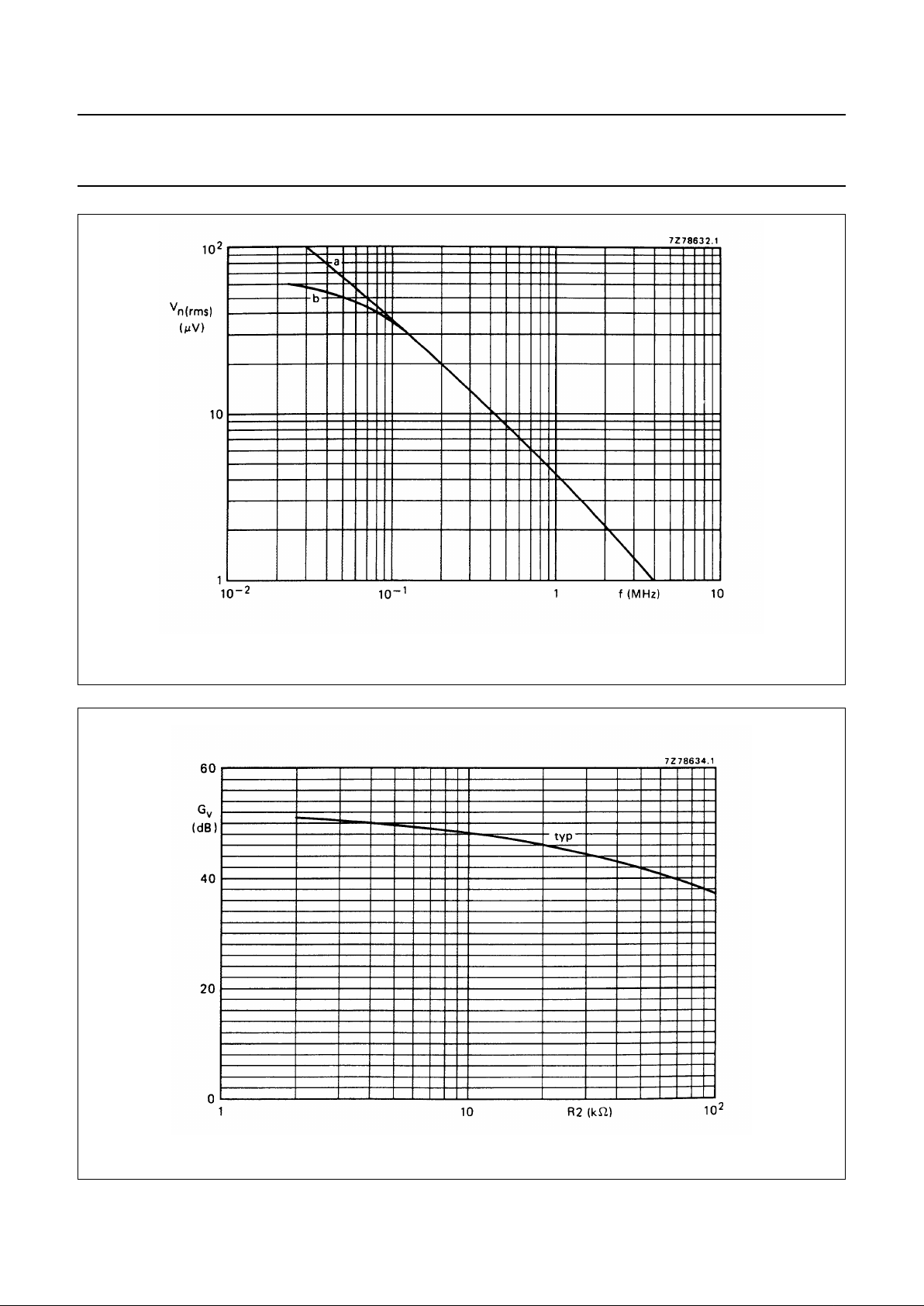

Fig.12 Noise output voltage as a function of frequency; curve a: total amplifier; curve b: power amplifier;

B = 5 kHz; RS= 0; typical values.

Fig.13 Voltage gain as a function of R2 (see Fig.4).

November 1982 12

Philips Semiconductors Product specification

1 to 4 W audio power amplifier TDA1015

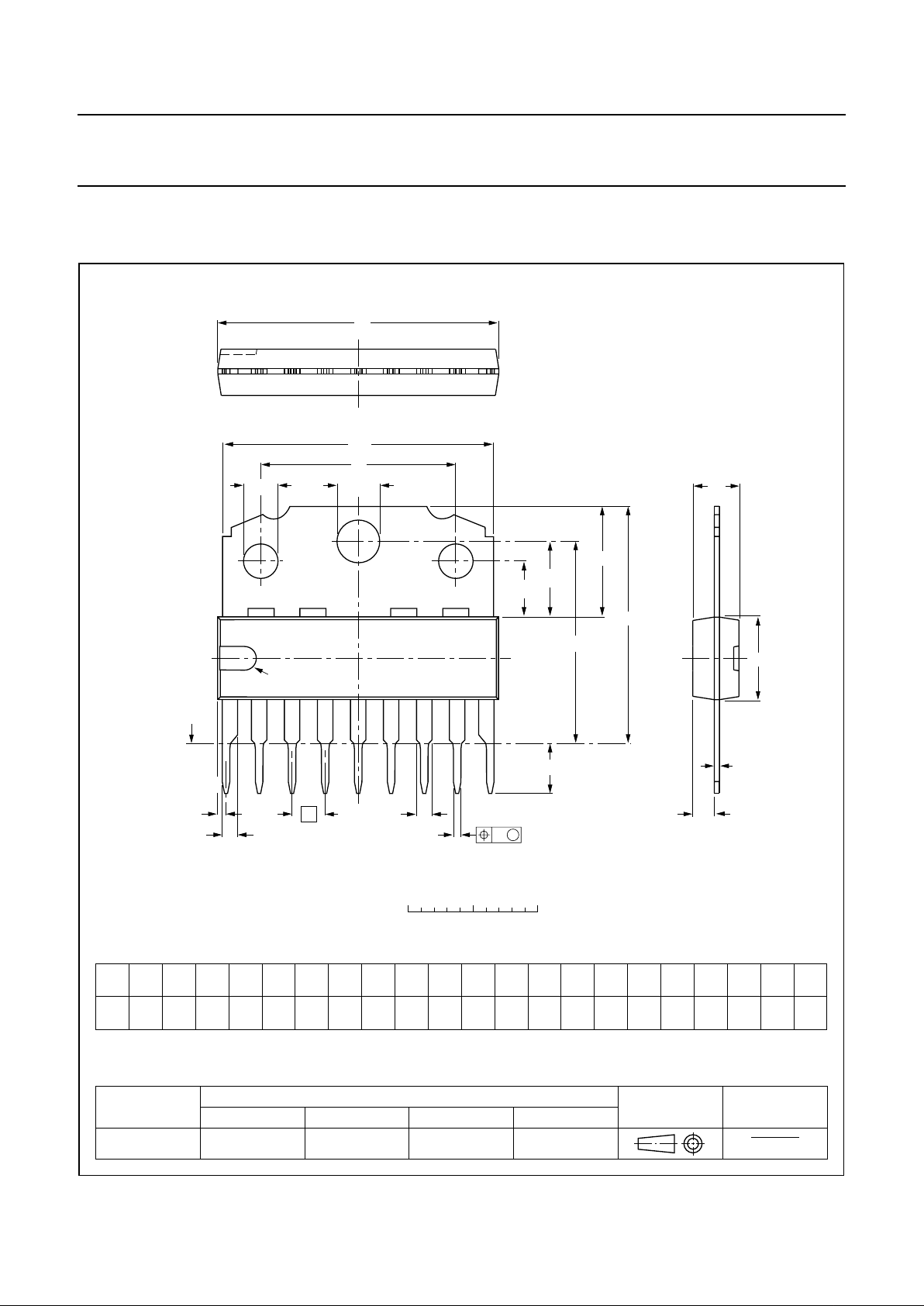

PACKAGE OUTLINE

UNIT

A

A

max.

2

A

3

b

1

D

1

b

2

bcD

(1)

E

(1)

Z

max.

(1)

eLPP

1

q1q

2

q

REFERENCES

OUTLINE
VERSION

EUROPEAN

PROJECTION

ISSUE DATE

IEC JEDEC EIAJ

mm

18.5

17.8

3.7

8.7

8.0

A

4

15.8

15.4

1.40

1.14

0.67

0.50

1.40

1.14

0.48

0.38

21.8

21.4

21.4

20.7

6.48

6.20

3.4

3.2

2.54

1.0

5.9

5.7

4.4

4.2

3.9

3.4

15.1

14.9

Q

1.75

1.55

DIMENSIONS (mm are the original dimensions)

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

2.75

2.50

SOT110-1

92-11-17
95-02-25

0 5 10 mm

scale

0.25

w

D

E

A

A

c

A

2

3

A

4

q

1

q

2

L

Q

w M

b

b

1

b

2

D

1

P

q

1

Z

e

19

P

seating plane

pin 1 index

SIL9MPF: plastic single in-line medium power package with fin; 9 leads

SOT110-1

November 1982 13

Philips Semiconductors Product specification

1 to 4 W audio power amplifier TDA1015

SOLDERING
Introduction

There is no soldering method that is ideal for all IC packages. Wave soldering is often preferred when through-hole and
surface mounted components are mixed on one printed-circuit board. However, wave soldering is not always suitable for
surface mounted ICs, or for printed-circuits with high population densities. In these situations reflow soldering is often
used.

This text gives a very brief insight to a complex technology. A more in-depth account of soldering ICs can be found in our

“IC Package Databook”

(order code 9398 652 90011).

Soldering by dipping or by wave

The maximum permissible temperature of the solder is 260 °C; solder at this temperature must not be in contact with the
joint for more than 5 seconds. The total contact time of successive solder waves must not exceed 5 seconds.

The device may be mounted up to the seating plane, but the temperature of the plastic body must not exceed the
specified maximum storage temperature (T

stg max

). If the printed-circuit board has been pre-heated, forced cooling may

be necessary immediately after soldering to keep the temperature within the permissible limit.

Repairing soldered joints

Apply a low voltage soldering iron (less than 24 V) to the lead(s) of the package, below the seating plane or not more
than 2 mm above it. If the temperature of the soldering iron bit is less than 300 °C it may remain in contact for up to
10 seconds. If the bit temperature is between 300 and 400 °C, contact may be up to 5 seconds.
