TCYS5201
Vishay Telefunken
Transmissive Optical Sensor with Schmitt Trigger Logic
Output
Description
This device consists of a transmissive sensor with a
3-pin connector. The operating wavelength is
l
= 950 nm. The detector consists of a photologic-IC
with Schmitt trigger output.
Applications
D
Detection of opaque material, documents etc
D
Paper position sensor in copy machines
D
Position sensor for shaft encoder
95 10755
Features
D
Output:
‘LOW’ when infrared beam is not interrupted
D
Inverter-open collector
D
TTL compatible
D
Built-in voltage regulator
D
Case plastic polycarbonate-protected against
ambient light
D
No adjustment necessary
D
Applicable connector Molex 5267-NA (Serie)
(order number: 22-03-5035)
D
Aperture size 0.5 mm
Pin connection
96 12362
3
2
1
V
CC
V
O
GND
Handling Precautions
Connect a capacitor C of 100 nF between VS1 and ground in order to stabilize power supply voltage!
Order Instruction
Ordering Code Resolution (mm) / Aperture (mm) Remarks
TCYS5201 / 0.5
Rev. A5, 08–Jun–99
www.vishay.comDocument Number 83770
1 (5)
Page 2
TCYS5201
Vishay Telefunken
Absolute Maximum Ratings (T
= 25°C)
amb
Parameter Test Conditions Symbol Value Unit
Supply voltage V
Output voltage V
Low level output current I
Operation temperature range T
Storage temperature range T
Electrical Characteristics (T
= 25°C)
amb
OL
amb
stg
Parameter Test Conditions Symbol Min. Typ. Max. Unit
Supply voltage range V
High level supply current VS = 5 V
Low level supply current VS = 5 V
High level output voltage VS = 5 V, RL = 1 kW
Low level output voltage VS = 5 V, IOL = 16 mA
Switching frequency VS = 5 V, RL = 47 k
1)
Infrared beam interrupted
2)
Infrared beam not interrupted
1)
2)
1)
2)
V
V
W
S
I
S
I
S
OH
OL
f 3 KHz
4.5 5.5 V
4.5 V
Note: Operating conditions are stabilized after 100 ms of supply voltage turn on.
S
O
16 V
30 V
20 mA
–25 to +85
–40 to +100
15 30 mA
15 30 mA
0.18 0.35 V
°
C
°
C
Switching Characteristics
Parameter Test Conditions Symbol Typ. Unit
Rise time VS1 = 5 V, RL = 1 kW (see figure 1) t
S1 L
Fall time
V
= 5 V
S
I
C
95 10798
3
2
1
Figure 1. Test circuit and pin connection
0.1 µF
S
RL = 1 kΩ
I
O
95 10799
V
O
V
O
0
t
f
Figure 2. Pulse diagram
r
t
f
50.0 ns
20.0 ns
t
r
90%
50%
10%
www.vishay.com
2 (5) Rev. A5, 08–Jun–99
Document Number 83770
Page 3
TCYS5201
Vishay Telefunken
VCC=5.0V
T
=255C
amb
Direction of Insert
V
OL
01234567
Trip–Point X ( mm )
Figure 3. Trip point characteristic
Typical Characteristics (T
1.2
VS=5V
R
=10
W
L
1.1
96 12309
V
OH
X
Center of
Light
Target
= 25_C, unless otherwise specified)
amb
Figure 4. Frequency response
0.30
VS=5V
I
=16mA
OL
R
=300
W
0.25
L
Disk
2.0 mm
0.5 mm
0.5 mm
96 12311
1.0
0.9
Srel
I – Relative Supply Current
0.8
–30–20–10 0 10 20 30 40 50 60 70 80 90 100
T
– Ambient Temperature ( °C )96 11859
amb
Figure 5. Relative Supply Current vs.
Ambient Temperature
100
10
OL
I – Output Current ( mA )
1
0 0.05 0.10 0.15 0.20 0.25
VOL – Output Voltage ( V )96 11860
0.20
0.15
OL
V – Output Voltage ( mV )
0.1
–30–20–10 0 10 20 30 40 50 60 70 80 90 100
T
– Ambient Temperature ( °C )96 11861
amb
Figure 7. Output Voltage vs. Ambient Temperature
Figure 6. Output Current vs. Output Voltage
Rev. A5, 08–Jun–99
www.vishay.comDocument Number 83770
3 (5)
Page 4
TCYS5201
Vishay Telefunken

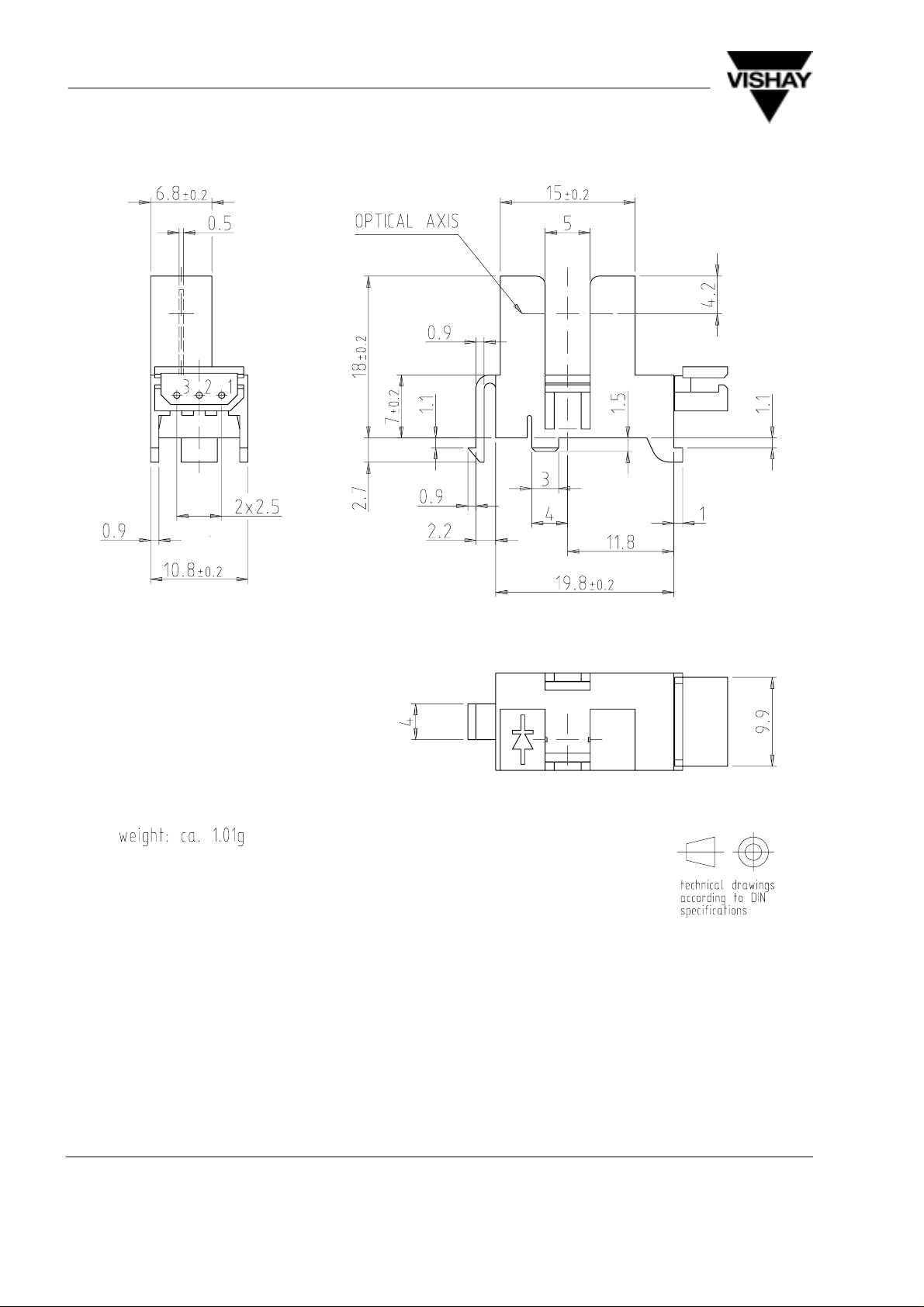

Dimensions of TCYS5201 in mm
1 = GND
2 = V
O
3 = V
CC
96 12101
www.vishay.com
4 (5) Rev. A5, 08–Jun–99
Document Number 83770
Page 5
TCYS5201
Vishay Telefunken
Ozone Depleting Substances Policy Statement
It is the policy of Vishay Semiconductor GmbH to
1. Meet all present and future national and international statutory requirements.
2. Regularly and continuously improve the performance of our products, processes, distribution and operating
systems with respect to their impact on the health and safety of our employees and the public, as well as
their impact on the environment.
It is particular concern to control or eliminate releases of those substances into the atmosphere which are known as
ozone depleting substances (ODSs ).
The Montreal Protocol (1987) and its London Amendments (1990) intend to severely restrict the use of ODSs and
forbid their use within the next ten years. V arious national and international initiatives are pressing for an earlier ban
on these substances.
Vishay Semiconductor GmbH has been able to use its policy of continuous improvements to eliminate the use of
ODSs listed in the following documents.
1. Annex A, B and list of transitional substances of the Montreal Protocol and the London Amendments respectively
2. Class I and II ozone depleting substances in the Clean Air Act Amendments of 1990 by the Environmental
Protection Agency (EPA) in the USA
3. Council Decision 88/540/EEC and 91/690/EEC Annex A, B and C (transitional substances) respectively.
Vishay Semiconductor GmbH can certify that our semiconductors are not manufactured with ozone depleting
substances and do not contain such substances.
