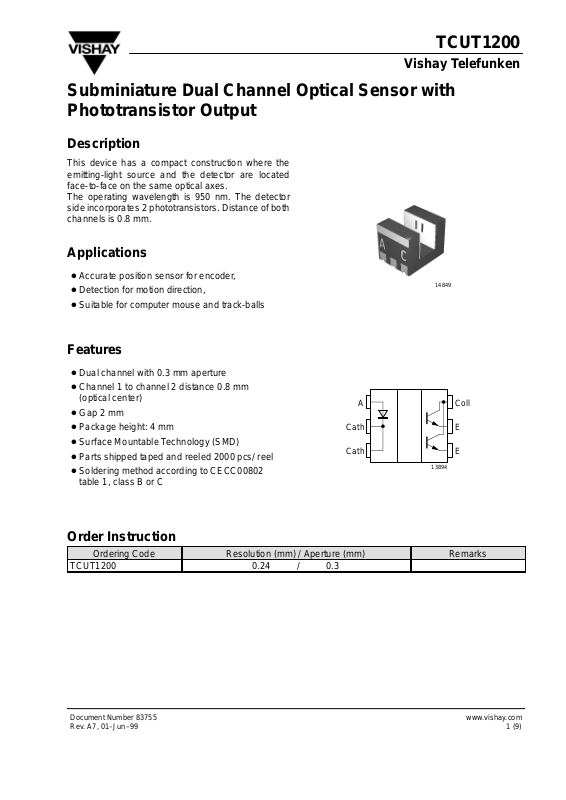

Page 1
TCUT1200
Vishay Telefunken
Subminiature Dual Channel Optical Sensor with
Phototransistor Output
Description
This device has a compact construction where the
emitting-light source and the detector are located
face-to-face on the same optical axes.
The operating wavelength is 950 nm. The detector
side incorporates 2 phototransistors. Distance of both
channels is 0.8 mm.
Applications
D
Accurate position sensor for encoder,
D
Detection for motion direction,
D
Suitable for computer mouse and track-balls
14849
Features
D
Dual channel with 0.3 mm aperture
D
Channel 1 to channel 2 distance 0.8 mm
(optical center)
D
Gap 2 mm
D
Package height: 4 mm
D
Surface Mountable Technology (SMD)
D
Parts shipped taped and reeled 2000 pcs/ reel
D
Soldering method according to CECC00802
table 1, class B or C
A
Cath
Cath
Order Instruction
Ordering Code Resolution (mm) / Aperture (mm) Remarks
TCUT1200 0.24 / 0.3
Coll
E
E
13894
Rev. A7, 01–Jun–99
www.vishay.comDocument Number 83755
1 (9)
Page 2
TCUT1200
Vishay Telefunken
Absolute Maximum Ratings
Input (Emitter)
Parameter Test Conditions Symbol Value Unit
Reverse voltage V
Forward current I
Forward surge current tp ≤ 10 ms I
Power dissipation T
Output (Detector)
Parameter Test Conditions Symbol Value Unit
Collector emitter voltage V
Emitter collector voltage V
Collector current I
Power dissipation T
Coupler
Parameter Test Conditions Symbol Value Unit
Total power dissipation T
Ambient temperature range T
Storage temperature range T
Soldering temperature t ≤ 5 s T
≤ 25°C P
amb
≤ 25°C P
amb
≤ 25°C P
amb
R
F
FSM
V
CEO
ECO
C
V
tot
amb
stg
sd
5 V
25 mA
100 mA
75 mW
70 V
7 V
20 mA
75 mW
150 mW
–40 to +85
–40 to +100
230
°
C
°
C
°
C
www.vishay.com
2 (9) Rev. A7, 01–Jun–99
Document Number 83755
Page 3
TCUT1200
Vishay Telefunken
Electrical Characteristics (T
amb
= 25°C)
Input (Emitter)
Parameter Test Conditions Symbol Min. Typ. Max. Unit
Forward voltage IF = 15 mA V
Reverse current VR = 5 V I
Junction capacitance VR = 0 V, f = 1 MHz C
Output (Detector)
Parameter Test Conditions Symbol Min. Typ. Max. Unit
Collector emitter voltage IC = 1 mA V
Emitter collector voltage IE = 100 mA V
Collector emitter cut-off
VCE = 25 V, IF = 0, E = 0 I
current
Coupler
Parameter Test Conditions Symbol Min. Typ. Max. Unit
Collector current per
channel
Collector emitter
saturation voltage
VCE = 5 V, IF = 15 mA I
IF = 15 mA, IC = 0.05 mA V
F
R
j
CEO
ECO
CEO
C
CEsat
1.2 1.5 V
10
50 pF
70 V
7 V
10 100 nA
300 500
0.4 V
m
A
m
A
200
150
100
50
Emitter / Detector
tot
P – Total Power Dissipation ( mW )
0
0 255075100
T
– Ambient Temperature ( °C )13664
amb
Figure 1. Derating diagram
Rev. A7, 01–Jun–99
Sensor
I
= 15 mA + VC = 5 V
F
10 k
Figure 2. Application example
V
W
E
GNDGND
74HCT14
U
Q
13887
www.vishay.comDocument Number 83755
3 (9)
Page 4
TCUT1200
Vishay Telefunken
Typical Characteristics (T
1000.0
100.0
10.0
1.0
F
I – Forward Current ( mA )
0.1
0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
VF – Forward Voltage ( V )13660
Figure 3. Forward Current vs. Forward Voltage
CEsat
V – Collector Emitter Saturation Voltage ( V )
0.180
0.160
0.140
0.120
0.100
0.080
0.060
0.040
0.020
IF=15mA
I
=50mA
C
0
–40 –20 0 20 40 60 80 100
T
– Ambient Temperature ( °C )13662
amb
= 25_C, unless otherwise specified)
amb
1.3
1.2
1.1
1.0
F
0.9
V – Forward Voltage ( V )
0.8
–40 –20 0 20 40 60 80 100
T
amb
Figure 6. Forward Voltage vs. Ambient Temperature
1.0
0.9
VCE=5V
0.8
0.7
0.6
0.5
0.4
0.3
0.2
C
I – Collector Current ( mA )
0.1
0
–40 –20 0 20 40 60 80 100
T
amb
IF=15mA
– Ambient Temperature ( °C )13661
IF=15mA
IF=5mA
– Ambient Temperature ( °C )13663
Figure 4. Collector Emitter Saturation Voltage vs.
Figure 7. Collector Current vs. Ambient Temperature
Ambient Temperature
10.000
VCE=5V
1.000
0.100
0.010
C
I – Collector Current ( mA )
0.001
0.1 1.0 10.0 100.0
IF – Forward Current ( mA )13665
Figure 5. Collector Current vs. Forward Current
www.vishay.com
4 (9) Rev. A7, 01–Jun–99
10000
VCE=10V
I
=0
1000
100
with open Base ( nA )
CEO
I – Collector Dark Current,
F
10
1
0 102030405060708090100
T
– Ambient Temperature ( °C )96 11875
amb
Figure 8. Collector Dark Current vs. Ambient Temperature
Document Number 83755
Page 5
1.25
TCUT1200
Vishay Telefunken
1.00
0.75
0.50
0.25
Crel
I – Relative Collector Current
0
–1.5 –1.0 –0.5 0.0 0.5 1.0 1.5
s – Dis placement ( mm )13657

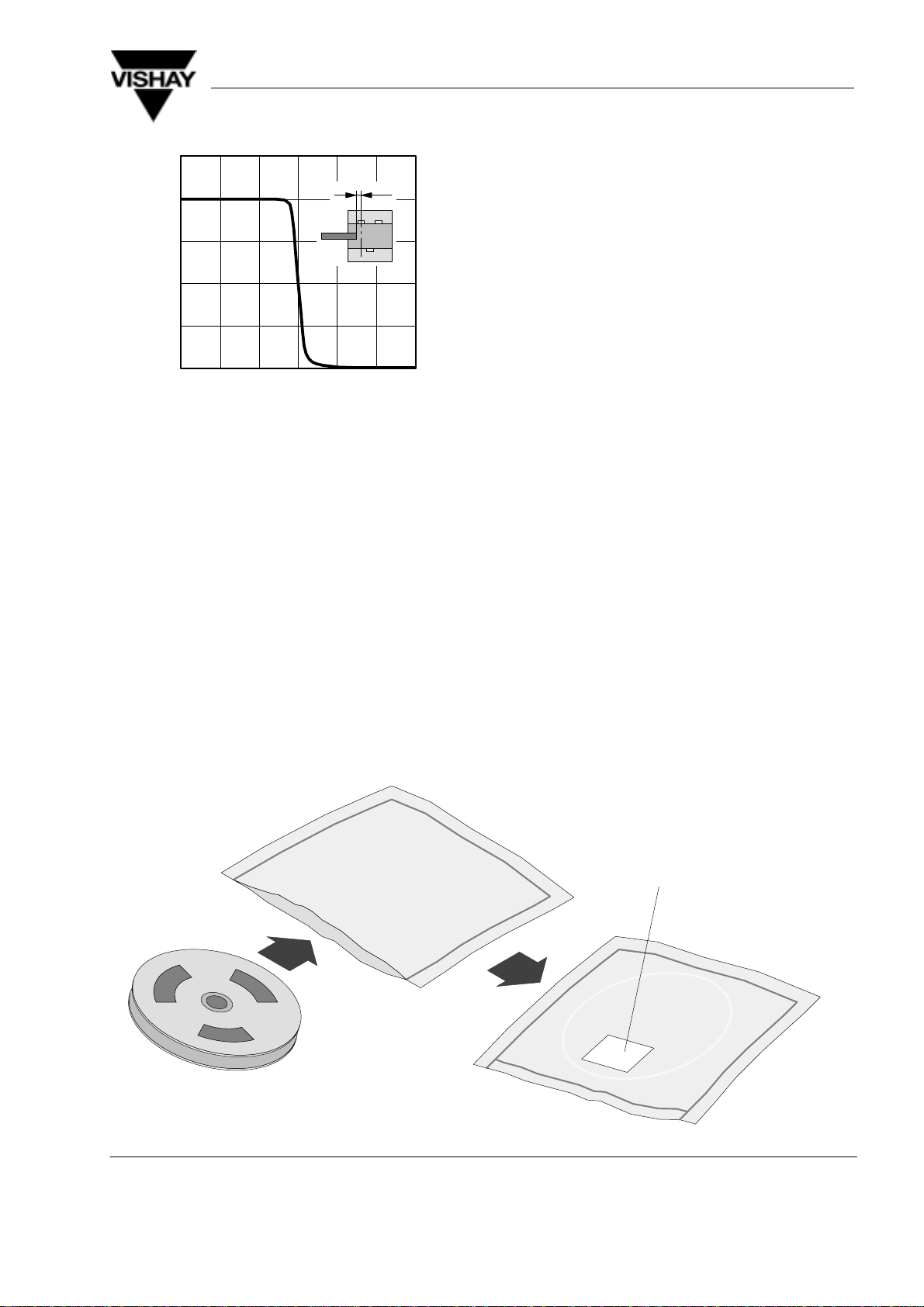

Figure 9. Relative Collector Current vs. Displacement
s
Packing
Dampproof packing
Products will be packed in anti-humidity aluminium bags to prevent the products from moisture absorption
during transportation and storage. Each bag contains a desiccant with moisture indicators. In the event bags
absorb moisture, the indicators change their color from blue to pink.
Recommended method of storage
Dry box storage is recommended to prevent the parts from moisture absorption. The following conditions
should be preserved if dry boxes are not available.
Storage temperature: 10 to 30°C Storage humidity: 60% RH max
In case of moisture absorption the device will recover to the former condition by drying under the following
recommended conditions:
Taped version: 60°C/ 48 h Untaped version: 60°C/ 48 h
Aluminium bag
Label
Reel
14940
Rev. A7, 01–Jun–99
www.vishay.comDocument Number 83755
5 (9)
Page 6
TCUT1200
Vishay Telefunken

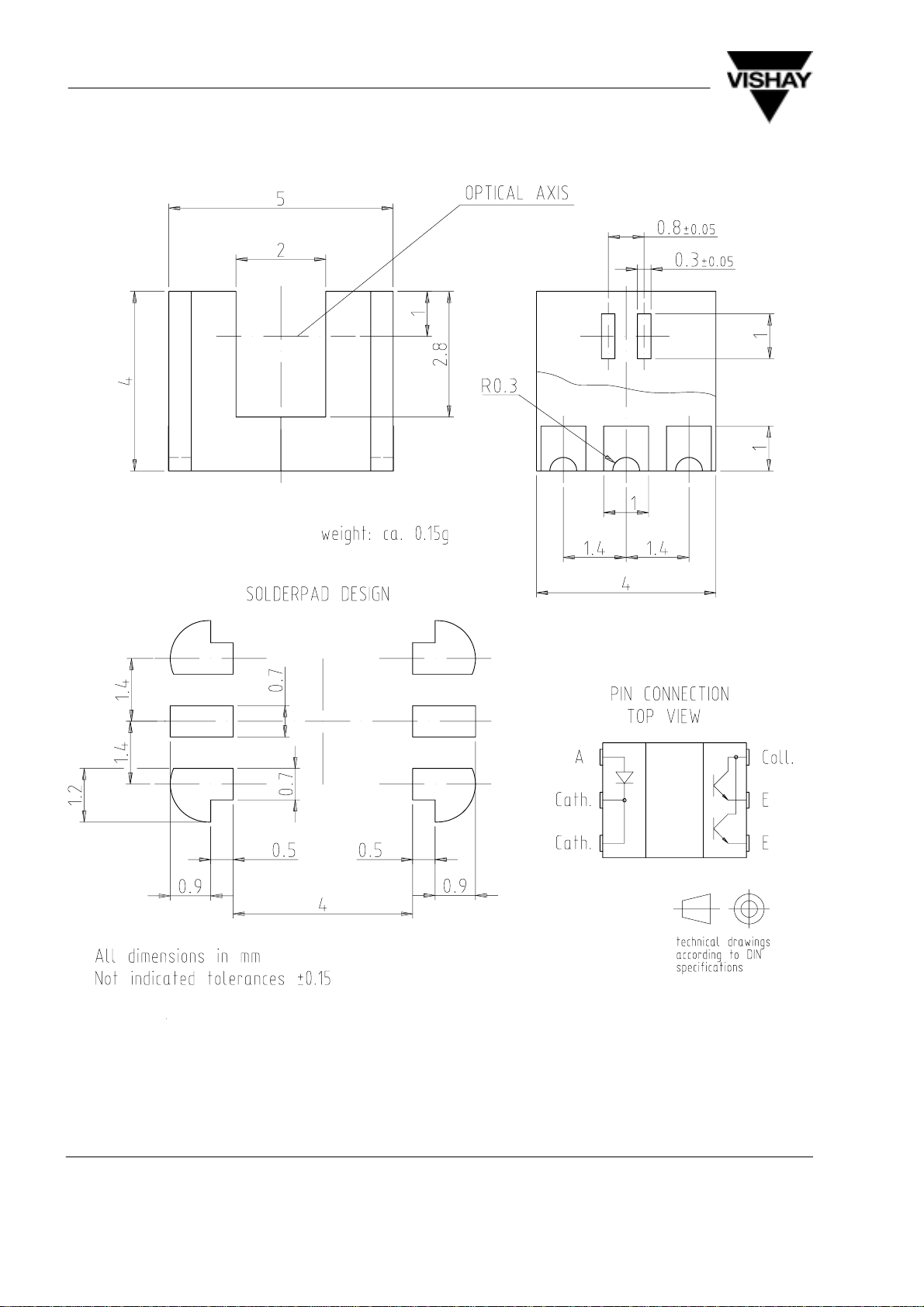

Dimensions of TCUT1200 in mm
12898
www.vishay.com
6 (9) Rev. A7, 01–Jun–99
Document Number 83755
Page 7

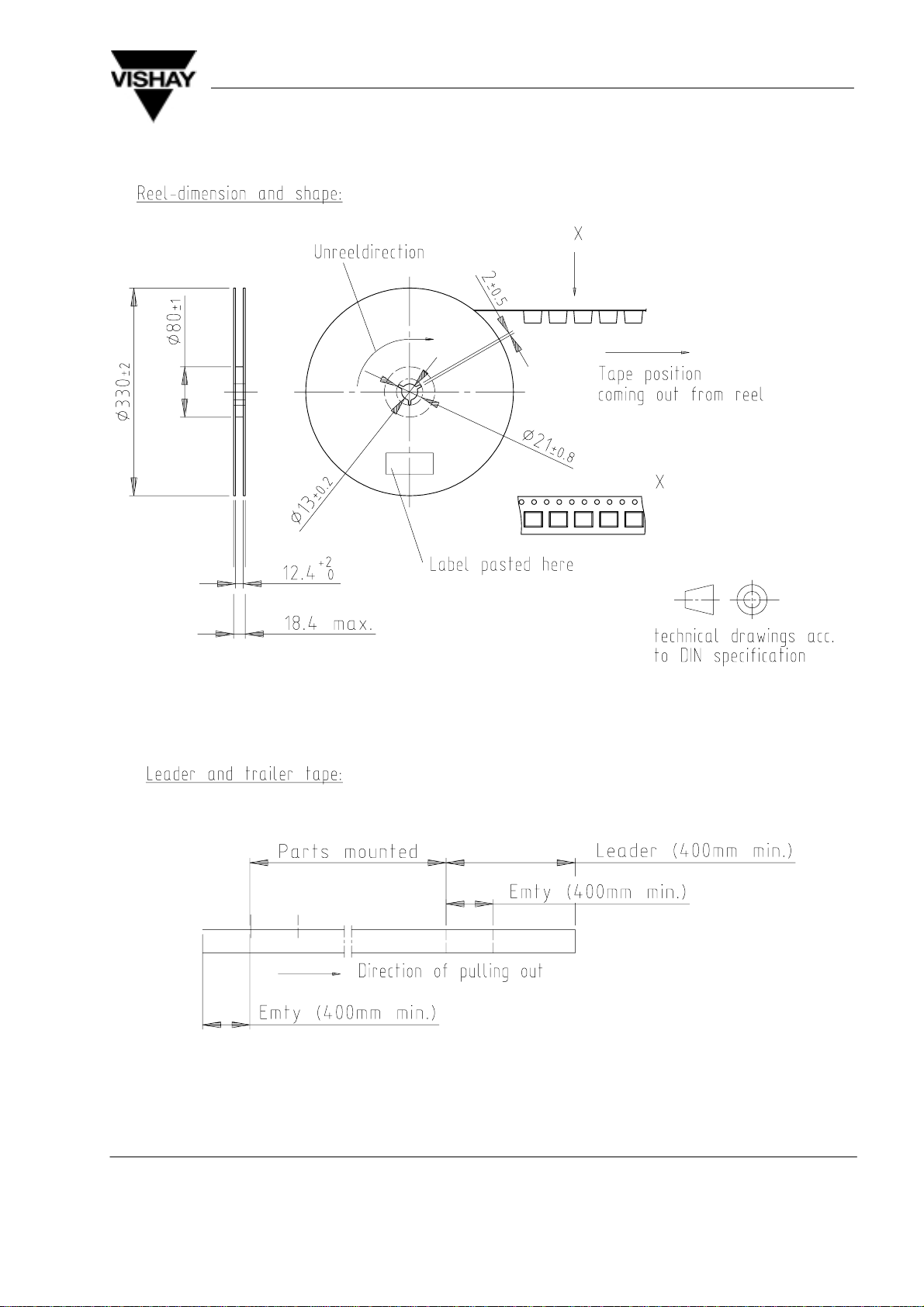

Dimensions of Reel and Shape in mm
TCUT1200
Vishay Telefunken
Rev. A7, 01–Jun–99
13722
www.vishay.comDocument Number 83755
7 (9)
Page 8
TCUT1200
Vishay Telefunken

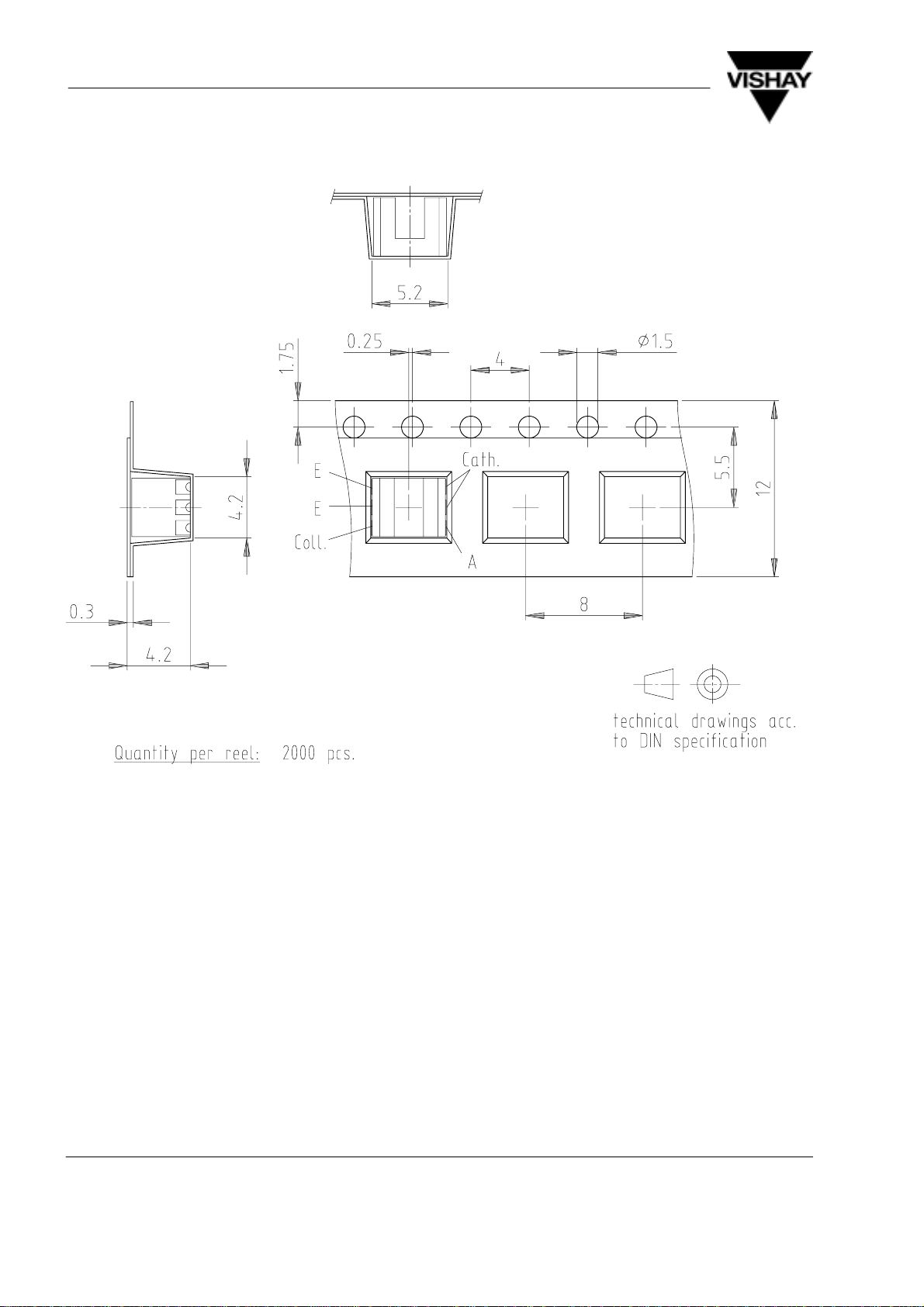

Dimensions of Tape in mm
13720
www.vishay.com
8 (9) Rev. A7, 01–Jun–99
Document Number 83755
Page 9
TCUT1200
Vishay Telefunken
Ozone Depleting Substances Policy Statement
It is the policy of Vishay Semiconductor GmbH to
1. Meet all present and future national and international statutory requirements.
2. Regularly and continuously improve the performance of our products, processes, distribution and operating
systems with respect to their impact on the health and safety of our employees and the public, as well as
their impact on the environment.
It is particular concern to control or eliminate releases of those substances into the atmosphere which are known as
ozone depleting substances (ODSs).
The Montreal Protocol (1987) and its London Amendments (1990) intend to severely restrict the use of ODSs and
forbid their use within the next ten years. V arious national and international initiatives are pressing for an earlier ban
on these substances.
Vishay Semiconductor GmbH has been able to use its policy of continuous improvements to eliminate the use of
ODSs listed in the following documents.
1. Annex A, B and list of transitional substances of the Montreal Protocol and the London Amendments respectively
2. Class I and II ozone depleting substances in the Clean Air Act Amendments of 1990 by the Environmental
Protection Agency (EPA) in the USA
3. Council Decision 88/540/EEC and 91/690/EEC Annex A, B and C (transitional substances) respectively.
Vishay Semiconductor GmbH can certify that our semiconductors are not manufactured with ozone depleting
substances and do not contain such substances.
We reserve the right to make changes to improve technical design and may do so without further notice.
Parameters can vary in different applications. All operating parameters must be validated for each customer application
by the customer. Should the buyer use Vishay Telefunken products for any unintended or unauthorized application, the
buyer shall indemnify Vishay Telefunken against all claims, costs, damages, and expenses, arising out of, directly or
indirectly , any claim of personal damage, injury or death associated with such unintended or unauthorized use.
Rev. A7, 01–Jun–99
Vishay Semiconductor GmbH, P.O.B. 3535, D-74025 Heilbronn, Germany
Telephone: 49 (0)7131 67 2831, Fax number: 49 (0)7131 67 2423
www.vishay.comDocument Number 83755
9 (9)
