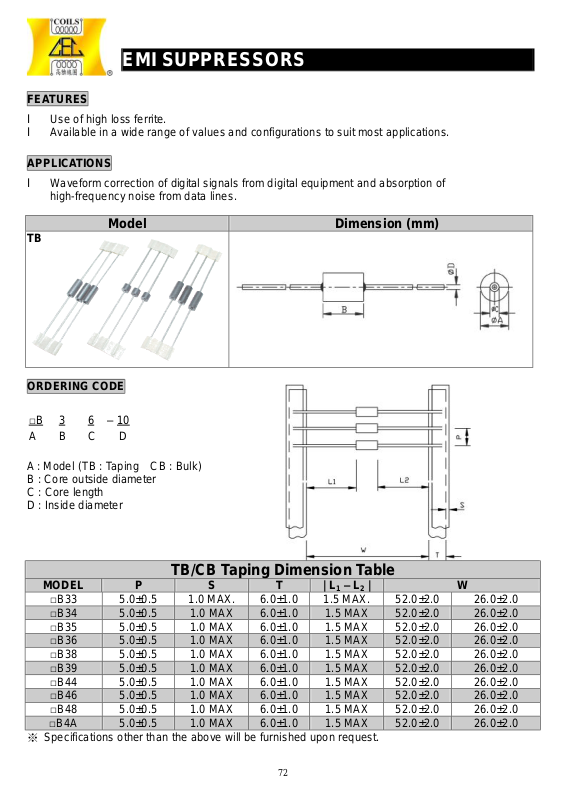

EMI SUPPRESSORS
FEATURES
l Use of high loss ferrite.
l Available in a wide range of values and configurations to suit most applications.
APPLICATIONS
l Waveform correction of digital signals from digital equipment and absorption of
high-frequency noise from data lines.

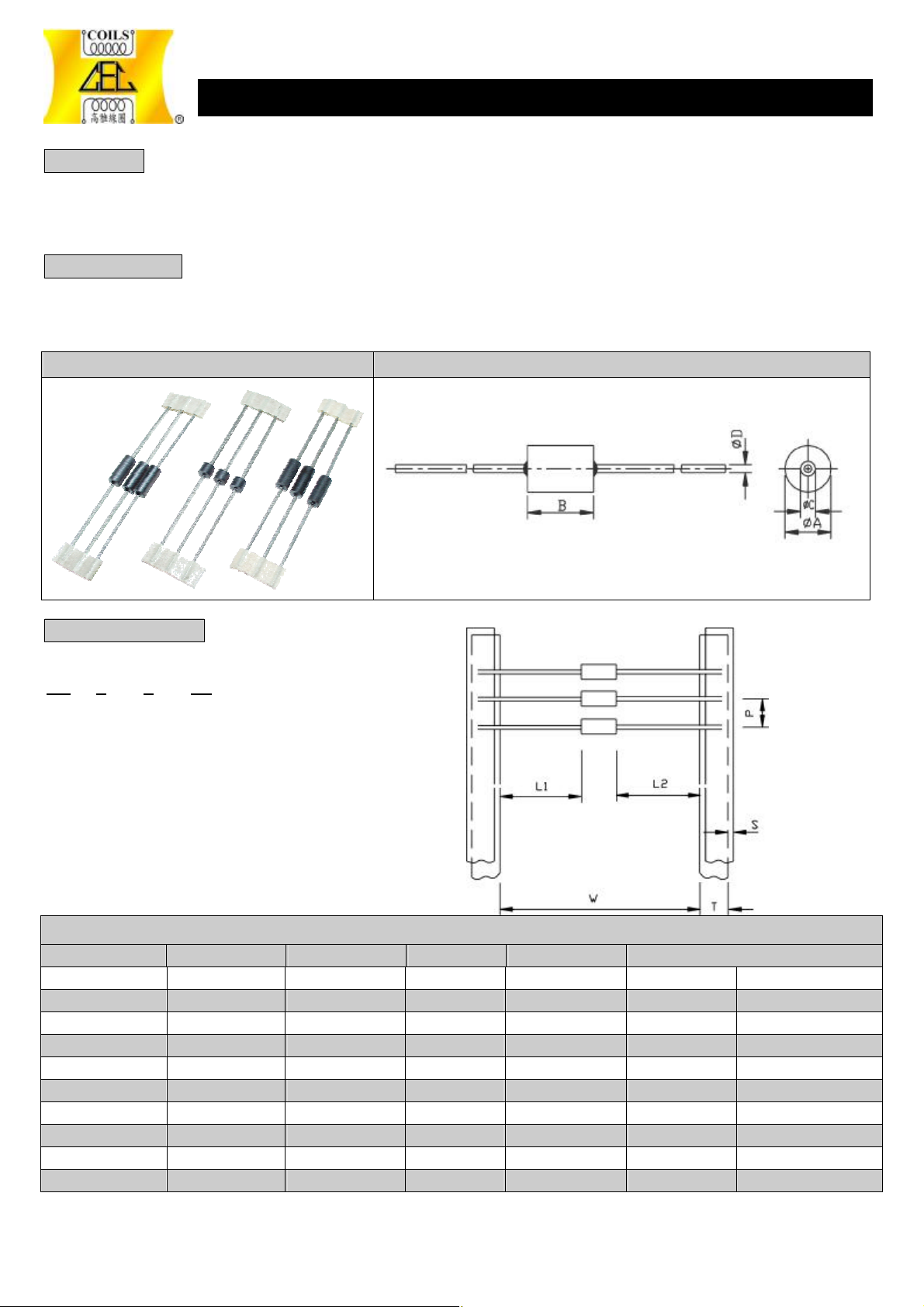

Model Dimension (mm)
TB
ORDERING CODE
□B 3 6 – 10
A B C D
A : Model (TB : Taping CB : Bulk)
B : Core outside diameter
C : Core length
D : Inside diameter
TB/CB Taping Dimension Table
MODEL P S T | L1 – L2 | W
□B33 5.0±0.5 1.0 MAX. 6.0±1.0 1.5 MAX. 52.0±2.0 26.0±2.0
□B34 5.0±0.5 1.0 MAX 6.0±1.0 1.5 MAX 52.0±2.0 26.0±2.0
□B35 5.0±0.5 1.0 MAX 6.0±1.0 1.5 MAX 52.0±2.0 26.0±2.0
□B36 5.0±0.5 1.0 MAX 6.0±1.0 1.5 MAX 52.0±2.0 26.0±2.0
□B38 5.0±0.5 1.0 MAX 6.0±1.0 1.5 MAX 52.0±2.0 26.0±2.0
□B39 5.0±0.5 1.0 MAX 6.0±1.0 1.5 MAX 52.0±2.0 26.0±2.0
□B44 5.0±0.5 1.0 MAX 6.0±1.0 1.5 MAX 52.0±2.0 26.0±2.0
□B46 5.0±0.5 1.0 MAX 6.0±1.0 1.5 MAX 52.0±2.0 26.0±2.0
□B48 5.0±0.5 1.0 MAX 6.0±1.0 1.5 MAX 52.0±2.0 26.0±2.0
□B4A 5.0±0.5 1.0 MAX 6.0±1.0 1.5 MAX 52.0±2.0 26.0±2.0
※ Specifications other than the above will be furnished upon request.
Page 2
73
EMI SUPPRESSORS
Specification table of EMI Suppressors TB/CB
MODEL
TB33-10
TB33-13
TB34-09
TB34-10
TB35-10
TB35-13
TB36-08
TB36-10
TB36-13
TB38-10
TB39-10
TB44-10
TB46-10
TB48-10 850500 100
850501 110
TB4A-10 850502 120
850503 138
SAMPLE
NO.
850456 40
850457 46
850458 48
850459 33
850460 36
850461 40
850462 38
850463 42
850464 24
850465 60
850466 68
850467 70
850468 56
850469 62
850470 68
850471 58
850472 68
850473 72
850474 48
850475 56
850476 52
850477 40
850478 28
850479 82
850480 95
850481 92
850482 78
850483 80
850484 86
850485 56
850486 64
850487 66
850488 88
850489 100
850490 115
850491 118
850492 95
850493 112
850494 118
850495 116
850496 56
850497 62
850498 80
850499 85
IMPEDANCE
|Z|(Ω)at 23℃
100MHz typ.
ØA B ØC ØD
3.50±0.20
3.50±0.20 4.50±0.20
3.5±0.20 5.00±0.30
3.50±0.20 6.00±0.30
3.50±0.20 8.00±0.30 1.00±0.10 0.6
3.50±0.20 9.00±0.30 1.00±0.10 0.6
4.00±0.20
Test Instrument: HP-4191A or HP4395A
Specifications other than the above will be furnished upon request.※
DIMENSIONS (mm)
3.00±0.20
4.00±0.20
6.00±0.30
8.00±0.30
10.00±0.30
1.00±0.10 0.6
1.30±0.15 0.6
0.90±0.10
0.6
1.00±0.10
1.00±0.10
0.6
1.30±0.15
0.80±0.10
1.00±0.10
1.30±0.15
1.00±0.10 0.6
0.6
Page 3
74
EMI SUPPRESSORS

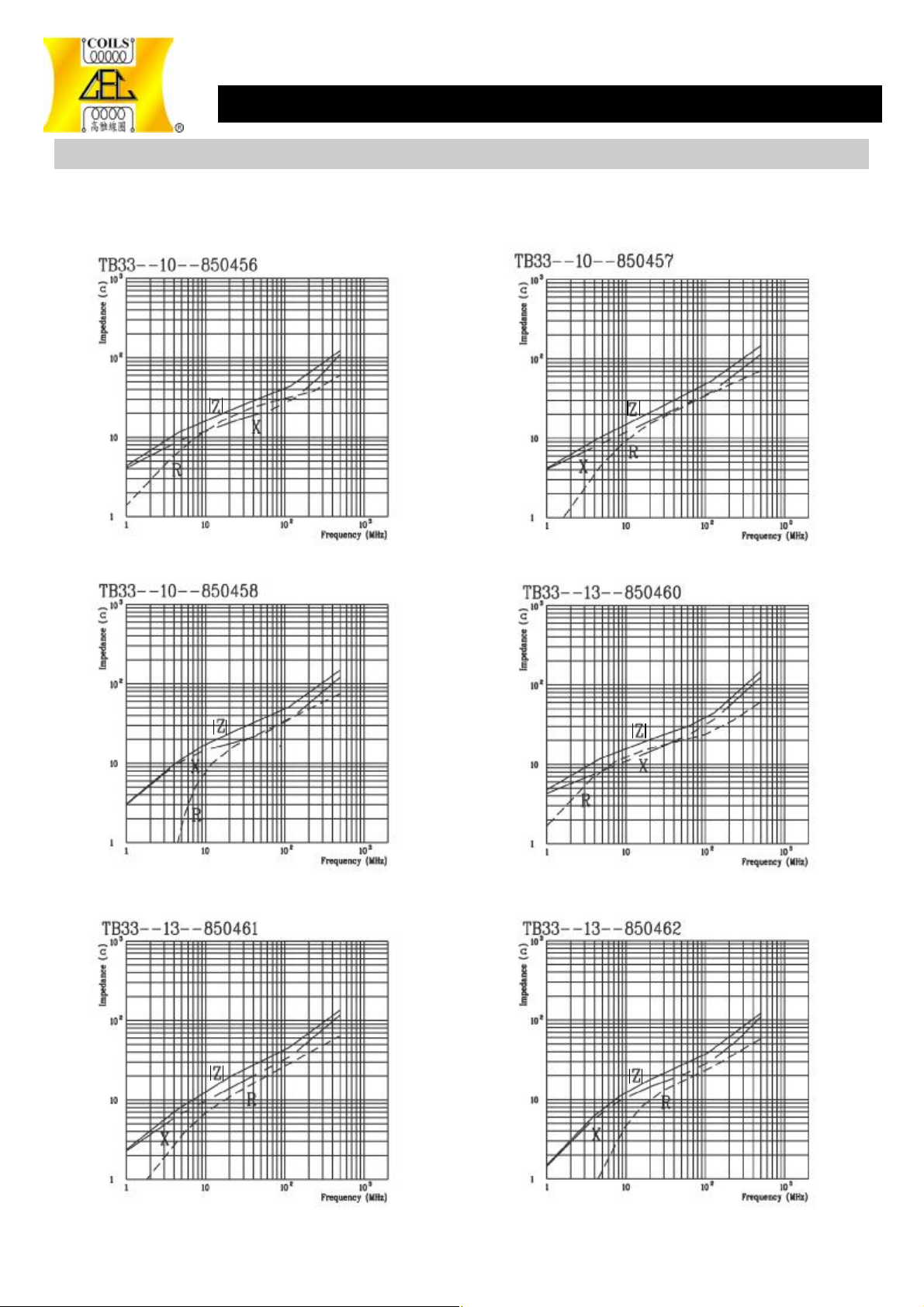

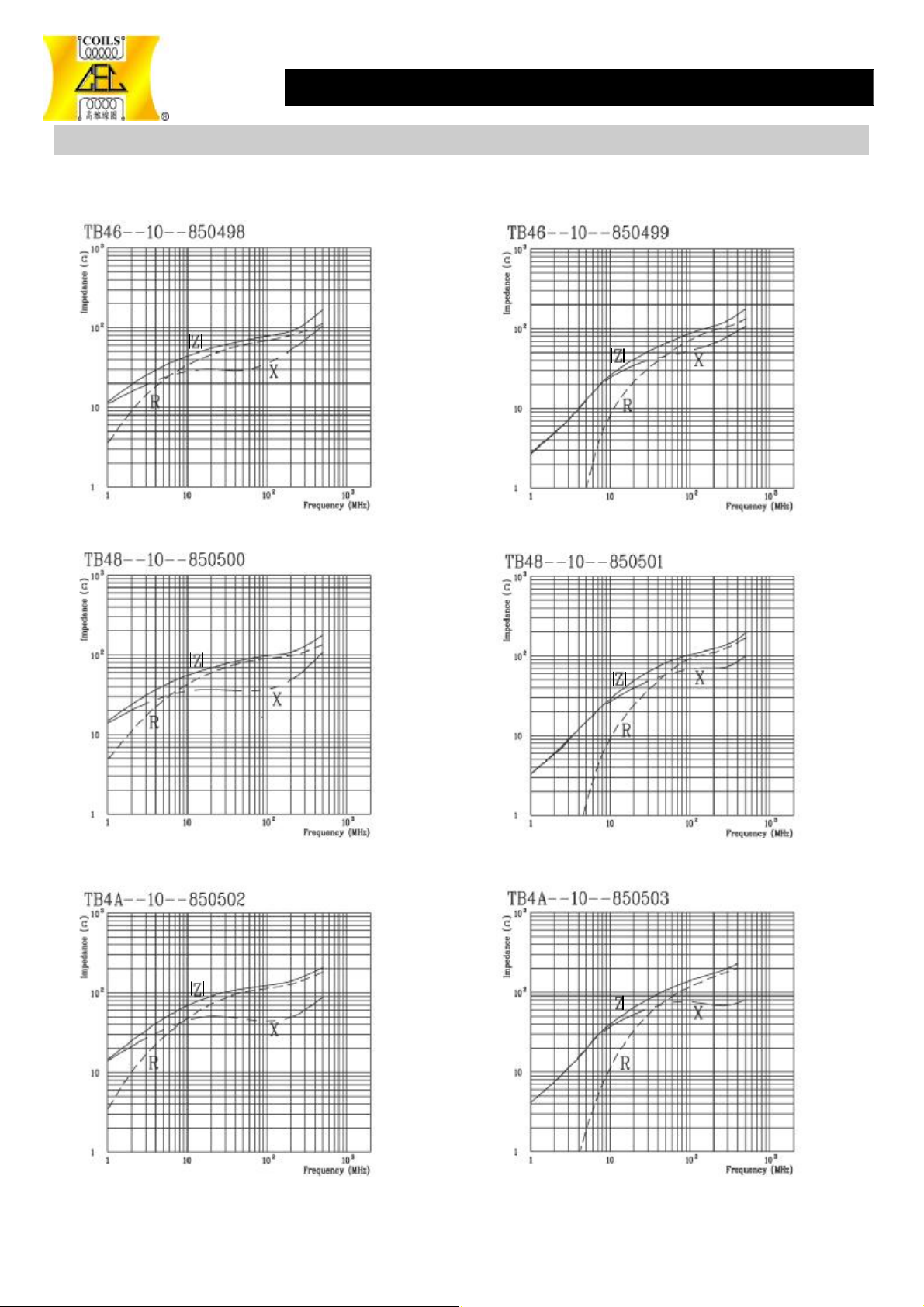

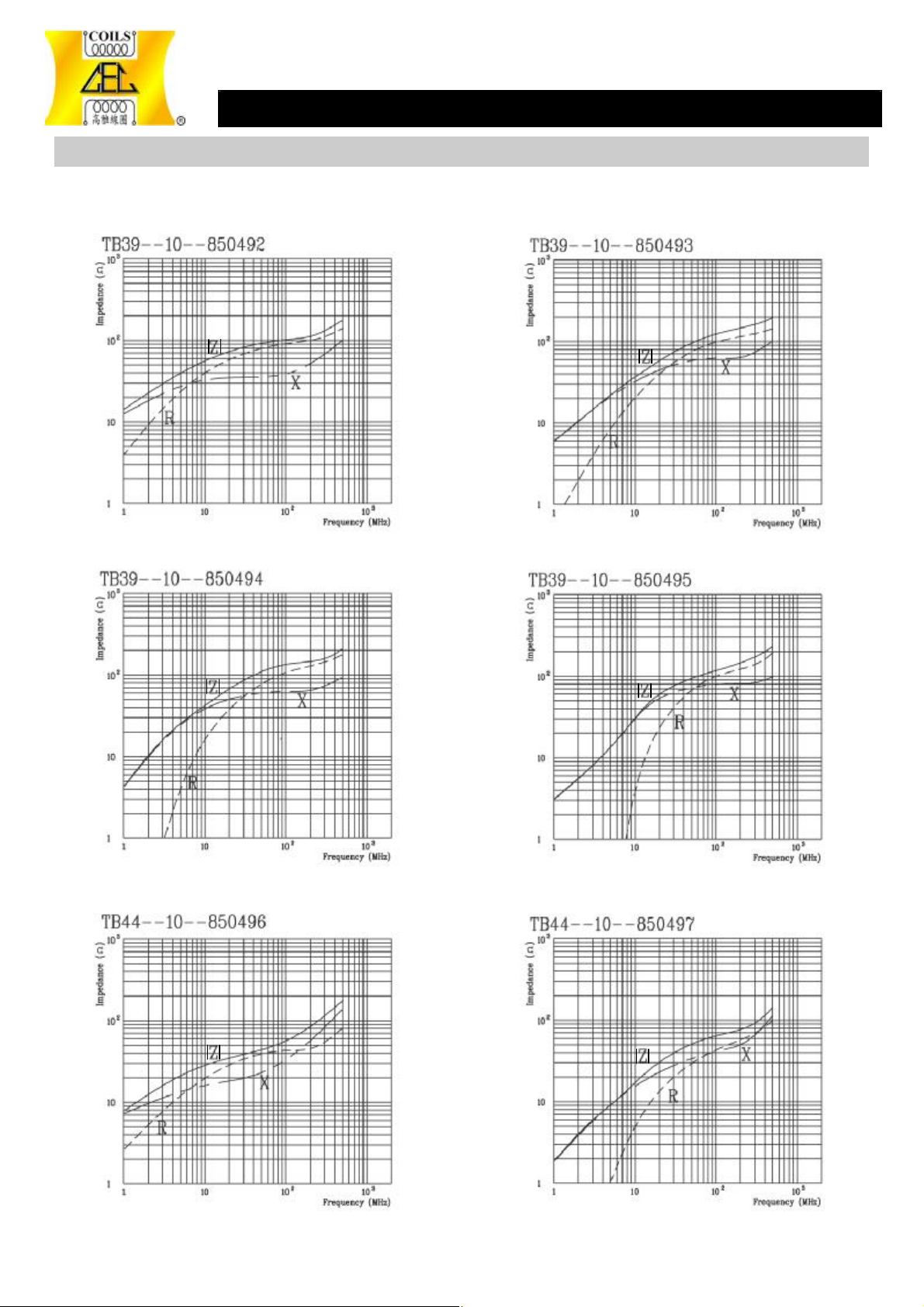

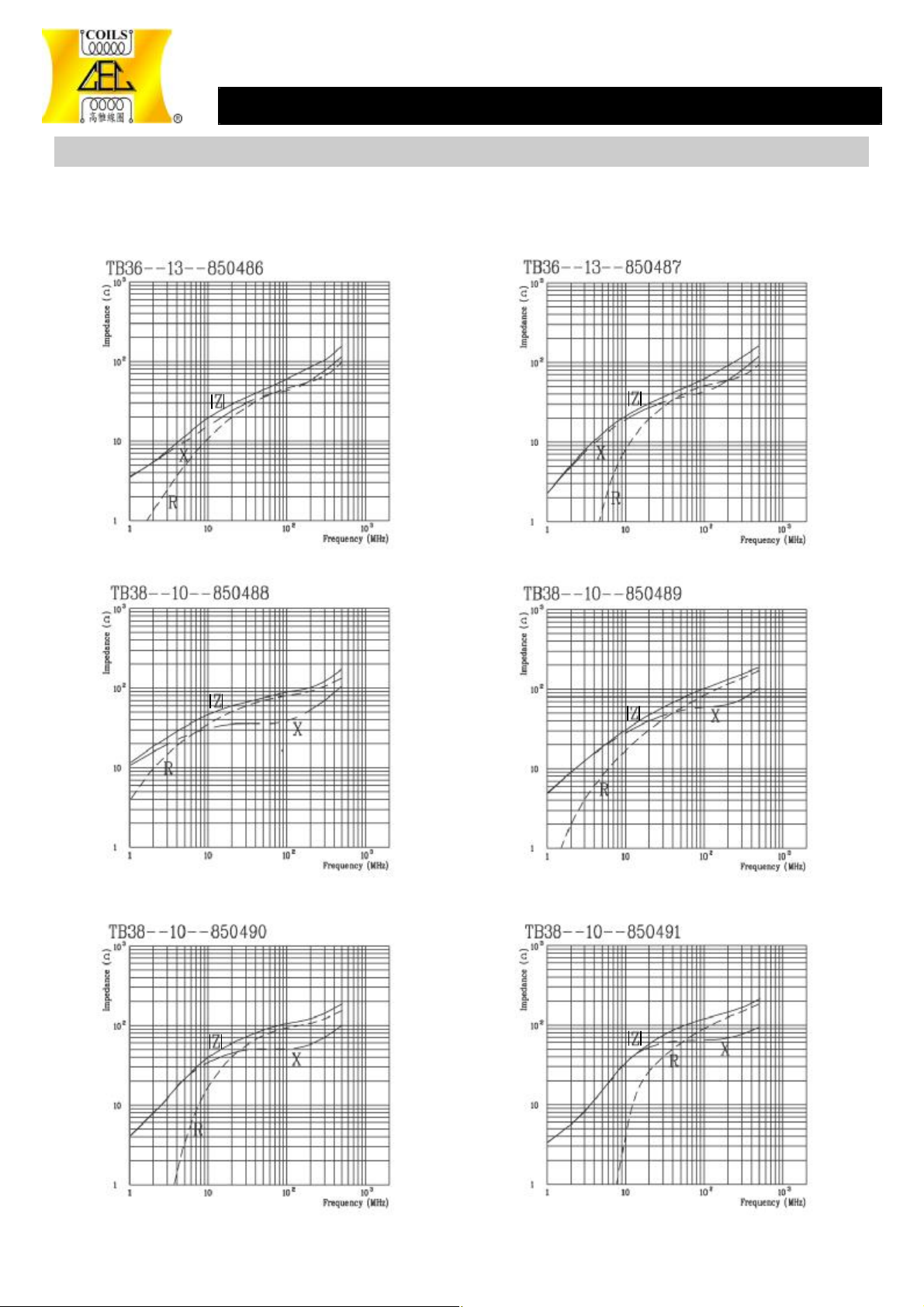

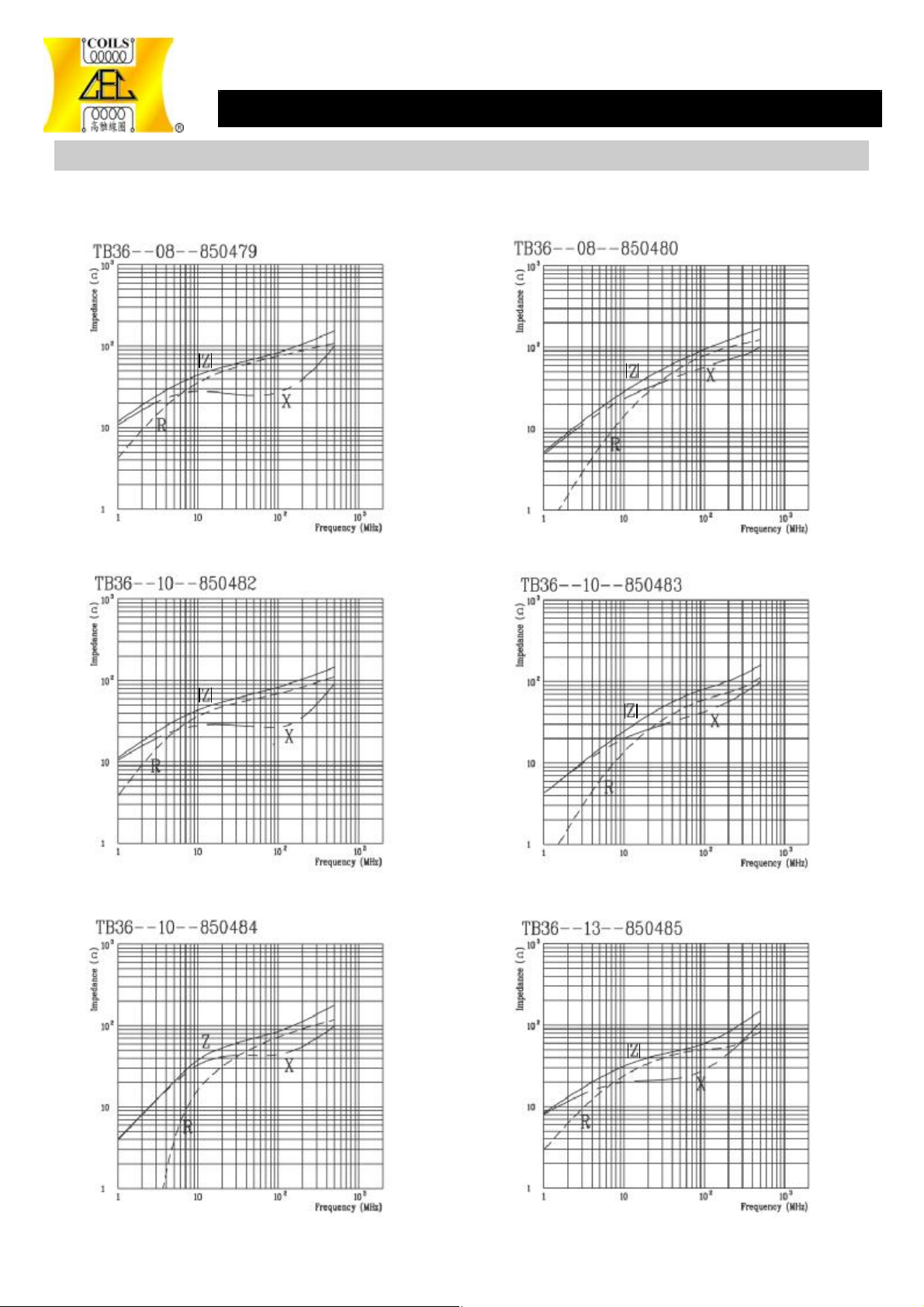

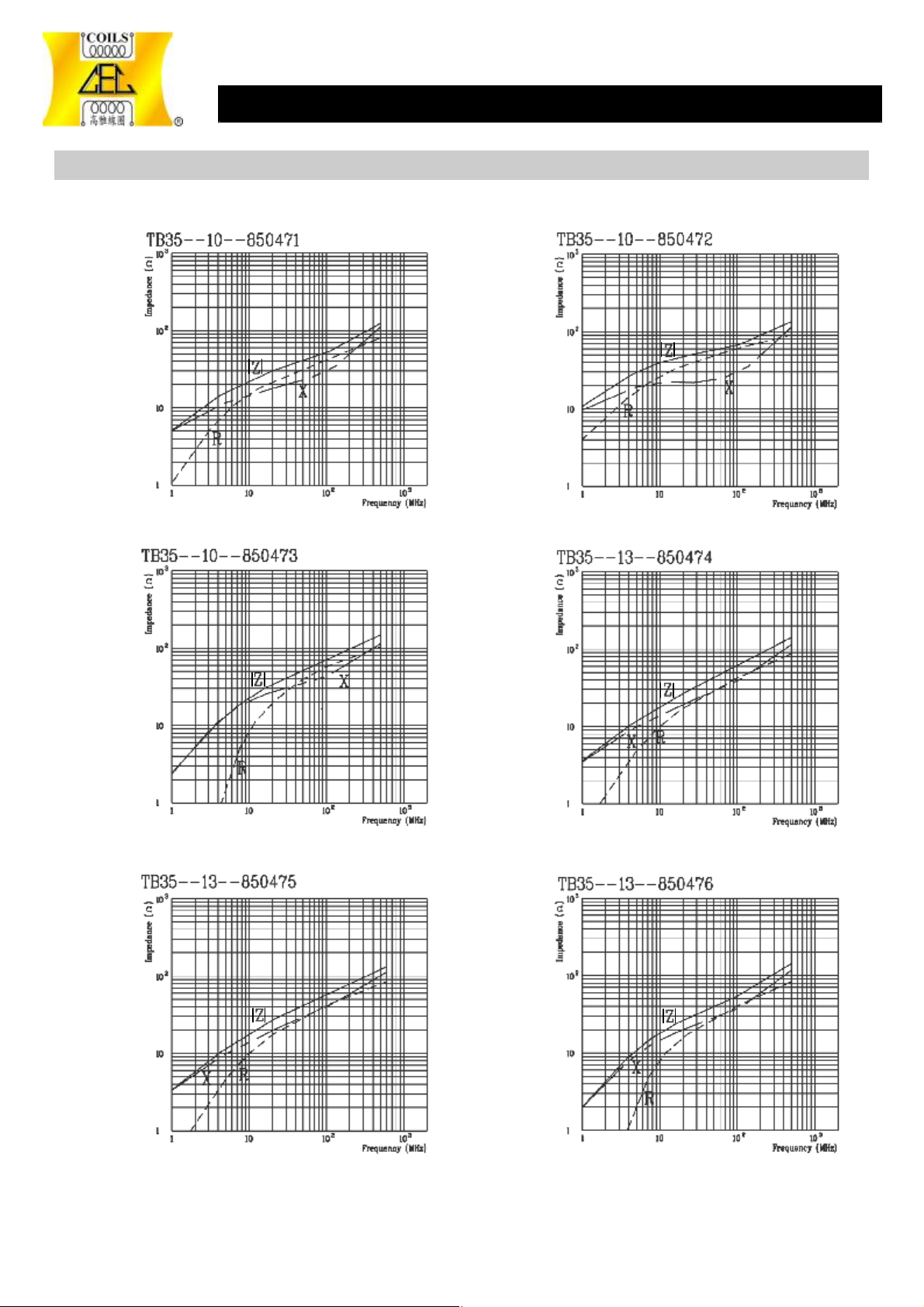

IMPEDANCE Vs FREQUENCY CHARACTERISTICS OF TB/CB SERIES
TYPICAL ELECTRICAL CHARACTERISTICS
|Z|, R, X
※ Specifications other than the above will be furnished upon request.
FREQUENCY CHARACTERISTICS
VS.
Page 4
75
EMI SUPPRESSORS

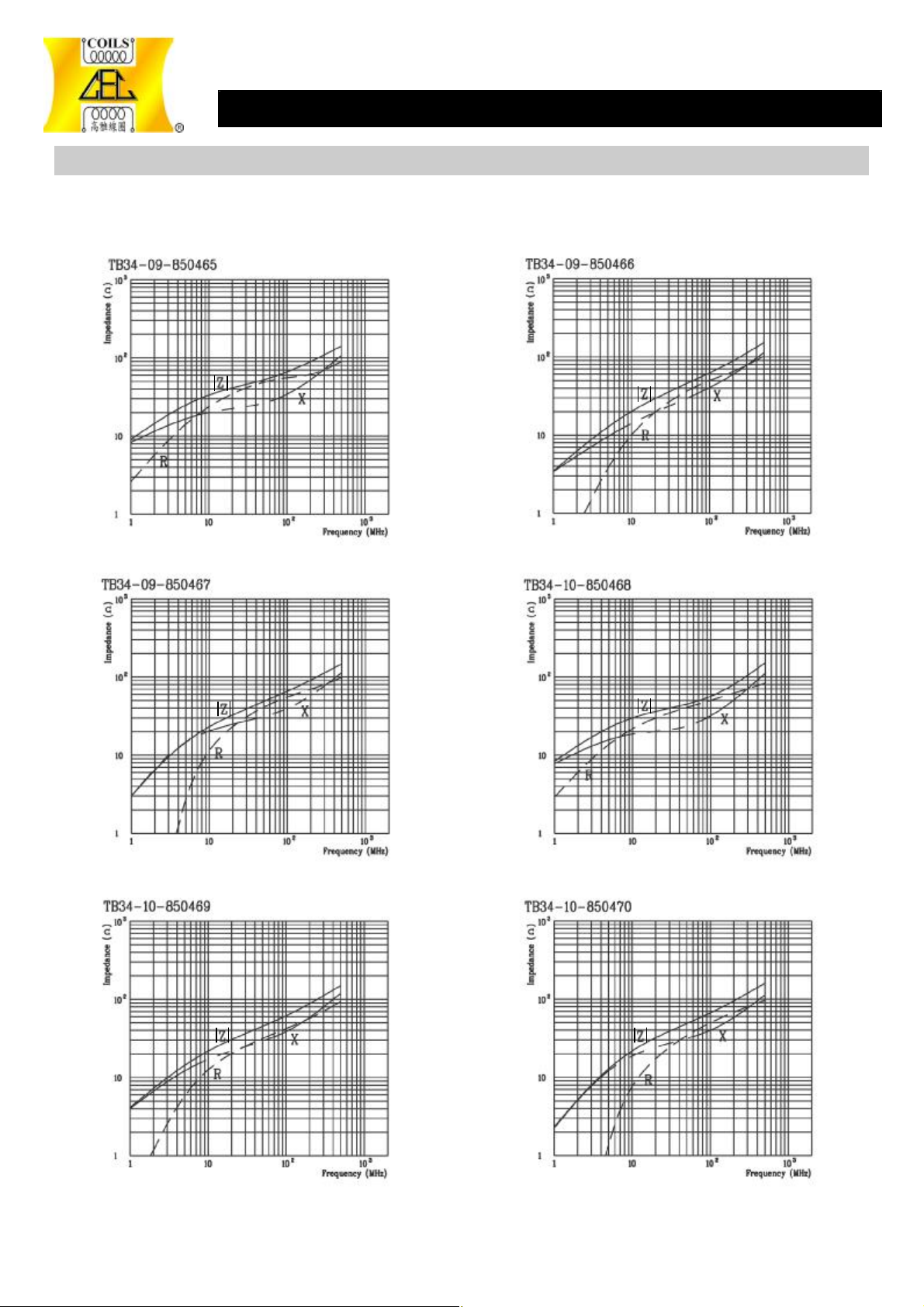

IMPEDANCE Vs FREQUENCY CHARACTERISTICS OF TB/CB SERIES
